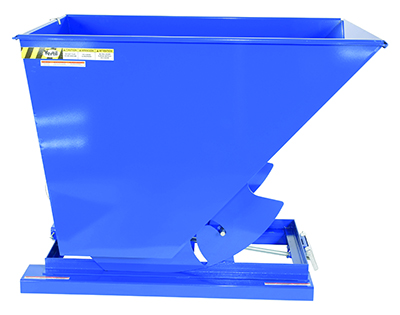

D Style - Self-Dumping Steel Hoppers with Bumper Release

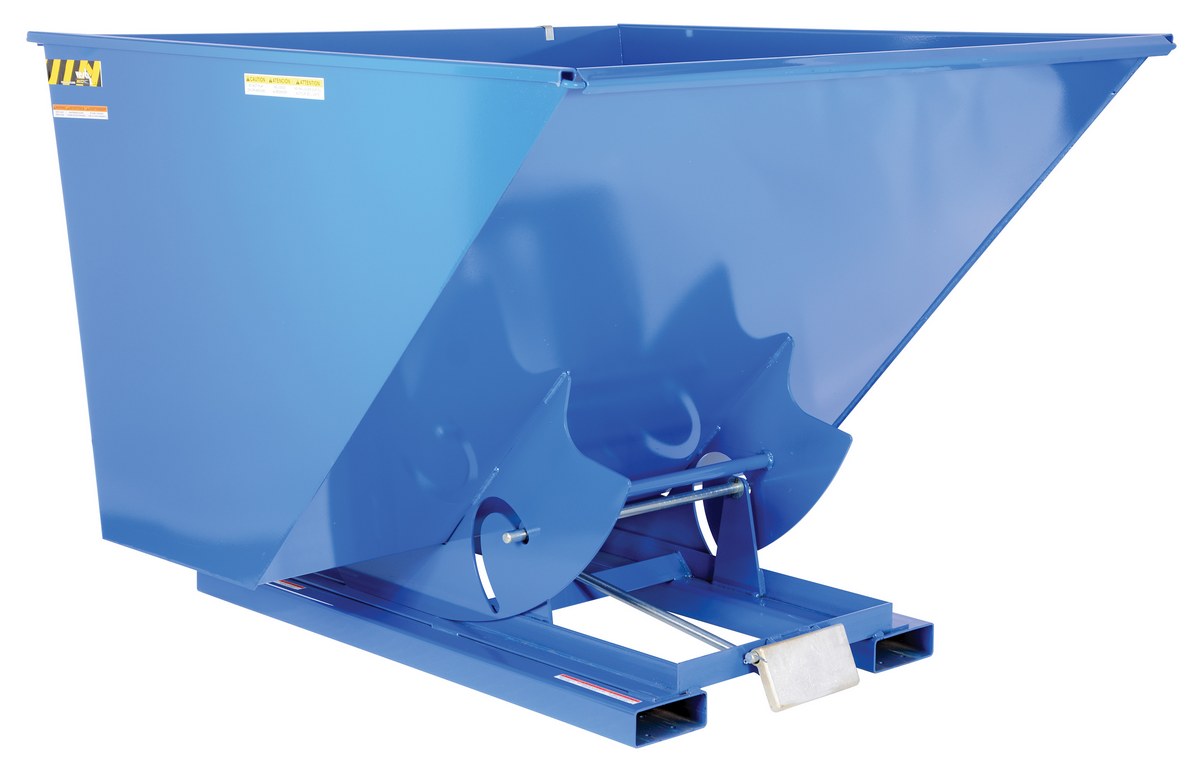

model: D-250-HD

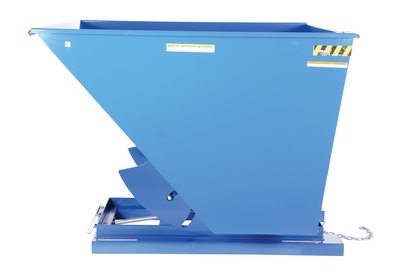

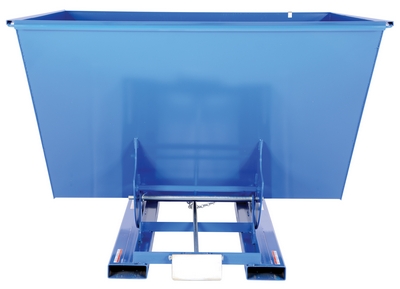

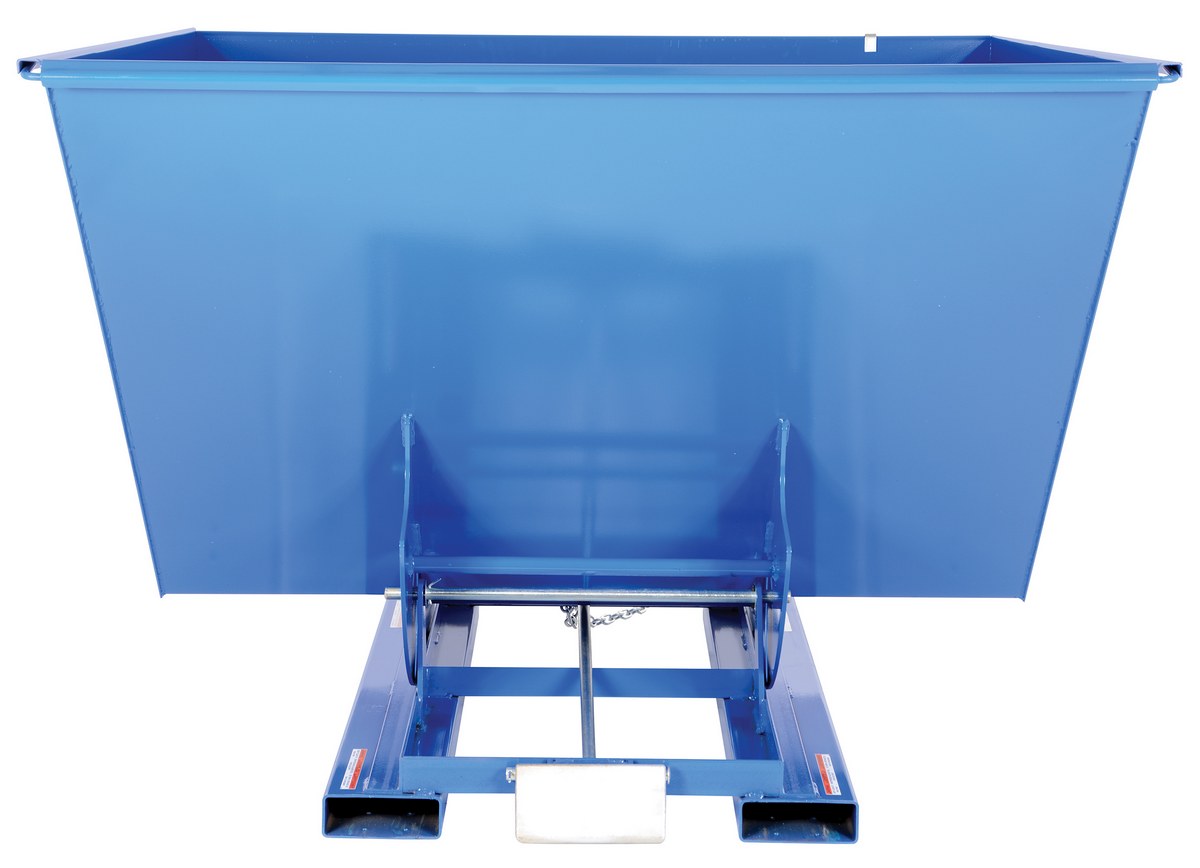

D-250-HD_D.jpg D-250-HD_A.jpg D-250-HD_B.jpg D-250-HD_C.jpg D-250-HD_E.jpg D-250-HD_F.jpg D-250-HD_G.jpg D-HOPPER_A.gif More Images +
D Style - Self-Dumping Steel Hoppers with Bumper Release
SERIES: D

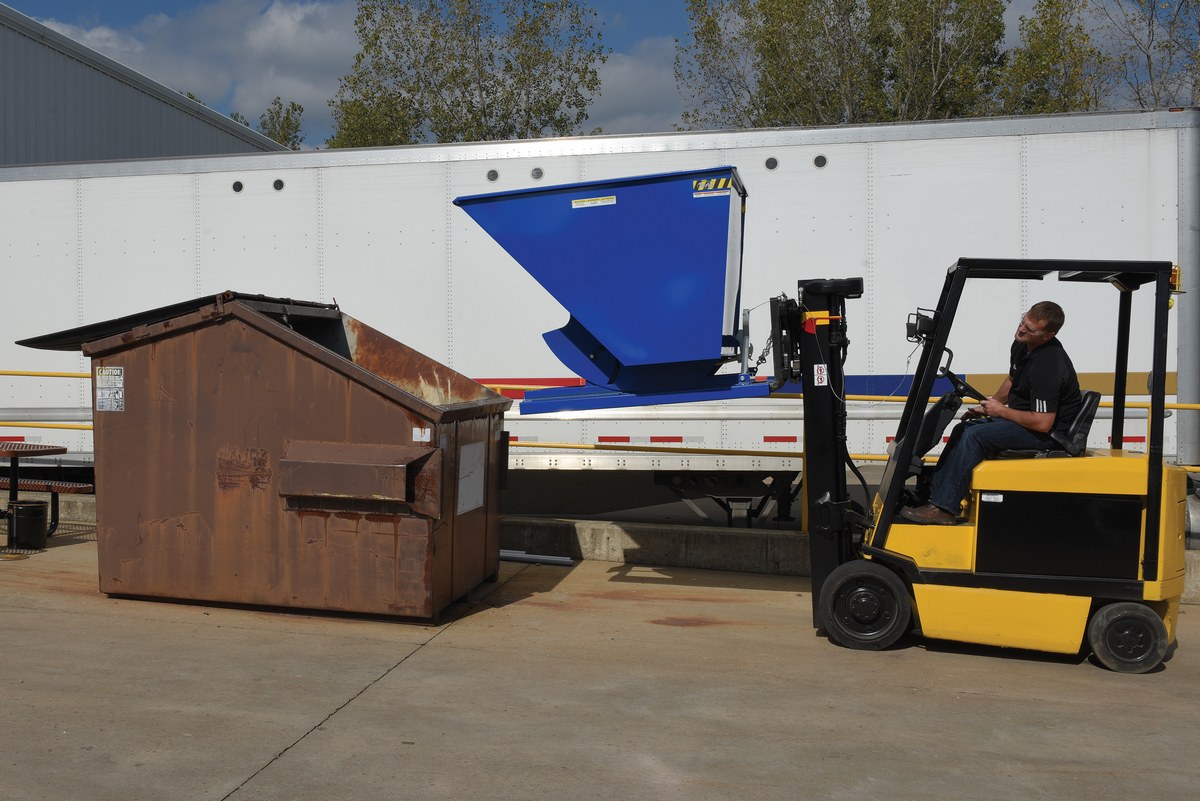

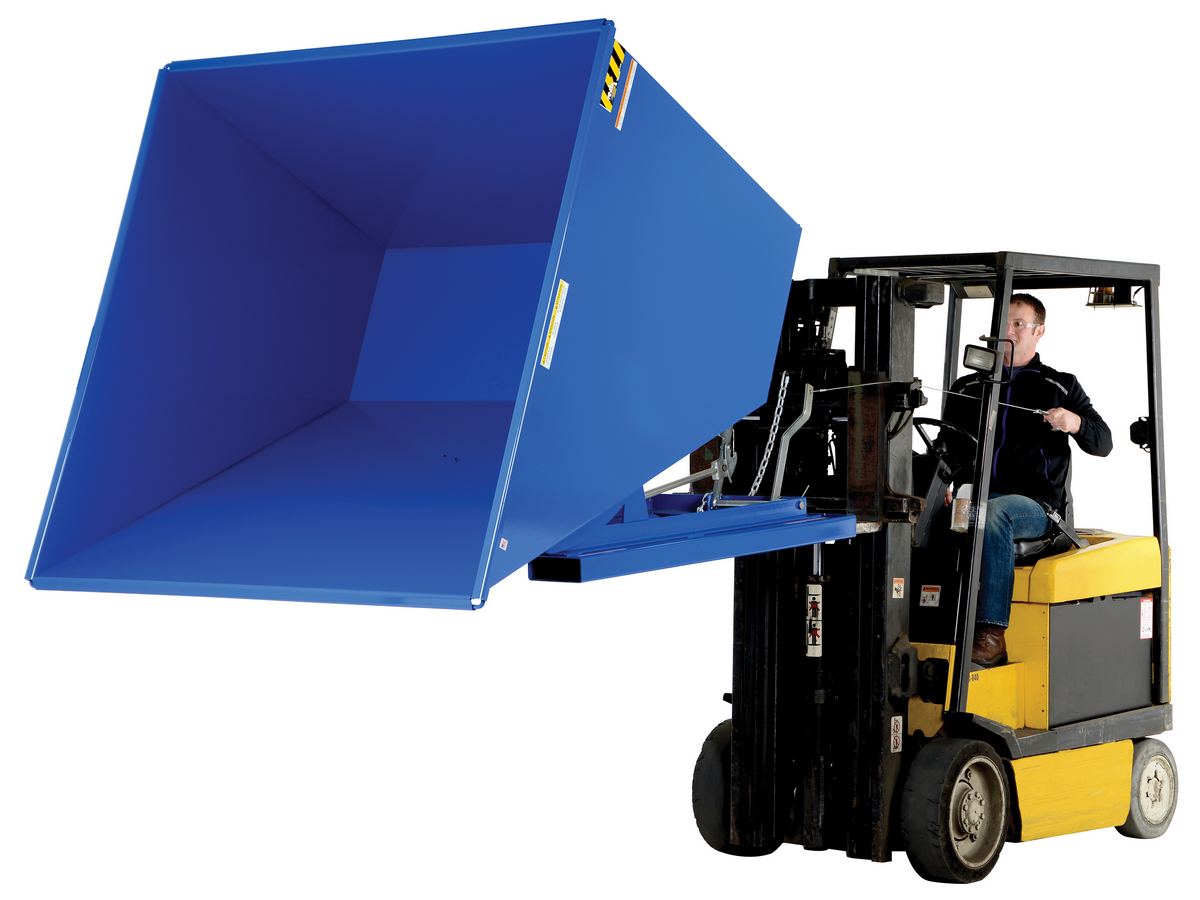

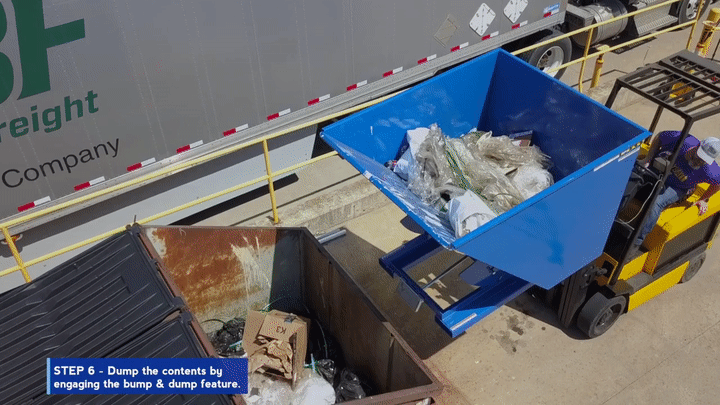

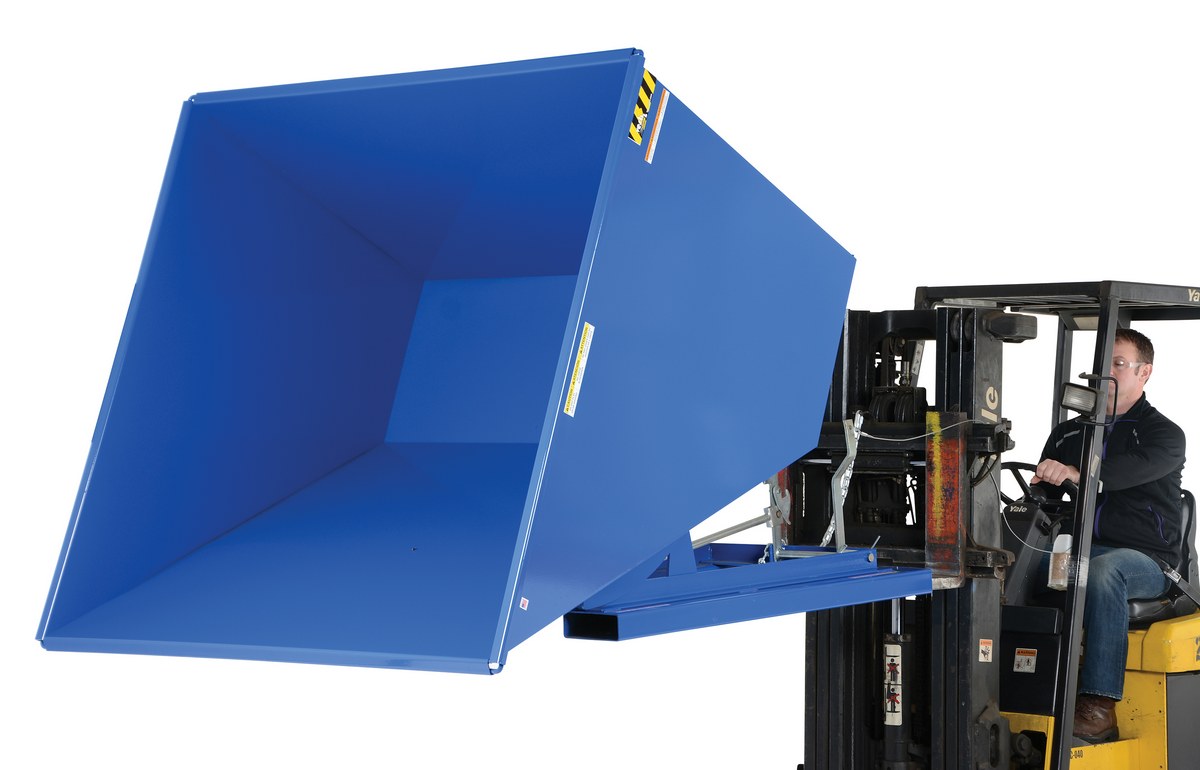

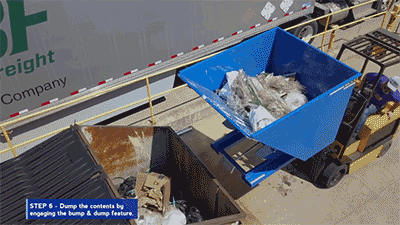

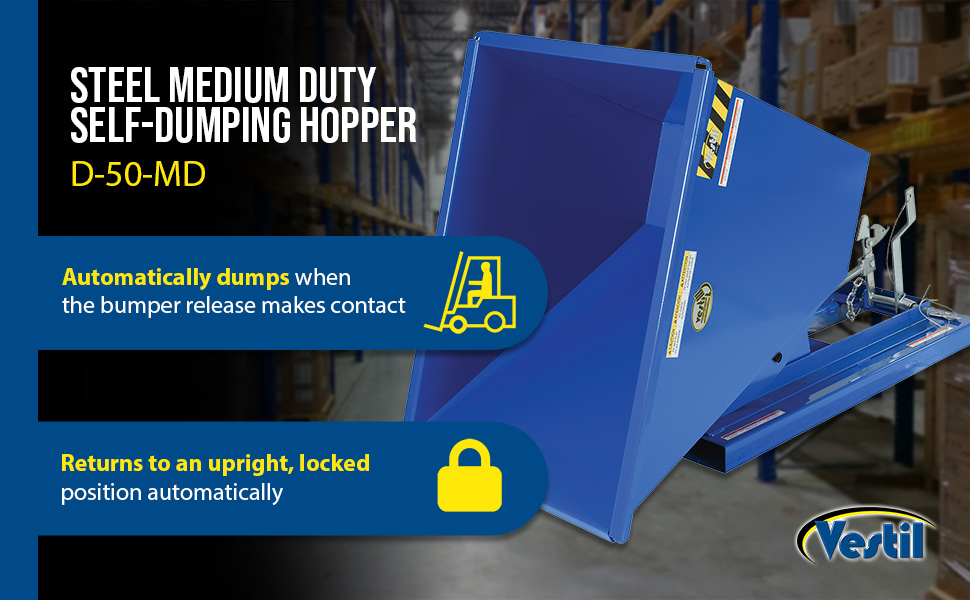

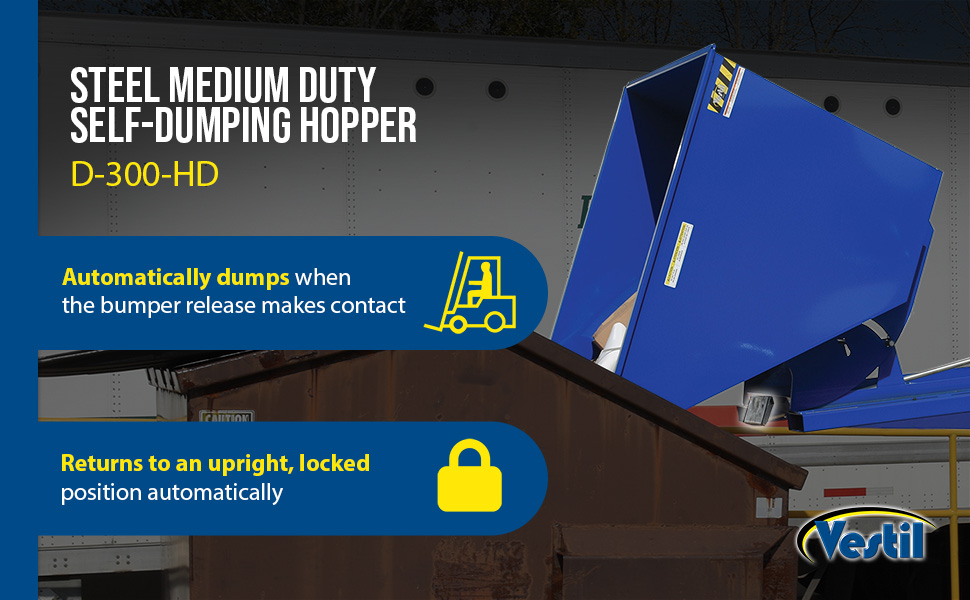

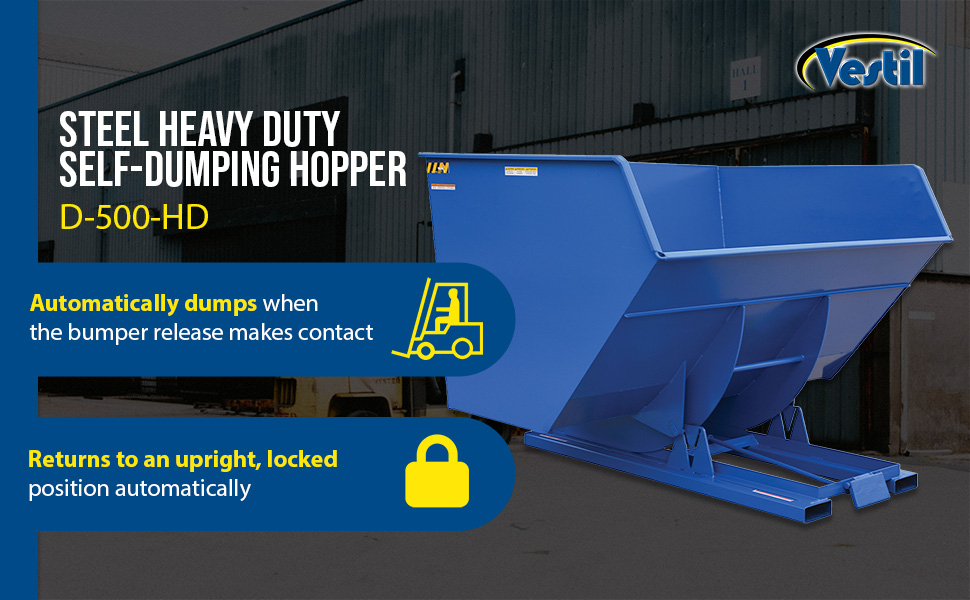

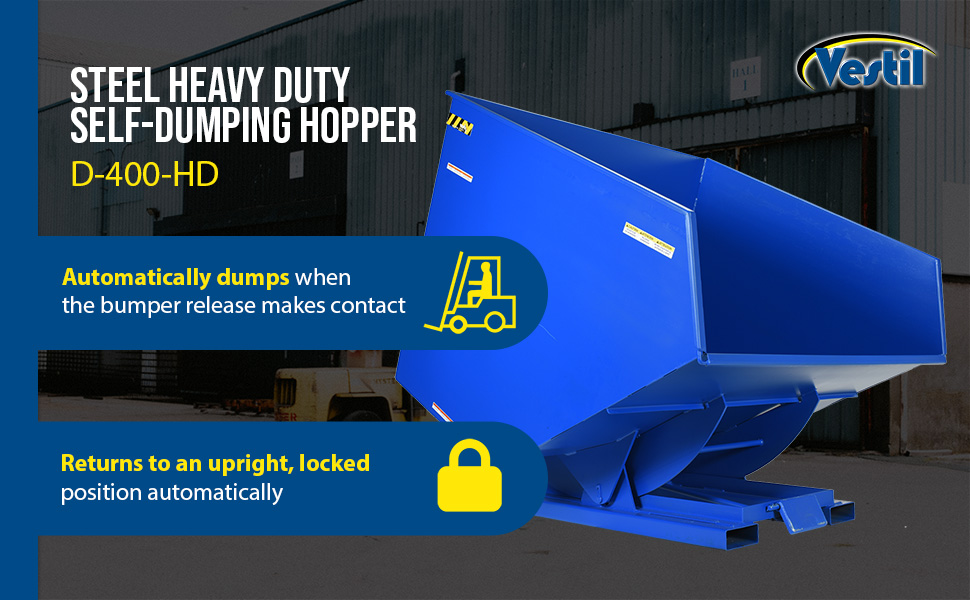

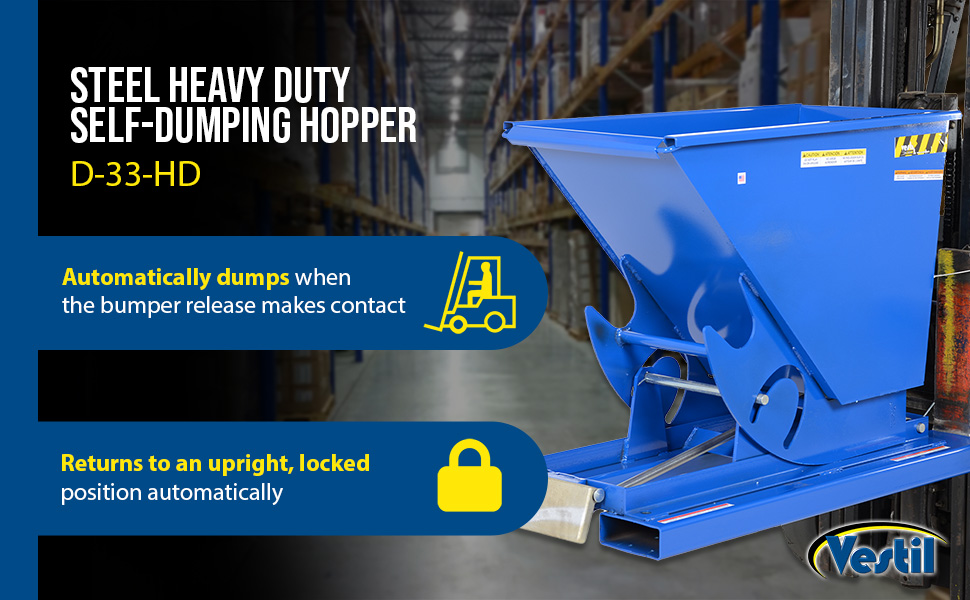

Hopper automatically dumps when bumper release contacts the front of the dumpster. Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Usable fork pockets are 7-1/2"W x 2-1/2"H. Self-dumping hoppers facilitate compliance with OSHA General Industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Optional leak proof design sold separately. D-25, D-33, D-50, D-75, and D-100 are stackable if you stack the top hopper turned 90 degrees from the bottom. Blue baked-in powder-coated toughness is standard. Must be attached to fork truck when dumping.

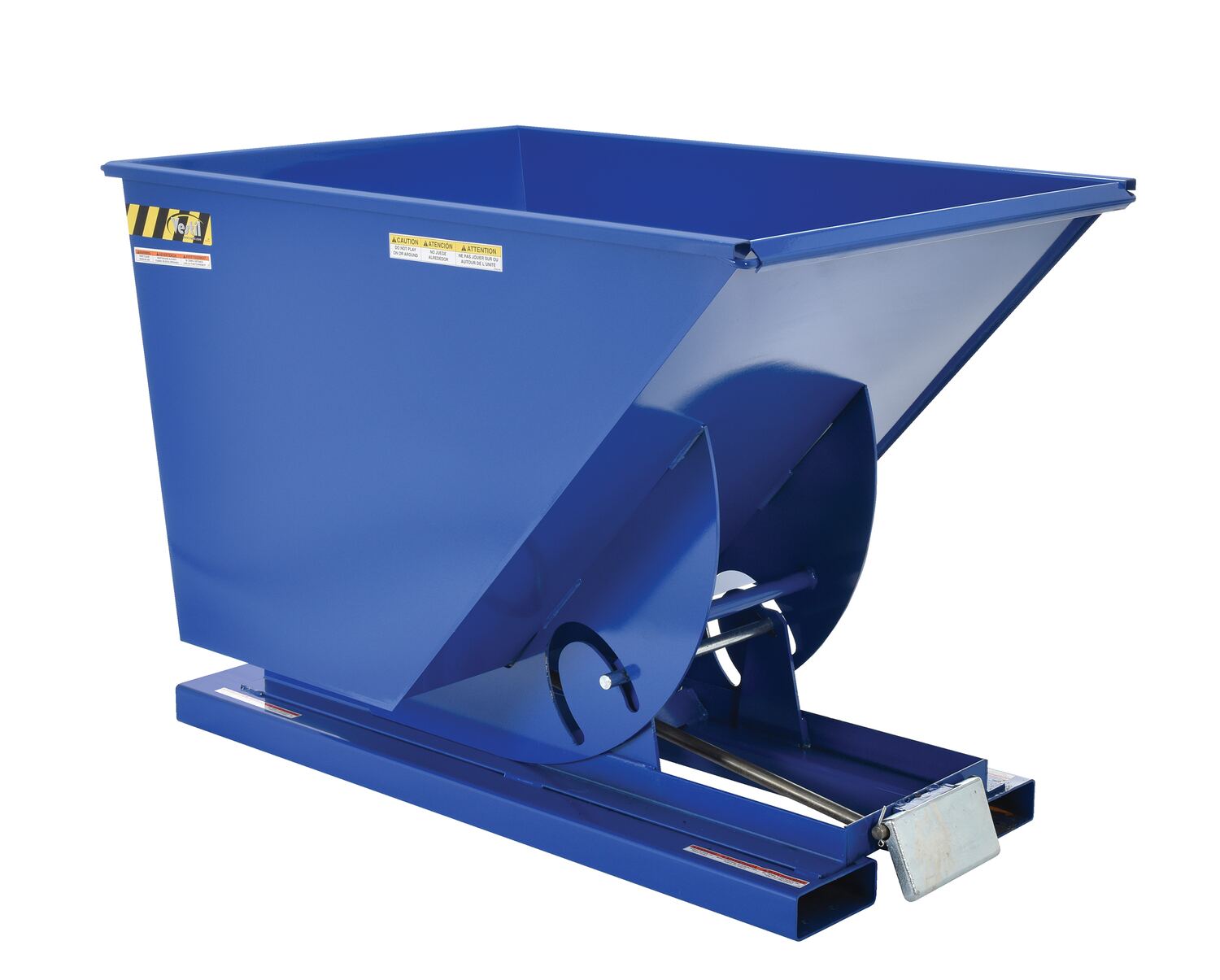

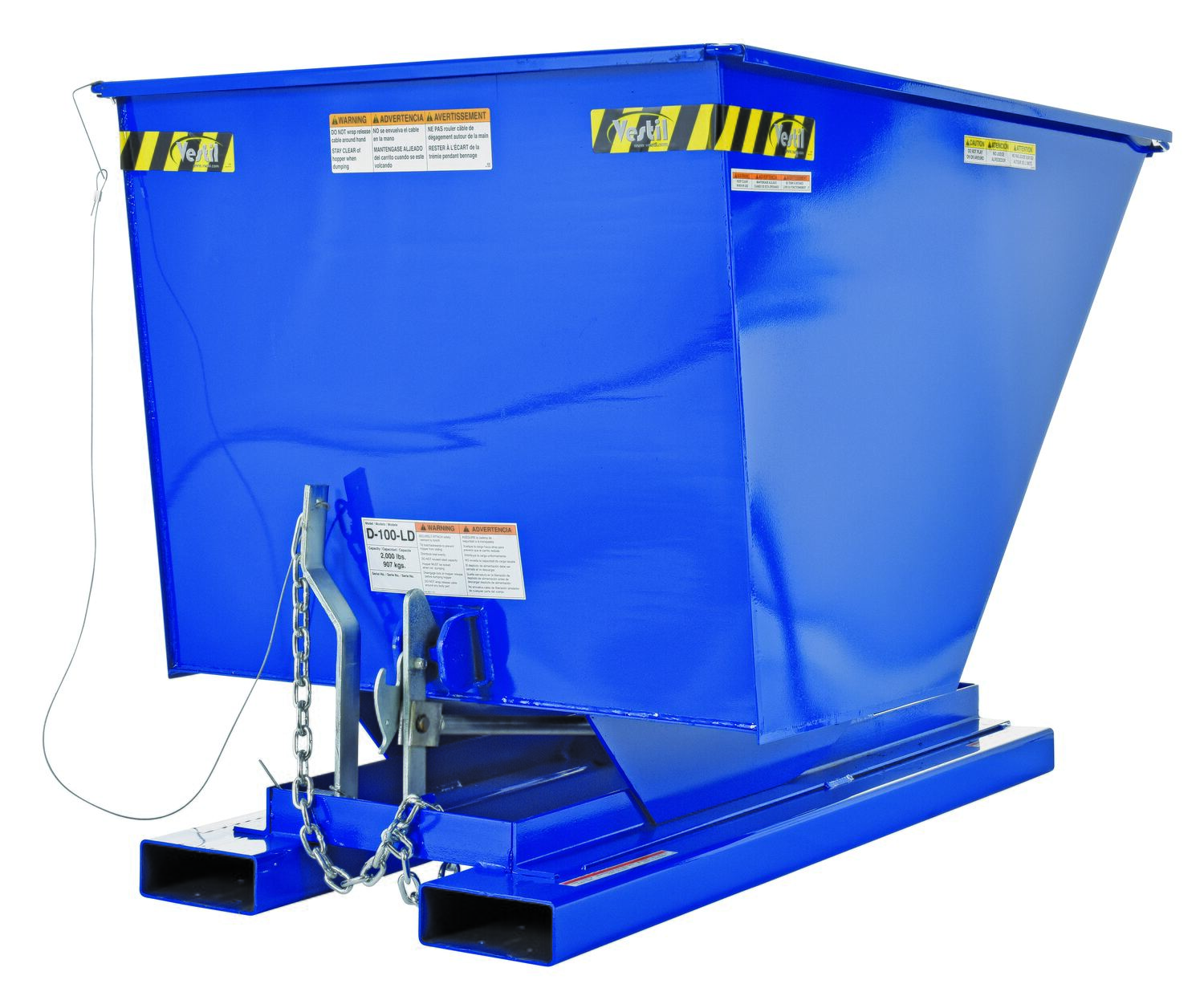

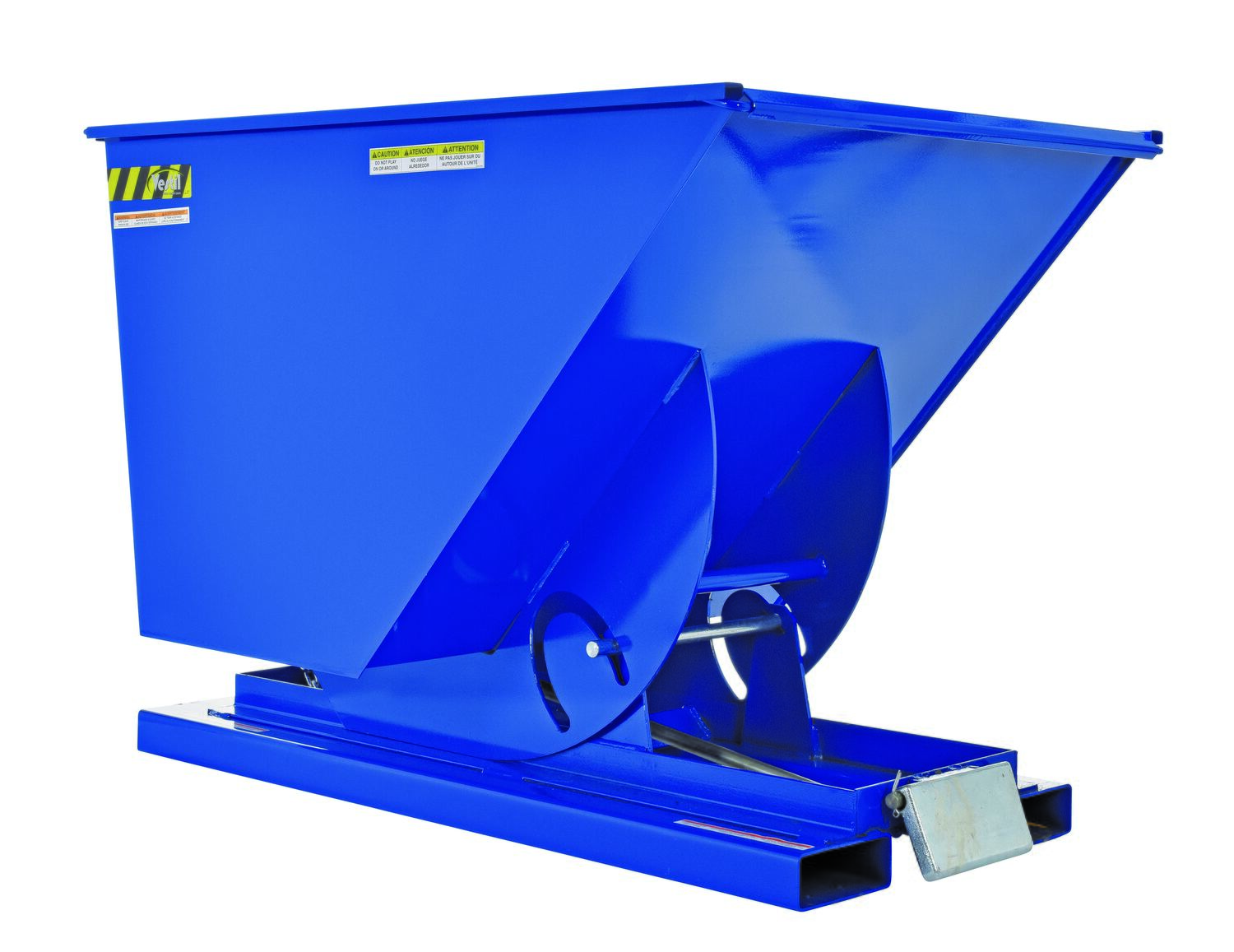

D-100-LD + D-CK4-GFN6-2 + PLID-D-100

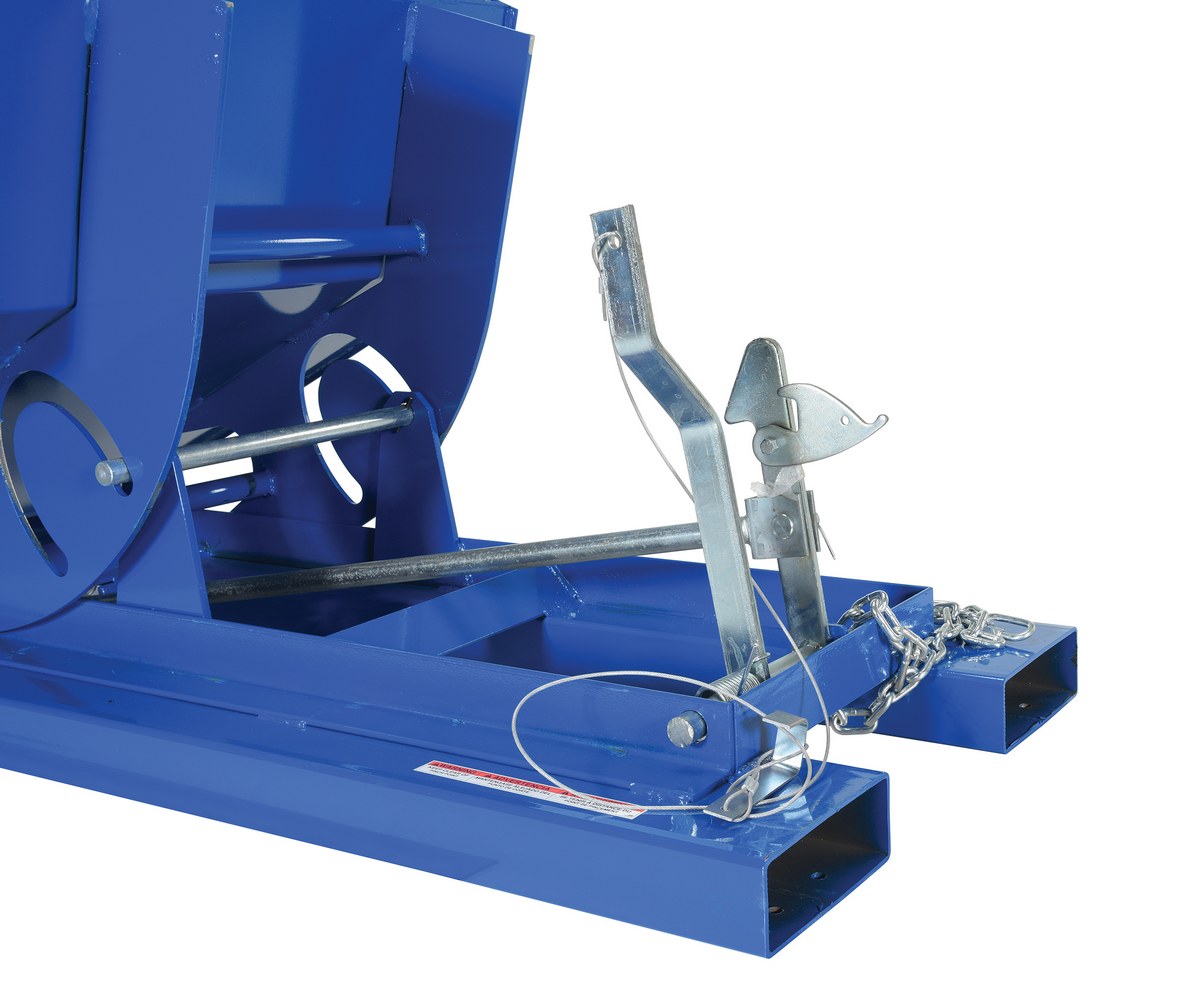

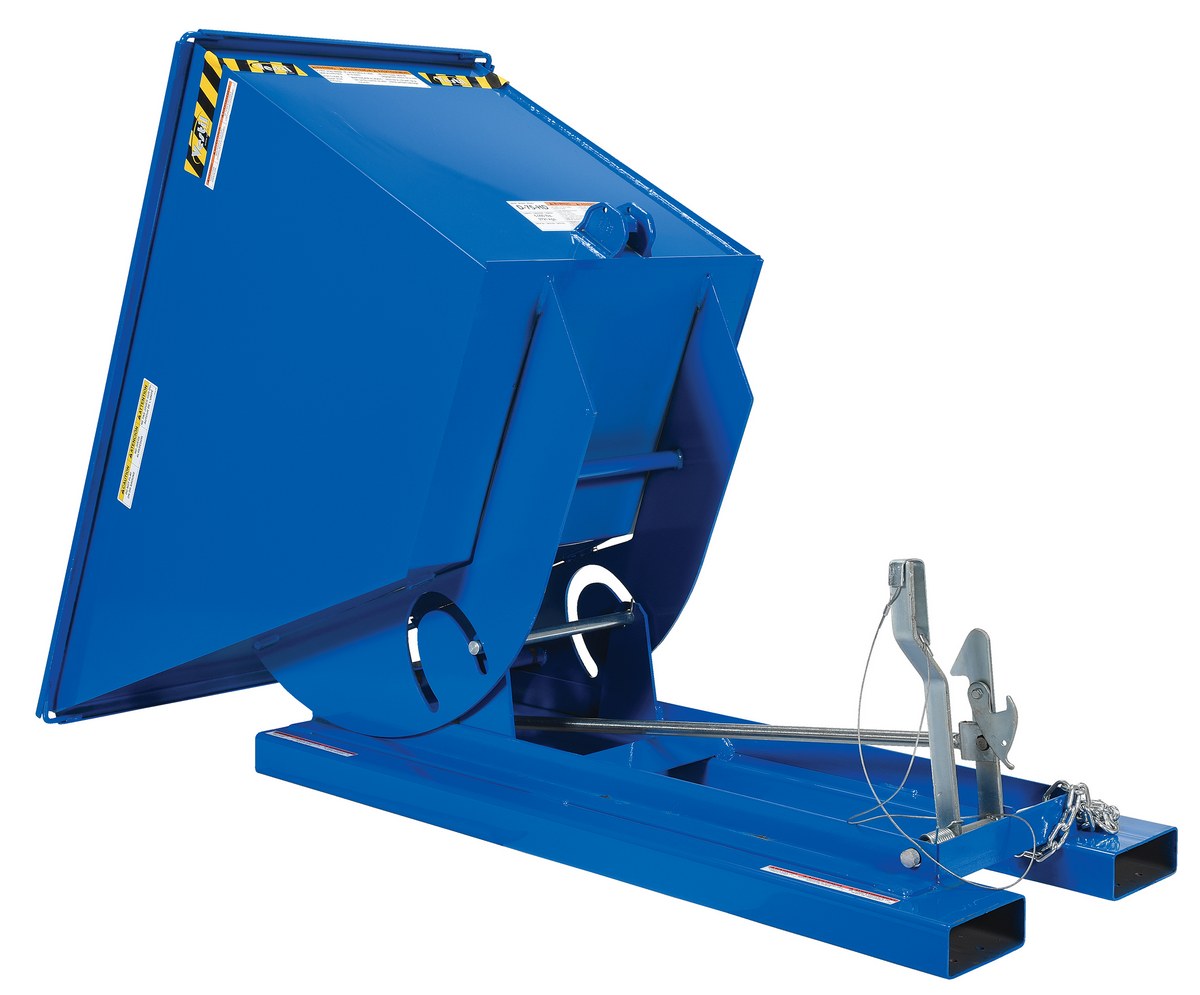

Automatic Bumper Release

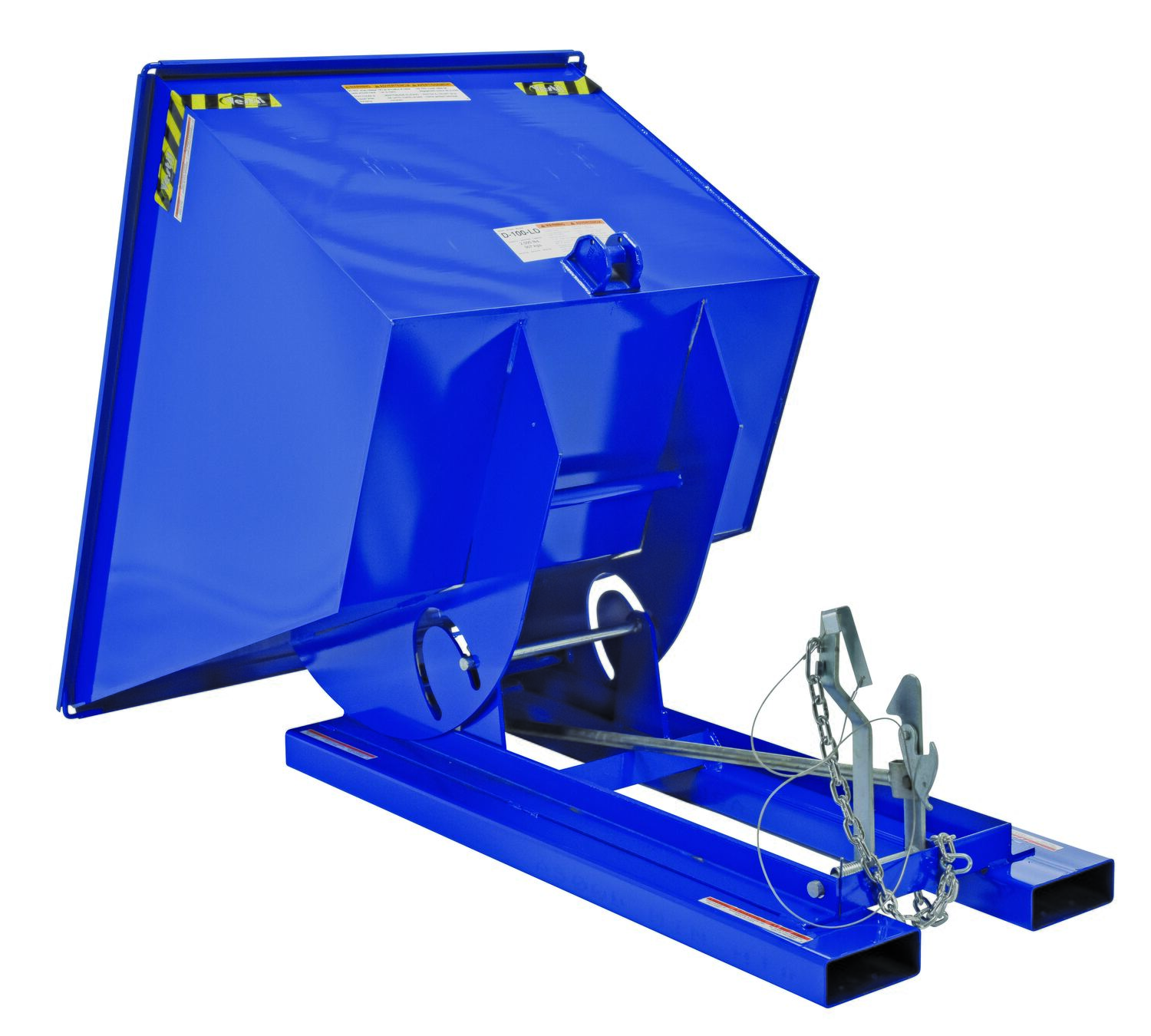

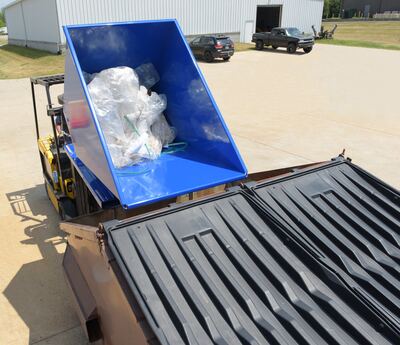

Automatic bumper release dumps when it contacts the side of the dumpster		 Locked Position
Returns to upright and locked position automatically

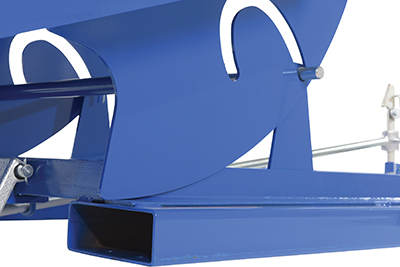

Full Lenth Fork Tubes

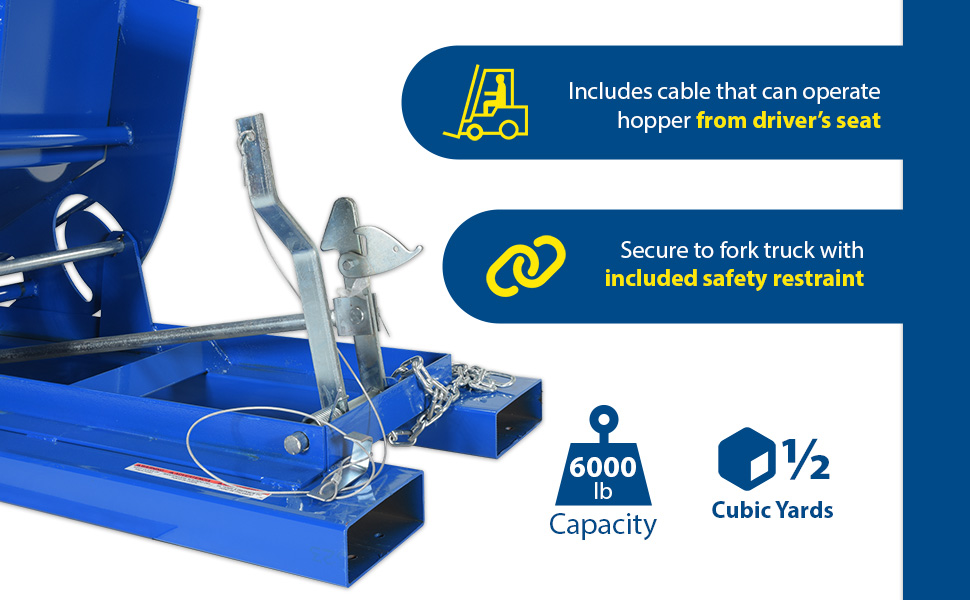

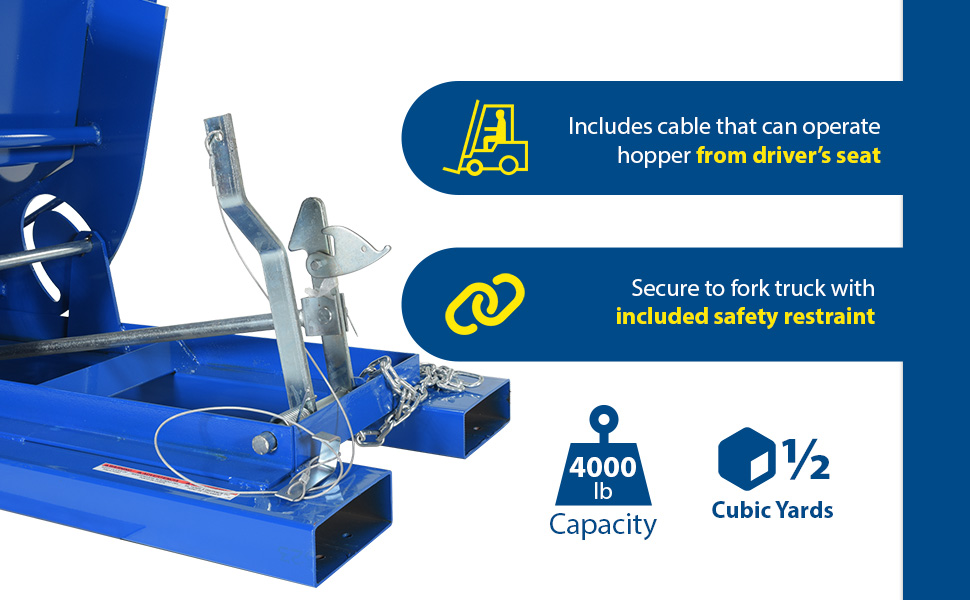

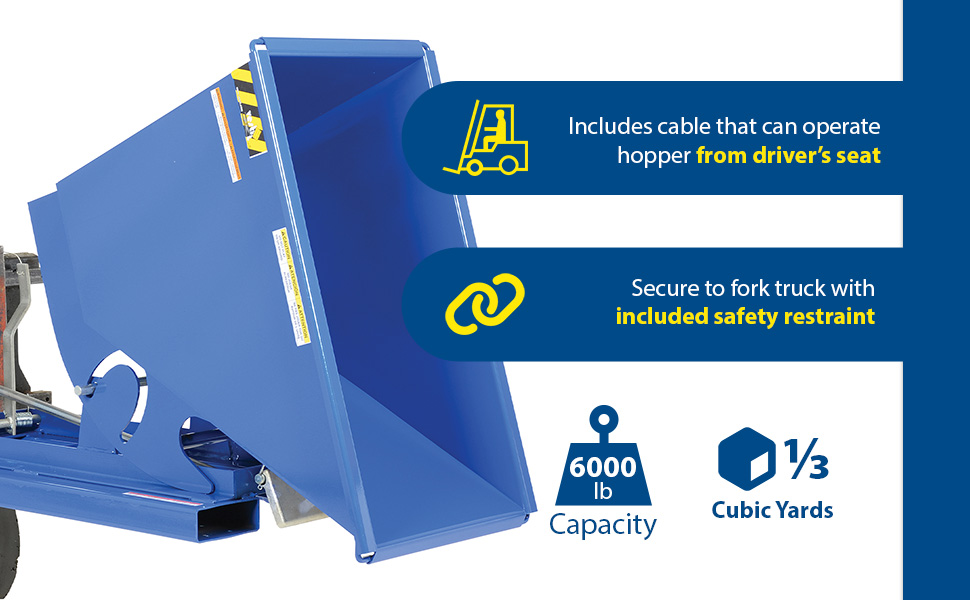

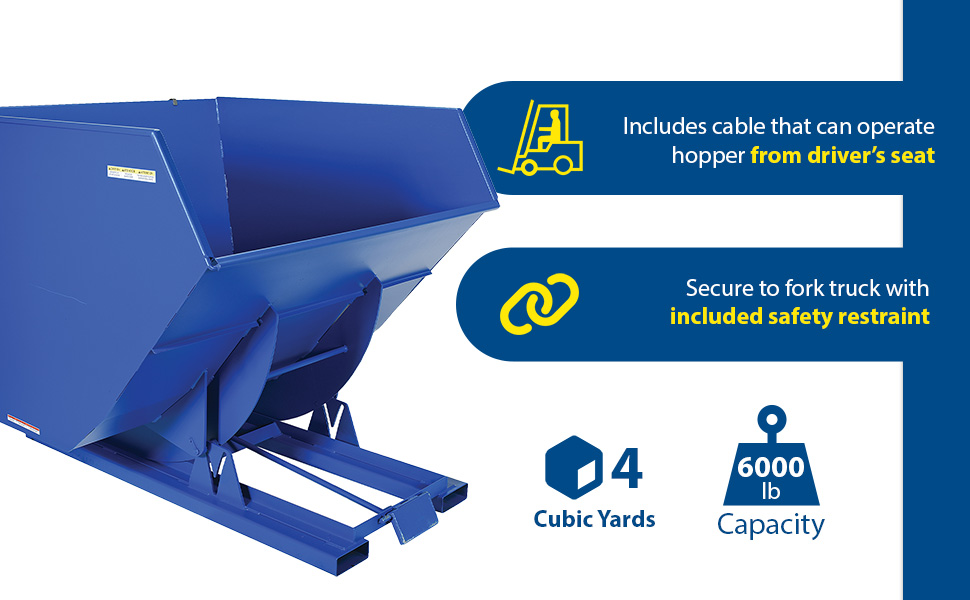

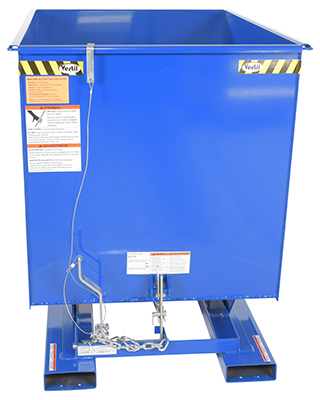

Full-length fork tubes provide a solid base		 Safety Restraint

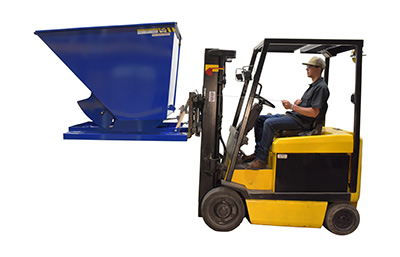

Safety restraint secures the hopper to the fork truck
13 Sizes
3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength) .25 Cubic Yard
D-33-(strength) .33 Cubic Yard
D-50-(strength) .50 Cubic Yard
D-75-(strength) .75 Cubic Yard
D-100-(strength) 1 Cubic Yard
D-150-(strength) 1.5 Cubic Yard
D-200-(strength) 2 Cubic Yard
D-250-(strength) 2.5 Cubic Yard
D-300-(strength) 3 Cubic Yard
D-350-(strength) 3.5 Cubic Yard

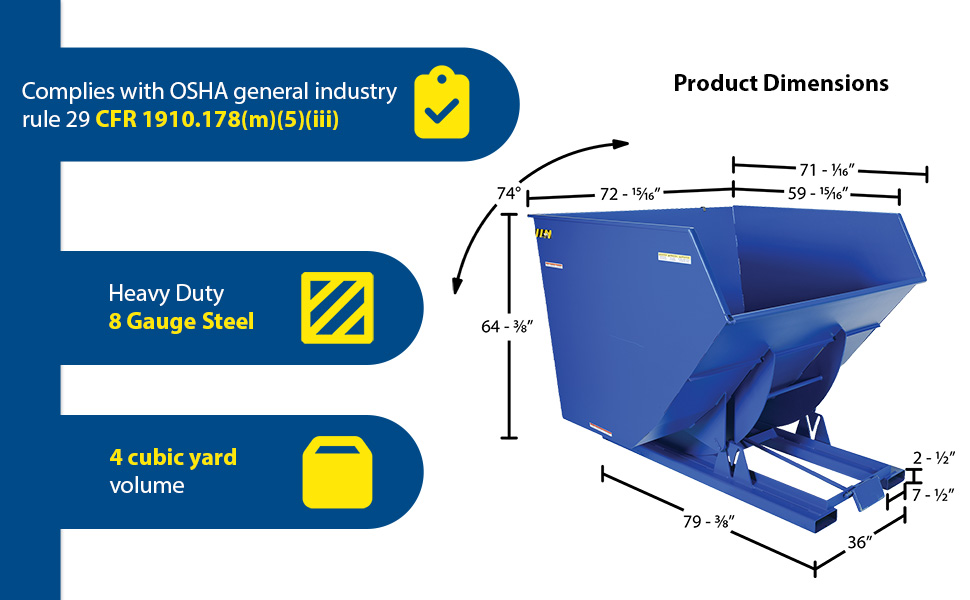

D-400-(strength) 4 Cubic Yard

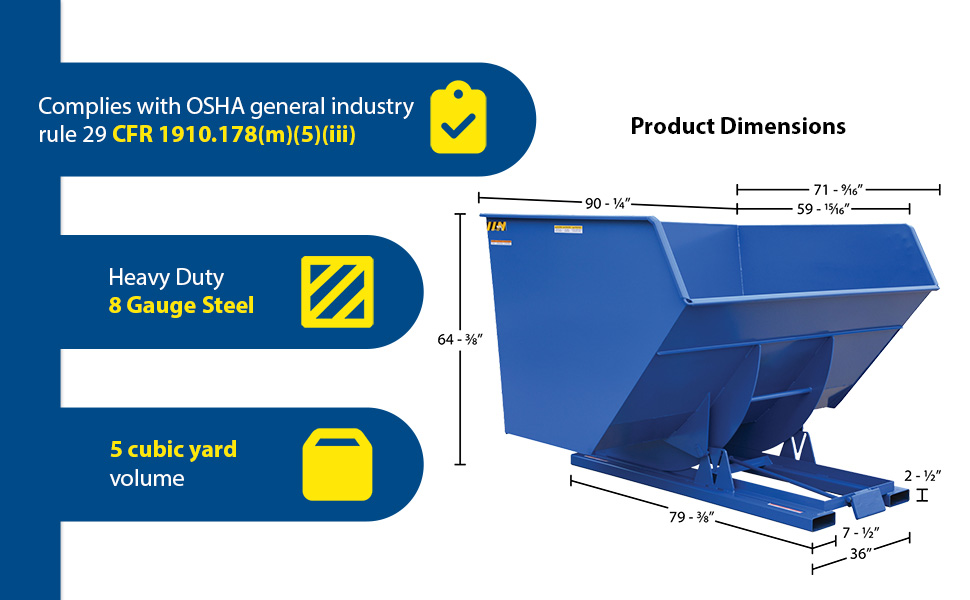

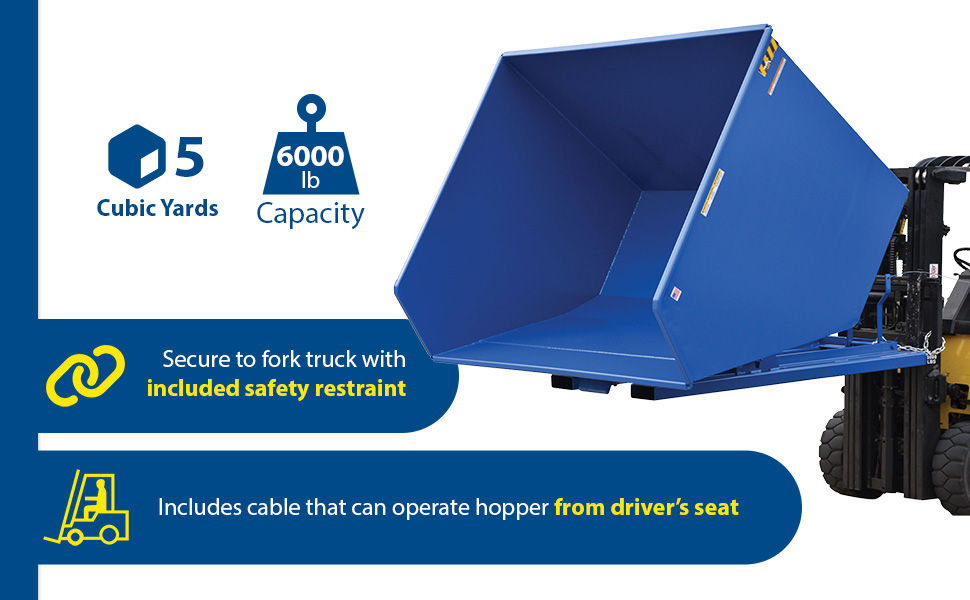

D-500-(strength) 5 Cubic Yard

D-Style with NO BUMP & DUMP

Caster Options | Optional Lids

D Style - Self-Dumping Steel Hoppers with Bumper Release

model: D-250-HD

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

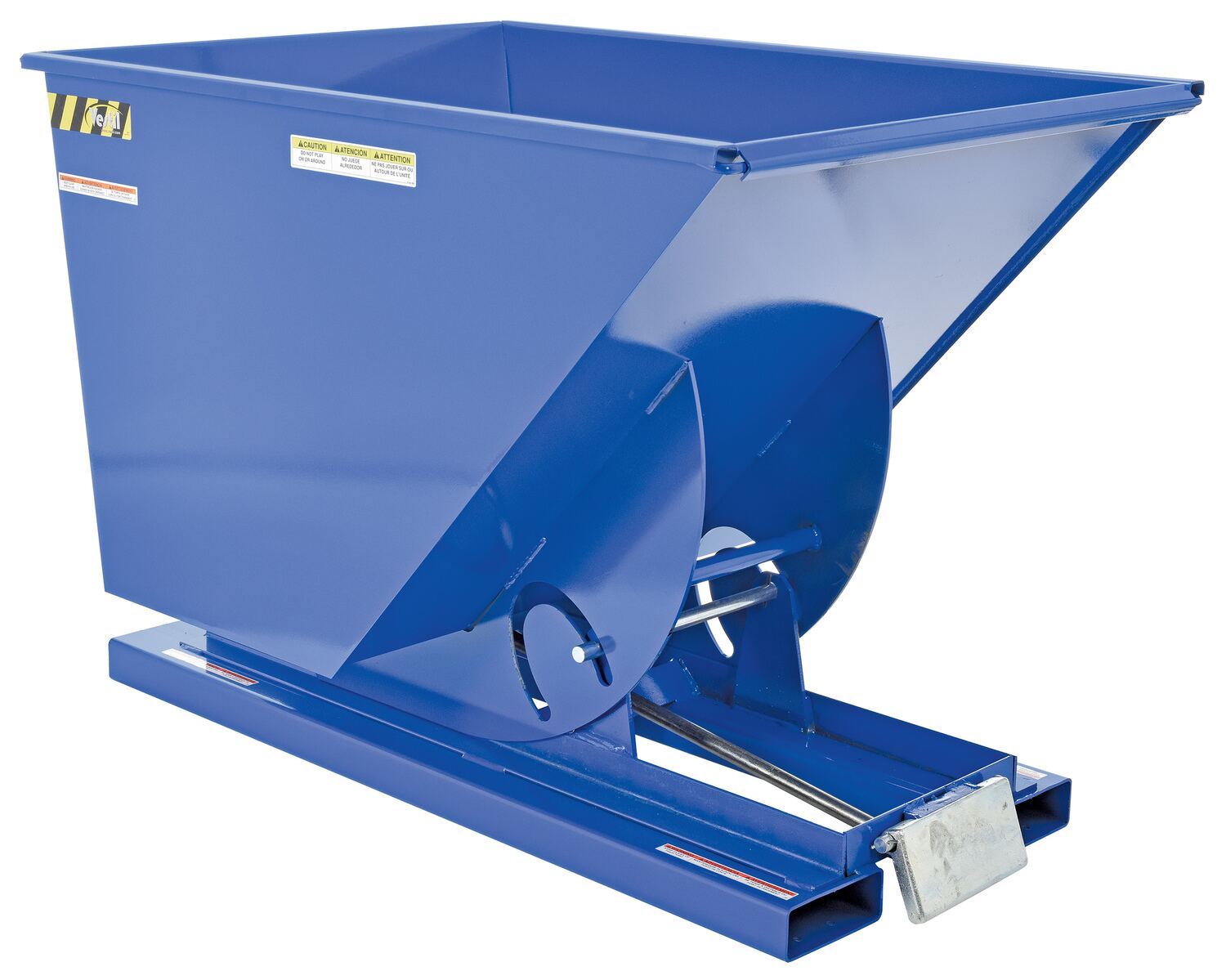

D-100-HD D-100-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Steel (gauge): 8		580
D-100-LD D-100-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Steel (gauge): 12		460

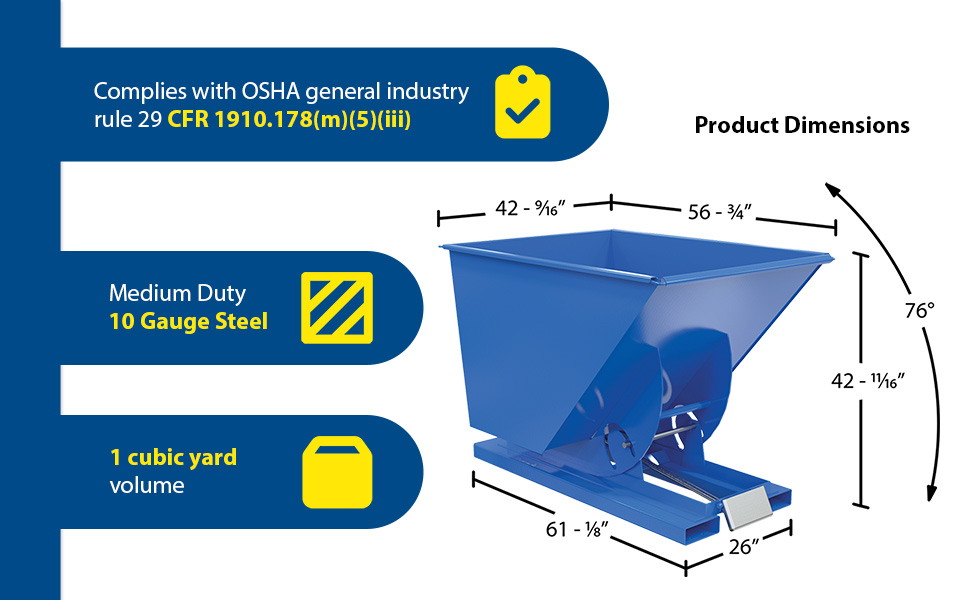

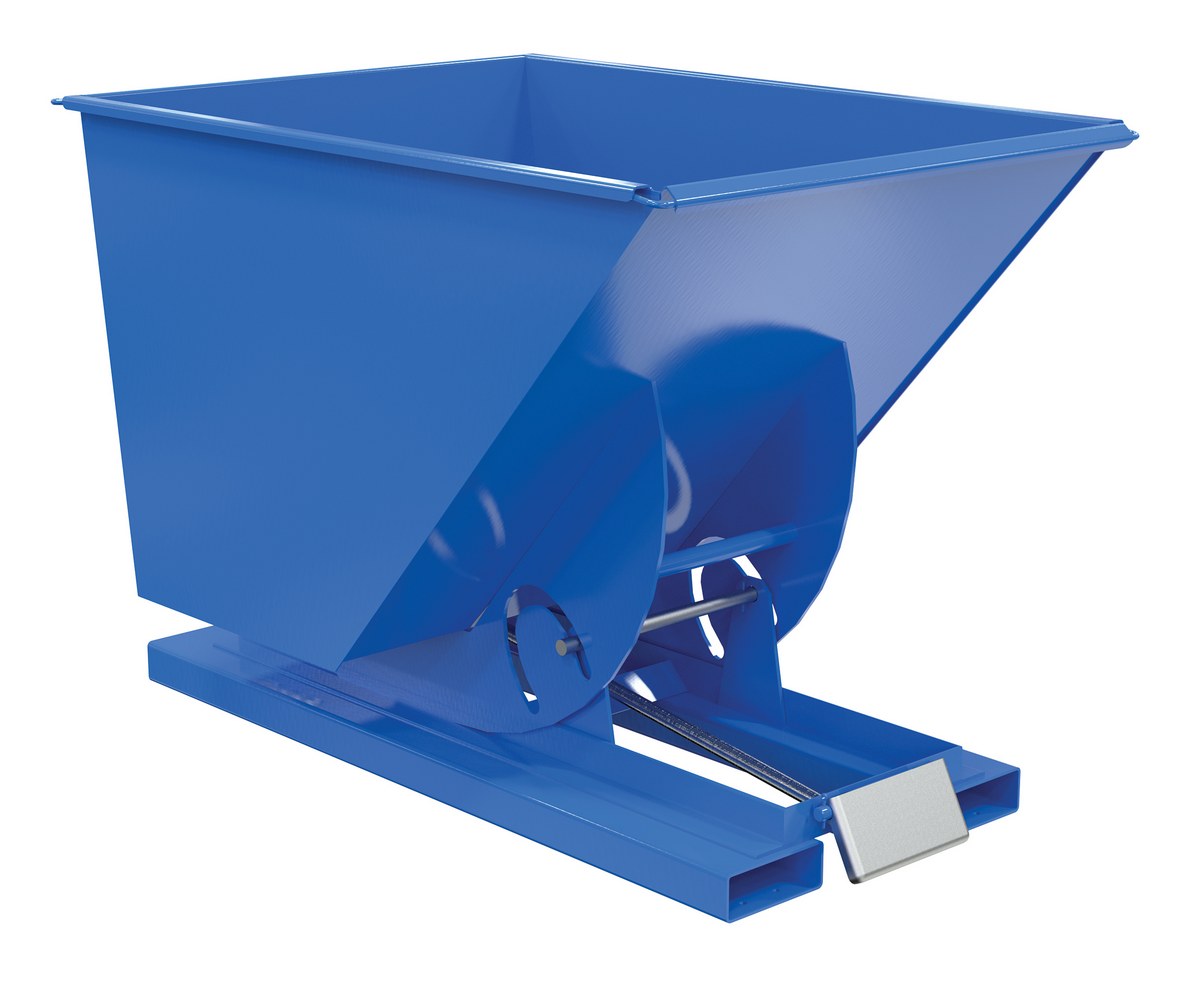

D-100-MD D-100-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Steel (gauge): 10		545

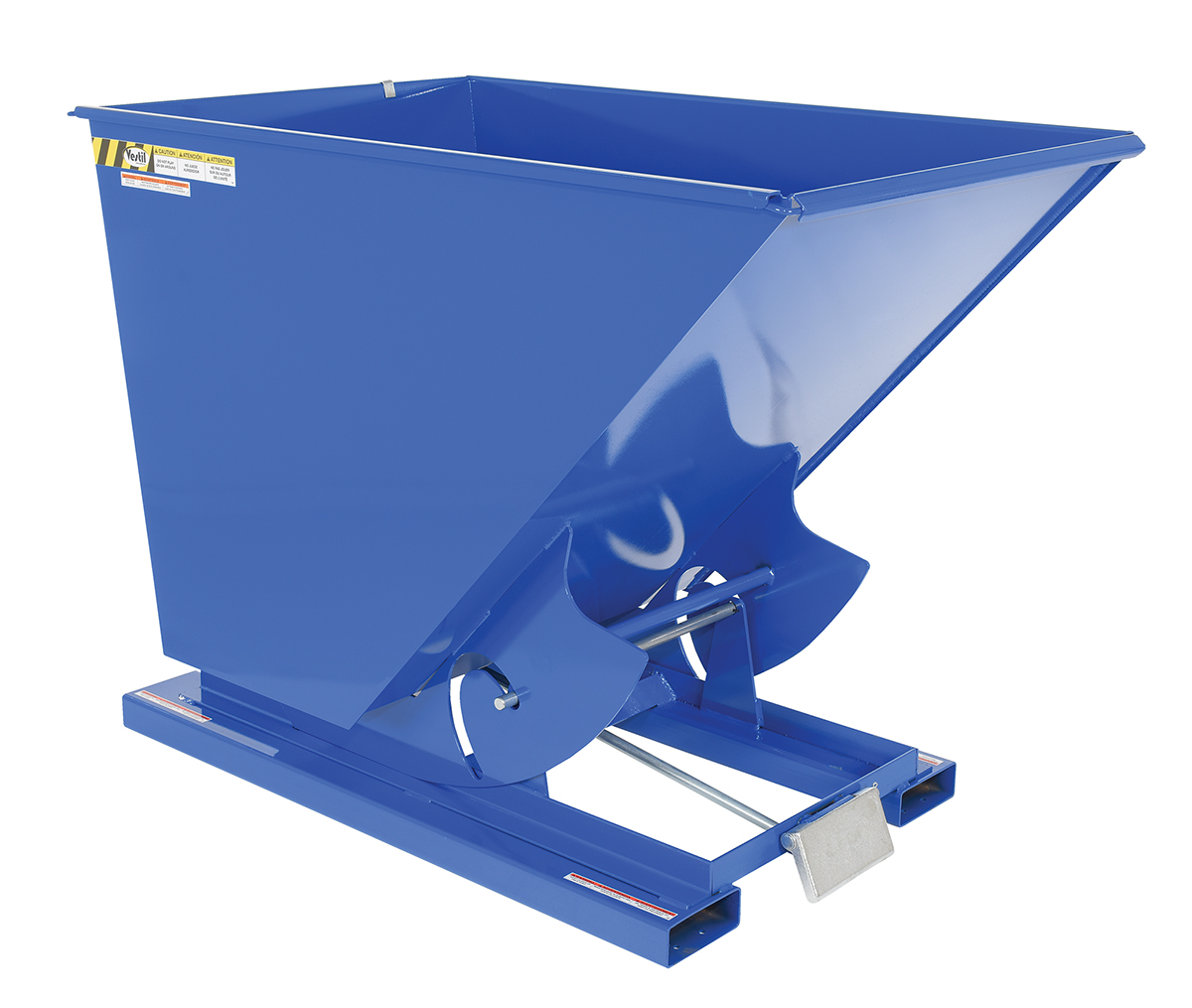

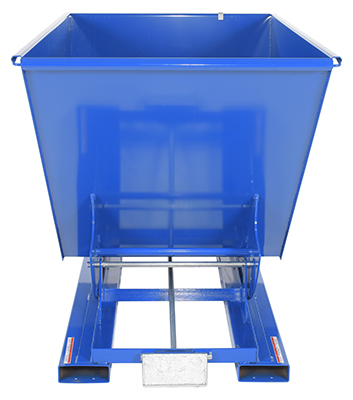

D-150-HD D-150-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		708

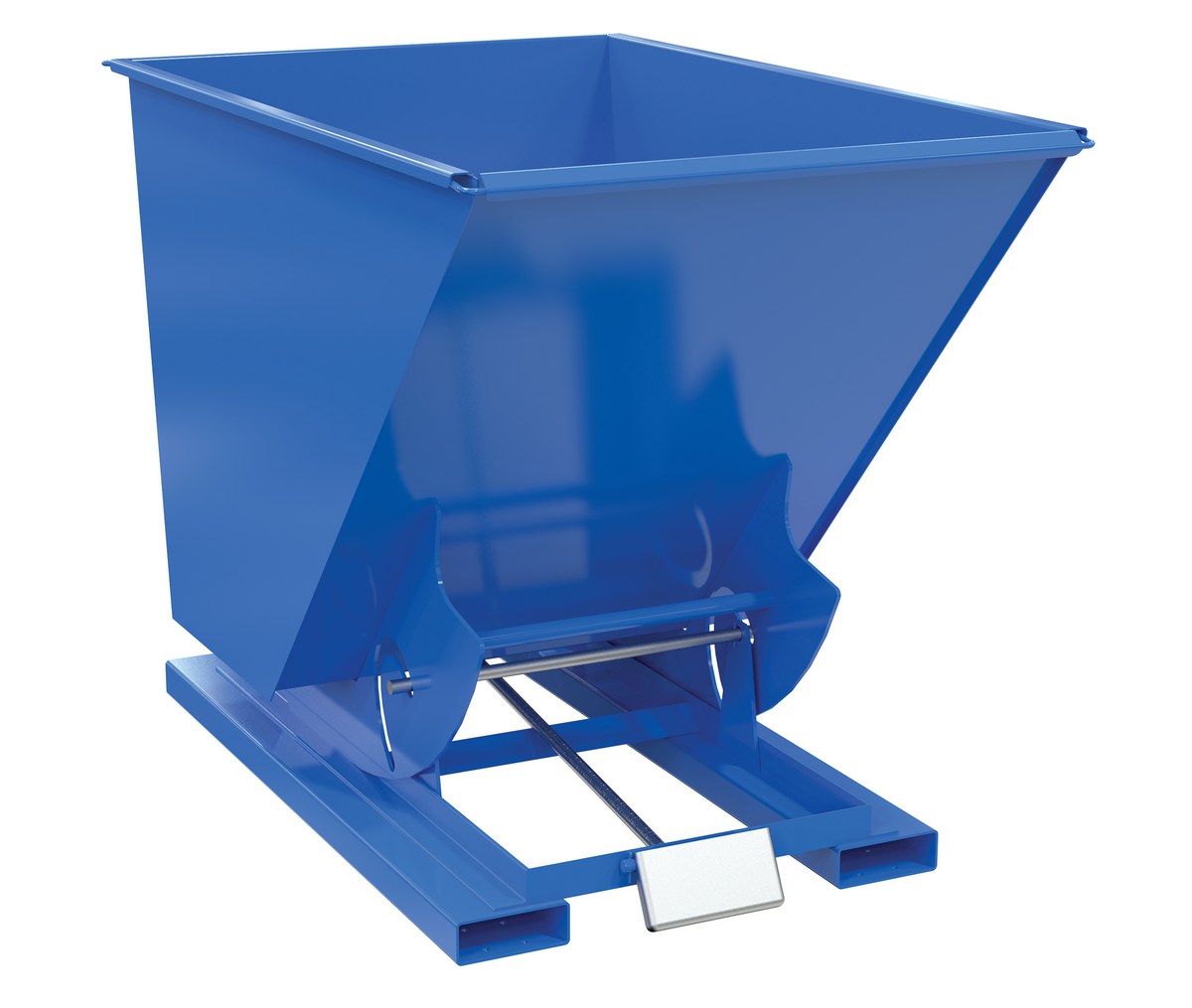

D-150-LD D-150-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		565

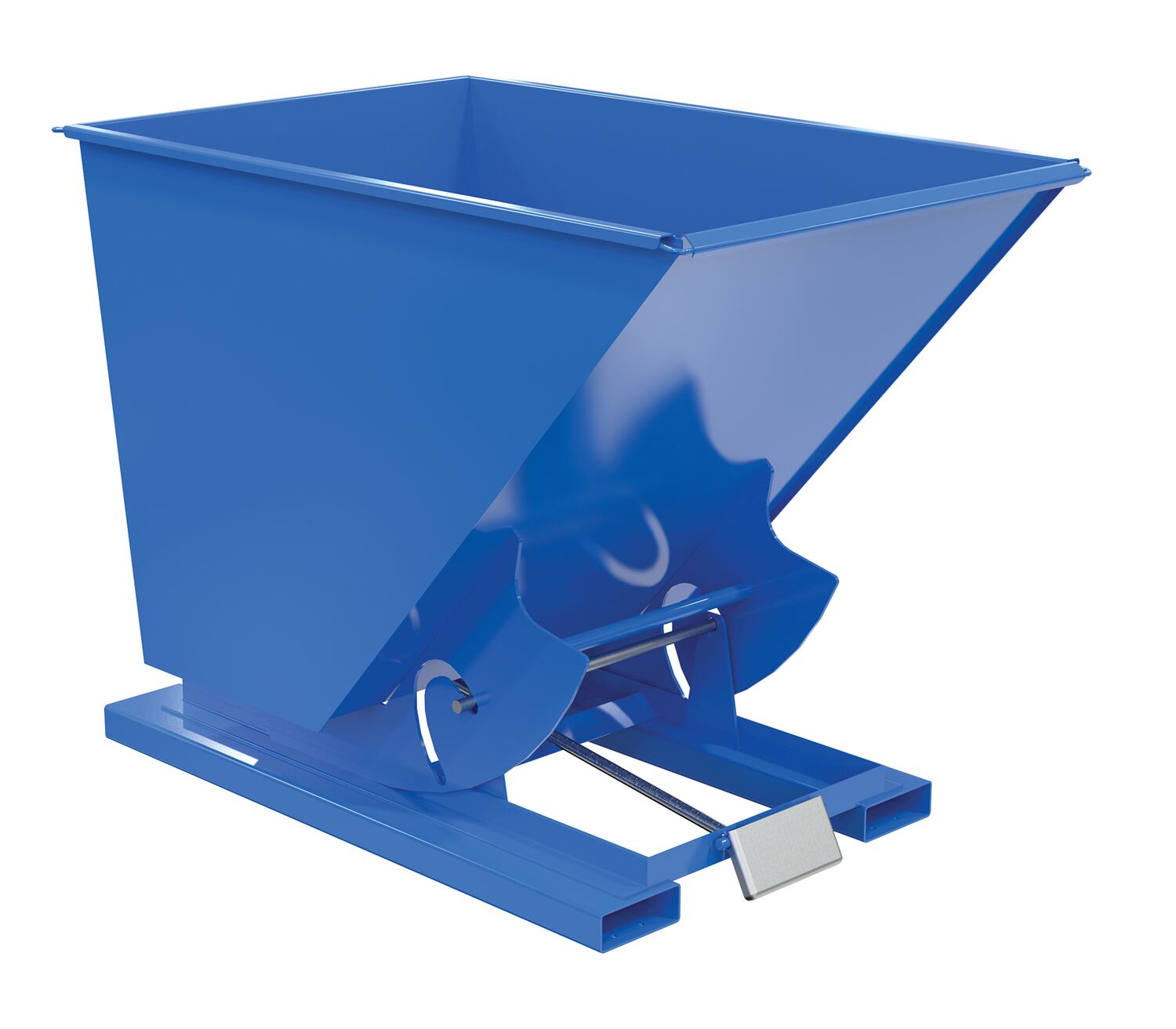

D-150-MD D-150-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		700

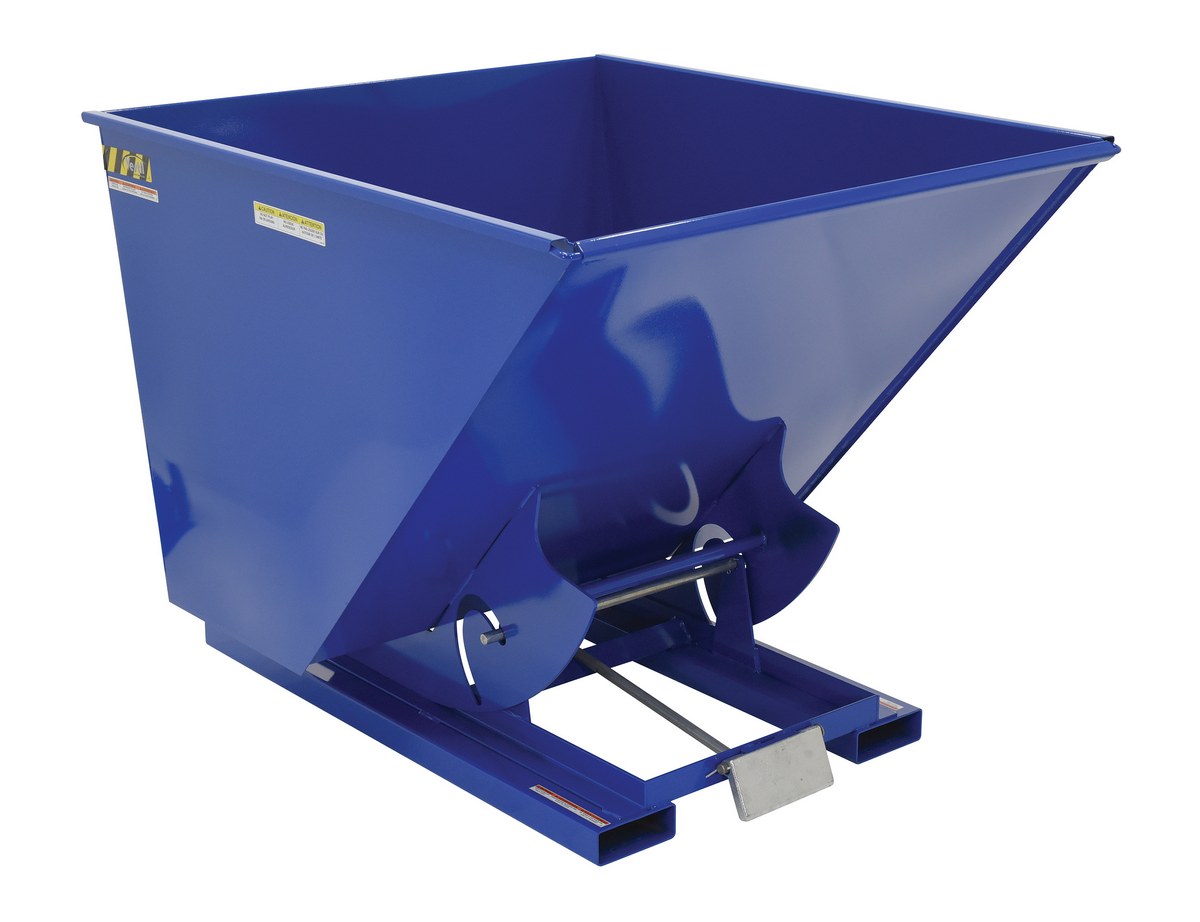

D-200-HD POPULAR D-200-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		782

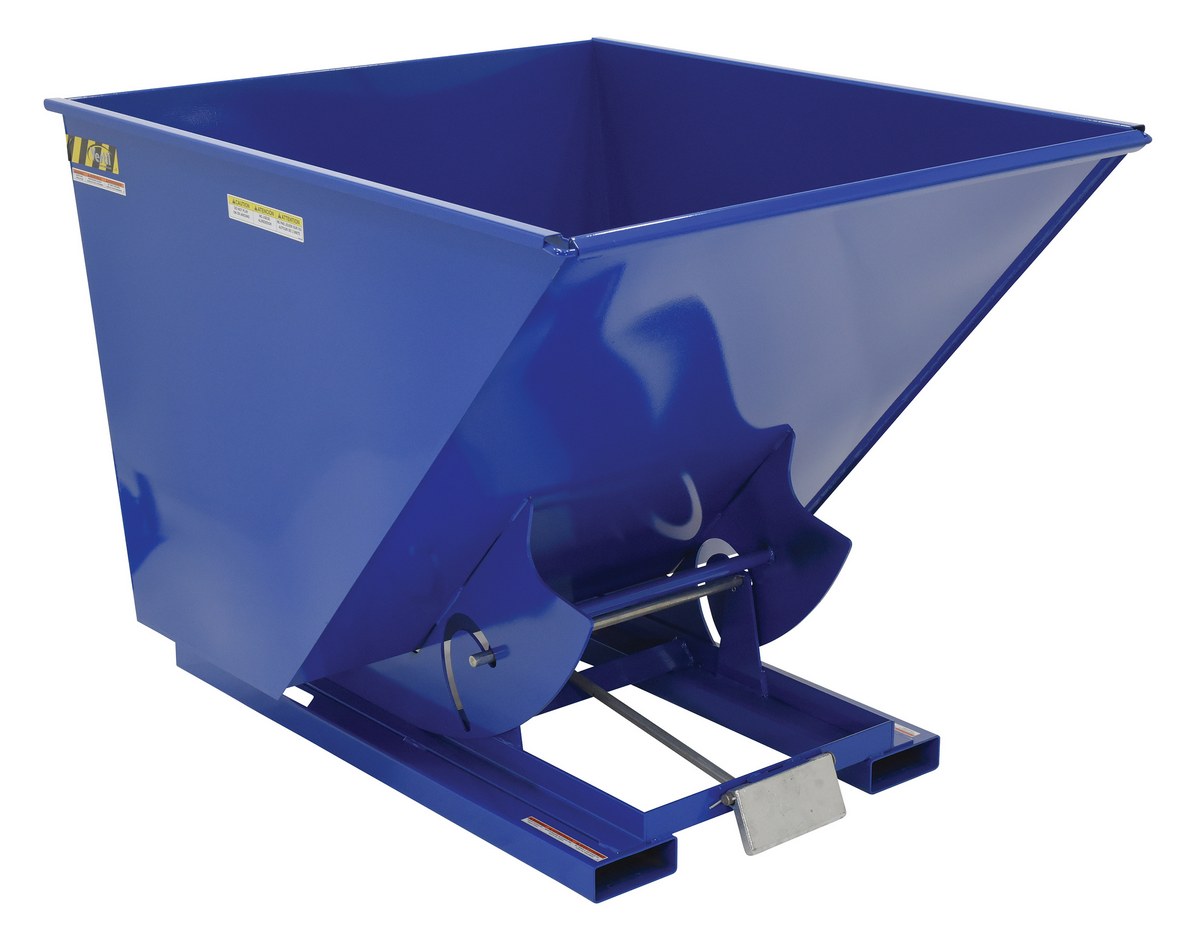

D-200-LD D-200-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		615

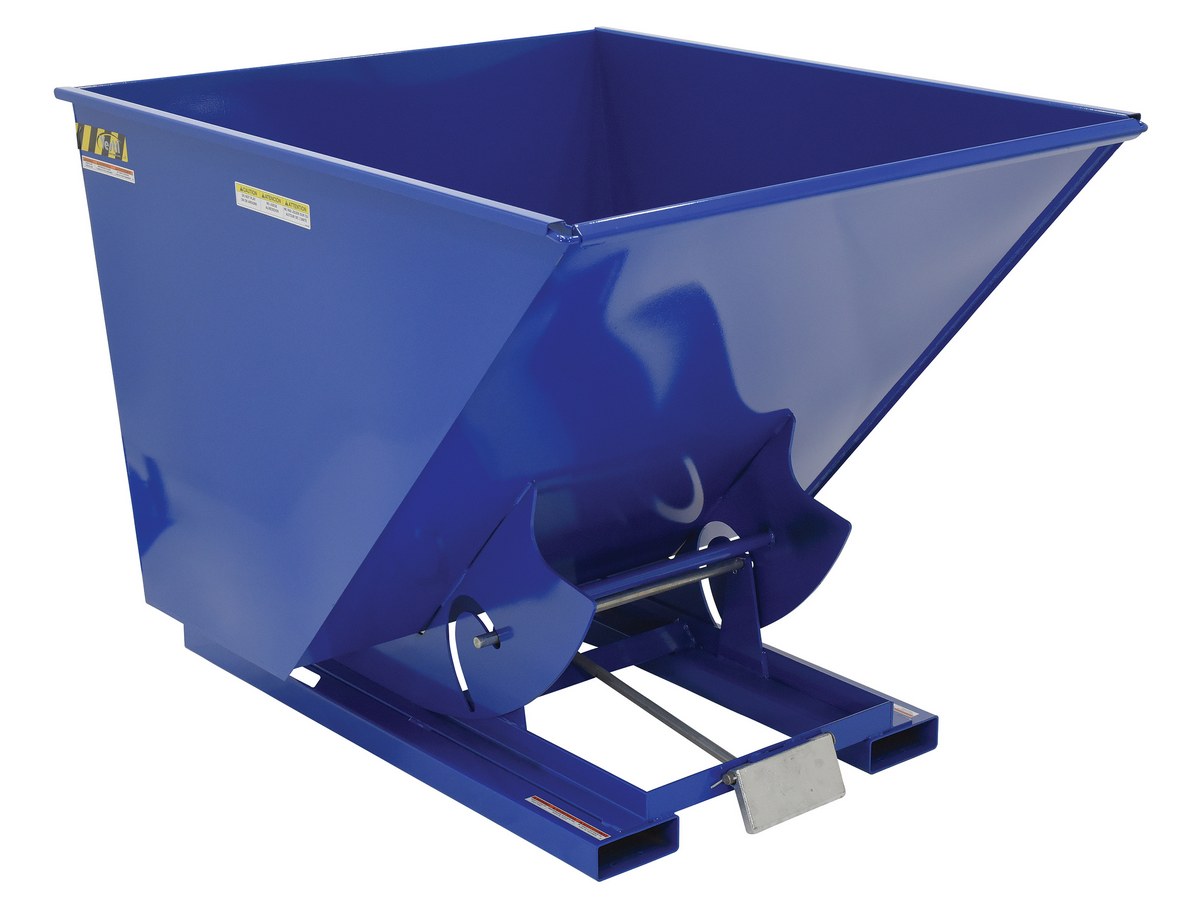

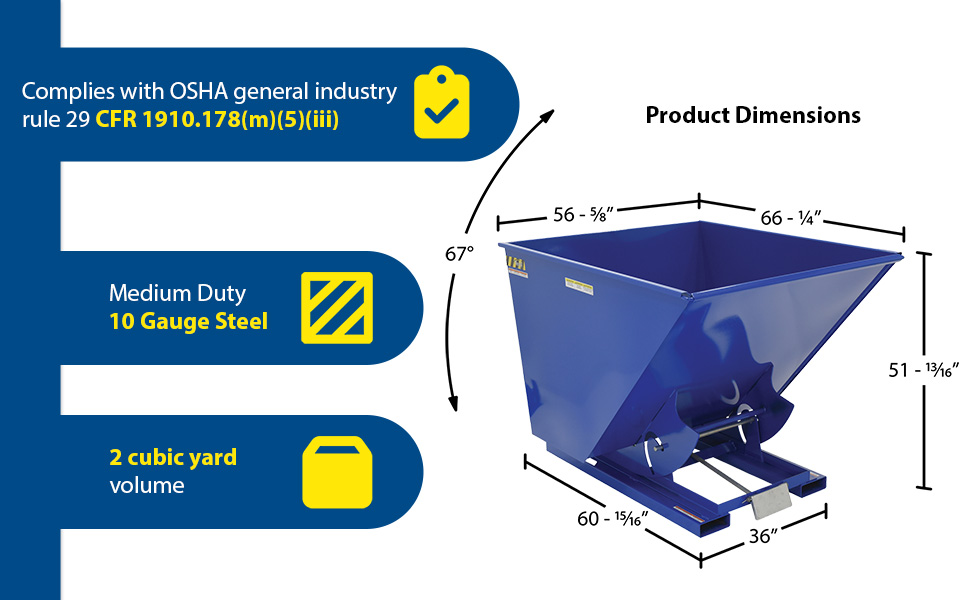

D-200-MD D-200-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		690
D-25-HD D-25-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		386
D-25-LD D-25-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		341
D-25-MD D-25-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		386

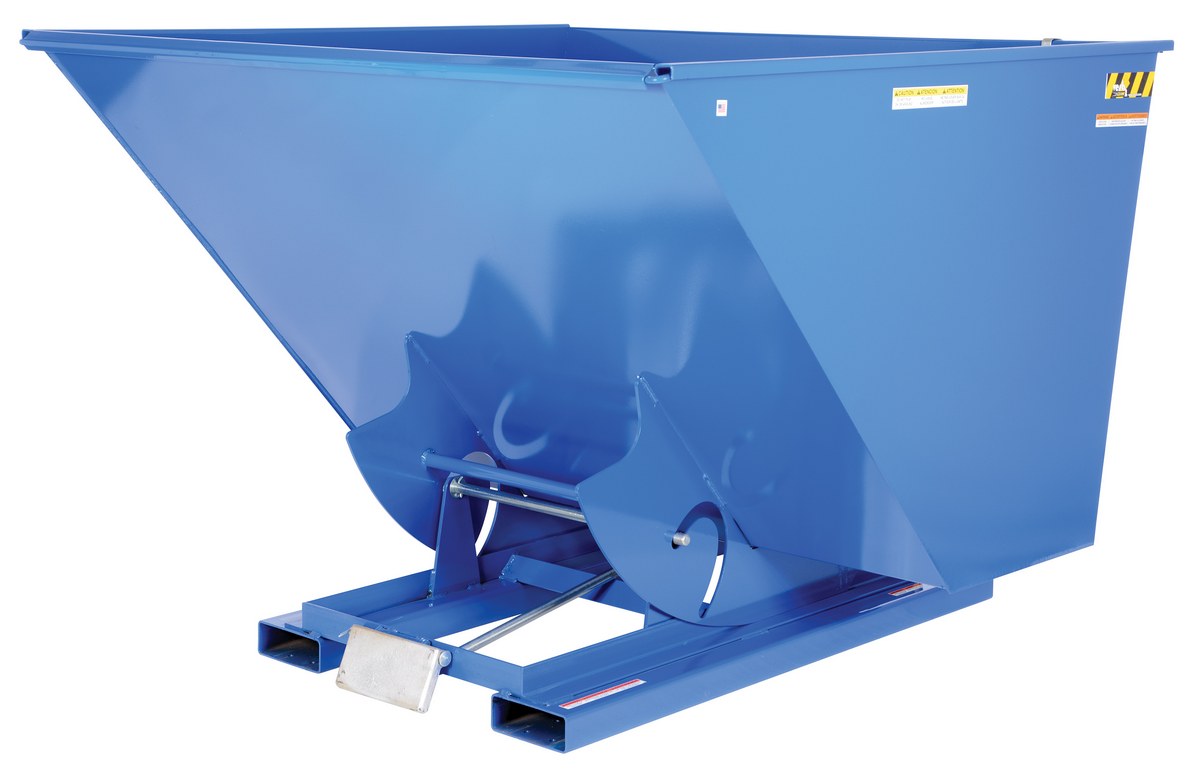

D-250-HD D-250-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		850

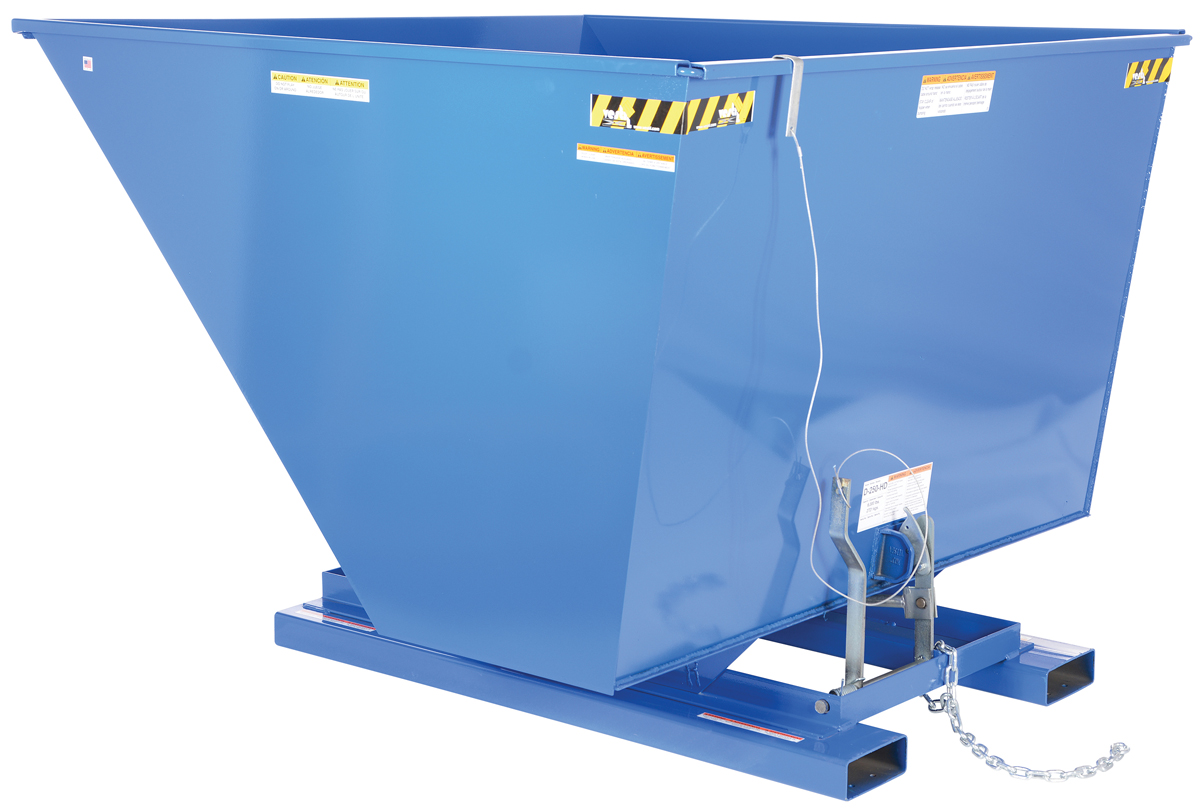

D-250-LD D-250-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		850
D-250-MD D-250-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		850

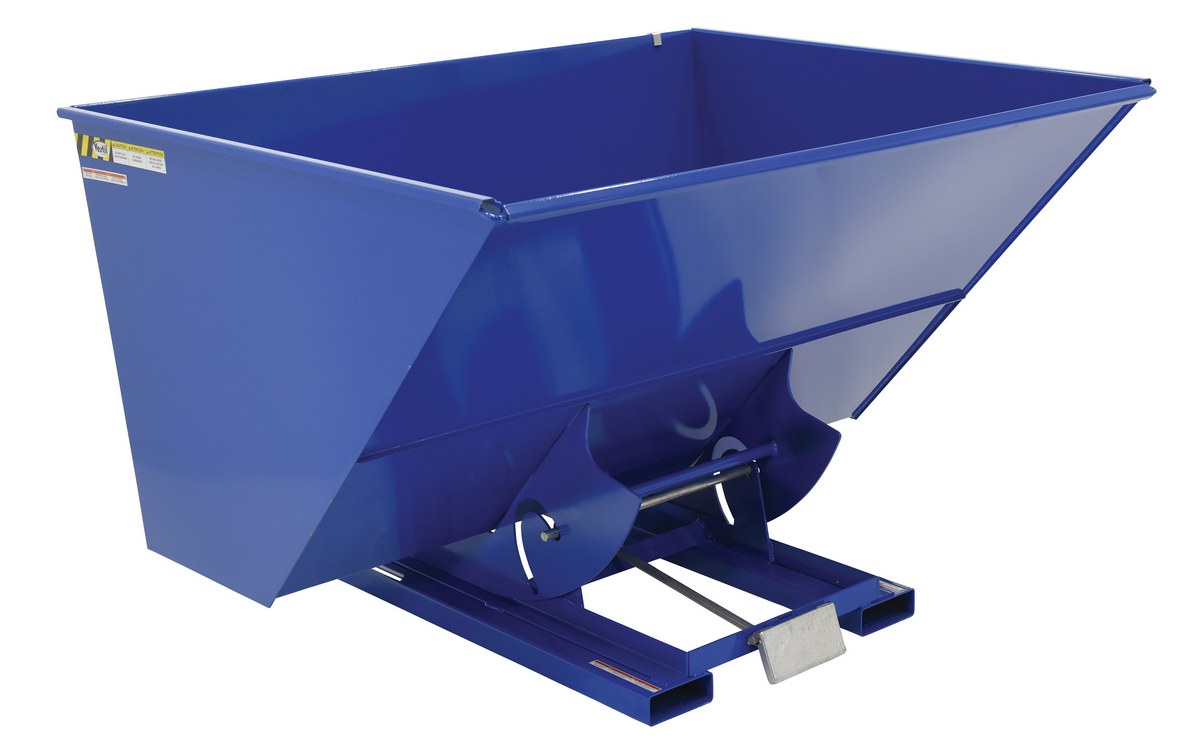

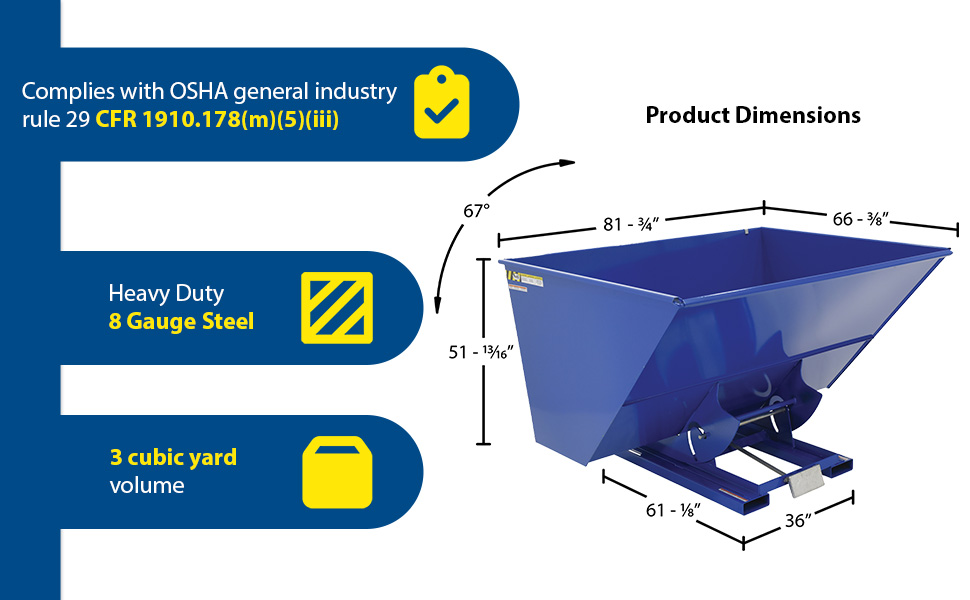

D-300-HD D-300-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		922

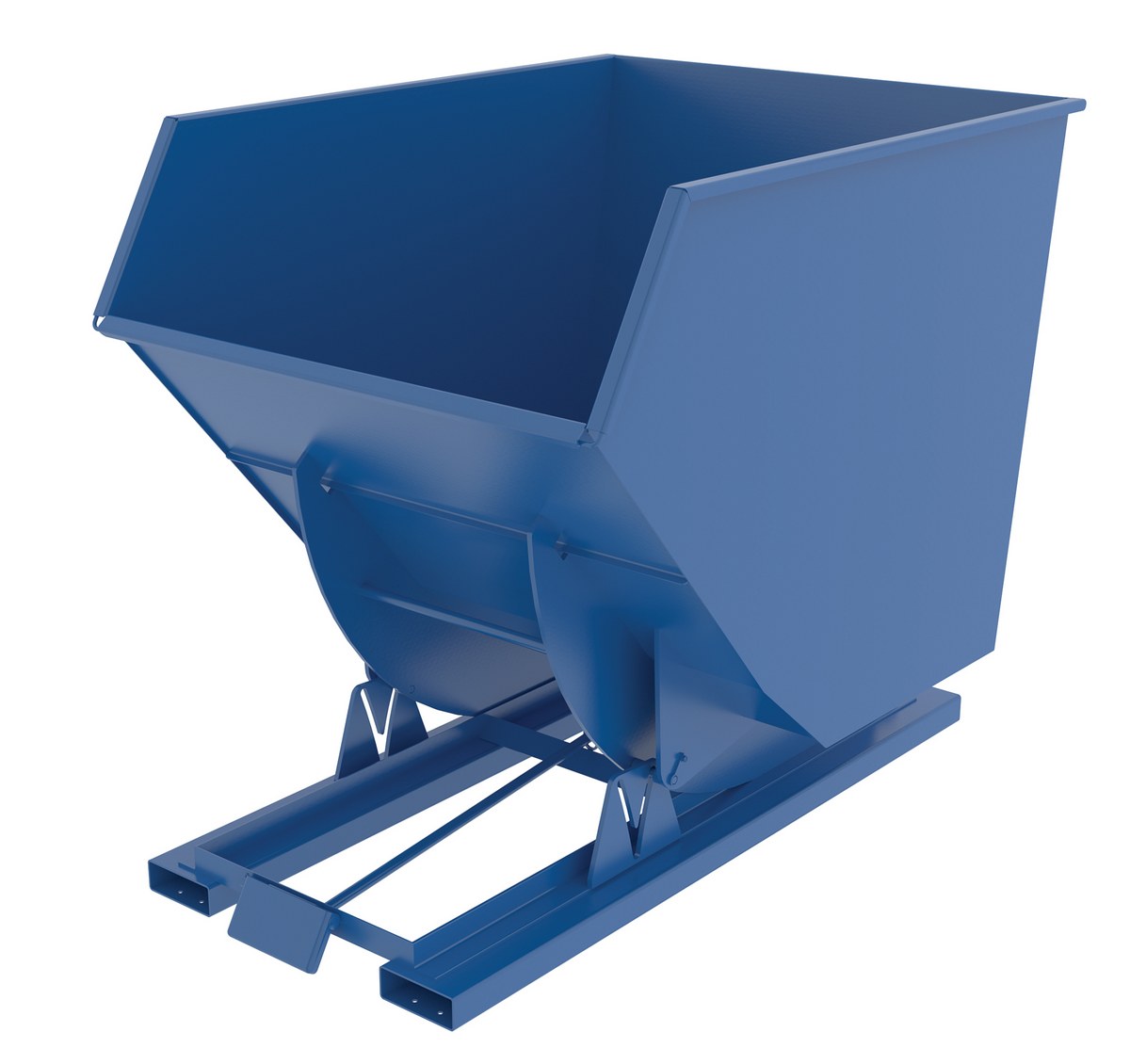

D-300-HD-NA D-300-HD-NA90 Days Limited WarrantySteel Heavy Duty Narrow Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1016

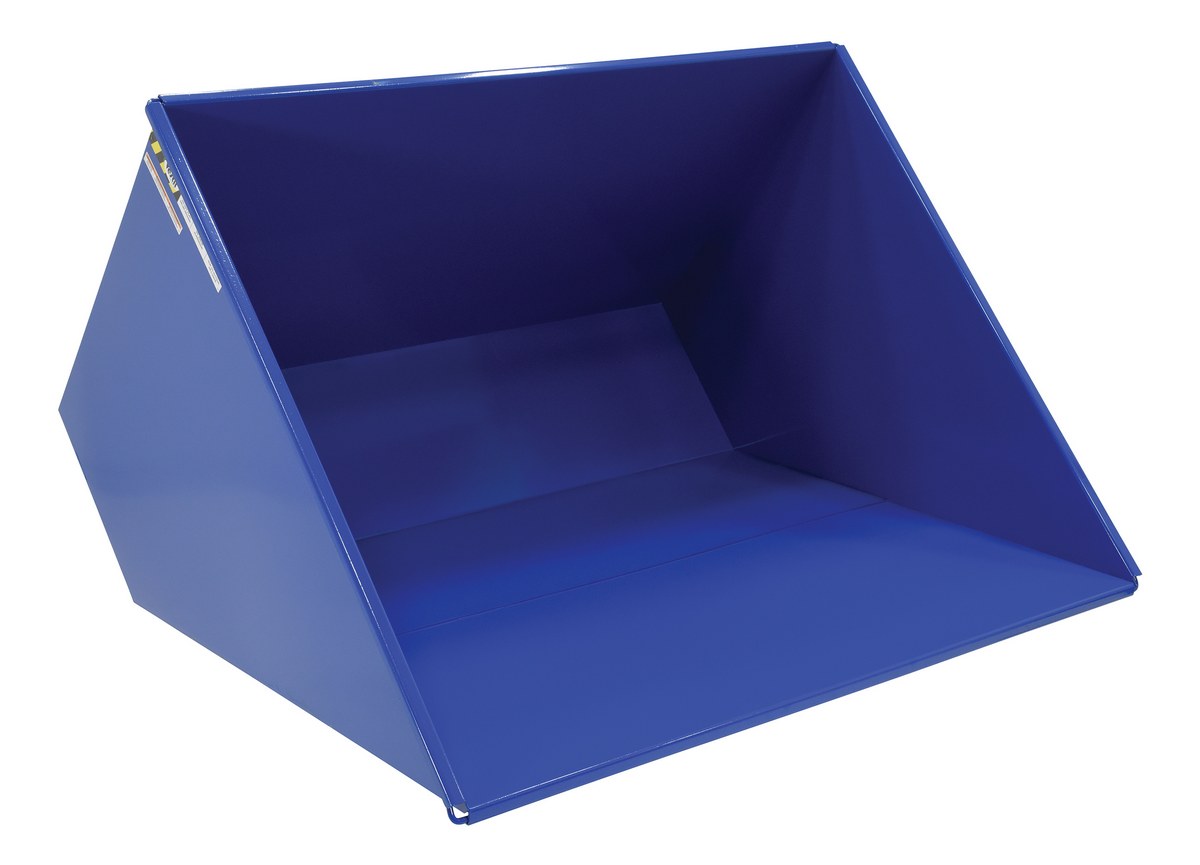

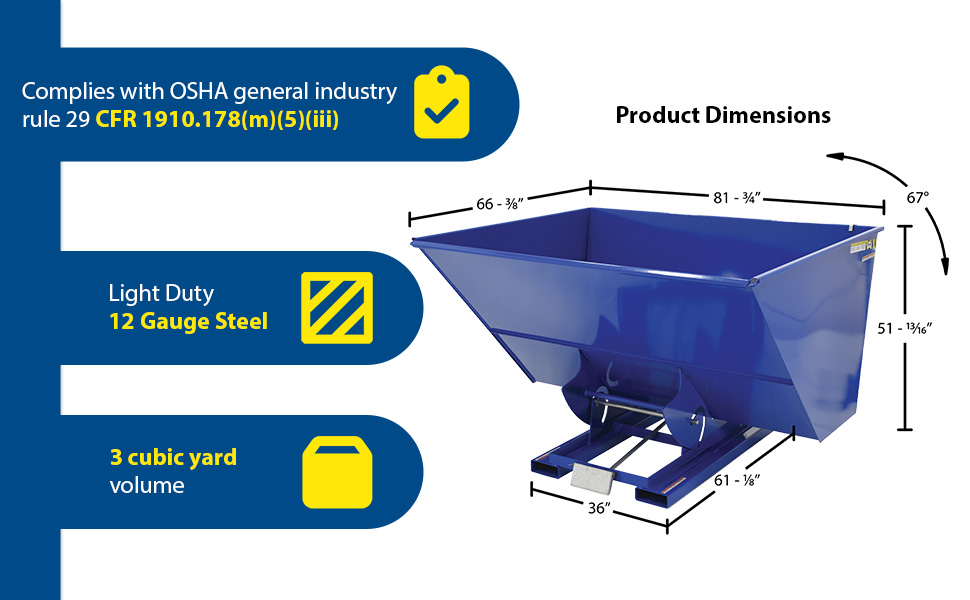

D-300-LD D-300-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 3 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		922

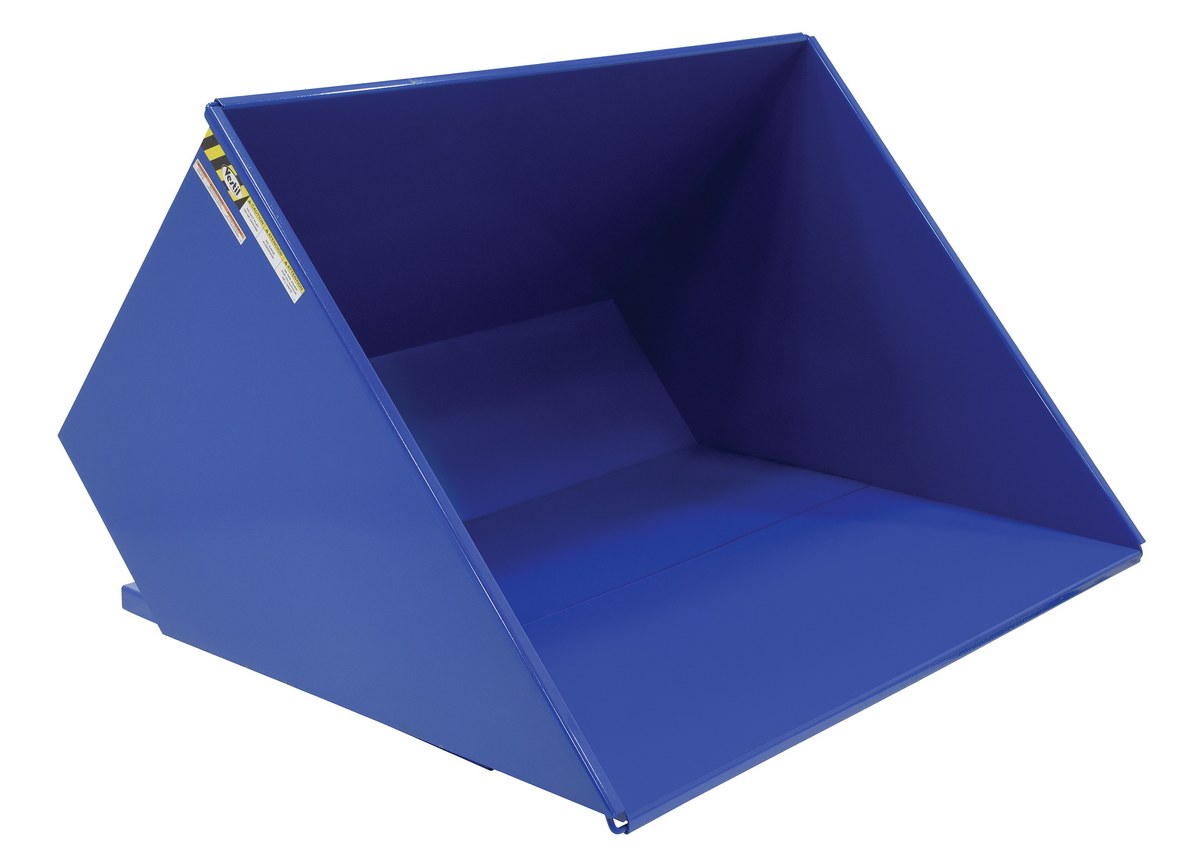

D-300-MD D-300-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 3 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		922

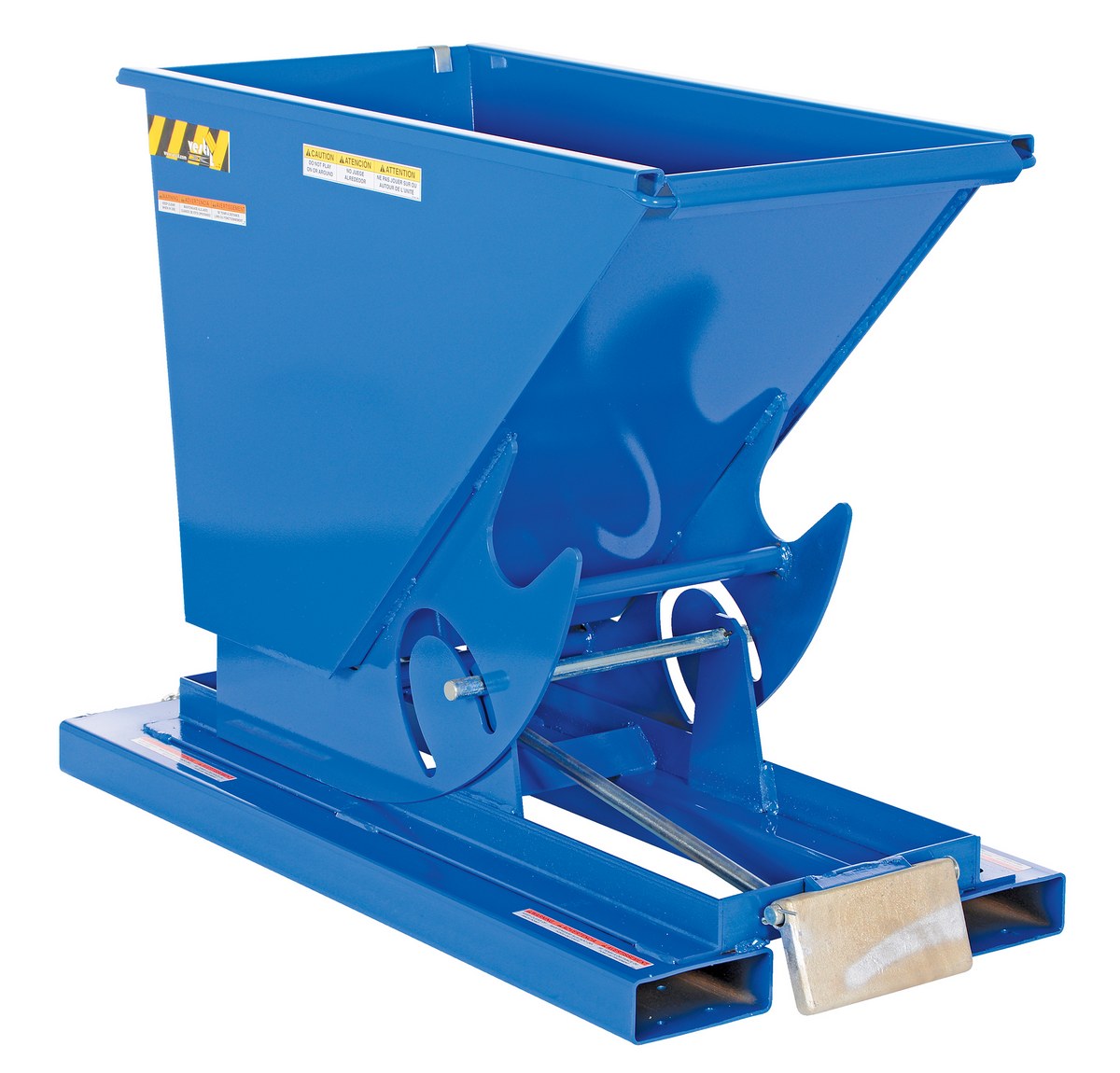

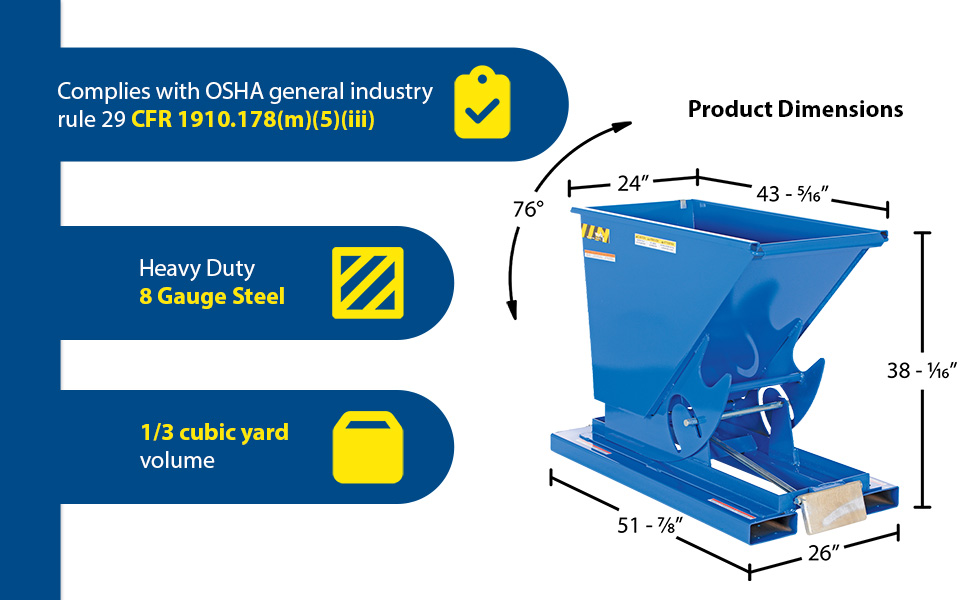

D-33-HD D-33-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		386
D-33-LD D-33-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		341
D-33-MD D-33-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		386

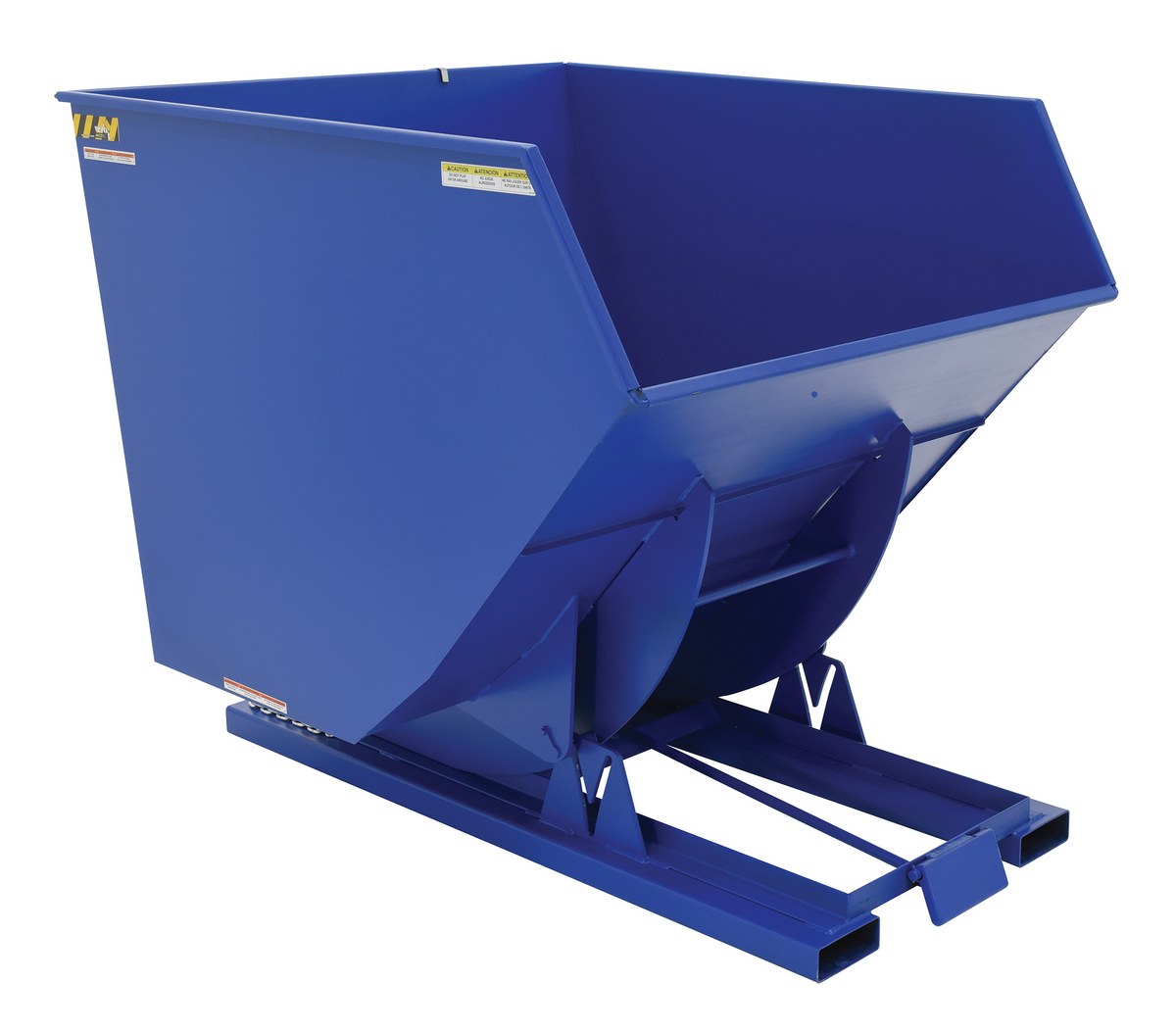

D-350-HD D-350-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1076

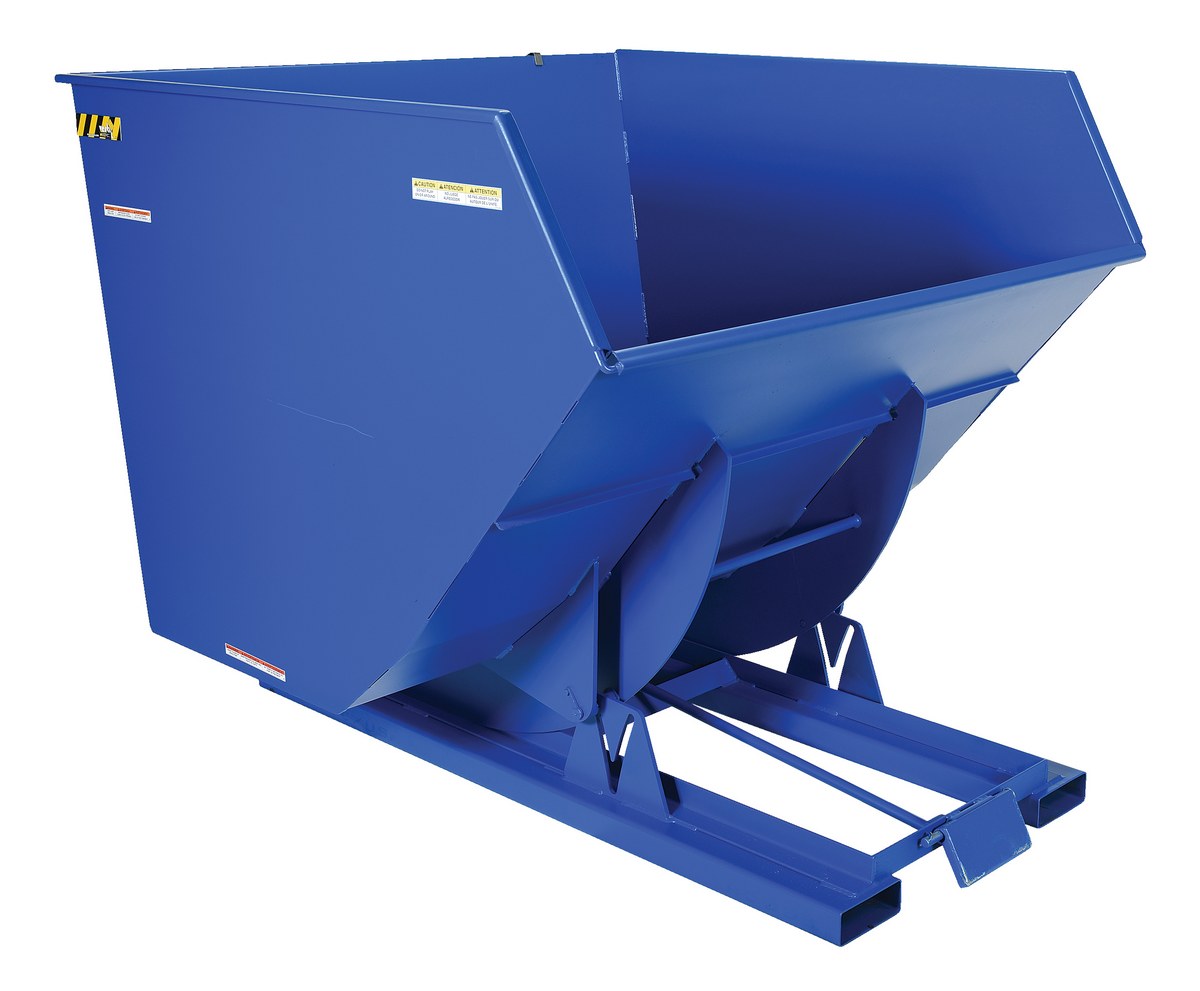

D-400-HD D-400-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1140

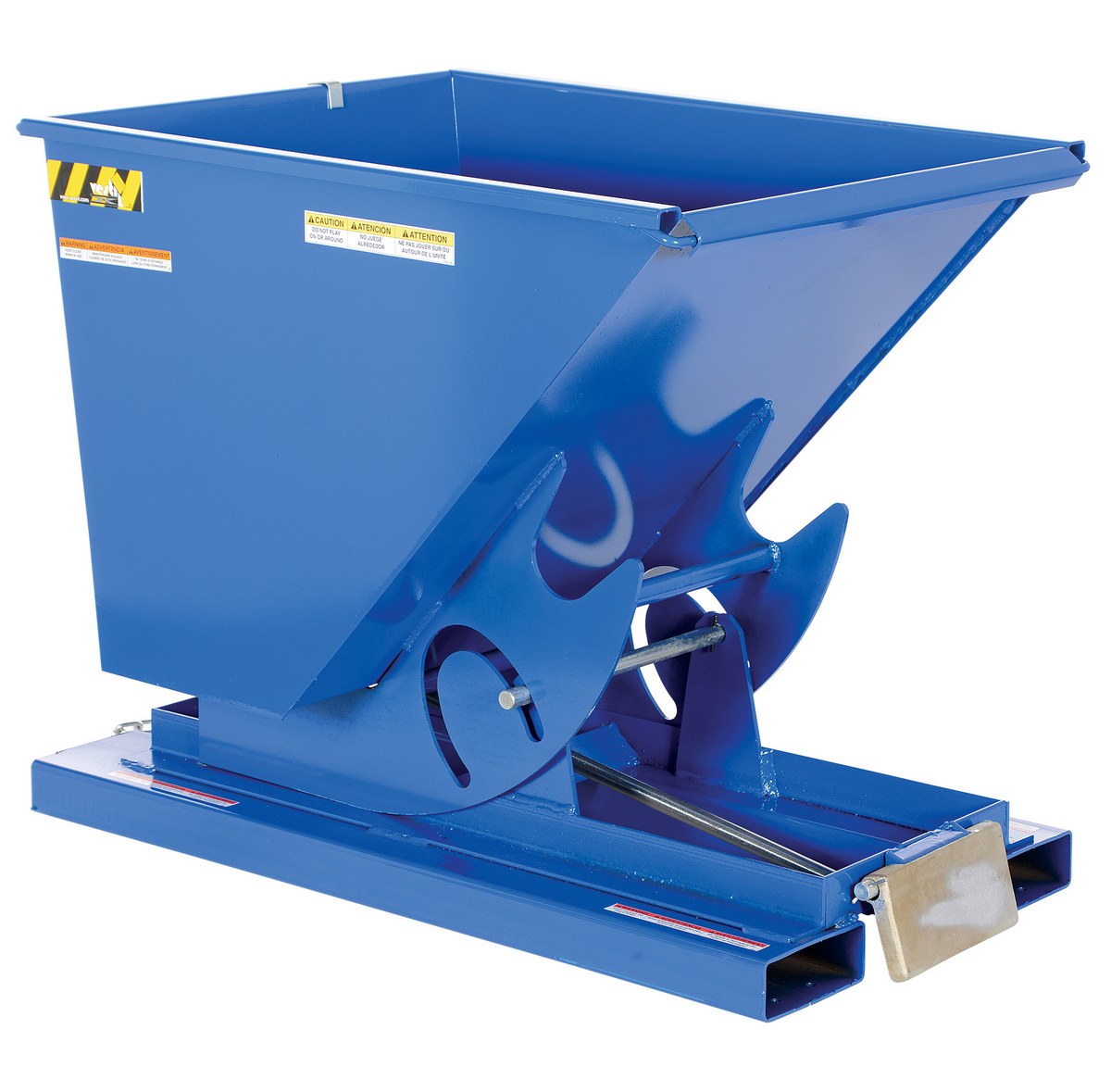

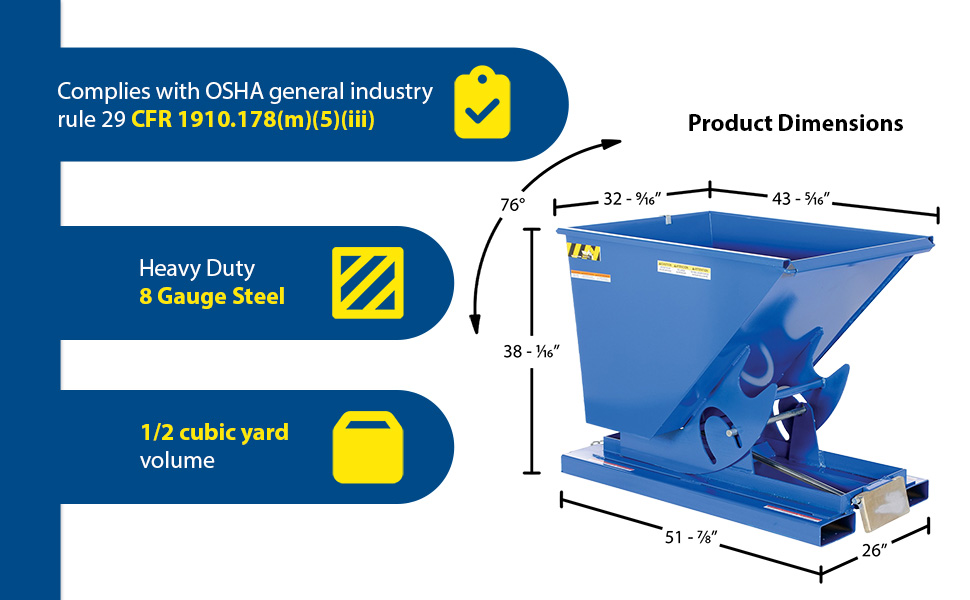

D-50-HD D-50-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		432

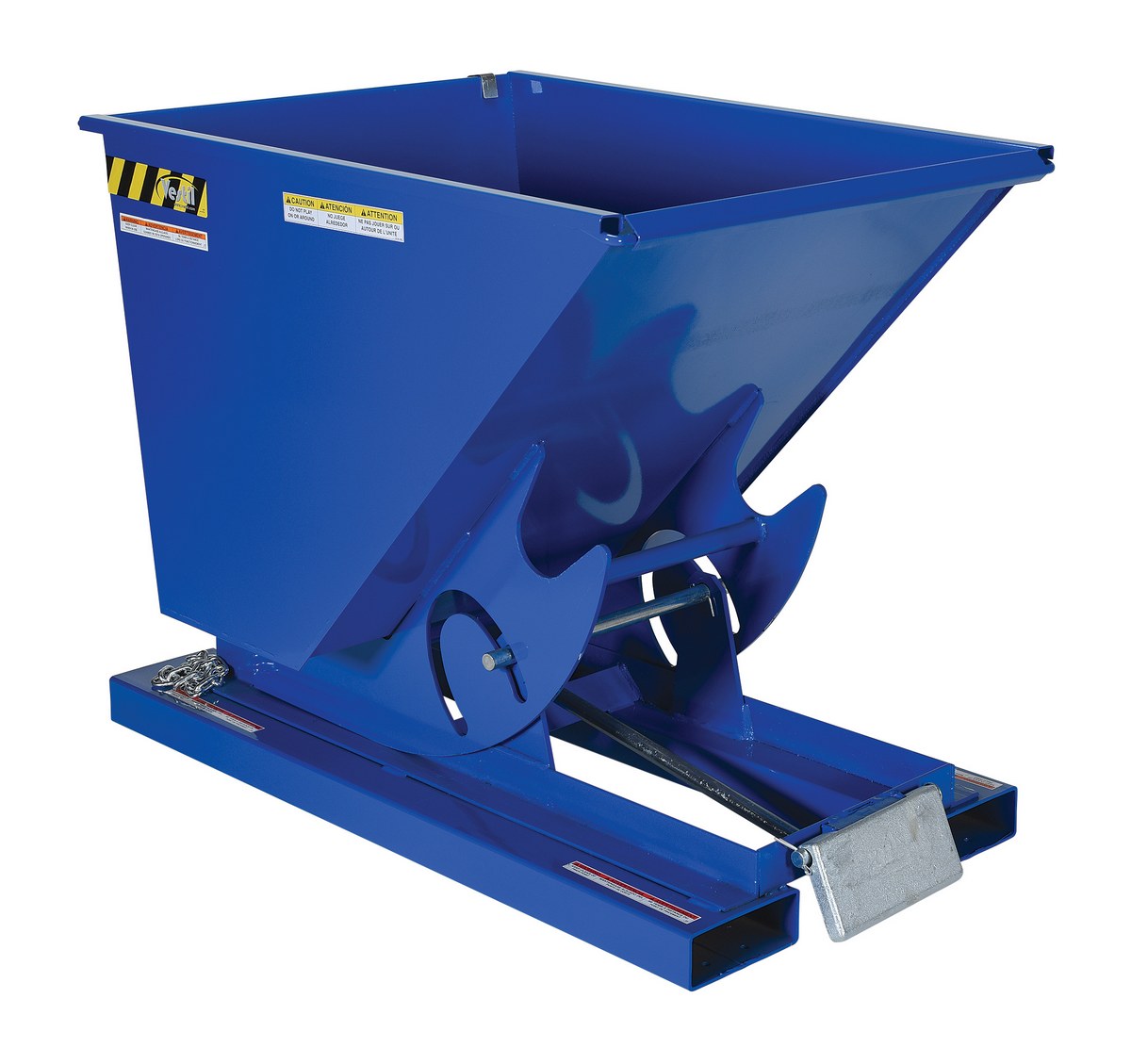

D-50-LD D-50-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		362
D-50-MD D-50-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		435

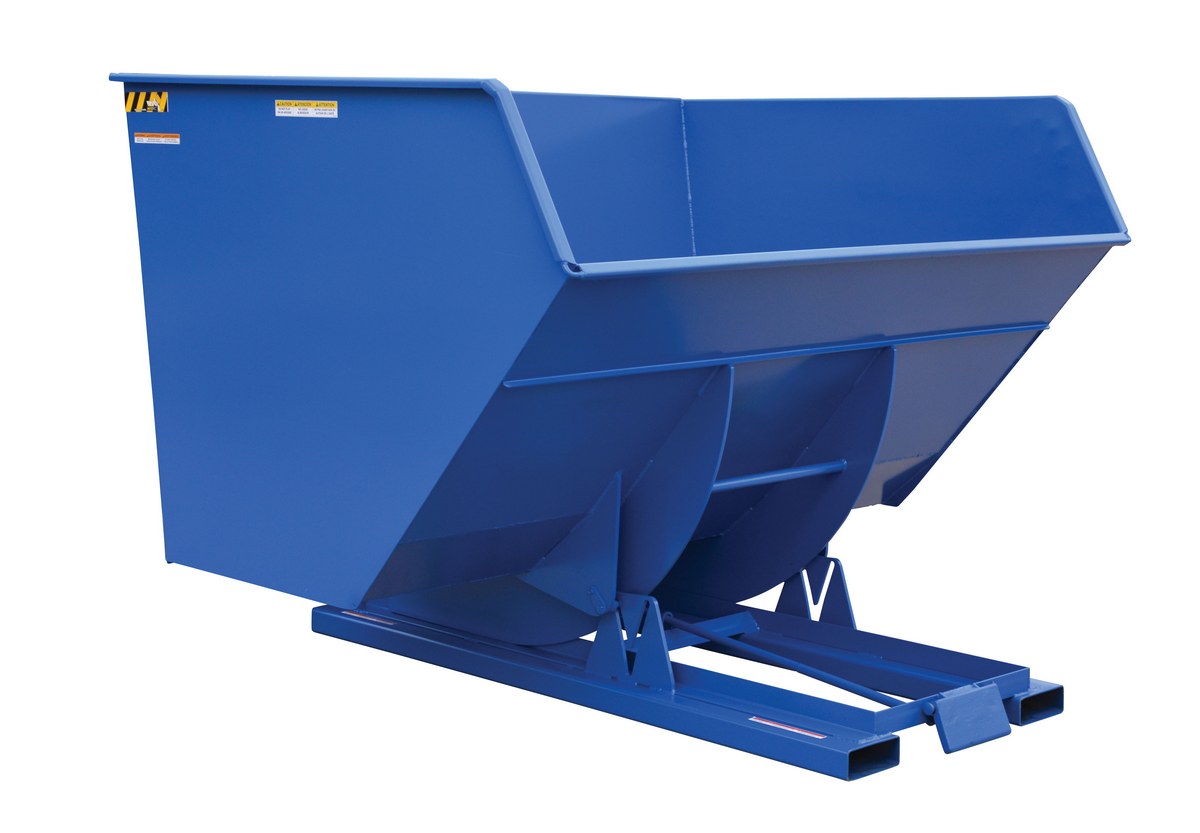

D-500-HD D-500-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1250

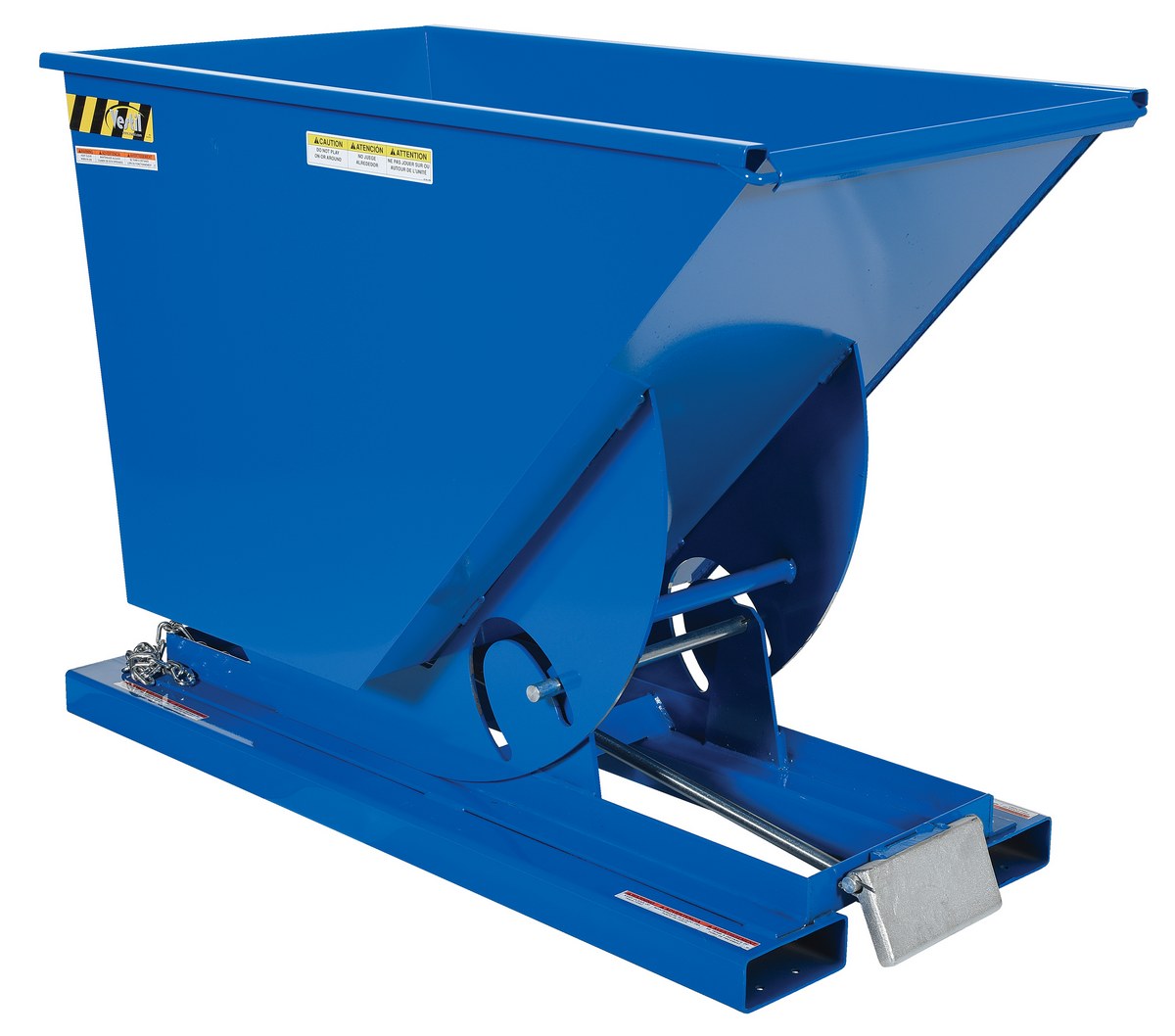

D-75-HD D-75-HD90 Days Limited WarrantySteel Heavy Duty Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		541
D-75-LD D-75-LD90 Days Limited WarrantySteel Light Duty Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		449

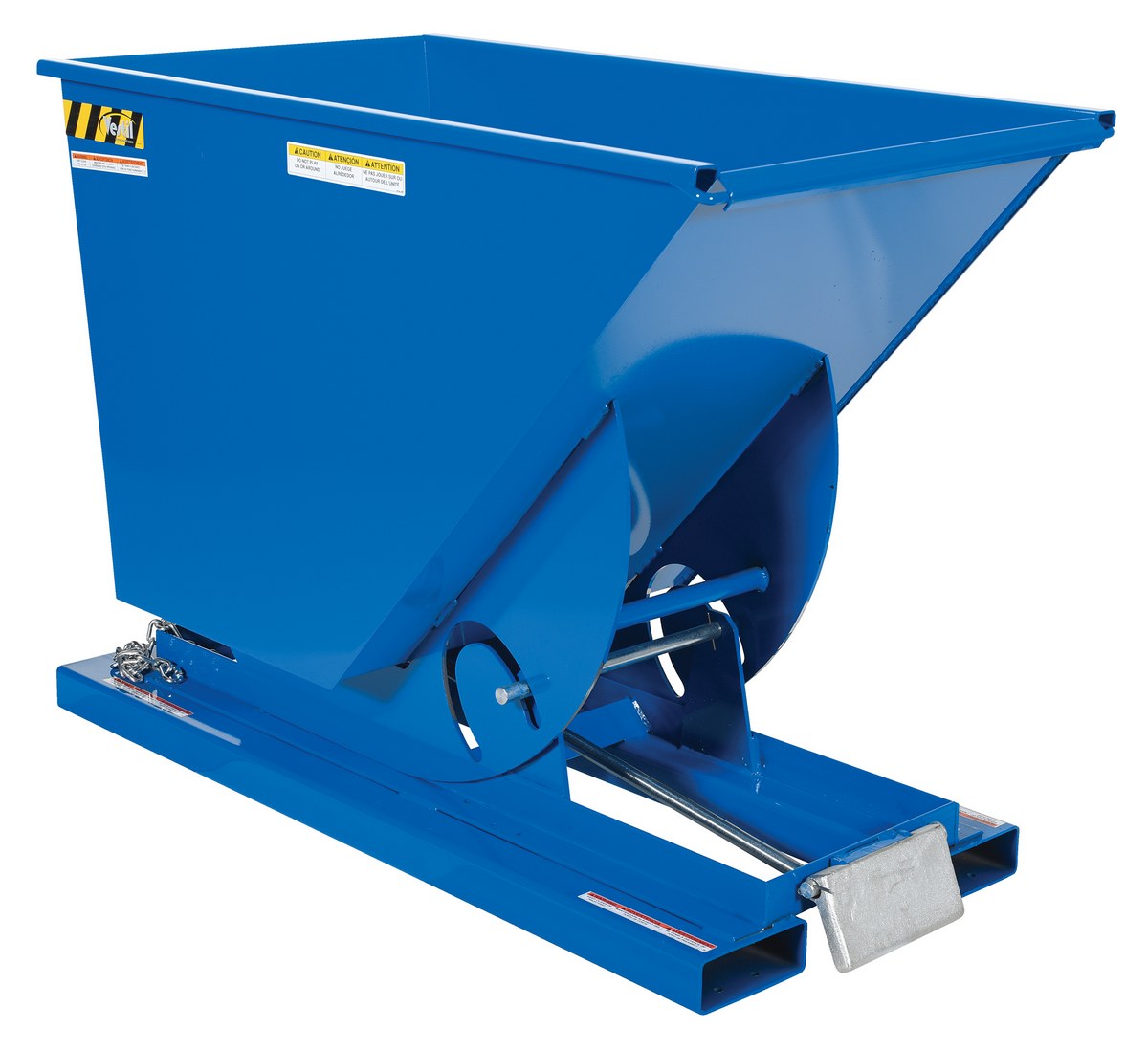

D-75-MD D-75-MD90 Days Limited WarrantySteel Medium Duty Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		543

* Click the Comparison Table link above this table, or compare up to 3 products side-by-side by clicking Green +

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

D-25-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-25-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-25-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-33-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-33-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-33-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-50-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-50-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

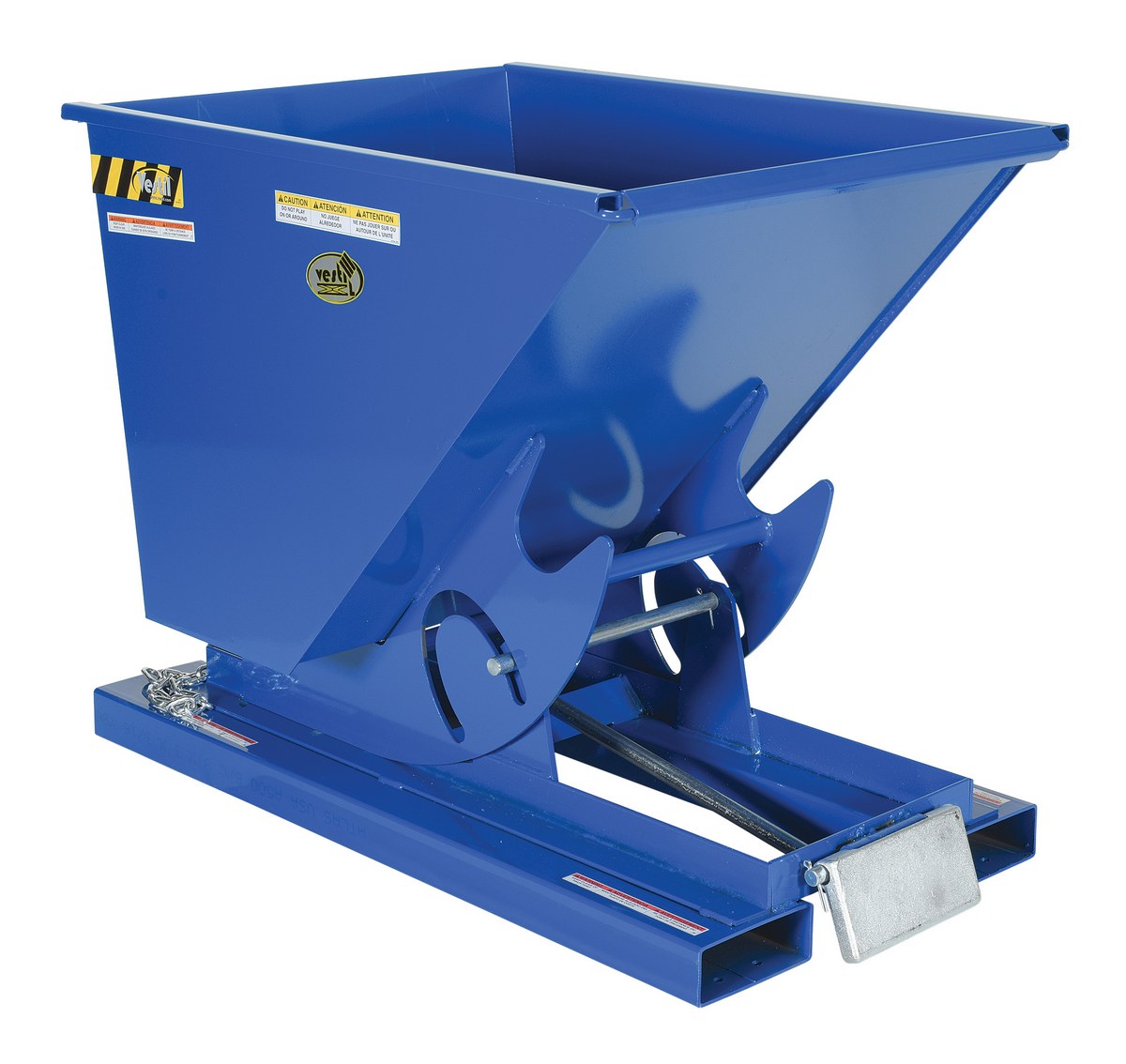

D-50-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-75-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

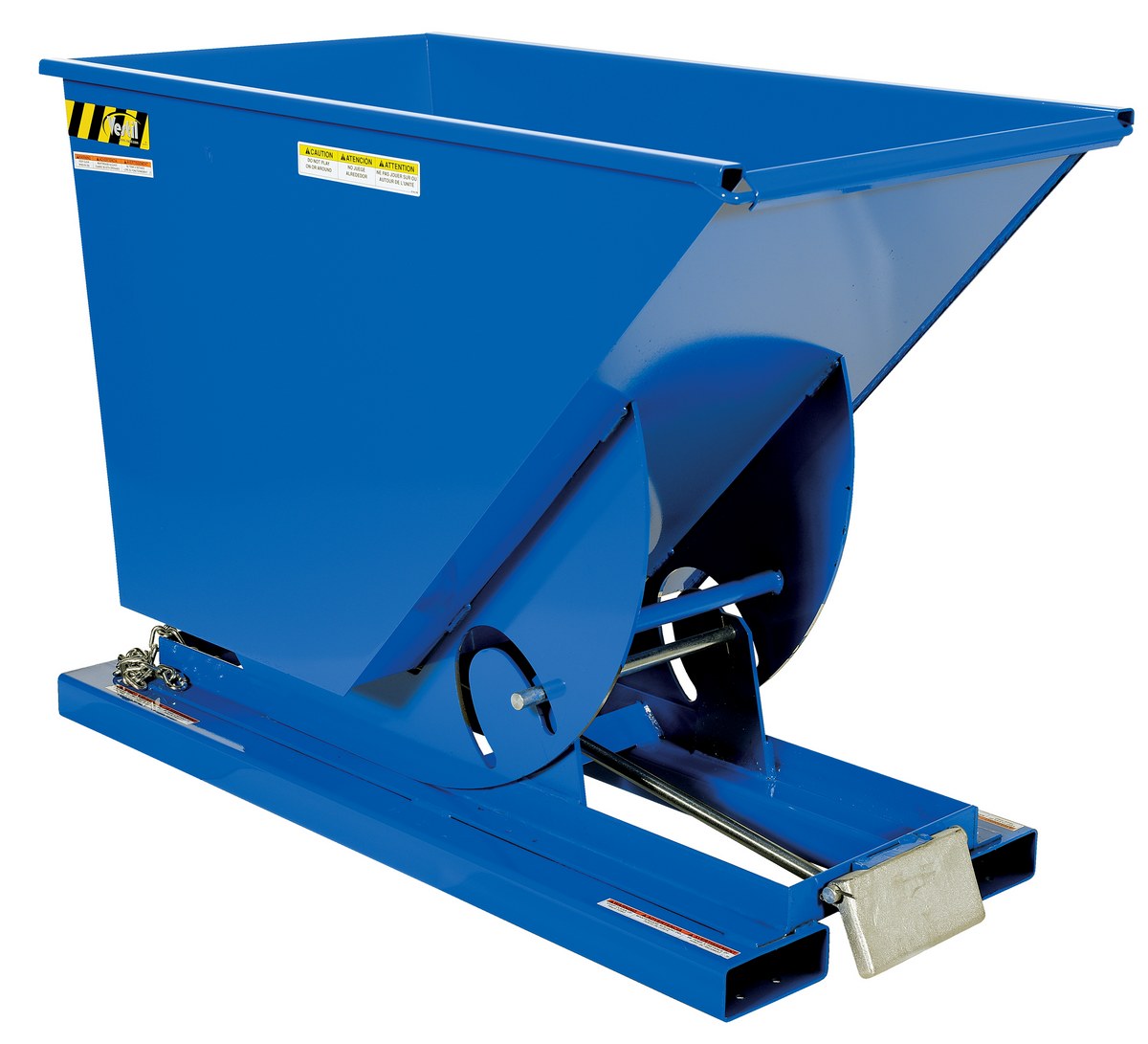

D-75-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-75-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-100-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Steel (gauge): 8
Uniform Capacity (lb.): 6000
Steel (gauge): 8

D-100-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Steel (gauge): 12
Uniform Capacity (lb.): 2000
Steel (gauge): 12

D-100-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Steel (gauge): 10
Uniform Capacity (lb.): 4000
Steel (gauge): 10

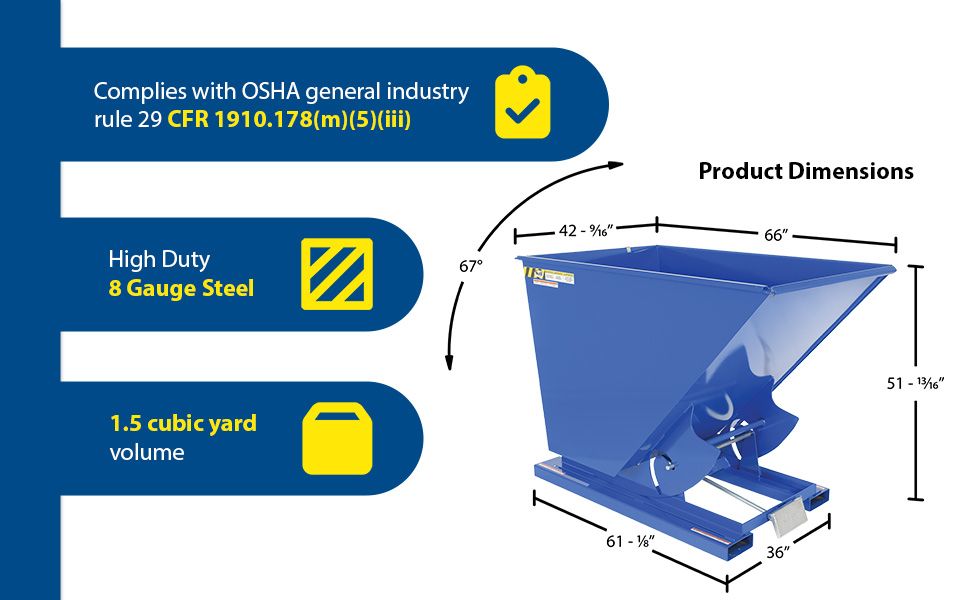

D-150-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-150-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-150-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-200-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-200-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-200-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-250-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-250-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-250-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-300-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-300-HD-NA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-300-LD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Steel (gauge): 12
Uniform Capacity (lb.): 2,000
Steel (gauge): 12

D-300-MD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel (gauge): 10
Uniform Capacity (lb.): 4,000
Steel (gauge): 10

D-350-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-400-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8

D-500-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Uniform Capacity (lb.): 6,000
Steel (gauge): 8
For More Details of the Option Click the Red Model Button
D-150-EXT-SMY D-150-EXT-SMY90 Days Limited WarrantySteel Mesh D-150 Series Side Extensions 64-15/16 In. x 43-1/8 In. x 15-11/16 In. YellowHardware: Included
Usable Width (in.): 40		37
D-200-EXT-SMY D-200-EXT-SMY90 Days Limited WarrantySteel Mesh D-200 Series Side Extension 64-15/16 In. x 56-1/8 In. x 15-11/16 In. YellowHardware: Included
Usable Width (in.): 53		40
D-250-EXT-SMY D-250-EXT-SMY90 Days Limited WarrantySteel Mesh D-250 Series Side Extensions 64-15/16 In. x 69-1/8 In. x 15-11/16 In. YellowHardware: Included
Usable Width (in.): 66		45

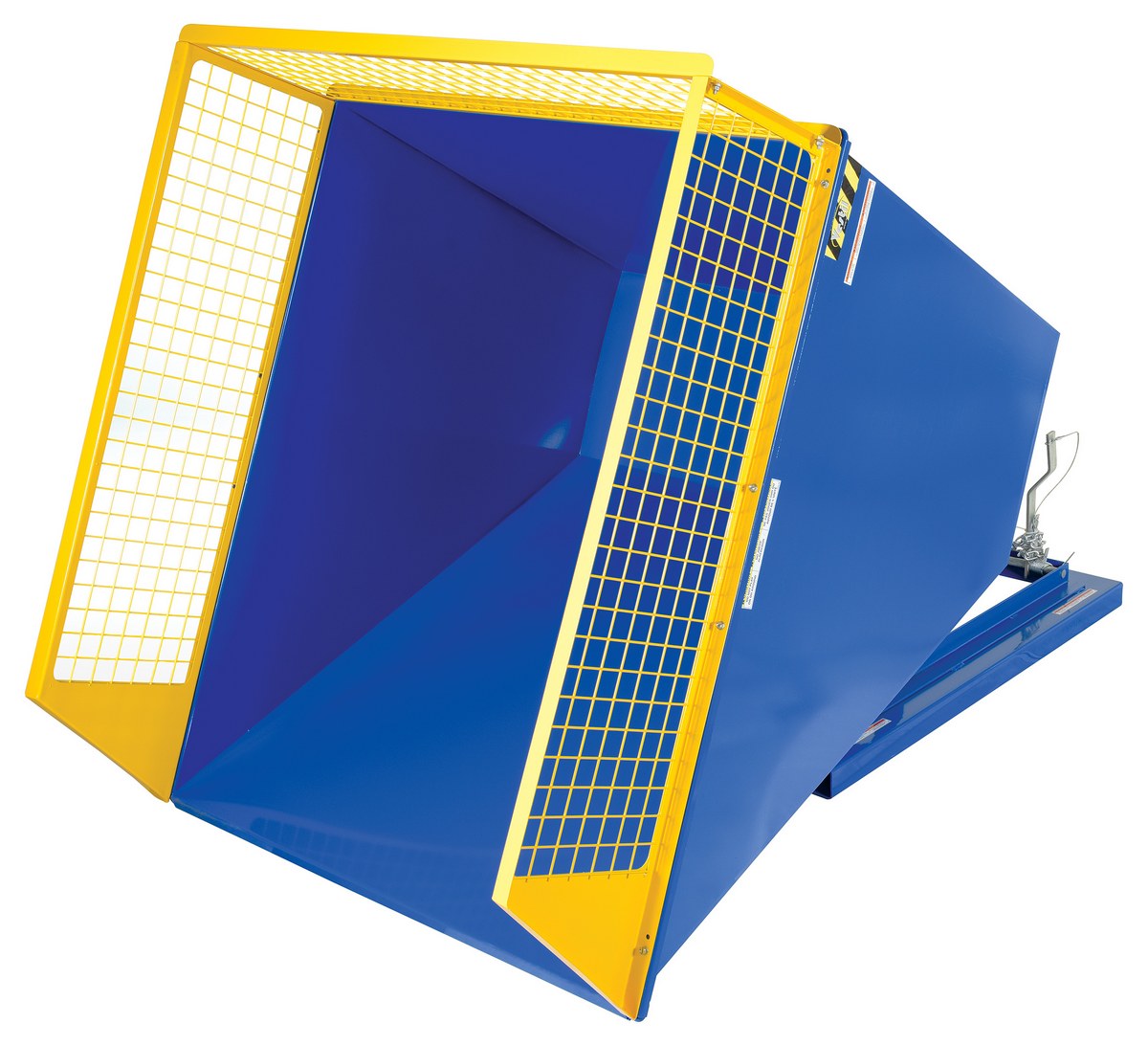

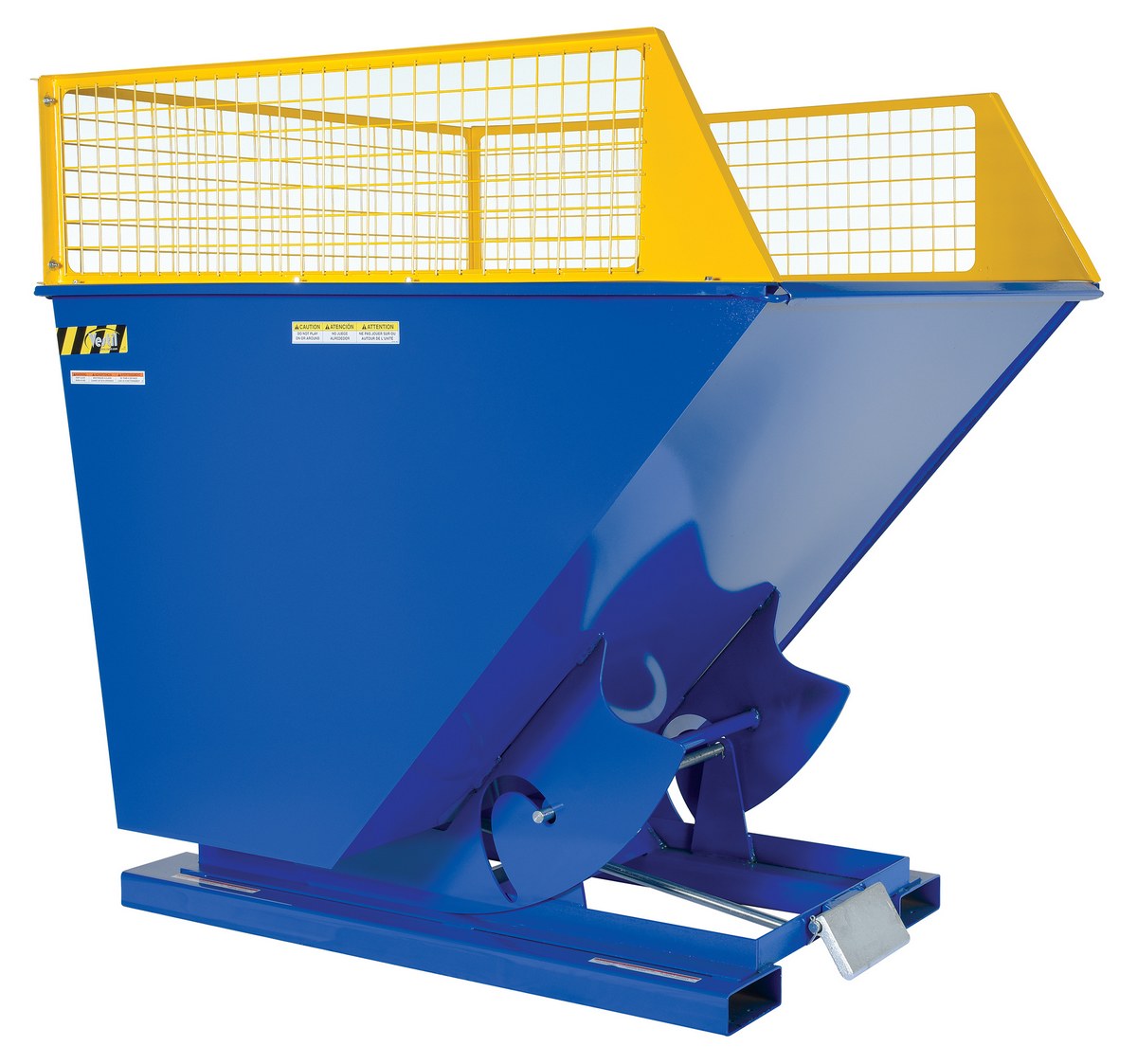

D-300-EXT-SMY D-300-EXT-SMY90 Days Limited WarrantySteel Mesh D-350 Series Side Extensions 64-15/16 In. x 81-5/16 In. x 15-11/16 In. YellowHardware: Included
Usable Width (in.): 78-3/16		50

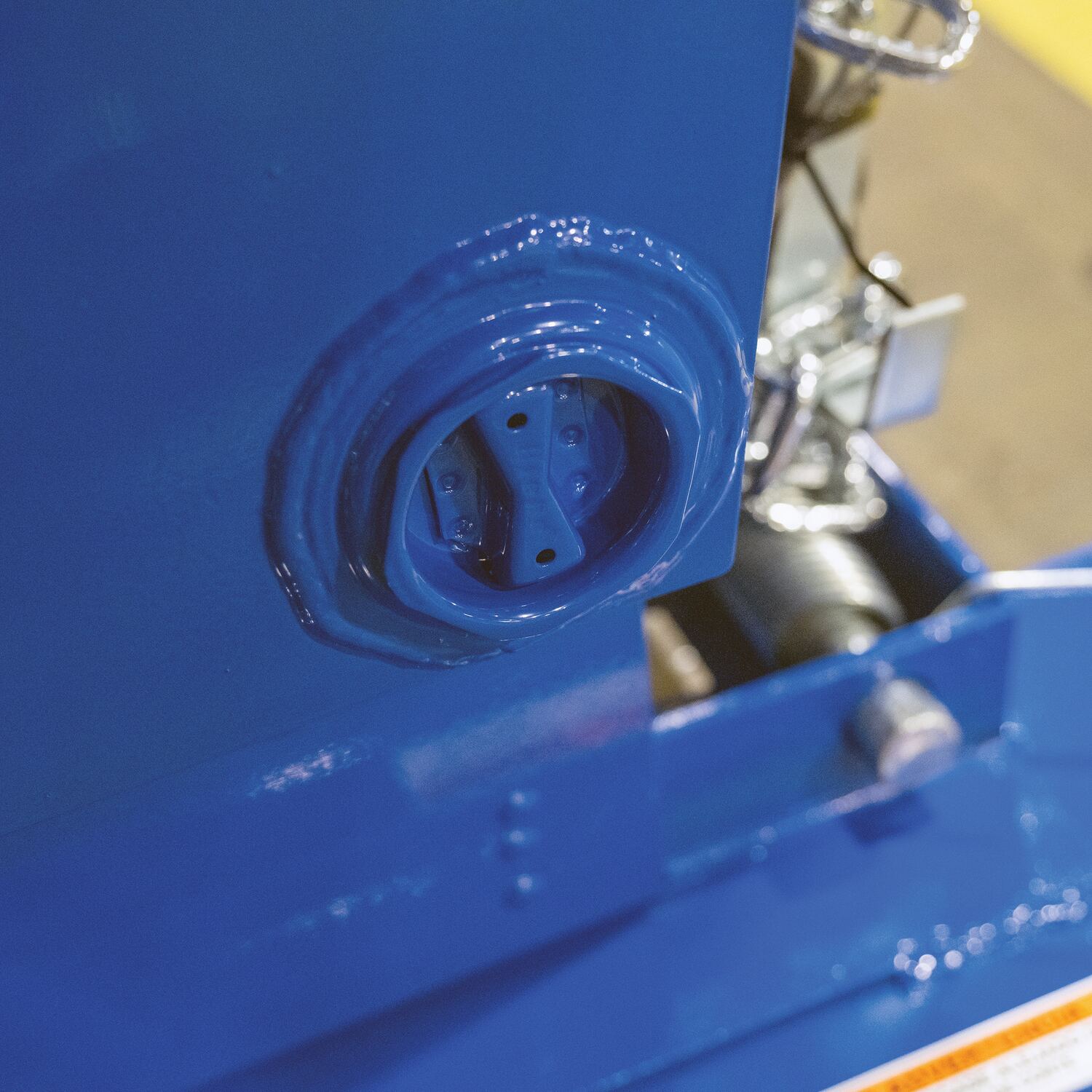

D-DPLG-2 D-DPLG-230 Days Limited WarrantyFactory Installed Welded Steel 2 In. Threaded Drain Plug Left Corner For D Style HoppersDrain Size (in): 2
Nominal Fitting Connection Size - 1: 2"		2

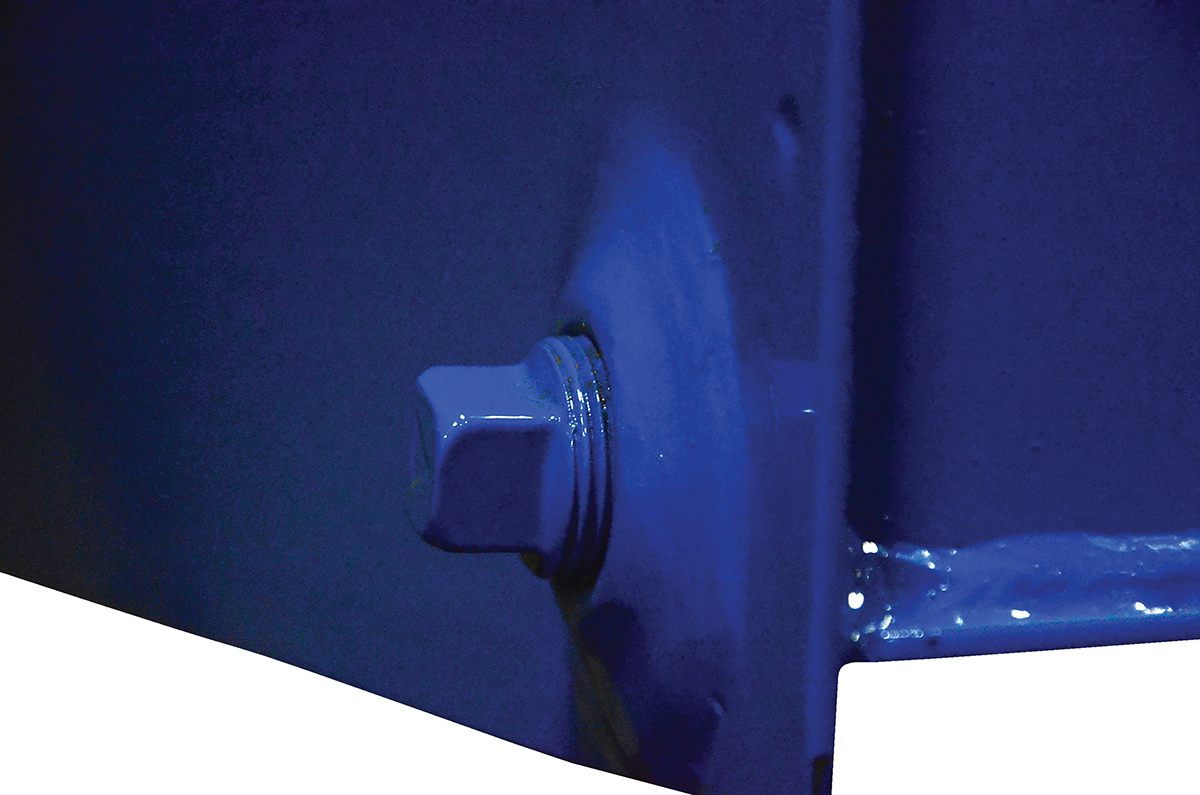

D-DPLG-75 D-DPLG-7530 Days Limited WarrantyFactory Installed Welded Steel 3/4 In. Threaded Drain Plug Left Corner For D Style HoppersDrain Size (in): .75
Nominal Fitting Connection Size - 1: 3/4		1

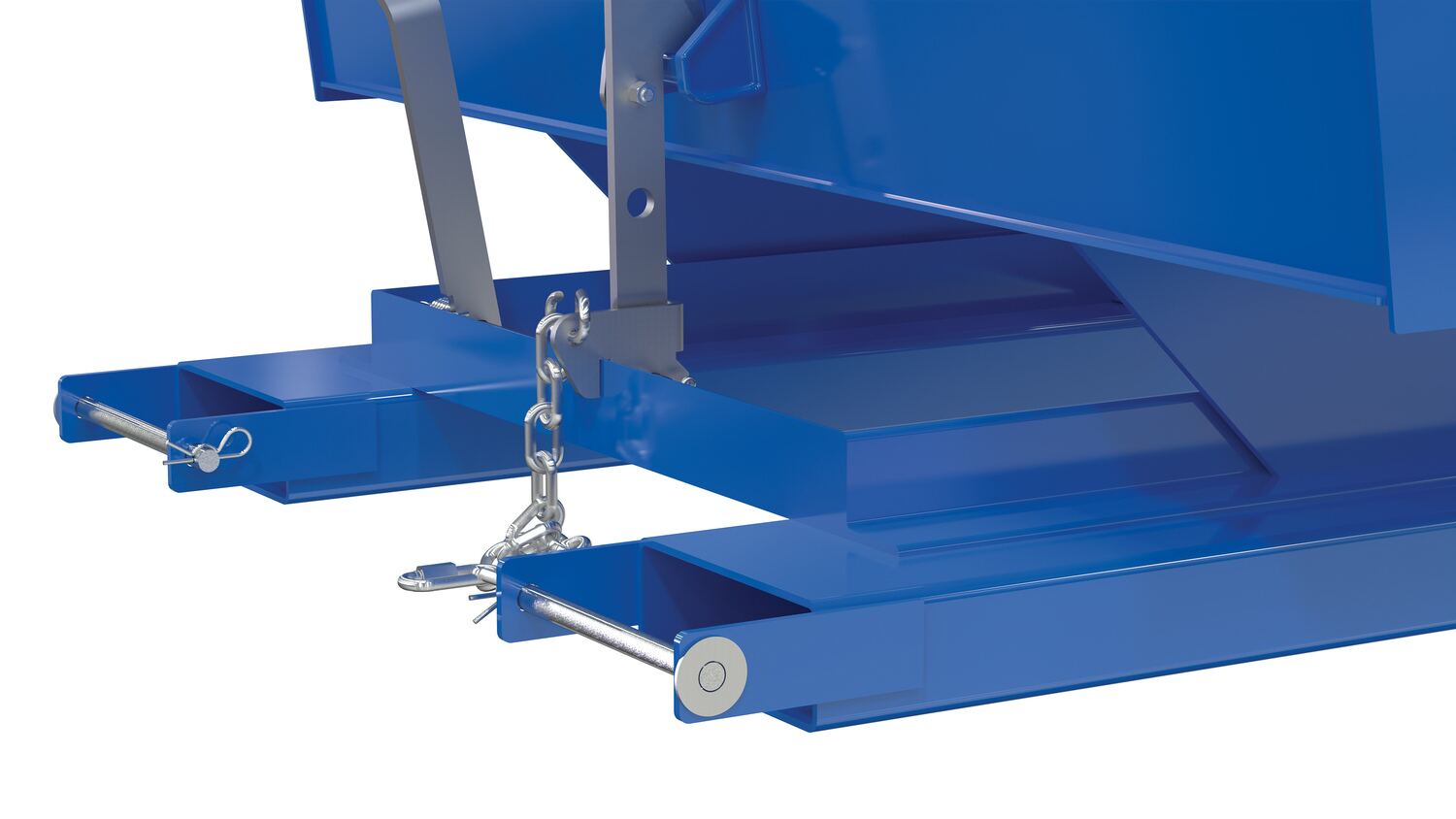

D-PIN D-PIN90 Days Limited WarrantyFactory Installed Welded Steel Fork Retaining Pin For D-Style Hoppers-
5

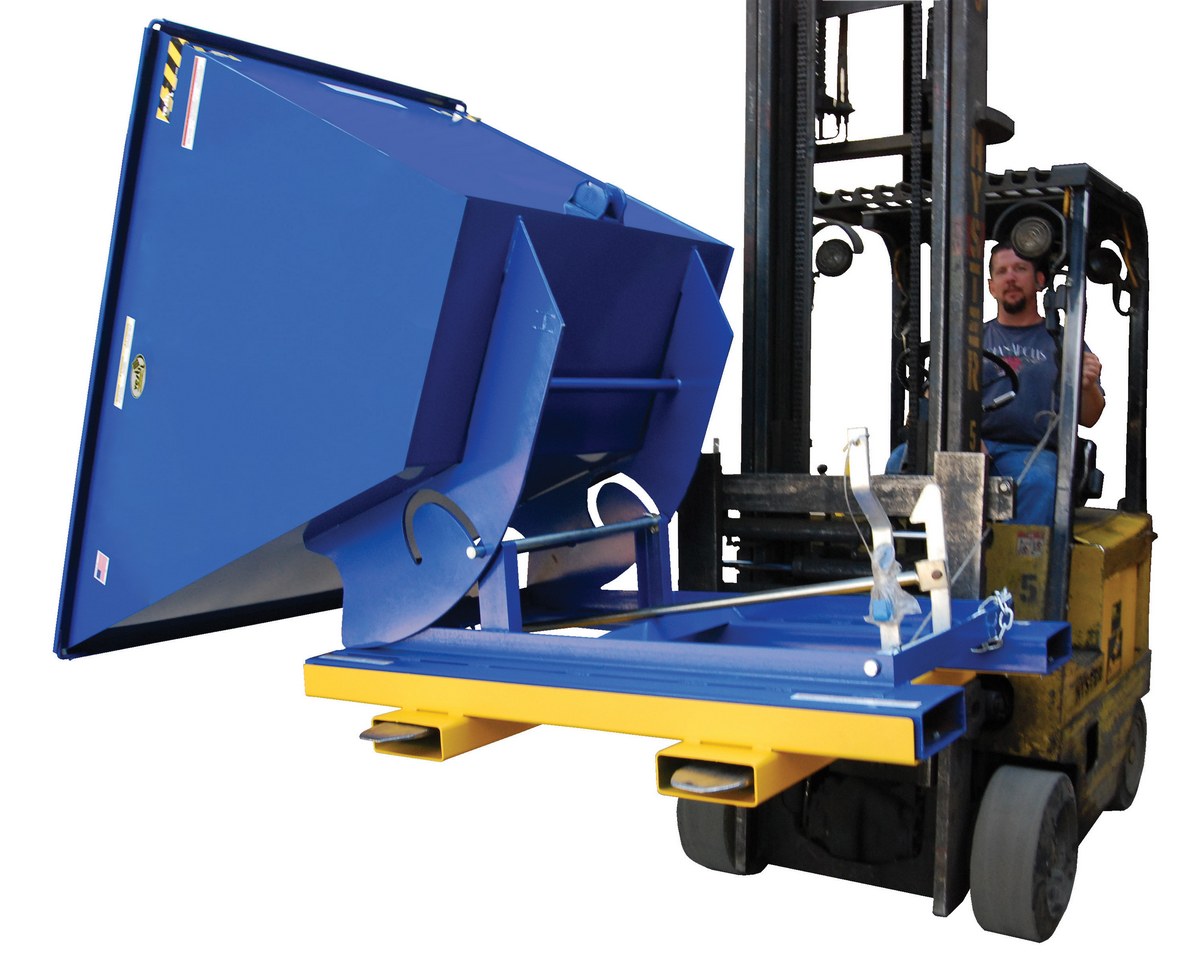

D-TILT D-TILT90 Days Limited WarrantySteel Sideways Tilt Fork Attachment For D Style Hoppers YellowUniform Capacity (lb.): 2,000
Added Height to Hopper (in.): 3-5/16		130
Model Number Image Description Wt. (lbs.)
Caster Options Caster options for D style hoppers -
Optional Lids Lid options for D style hoppers -
PLID-INSTALL PLID-INSTALL Vestil Optional Factory Installation of PLID Factory Installation of Hopper Lid
LEKP LEKP Welded leak proof Option 5
LUG LUG (4) Lifting Lugs (Welded) One on Each Corner 23

*D-DPLG-75 and D-DPLG-2 options includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions, are great addition for material handling and construction facilities. The extended sides are constructed of steel mesh for high strength durability during transference of goods, while the yellow painted finish delivers great visibility.

Side Extensions For "D" Style Hoppers
Model Number Extension
Height		 Works With
Hopper Series		 Wt.
(lbs.)
D-150-EXT-SMY 15-11/16" D-150 37
D-200-EXT-SMY 15-11/16" D-200 40
D-250-EXT-SMY 15-11/16" D-250 45
D-300-EXT-SMY 15-11/16" D-300 50
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
D Style - Self-Dumping Steel Hoppers with Bumper Release PDF's will open in a new window when clicked.

Manuals


D
Owners Manual

Hopper Spring Replacement
Owners Manual

D-GAL
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


D-25-HD

D-25-LD

D-25-MD

D-33-HD

D-33-LD

D-33-MD

D-50-HD

D-50-LD

D-50-MD

D-75-HD

D-75-LD

D-75-MD

D-100-HD

D-100-LD

D-100-MD

D-150-EXT-SMY

D-150-HD

D-150-LD

D-150-MD

D-200-EXT-SMY

D-200-HD

D-200-LD

D-200-MD

D-250-EXT-SMY

D-250-HD

D-250-LD

D-250-MD

D-300-EXT-SMY

D-300-HD

D-300-HD-NA

D-300-LD

D-300-MD

D-350-HD

D-400-HD

D-500-HD

D-TILT

Testing Certificates


D-100-HD

D-100-LD

D-100-MD

D-150-EXT-SMY

D-150-HD

D-150-LD

D-150-MD

D-200-EXT-SMY

D-200-HD

D-200-LD

D-200-MD

D-25-HD

D-25-LD

D-25-MD

D-250-EXT-SMY

D-250-HD

D-250-LD

D-250-MD

D-300-EXT-SMY

D-300-HD

D-300-HD-NA

D-300-LD

D-300-MD

D-33-HD

D-33-LD

D-33-MD

D-350-HD

D-400-HD

D-50-HD

D-50-LD

D-50-MD

D-500-HD

D-75-HD

D-75-LD

D-75-MD

D-DPLG-2

D-TILT

SDS Sheets

No SDS Sheets For This Product

Other PDF's

Specialty Colors Hoppers
Specialty Hopper Colors Product Mailing Brochure

Extra Large Self-Dumping Hoppers Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products
Reference#: CF-6539 Steel Hopper Lids
 Reference#: CF-6539 Steel Hopper Lids
Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for D Style Hoppers
Reference#: CF-5670 Dewatering Hoppers
 Reference#: CF-5670 Dewatering Hoppers
Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.
Reference #: CF-5998 Concrete Hopper
 Reference #: CF-5998 Concrete Hopper
Reference #: CF-5998 Concrete Hopper
Special Concrete Hopper
For more Specialty Designs similar to these... Click Here

Q: I'm looking at the self dumping hopper . Does it come with casters?

A: Casters are available for the D- Style Self-Dumping Hopper. Please see the hopper caster options page for multiple options.

Q: Can the size of the self dumping hopper be modified?

A: We may be able to modify the width of the hopper. We are not able to modify the length. Please contact a sales associate for details.

Q: What does the "LD" mean on the hopper?

A: LD is "light duty" 12 gauge steel, 2,000 lb. capacity. MD is "medium duty" 10 gauge steel, 4,000 lb. capacity. HD is "heavy duty" 8 gauge steel , 6,000 lb. capacity.

Q: What is the bolt hole pattern for the casters?

A: The pattern gets punched at the front and back of each fork tube for the casters. The hole diameter is 7/16".

Q: Can the hoppers be used with a telehandler?

A: We do NOT recommend using the hopper with a telehandler. These hoppers are designed for use with powered fork lift trucks.

Q: What caster should I purchase for the hopper?

A: The mold on rubber and poly on steel casters with their soft tread are quiet and ideal for uneven floors. The glass filled nylon casters provide a smoother roll. The semi-steel and ductile steel casters are the most durable. Your sales associate can help you match the capacity and size of the caster kits to your hopper.

Q: What is the capacity of the lifting lugs?

A: The capacity of the lifting lug is compatible with the capacity of the hopper.

Q: I see under the options tab the D-TILT. Does that have to be installed at the time I order a hopper?

A: The D-TILT can be customer/field installed.




Related or Similar Products:





D Style - Self-Dumping Steel H...




Hopper automatically dumps when bumper release contacts the front of the dumpster. Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Usable fork pockets are 7-1/2"W x 2-1/2"H. Self-dumping hoppers facilitate compliance with OSHA General Industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Optional leak proof design sold separately. D-25, D-33, D-50, D-75, and D-100 are stackable if you stack the top hopper turned 90 degrees from the bottom. Blue baked-in powder-coated toughness is standard. Must be attached to fork truck when dumping.

D-100-LD + D-CK4-GFN6-2 + PLID-D-100
Automatic Bumper Release
Automatic bumper release dumps when it contacts the side of the dumpster		 Locked Position
Returns to upright and locked position automatically
Full Lenth Fork Tubes
Full-length fork tubes provide a solid base		 Safety Restraint
Safety restraint secures the hopper to the fork truck
13 Sizes
3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength) .25 Cubic Yard
D-33-(strength) .33 Cubic Yard
D-50-(strength) .50 Cubic Yard
D-75-(strength) .75 Cubic Yard
D-100-(strength) 1 Cubic Yard
D-150-(strength) 1.5 Cubic Yard
D-200-(strength) 2 Cubic Yard
D-250-(strength) 2.5 Cubic Yard
D-300-(strength) 3 Cubic Yard
D-350-(strength) 3.5 Cubic Yard
D-400-(strength) 4 Cubic Yard
D-500-(strength) 5 Cubic Yard

D-Style with NO BUMP & DUMP

Caster Options | Optional Lids


Model # Description Attributes Net Wt.
(lbs)
D-100-HD D-100-HDSteel Heavy Duty Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Steel (gauge): 8		580
D-100-LD D-100-LDSteel Light Duty Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Steel (gauge): 12		460
D-100-MD D-100-MDSteel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Steel (gauge): 10		545
D-150-HD D-150-HDSteel Heavy Duty Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		708
D-150-LD D-150-LDSteel Light Duty Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		565
D-150-MD D-150-MDSteel Medium Duty Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		700
D-200-HD D-200-HDSteel Heavy Duty Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		782
D-200-LD D-200-LDSteel Light Duty Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		615
D-200-MD D-200-MDSteel Medium Duty Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		690
D-25-HD D-25-HDSteel Heavy Duty Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		386
D-25-LD D-25-LDSteel Light Duty Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		341
D-25-MD D-25-MDSteel Medium Duty Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		386
D-250-HD D-250-HDSteel Heavy Duty Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		850
D-250-LD D-250-LDSteel Light Duty Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		850
D-250-MD D-250-MDSteel Medium Duty Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		850
D-300-HD D-300-HDSteel Heavy Duty Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		922
D-300-HD-NA D-300-HD-NASteel Heavy Duty Narrow Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1016
D-300-LD D-300-LDSteel Light Duty Self Dumping Hopper 3 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		922
D-300-MD D-300-MDSteel Medium Duty Self Dumping Hopper 3 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		922
D-33-HD D-33-HDSteel Heavy Duty Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		386
D-33-LD D-33-LDSteel Light Duty Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		341
D-33-MD D-33-MDSteel Medium Duty Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		386
D-350-HD D-350-HDSteel Heavy Duty Self Dumping Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1076
D-400-HD D-400-HDSteel Heavy Duty Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1140
D-50-HD D-50-HDSteel Heavy Duty Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		432
D-50-LD D-50-LDSteel Light Duty Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		362
D-50-MD D-50-MDSteel Medium Duty Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		435
D-500-HD D-500-HDSteel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		1250
D-75-HD D-75-HDSteel Heavy Duty Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel (gauge): 8		541
D-75-LD D-75-LDSteel Light Duty Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Steel (gauge): 12		449
D-75-MD D-75-MDSteel Medium Duty Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel (gauge): 10		543

Options


Model Number Image Description Wt. (lbs.)
Caster Options Caster options for D style hoppers -
Optional Lids Lid options for D style hoppers -
PLID-INSTALL PLID-INSTALL Vestil Optional Factory Installation of PLID Factory Installation of Hopper Lid
LEKP LEKP Welded leak proof Option 5
LUG LUG (4) Lifting Lugs (Welded) One on Each Corner 23

*D-DPLG-75 and D-DPLG-2 options includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions, are great addition for material handling and construction facilities. The extended sides are constructed of steel mesh for high strength durability during transference of goods, while the yellow painted finish delivers great visibility.

Side Extensions For "D" Style Hoppers
Model Number Extension
Height		 Works With
Hopper Series		 Wt.
(lbs.)
D-150-EXT-SMY 15-11/16" D-150 37
D-200-EXT-SMY 15-11/16" D-200 40
D-250-EXT-SMY 15-11/16" D-250 45
D-300-EXT-SMY 15-11/16" D-300 50

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
