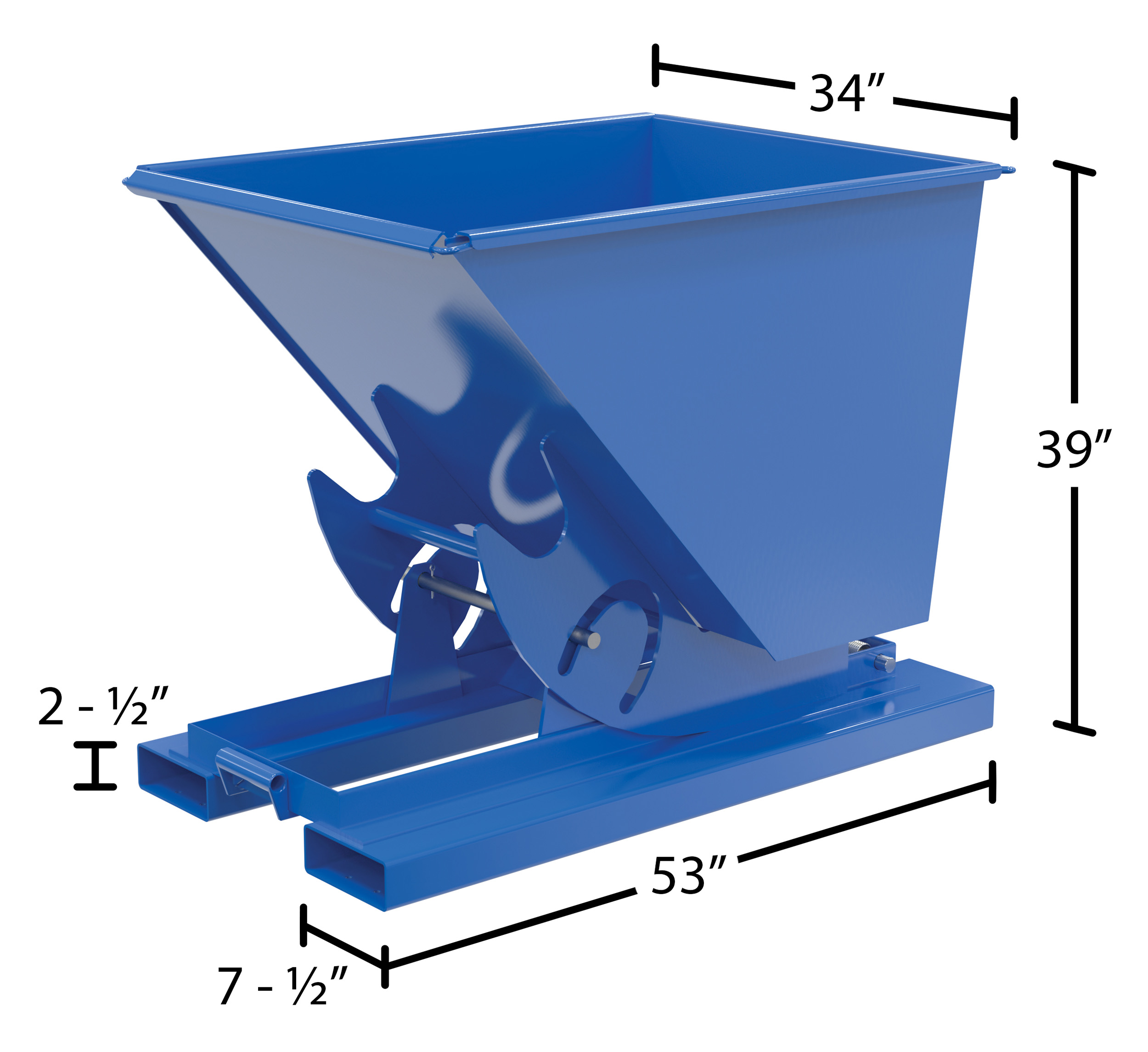

model: D-50-HD-NB

D-Style Hoppers, No Bump & Dump

model: D-50-HD-NB

Featured Fork Truck Attachments

Stretch Wrap Caddy

Lift Master Fork Truck Booms

Carriage Mounted Fork Truck Booms

Trash Bin Equipment

Open Ended Steel Dumping Hopper

Trash Can Dumper

Forklift Hitch

Orbiting Fork Truck Booms

High Strength Self-Dumping Steel Hoppers

model chart

Product Family Overview

Print Friendly

D-Style Hoppers, No Bump & Dump

SERIES: D-NB

This steel Hopper is the perfect resolution for loading and unloading large amounts of items. With a steel construction, the hopper maintains a structural strength that endures the strain of consistent daily use. The manual release feature gives the forklift driver the ability to never leave the driving position, which allows personnel to stay at a safe distance throughout the dumping process. In addition to the smooth surface, the contoured edges let items flow freely out of the hopper for a complete clearing of loaded goods. Must be attached to fork truck when dumping.

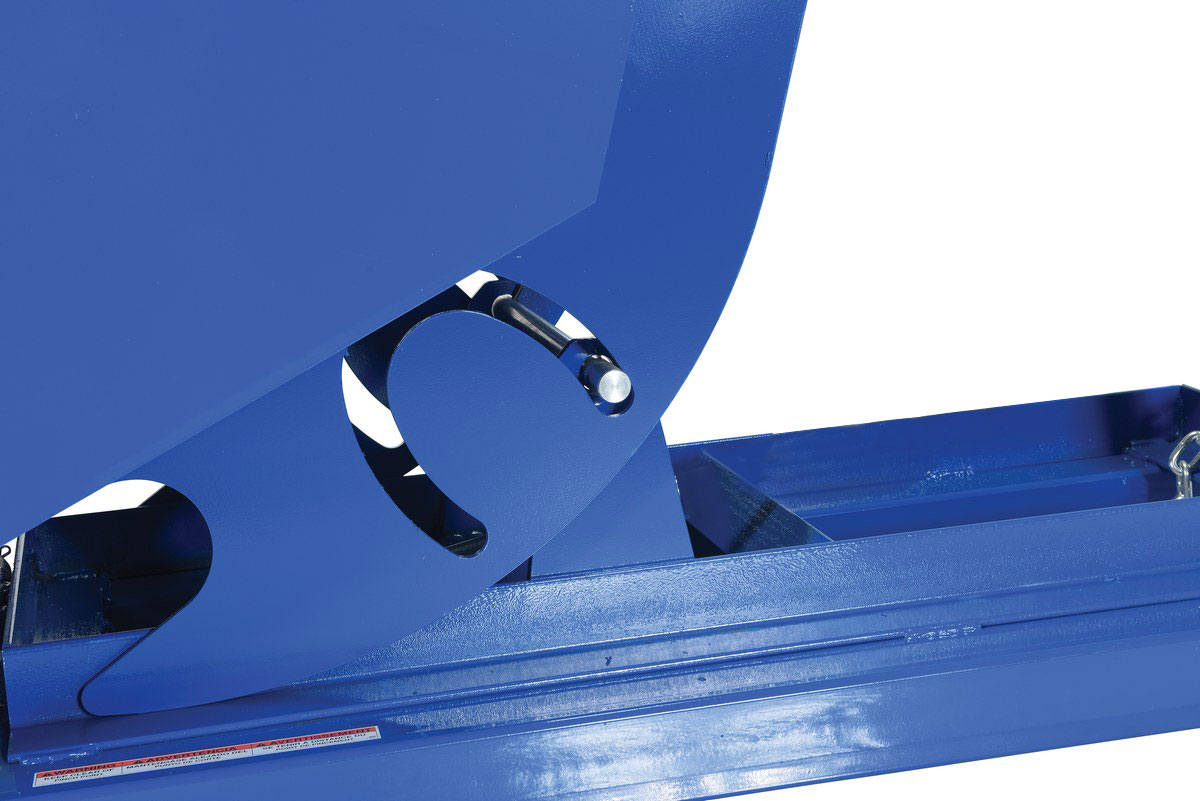

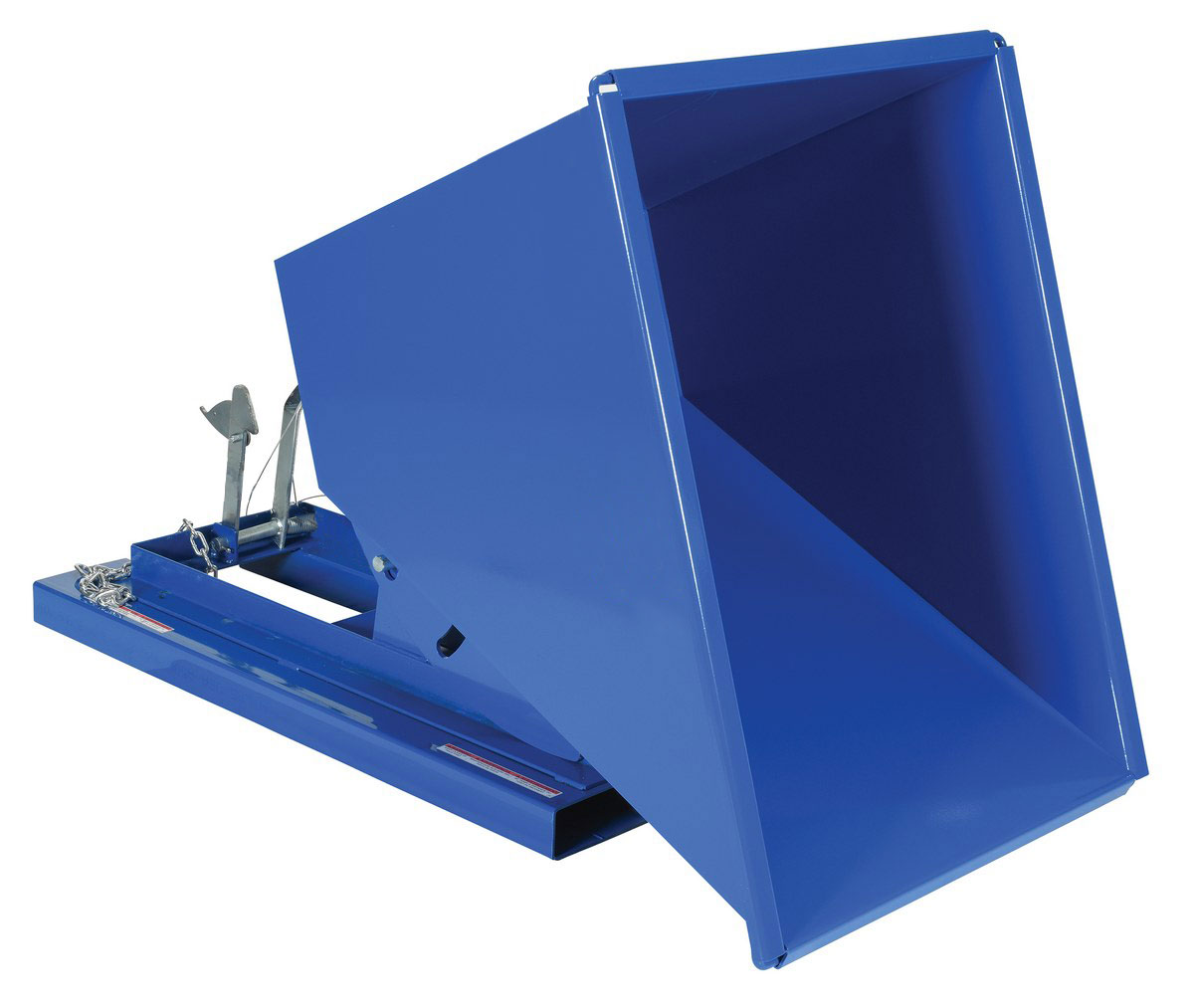

Pull chain release for quick dumping
Powder coated finish for added baked in toughness.
Fork pockets provide a solid lifting foundation

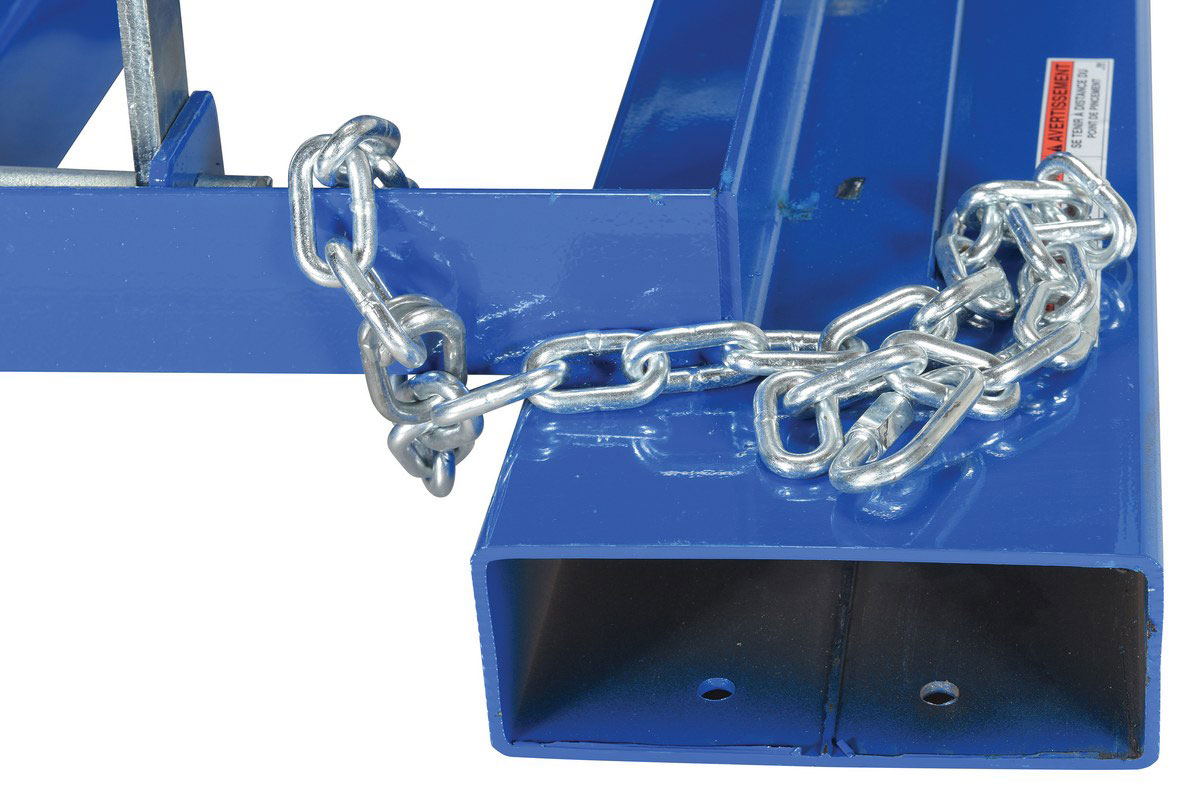

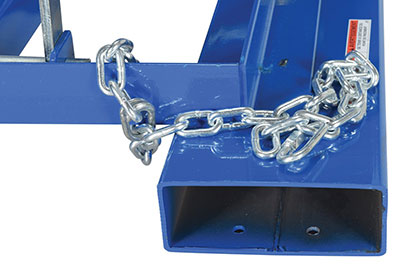

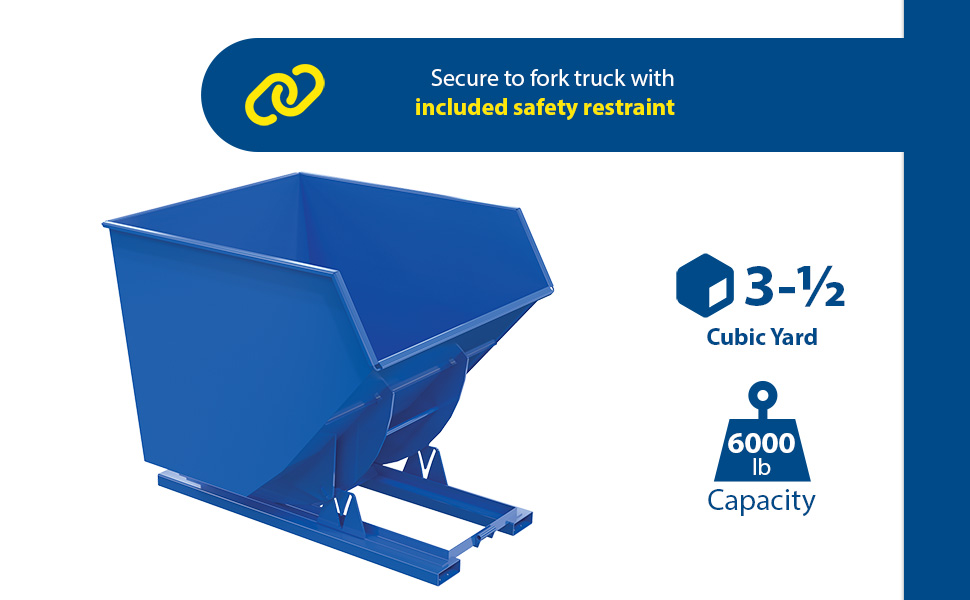

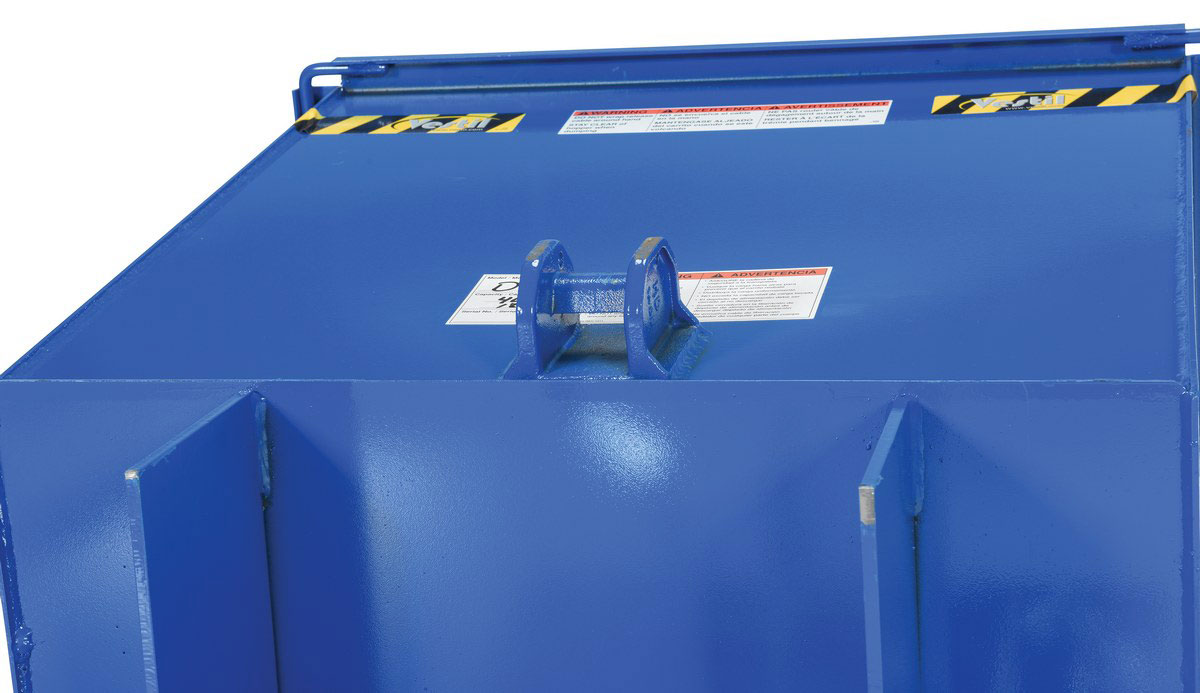

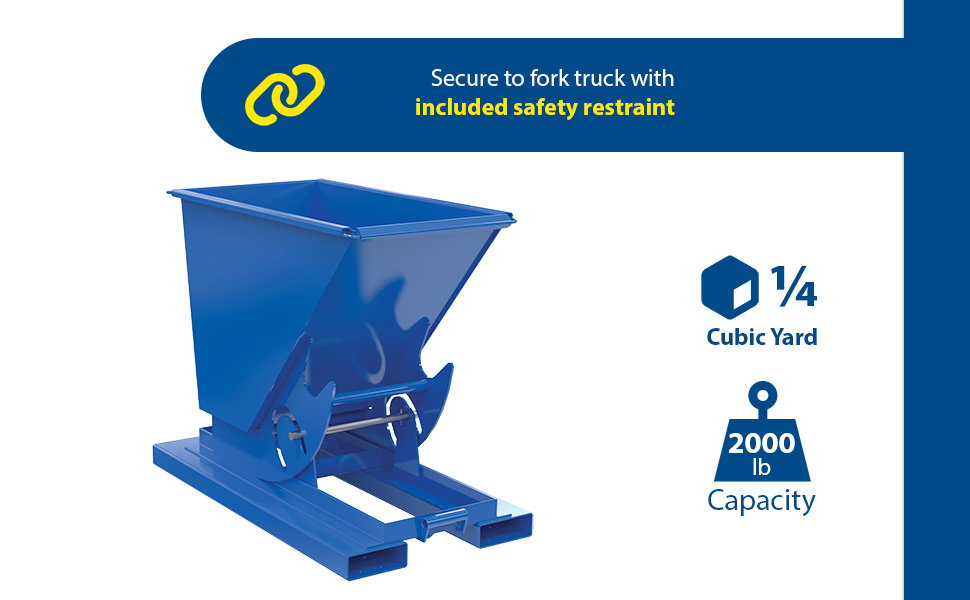

Safety restraint secures the hopper to the fork truck

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard

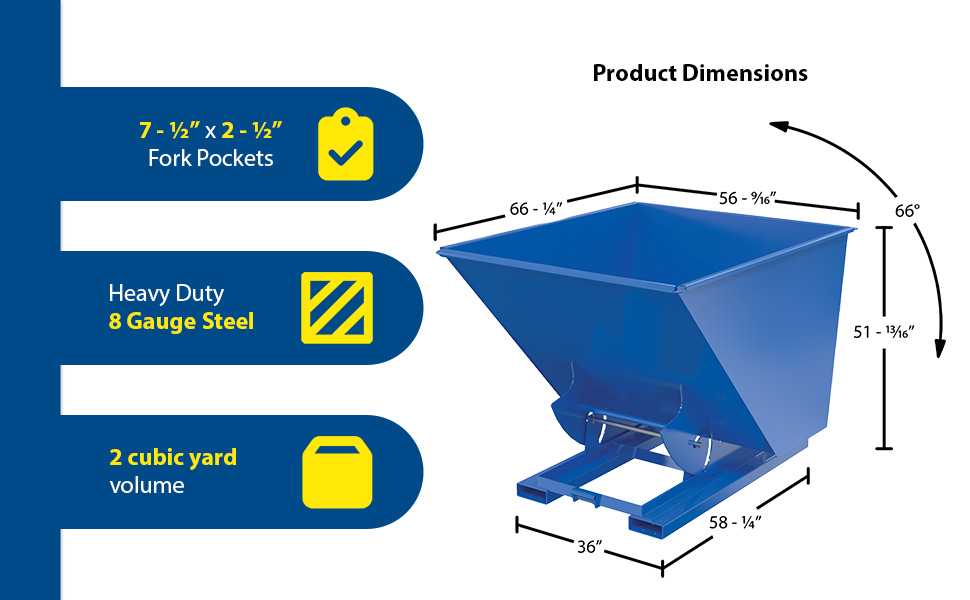

D-200-(strength)-NB	2 Cubic Yard
D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard

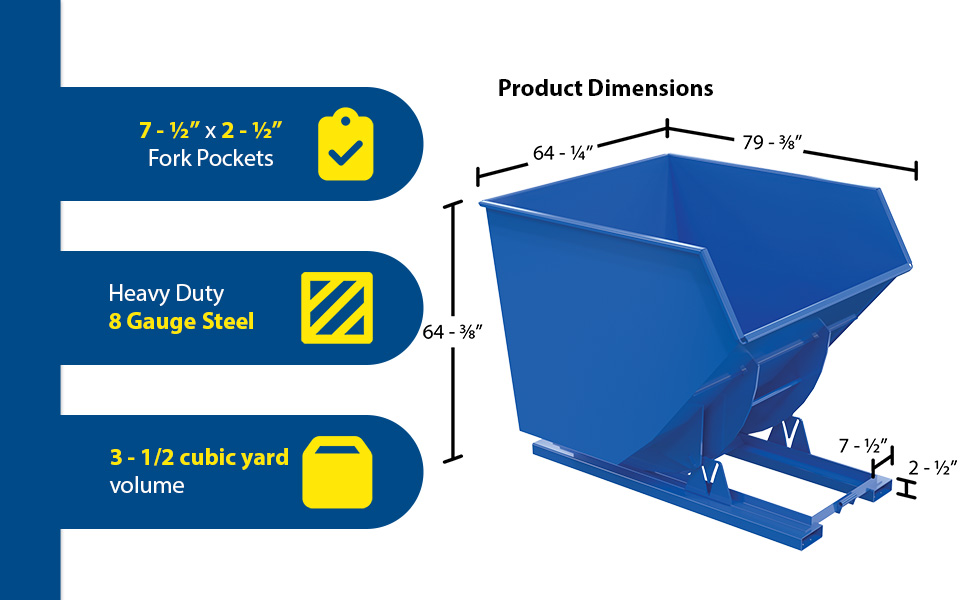

D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard

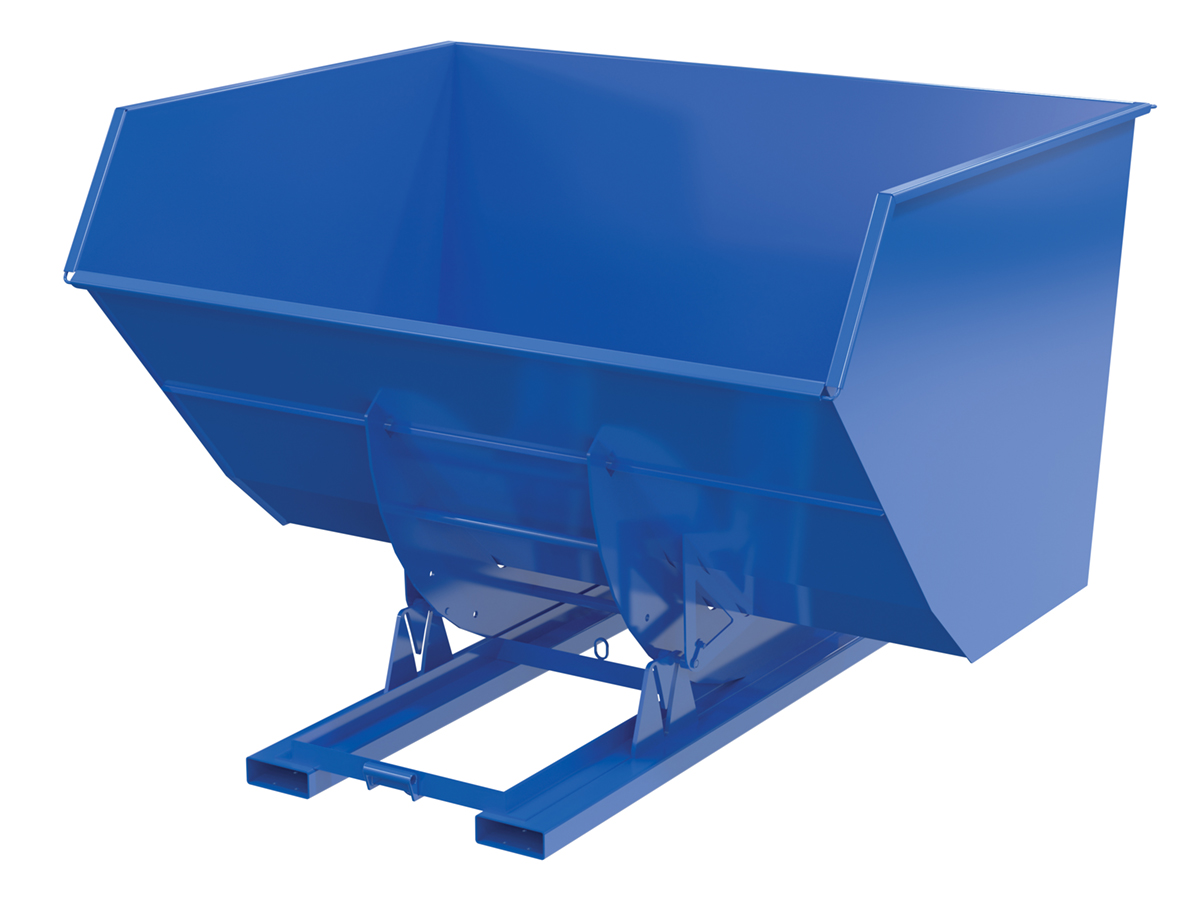

D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

Pull chain release for quick dumping
Powder coated finish for added baked in toughness.
Fork pockets provide a solid lifting foundation
Safety restraint secures the hopper to the fork truck

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard
D-200-(strength)-NB	2 Cubic Yard
D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard
D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard
D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

Other Hoppers

Chip & Waste Trucks

Steel Chute Hoppers

Gas Powered All-Terrain Hopper

Rotator Box Hoppers

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

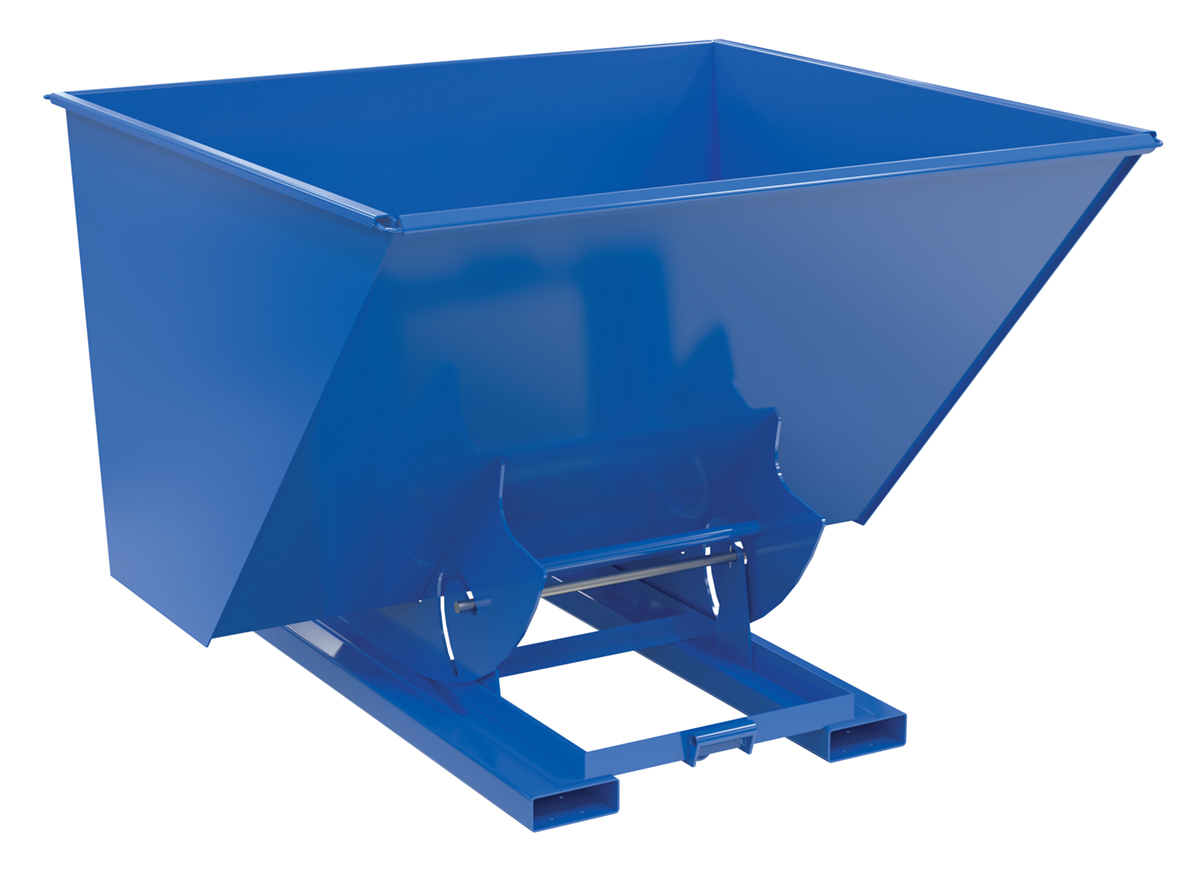

D-250-MD-NB

D-75-LD-NB

D-500-HD-NB

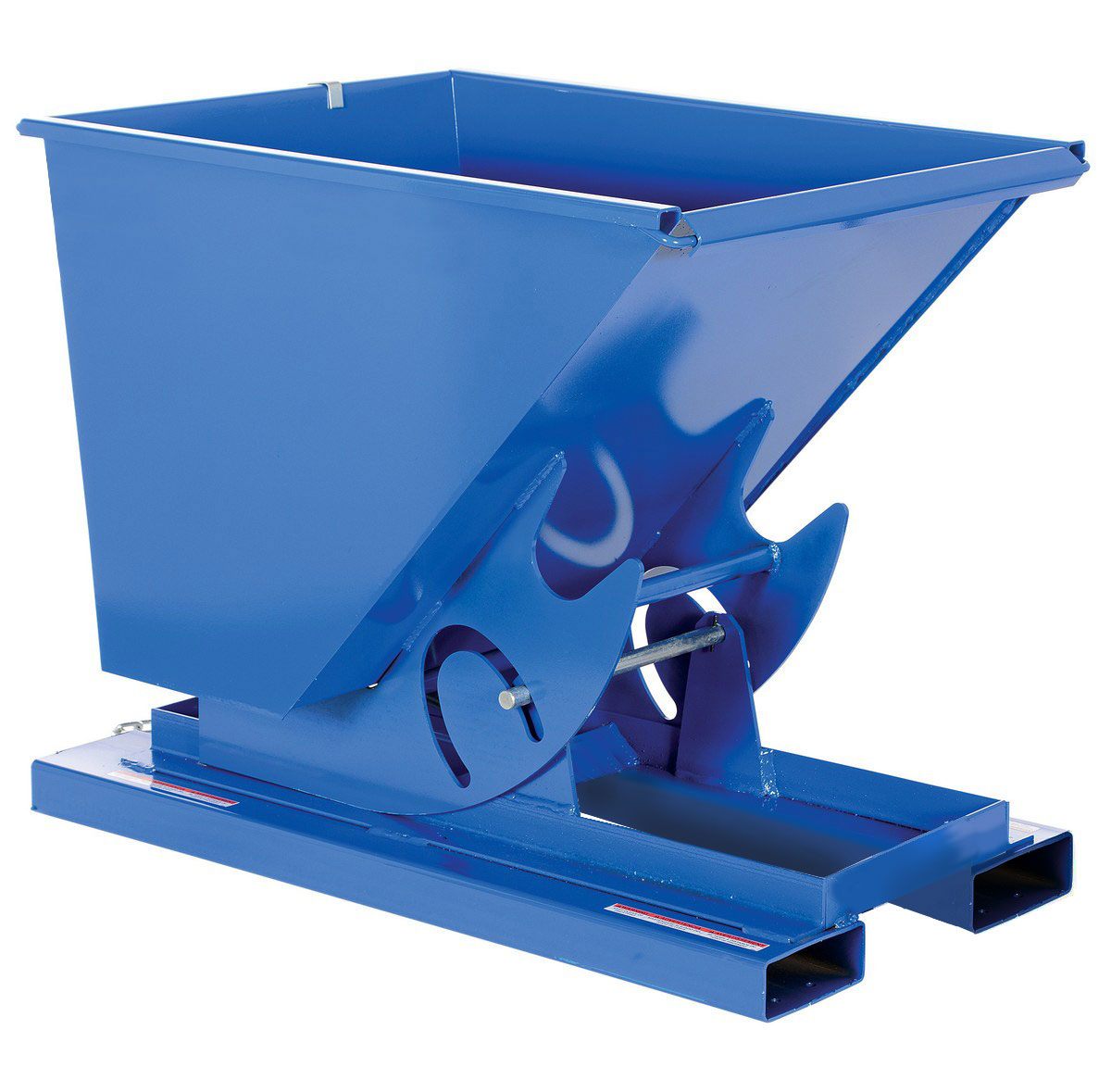

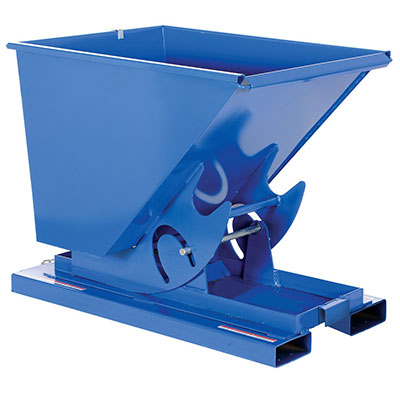

D-50-HD-NB

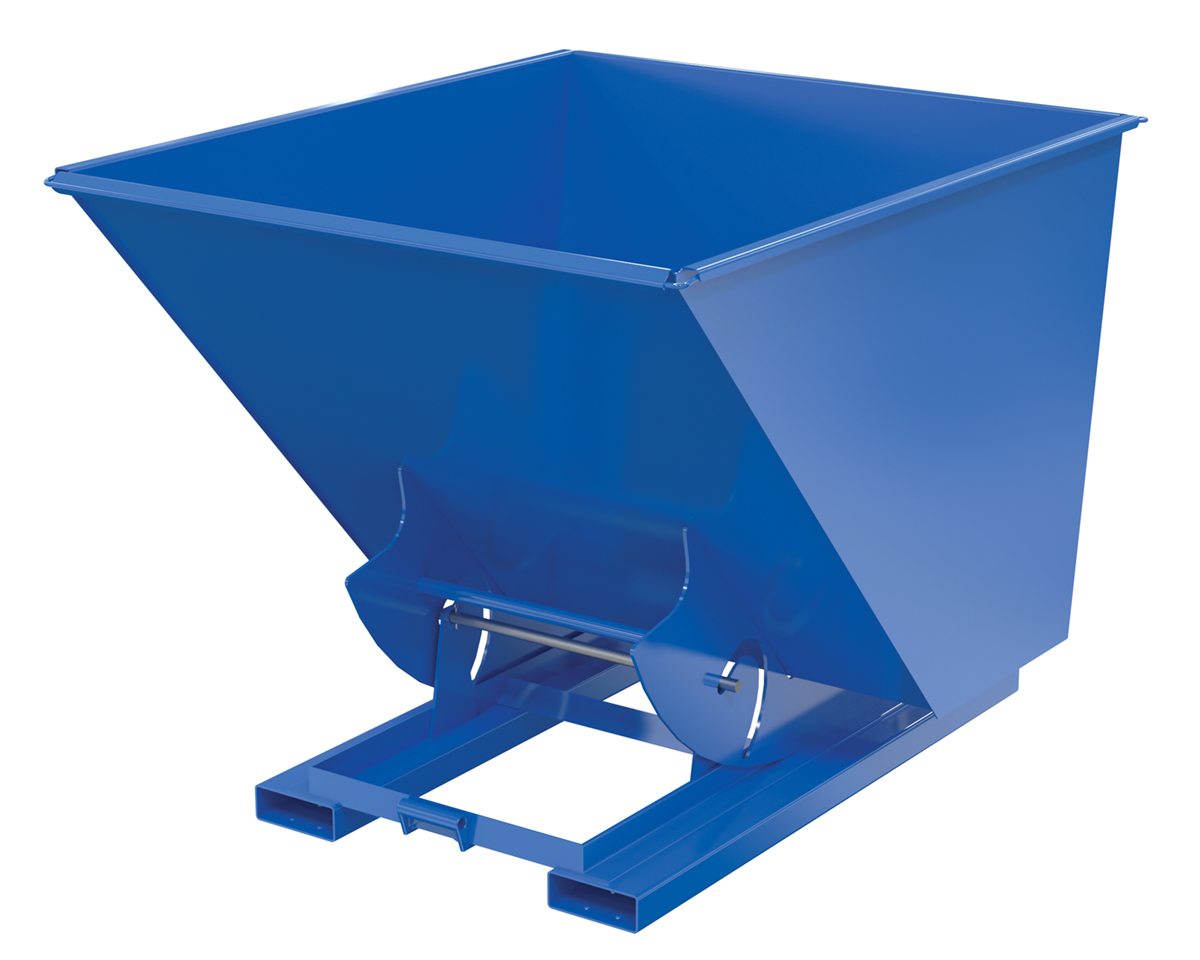

D-200-HD-NB

D-350-HD-NB

D-150-LD-NB

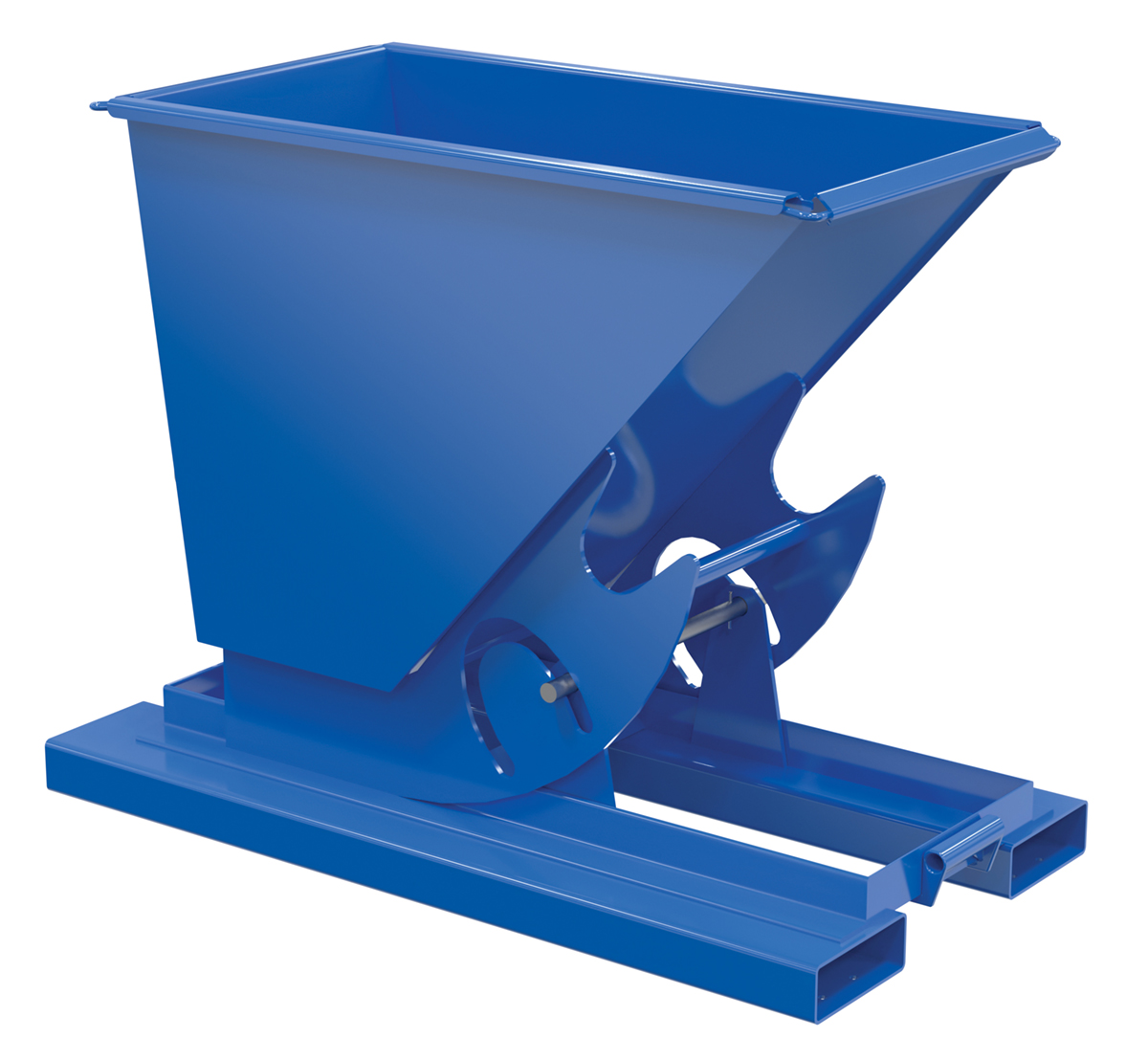

D-33-HD-NB

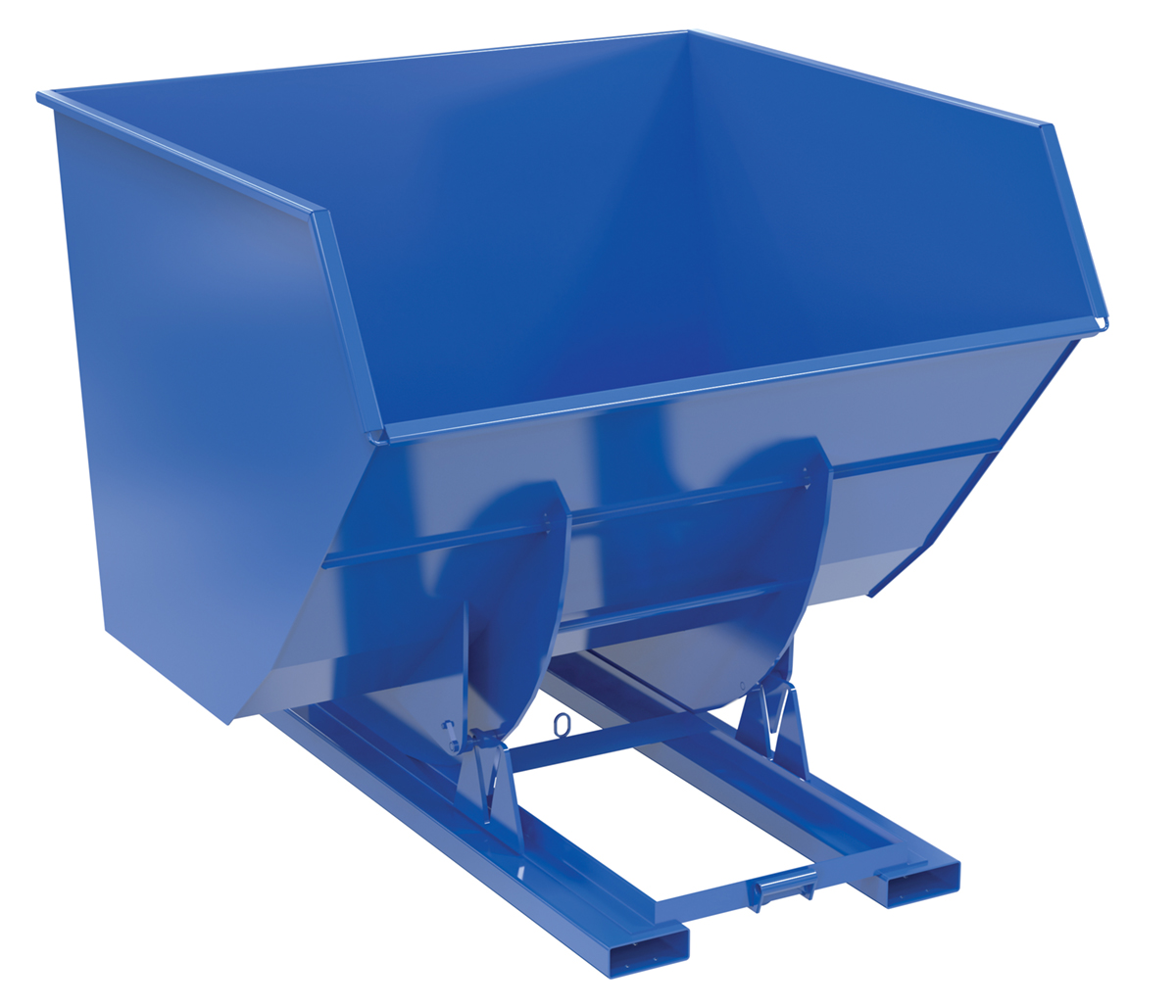

D-400-HD-NB

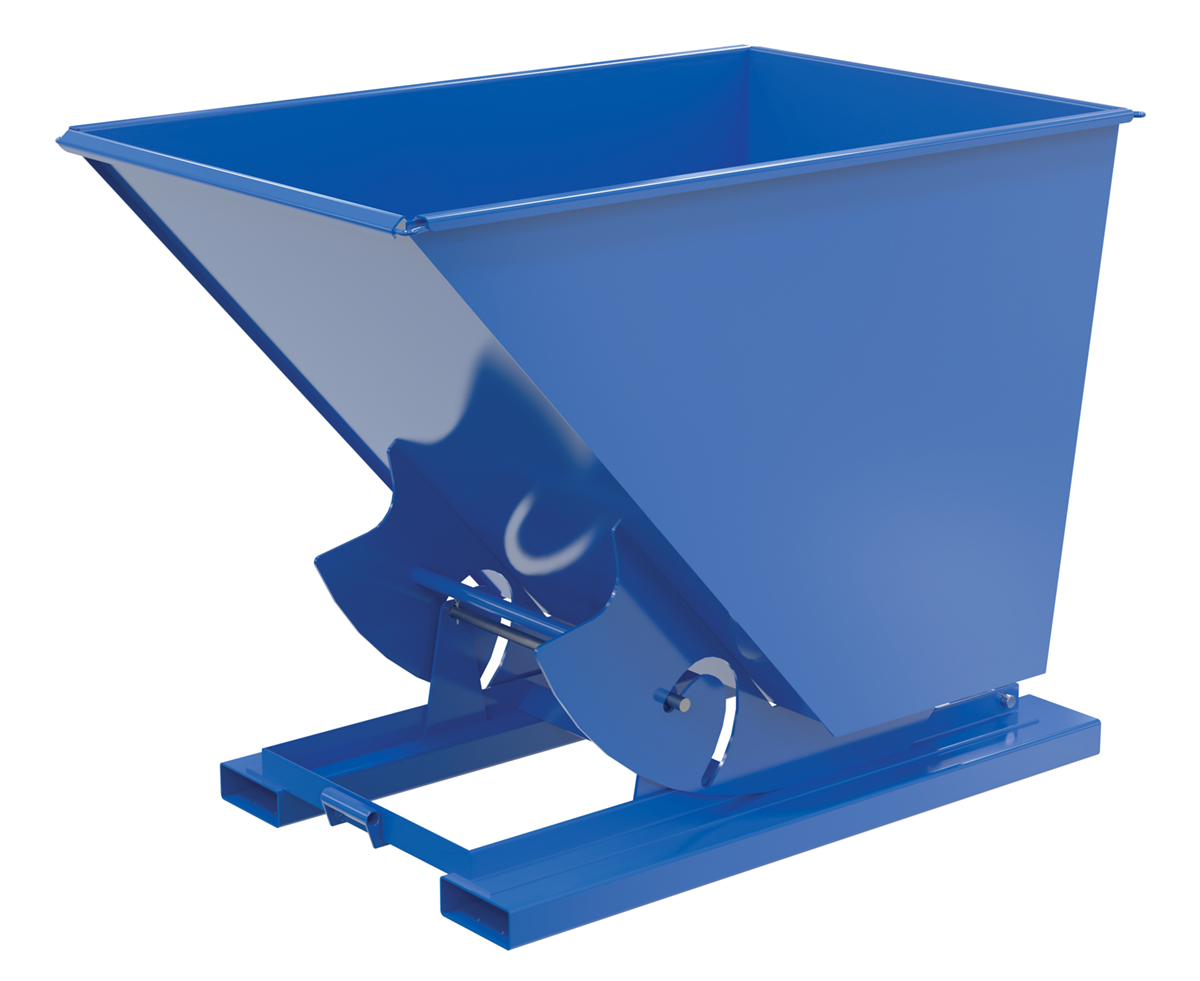

D-150-MD-NB

D-300-LD-NB

D-300-MD-NB

D-250-HD-NB

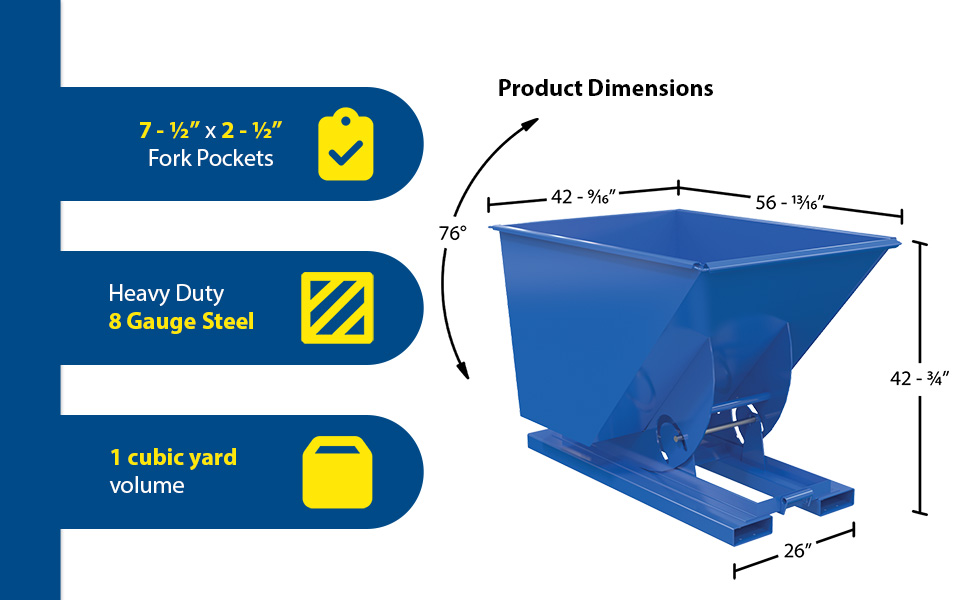

D-100-HD-NB

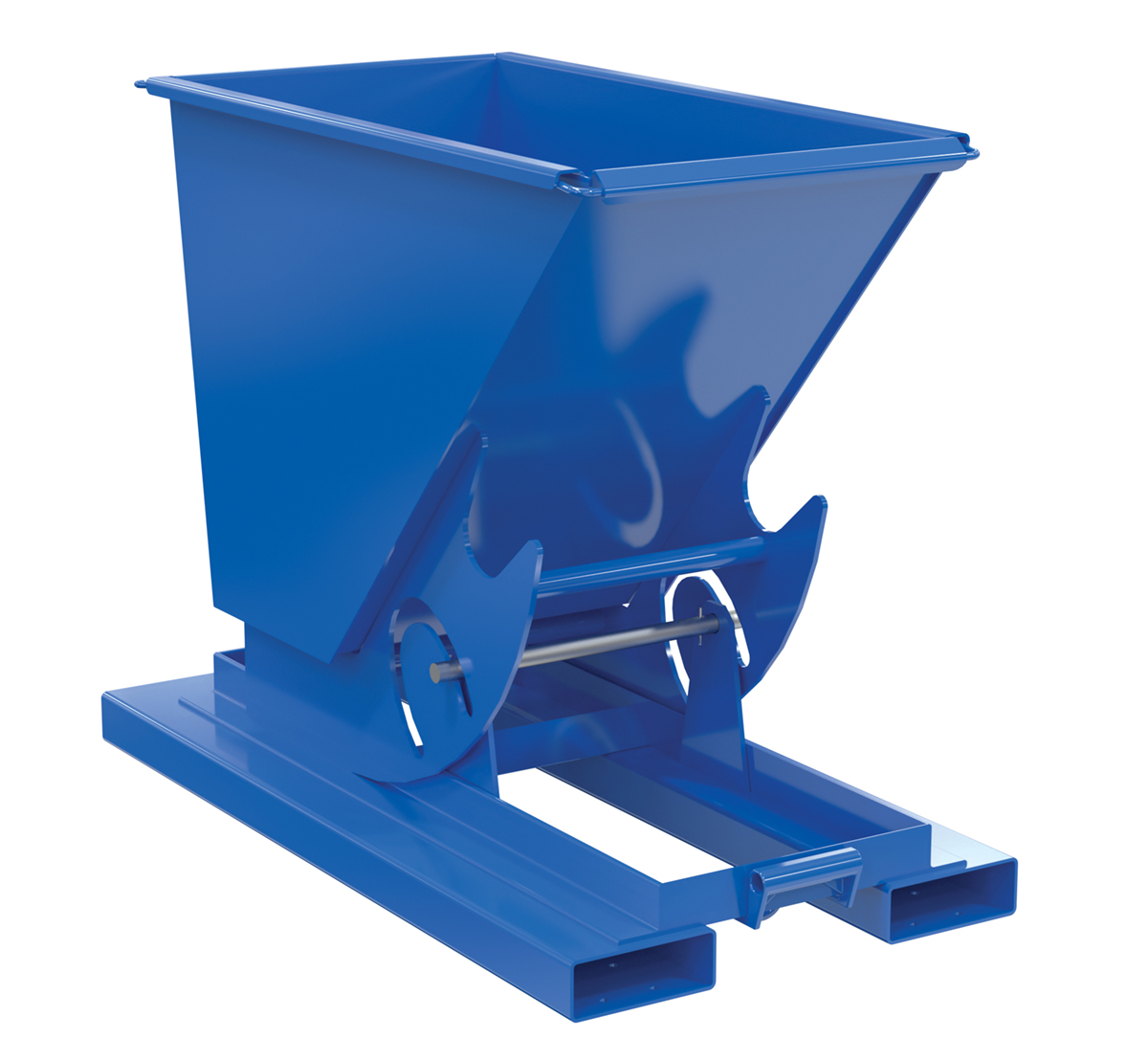

D-25-LD-NB

Check Out All Of Our Specialty Colors Available!

SODA RED

SODA RED
Suggested Use: Hazard
Model Suffix: -SR

WHITE

WHITE
Suggested Use: Paper
Model Suffix: -WHT

BATTLE SHIP GRAY

BATTLE SHIP GRAY
Suggested Use: Metal
Model Suffix: -GY-SG

TRACTOR GREEN

TRACTOR GREEN
Suggested Use: Organic
Model Suffix: -GRN-T

BLUE (Standard)

BLUE (Standard Color)
Suggested Use: Plastic
Model Suffix: -

YELLOW

YELLOW
Suggested Use: Glass
Model Suffix: -YEL

ORANGE

ORANGE
Suggested Use: Corrosive Fluid
Model Suffix: -ORG-C

HOT DIPPED GALVANIZED

HOT DIPPED GALVANIZED
Suggested Use: Wet Environment
Model Suffix: -GAL

EARTH BROWN

EARTH BROWN
Suggested Use: Combustible Fluids
Model Suffix: -BRN-EB

KHAKI TAN

KHAKI TAN
Suggested Use: User Defined
Model Suffix: -BRN-KT

SANDY BEIGE

SANDY BEIGE
Suggested Use: User Defined
Model Suffix: -BRN-SB

BUBBLE GUM PINK

BUBBLE GUM PINK
Suggested Use: User Defined
Model Suffix: -BG

BLACK - HIGH GLOSS

BLACK - HIGH GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-HG

BLACK - SEMI-GLOSS

BLACK - SEMI-GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-SG

HUNTER GREEN

HUNTER GREEN
Suggested Use: User Defined
Model Suffix: -GRN-H

SILVER LINING

SILVER LINING
Suggested Use: User Defined
Model Suffix: -SL

SKY BLUE

SKY BLUE
Suggested Use: User Defined
Model Suffix: -BL-S

MACHINE GRAY

MACHINE GRAY
Suggested Use: User Defined
Model Suffix: -GY-MG

Notice These swatches are a representation of the colors available, and may not be exact.

Applications

Construction Projects

Municipalities

Hotels

Trucking Companies

Warehouses

Do It Yourself

Farming and Agriculture

Parking Lots

Maintenance Yards

Recycling Areas

model chart

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #			Description	Attributes	Net Wt. (lbs)
D-50-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	363

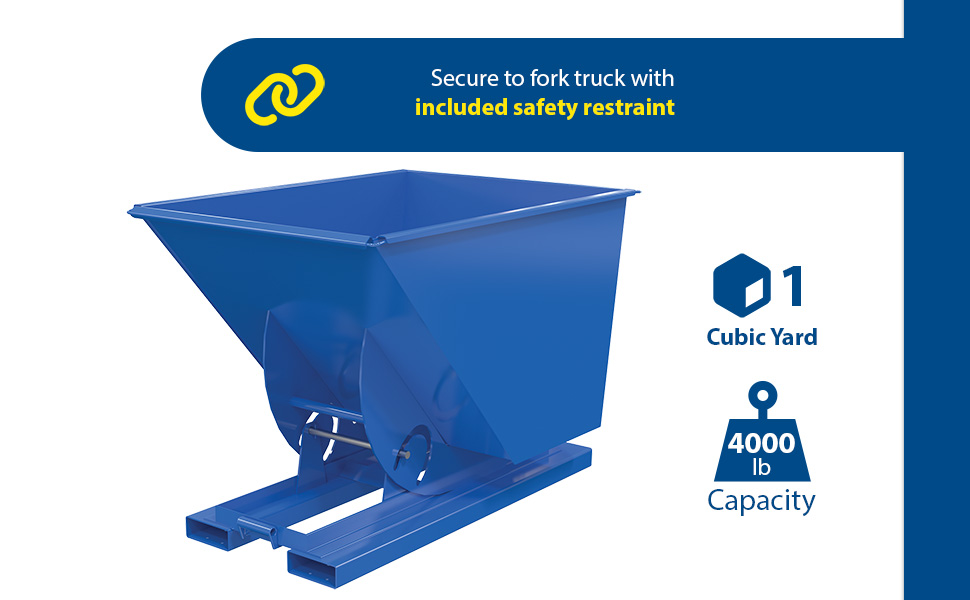

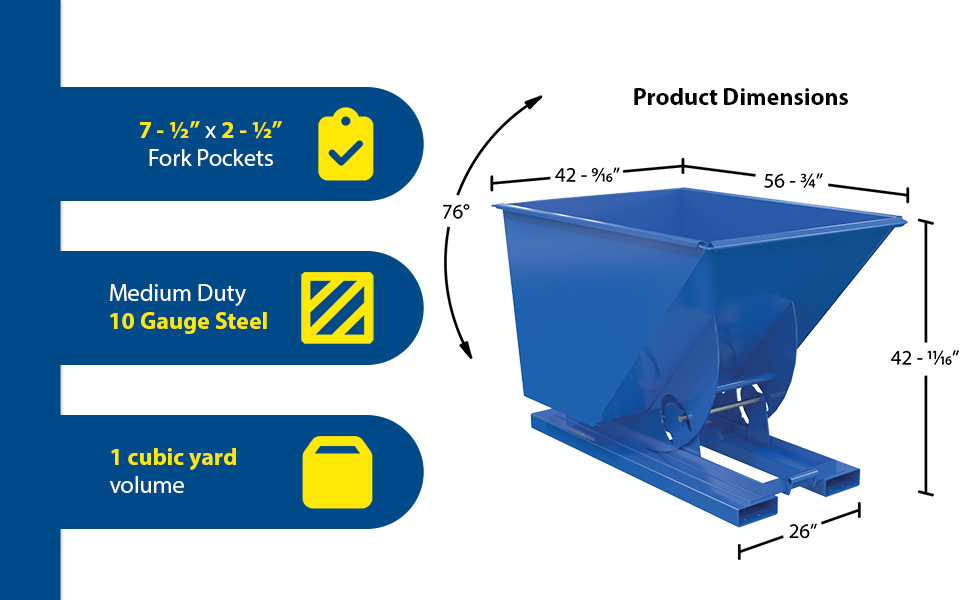

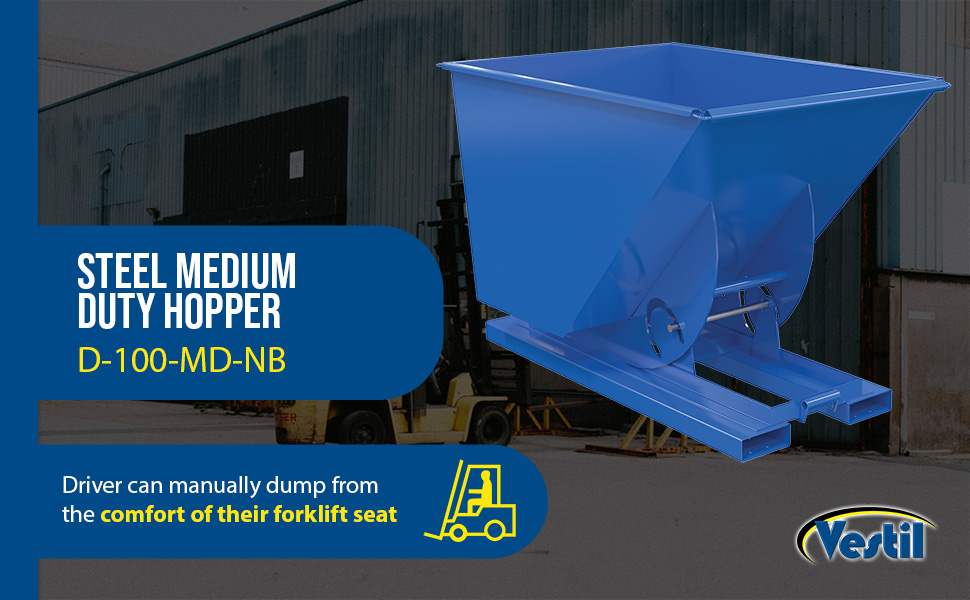

D-100-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	538

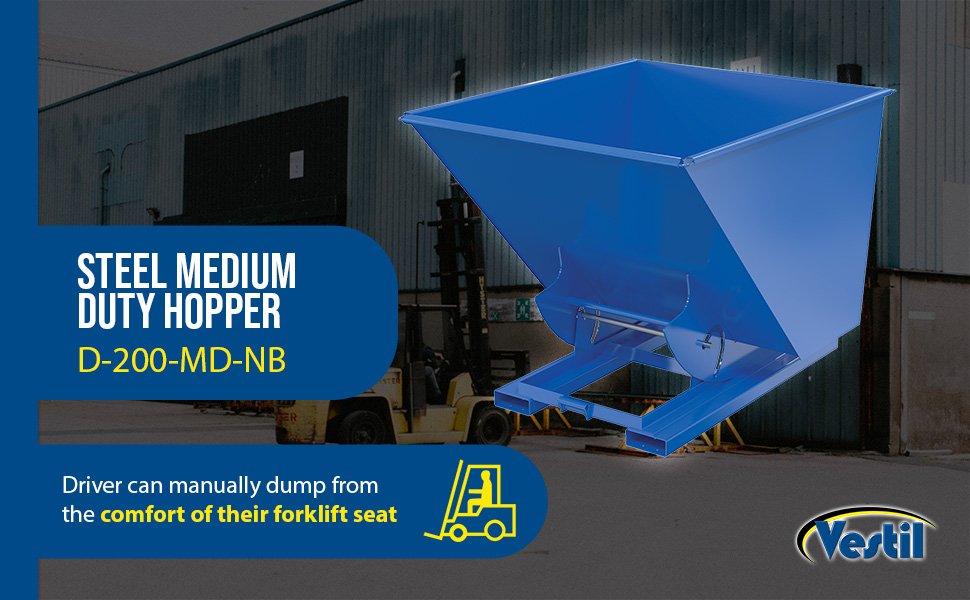

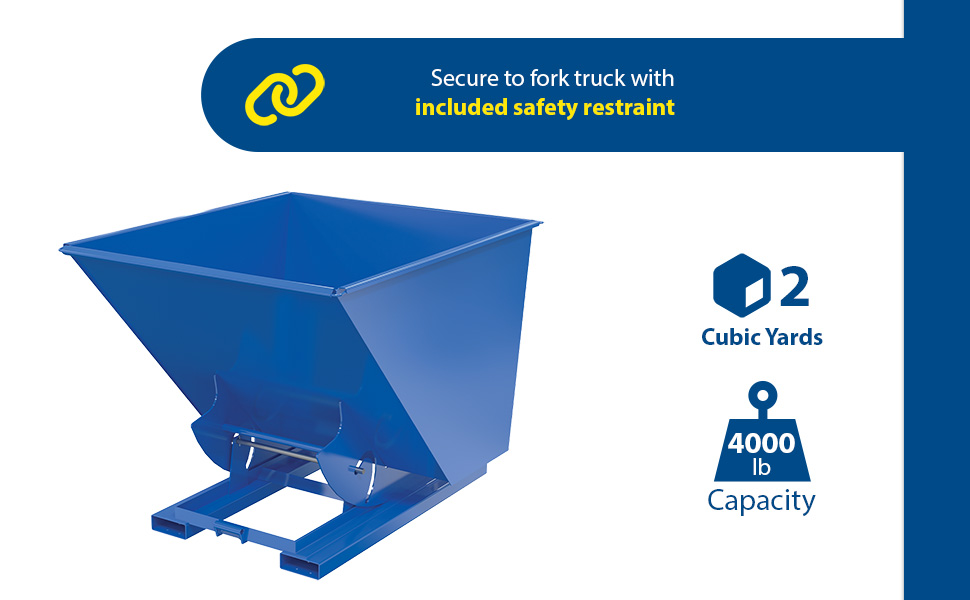

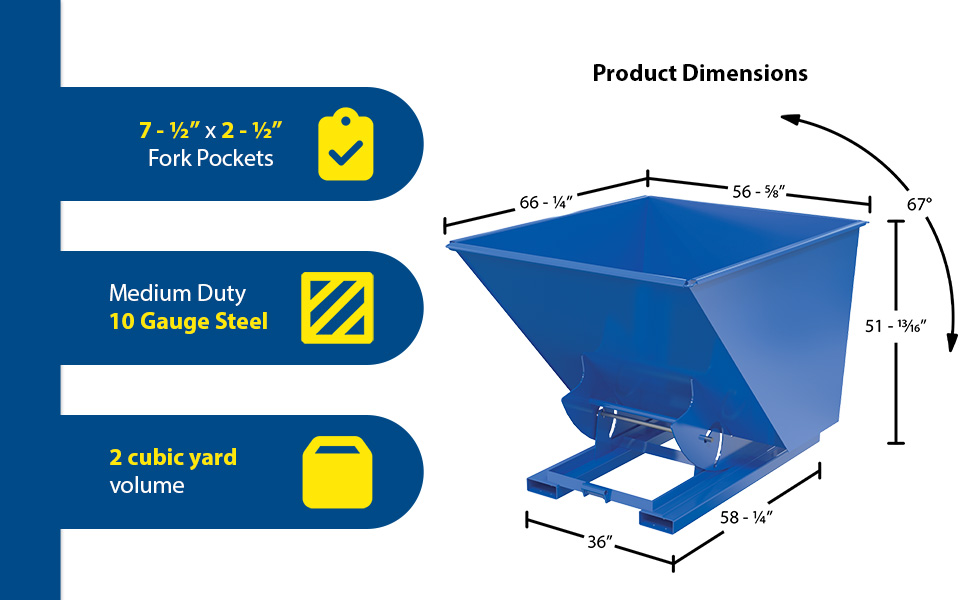

D-200-MD-NB	POPULAR	90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	703

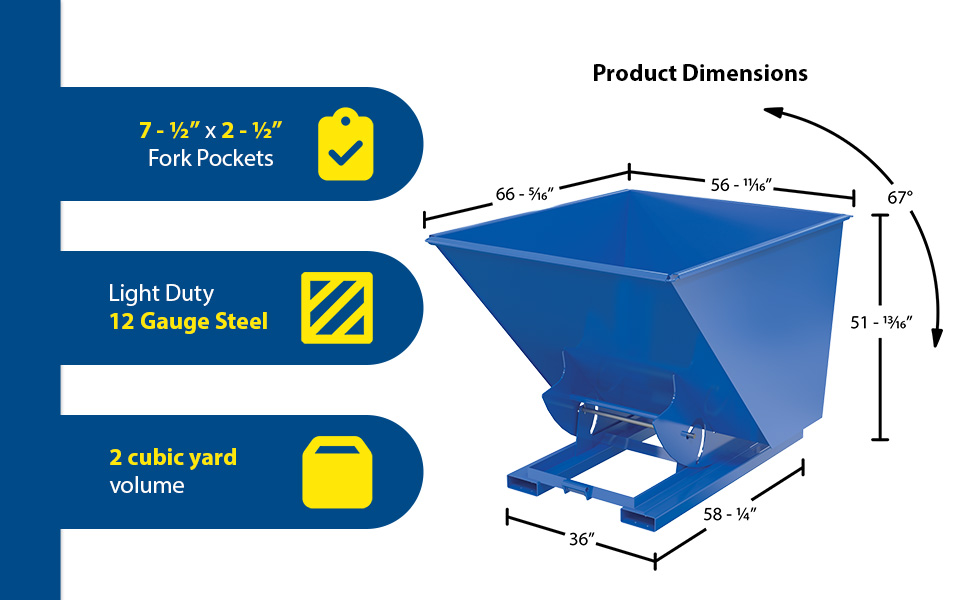

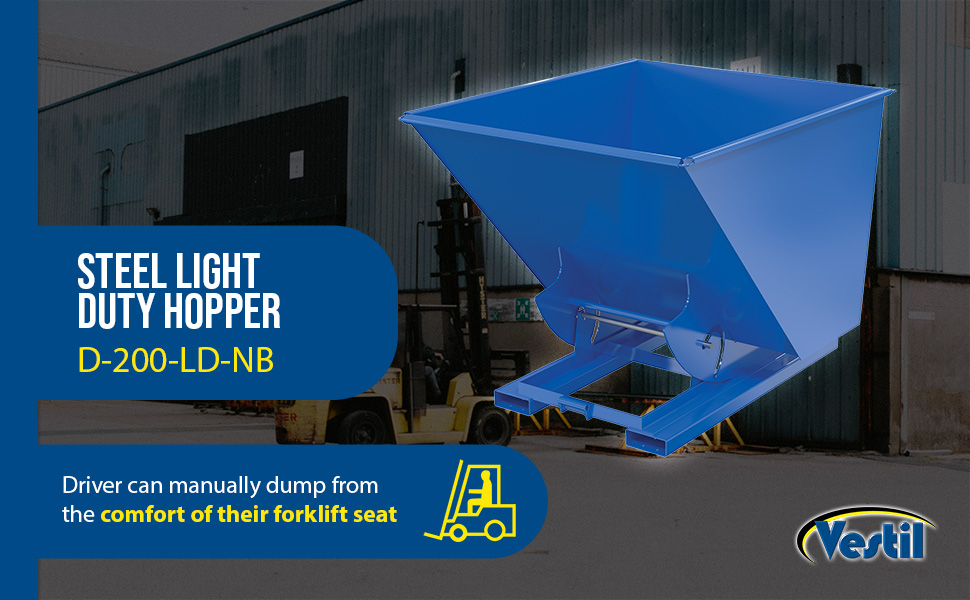

D-200-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	601
D-100-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	482
D-100-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	596

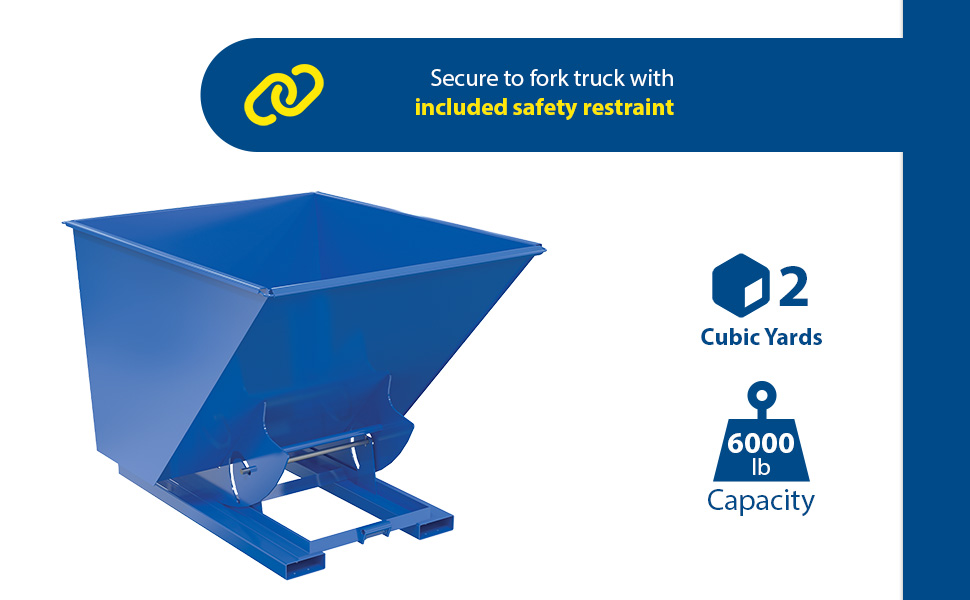

D-200-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	791
D-150-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	671
D-150-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	540
D-150-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	669
D-25-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374

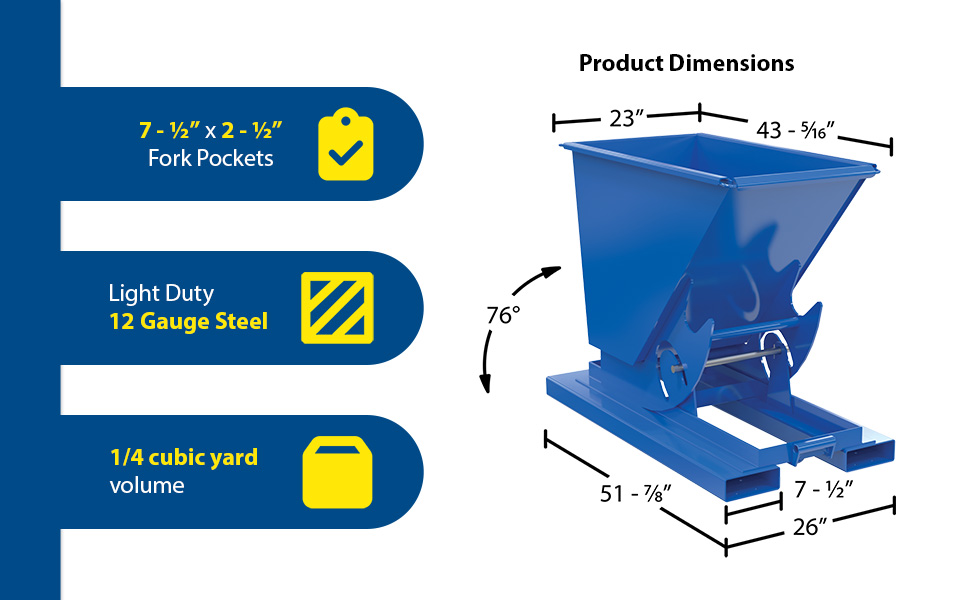

D-25-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-25-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374

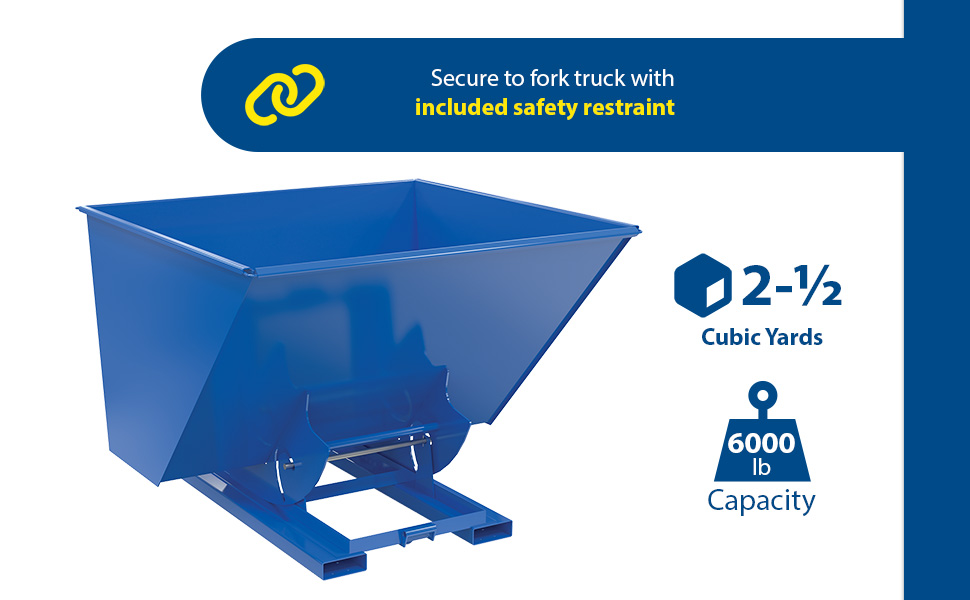

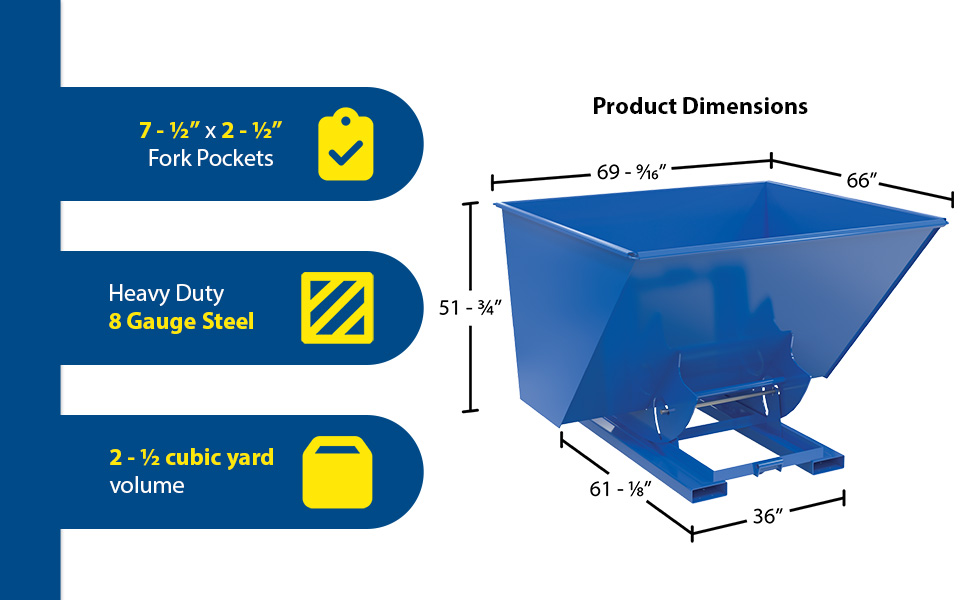

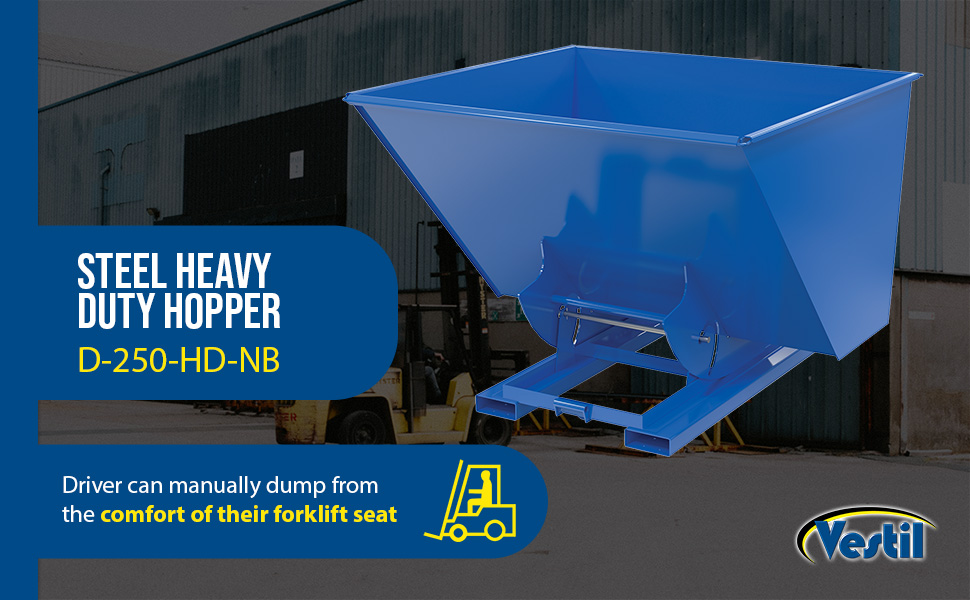

D-250-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	827
D-250-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	827
D-250-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	827

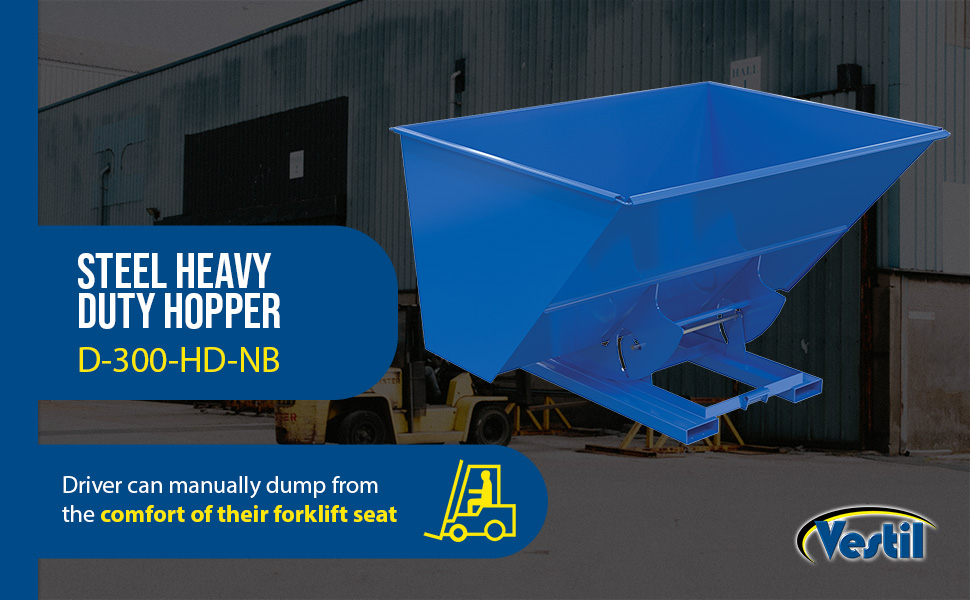

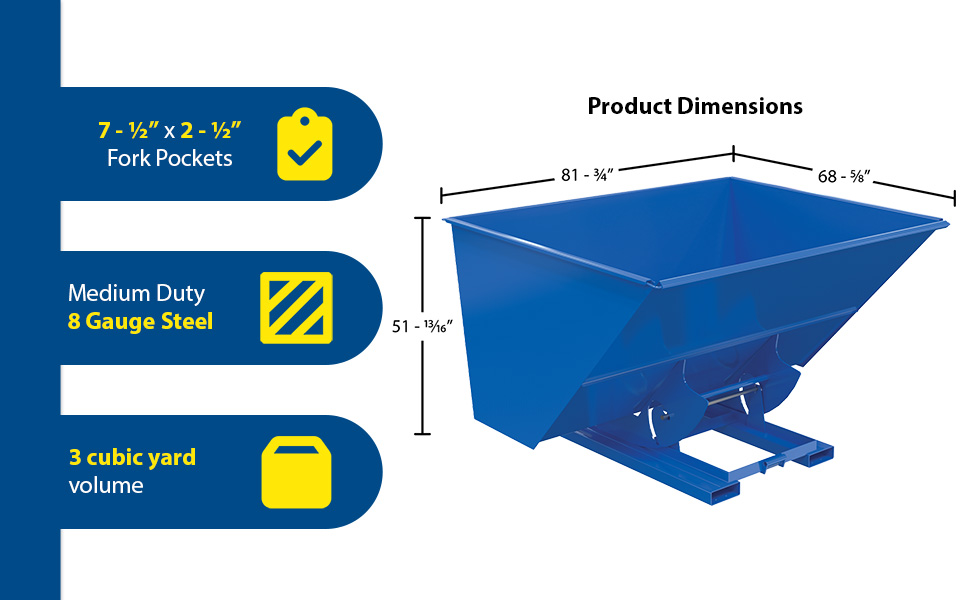

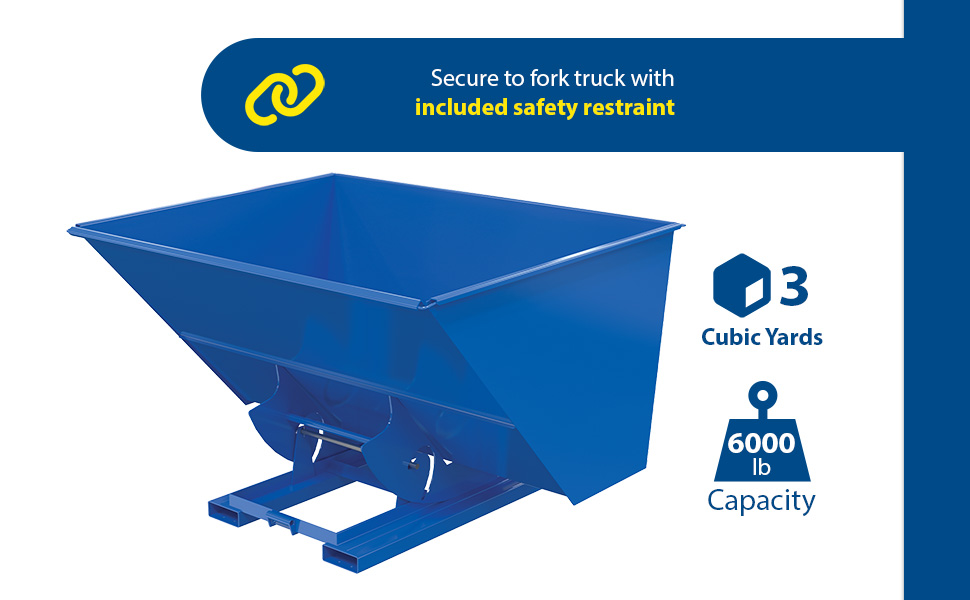

D-300-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	942
D-300-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	908
D-300-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	908
D-33-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374
D-33-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-33-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374
D-350-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1128
D-400-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1157
D-50-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	432
D-50-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	410
D-500-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 5 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1266

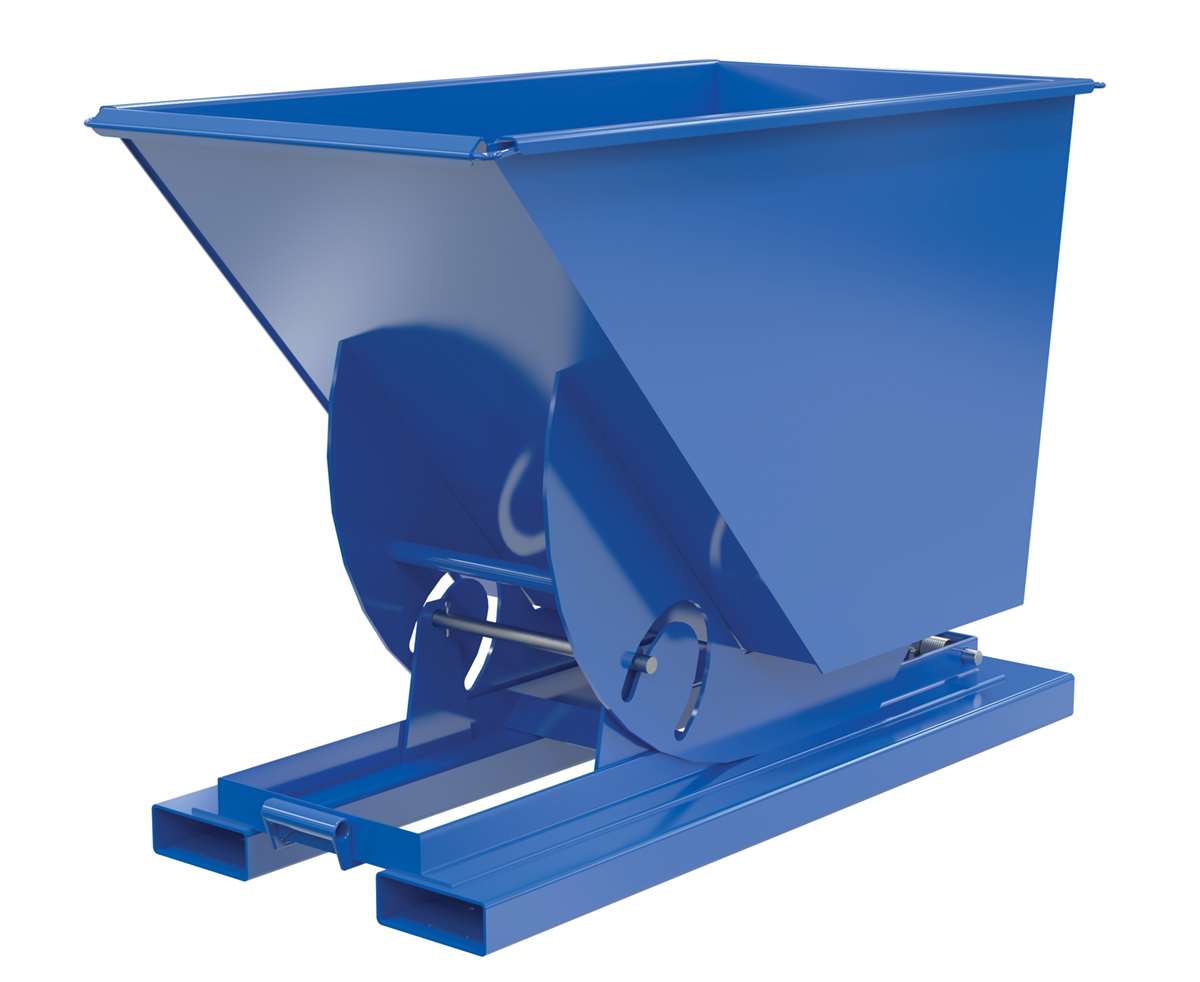

D-75-HD-NB		90 Days Limited Warranty	Steel Heavy Duty No Bump & Dump Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	529
D-75-LD-NB		90 Days Limited Warranty	Steel Light Duty No Bump & Dump Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	433
D-75-MD-NB		90 Days Limited Warranty	Steel Medium Duty No Bump & Dump Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	529

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

No Model Numbers Associated To This Product Page

For More Details of the Option Click the Red Model Button

Model Number	Image	Description	Wt. (lbs.)
Caster Options		Casters for D Style Hoppers	-
Optional Lids		Lids for D Style Hoppers	-
D-TILT		Sideways Tilt Option (only available for models D-75-LD & D-100-LD)	130
D-PIN		Steel Fork Retaining Pin Option	5
LEKP		Welded leak proof Option	5
D-DPLG-75*		0.75" Threaded Drain, Located in Left Corner	2
D-DPLG-2*		2" Threaded Drain, Located in Left Corner	2
LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG option includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions, are great addition for material handling and construction facilities. The extended sides are constructed of steel mesh for high strength durability during transference of goods, while the yellow painted finish delivers great visibility.

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

D-Style Hoppers, No Bump & Dump PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

D-50-LD-NB

D-100-MD-NB

D-200-MD-NB

D-200-LD-NB

D-100-LD-NB

D-100-HD-NB

D-200-HD-NB

Testing Certificates

D-100-HD-NB

D-100-LD-NB

D-100-MD-NB

D-150-HD-NB

D-150-LD-NB

D-150-MD-NB

D-200-HD-NB

D-200-LD-NB

D-200-MD-NB

D-25-HD-NB

D-25-LD-NB

D-25-MD-NB

D-250-HD-NB

D-250-LD-NB

D-250-MD-NB

D-300-HD-NB

D-300-LD-NB

D-300-MD-NB

D-33-HD-NB

D-33-LD-NB

D-33-MD-NB

D-350-HD-NB

D-400-HD-NB

D-50-HD-NB

D-50-LD-NB

D-50-MD-NB

D-500-HD-NB

D-75-HD-NB

D-75-LD-NB

D-75-MD-NB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...

Directory Links Of Available PDF's For All Products

Reference#: CF-6539 Steel Hopper Lids

Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for Hoppers

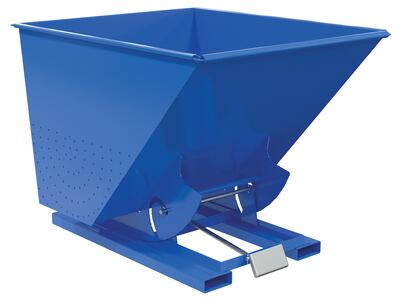

Reference#: CF-5670 Dewatering Hoppers

Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.

For more Specialty Designs similar to these... Click Here

Q: Can casters be added to the NB hoppers?

A: Yes any D-style caster kit can be used with the D style hoppers with No Dump & Bump.

Q: Do these automatically return to the upright position after you pull the chain to dump?

A: Yes, they are self-returning, they may need to use the rear till on the fork truck but they will not need to get off the fork truck.

Print Friendly

Related or Similar Products:

Product

Hydraulic Dumping Hoppers

Product

Casters For Hoppers (D, R & H)

Product

Heavy-Duty Poly Lids for D & H series Hoppers

Product

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

Product

D Style - Self-Dumping Steel Hoppers with Bumper Release

Product

DC Power Trash Can Dumper

D-Style Hoppers, No Bump &...

Pull chain release for quick dumping
Powder coated finish for added baked in toughness.
Fork pockets provide a solid lifting foundation
Safety restraint secures the hopper to the fork truck

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard
D-200-(strength)-NB	2 Cubic Yard
D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard
D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard
D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

Model #	Description	Attributes	Net Wt. (lbs)
D-100-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	596
D-100-LD-NB	Steel Light Duty No Bump & Dump Hopper 1 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	482
D-100-MD-NB	Steel Medium Duty No Bump & Dump Hopper 1 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	538
D-150-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	671
D-150-LD-NB	Steel Light Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	540
D-150-MD-NB	Steel Medium Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	669
D-200-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	791
D-200-LD-NB	Steel Light Duty No Bump & Dump Hopper 2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	601
D-200-MD-NB	Steel Medium Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	703
D-25-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374
D-25-LD-NB	Steel Light Duty No Bump & Dump Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-25-MD-NB	Steel Medium Duty No Bump & Dump Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374
D-250-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	827
D-250-LD-NB	Steel Light Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	827
D-250-MD-NB	Steel Medium Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	827
D-300-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	942

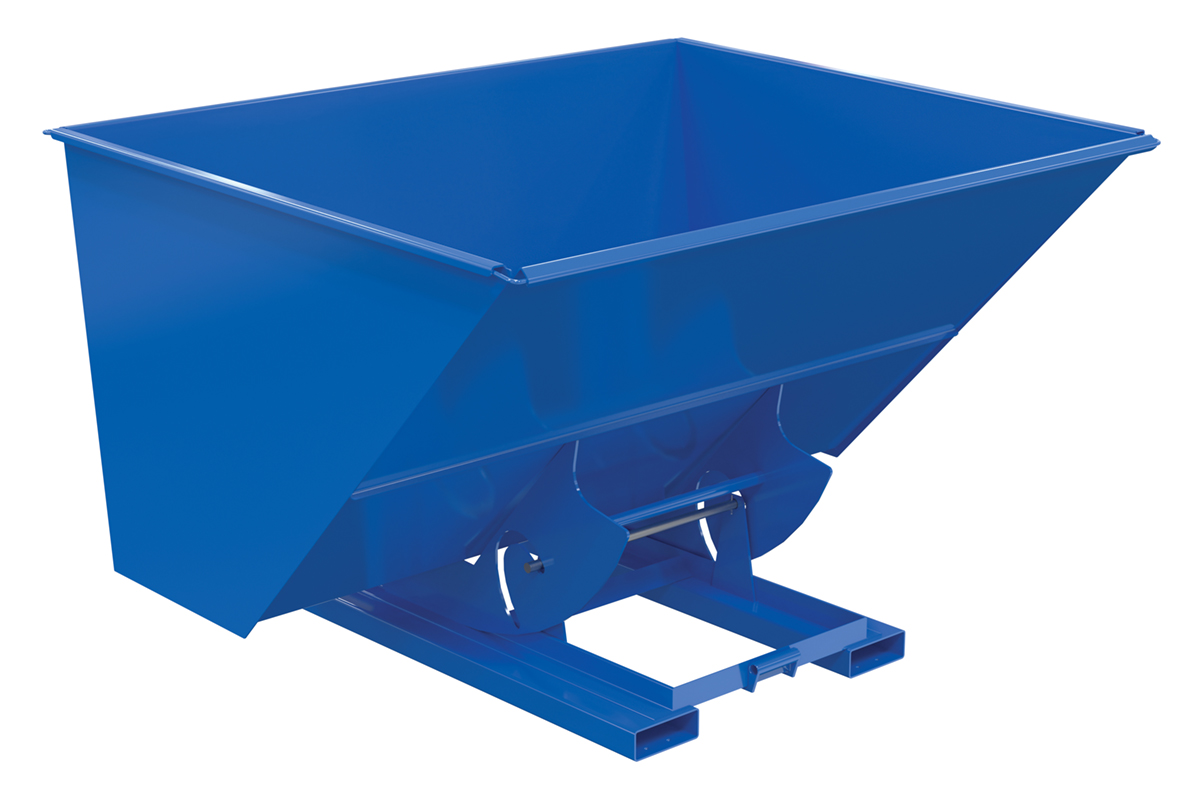

D-300-LD-NB	Steel Light Duty No Bump & Dump Hopper 3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	908
D-300-MD-NB	Steel Medium Duty No Bump & Dump Hopper 3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	908
D-33-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374
D-33-LD-NB	Steel Light Duty No Bump & Dump Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-33-MD-NB	Steel Medium Duty No Bump & Dump Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374

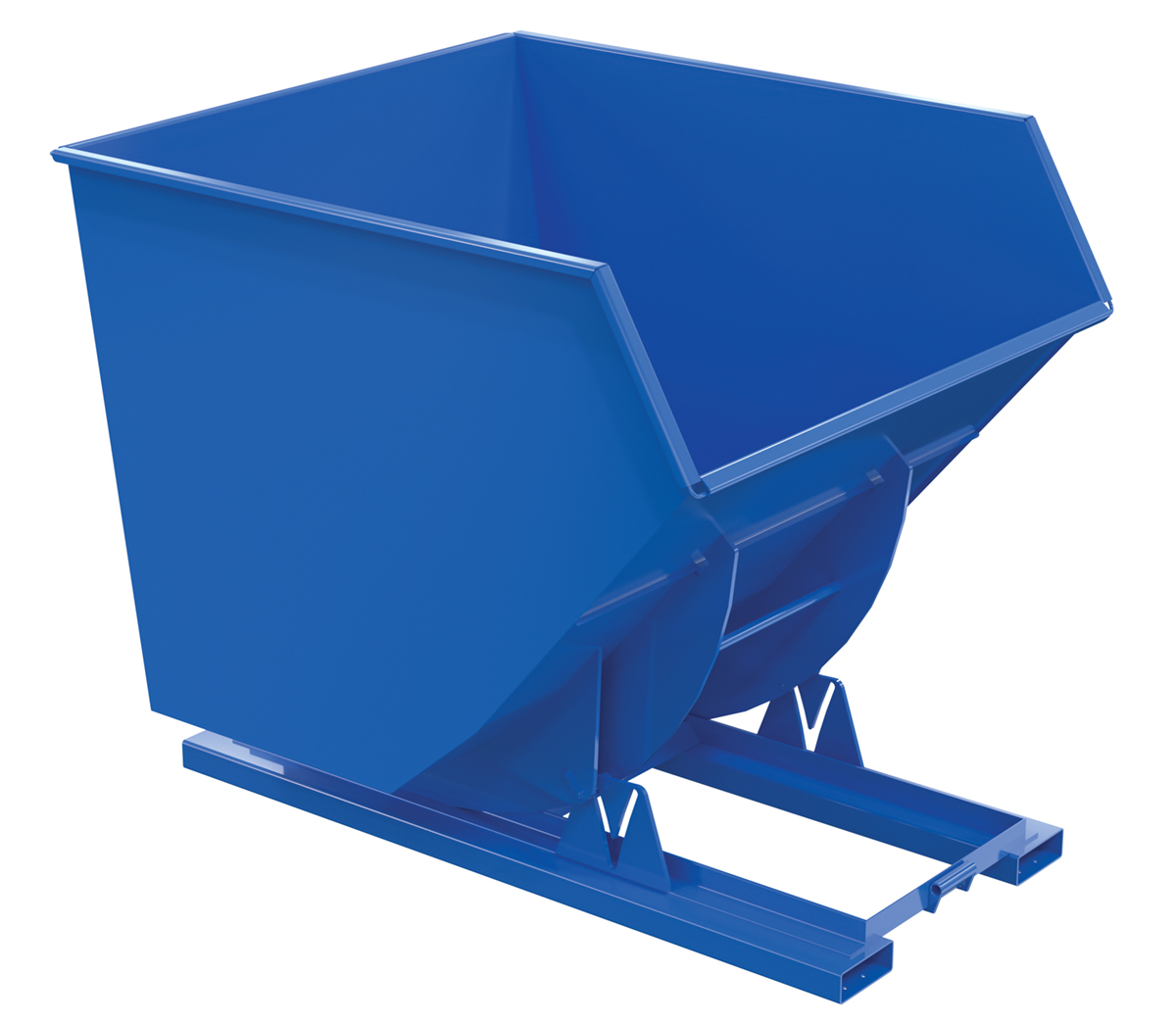

D-350-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1128
D-400-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1157
D-50-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	432
D-50-LD-NB	Steel Light Duty No Bump & Dump Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	363

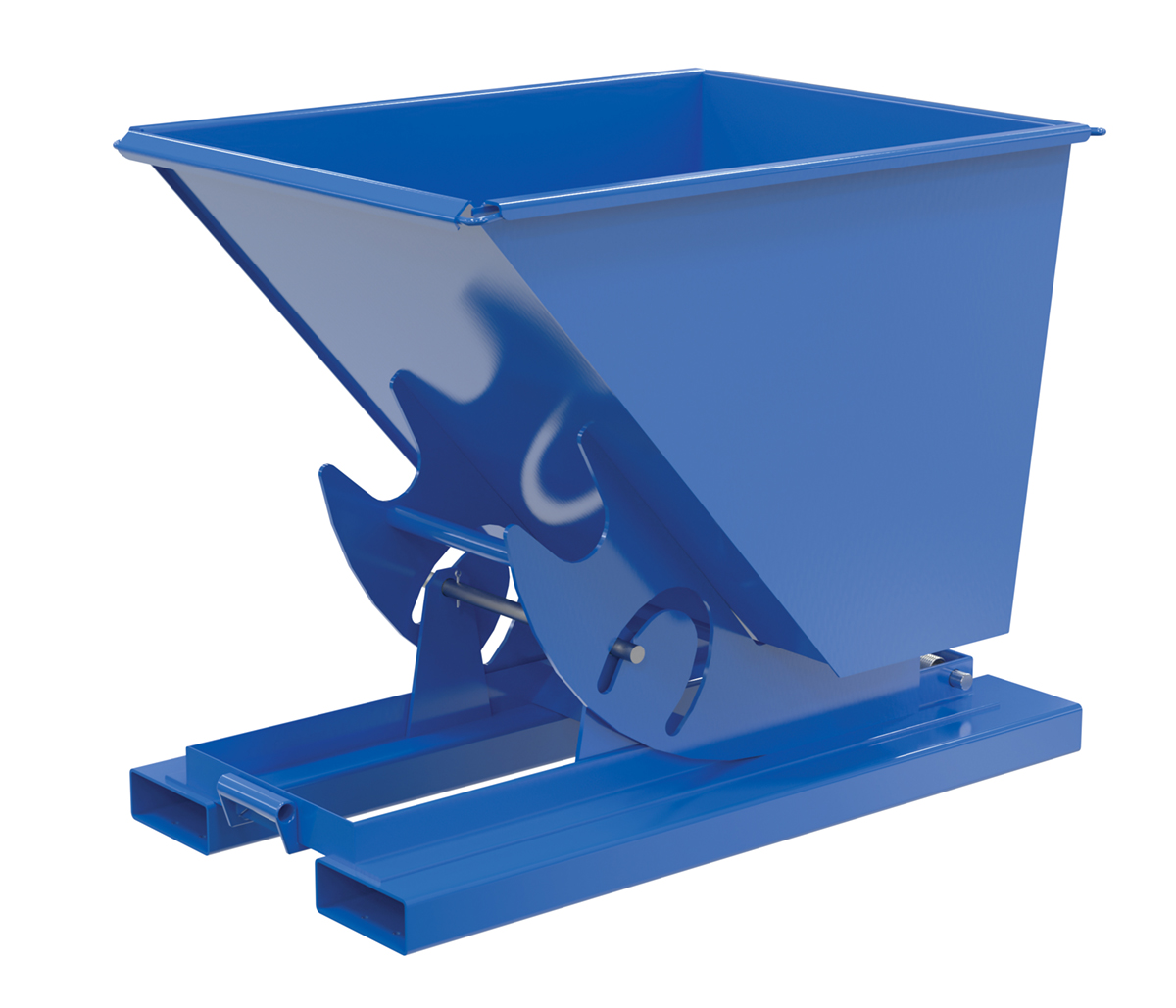

D-50-MD-NB	Steel Medium Duty No Bump & Dump Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	410
D-500-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 5 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1266
D-75-HD-NB	Steel Heavy Duty No Bump & Dump Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	529
D-75-LD-NB	Steel Light Duty No Bump & Dump Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	433
D-75-MD-NB	Steel Medium Duty No Bump & Dump Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	529

Options

Model Number	Image	Description	Wt. (lbs.)
Caster Options		Casters for D Style Hoppers	-
Optional Lids		Lids for D Style Hoppers	-
D-TILT		Sideways Tilt Option (only available for models D-75-LD & D-100-LD)	130
D-PIN		Steel Fork Retaining Pin Option	5
LEKP		Welded leak proof Option	5
D-DPLG-75*		0.75" Threaded Drain, Located in Left Corner	2
D-DPLG-2*		2" Threaded Drain, Located in Left Corner	2
LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG option includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

D-Style Hoppers, No Bump & Dump

D-Style Hoppers, No Bump & Dump

D-Style Hoppers, No Bump & Dump

Featured Fork Truck Attachments

Product Family Overview

Other Hoppers

Additional Models In This Family view entire Image Gallery

Check Out All Of Our Specialty Colors Available!

Applications

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: Can casters be added to the NB hoppers?

Q: Do these automatically return to the upright position after you pull the chain to dump?

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

Hydraulic Dumping Hoppers

Casters For Hoppers (D, R & H)

Heavy-Duty Poly Lids for D & H series Hoppers

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

D Style - Self-Dumping Steel Hoppers with Bumper Release

DC Power Trash Can Dumper

D-Style Hoppers, No Bump &...

Options

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Additional Models In This Family
view entire Image Gallery

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
