Casters For Hoppers (D, R & H)

Print Friendly

Model Chart
PDF's
Videos
Image Gallery
FEATURED Casters For Hoppers (D, R & H)

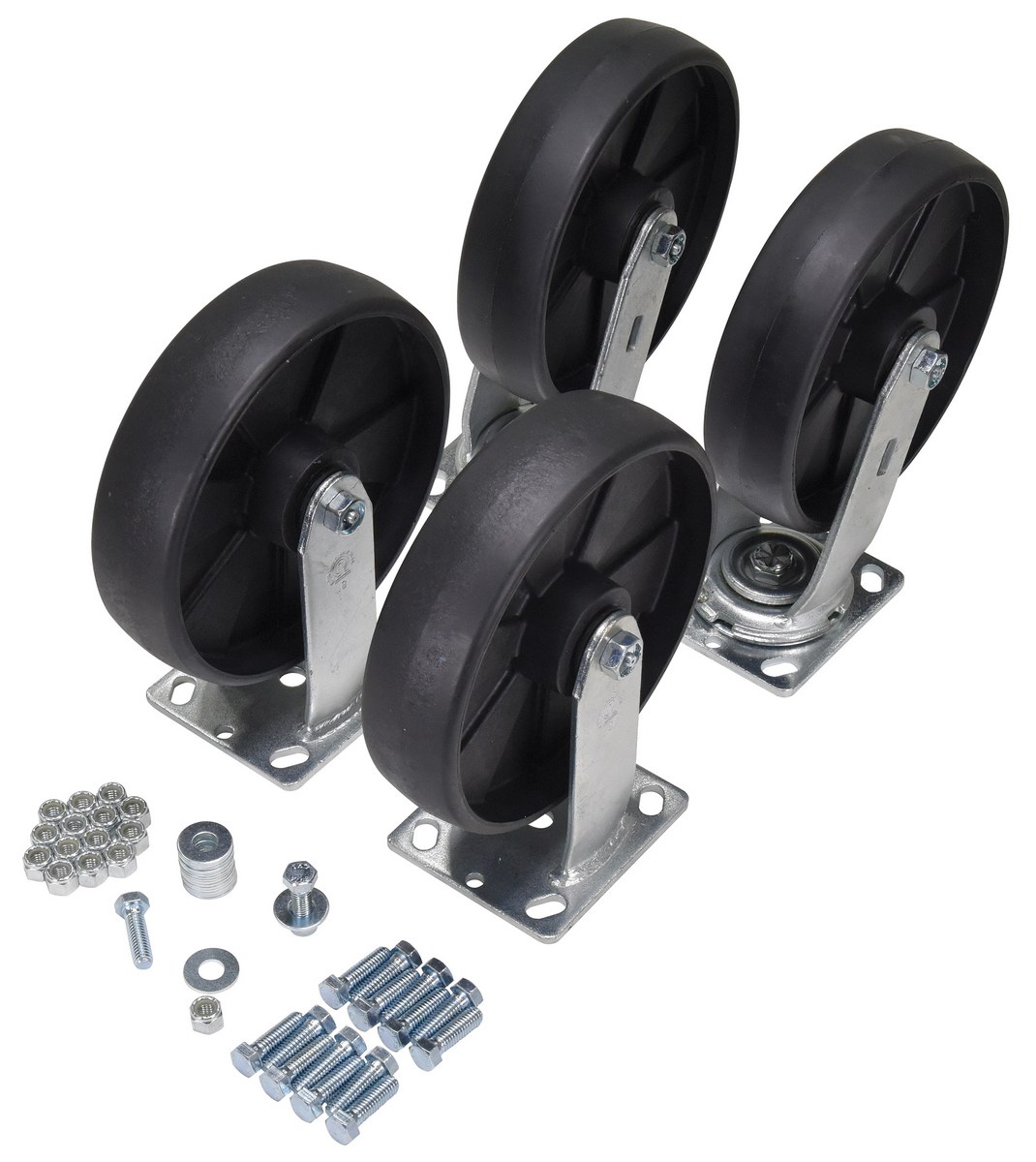

model: D-CK4-GFN8-2

D-CK4-GFN8-2_A.jpg D-CK4-GFN8-2_B.jpg D-CK4-GFN8-2_C.jpg More Images +
Casters For Hoppers (D, R & H)
SERIES: H-CK,D-CK   23Products
Quick Ship

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"

D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"

R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.

**Weight of hopper must be considered when calculating usable capacity**

D-100-LD + D-CK4-GFN-2 + PLID-D-100
Casters For Hoppers (D, R & H)

model: D-CK4-GFN8-2

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

D-CK4-C23C
D-CK4-C34D
D-CK4-GFN6-2
D-CK4-GFN8-2

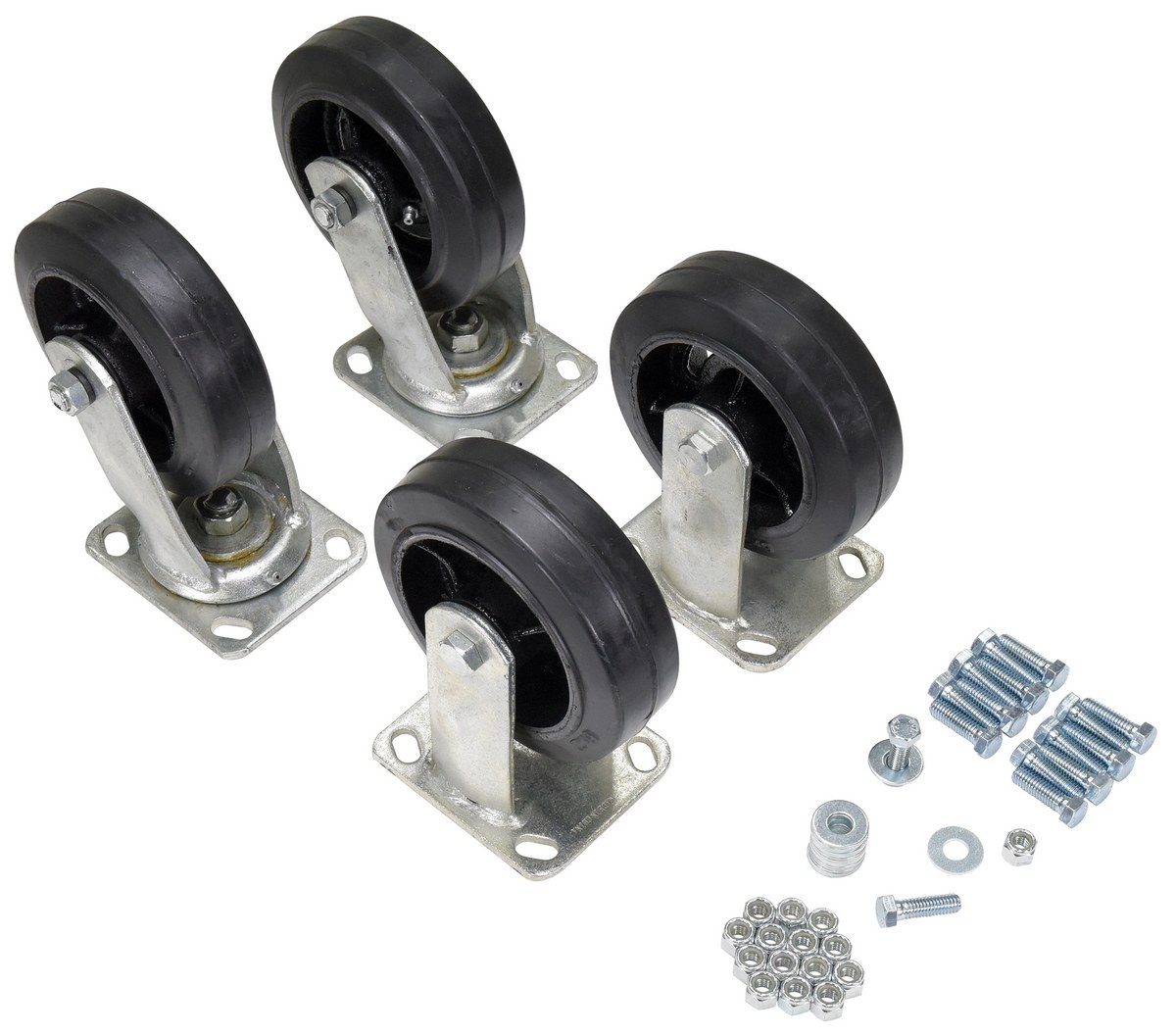

D-CK4-MR6-2
D-CK4-MR8-2
D-CK4-PU6-2
D-CK4-PU8-2
D-CK4-SC6-2
D-CK4-SC6-2HD
D-CK4-SC8-2
H-CK3-C23C
H-CK3-GFN6-2
H-CK3-MR6-2
H-CK3-PU6-2
H-CK3-SC6-2
H-CK3-SC6-2HD
H-CK4-C23C
H-CK4-GFN6-2
H-CK4-MR6-2
H-CK4-PU6-2

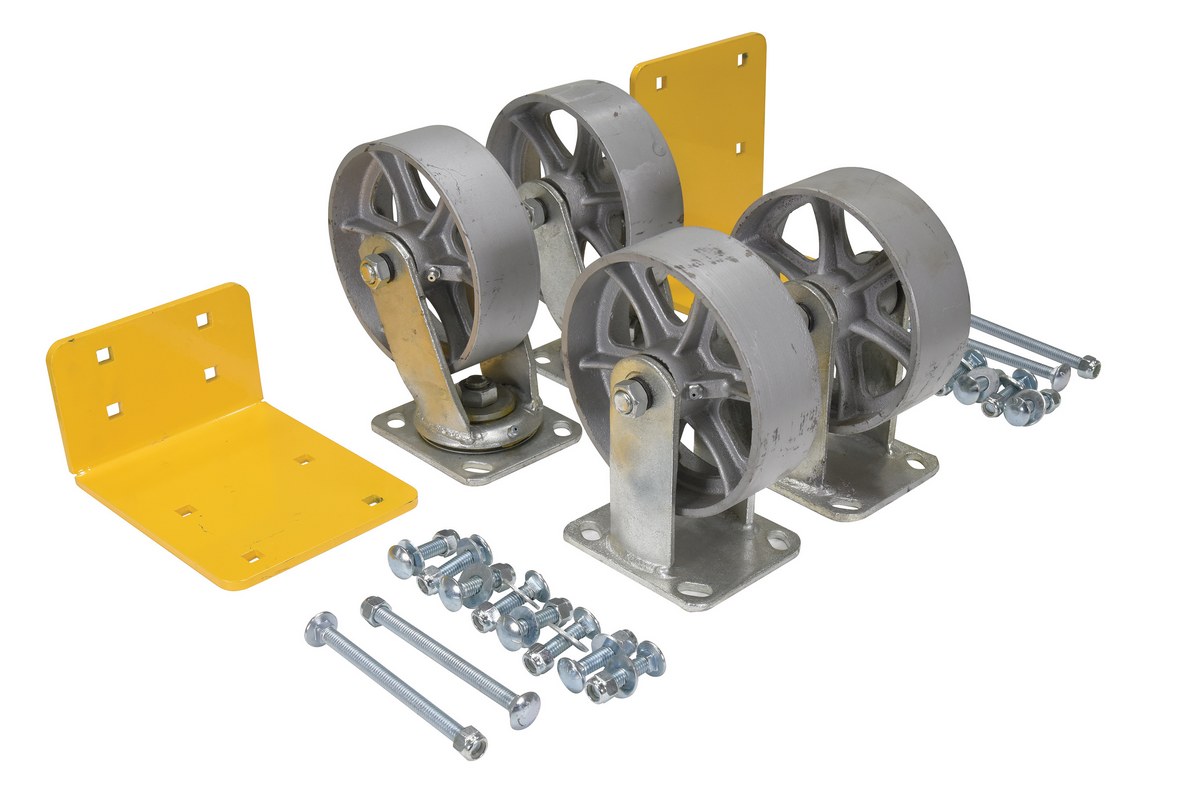

H-CK4-SC6-2
H-CK4-SC6-2HD
PDFs will open in a new window when clicked.

Manuals

HOPPER%20CASTER%20INSTALLATION

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

D-CK4-C23C

D-CK4-C34D

H-CK3-C23C

H-CK4-C23C

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

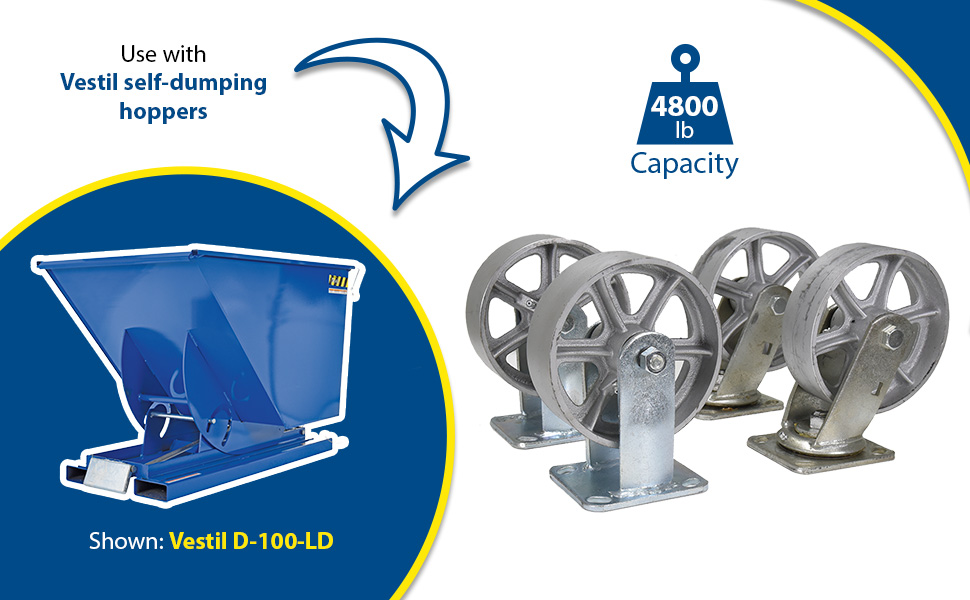

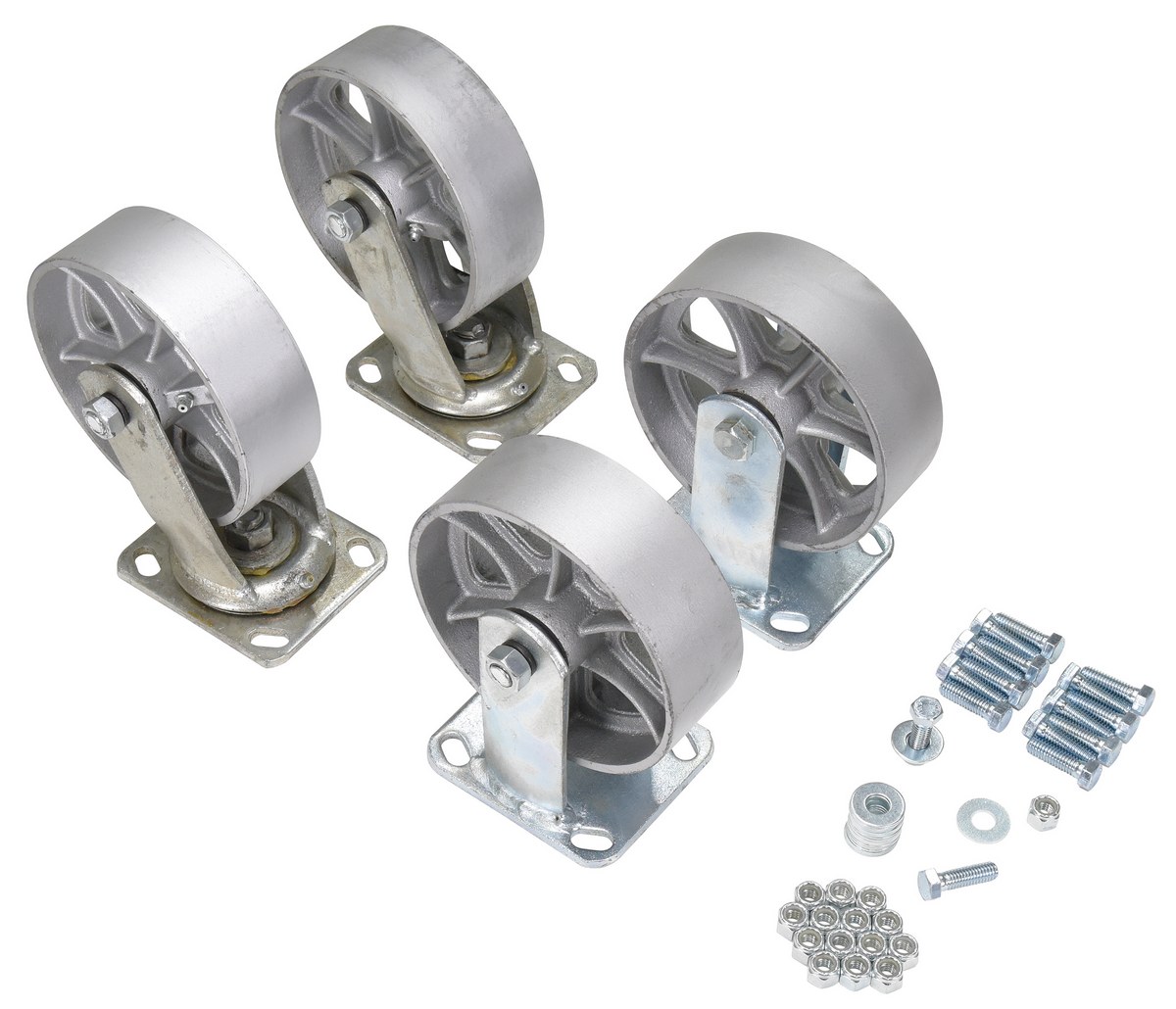

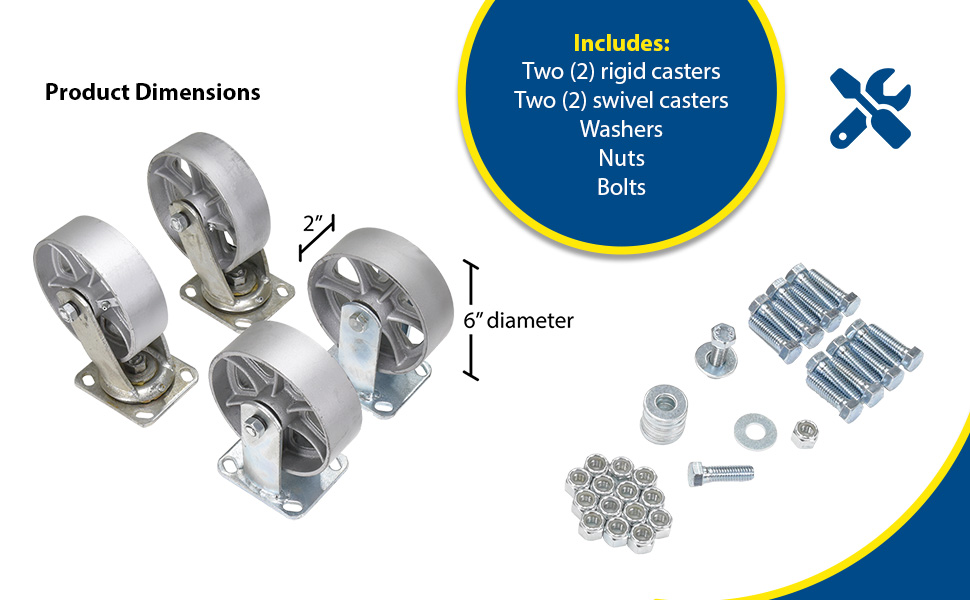

D-CK4-SC6-2
D-CK4-SC6-2 D-CK4-SC6-2 A+ Content - 2
D-CK4-SC6-2 D-CK4-SC6-2 A+ Content - 1
D-CK4-SC6-2 D-CK4-SC6-2 A+ Content - 3

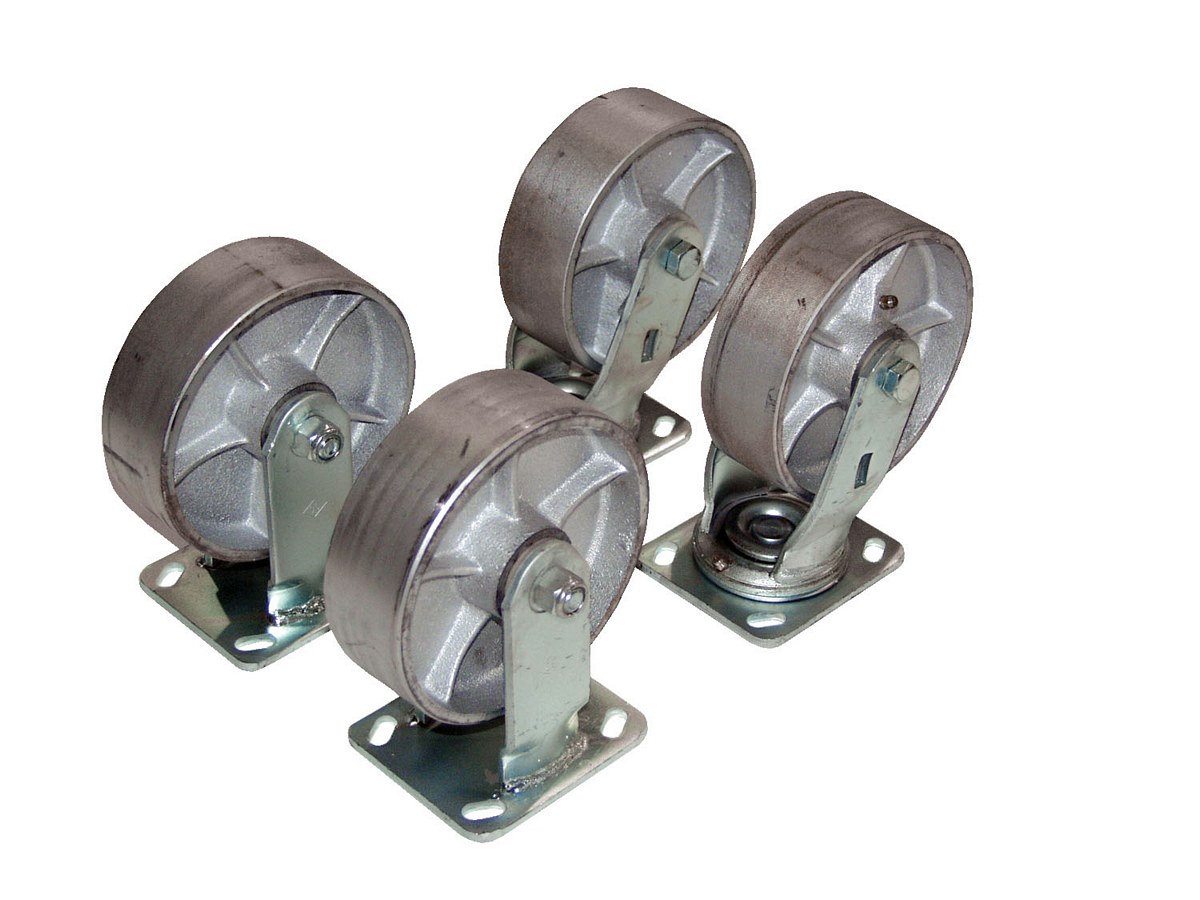

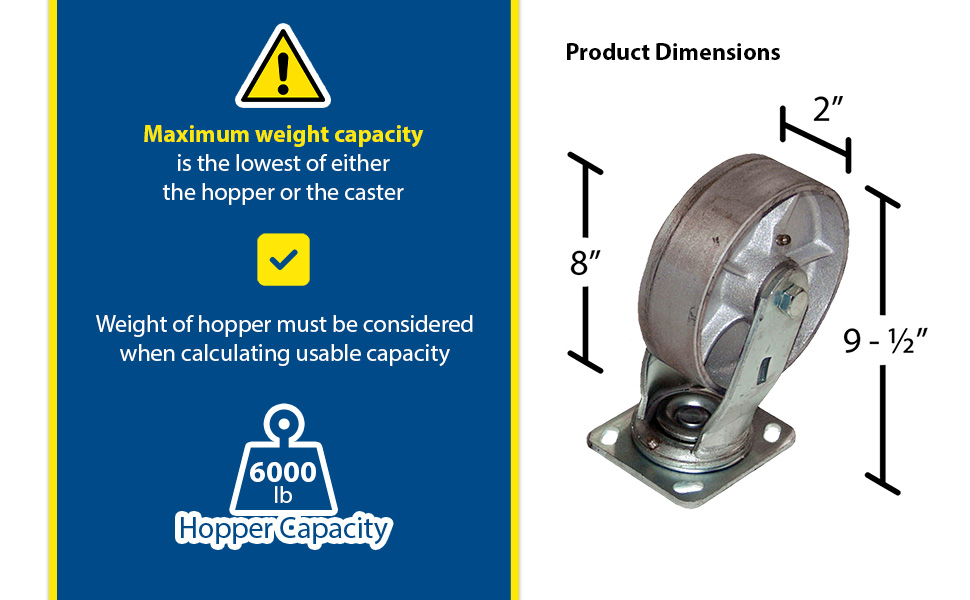

D-CK4-SC8-2
D-CK4-SC8-2 D-CK4-SC8-2 A+ Content - 2
D-CK4-SC8-2 D-CK4-SC8-2 A+ Content - 1

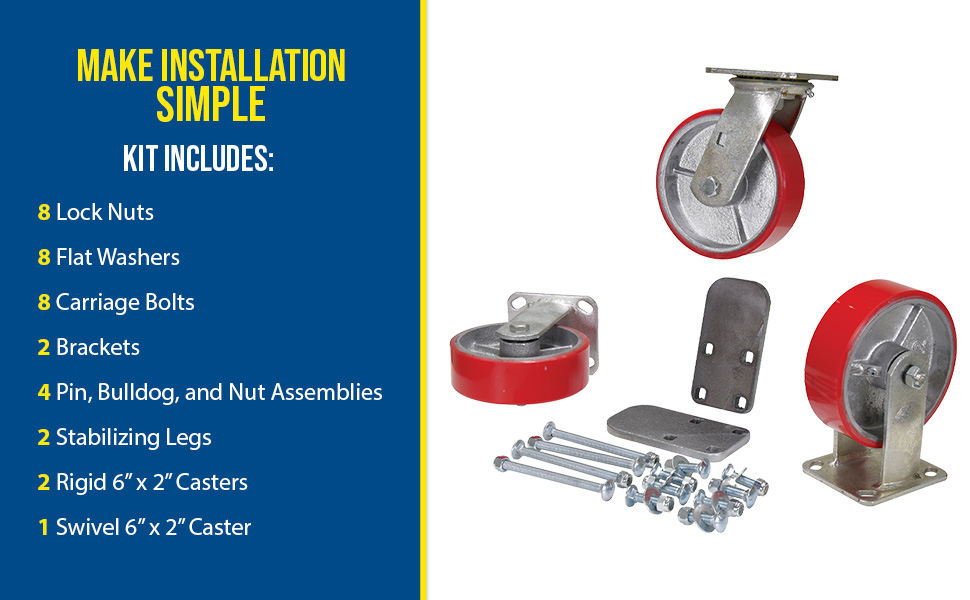

H-CK3-PU6-2
H-CK3-PU6-2 H-CK3-PU6-2 A+ Content - 2
H-CK3-PU6-2 H-CK3-PU6-2 A+ Content - 1

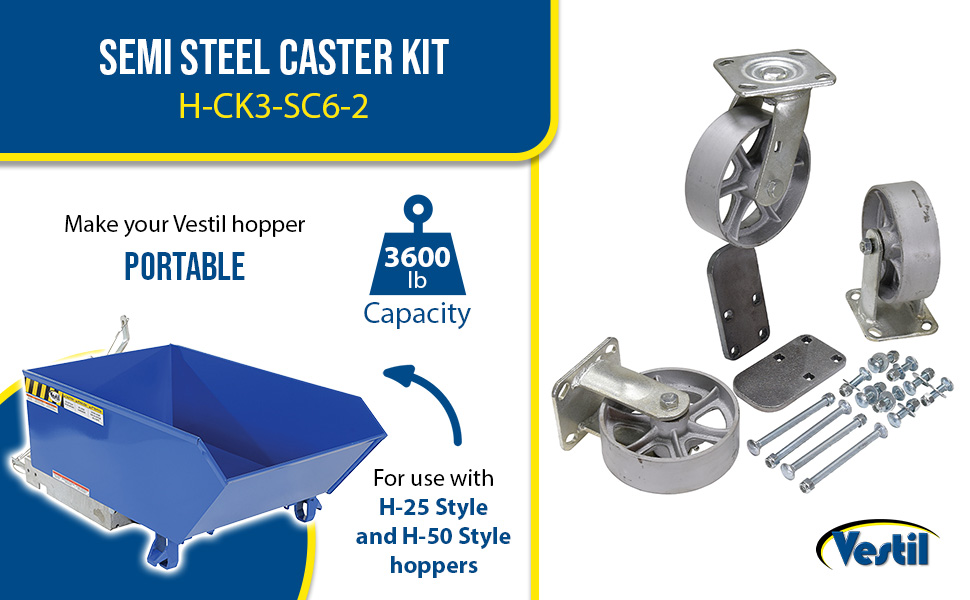

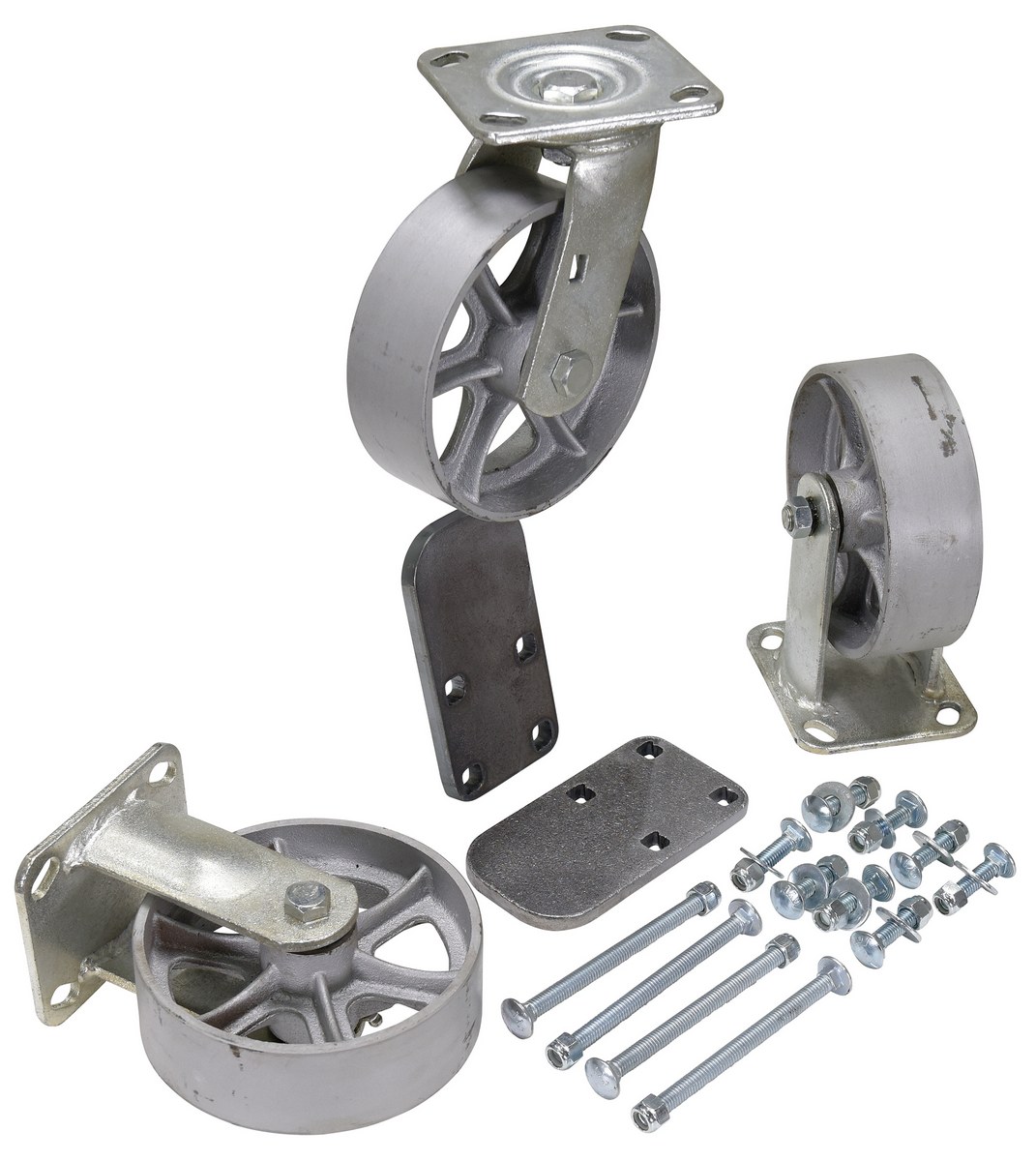

H-CK3-SC6-2
H-CK3-SC6-2 H-CK3-SC6-2 A+ Content - 2
H-CK3-SC6-2 H-CK3-SC6-2 A+ Content - 1

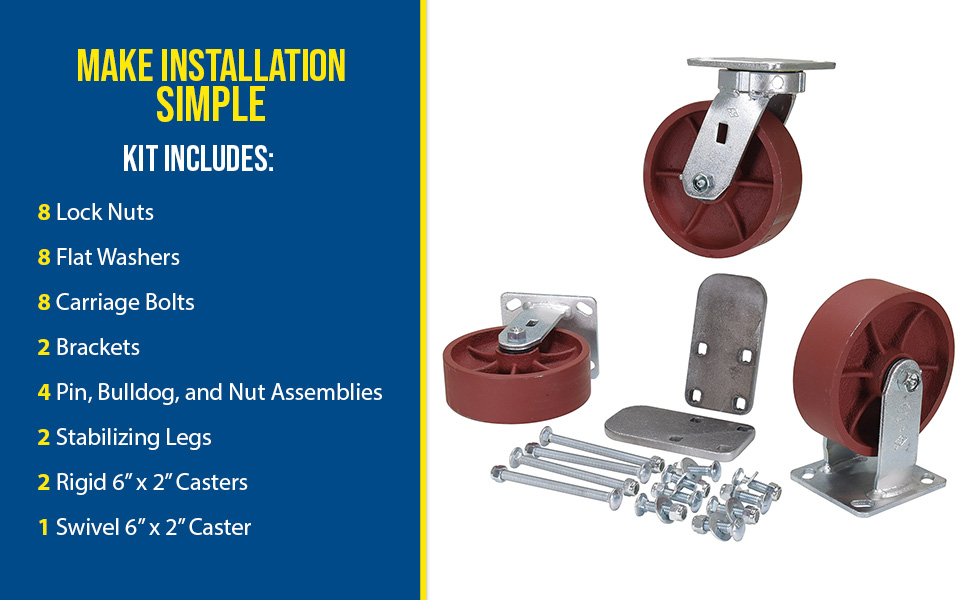

H-CK3-SC6-2HD
H-CK3-SC6-2HD H-CK3-SC6-2HD A+ Content - 2
H-CK3-SC6-2HD H-CK3-SC6-2HD A+ Content - 1

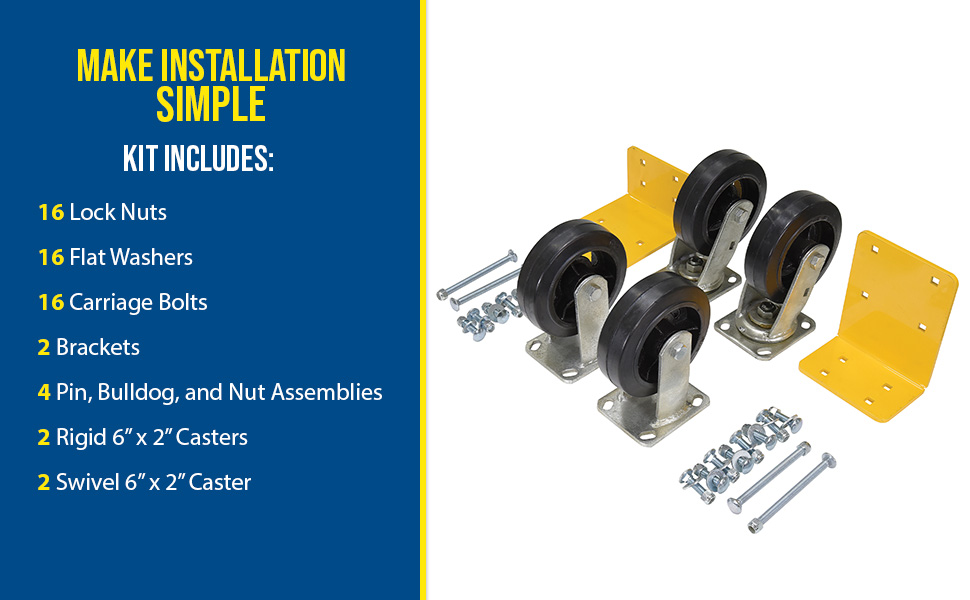

H-CK4-MR6-2
H-CK4-MR6-2 H-CK4-MR6-2 - A+ Content 2
H-CK4-MR6-2 H-CK4-MR6-2 - A+ Content 1

Hopper Caster Kits Upgrade Benefit Chart

**Weight of hopper must be considered when calculating usable capacity**
Note: Hardware Already Included
Upgraded Hopper
Caster Kit
Model #'s		 Caster
Image		 Size Total
Capacity		 New Tread
Type		 Casters
In Kit		 Description Added
Benefits
H-CK3-C23C CST-HHD-6X2GFN-S 6X2 6000 HIGH GRADE HD GFN (RX) (BLACK) CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
H-CK4-C23C CST-HHD-6X2GFN-S 6X2 5000 HIGH GRADE GFN (RX) (BLACK) CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) | CST-HHD-6X2GFN-SWB (1) Robust kingpinless rigging matched with high-tech proprietary glass filled nylon (RX). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Canada. NON-MARKING | CHEMICAL & MOISTURE RESISTANT | SMOOTH RIDE PERFORMANCE | QUIET OPERATION | PRECISION BALL BEARINGS
FOR D-SERIES AND R-SERIES HOPPERS
D-CK4-C34D CST-F40-8X2SI-S 8X2 6000 PREMIUM GRADE POLY (SI) (ORANGE) CST-F40-8X2SI-S (1) | CST-F40-8X2SI-R (2) | CST-F40-8X2SI-SWB (1) Robust kingpinless series matched with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. KINGPINLESS | NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED | SMOOTH & QUIET RIDE | EXCELLENT FLOOR PRESERVATION | REJECTS DEBRIS | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR WARRANTY

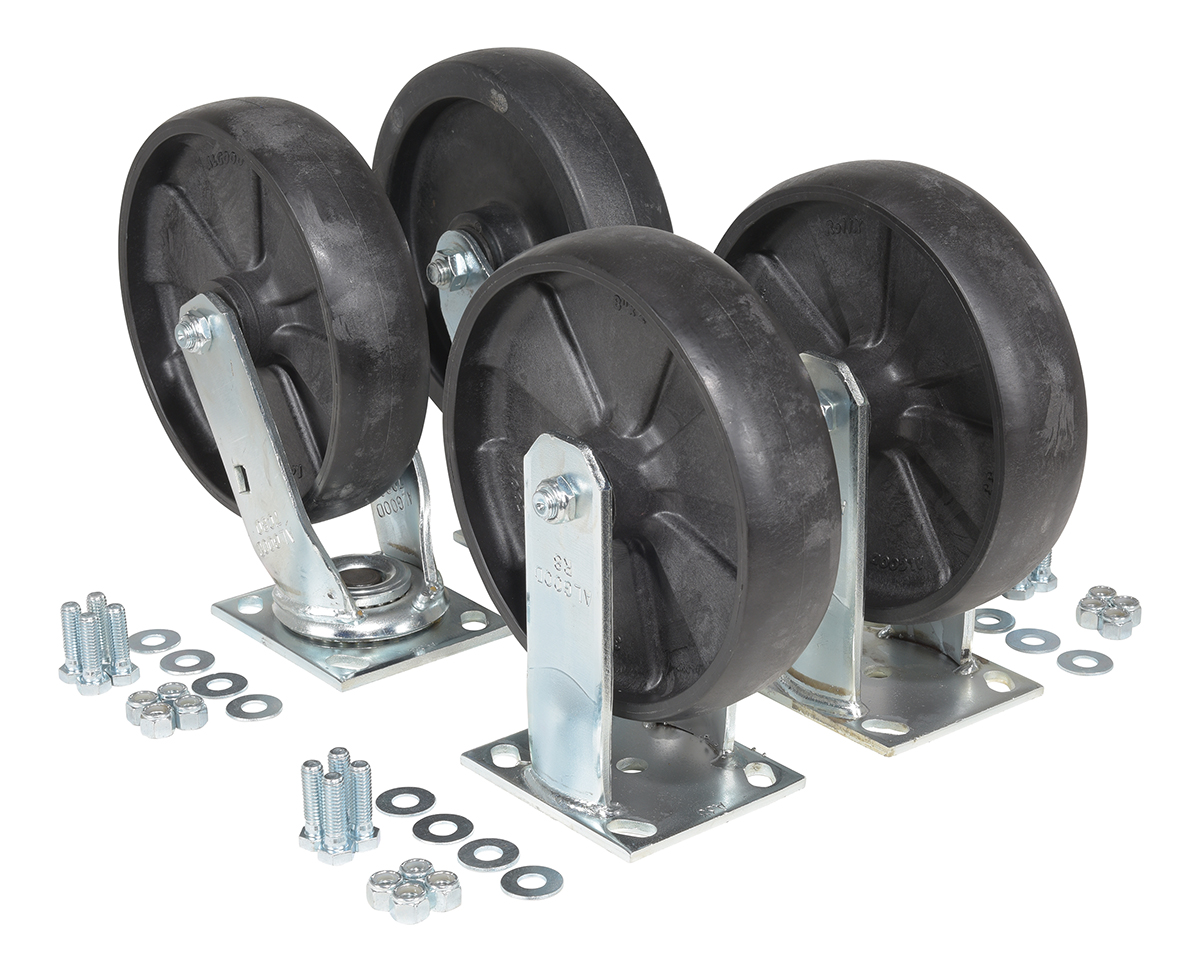

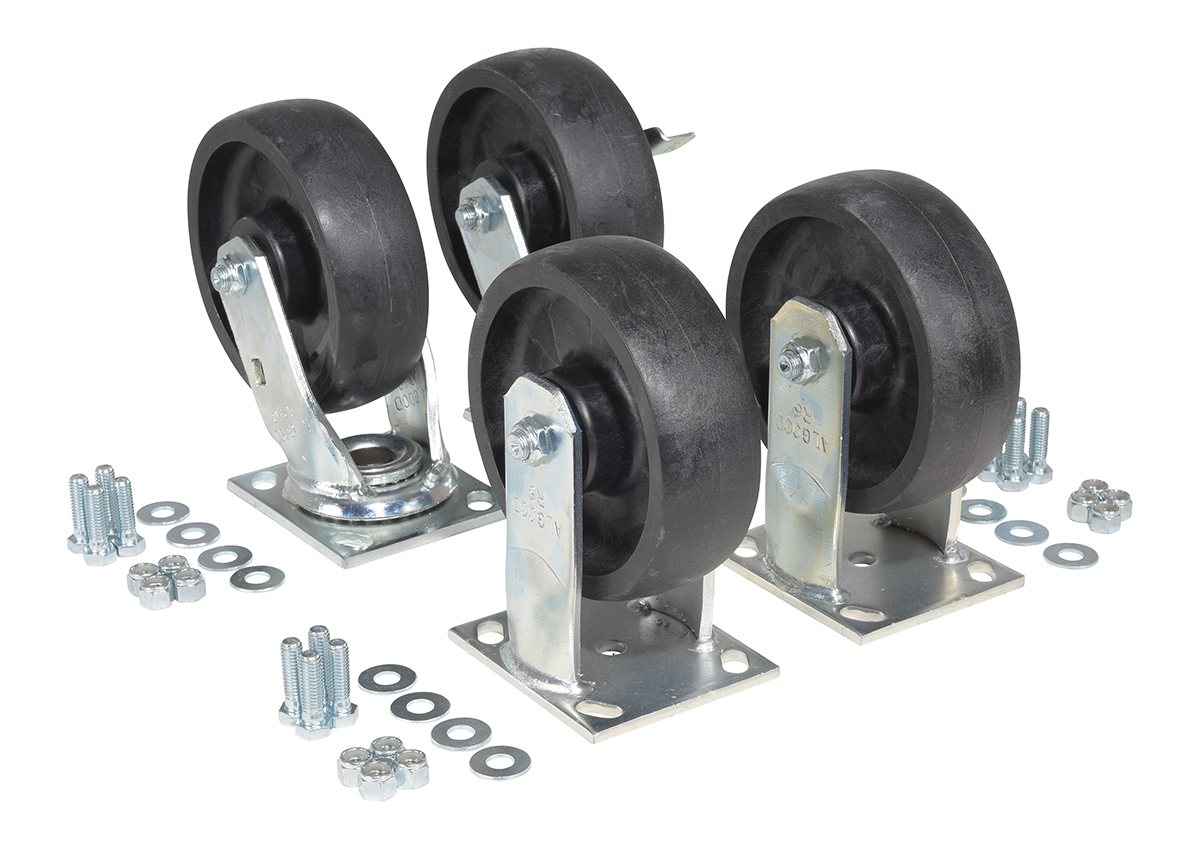

D-CK4-C24D CST-HLD2-8X2GFN-S 8X2 5000 HIGH GRADE GFN (RX) (BLACK) CST-HLD2-8X2GFN-S (1) | CST-HLD2-8X2GFN-R (2) | CST-HLD2-8X2GFN-SWB (1) Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND
D-CK4-C23C CST-HHD-6X2GFN-S 6X2 8000 HIGH GRADE HD GFN (RX) (BLACK) CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) | CST-HHD-6X2GFN-SWB (1) Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
Weight Of Hopper Must Be Considered When Calculating Usable Capacity

Related or Similar Products:

More From Hoppers





Casters For Hoppers (D, R &...




Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"

D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"

R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.

**Weight of hopper must be considered when calculating usable capacity**

D-100-LD + D-CK4-GFN-2 + PLID-D-100

Model # Description Attributes Net Wt.
(lbs)

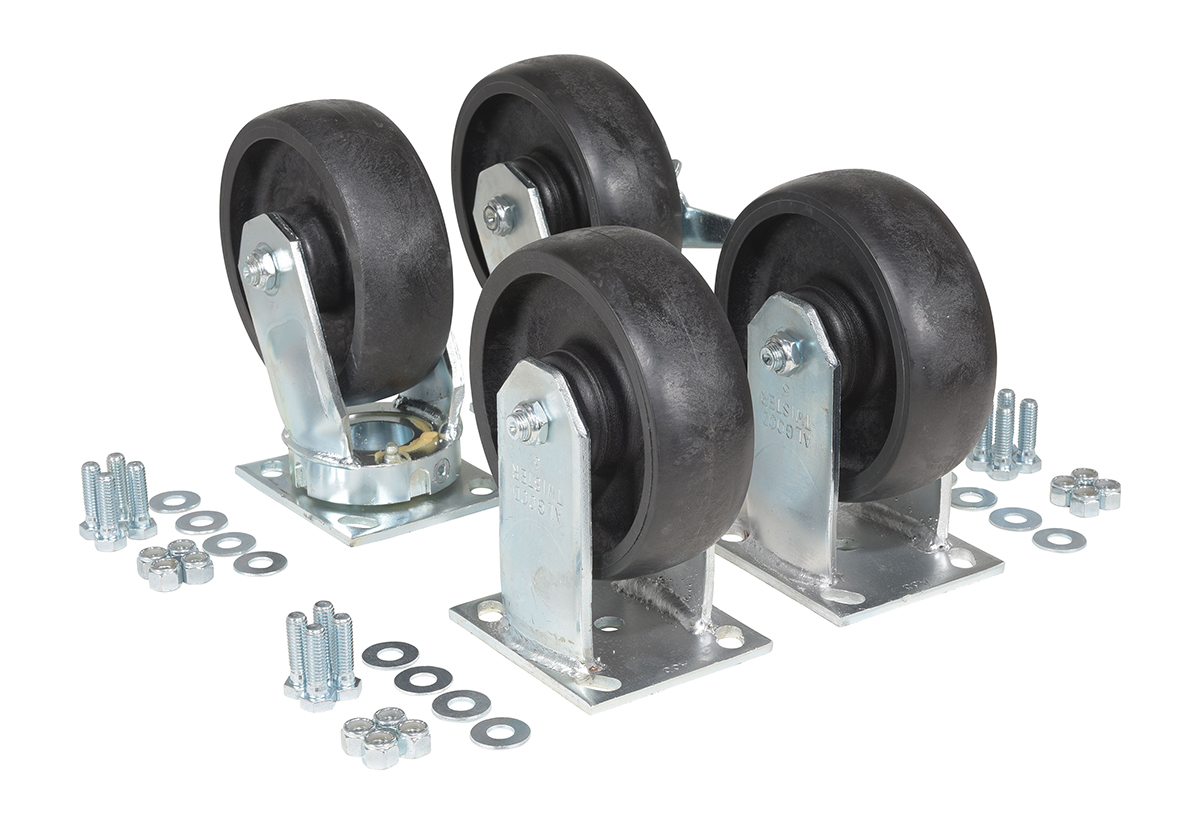

D-CK4-C23C D-CK4-C23CGlass-Filled Nylon Caster Kit 6 in x 2 in 8000 lb Capacity BlackUniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster		30

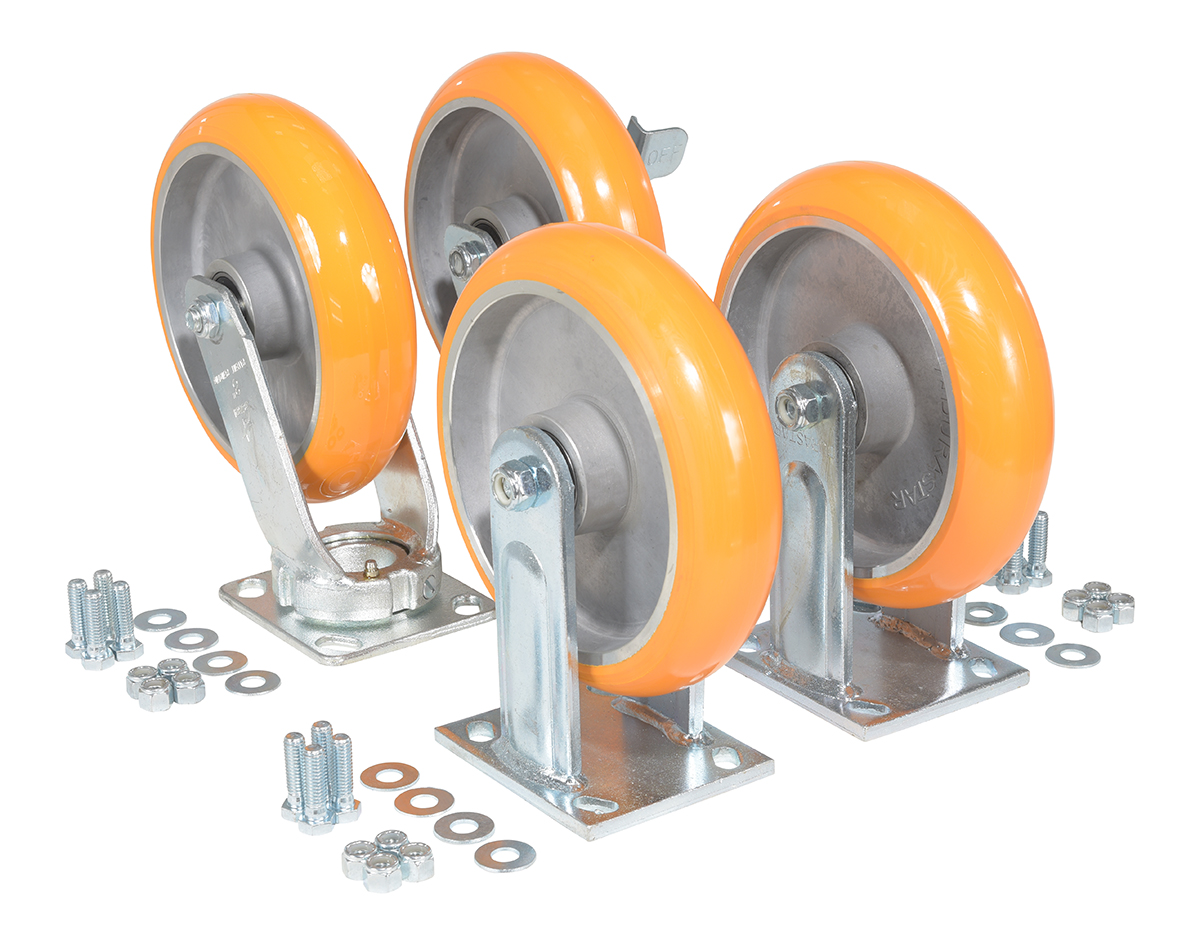

D-CK4-C34D D-CK4-C34DPolyurethane Caster Kit 8 in x 2 in 6,000 Lb. Capacity ButterscotchUniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster		34

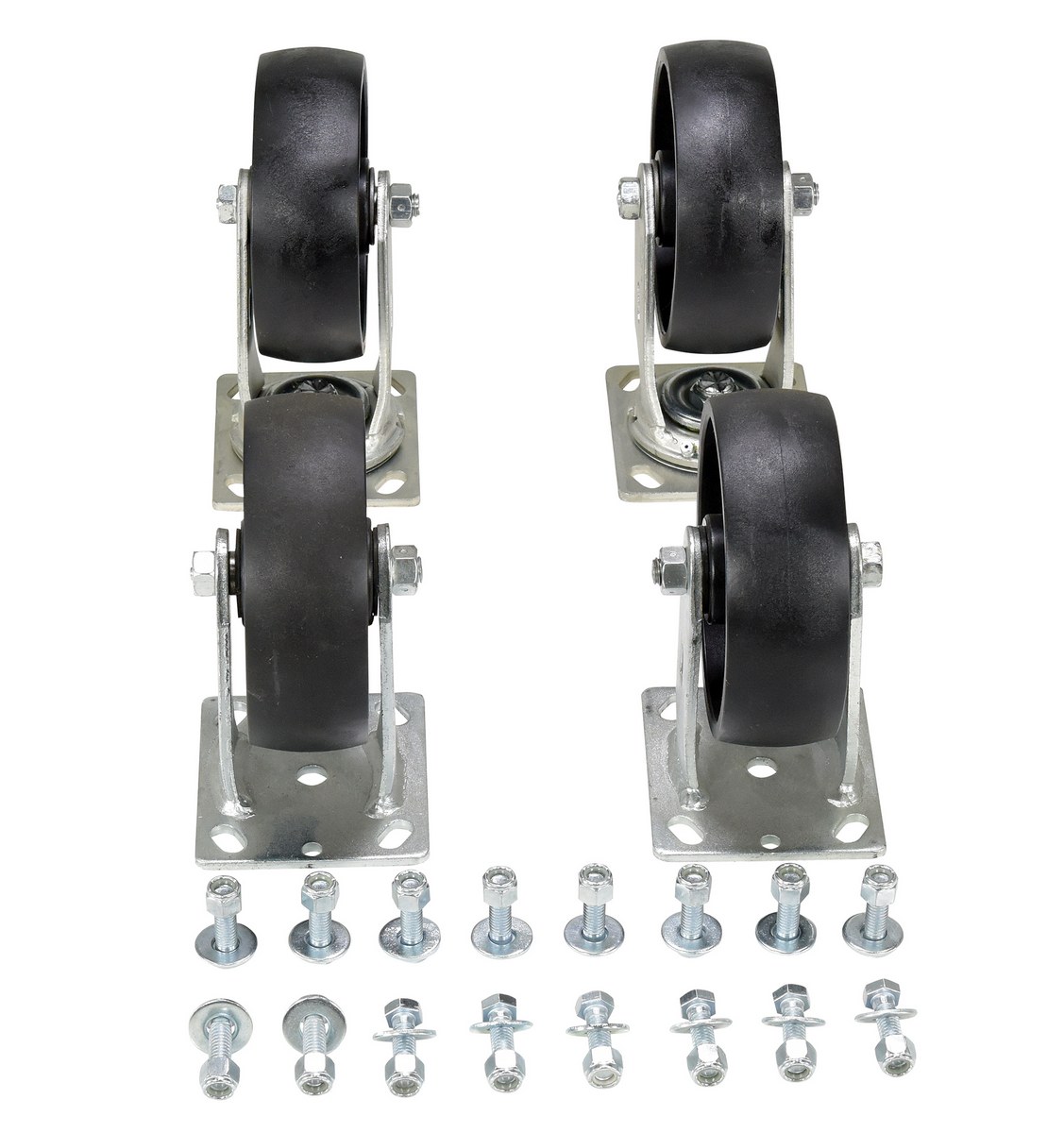

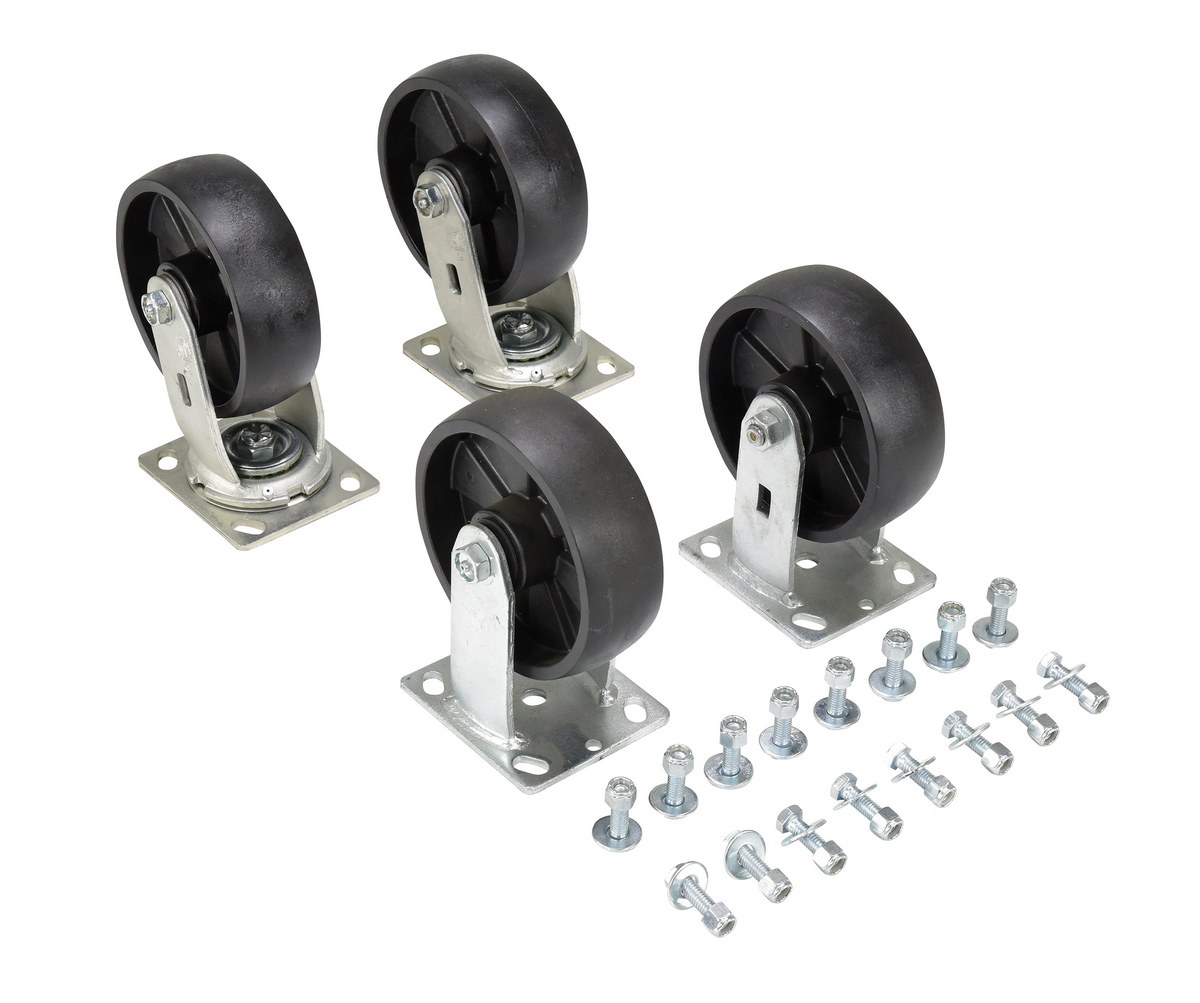

D-CK4-GFN6-2 D-CK4-GFN6-2Glass Filled Nylon Caster Kit 6 In. x 2 In. 4800 Lb. Capacity BlackUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		19

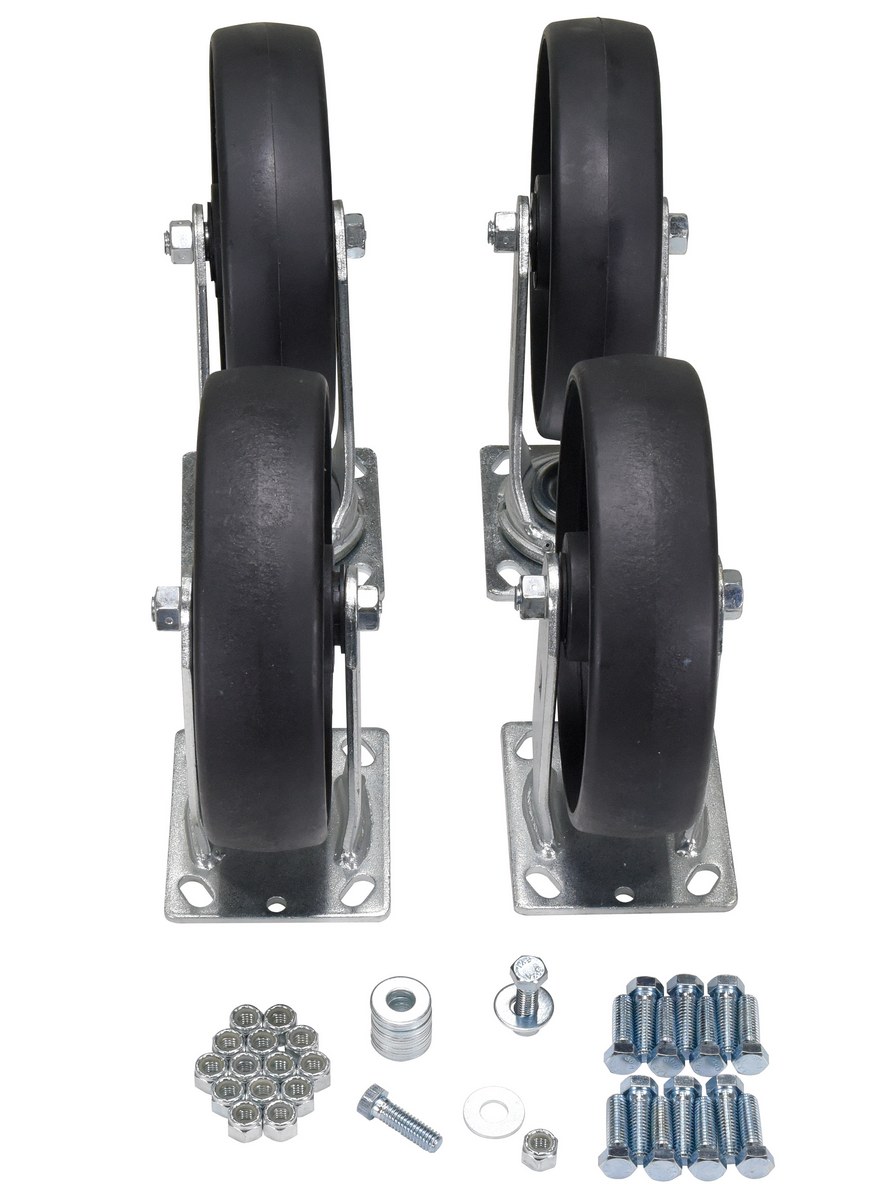

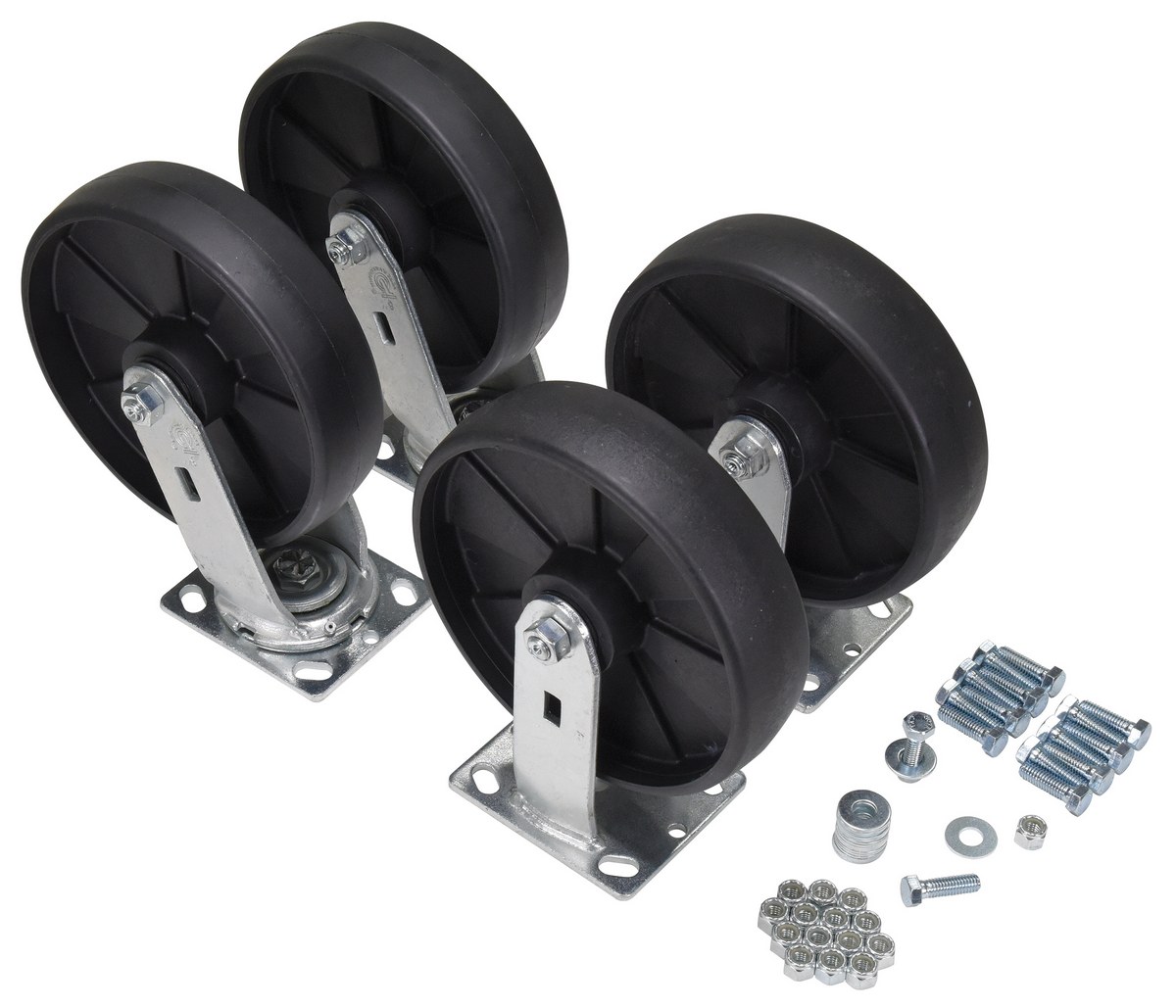

D-CK4-GFN8-2 D-CK4-GFN8-2Glass Filled Nylon Caster Kit 8 In. x 2 In. 5000 Lb. Capacity BlackUniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2		22
D-CK4-MR6-2 D-CK4-MR6-2Mold On Rubber Caster Kit 6 In. x 2 In. 2400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		29

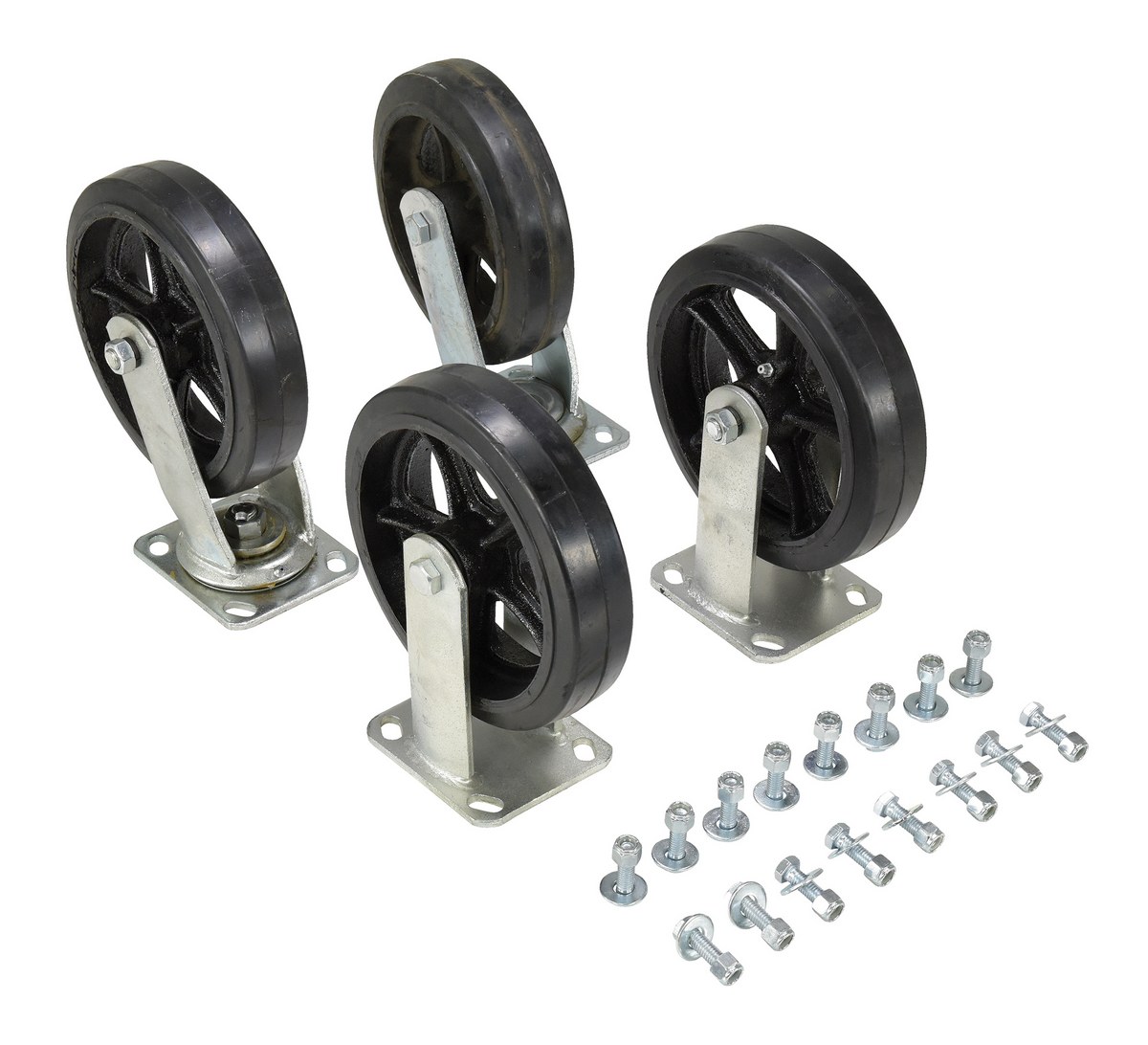

D-CK4-MR8-2 D-CK4-MR8-2Mold On Rubber Caster Kit 8 In. x 2 In. 2400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 8 x 2		37

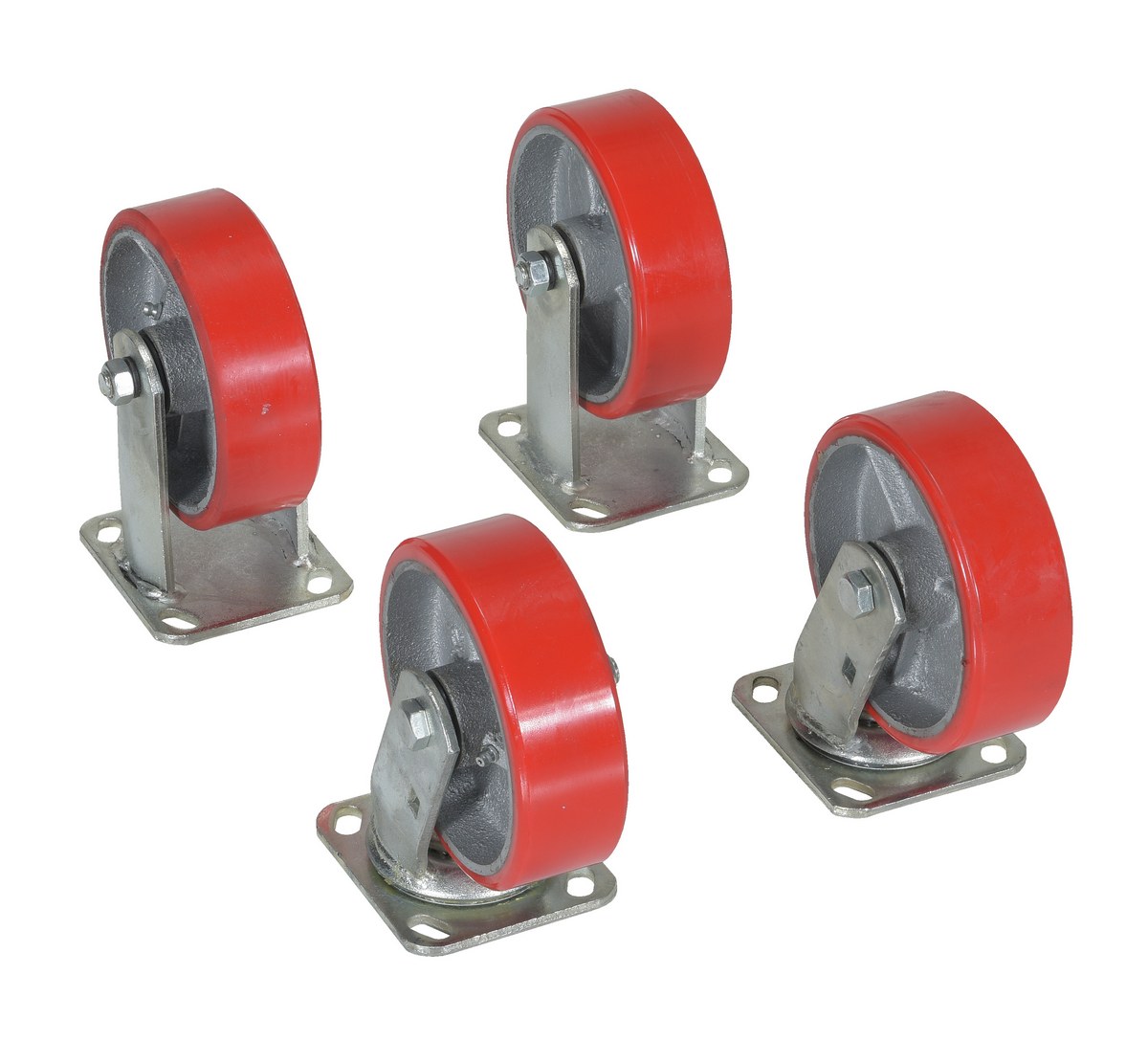

D-CK4-PU6-2 D-CK4-PU6-2Poly On Steel Caster Kit 6 In. x 2 In. 2644 Lb. Capacity RedUniform Capacity (lb.): 2644
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		31

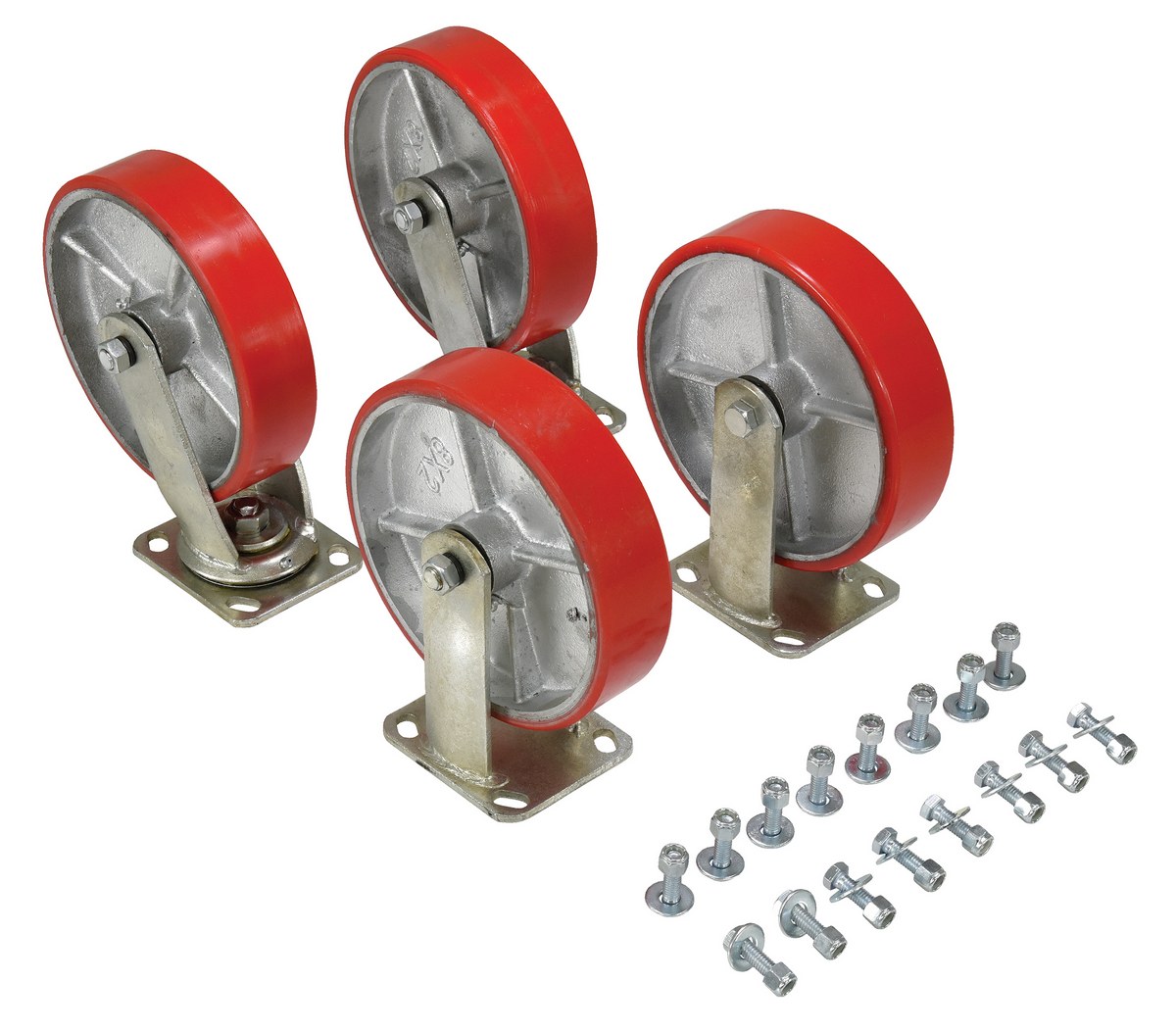

D-CK4-PU8-2 D-CK4-PU8-2Poly On Steel Caster Kit 8 In. x 2 In. 3084 Lb. Capacity RedUniform Capacity (lb.): 3084
Caster Quantity/Diameter/Width (in.): (4) 8 x 2		42
D-CK4-SC6-2 D-CK4-SC6-2Semi Steel Caster Kit 6 In. x 2 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		32

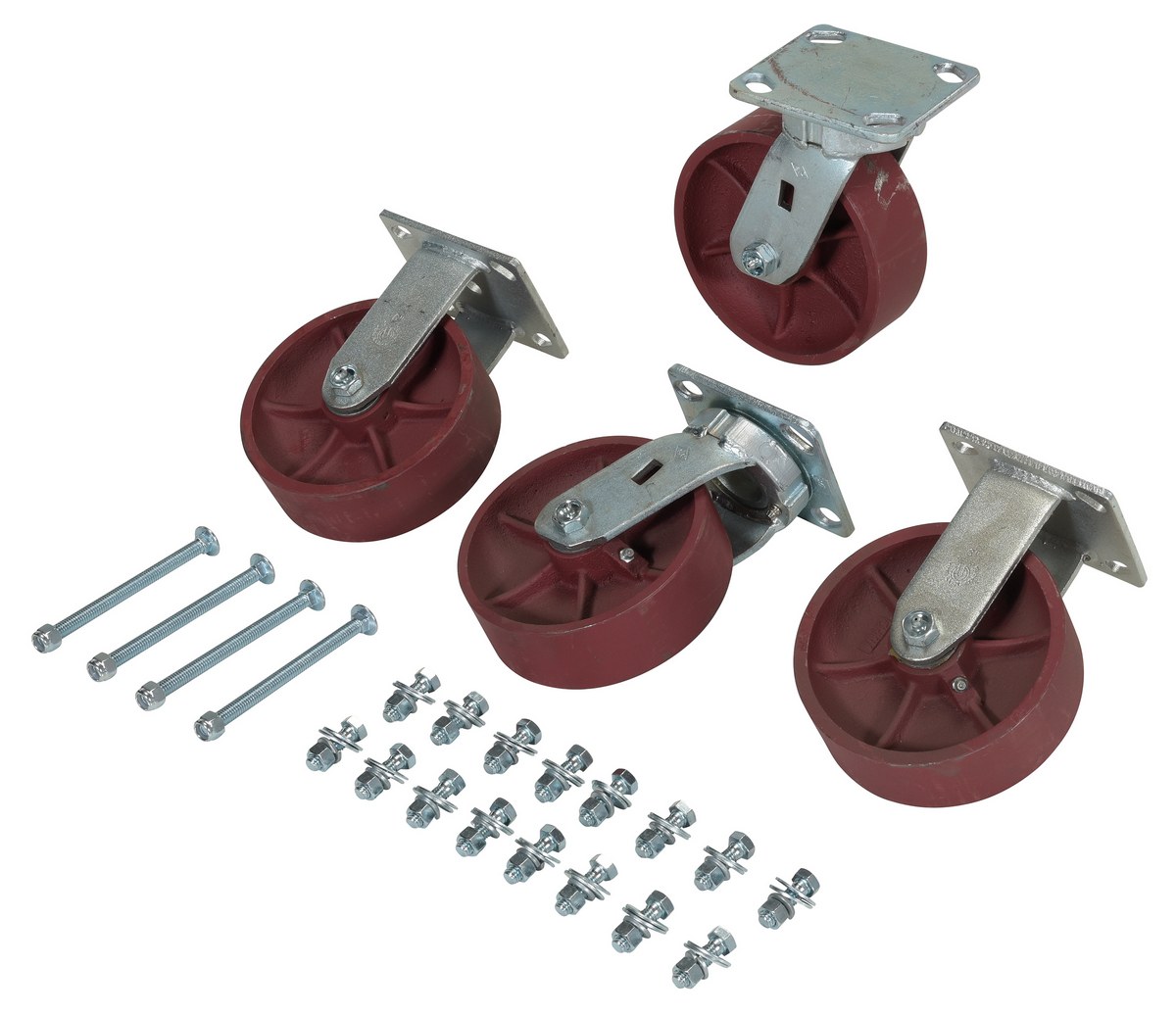

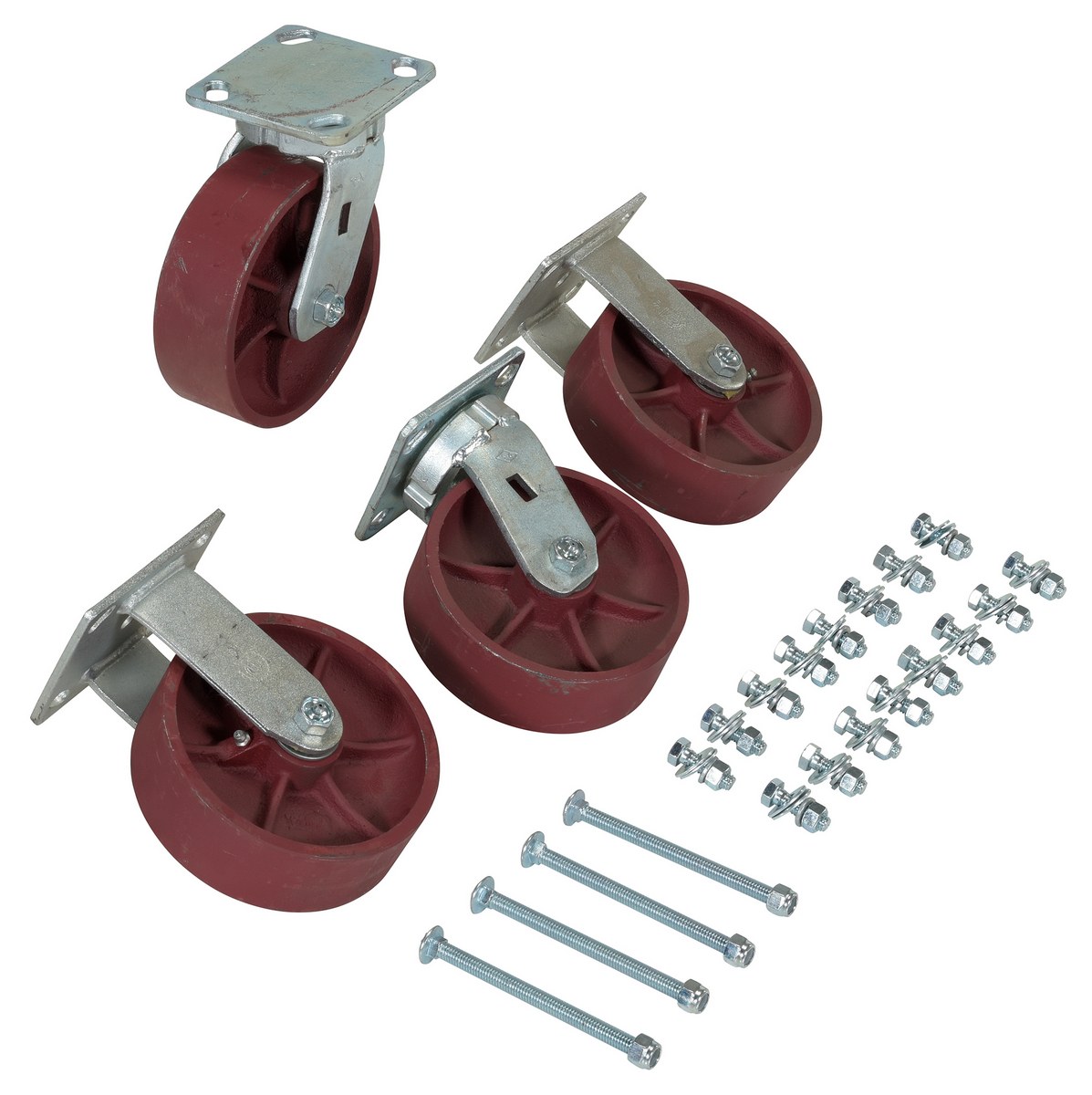

D-CK4-SC6-2HD D-CK4-SC6-2HDDuctile Steel Caster Kit 6 In. x 2 In. 8000 Lb. Capacity MaroonUniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		43
D-CK4-SC8-2 D-CK4-SC8-2Semi Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity SilverUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 8 x 2		42

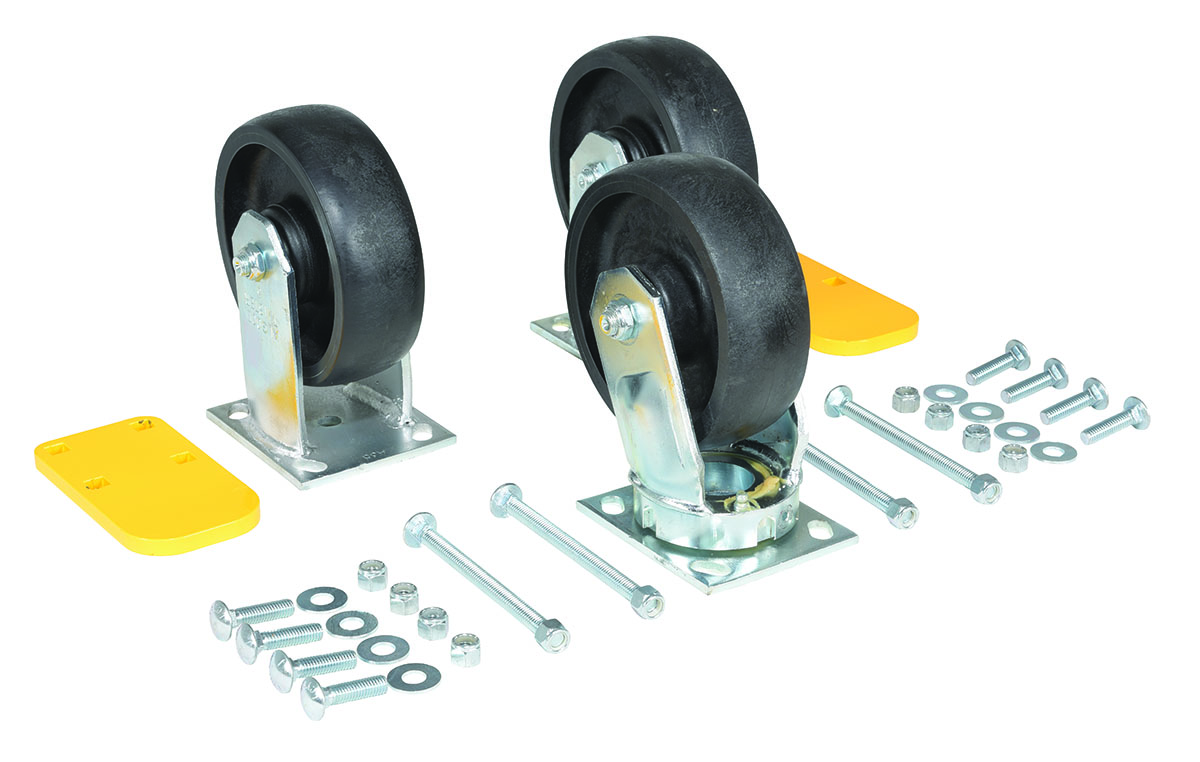

H-CK3-C23C H-CK3-C23CGlass-Filled Nylon Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity BlackUniform Capacity (lb.): 6000
Swivel Caster Qty: 1		22

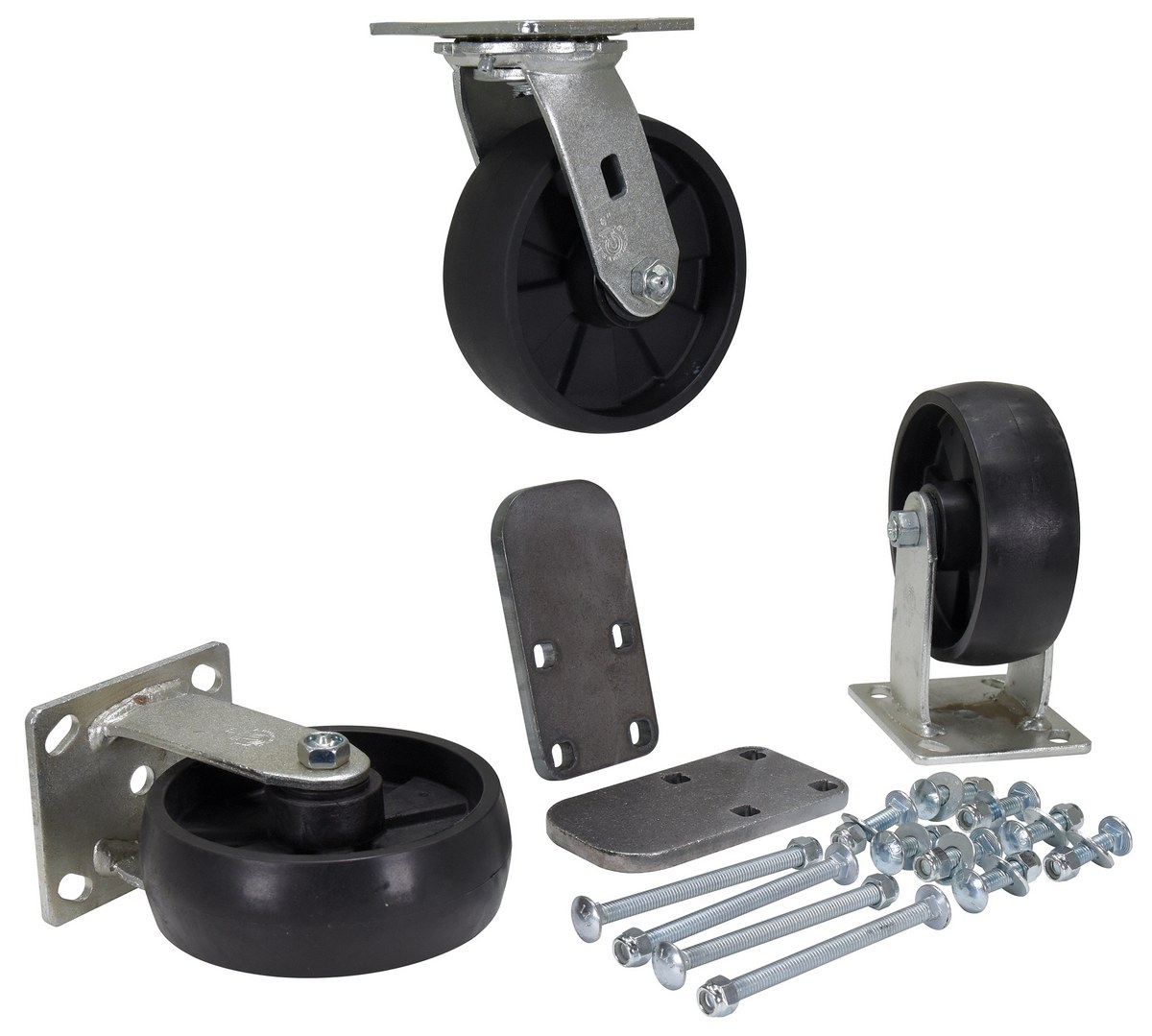

H-CK3-GFN6-2 H-CK3-GFN6-2Glass Filled Nylon Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity BlackUniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2		17

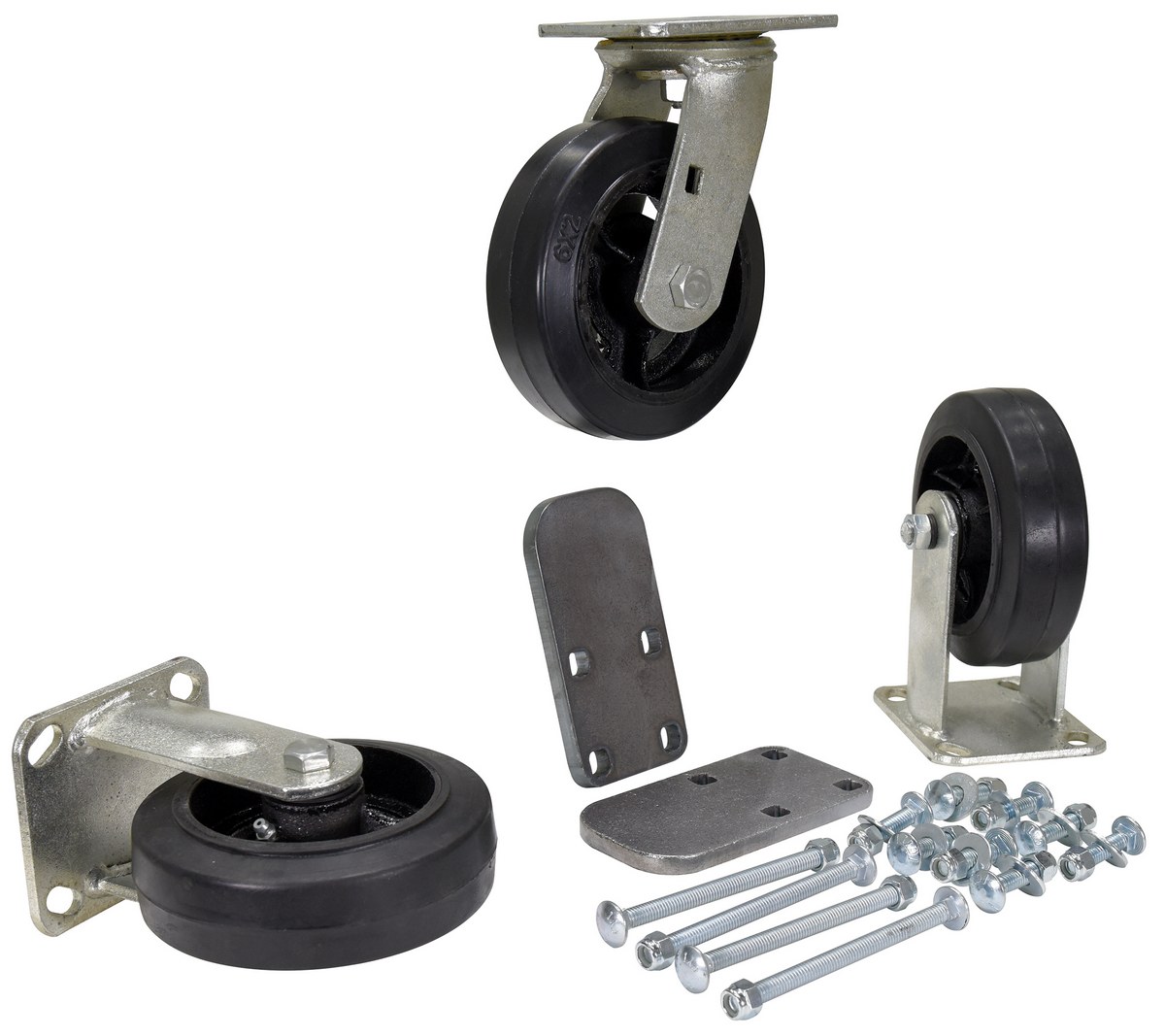

H-CK3-MR6-2 H-CK3-MR6-2Mold On Rubber Caster Kit 6 In. x 2 In. 1,800 Lb. Capacity BlackUniform Capacity (lb.): 1800
Caster Quantity/Diameter/Width (in.): (3) 6 x 2		25

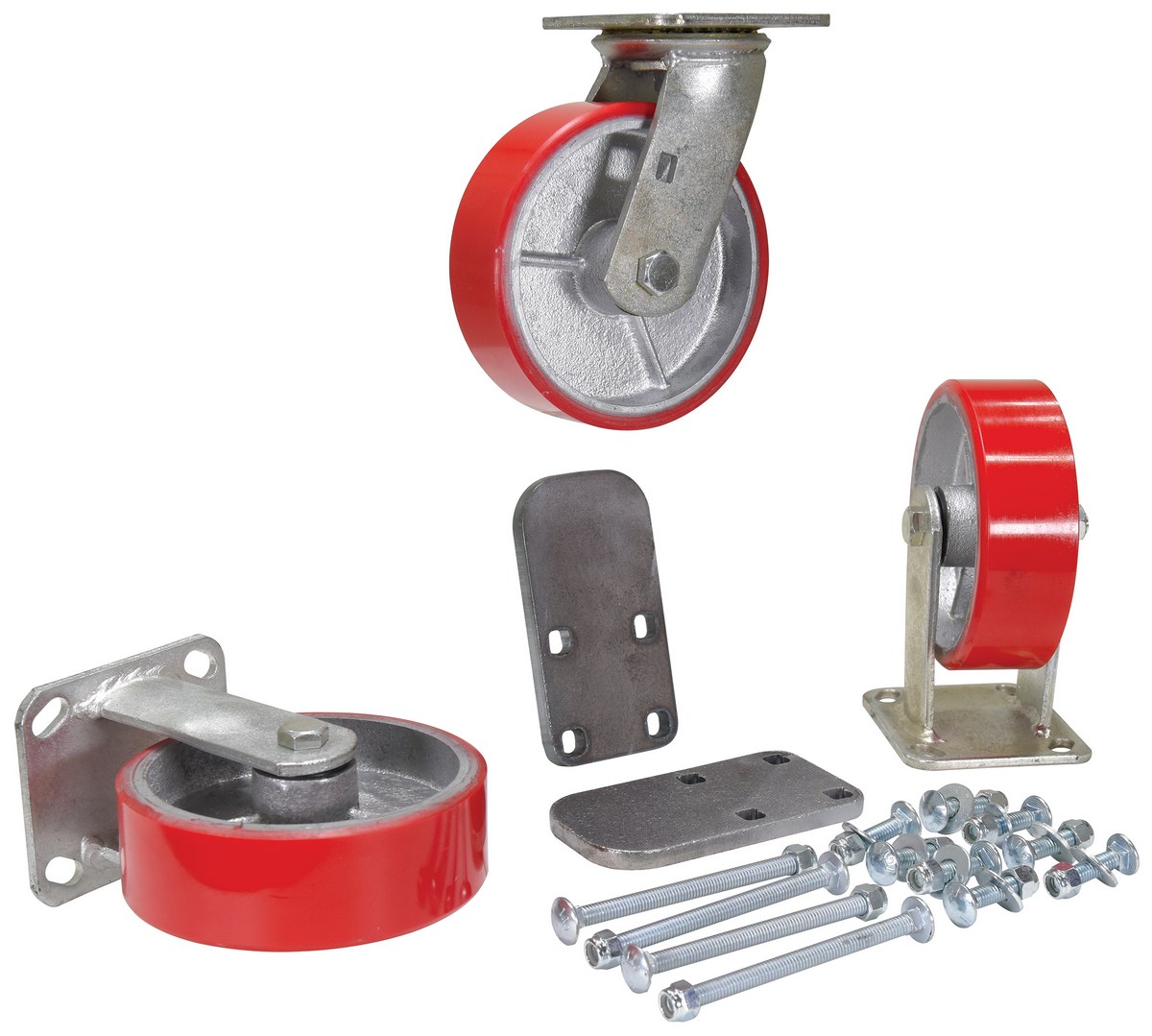

H-CK3-PU6-2 H-CK3-PU6-2Poly On Steel Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity RedUniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2		26

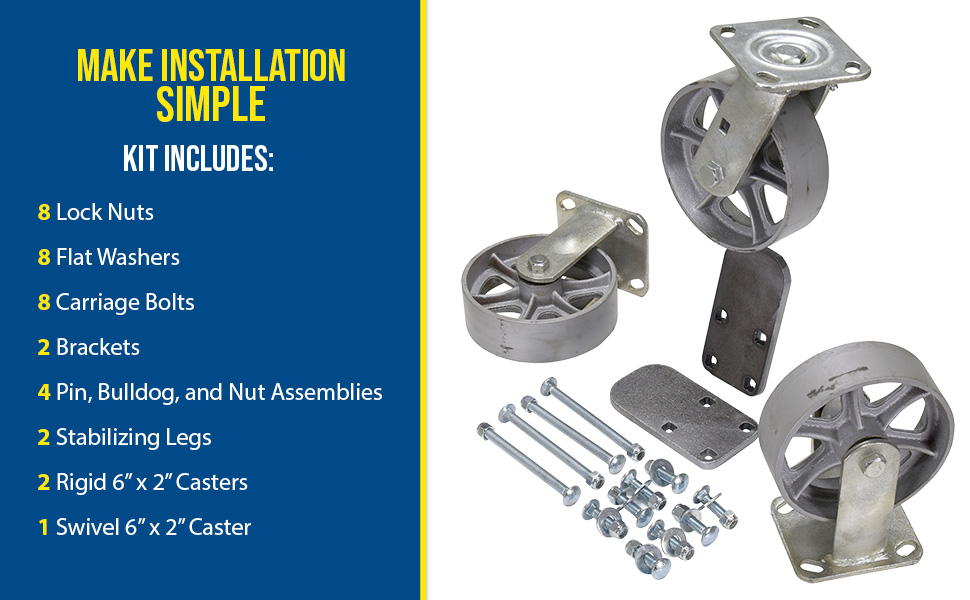

H-CK3-SC6-2 H-CK3-SC6-2Semi Steel Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity SilverUniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2		27

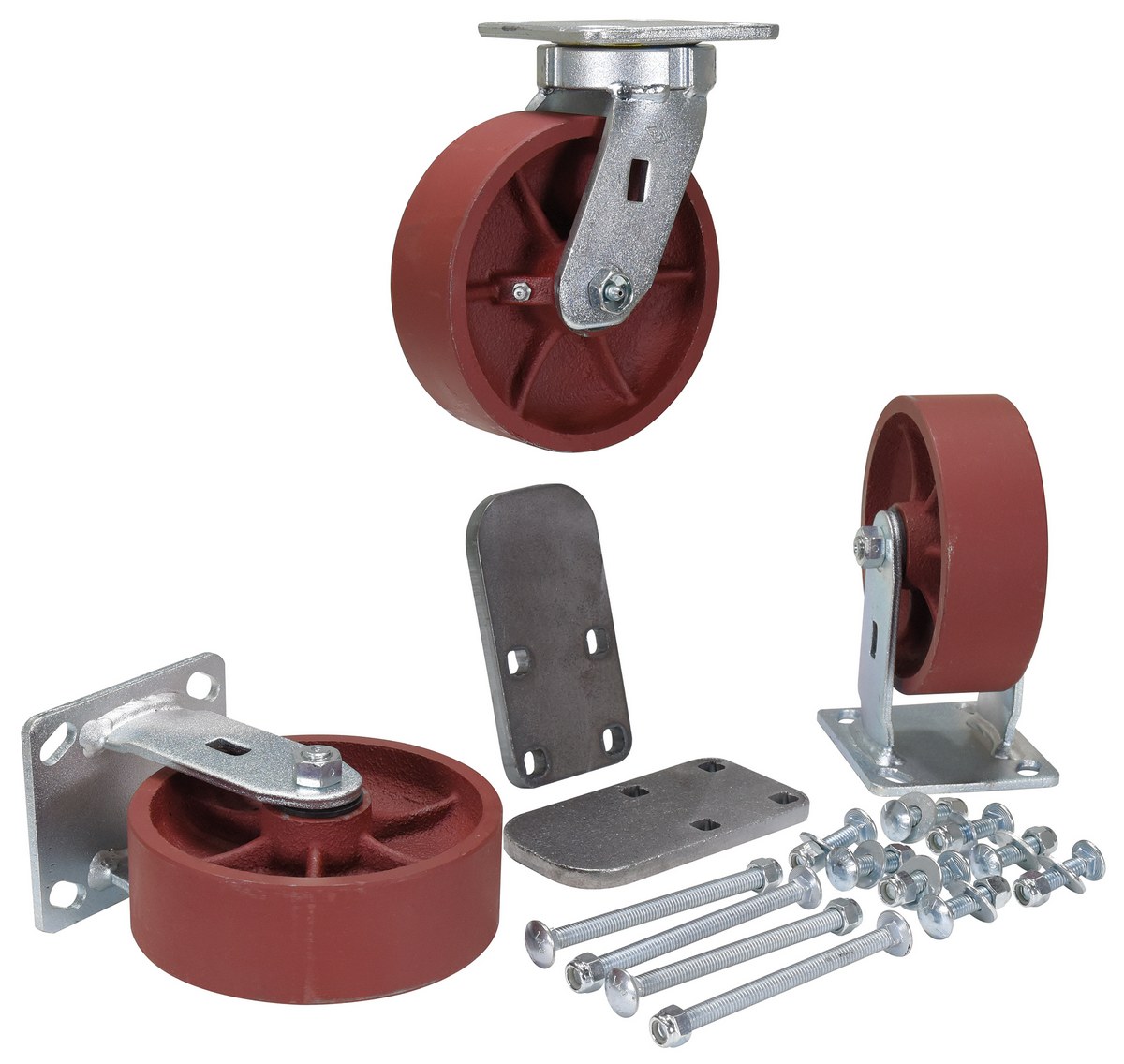

H-CK3-SC6-2HD H-CK3-SC6-2HDDuctile Steel Caster Kit 6 In. x 2 In. 6,000 Lb. Capacity MaroonUniform Capacity per caster (lb.): 6000
Caster Quantity/Diameter/Width (in.): (3) 6 x 2		35

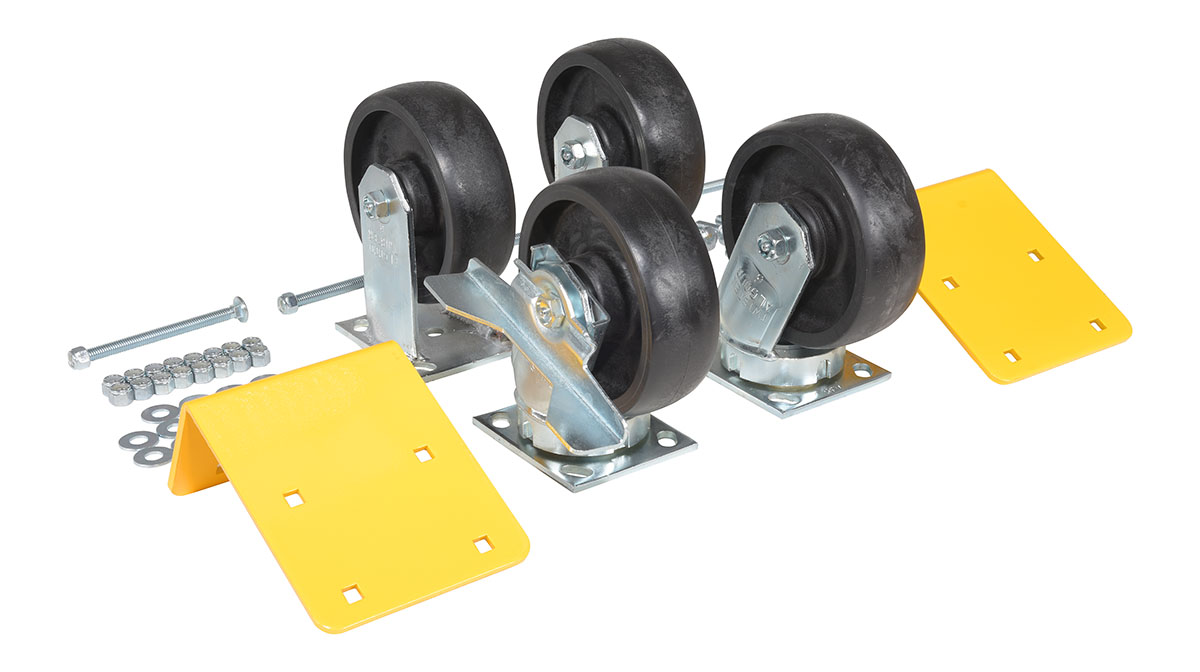

H-CK4-C23C H-CK4-C23CGlass-Filled Nylon Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity BlackUniform Capacity (lb.): 8000
Swivel Caster Qty: 1		30

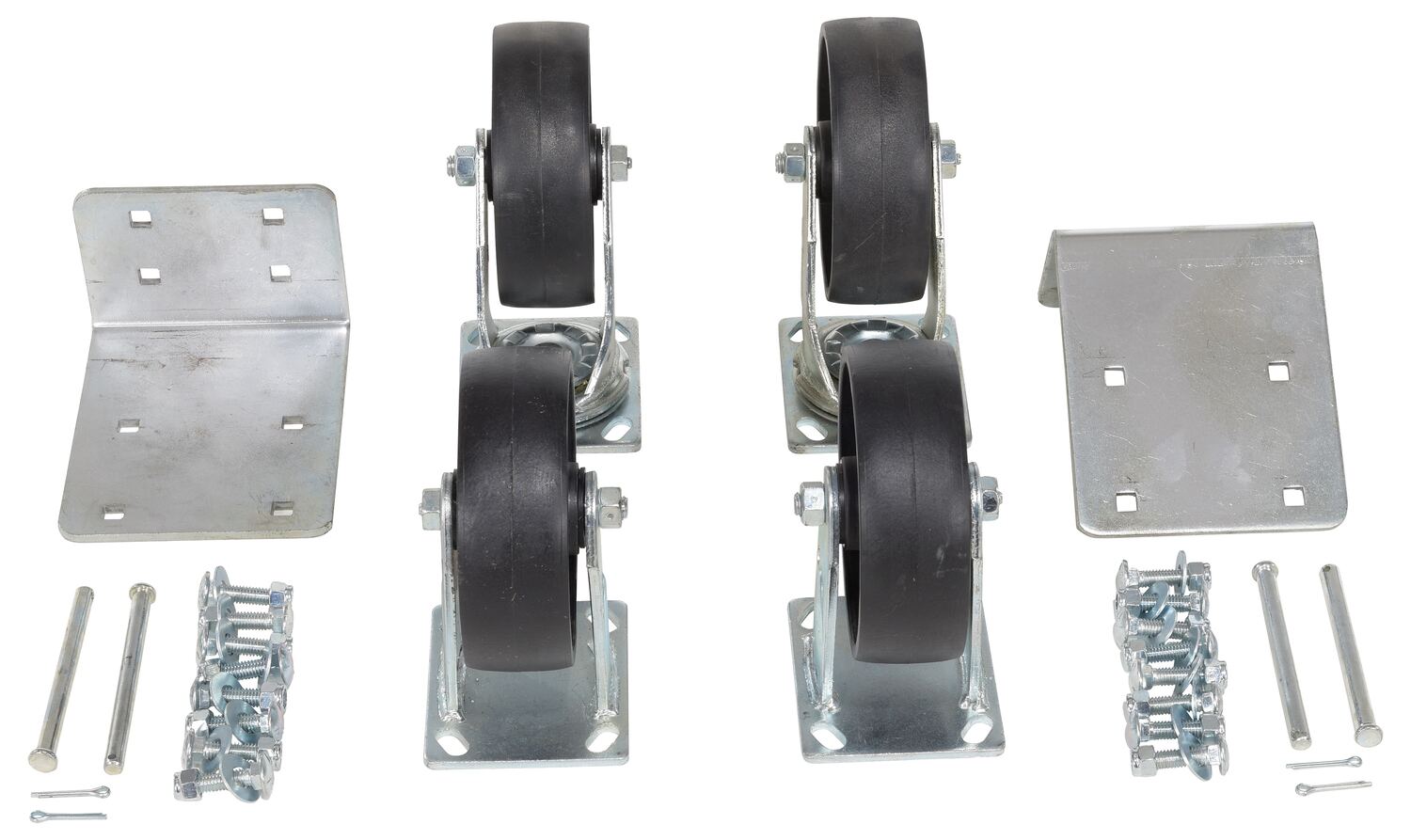

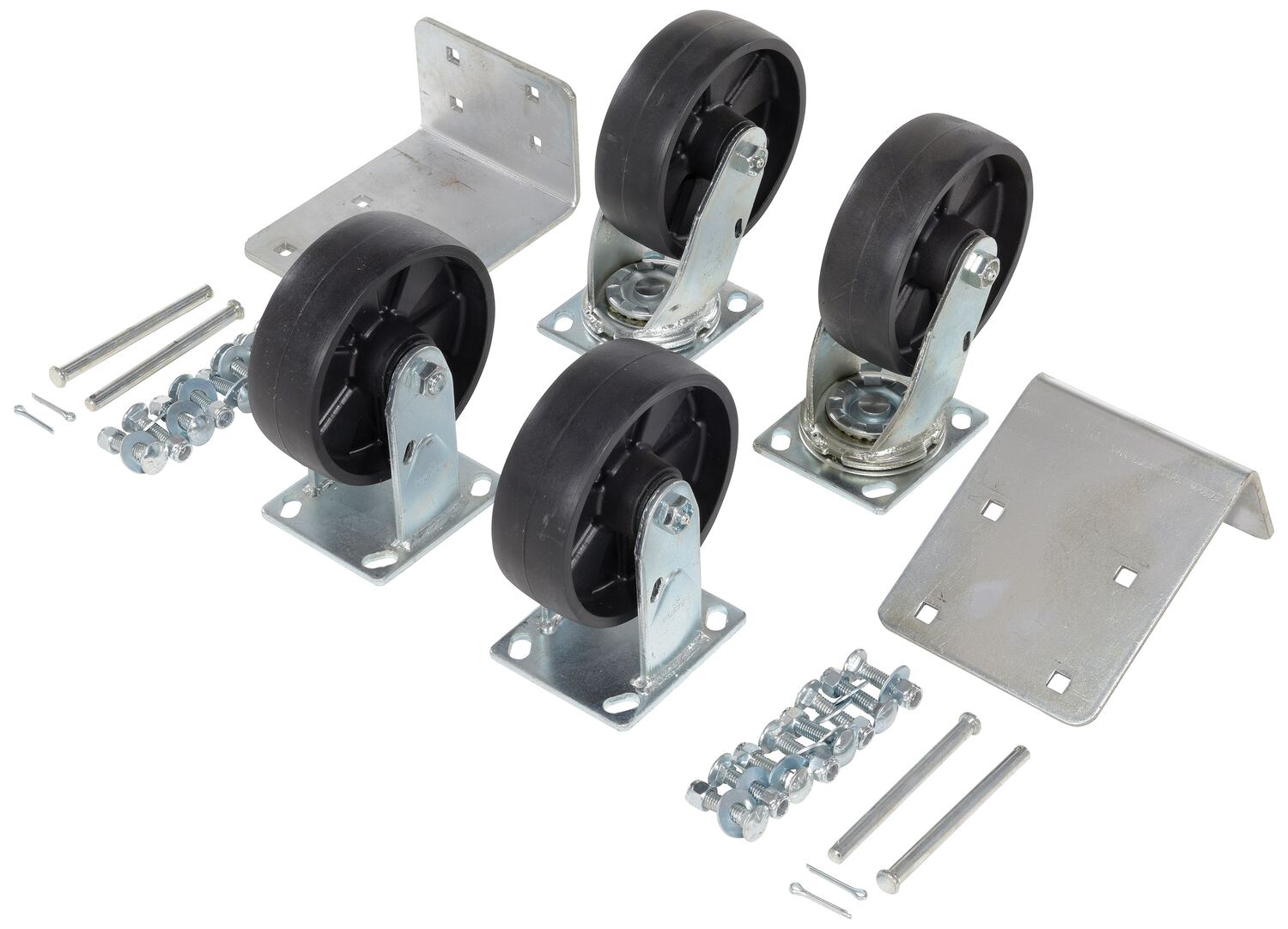

H-CK4-GFN6-2 H-CK4-GFN6-2Glass Filled Nylon Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity BlackUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		18

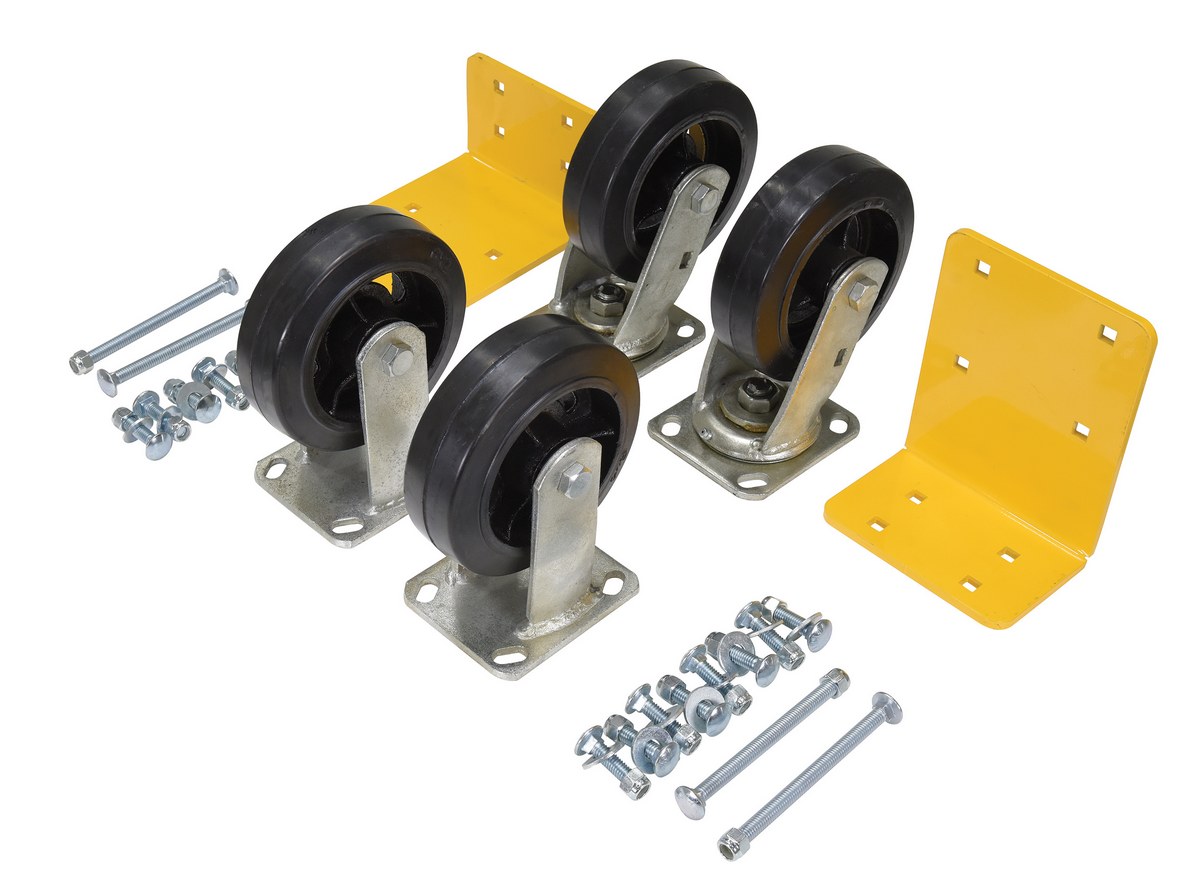

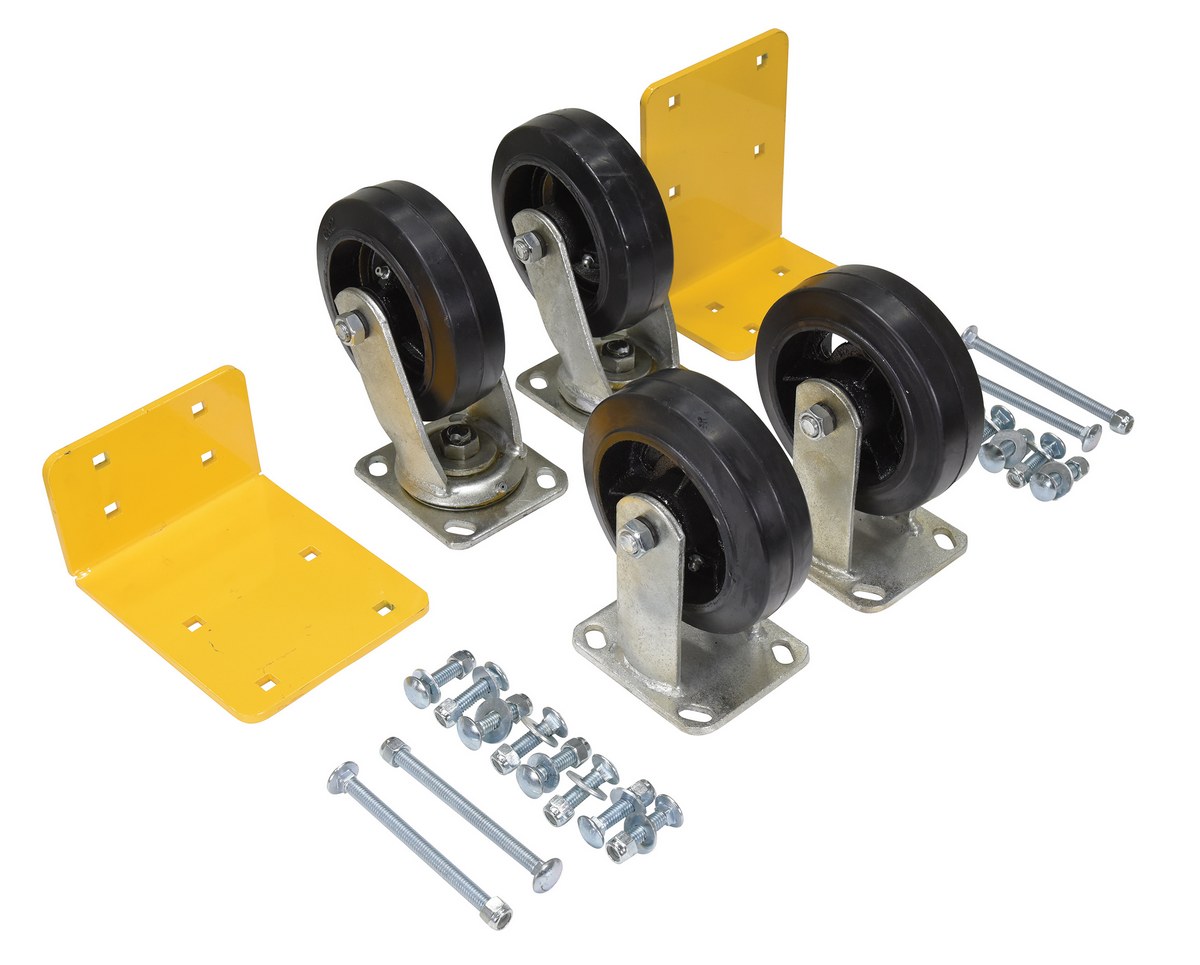

H-CK4-MR6-2 H-CK4-MR6-2Mold On Rubber Caster Kit 6 In. x 2 In. 2,400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		28
H-CK4-PU6-2 H-CK4-PU6-2Poly On Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity RedUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		30
H-CK4-SC6-2 H-CK4-SC6-2Semi Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity SilverUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		31

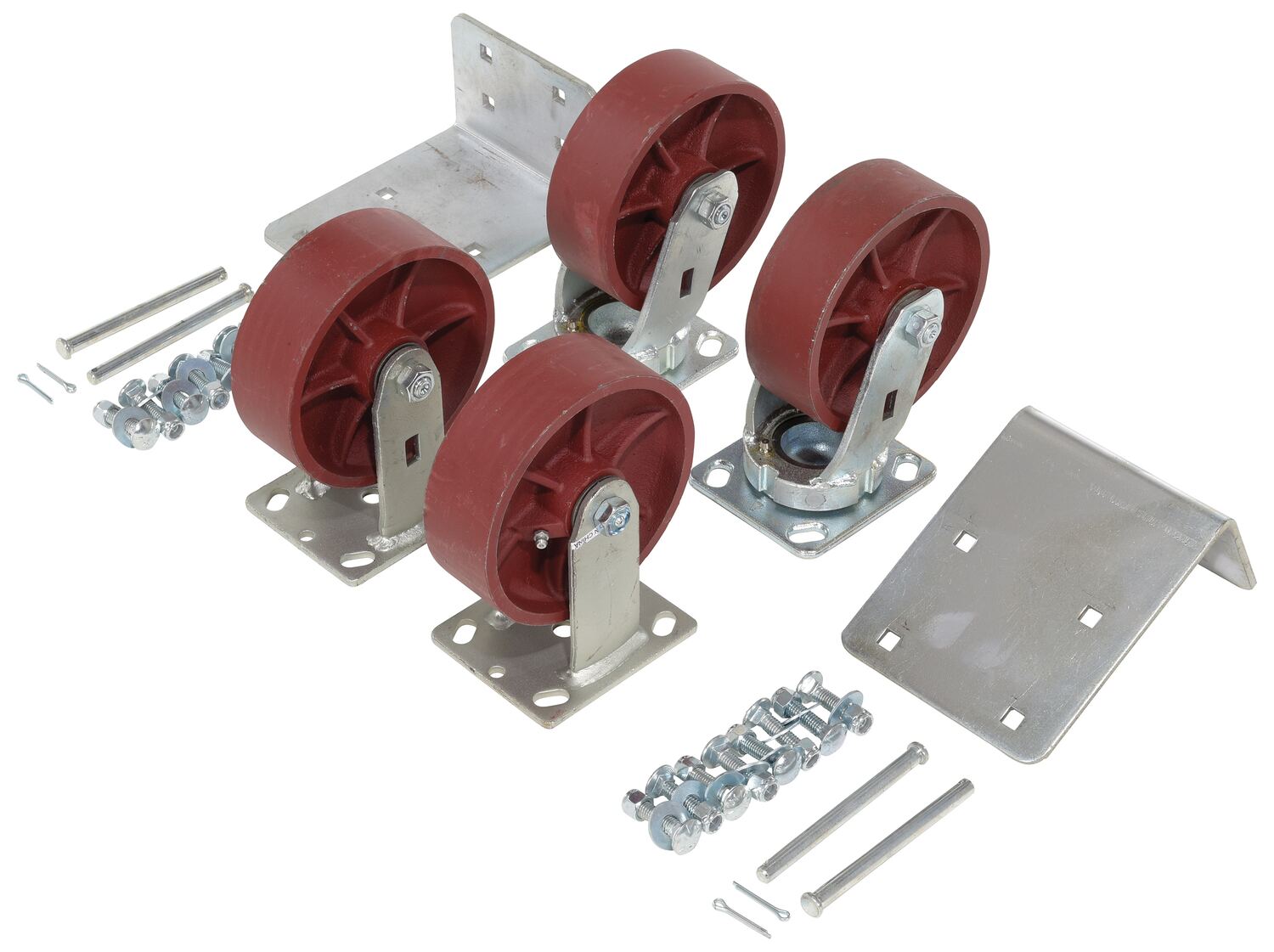

H-CK4-SC6-2HD H-CK4-SC6-2HDDuctile Steel Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity MaroonUniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2		42
