Narrow Scissor Lift Tables| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| EHLT-N-1648-1-32 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 1000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1,000 Raised Height (in.): 32 | 359 | |
| EHLT-N-1648-2-32 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2,000 Raised Height (in.): 32 | 362 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
A: The recommended ambient temperature operating range is -5°C (23°F) to 40°C (104°F).
|
|||||||||||||||||
Narrow Scissor Lift Tables |
|||||||||||||||||
 |
|||||||||||||||||

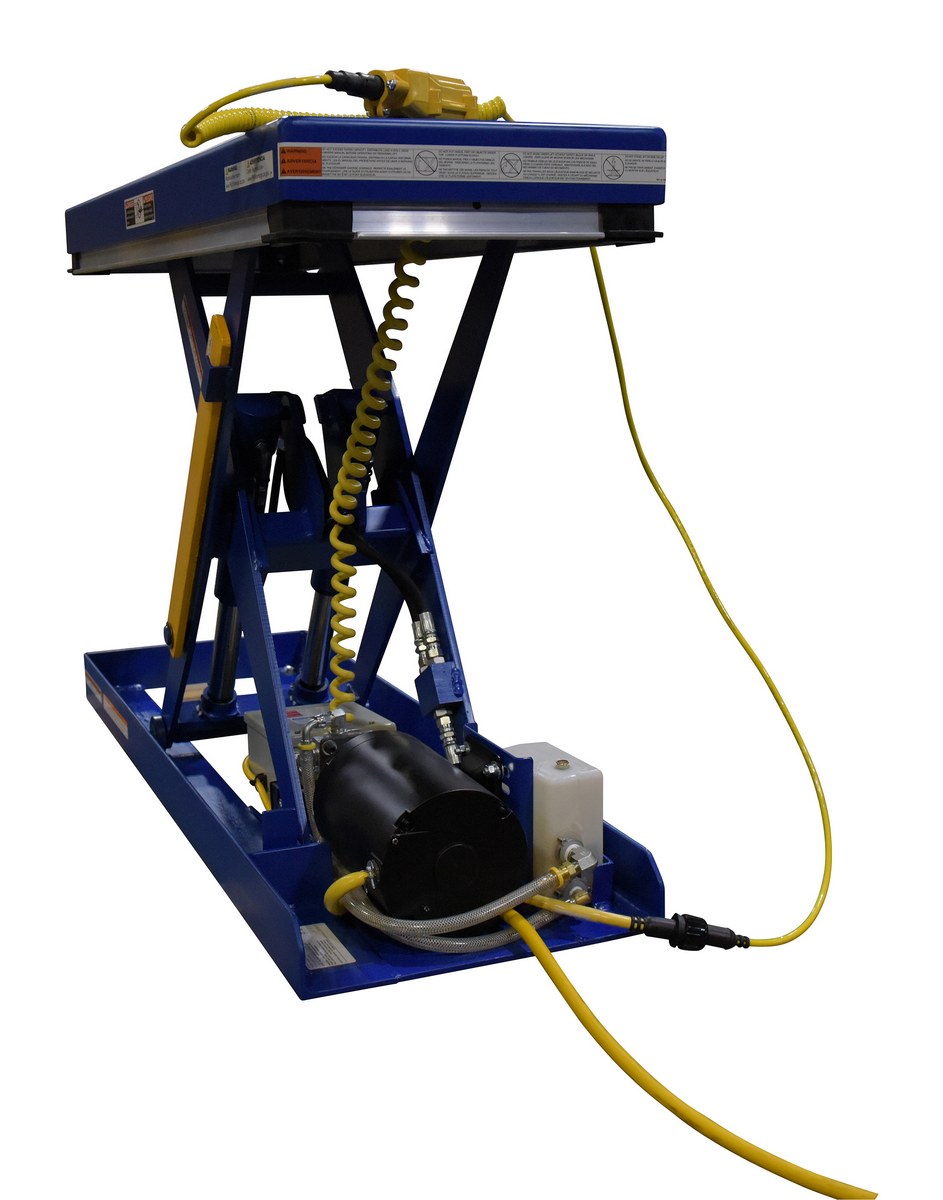

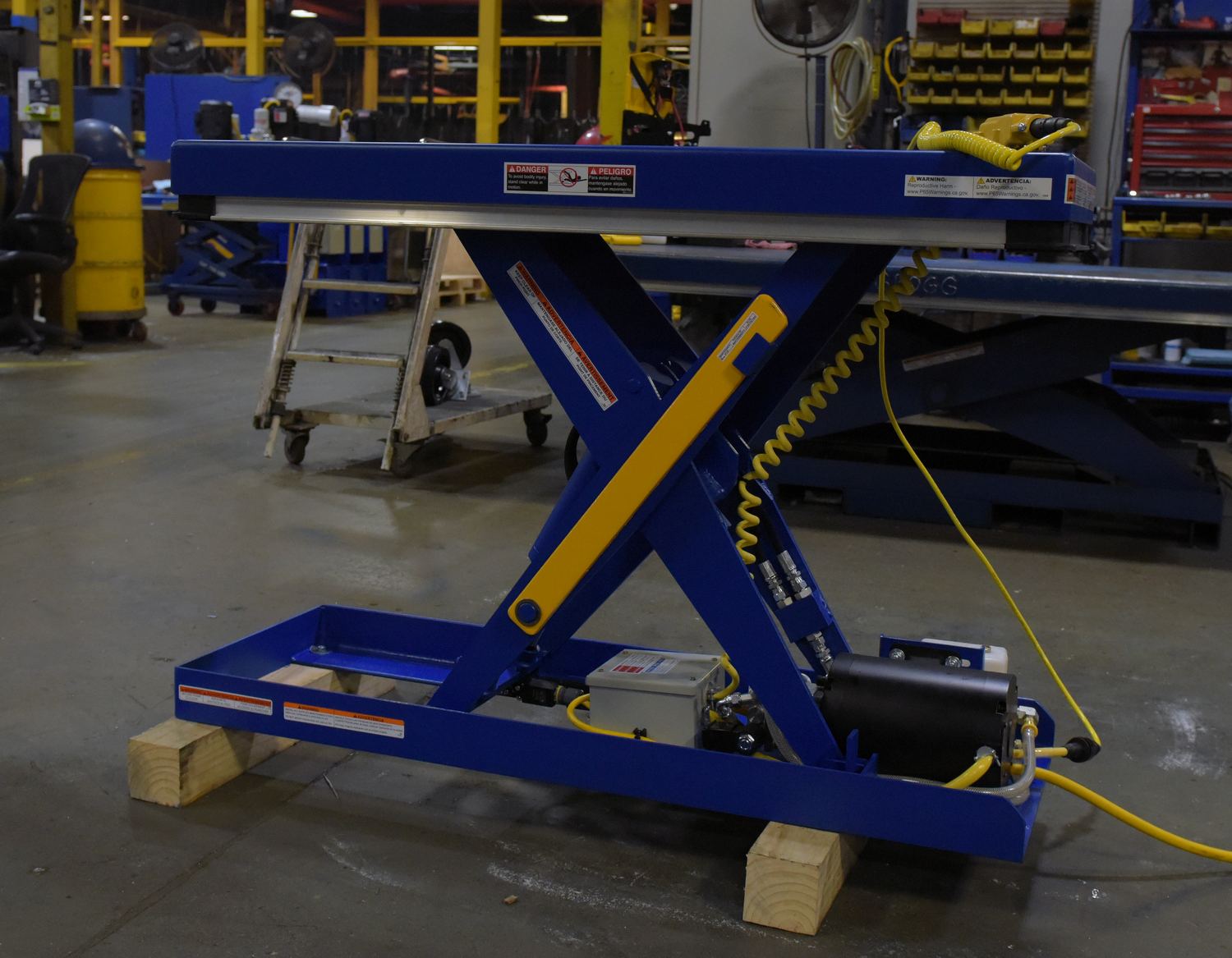

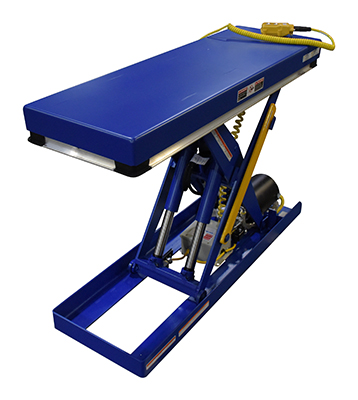

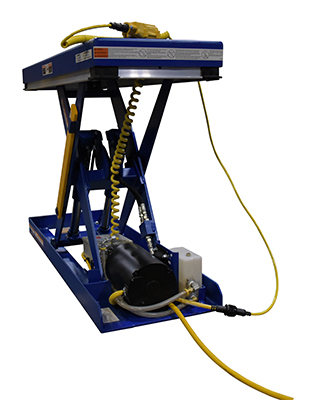

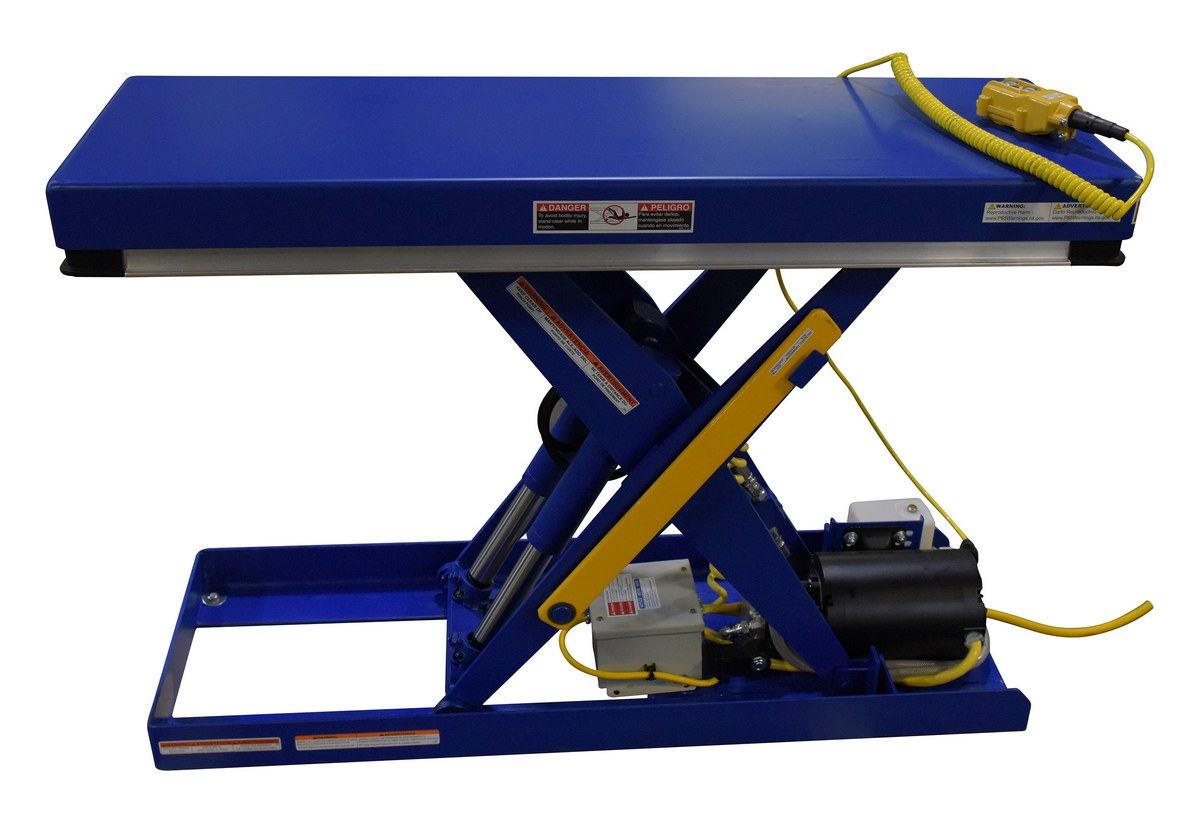

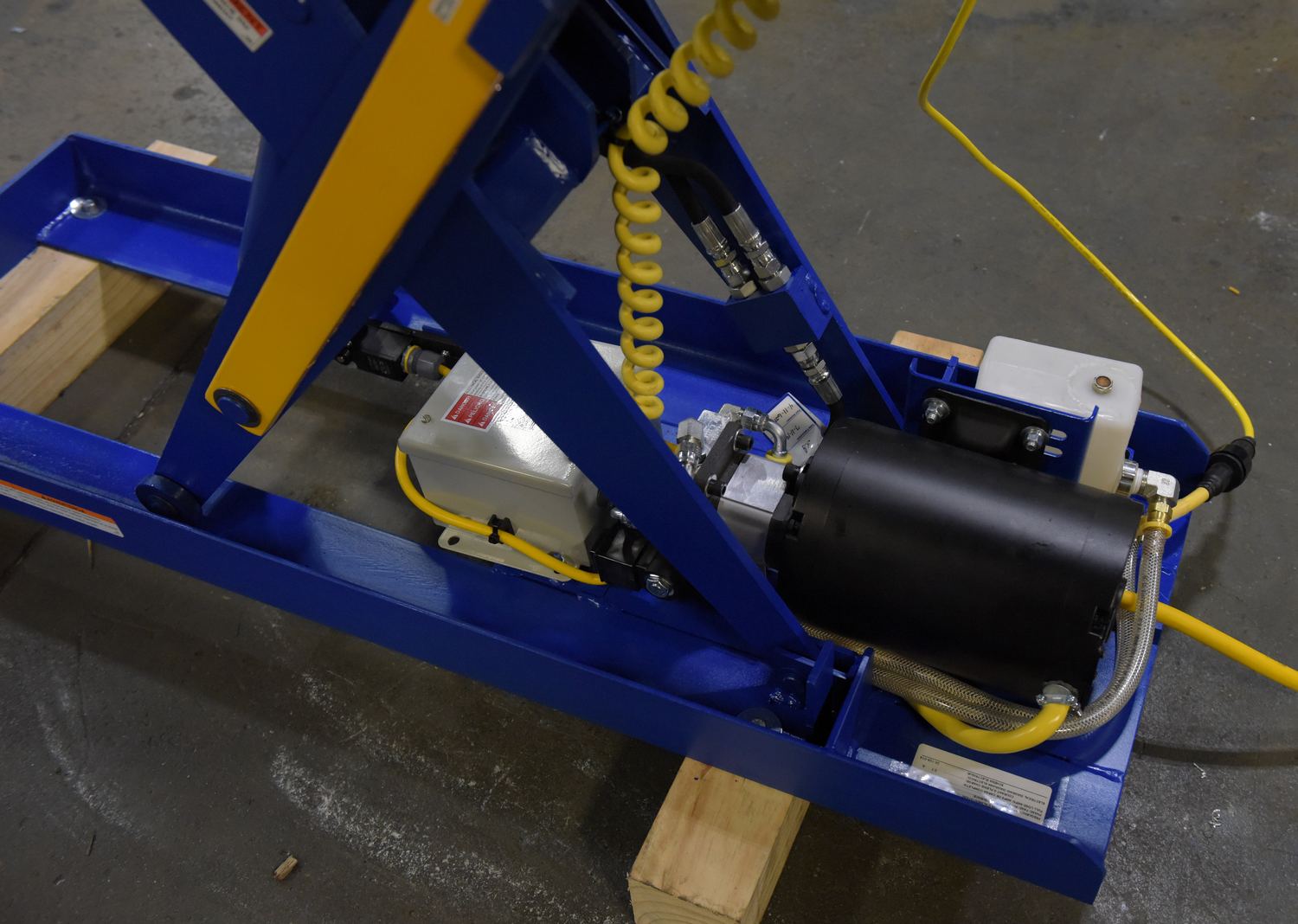

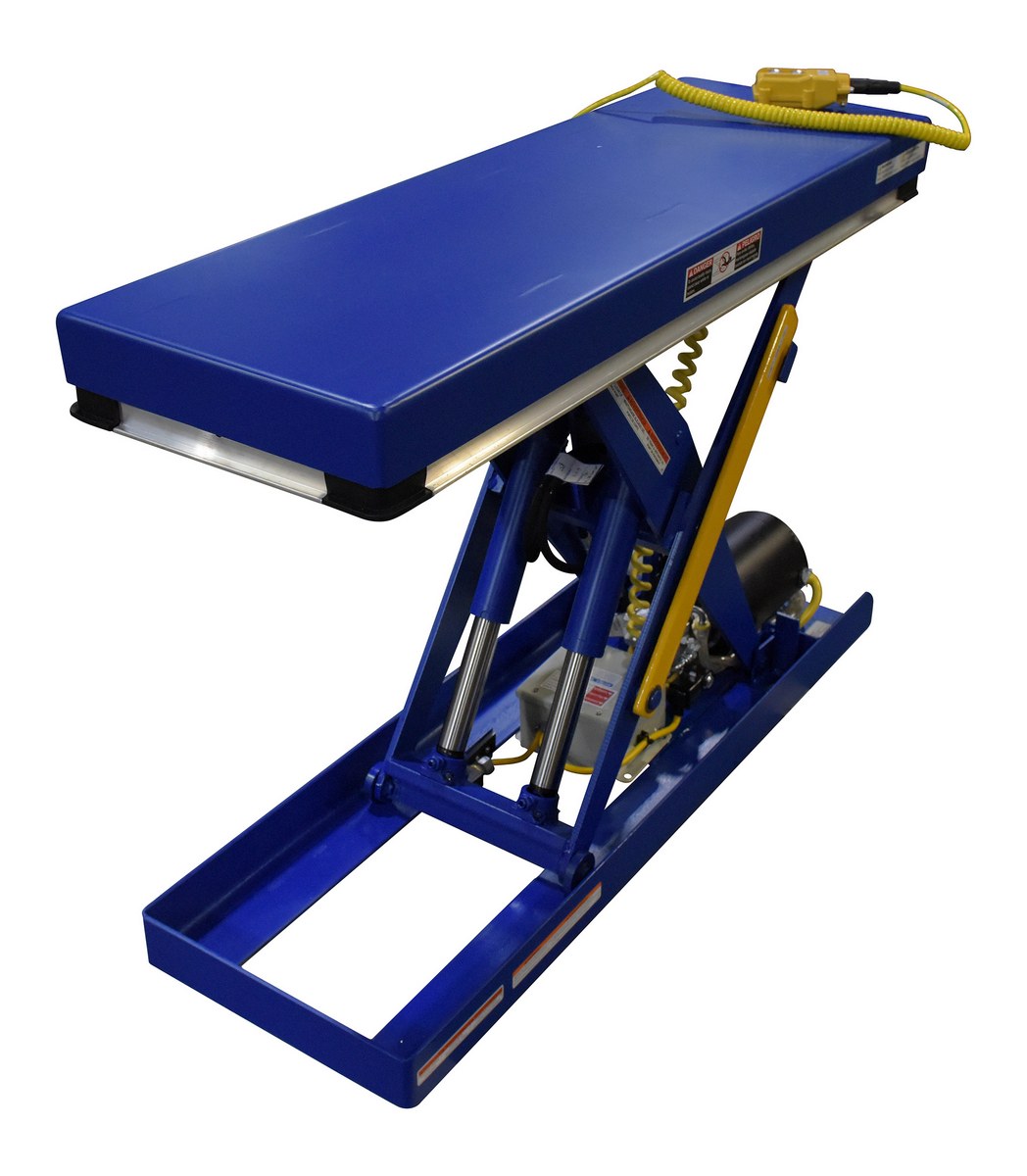

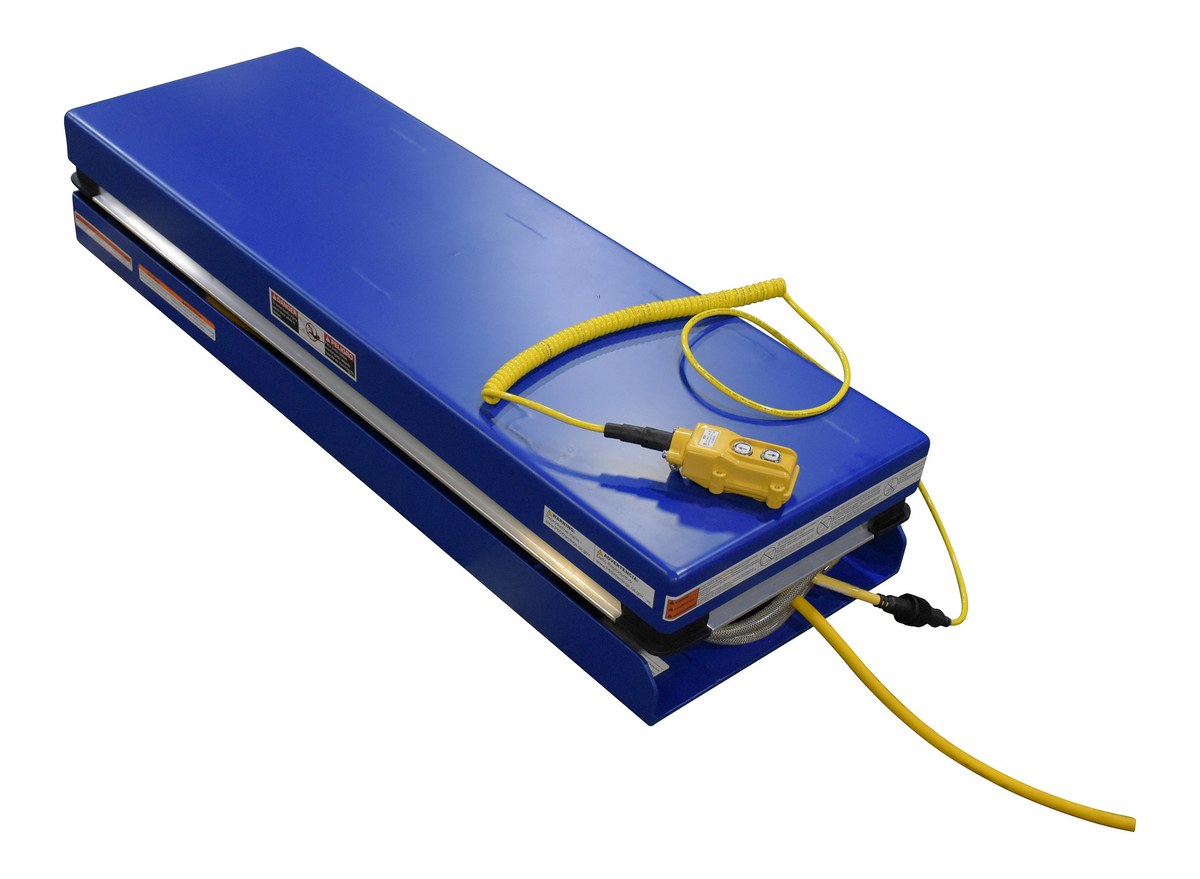

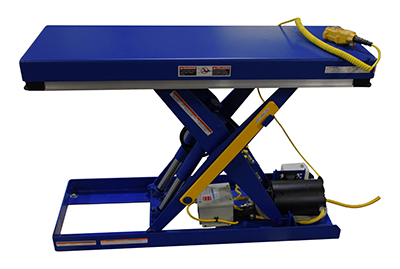

The Narrow Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points while lowering of the table, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, maintenance prop, upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. 2HP, 460V, 3 Phase, 60 HZ totally enclosed motor standard, other voltages available.
|
|||||||||||||||||
 |
|||||||||||||||||
|
|||||||||||||||||
