Electric Hydraulic Scissor Lift Tables

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

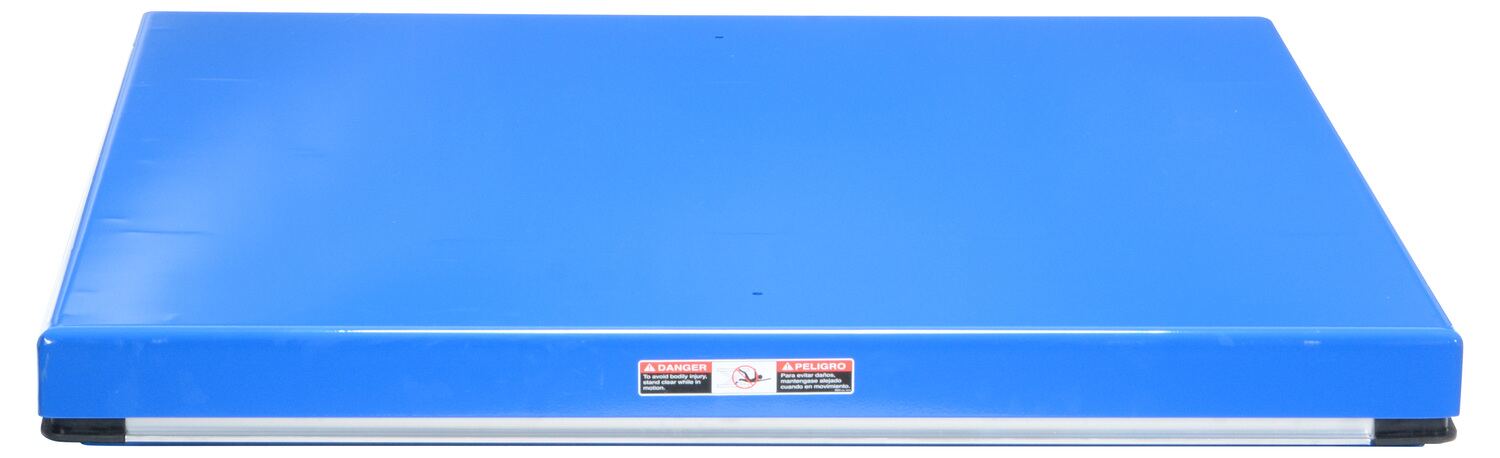

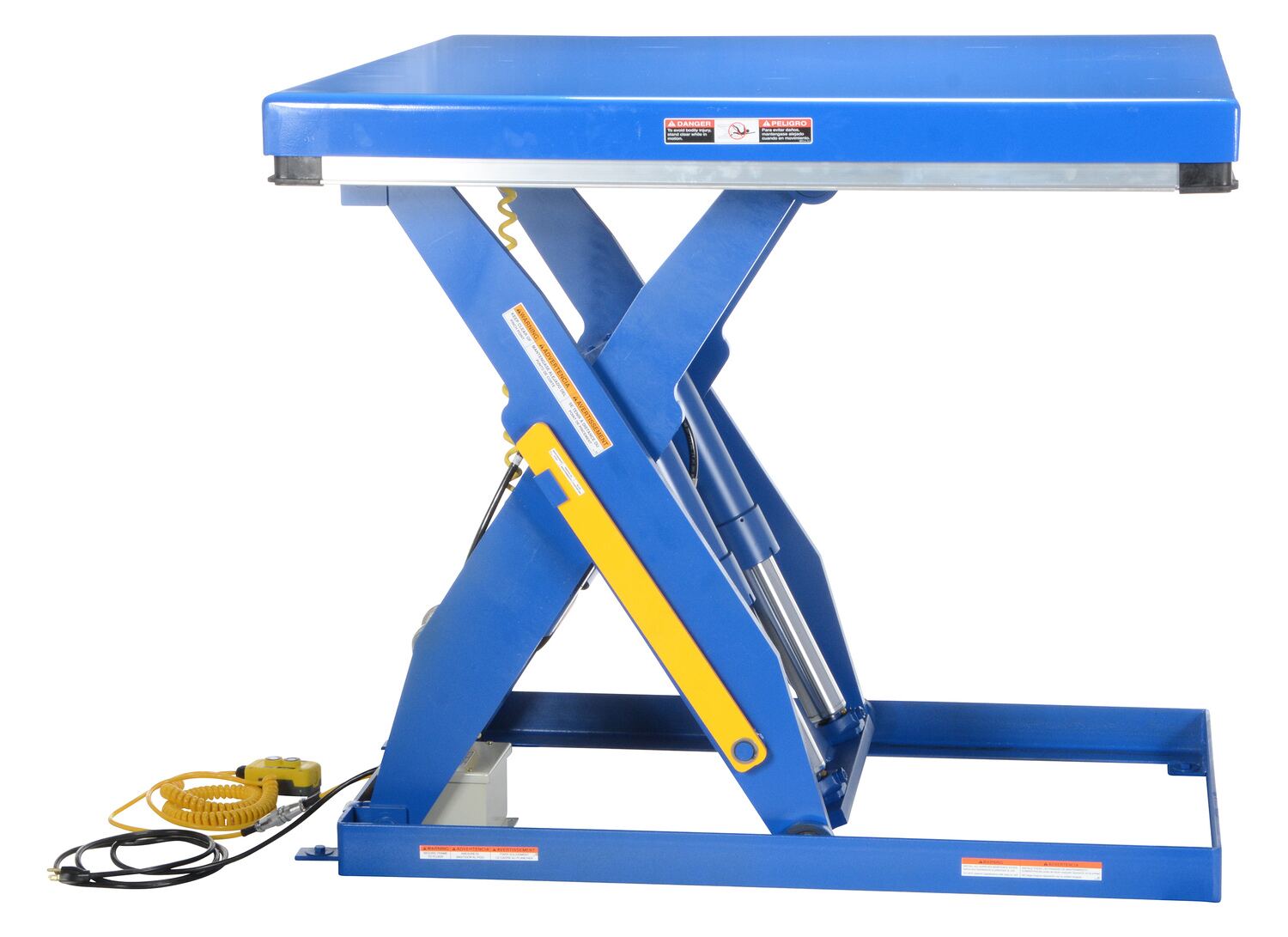

EHLT-4848-4-43_E.jpg EHLT-4848-4-43_B.jpg EHLT-4848-4-43_A.jpg EHLT-4848-4-43_C.jpg

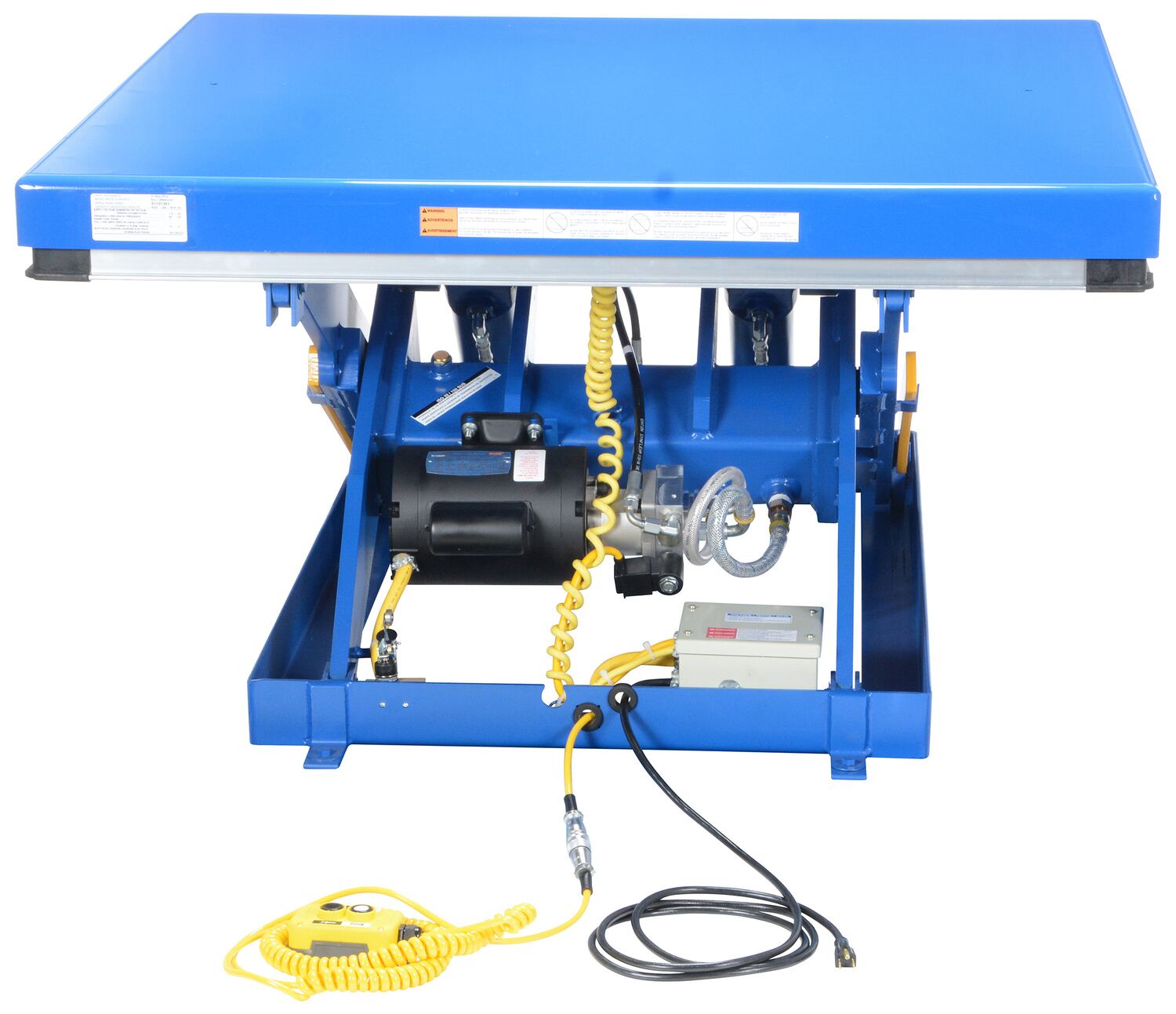

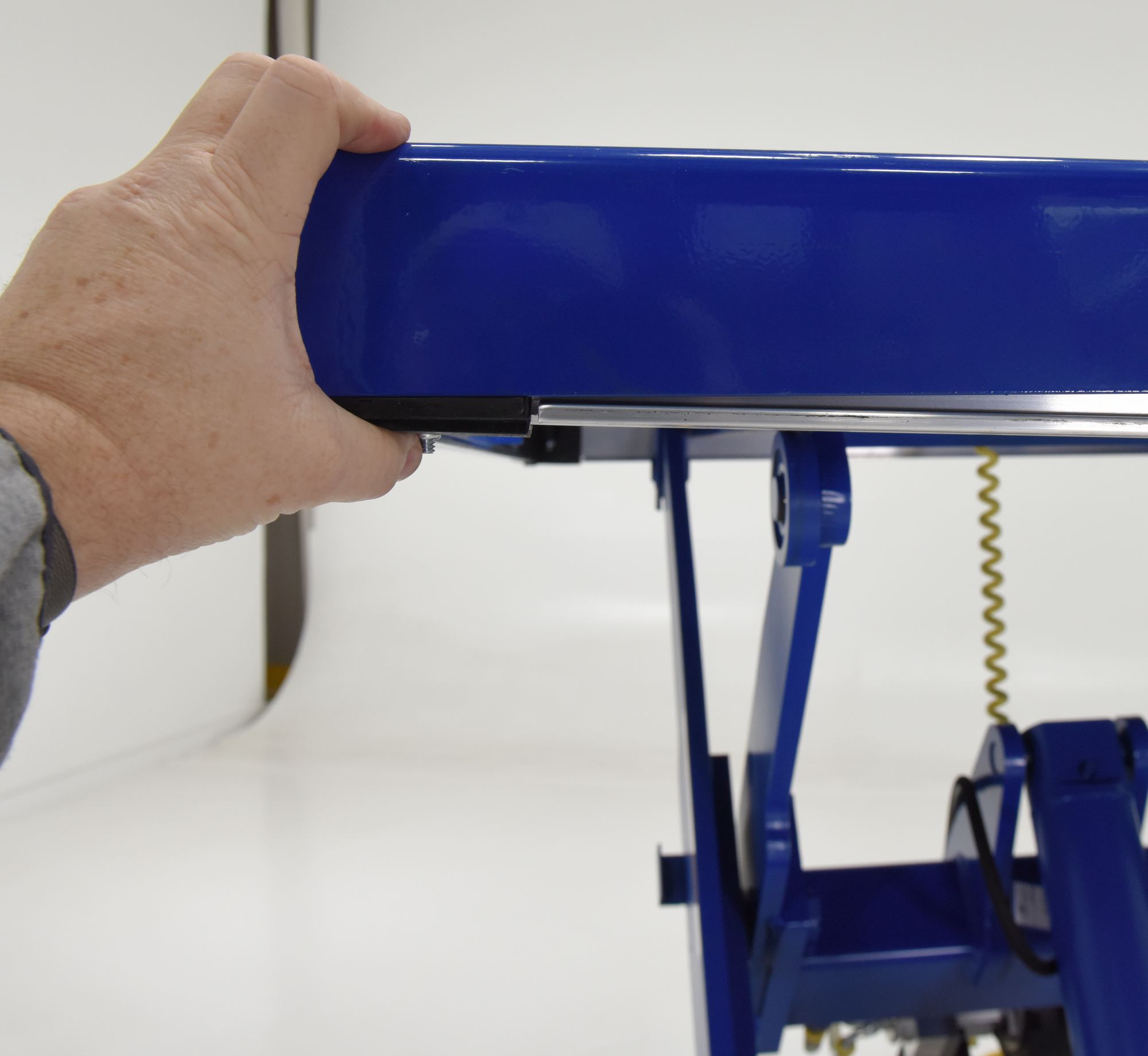

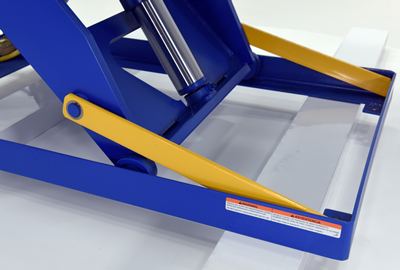

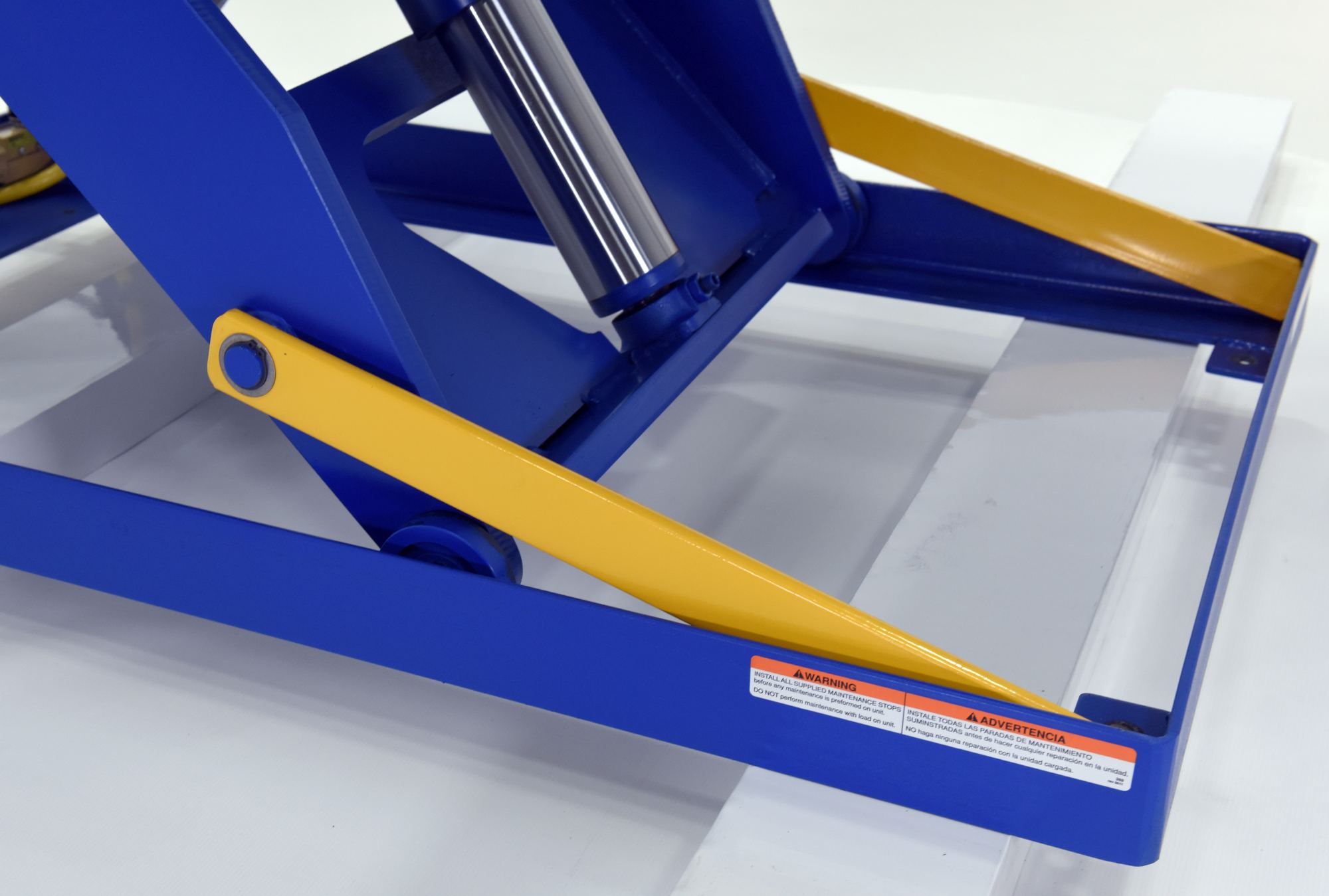

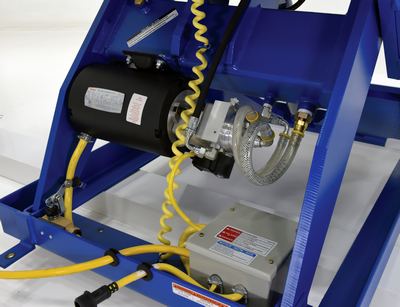

EHLT-4848-4-43_D.jpg EHLT-toe-guard.jpg EHLT-motor.jpg EHLT-maintenance-prop.jpg

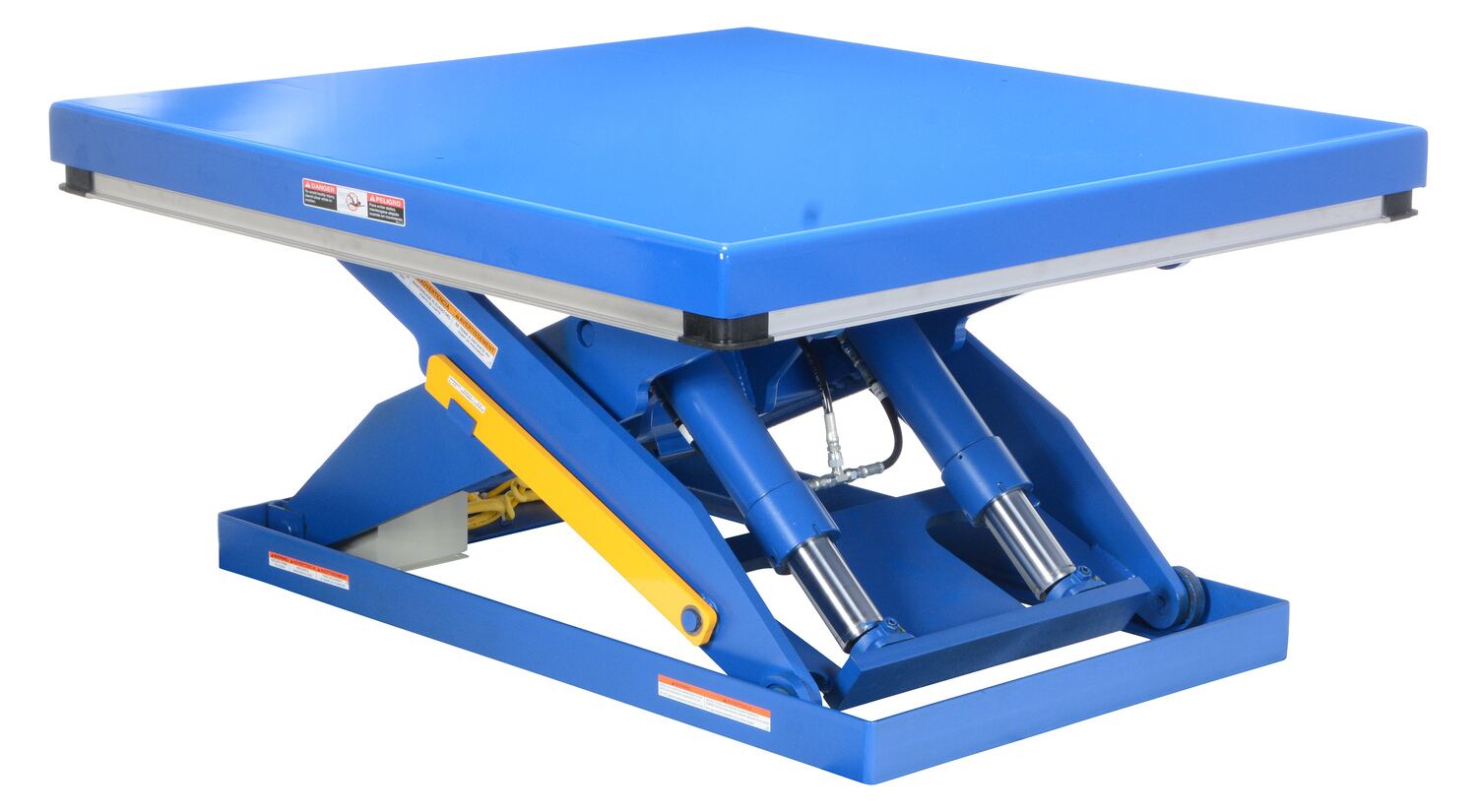

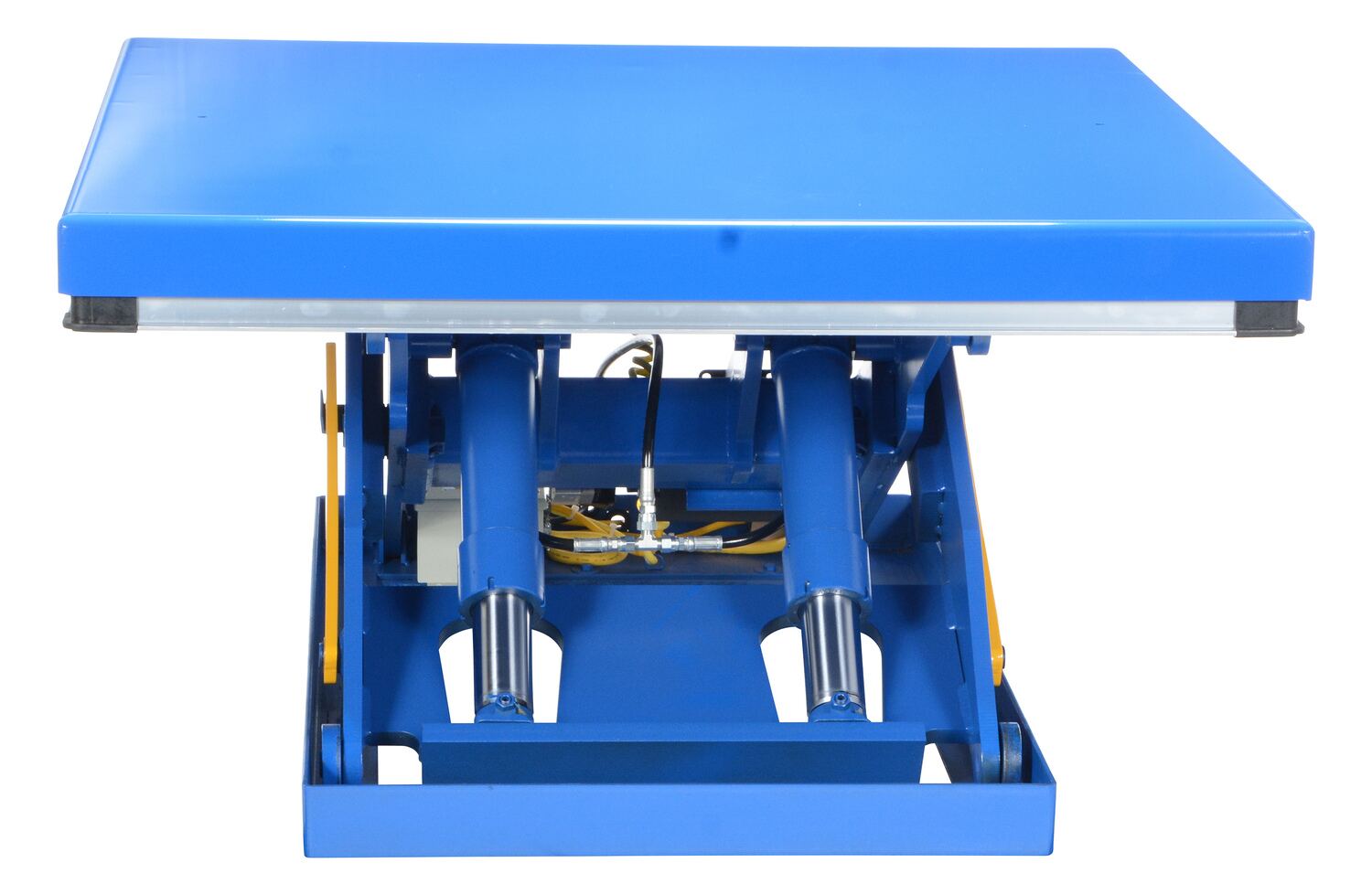

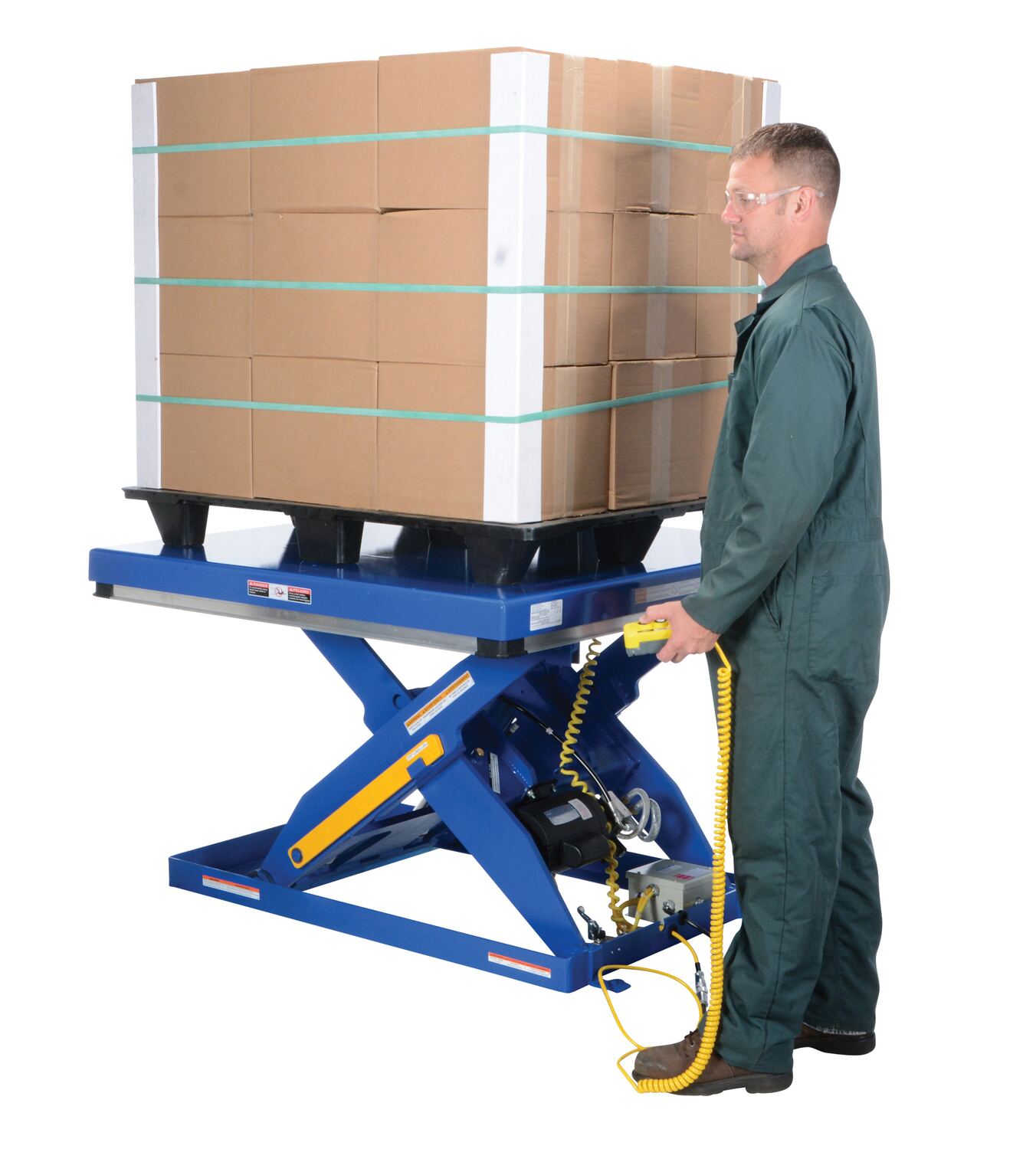

Electric Hydraulic Scissor Lift Tables

model: EHLT-4848-4-43



Featured Ergonomic Solutions


Pallet Truck Accessories
All Terrain Pallet Trucks
Trash Can Carts
Cold Room Hand Pallet Truck
Lift & Tilt Scissor Tables
Linearizer Electric Worker Platforms
Hydraulic Roll Lifter & Roller Work Positioner
Auto-Shift Hydraulic Elevating Carts
Ground Lift Scissor Tables with Handrails
model chart

Product Family Overview

Print Friendly
Electric Hydraulic Scissor Lift Tables
SERIES: EHLT

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.

Other Lift & Tilt Tables

 Low Profile Electric Lift Tables Pneumatic Scissor Lift Table Powered Lift Table With Manual Rotation Work Station Electric Hydraulic Scissor Tables

Additional Models In This Family
view entire Image Gallery

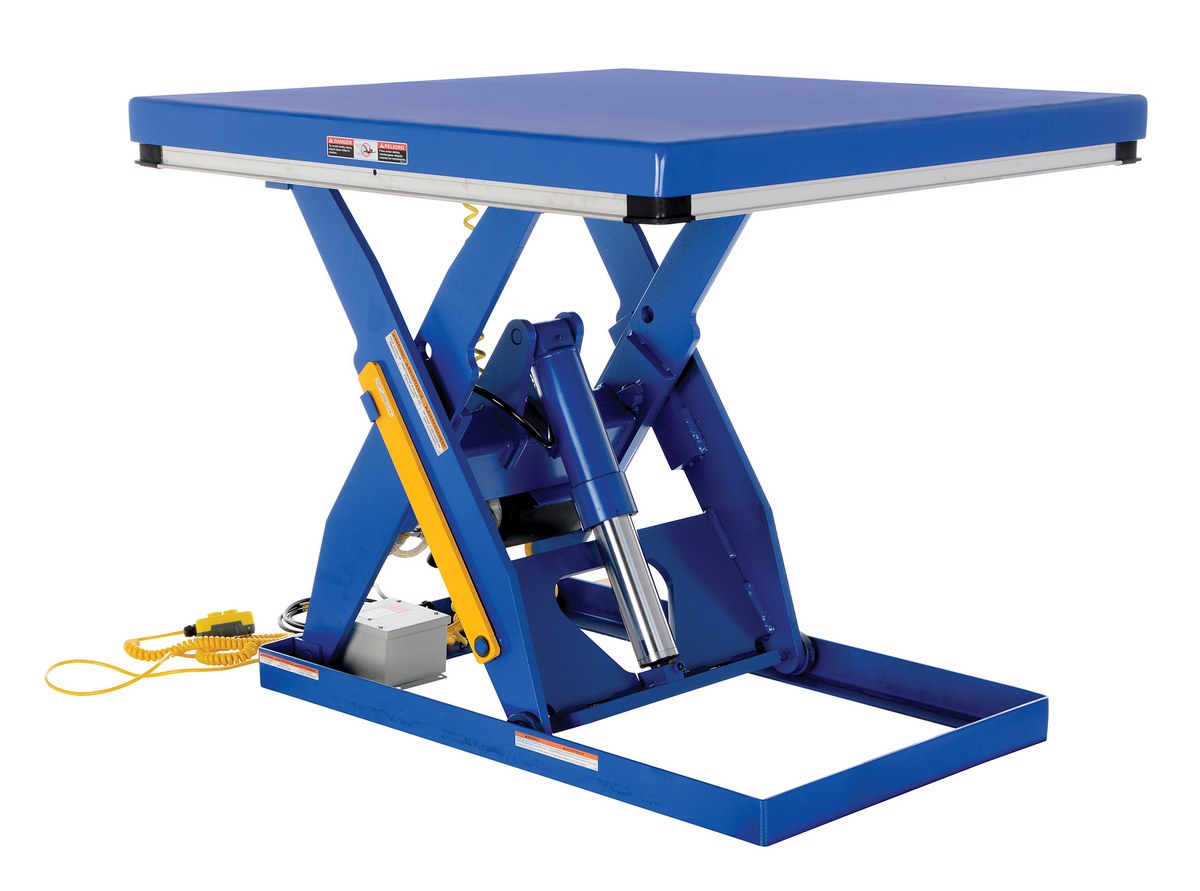

EHLT-4848-4-43-QS

EHLT-4848-4-43-QS

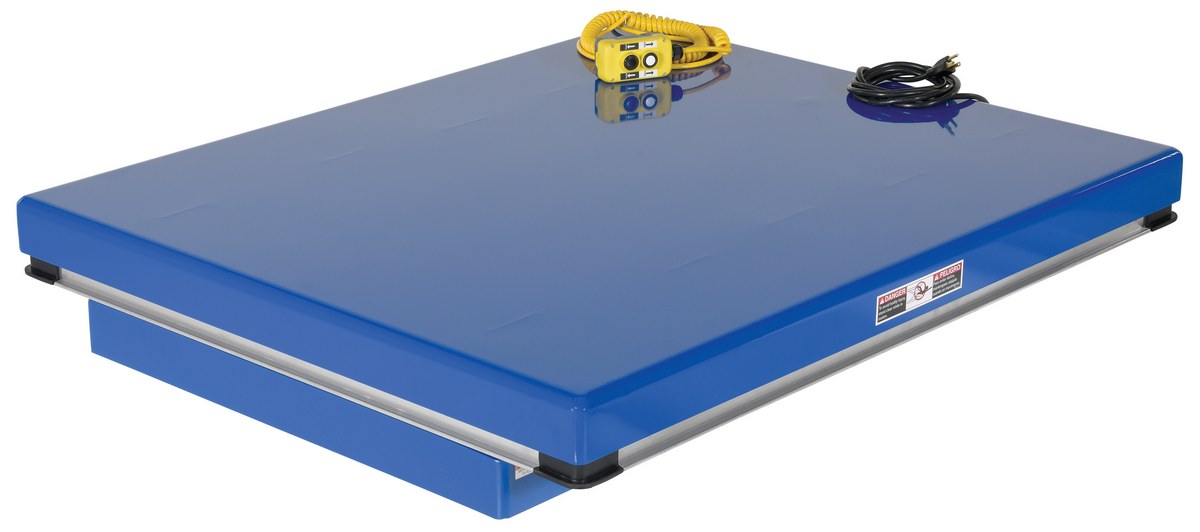

EHLT-4048-3-43

EHLT-4048-3-43

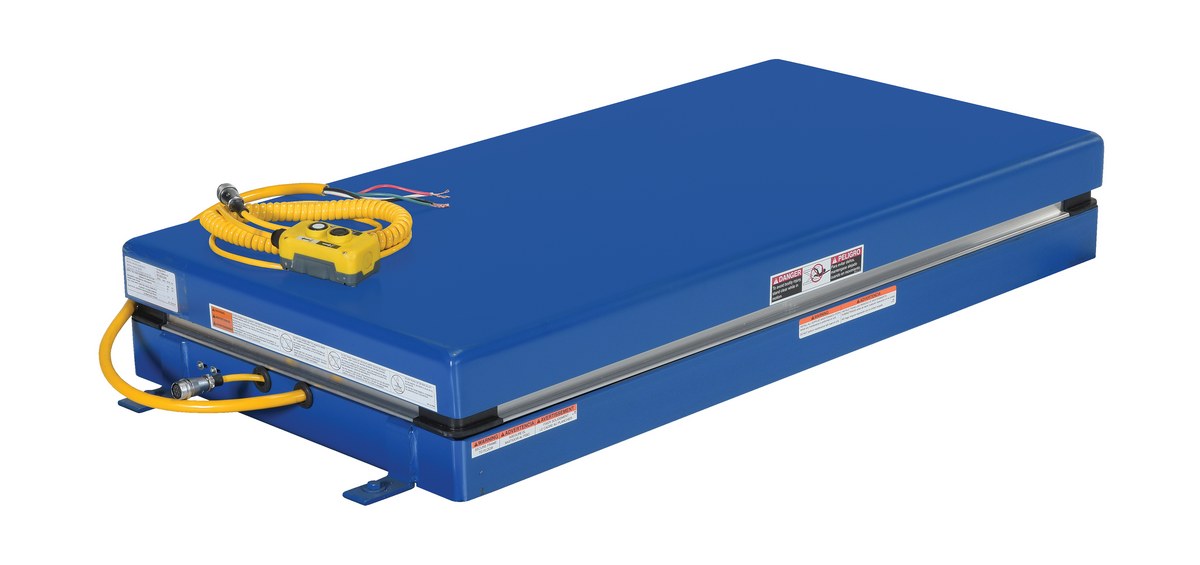

EHLT-2448-4-43

EHLT-2448-4-43

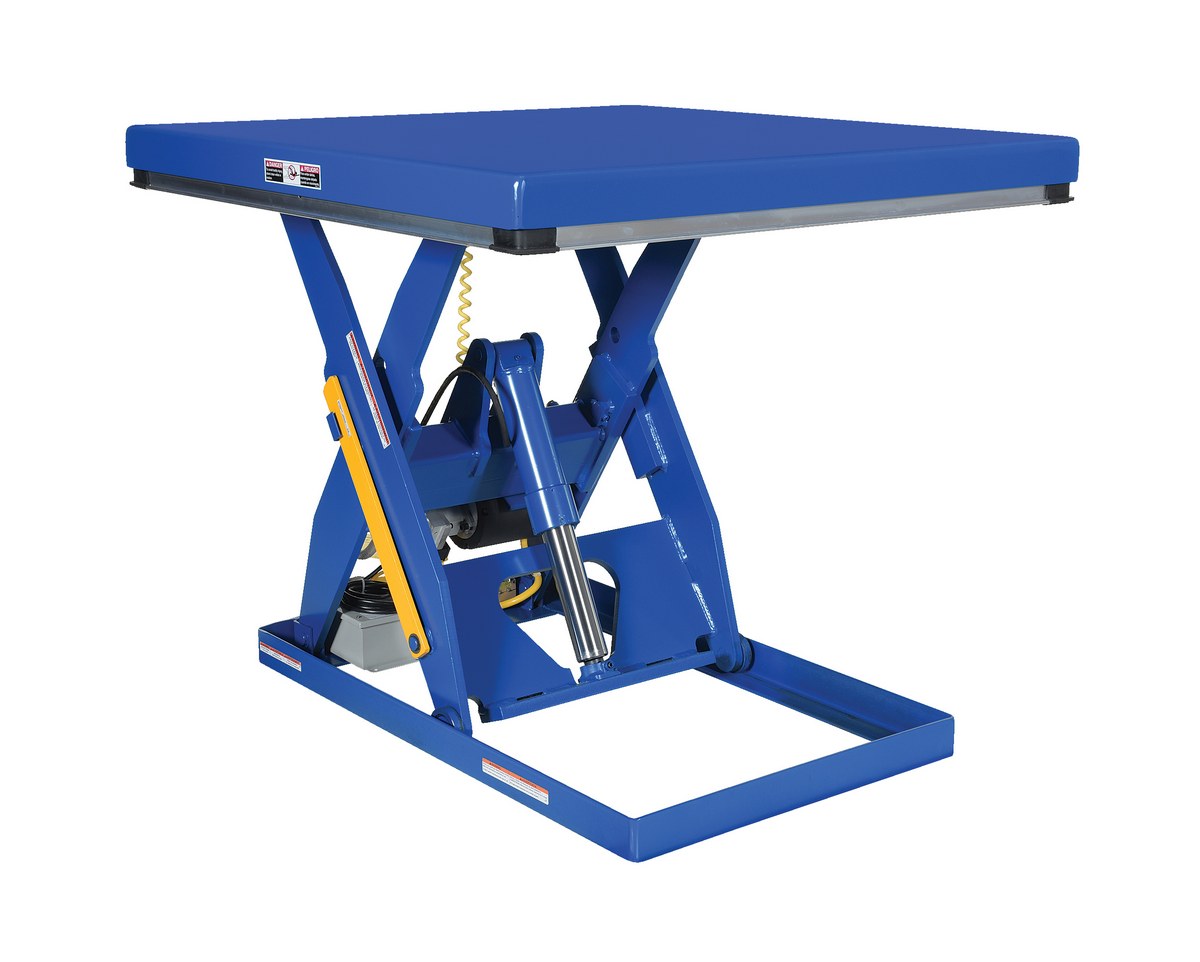

EHLT4848-2-43FC

EHLT4848-2-43FC

EHLT2448-2-43FC

EHLT2448-2-43FC

EHLT4848-2-43FC

EHLT4848-2-43FC

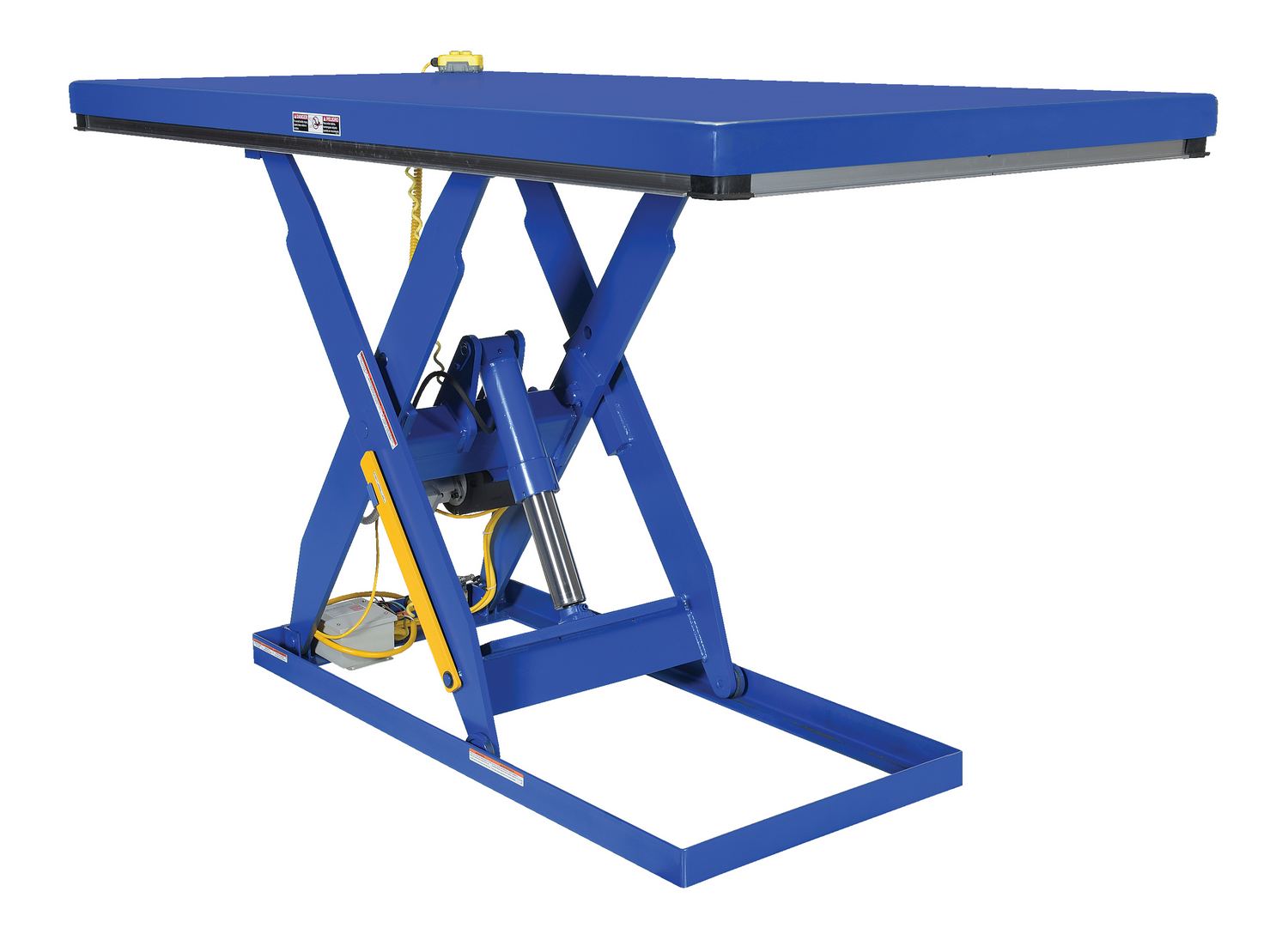

EHLT-4896-2-55

EHLT-4896-2-55

EHLT-3060-3-43

EHLT-3060-3-43

EHLT-3648-5-44

EHLT-3648-5-44

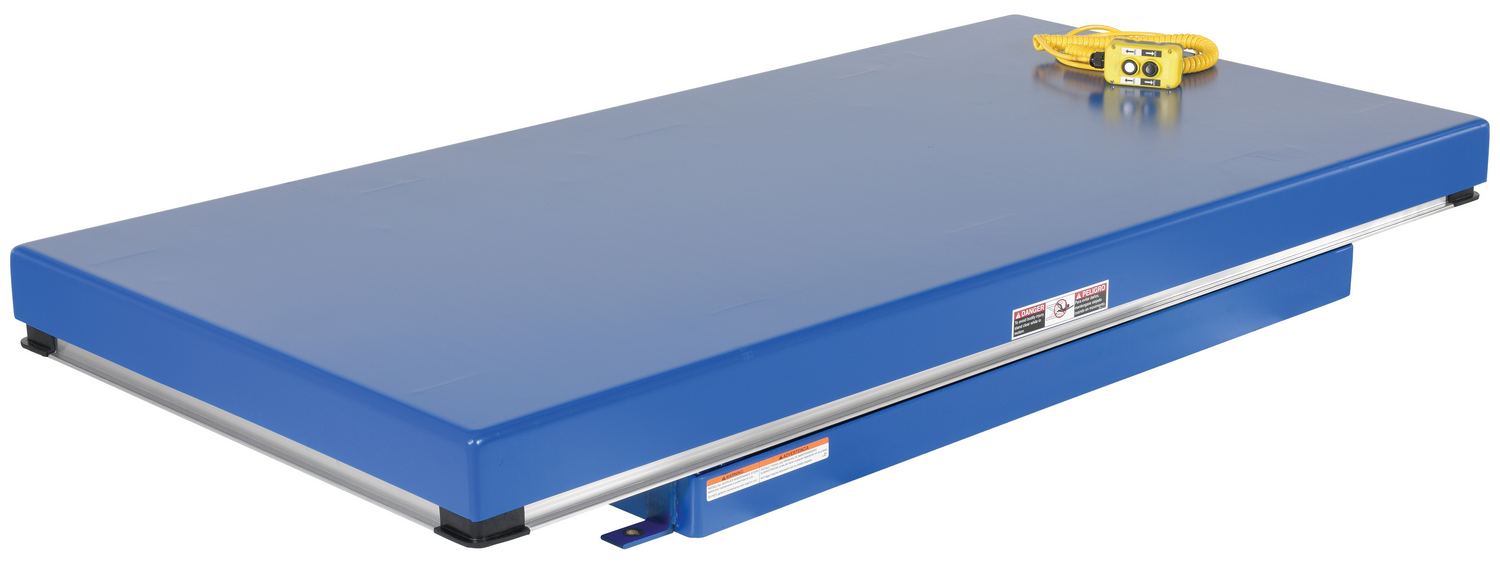

EHLT-3672-6-44

EHLT-3672-6-44

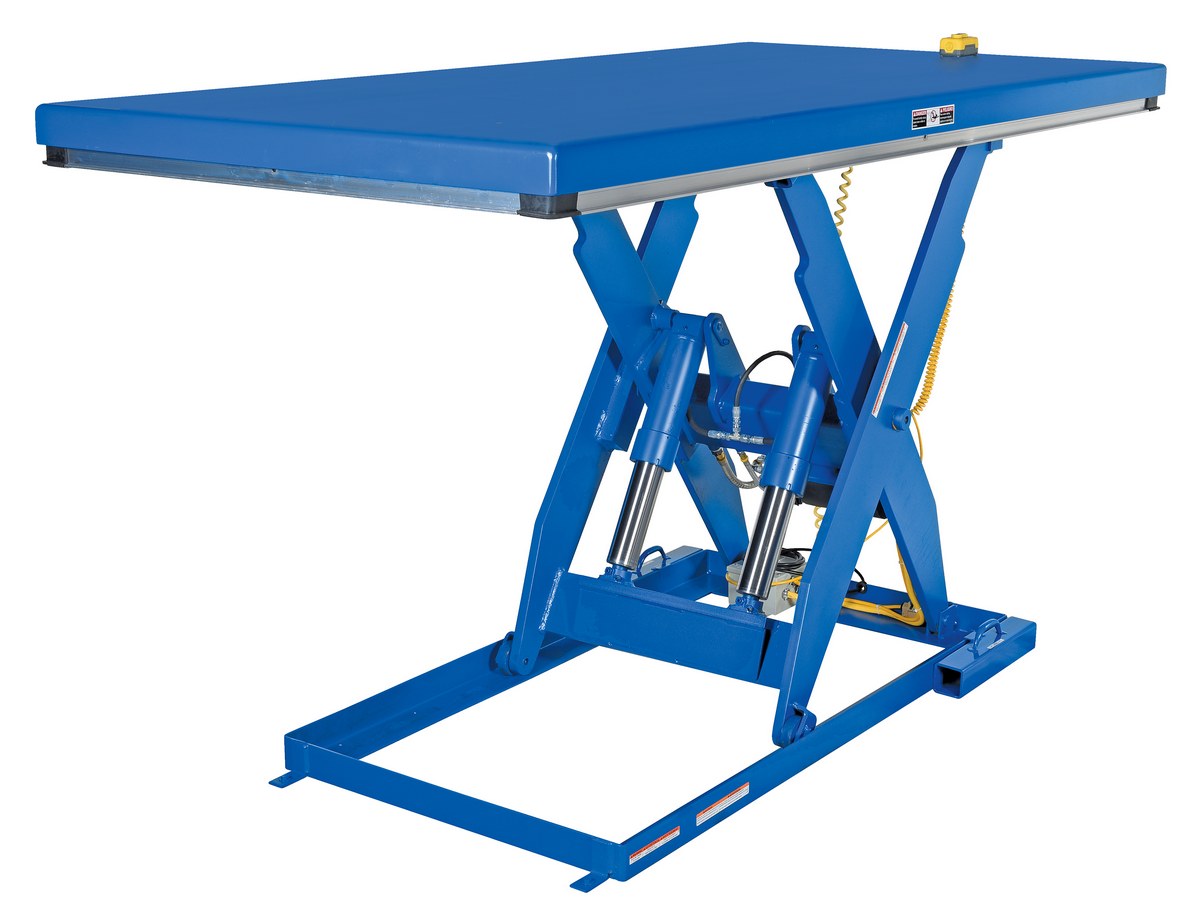

EHLT-4896-4-56

EHLT-4896-4-56

EHLT-3648-6-44

EHLT-3648-6-44

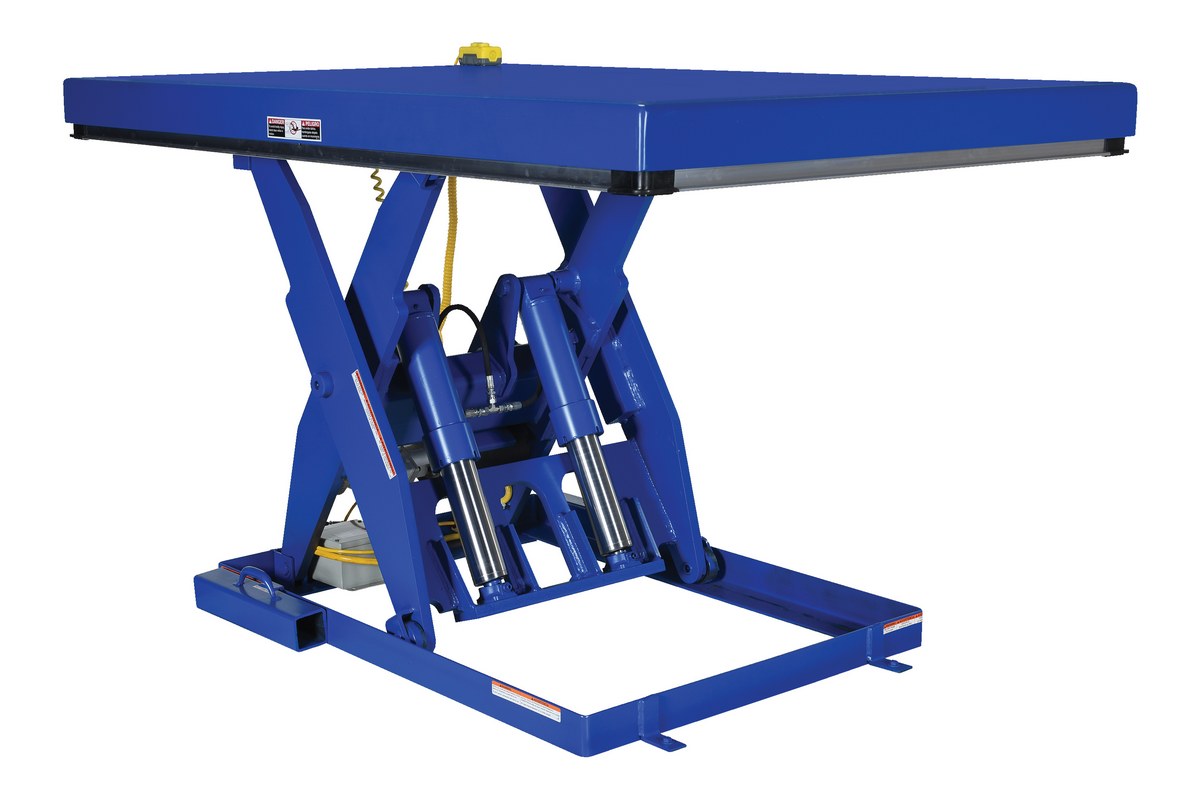

EHLT-4872-6-44

EHLT-4872-6-44

EHLT-3060-3-43

EHLT-3060-3-43

EHLT-2466-2-55

EHLT-2466-2-55

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Model Number Format
EHLT - (width)(length) - capacity - raised height

Vertical
Travel		 Platform
Width		 Platform
Length		 Capacity
(lbs.)		 Raised
Height		 Lowered
Height		 Travel
Time (sec.)		 Wt.
(lbs.)
36" 24"-48" 48"-72" 1,000 43" 7" 7 638
36" 24"-48" 48"-72" 2,000 43" 7" 11 738
36" 24"-48" 48"-72" 3,000 43" 7" 16 950
36" 24"-48" 48"-72" 4,000 43" 7" 22 980
36" 36"-48" 48"-72" 5,000 44" 8" 32 1029
36" 36"-48" 48"-72" 6,000 44" 8" 32 1108
36" 36"-48" 48"-72" *8,000 44" 8" 15 1281
33" 40"-60" 48"-72" *10,000 43" 10" 15 1438
33" 40"-60" 48"-72" *12,000 43" 10" 15 1596
48" 24"-48" 64"-90" 1,000 55" 7" 11 755
48" 24"-48" 64"-90" 2,000 55" 7" 16 1176
48" 24"-48" 64"-90" 3,000 55" 7" 22 1250
48" 36"-48" 64"-96" 4,000 56" 8" 32 1271
48" 36"-48" 64"-96" 5,000 56" 8" 32 1339
48" 36"-48" 64"-96" 6,000 56" 8" 48 1420
48" 36"-48" 64"-96" *8,000 56" 8" 15 1574
45" 40"-60" 64"-96" *10,000 55" 10" 15 1659
45" 40"-60" 64"-96" *12,000 55" 10" 20 1816
60" 24"-48" 84"-108" 1,000 67" 7" 16 1303
60" 24"-48" 84"-108" 2,000 67" 7" 14 1313
60" 24"-48" 84"-108" 3,000 67" 7" 16 1456
60" 48"-72" 96"-120" *4,000 68" 8" 26 1848
60" 48"-72" 96"-120" *5,000 68" 8" 26 1869
60" 48"-72" 96"-120" *6,000 70" 10" 30 1890
60" 62"-72" 96"-120" *8,000 70" 10" 30 3000
58" 62"-72" 96"-120" *10,000 72" 14" 30 3498
58" 62"-72" 96"-120" *12,000 72" 14" 30 3510
72" 24"-48" 102"-120" 1,000 79" 7" 12 2047
72" 24"-48" 102"-120" 2,000 79" 7" 16 2060
71" 48"-72" 120"-144" *3,000 82" 11" 16 2089
71" 48"-72" 120"-144" *4,000 82" 11" 26 3217
71" 48"-72" 120"-144" *5,000 82" 11" 26 3675
70" 62"-72" 120"-144" *6,000 82" 12" 30 3773
70" 62"-72" 120"-144" *8,000 82" 12" 30 4007

* DENOTES 6.5 HP 460V 3-PHASE (EXTERNALLY MOUNTED) OTHER Voltages AVAILABLE

Quickship Scissor Lift Tables (460V 3 Phase Standard)
Model Image PDF's Platform Size
(WxL)		 Capacity
(lbs)		 Raised
Height		 Lowered
Height		 Voltage/
Phase		 Wt.
(lbs)
EHLT-2448-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 3,000 43" 7" 460/3 694
EHLT-3060-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 30"x60" 3,000 43" 7" 460/3 823
EHLT-4048-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 40"x48" 3,000 43" 7" 460/3 807
EHLT-4848-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 3,000 43" 7" 460/3 841
EHLT-4872-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x72" 3,000 43" 7" 460/3 946
EHLT-3060-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 30"x60" 4,000 43" 7" 460/3 827
EHLT-4048-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 40"x48" 4,000 43" 7" 460/3 878
EHLT-4848-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 4,000 43" 7" 460/3 918
EHLT-4872-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x72" 4,000 43" 7" 460/3 963

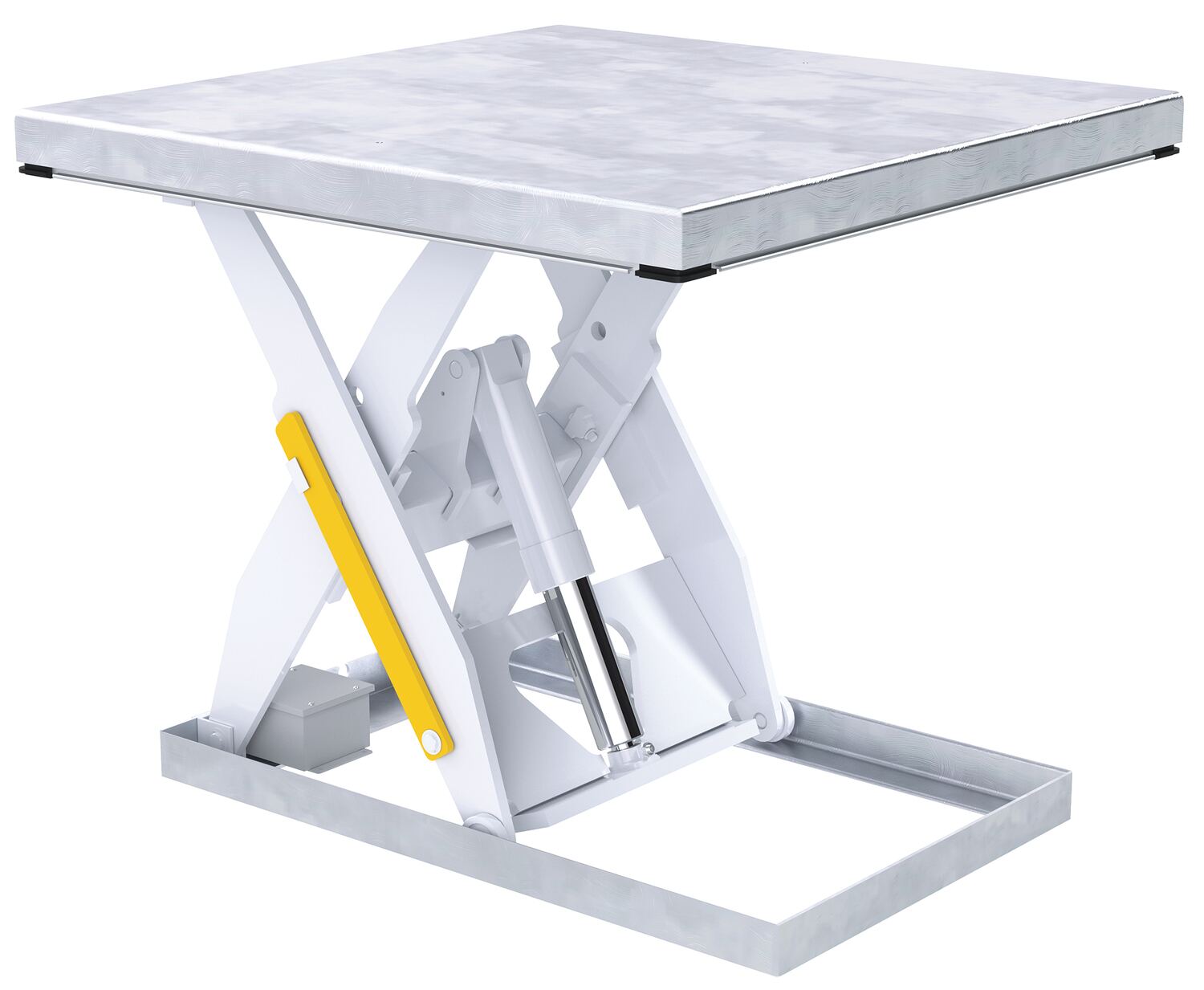

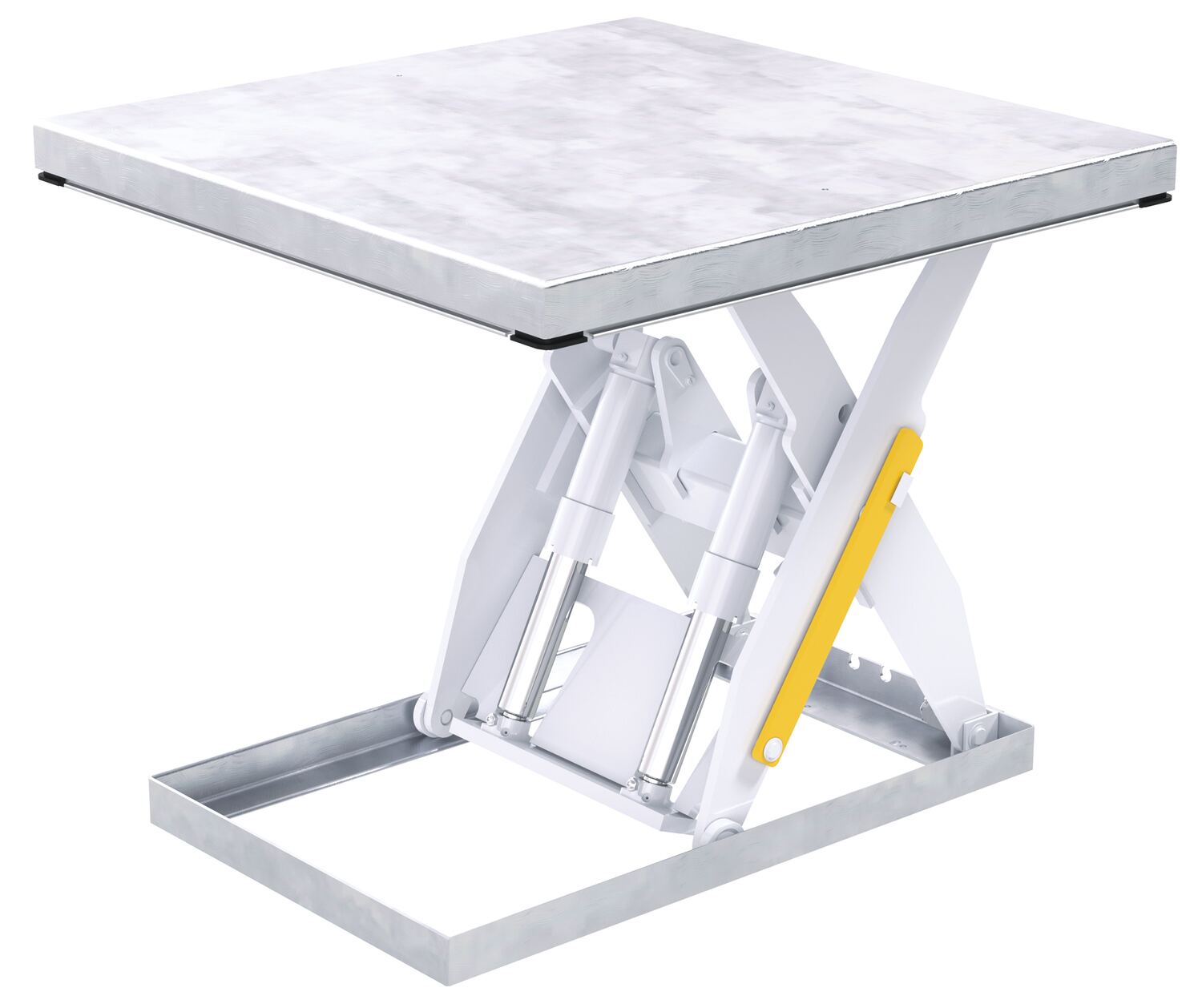

Partially Stainless Steel Scissor Lift Tables (460V 3 Phase Standard)
Model Image PDF's Platform Size
(WxL)		 Lowered
Height		 Raised
Height		 Capacity
(lbs)		 Voltage/
Phase		 Wt.
(lbs)

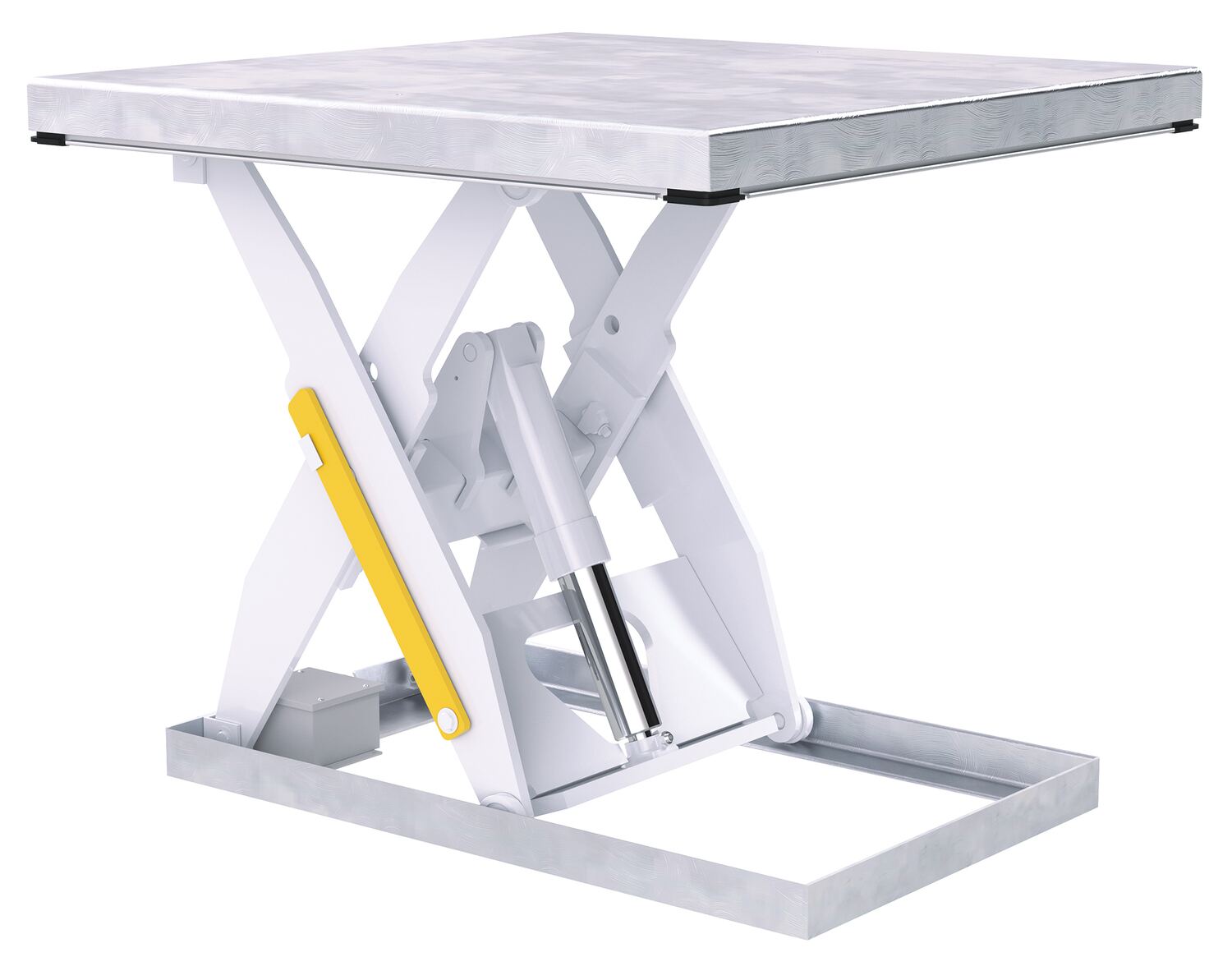

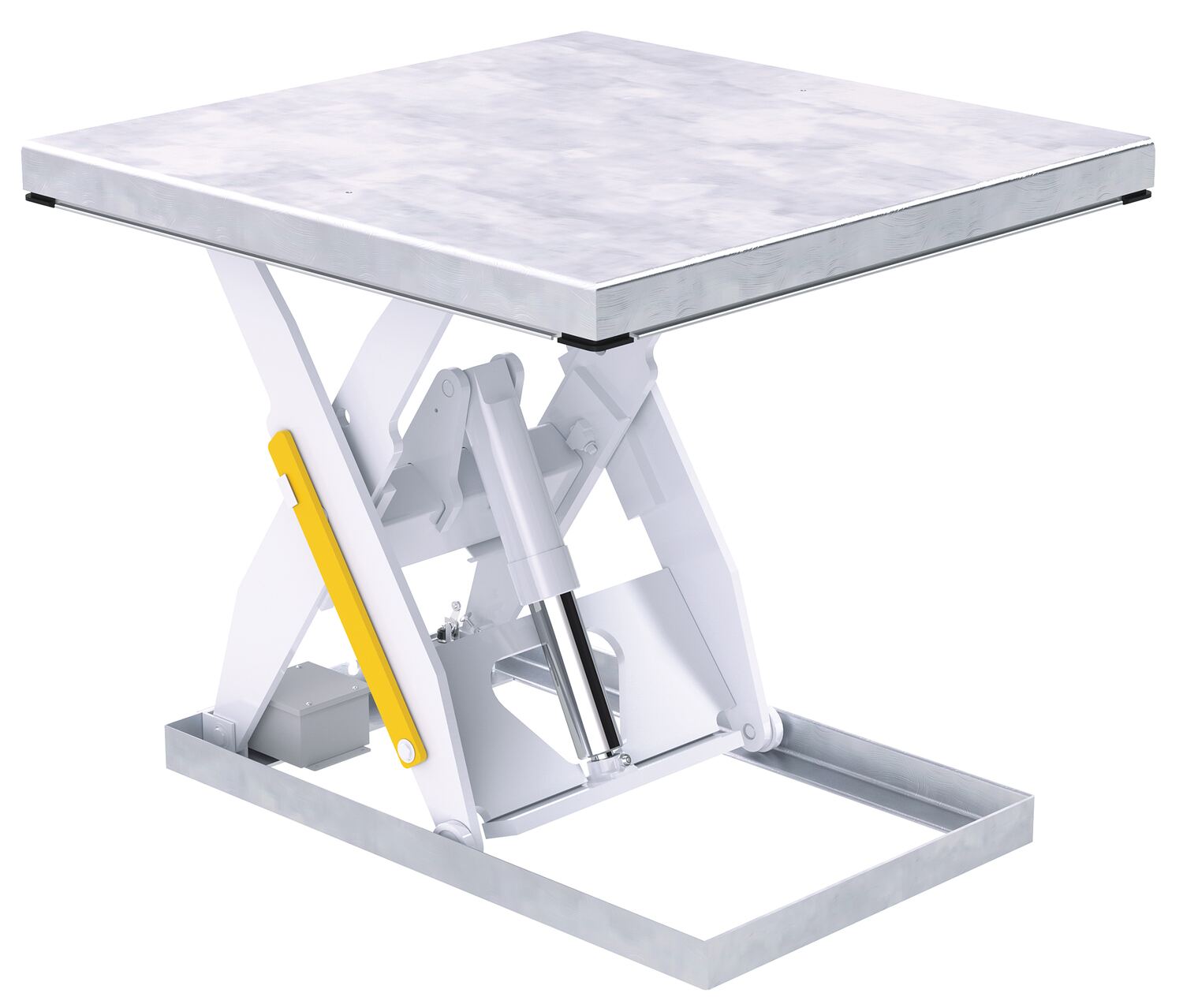

EHLT-4848-1-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 1,000 460/3 719
EHLT-4848-2-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 2,000 460/3 727
EHLT-4848-3-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 3,000 460/3 737
EHLT-4848-4-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 4,000 460/3 765

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

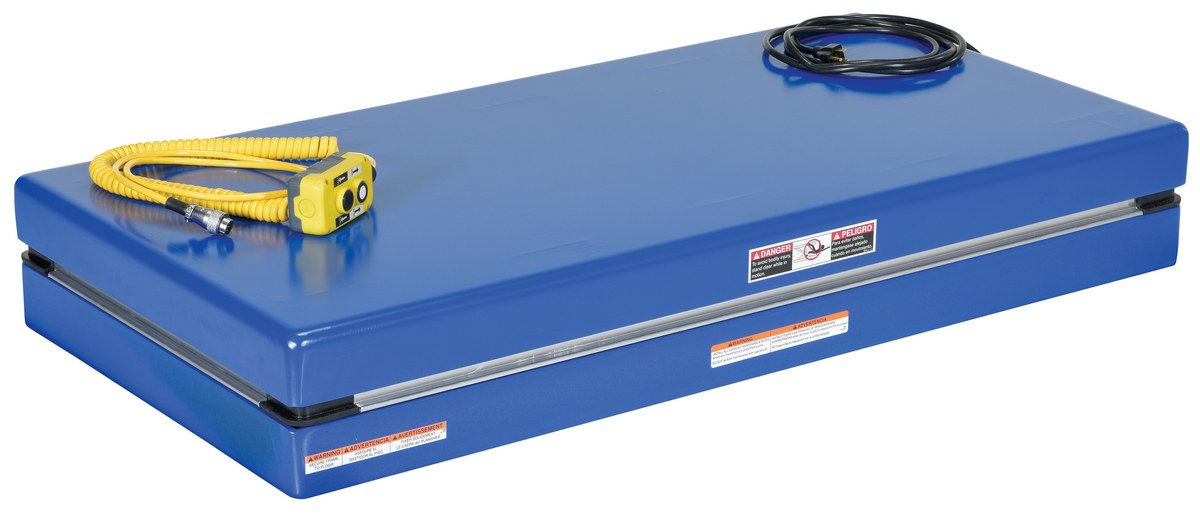

EHLT-2448-2-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11

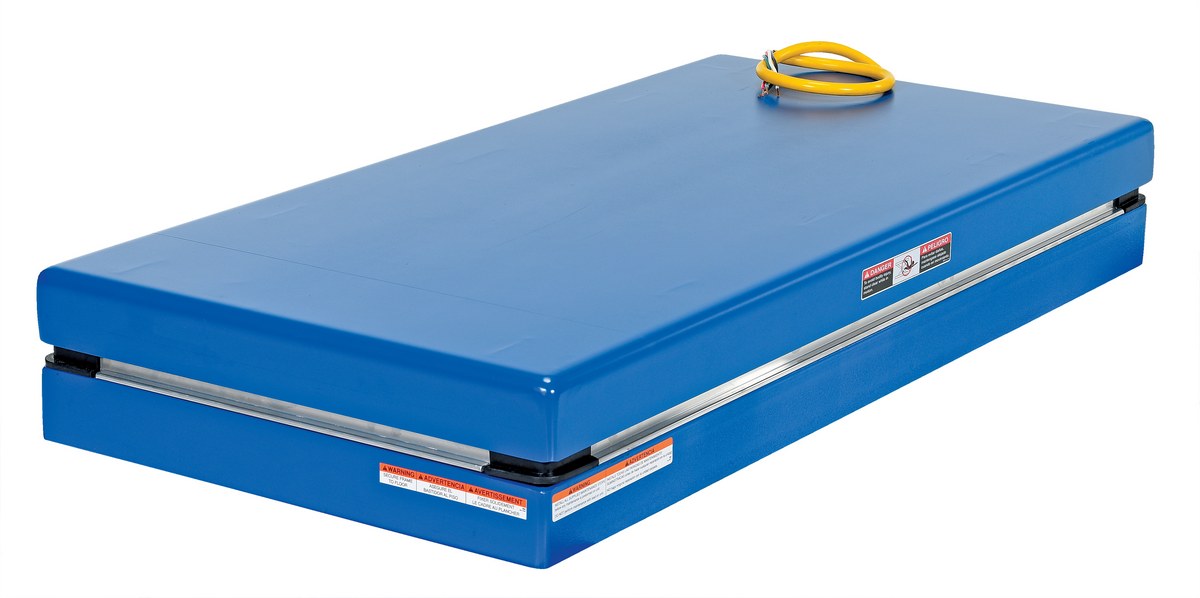

EHLT-2448-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-2448-3-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-2448-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-2466-2-55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16

EHLT-3060-2-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11

EHLT-3060-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-3060-3-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-3060-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-3060-4-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-3072-2-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11

EHLT-3072-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3000
Travel Time (sec.): 16

EHLT-3072-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22

EHLT-3648-5-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32

EHLT-3648-6-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32

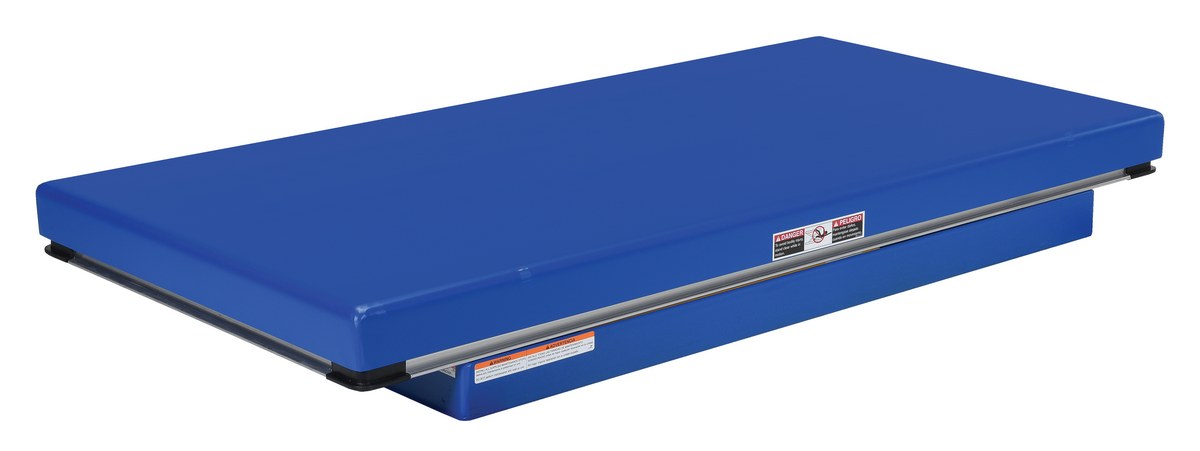

EHLT-3672-2-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 22

EHLT-3672-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-3672-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-3672-5-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5,000
Travel Time (sec.): 32

EHLT-3672-6-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6,000
Travel Time (sec.): 32

EHLT-3672-8-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Travel Time (sec.): 15
Uniform Capacity (lb.): 8,000
Travel Time (sec.): 15

EHLT-3684-4-56
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32

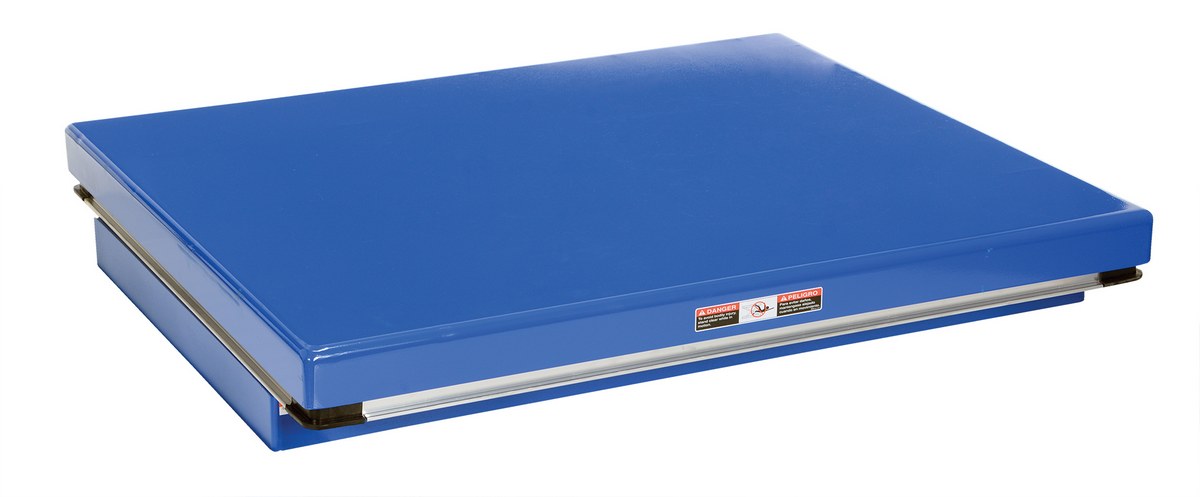

EHLT-4048-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

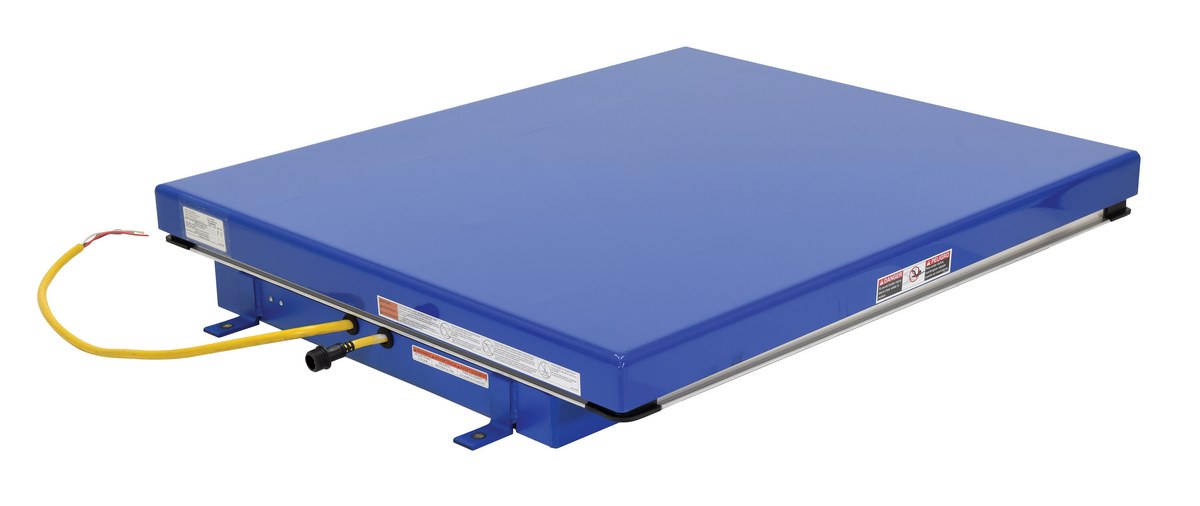

EHLT-4048-3-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-4048-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-4048-4-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

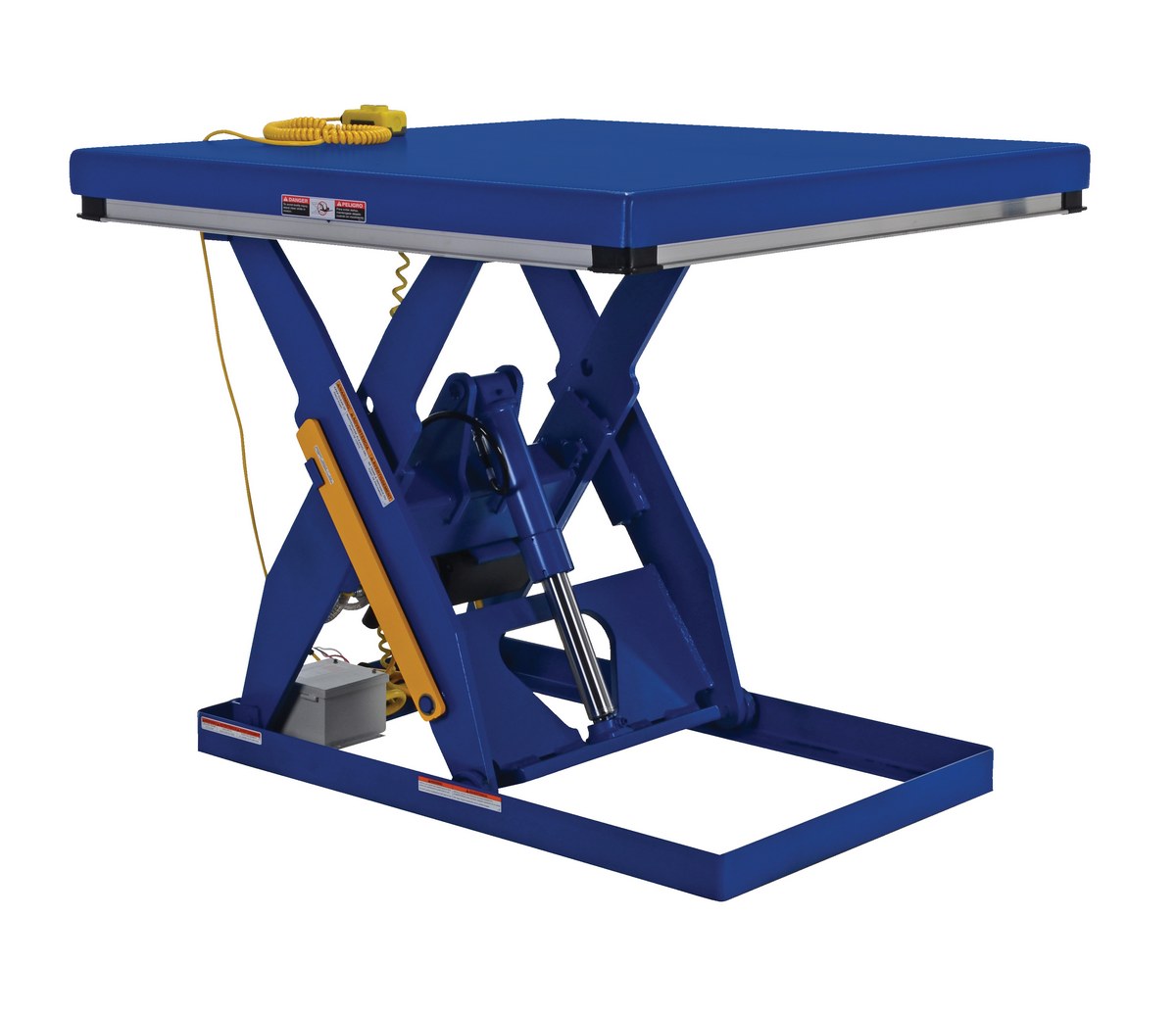

EHLT-4848-1-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Travel Time (sec.): 7
Uniform Capacity (lb.): 1000
Travel Time (sec.): 7

EHLT-4848-1-43-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Travel Time (sec.): 7
Uniform Capacity (lb.): 1,000
Travel Time (sec.): 7

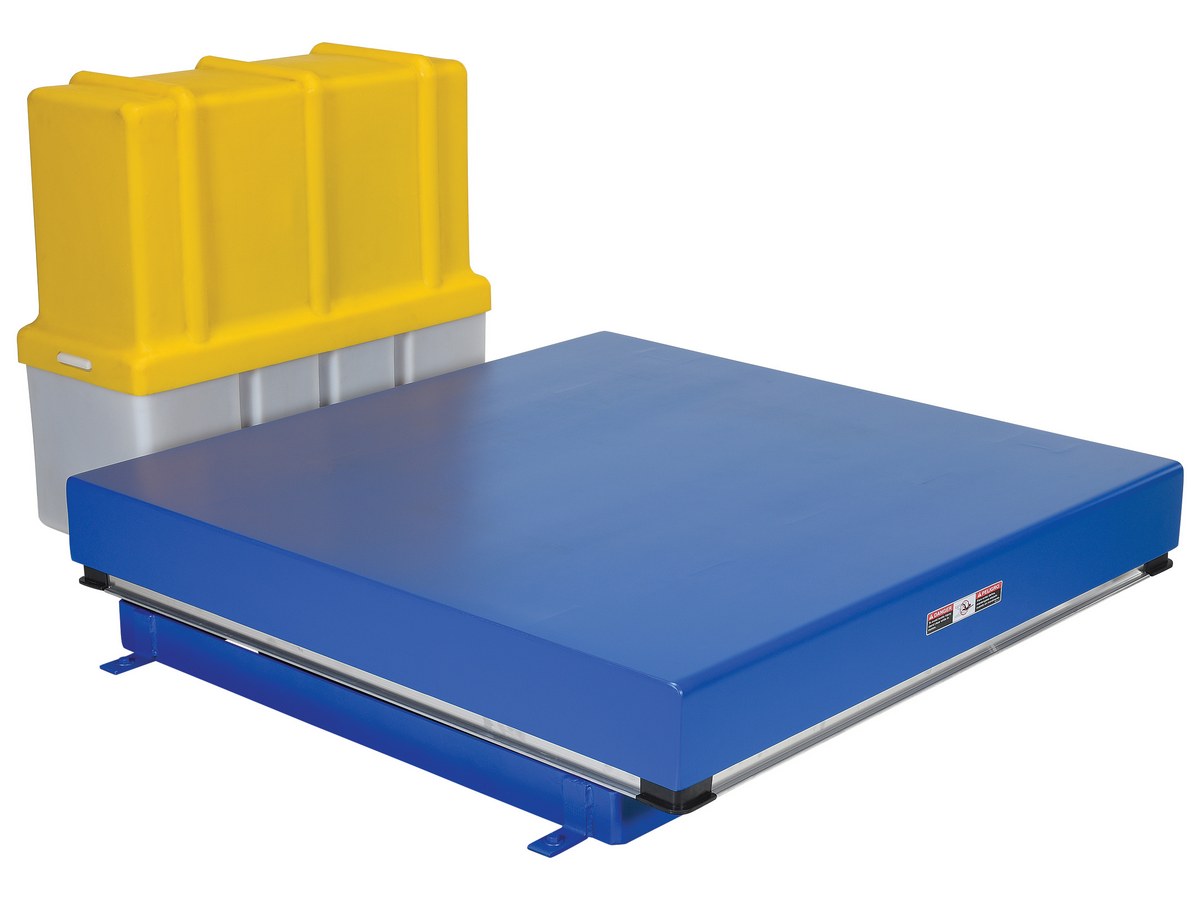

EHLT-4848-10-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Travel Time (sec.): 15
Uniform Capacity (lb.): 10000
Travel Time (sec.): 15

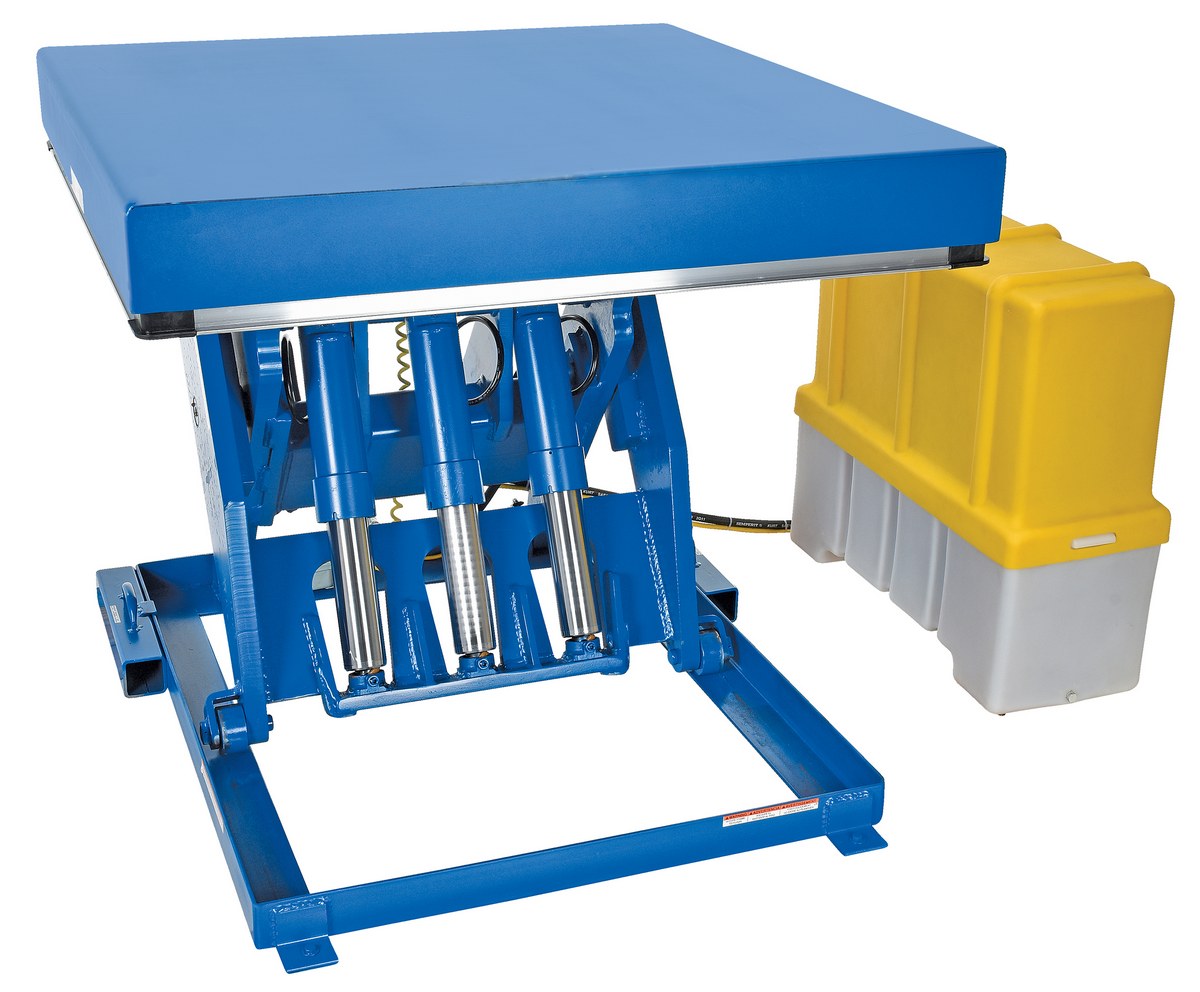

EHLT-4848-12-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
Travel Time (sec.): 15
Uniform Capacity (lb.): 12000
Travel Time (sec.): 15

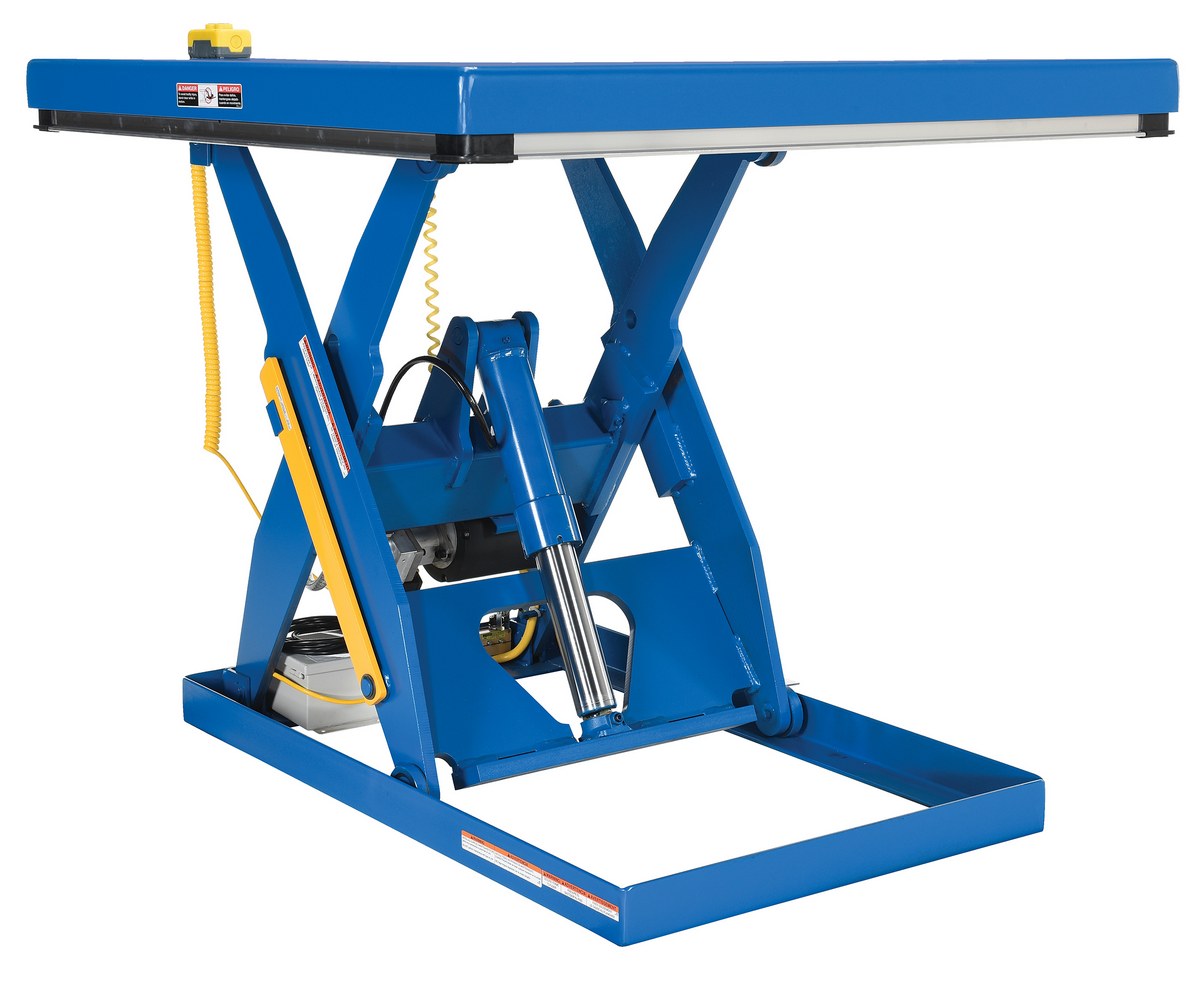

EHLT-4848-2-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11

EHLT-4848-2-43-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11

EHLT-4848-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-4848-3-43-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-4848-3-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

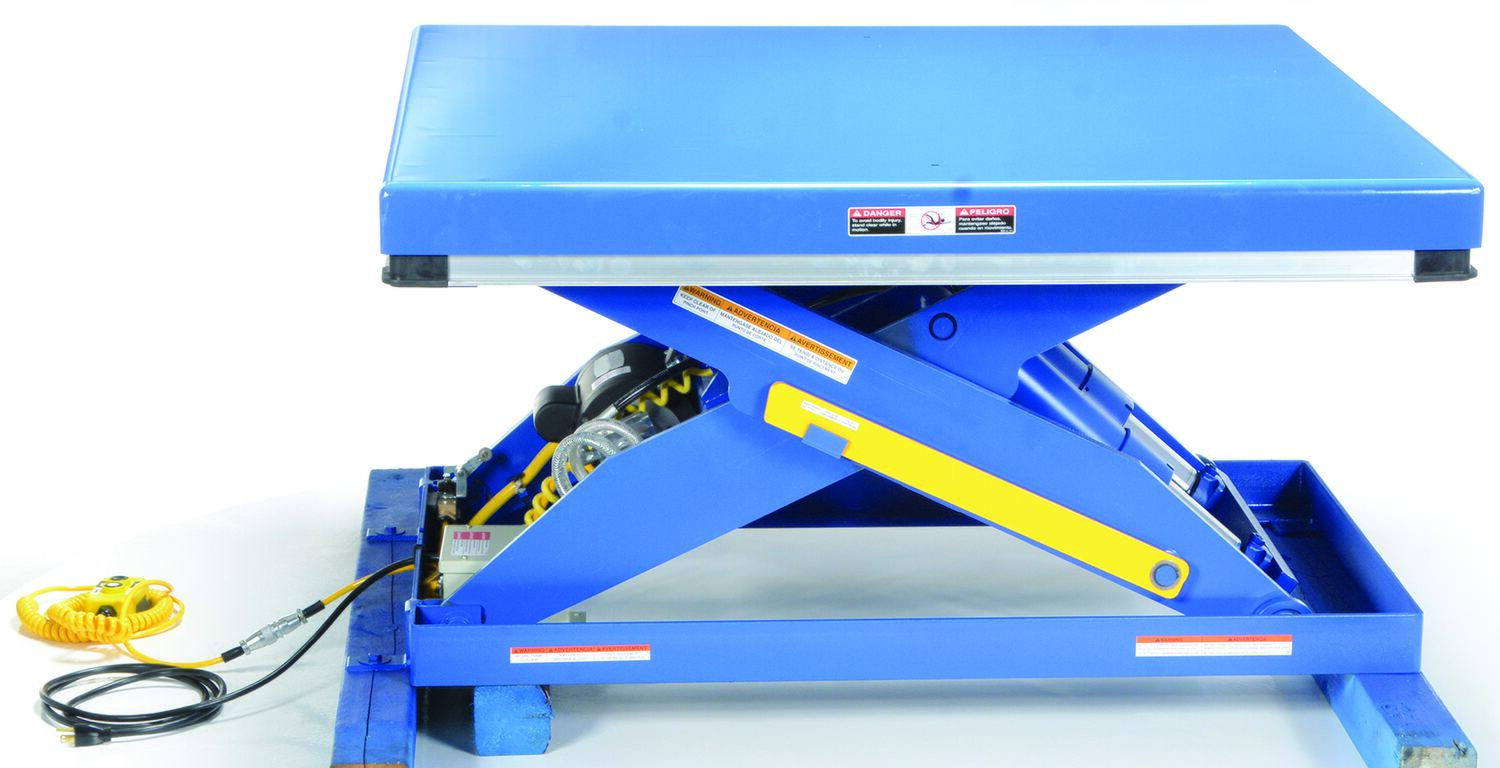

EHLT-4848-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-4848-4-43-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-4848-4-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

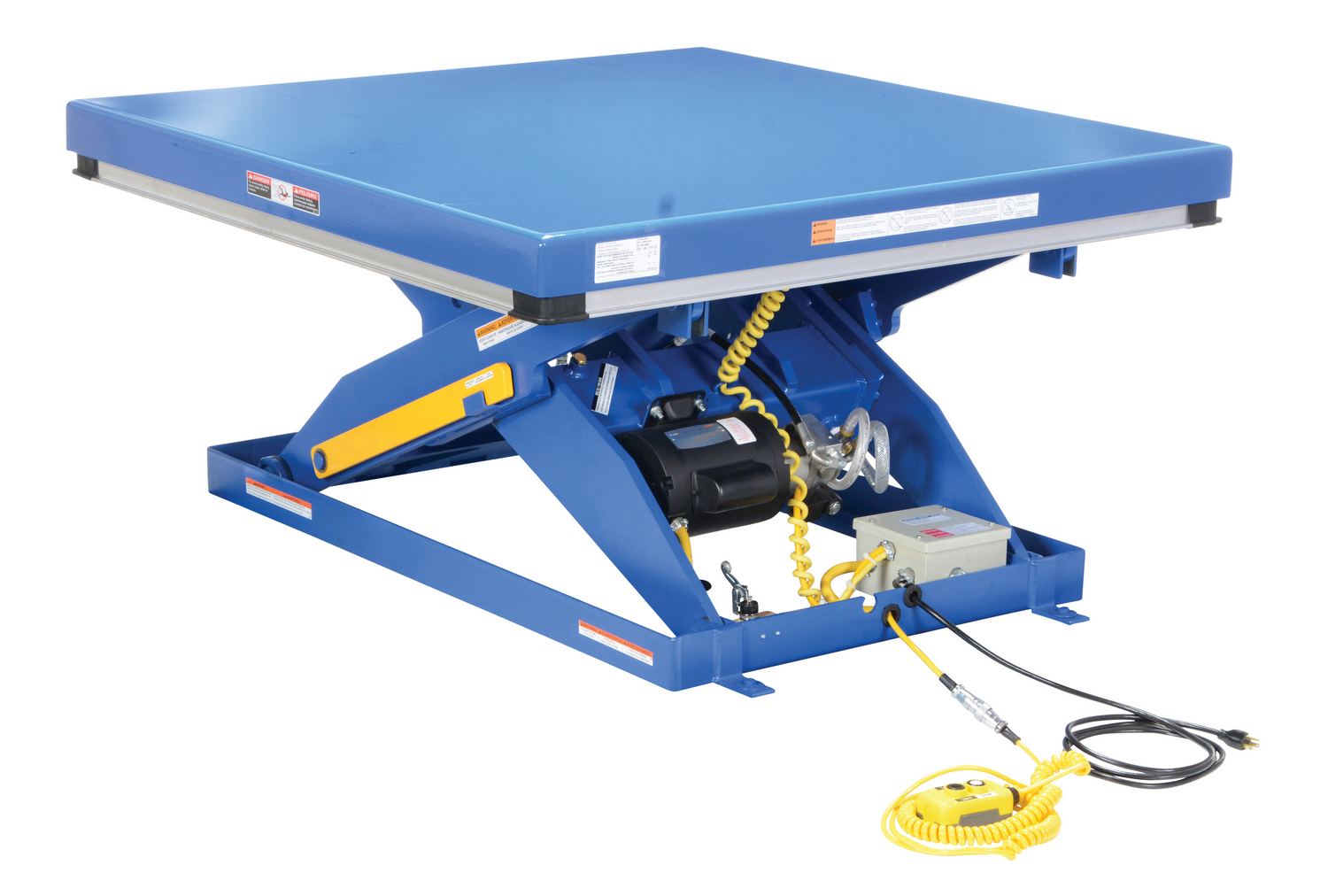

EHLT-4848-5-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32

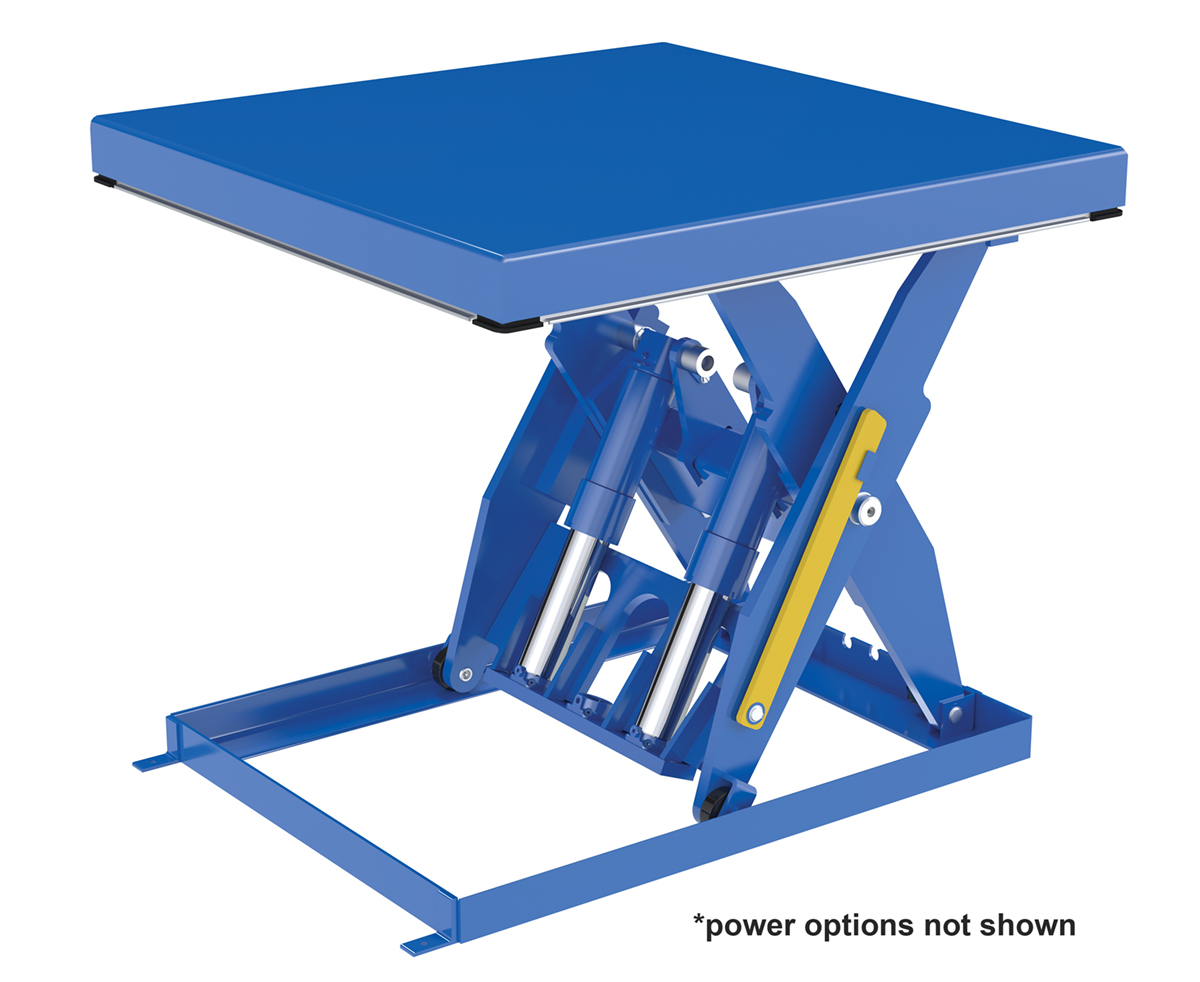

EHLT-4848-6-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32

EHLT-4860-2-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11

EHLT-4860-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4000
Travel Time (sec.): 22

EHLT-4872-2-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2000
Travel Time (sec.): 11

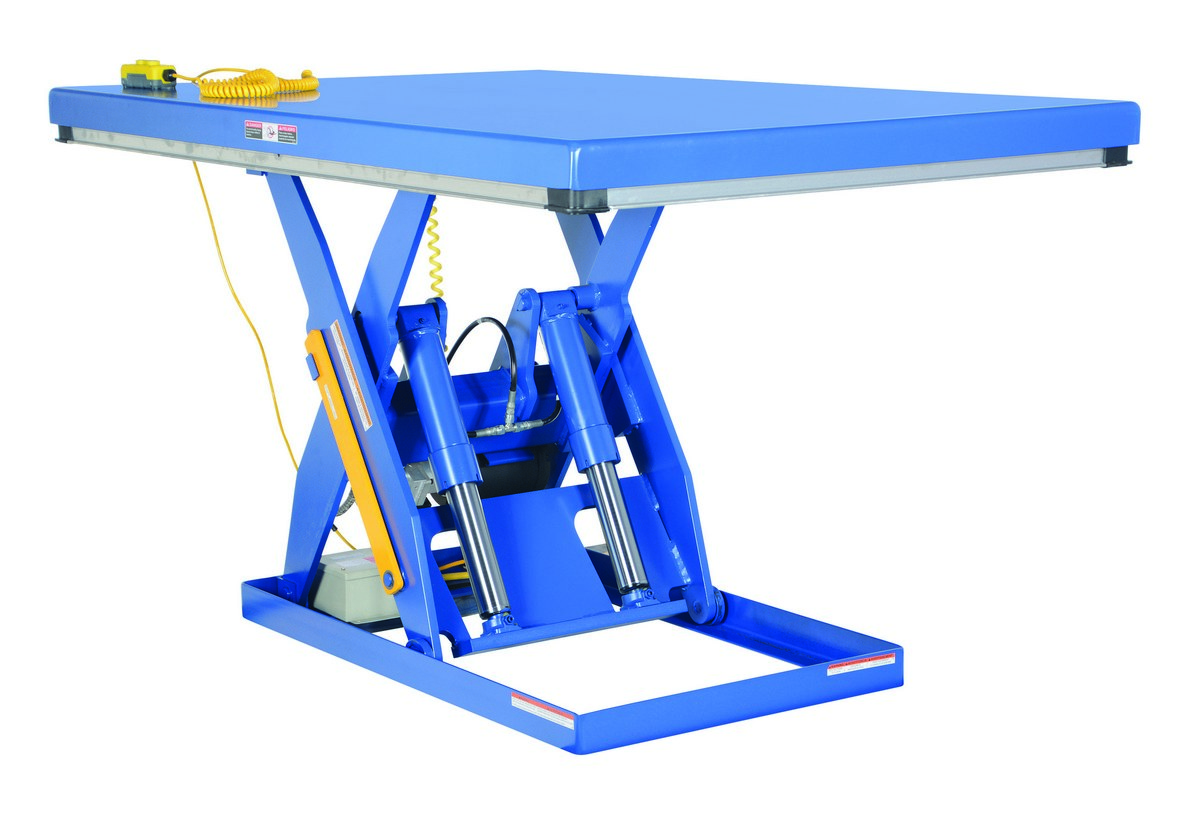

EHLT-4872-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-4872-3-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT-4872-4-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-4872-4-43-QS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22
Uniform Capacity (lb.): 4,000
Travel Time (sec.): 22

EHLT-4872-5-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32
Uniform Capacity (lb.): 5000
Travel Time (sec.): 32

EHLT-4872-6-44
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32
Uniform Capacity (lb.): 6000
Travel Time (sec.): 32

EHLT-4884-2-67
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 14
Uniform Capacity (lb.): 2000
Travel Time (sec.): 14

EHLT-4896-2-55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16

EHLT-4896-4-56
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32
Uniform Capacity (lb.): 4000
Travel Time (sec.): 32

EHLT2448-2-43FC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11

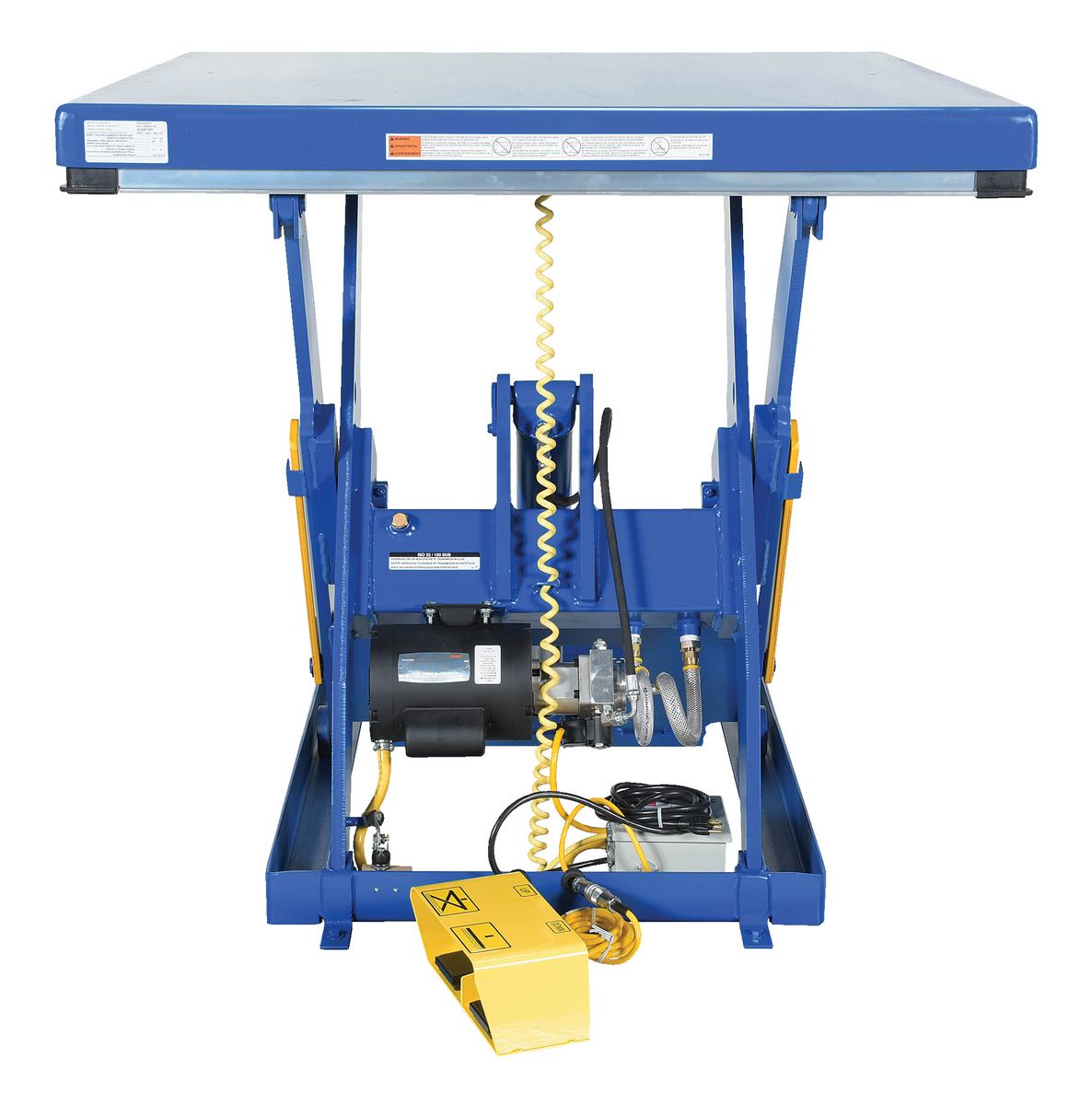

EHLT2448-3-43FC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16
Uniform Capacity (lb.): 3,000
Travel Time (sec.): 16

EHLT4848-2-43FC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
Uniform Capacity (lb.): 2,000
Travel Time (sec.): 11
For More Details of the Option Click the Red Model Button

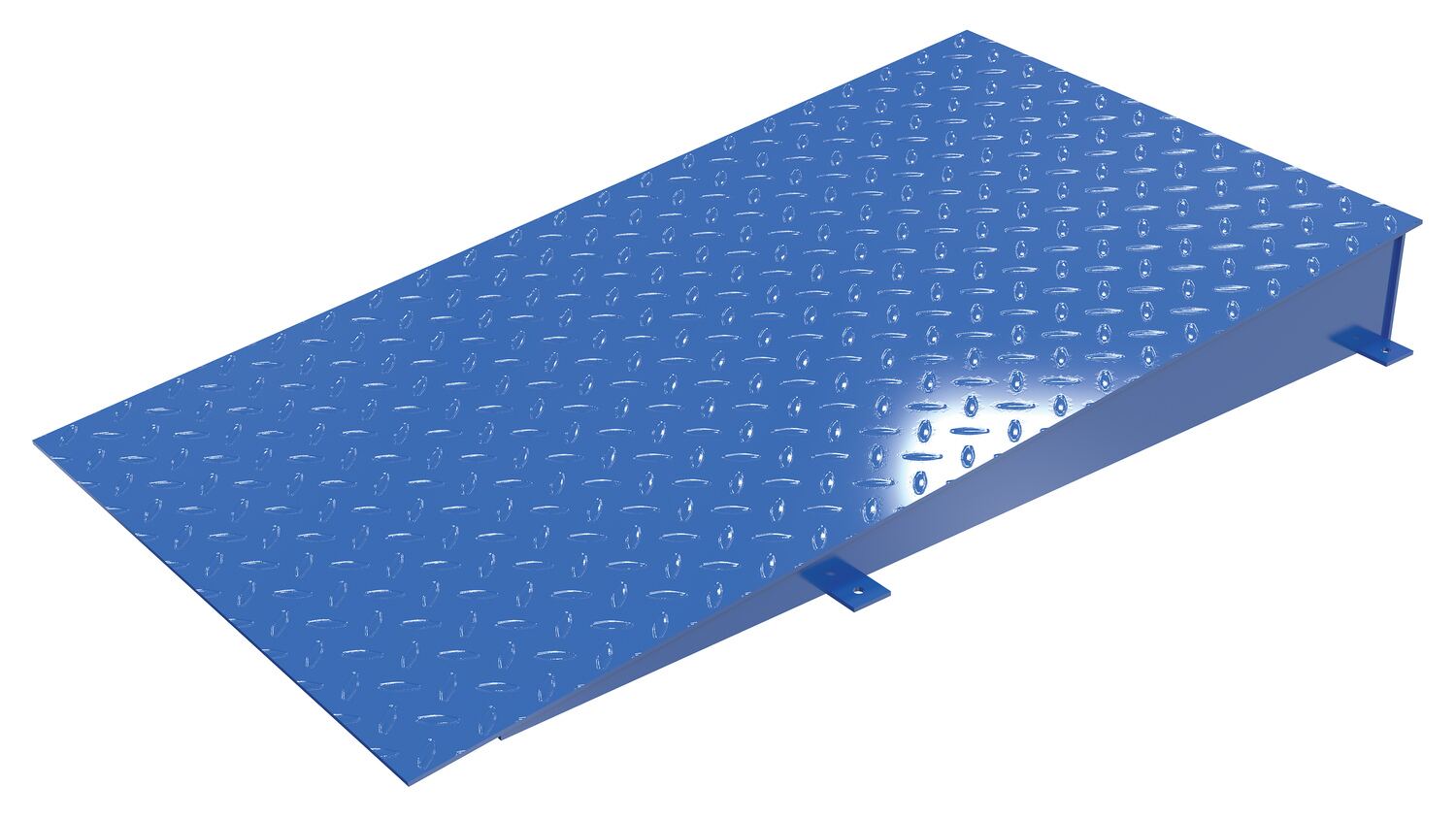

EHLT-AR-3665-7 EHLT-AR-3665-71 Year Limited WarrantySteel EHLT Approach Ramp 36 In. x 64 In. x 7 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Incline Degree: 5.9		328

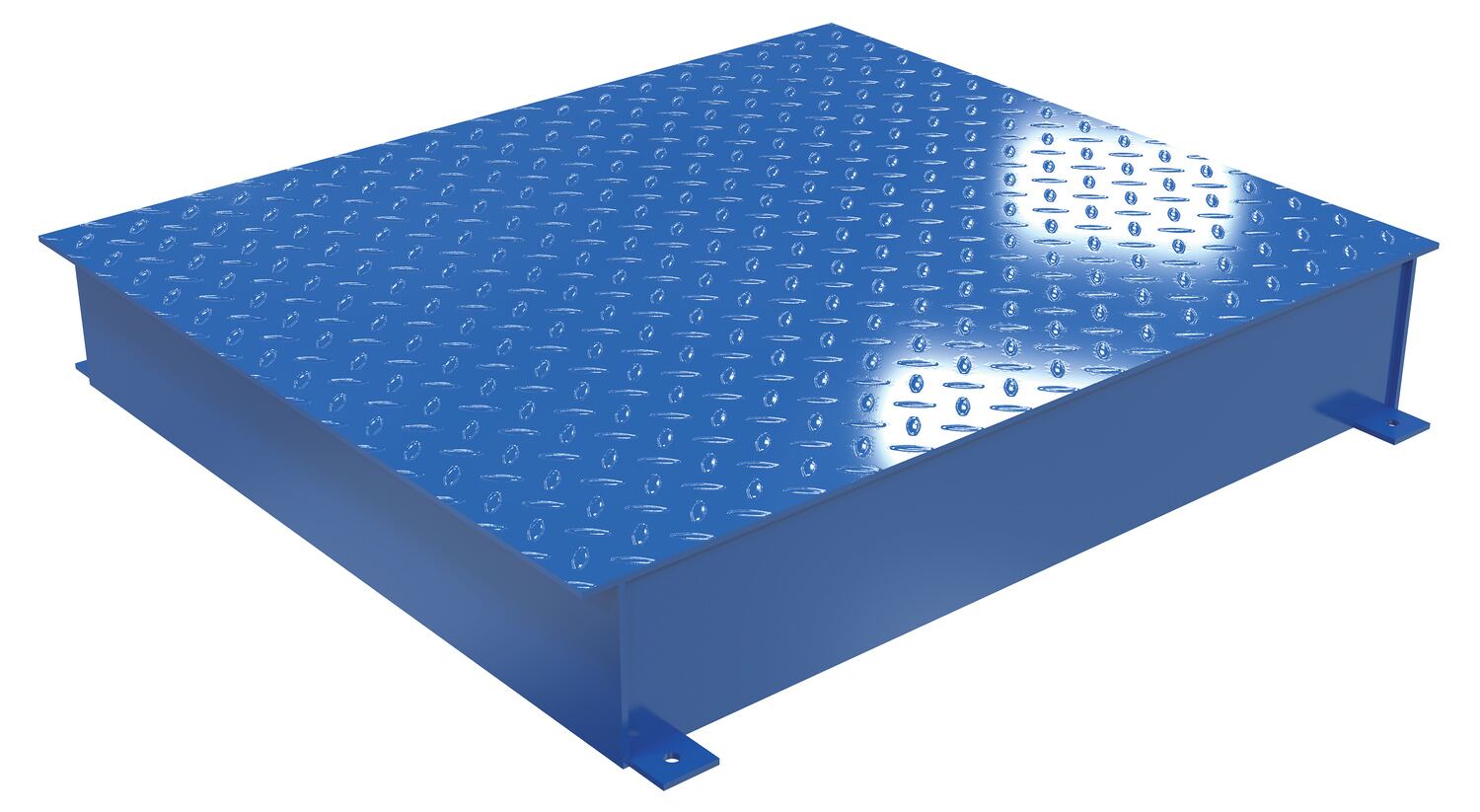

EHLT-AR-RS-3642-7 EHLT-AR-RS-3642-71 Year Limited WarrantySteel EHLT Approach Ramp Spacer 7 In. Height BlueUniform Capacity (lb.): 4000
Usable Width (in.): 36		286

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description

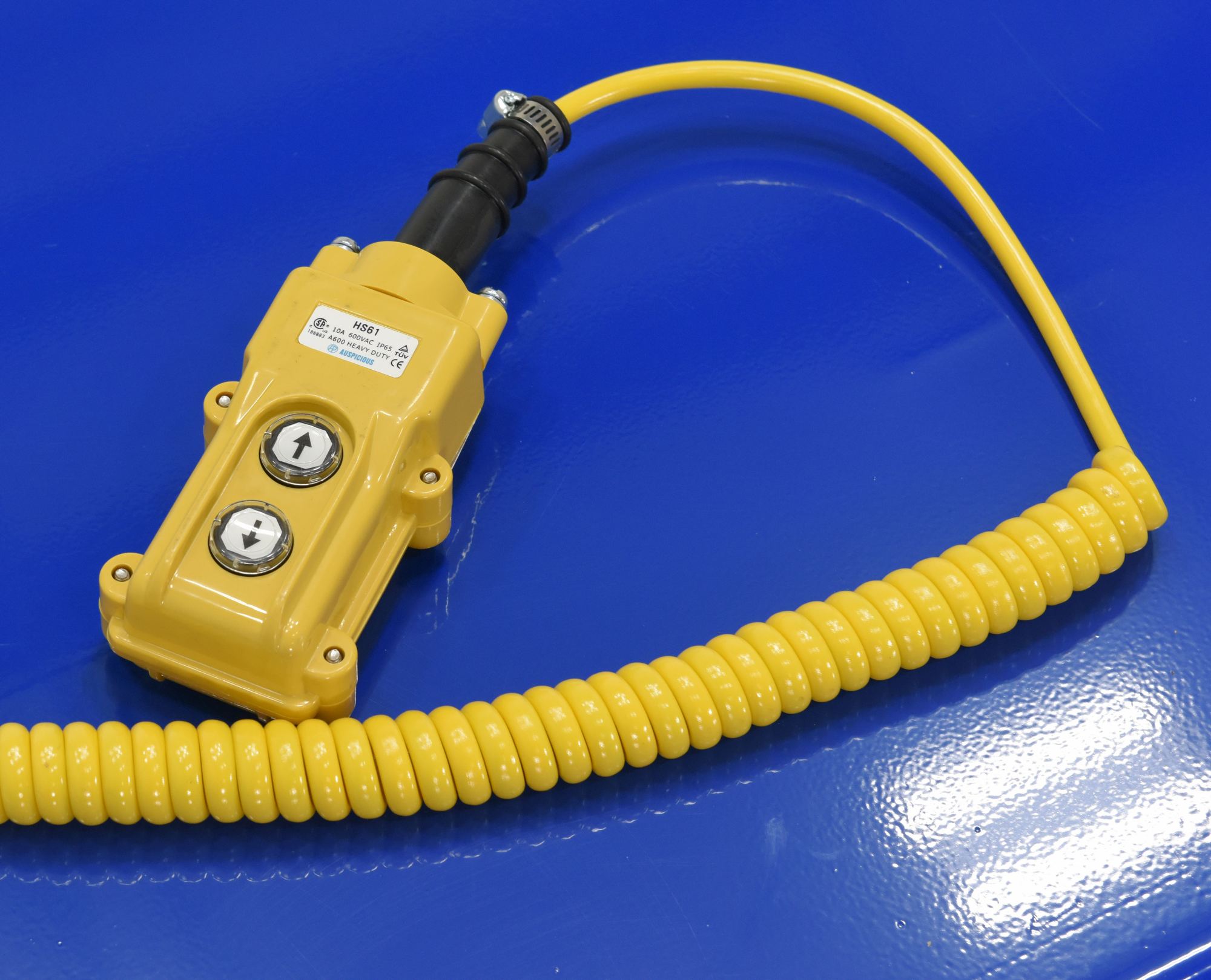

HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
Options Available For Quick Ship Units
Model Description
VCC-115-1 VOLTAGE CHANGE TO 115V 1-PHASE AC POWER
VCC-208/230-1 VOLTAGE CHANGE TO 208-230V 1-PHASE AC POWER
VCC-208/230-3 VOLTAGE CHANGE TO 208-230V 3-PHASE AC POWER
FC-2 OPTIONAL TWO PEDAL FOOT CONTROL ON 8' CORD
ADDL-FC-2 Additional OPTIONAL TWO PEDAL FOOT CONTROL ON 8' Cord (when purchased with a standard hand control)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Electric Hydraulic Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


EHLT
Owners Manual

Survey Sheets


EHLT
Survey Sheet

EHLT WITH CONVEYOR
Survey Sheet

Approval Drawings


EHLT-24102-1-79

EHLT-24102-2-79

EHLT-2448-1-43

EHLT-2448-2-43

EHLT-2448-3-43

EHLT-2448-3-43-QS

EHLT-2448-4-43

EHLT-2464-1-55

EHLT-2464-2-55

EHLT-2464-3-55

EHLT-2484-1-67

EHLT-2484-2-67

EHLT-2484-3-67

EHLT-30102-1-79

EHLT-30102-2-79

EHLT-3060-3-43

EHLT-3060-3-43-QS

EHLT-3060-4-43

EHLT-3060-4-43-QS

EHLT-3084-1-67

EHLT-3084-2-67

EHLT-3464-1-55

EHLT-3464-2-55

EHLT-3464-3-55

EHLT-3648-1-43

EHLT-3648-2-43

EHLT-3648-5-44

EHLT-3648-6-44

EHLT-3648-8-44

EHLT-3664-4-56

EHLT-3664-5-56

EHLT-3672-2-43

EHLT-3672-3-43

EHLT-3684-1-67

EHLT-3684-2-67

EHLT-3690-2-55

EHLT-3696-4-56

EHLT-3696-5-56

EHLT-4048-10-43

EHLT-4048-12-43

EHLT-4048-3-43

EHLT-4048-3-43-QS

EHLT-4048-4-43

EHLT-4048-4-43-QS

EHLT-4064-10-55

EHLT-4064-12-55

EHLT-4084-8-56

EHLT-42102-1-79

EHLT-42102-2-79

EHLT-43102-1-79

EHLT-43102-2-79

EHLT-48102-1-79

EHLT-48102-2-79

EHLT-4848-1-43-PSS

EHLT-4848-10-43

EHLT-4848-12-43

EHLT-4848-2-43

EHLT-4848-2-43-PSS

EHLT-4848-3-43

EHLT-4848-3-43-PSS

EHLT-4848-3-43-QS

EHLT-4848-4-43

EHLT-4848-4-43-PSS

EHLT-4848-4-43-QS

EHLT-4848-5-44

EHLT-4848-6-44

EHLT-4848-8-44

EHLT-4864-10-55

EHLT-4864-12-55

EHLT-4864-3-55

EHLT-4864-6-56

EHLT-4872-1-55

EHLT-4872-2-55

EHLT-4872-3-43

EHLT-4872-3-43-QS

EHLT-4872-3-55

EHLT-4872-4-43

EHLT-4872-4-43-QS

EHLT-4872-5-43

EHLT-4872-5-44

EHLT-4872-6-44

EHLT-4872-8-44

EHLT-4884-2-67

EHLT-4896-2-55

EHLT-4896-4-56

EHLT-4896-5-56

EHLT-72120-6-70

EHLT-72120-8-70

EHLT-AR-3665-7

EHLT-AR-RS-3642-7

Testing Certificates


EHLT-2448-2-43

EHLT-2448-3-43

EHLT-2448-3-43-QS

EHLT-2448-4-43

EHLT-2466-2-55

EHLT-3060-2-43

EHLT-3060-3-43

EHLT-3060-3-43-QS

EHLT-3060-4-43

EHLT-3060-4-43-QS

EHLT-3072-2-43

EHLT-3072-3-43

EHLT-3072-4-43

EHLT-3648-5-44

EHLT-3648-6-44

EHLT-3672-2-43

EHLT-3672-3-43

EHLT-3672-4-43

EHLT-3672-5-44

EHLT-3672-6-44

EHLT-3672-8-44

EHLT-3684-4-56

EHLT-4048-3-43

EHLT-4048-3-43-QS

EHLT-4048-4-43

EHLT-4048-4-43-QS

EHLT-4848-1-43

EHLT-4848-1-43-PSS

EHLT-4848-10-43

EHLT-4848-12-43

EHLT-4848-2-43

EHLT-4848-2-43-PSS

EHLT-4848-3-43

EHLT-4848-3-43-PSS

EHLT-4848-3-43-QS

EHLT-4848-4-43

EHLT-4848-4-43-PSS

EHLT-4848-4-43-QS

EHLT-4848-5-44

EHLT-4848-6-44

EHLT-4860-2-43

EHLT-4860-4-43

EHLT-4872-2-43

EHLT-4872-3-43

EHLT-4872-3-43-QS

EHLT-4872-4-43

EHLT-4872-4-43-QS

EHLT-4872-5-44

EHLT-4872-6-44

EHLT-4884-2-67

EHLT-4896-2-55

EHLT-4896-4-56

EHLT-AR-3665-7

EHLT-AR-RS-3642-7

EHLT2448-2-43FC

EHLT2448-3-43FC

EHLT4848-2-43FC

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLT-2448-1-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-2448-2-43
Hydraulic Oil SDS Sheet for: EHLT2448-2-43FC
Hydraulic Oil SDS Sheet for: EHLT-2448-2-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-2448-3-43
Hydraulic Oil SDS Sheet for: EHLT2448-3-43FC
Hydraulic Oil SDS Sheet for: EHLT-2448-3-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-2448-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-2448-4-43
Hydraulic Oil SDS Sheet for: EHLT-2448-4-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-2466-2-55
Hydraulic Oil SDS Sheet for: EHLT-3060-2-43
Hydraulic Oil SDS Sheet for: EHLT-3060-3-43
Hydraulic Oil SDS Sheet for: EHLT-3060-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-3060-4-43
Hydraulic Oil SDS Sheet for: EHLT-3060-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-3072-2-43
Hydraulic Oil SDS Sheet for: EHLT-3072-3-43
Hydraulic Oil SDS Sheet for: EHLT-3072-4-43
Hydraulic Oil SDS Sheet for: EHLT-3648-5-44
Hydraulic Oil SDS Sheet for: EHLT-3648-6-44
Hydraulic Oil SDS Sheet for: EHLT-3672-2-43
Hydraulic Oil SDS Sheet for: EHLT-3672-3-43
Hydraulic Oil SDS Sheet for: EHLT-3672-4-43
Hydraulic Oil SDS Sheet for: EHLT-3672-5-44
Hydraulic Oil SDS Sheet for: EHLT-3672-6-44
Hydraulic Oil SDS Sheet for: EHLT-3672-8-44
Hydraulic Oil SDS Sheet for: EHLT-3684-4-56
Hydraulic Oil SDS Sheet for: EHLT-4048-3-43
Hydraulic Oil SDS Sheet for: EHLT-4048-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4048-4-43
Hydraulic Oil SDS Sheet for: EHLT-4048-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4848-10-43
Hydraulic Oil SDS Sheet for: EHLT-4848-12-43
Hydraulic Oil SDS Sheet for: EHLT-4848-1-43
Hydraulic Oil SDS Sheet for: EHLT-4848-1-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-4848-2-43
Hydraulic Oil SDS Sheet for: EHLT4848-2-43FC
Hydraulic Oil SDS Sheet for: EHLT-4848-2-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-4848-3-43
Hydraulic Oil SDS Sheet for: EHLT-4848-3-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-4848-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4848-4-43
Hydraulic Oil SDS Sheet for: EHLT-4848-4-43-PSS
Hydraulic Oil SDS Sheet for: EHLT-4848-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4848-5-44
Hydraulic Oil SDS Sheet for: EHLT-4848-6-44
Hydraulic Oil SDS Sheet for: EHLT-4860-2-43
Hydraulic Oil SDS Sheet for: EHLT-4860-4-43
Hydraulic Oil SDS Sheet for: EHLT-4872-2-43
Hydraulic Oil SDS Sheet for: EHLT-4872-3-43
Hydraulic Oil SDS Sheet for: EHLT-4872-3-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4872-4-43
Hydraulic Oil SDS Sheet for: EHLT-4872-4-43-QS
Hydraulic Oil SDS Sheet for: EHLT-4872-5-44
Hydraulic Oil SDS Sheet for: EHLT-4872-6-44
Hydraulic Oil SDS Sheet for: EHLT-4884-2-67
Hydraulic Oil SDS Sheet for: EHLT-4896-2-55
Hydraulic Oil SDS Sheet for: EHLT-4896-4-56

Other PDF's


HO150

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

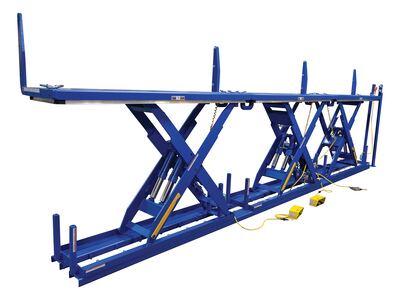

Reference Number: CF-1003 24" x 300" Electric Height Lift Table
 Reference Number: CF-1003 24
Reference Number: CF-1003 24" x 300" Electric Height Lift Table
For more Specialty Designs similar to these... Click Here

Q: What is the thickness of the top of the table?

A: The top plate on the EHLT is 1/4" thick.

Q: We are interested in the EHLT 1,000 lb. capacity lift table with a table top of 48 x 48. We want to change the voltage to 115 single phase. What is the travel time to the raised height.

A: For the EHLT-4848-1-43 with a 115 voltage, the raised time to 43" is 15 seconds. 16 seconds to the lowered height of 7".

Q: Are the EHLT scissor lift tables powder coated?

A: The Quick Ship (QS) tables have a powder coated deck. Some small bolt-on brackets are powder coated as well. The majority of the table is liquid painted.

Q: We are mounting the EHLT in a pit. Are there lifting eyes to lower the table?

A: Lifting eyes are bolted through the top platform to lower the EHLT into a pit from overhead. Please contact a sales associate for details.

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.

Q: I need a 50hz 3p/400 motor for my scissor lift table. Is this available as an option?

A: Our standard 60 Hz 3 Phase 460 VAC motor will cover 50Hz 3 Phase 400 VAC.

Q: Are our scissor lift tables power up/ gravity down?

A: Yes they are.

Q: Can this table be used continuously?

A: The suggested use is 12 cycles per hour.




Related or Similar Products:

Integral Scale for Scissor Tables
Product

Integral Scale for Scissor Tables

Programmable Height For Lift Tables
Product

Programmable Height For Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables
Product

Rotary Air/Hydraulic Scissor Lift Tables

Options For Electric Hydraulic Equipment
Product

Options For Electric Hydraulic Equipment

Manual Built-In Carousel for Scissor Tables
Product

Manual Built-In Carousel for Scissor Tables

Shorty Scissor Lift Tables
Product

Shorty Scissor Lift Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Electric Hydraulic Scissor Lif...




Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.


Model # Description Attributes Net Wt.
(lbs)

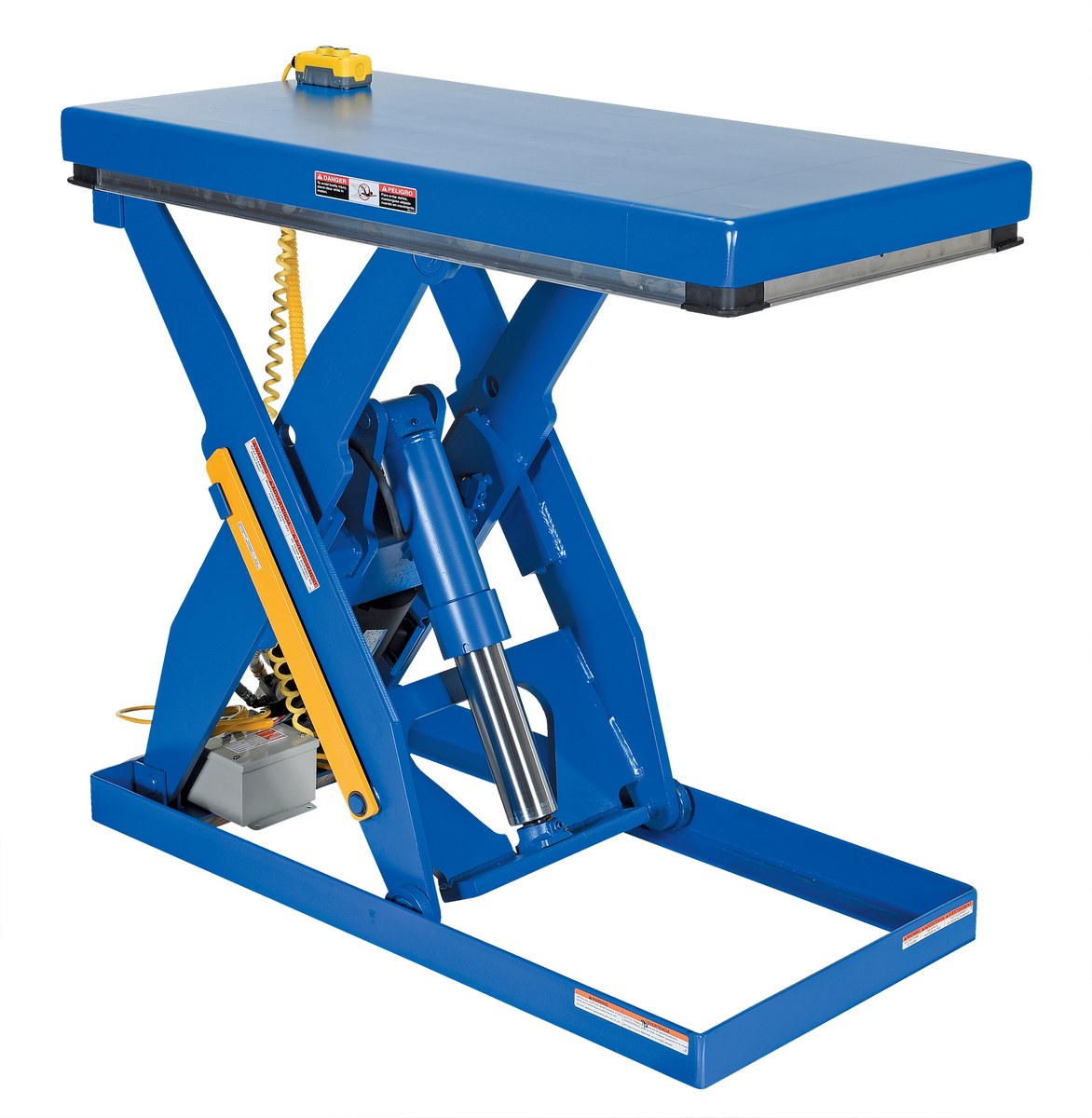

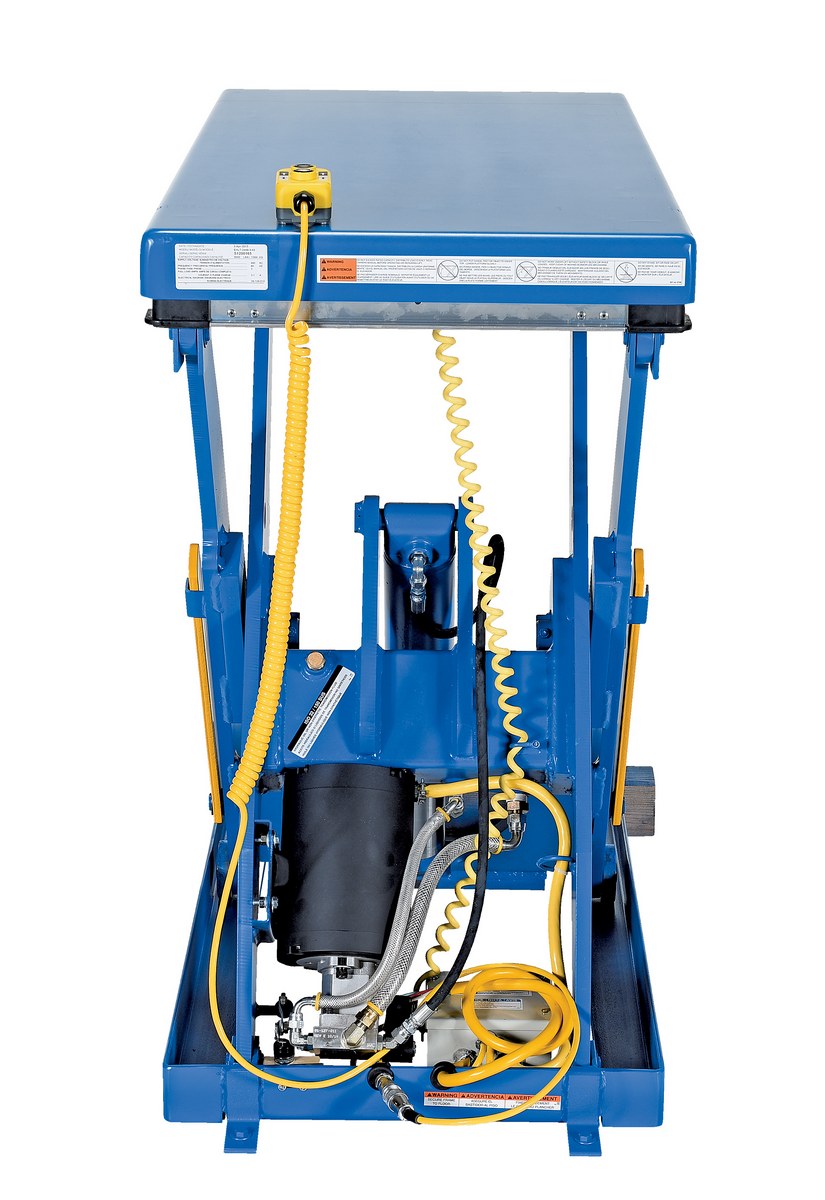

EHLT-2448-2-43 EHLT-2448-2-43Steel Electric Hydraulic Lift Table 24 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Travel Time (sec.): 11		631
EHLT-2448-3-43 EHLT-2448-3-43Steel Electric Hydraulic Lift Table 24 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		694
EHLT-2448-3-43-QS EHLT-2448-3-43-QSSteel Quick Ship Electric Hydraulic Lift Table 24 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		733
EHLT-2448-4-43 EHLT-2448-4-43Steel Electric Hydraulic Lift Table 24 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		714
EHLT-2466-2-55 EHLT-2466-2-55Steel Electric Hydraulic Lift Table 24 In. x 66 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 16		858
EHLT-3060-2-43 EHLT-3060-2-43Steel Electric Hydraulic Lift Table 30 In. x 60 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Travel Time (sec.): 11		702
EHLT-3060-3-43 EHLT-3060-3-43Steel Electric Hydraulic Lift Table 30 In. x 60 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		864
EHLT-3060-3-43-QS EHLT-3060-3-43-QSSteel Quick Ship Electric Hydraulic Lift Table 30 In. x 60 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		864
EHLT-3060-4-43 EHLT-3060-4-43Steel Electric Hydraulic Lift Table 24 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		827
EHLT-3060-4-43-QS EHLT-3060-4-43-QSSteel Quick Ship Electric Hydraulic Lift Table 30 In. x 60 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		827
EHLT-3072-2-43 EHLT-3072-2-43Steel Electric Hydraulic Lift Table 30 In. x 72 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 11		842

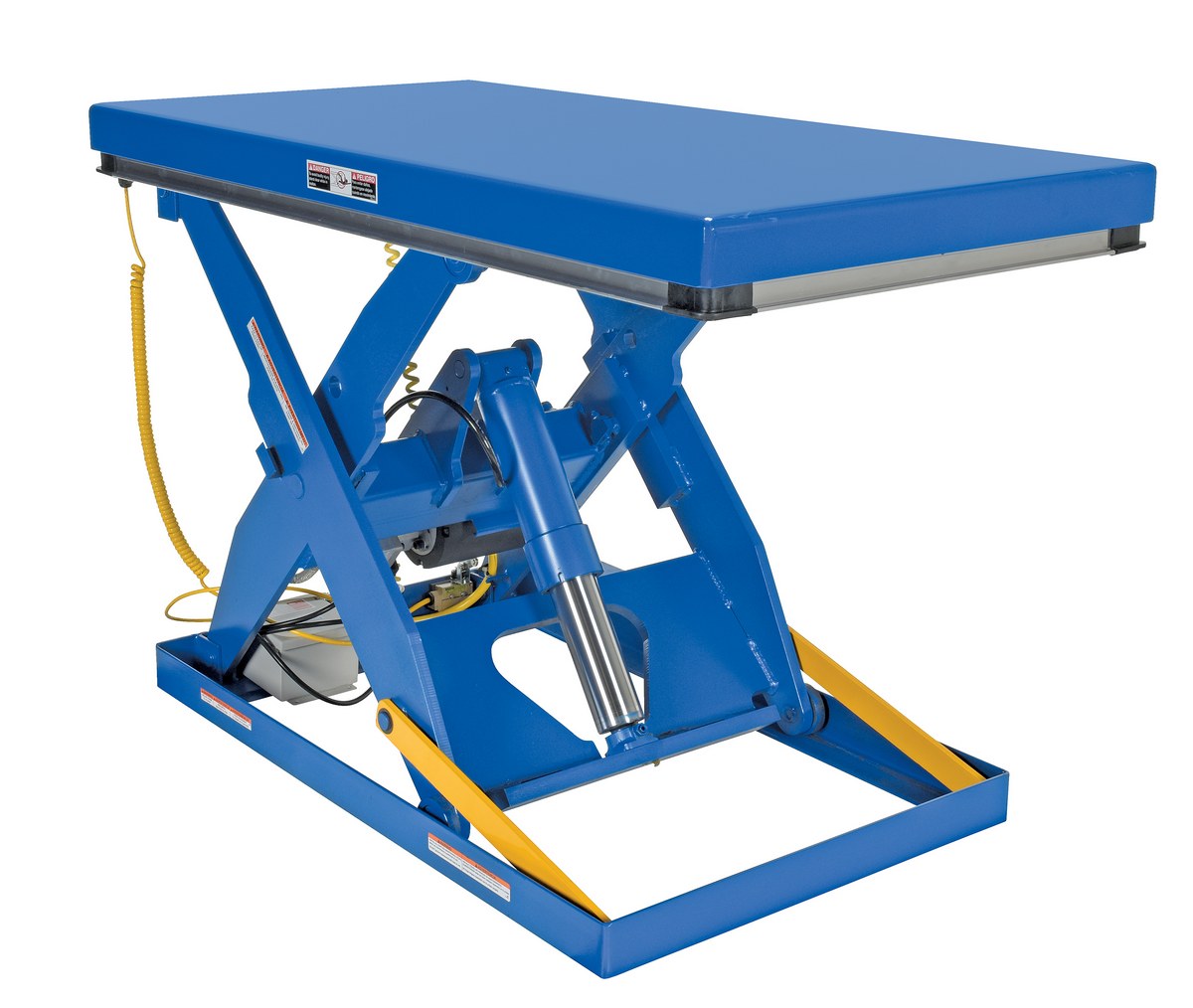

EHLT-3072-3-43 EHLT-3072-3-43Steel Electric Hydraulic Lift Table 30 In. x 72 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Travel Time (sec.): 16		860

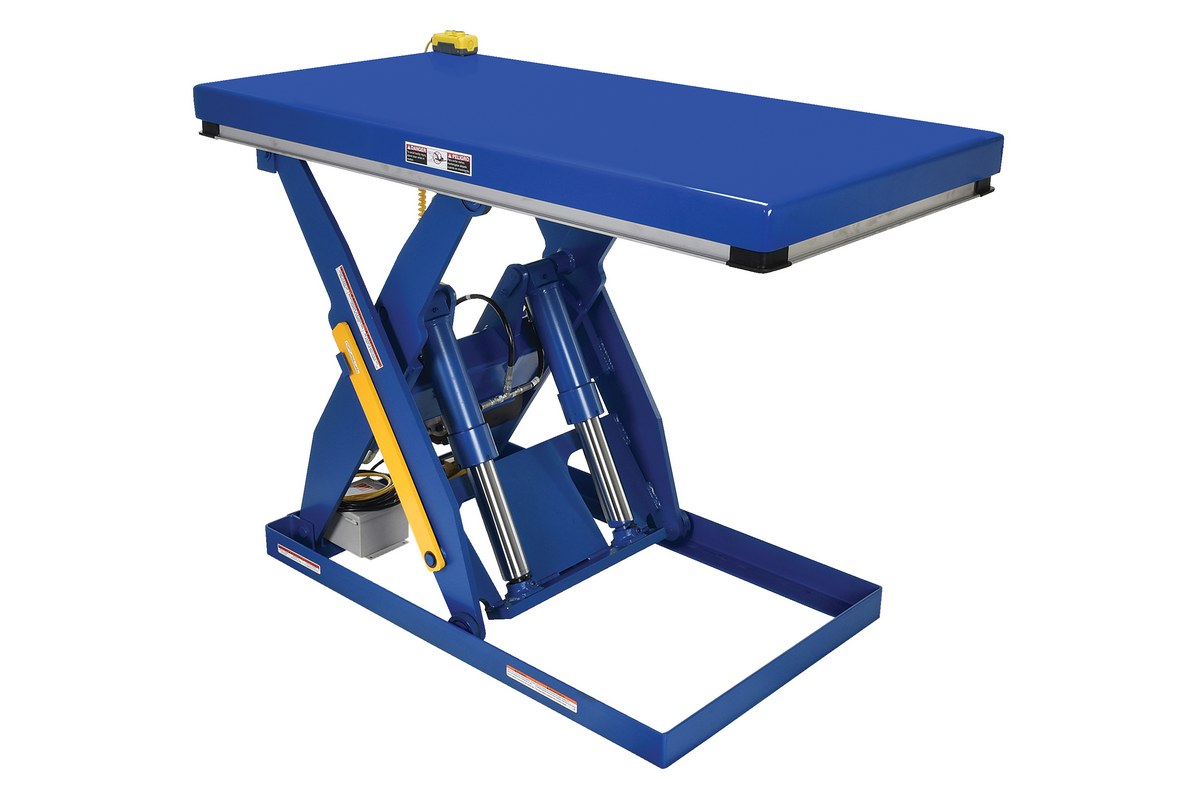

EHLT-3072-4-43 EHLT-3072-4-43Steel Electric Hydraulic Lift Table 30 In. x 72 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Travel Time (sec.): 22		895
EHLT-3648-5-44 EHLT-3648-5-44Steel Electric Hydraulic Lift Table 36 In. x 48 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Travel Time (sec.): 32		1094
EHLT-3648-6-44 EHLT-3648-6-44Steel Electric Hydraulic Lift Table 36 In. x 48 In. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Travel Time (sec.): 32		1197
EHLT-3672-2-43 EHLT-3672-2-43Steel Electric Hydraulic Lift Table 36 In. x 72 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Travel Time (sec.): 22		838
EHLT-3672-3-43 EHLT-3672-3-43Steel Electric Hydraulic Lift Table 36 In. x 72 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		855
EHLT-3672-4-43 EHLT-3672-4-43Steel Electric Hydraulic Lift Table 36 In. x 72 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		893
EHLT-3672-5-44 EHLT-3672-5-44Steel Electric Hydraulic Lift Table 36 In. x 72 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Travel Time (sec.): 32		1181
EHLT-3672-6-44 EHLT-3672-6-44Steel Electric Hydraulic Lift Table 36 In. x 72 In. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Travel Time (sec.): 32		1172
EHLT-3672-8-44 EHLT-3672-8-44Steel Electric Hydraulic Lift Table 36 In. x 72 In. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Travel Time (sec.): 15		1827
EHLT-3684-4-56 EHLT-3684-4-56Steel Electric Hydraulic Lift Table 36 In. x 84 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Travel Time (sec.): 32		1441
EHLT-4048-3-43 EHLT-4048-3-43Steel Electric Hydraulic Lift Table 40 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		807

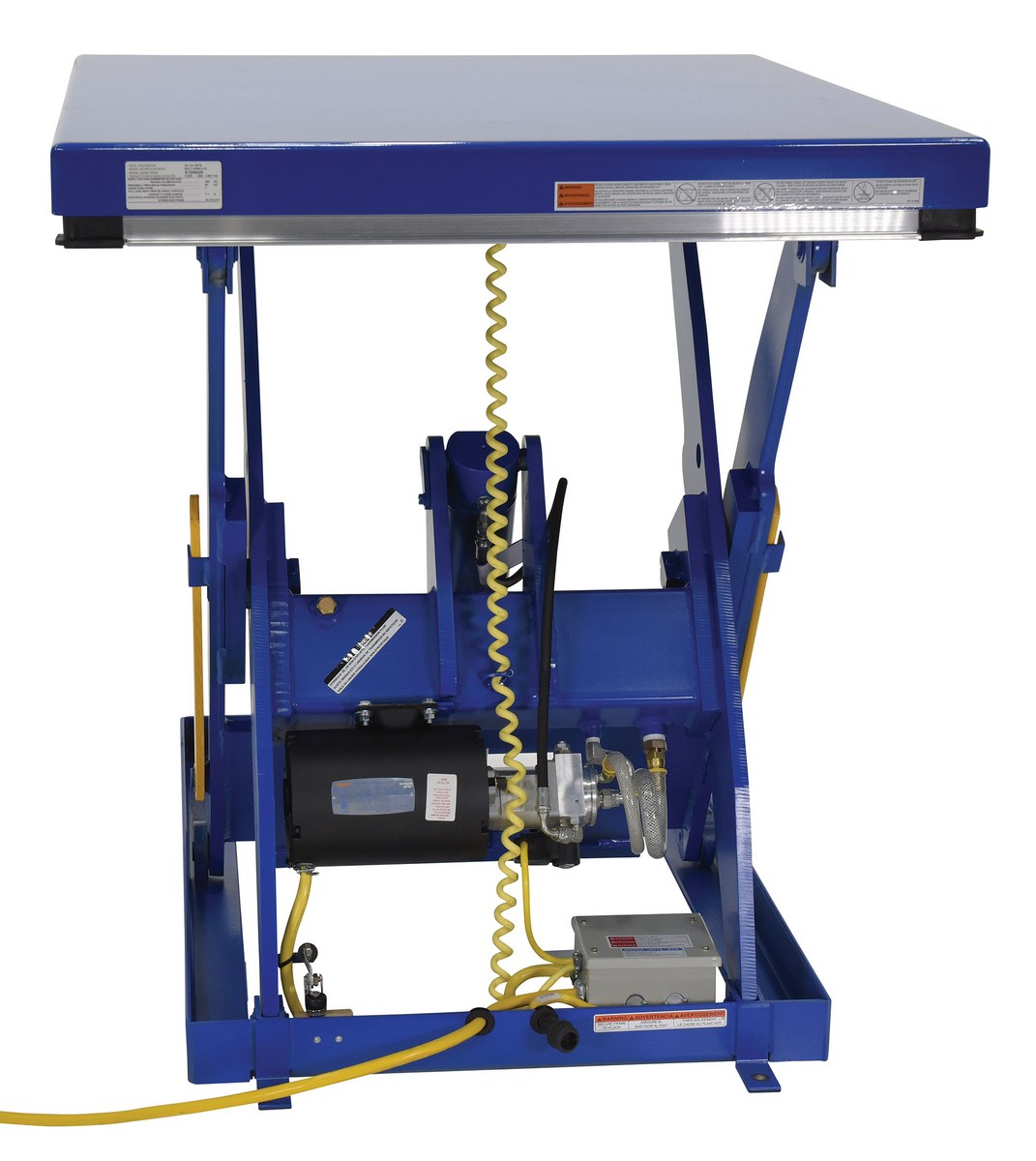

EHLT-4048-3-43-QS EHLT-4048-3-43-QSSteel Quick Ship Electric Hydraulic Lift Table 40 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		807

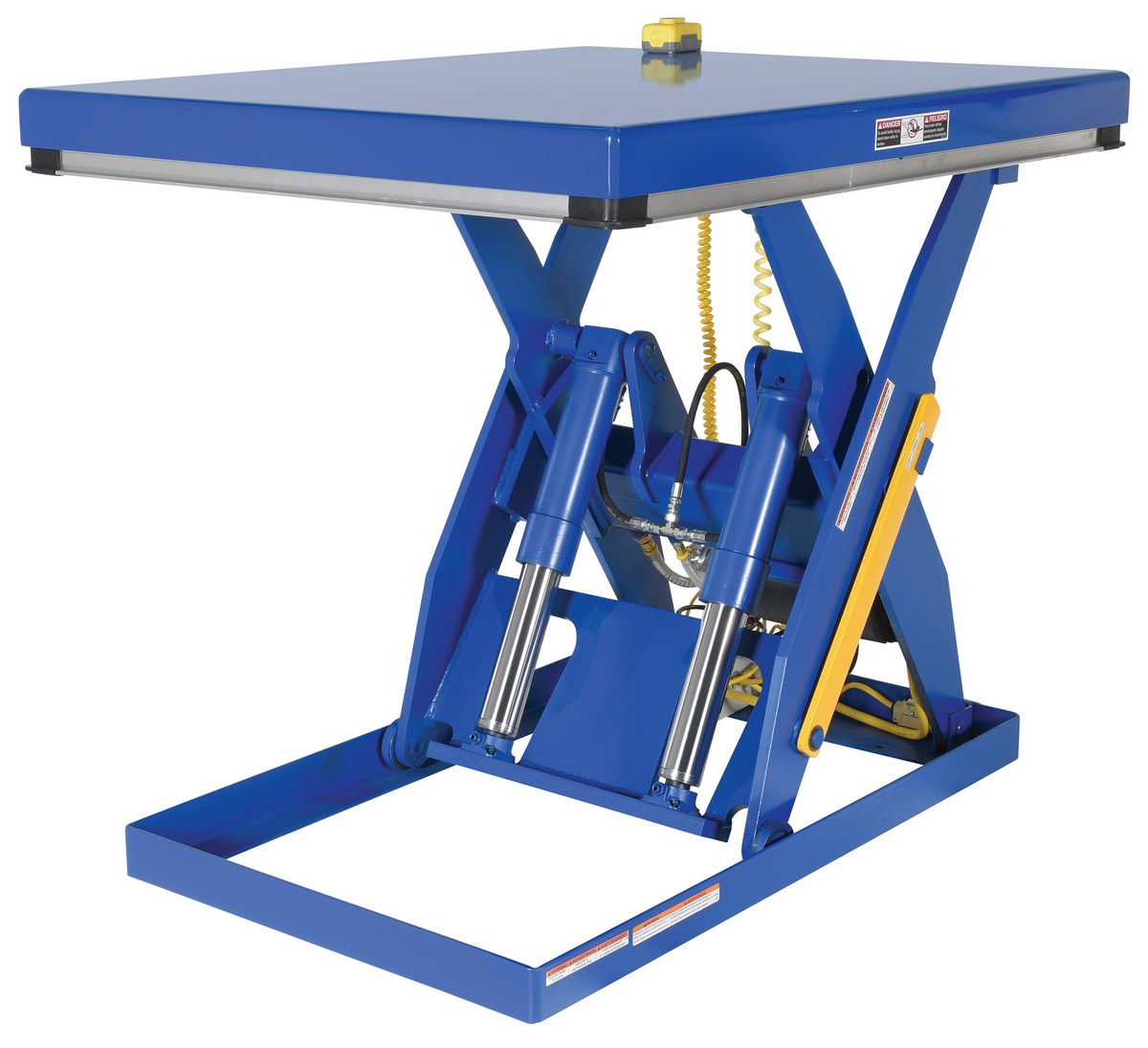

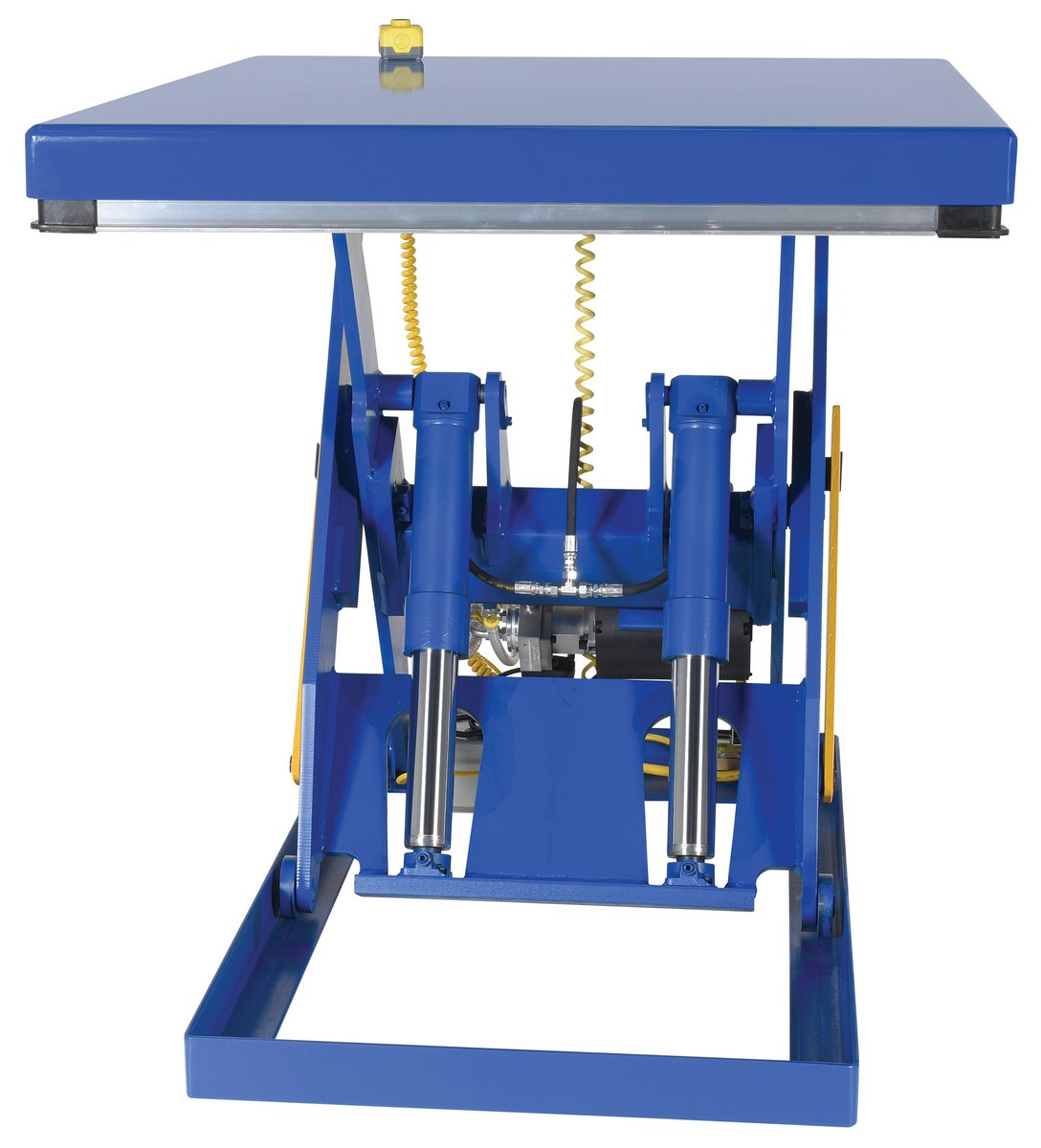

EHLT-4048-4-43 EHLT-4048-4-43Steel Electric Hydraulic Lift Table 40 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		878
EHLT-4048-4-43-QS EHLT-4048-4-43-QSSteel Quick Ship Electric Hydraulic Lift Table 40 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		878
EHLT-4848-1-43 EHLT-4848-1-43Steel Electric Hydraulic Lift Table 48 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Travel Time (sec.): 7		820
EHLT-4848-1-43-PSS EHLT-4848-1-43-PSSPartially Stainless Steel Electric Hydraulic Lift Table 48 In. x 48 In. 1000 Lb. Capacity White/SilverUniform Capacity (lb.): 1,000
Travel Time (sec.): 7		820
EHLT-4848-10-43 EHLT-4848-10-43Steel Electric Hydraulic Lift Table 48 In. x 48 In. 10000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Travel Time (sec.): 15		1719
EHLT-4848-12-43 EHLT-4848-12-43Steel Electric Hydraulic Lift Table 48 In. x 48 In. 12000 Lb. Capacity BlueUniform Capacity (lb.): 12000
Travel Time (sec.): 15		1720
EHLT-4848-2-43 EHLT-4848-2-43Steel Electric Hydraulic Lift Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 11		820
EHLT-4848-2-43-PSS EHLT-4848-2-43-PSSPartially Stainless Steel Electric Hydraulic Lift Table 48 In. x 48 In. 2000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 2,000
Travel Time (sec.): 11		820
EHLT-4848-3-43 EHLT-4848-3-43Steel Electric Hydraulic Lift Table 48 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		841
EHLT-4848-3-43-PSS EHLT-4848-3-43-PSSPartially Stainless Steel Electric Hydraulic Lift Table 48 In. x 48 In. 3000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		841
EHLT-4848-3-43-QS EHLT-4848-3-43-QSSteel Quick Ship Electric Hydraulic Lift Table 48 In. x 48 In. 3000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		841

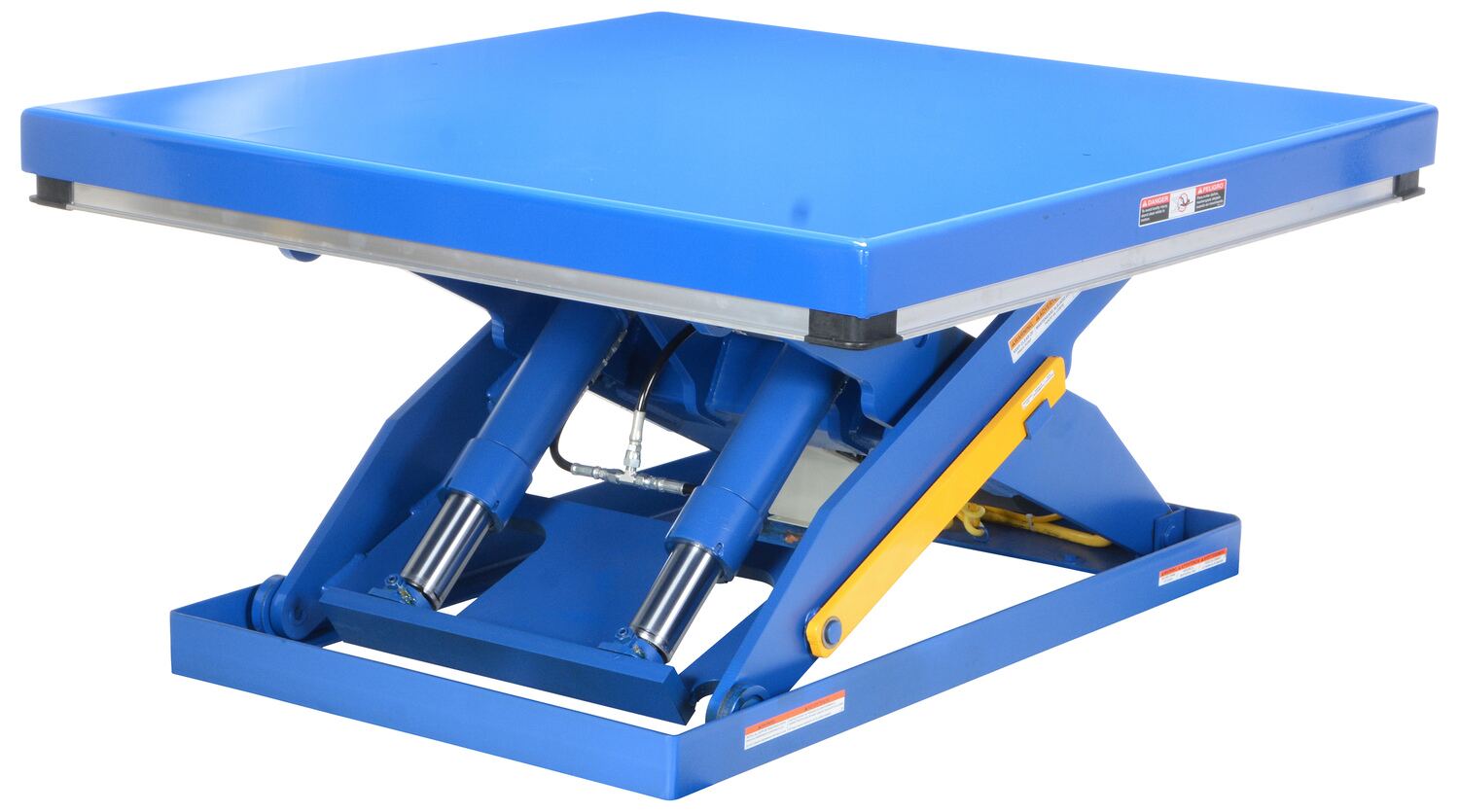

EHLT-4848-4-43 EHLT-4848-4-43Steel Electric Hydraulic Lift Table 48 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		918
EHLT-4848-4-43-PSS EHLT-4848-4-43-PSSPartially Stainless Steel Electric Hydraulic Lift Table 48 In. x 48 In. 4000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		918
EHLT-4848-4-43-QS EHLT-4848-4-43-QSSteel Quick Ship Electric Hydraulic Lift Table 48 In. x 48 In. 4000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		918
EHLT-4848-5-44 EHLT-4848-5-44Steel Electric Hydraulic Lift Table 48 In. x 48 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Travel Time (sec.): 32		1082
EHLT-4848-6-44 EHLT-4848-6-44Steel Electric Hydraulic Lift Table 48 In. x 48 In. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Travel Time (sec.): 32		1105

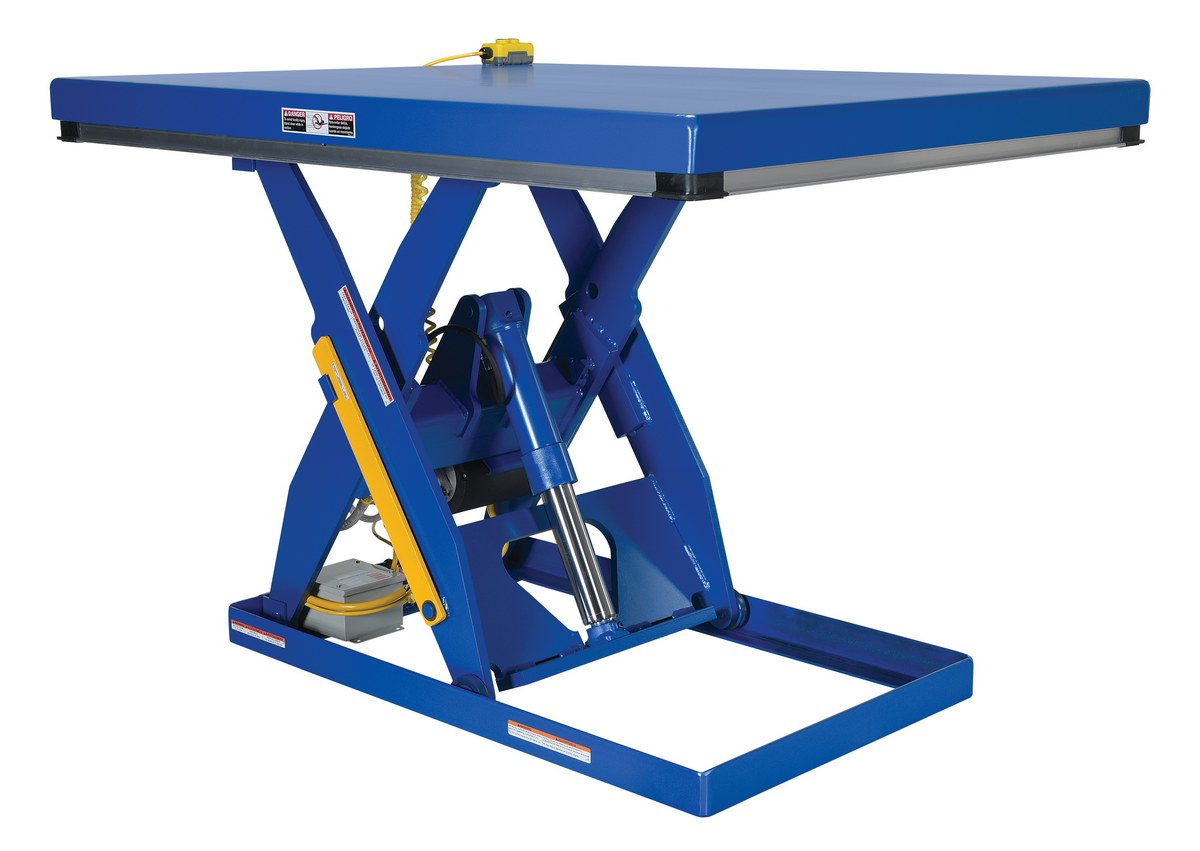

EHLT-4860-2-43 EHLT-4860-2-43Steel Electric Hydraulic Lift Table 48 In. x 60 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 11		868

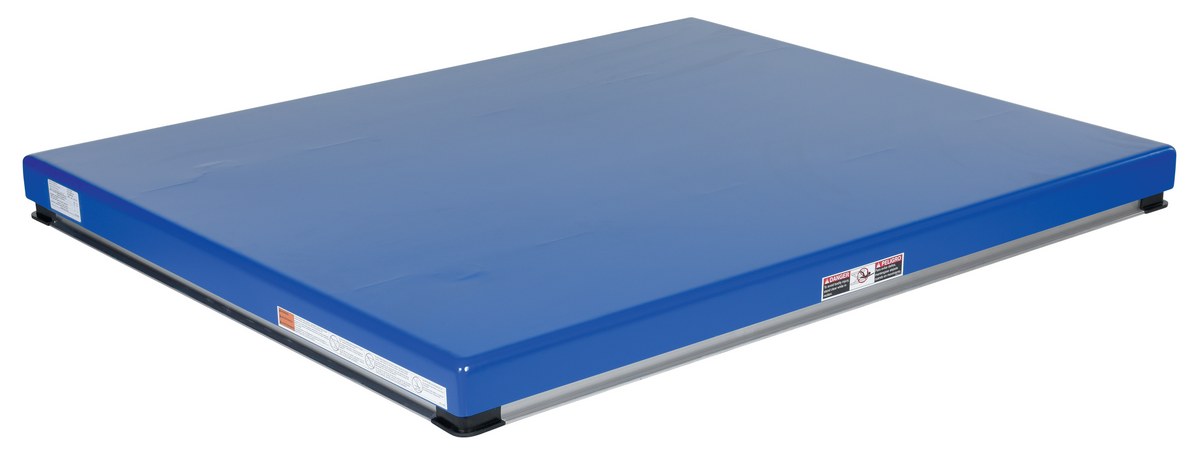

EHLT-4860-4-43 EHLT-4860-4-43Steel Electric Hydraulic Lift Table 48 In. x 60 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Travel Time (sec.): 22		914

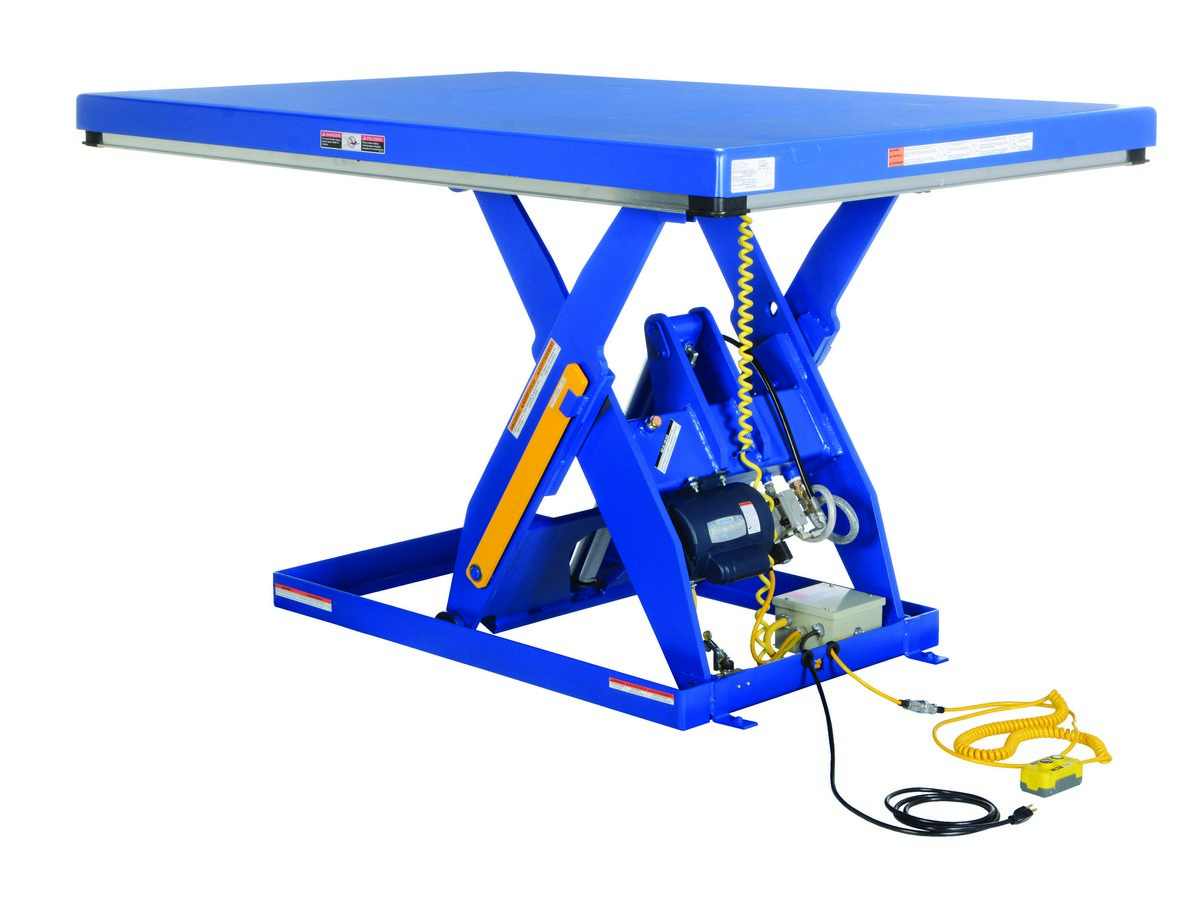

EHLT-4872-2-43 EHLT-4872-2-43Steel Electric Hydraulic Lift Table 48 In. x 72 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 11		843
EHLT-4872-3-43 EHLT-4872-3-43Steel Electric Hydraulic Lift Table 48 In. x 72 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		965
EHLT-4872-3-43-QS EHLT-4872-3-43-QSSteel Quick Ship Electric Hydraulic Lift Table 48 In. x 72 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		946

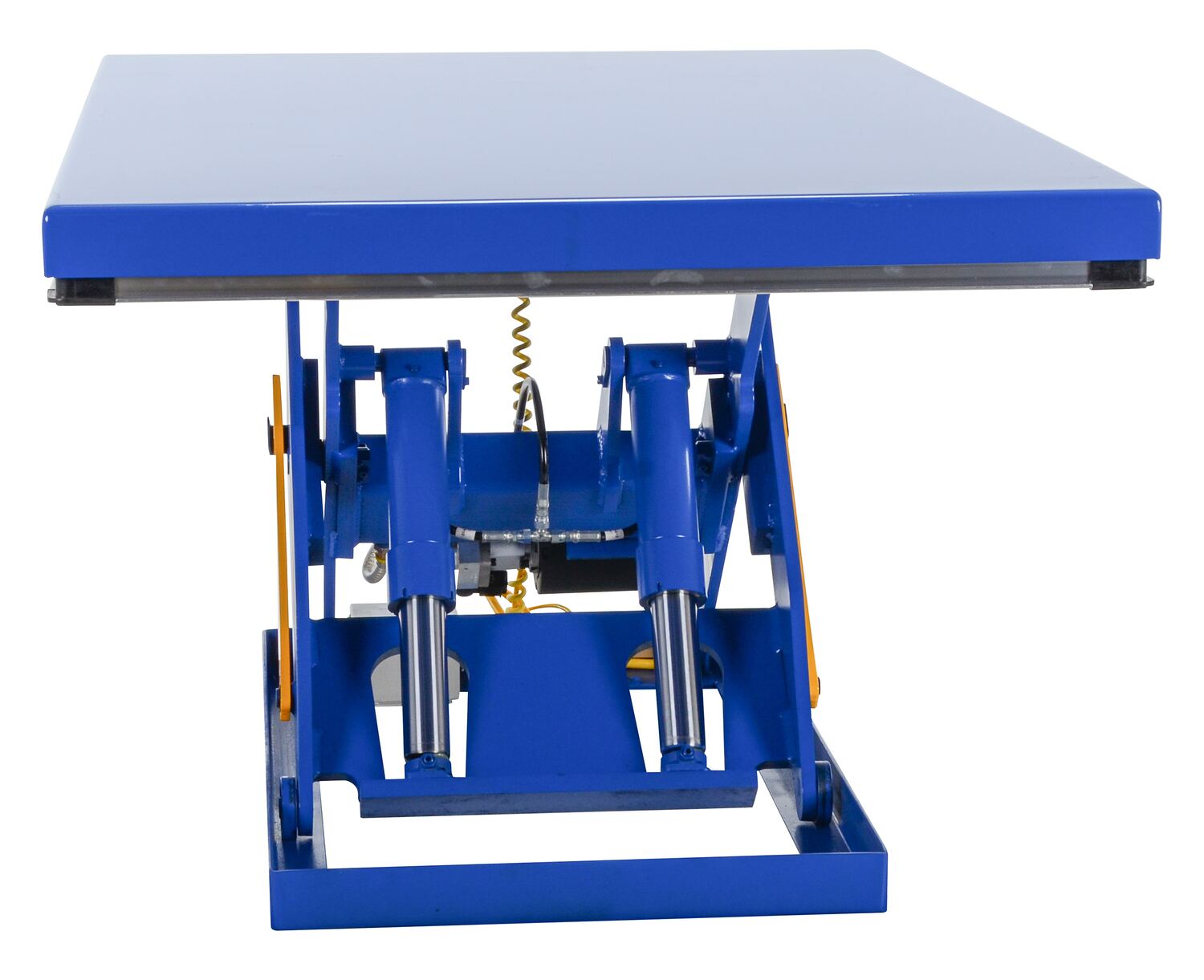

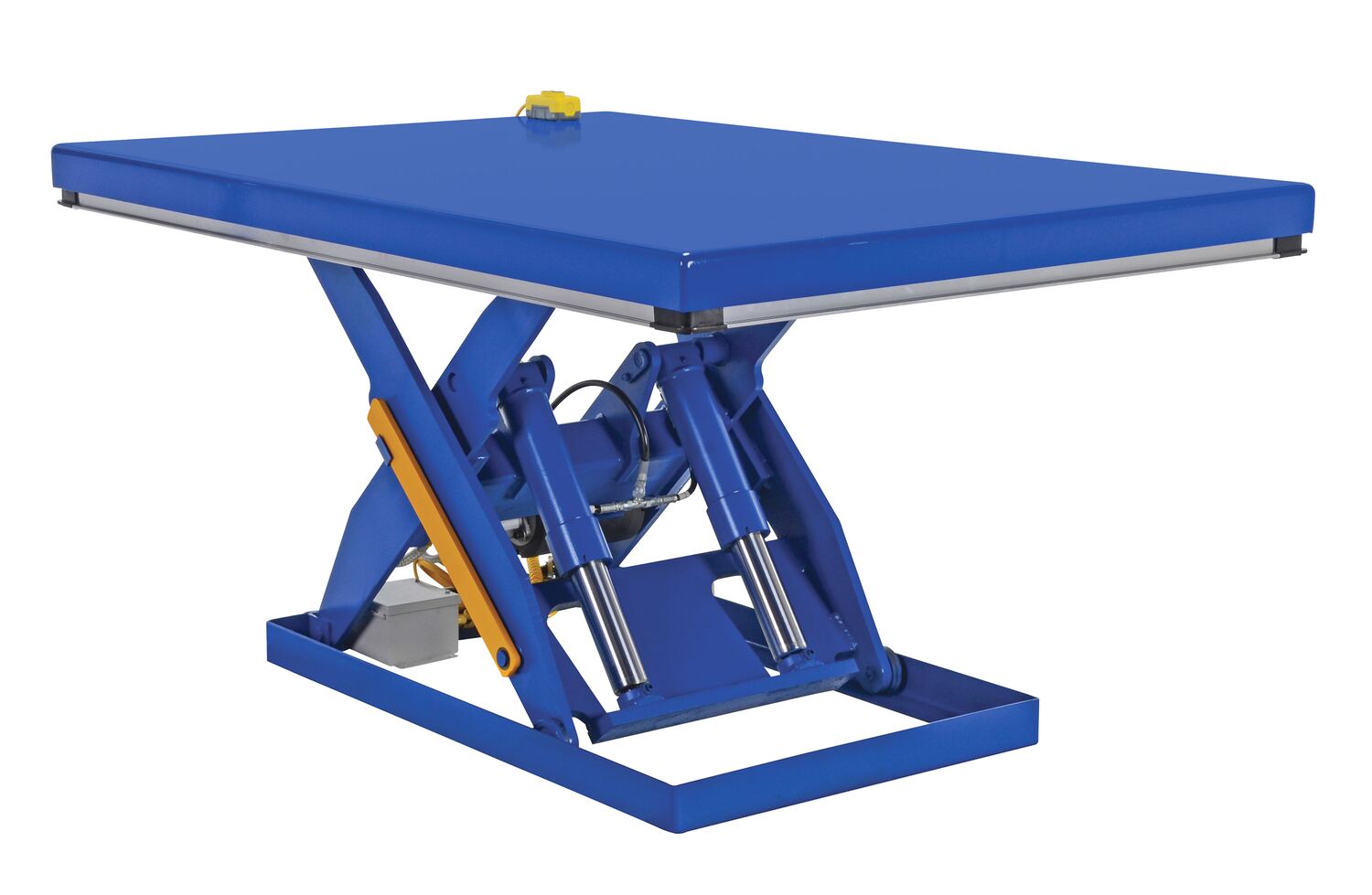

EHLT-4872-4-43 EHLT-4872-4-43Steel Electric Hydraulic Lift Table 48 In. x 72 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		962

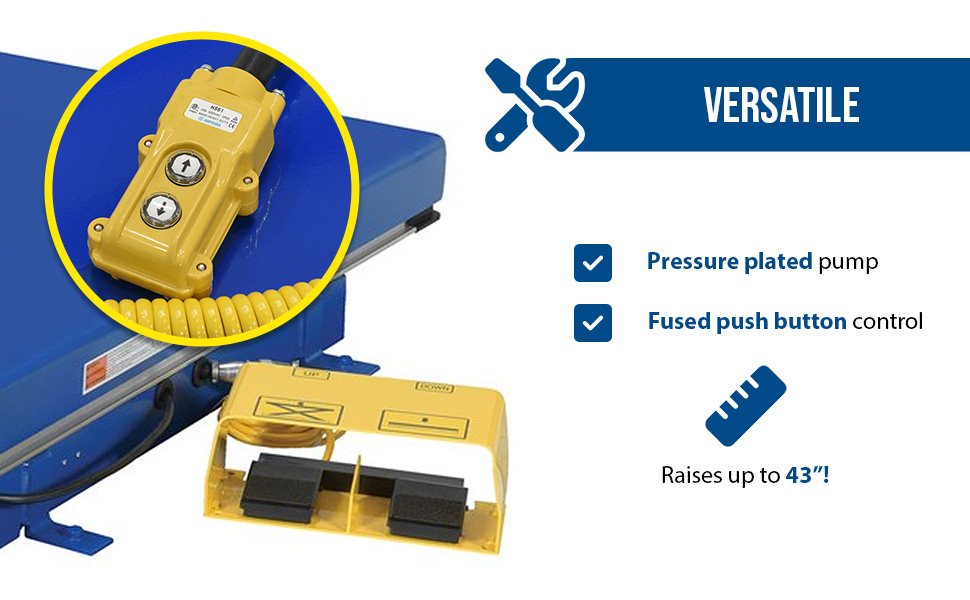

EHLT-4872-4-43-QS EHLT-4872-4-43-QSSteel Quick Ship Electric Hydraulic Lift Table 48 In. x 72 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Travel Time (sec.): 22		962

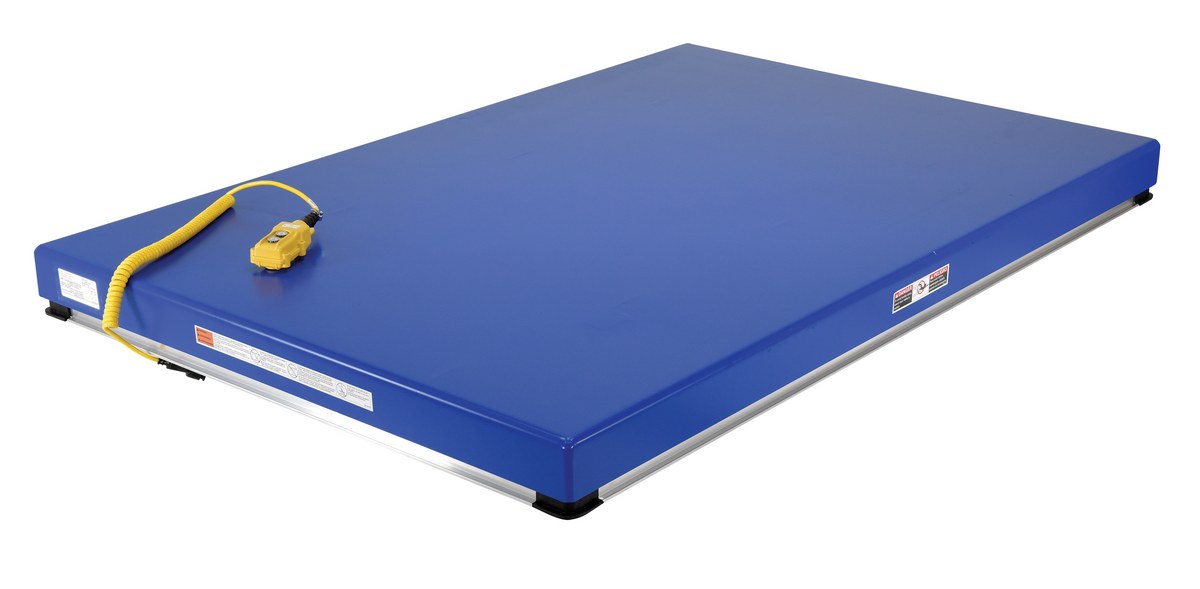

EHLT-4872-5-44 EHLT-4872-5-44Steel Electric Hydraulic Lift Table 48 In. x 72 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Travel Time (sec.): 32		1234
EHLT-4872-6-44 EHLT-4872-6-44Steel Electric Hydraulic Lift Table 48 In. x 72 In. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Travel Time (sec.): 32		1240
EHLT-4884-2-67 EHLT-4884-2-67Steel Electric Hydraulic Lift Table 48 In. x 84 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 14		1406
EHLT-4896-2-55 EHLT-4896-2-55Steel Electric Hydraulic Lift Table 48 In. x 96 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 16		1266
EHLT-4896-4-56 EHLT-4896-4-56Steel Electric Hydraulic Lift Table 48 In. x 96 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Travel Time (sec.): 32		1602
EHLT2448-2-43FC EHLT2448-2-43FCSteel Electric Hydraulic Lift Table with Foot Control 24 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Travel Time (sec.): 11		639
EHLT2448-3-43FC EHLT2448-3-43FCSteel Electric Hydraulic Lift Table with Foot Control 24 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Travel Time (sec.): 16		694
EHLT4848-2-43FC EHLT4848-2-43FCSteel Electric Hydraulic Lift Table with Foot Control 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Travel Time (sec.): 11		750

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
Options Available For Quick Ship Units
Model Description
VCC-115-1 VOLTAGE CHANGE TO 115V 1-PHASE AC POWER
VCC-208/230-1 VOLTAGE CHANGE TO 208-230V 1-PHASE AC POWER
VCC-208/230-3 VOLTAGE CHANGE TO 208-230V 3-PHASE AC POWER
FC-2 OPTIONAL TWO PEDAL FOOT CONTROL ON 8' CORD
ADDL-FC-2 Additional OPTIONAL TWO PEDAL FOOT CONTROL ON 8' Cord (when purchased with a standard hand control)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
