VWS-770-AA-DC

Printer Friendly
Available
VWS-770-AA-DC
VWS-770-AA-DC VWS-770-AA-DC VWS-770-AA-DC VWS-770-AA-DC VWS-770-AA-DC VWS-770-AA-DC VWS-770-AA-DC

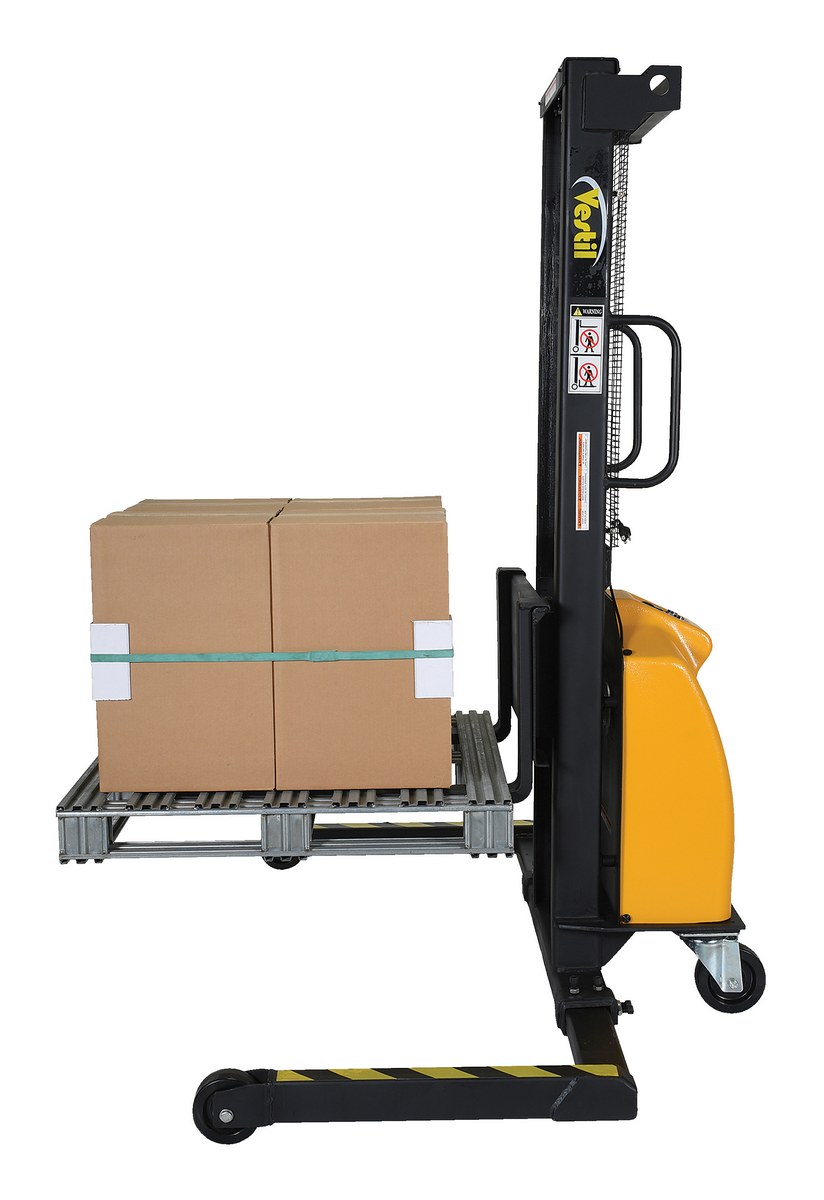

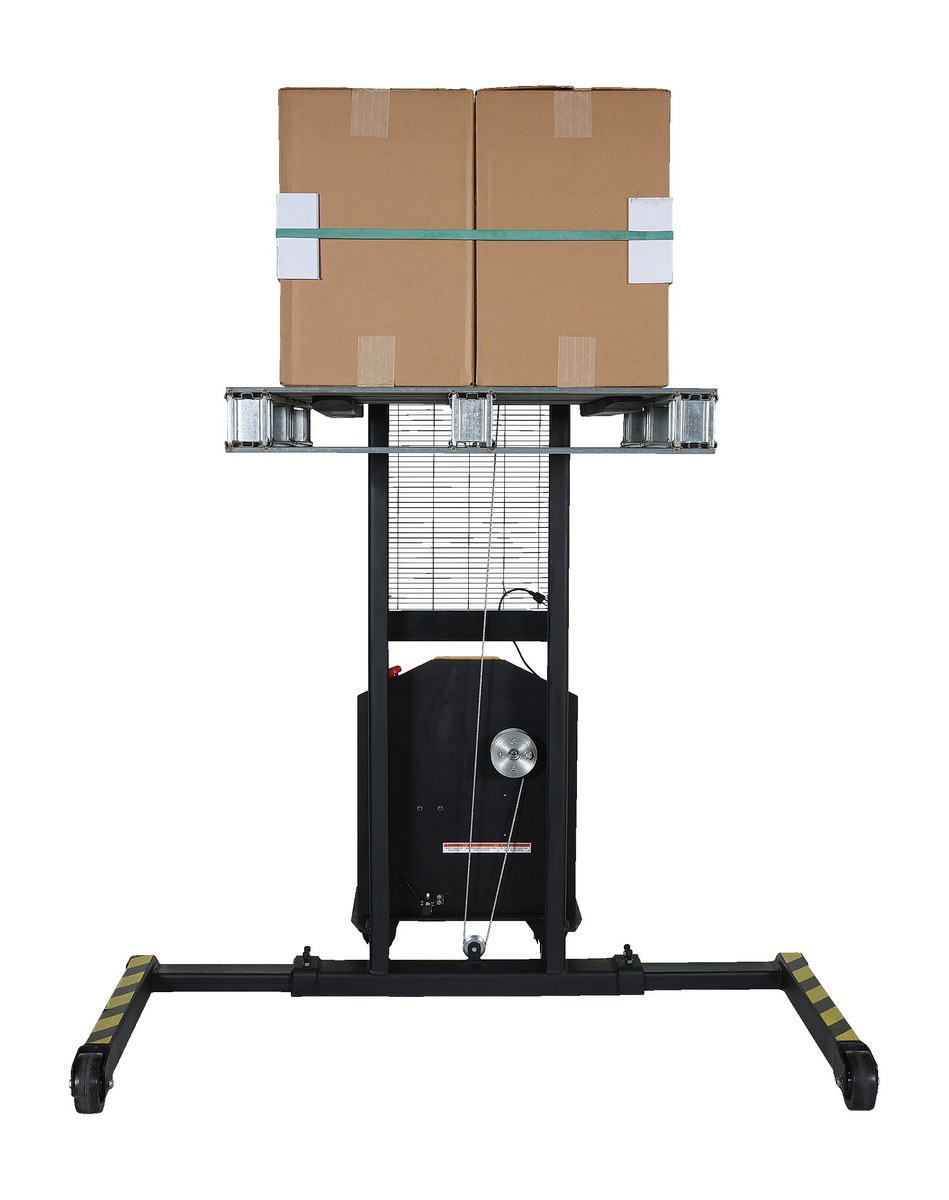

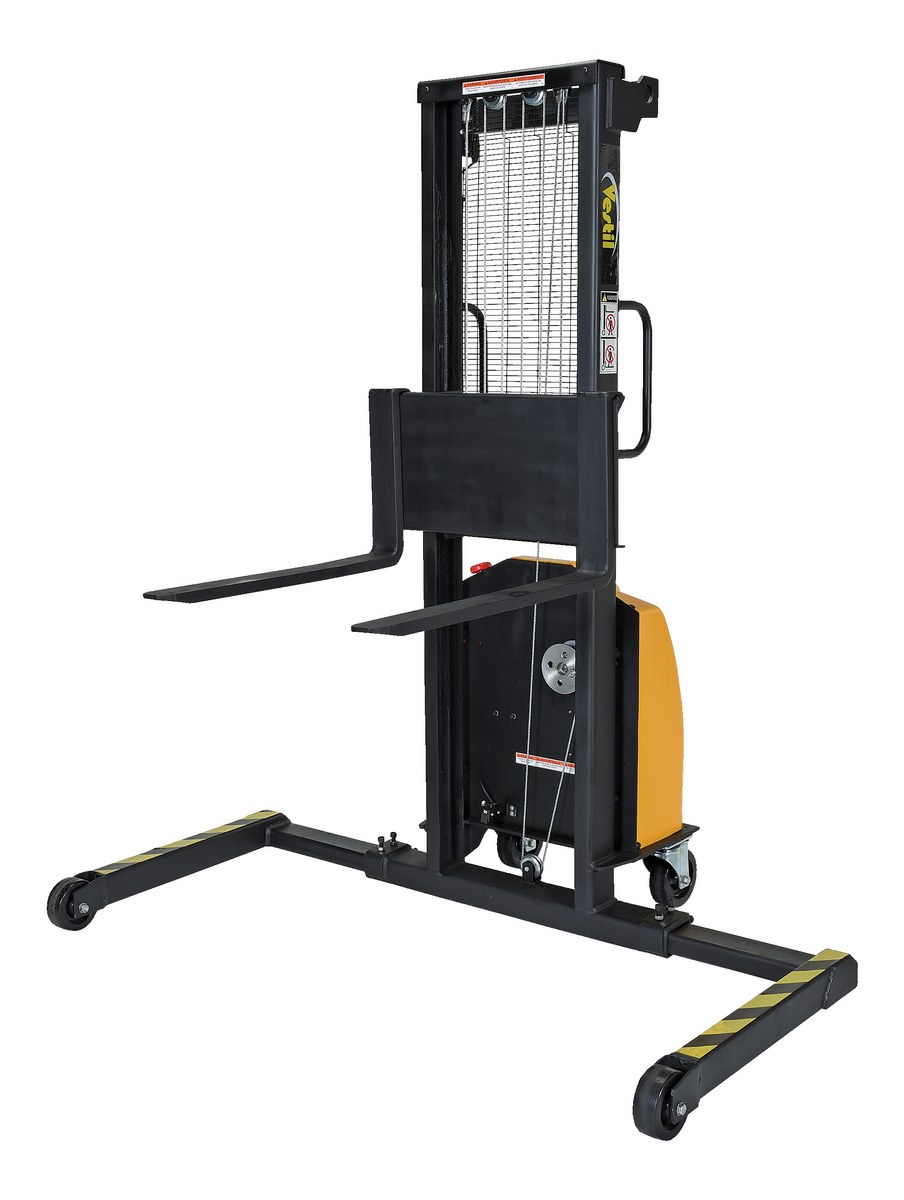

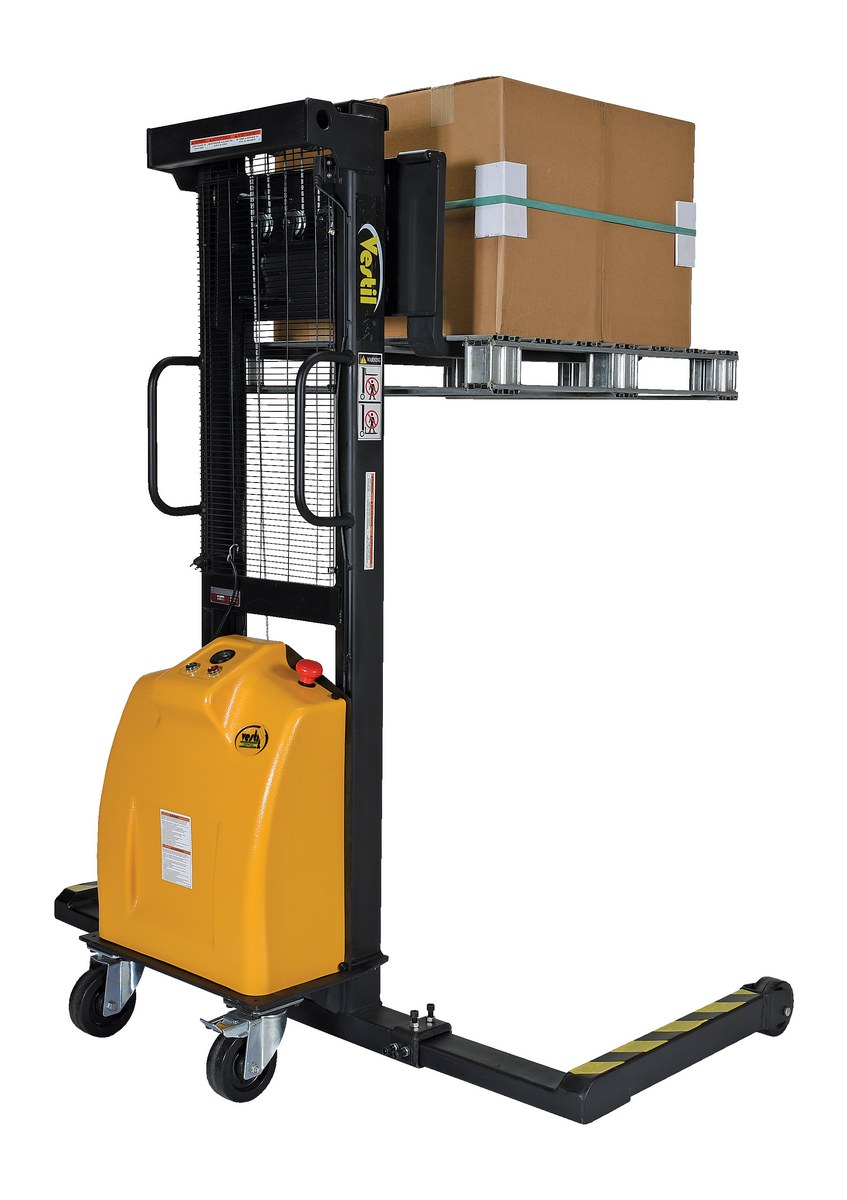

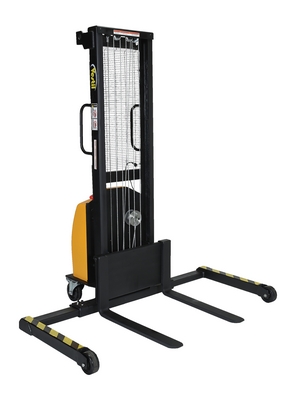

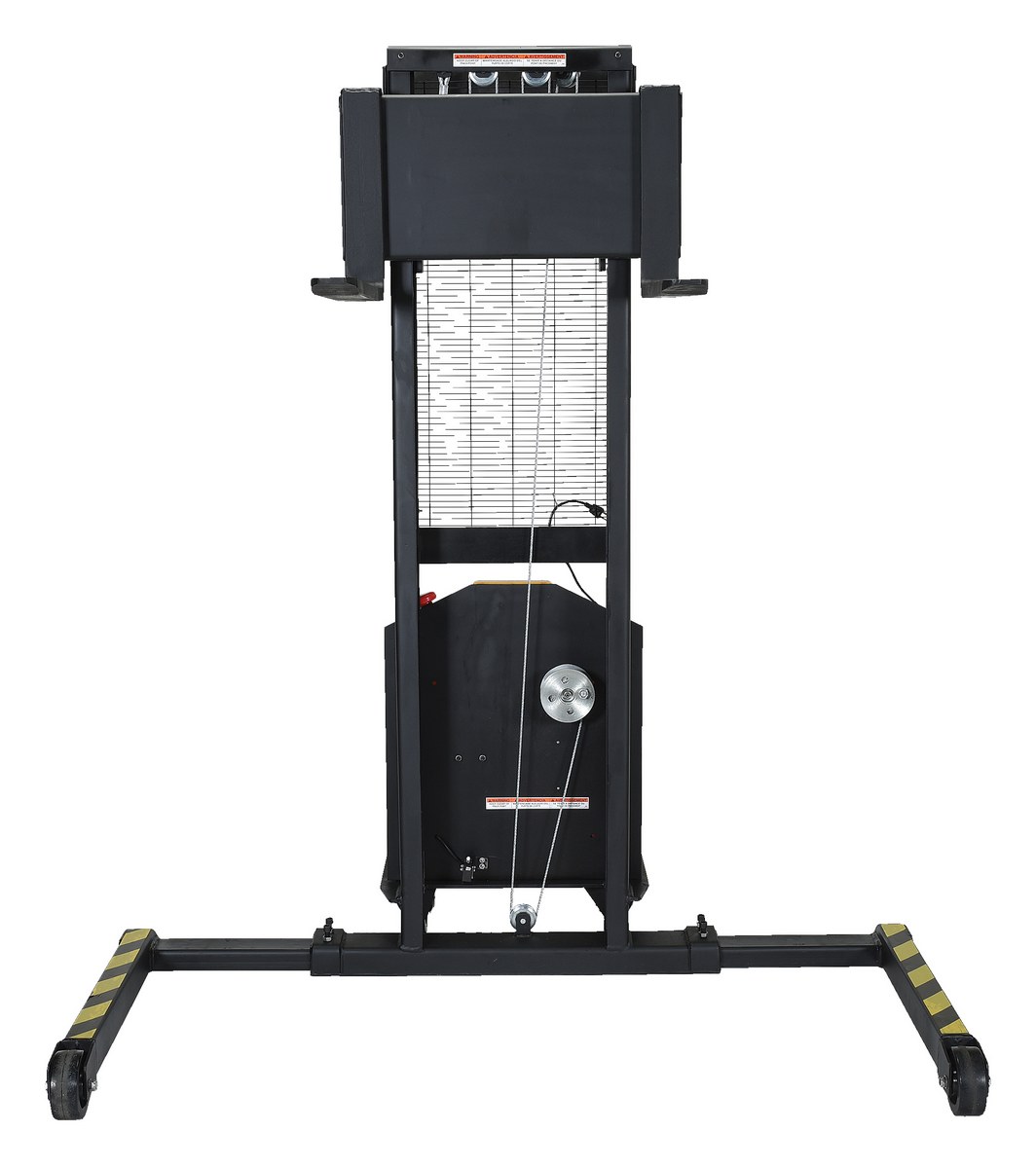

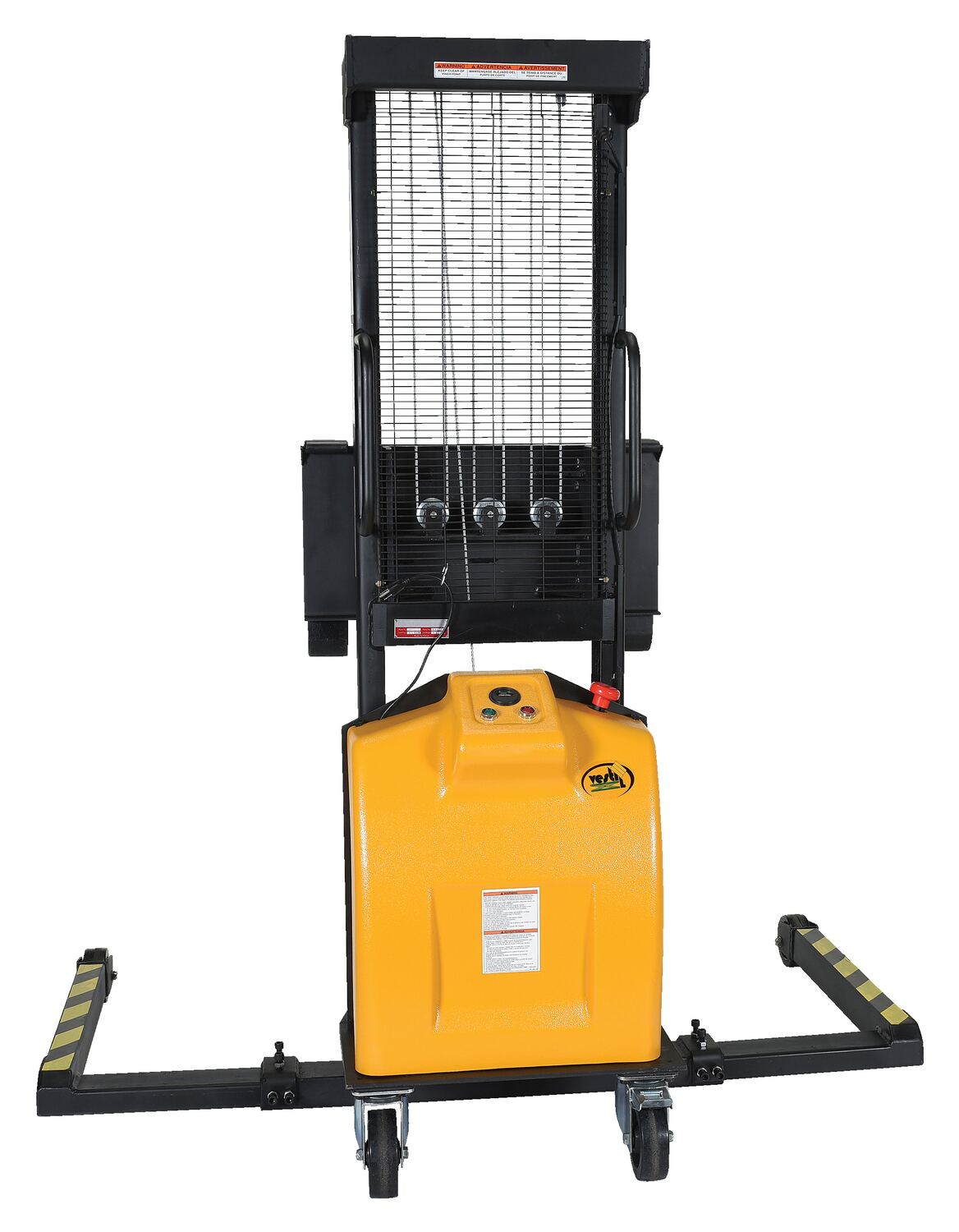

Steel Stacker with Adjustable DC Powered Winch 770 Lb. Capacity Black / Yellow

The electric winch stacker features a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. A full height push-handle is included for easy steering and excellent visibility through welded mesh guard. The unit rolls smoothly on two rigid and two swivel wheels with brakes for easy maneuvering.

  • Adjustable forks for full grasp
  • Ergonomic handle for full posture transferring
  • DC operated for constant power supply
  • (2) 12V batteries
Assembled Wt.(lbs.): 492 Assembled Size: 45"W x 48"L x 78"H

Total Ship Wt.(lbs.): 566 (only 1 package) Package 1 Size: 45"W x 64"D x 85"H Color: Black / Yellow

Uniform Capacity (lb.): 770 Lowered Height (in.): 1-9/16 Raised Height (in.): 59
Horizontal Load Center (in.): 24 Straddle Leg Minimum (in.): 35-1/2 (I.D) Straddle Leg Maximum (in.): 47-1/4 (I.D)
Fork Adjustment Minimum (in.): 6 (O.D) Fork Adjustment Maximum (in.): 24 (O.D) Caster Material: Phenolic
(2) Rigid Front Caster Diameter (in.): 4 (2) Swivel with Brake Rear Casters Diameter (in.): 6 Fork Length (in.): 30
Operation: DC Winch Battery Quantity/Volts: (2) 12V Lifting Speed Loaded (seconds): 3.35
Lifting Speed unloaded (seconds): 4.34

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VWS-770-AA-DC
Available
VWS-770-AA-DC

Steel Stacker with Adjustable DC Powered Winch 770 Lb. Capacity Black / Yellow

The electric winch stacker features a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. A full height push-handle is included for easy steering and excellent visibility through welded mesh guard. The unit rolls smoothly on two rigid and two swivel wheels with brakes for easy maneuvering.

  • Adjustable forks for full grasp
  • Ergonomic handle for full posture transferring
  • DC operated for constant power supply
  • (2) 12V batteries
Dimensions: 45"W x 48"L x 78"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215118248 GTIN: 00691215118248
Warranty: -- Shipping Weight: 566 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 770 Lowered Height (in.): 1-9/16 Raised Height (in.): 59
Horizontal Load Center (in.): 24 Straddle Leg Minimum (in.): 35-1/2 (I.D) Straddle Leg Maximum (in.): 47-1/4 (I.D)
Fork Adjustment Minimum (in.): 6 (O.D) Fork Adjustment Maximum (in.): 24 (O.D) Caster Material: Phenolic
(2) Rigid Front Caster Diameter (in.): 4 (2) Swivel with Brake Rear Casters Diameter (in.): 6 Fork Length (in.): 30
Operation: DC Winch Battery Quantity/Volts: (2) 12V Lifting Speed Loaded (seconds): 3.35
Lifting Speed unloaded (seconds): 4.34
