SPG-26-G

Printer Friendly
Available
SPG-26-G
SPG-26-G SPG-26-G SPG-26-G

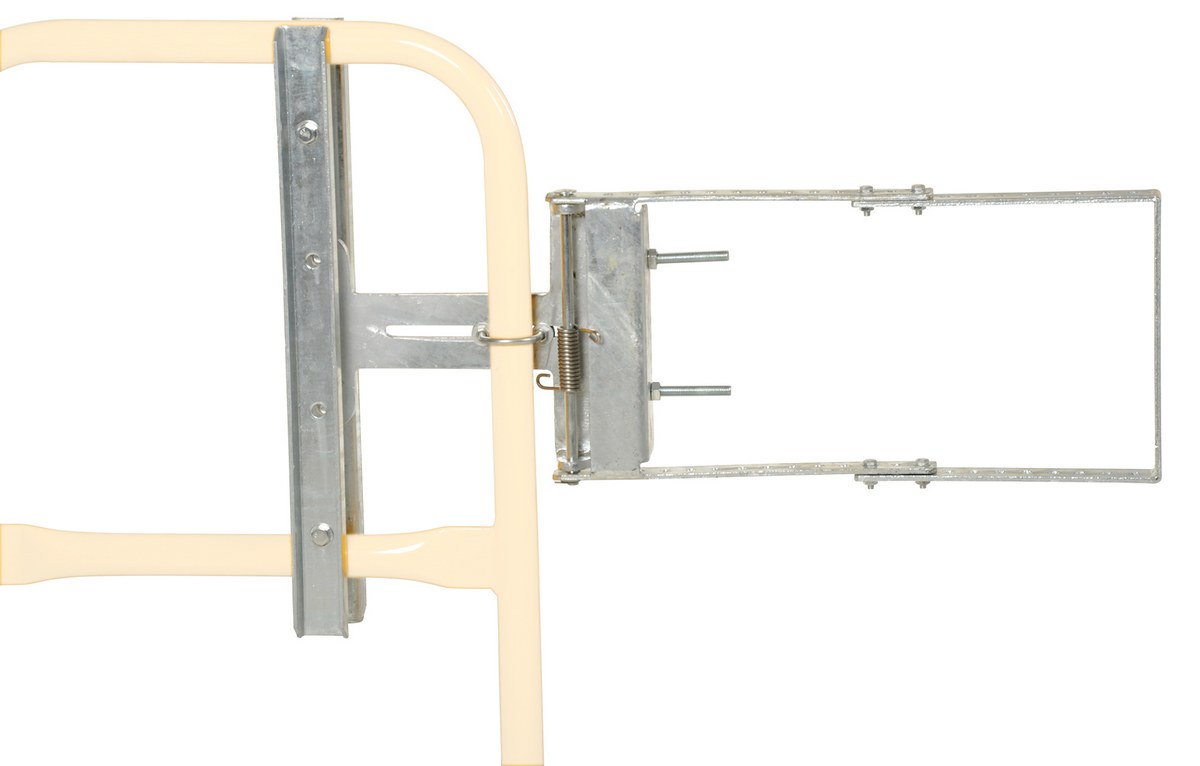

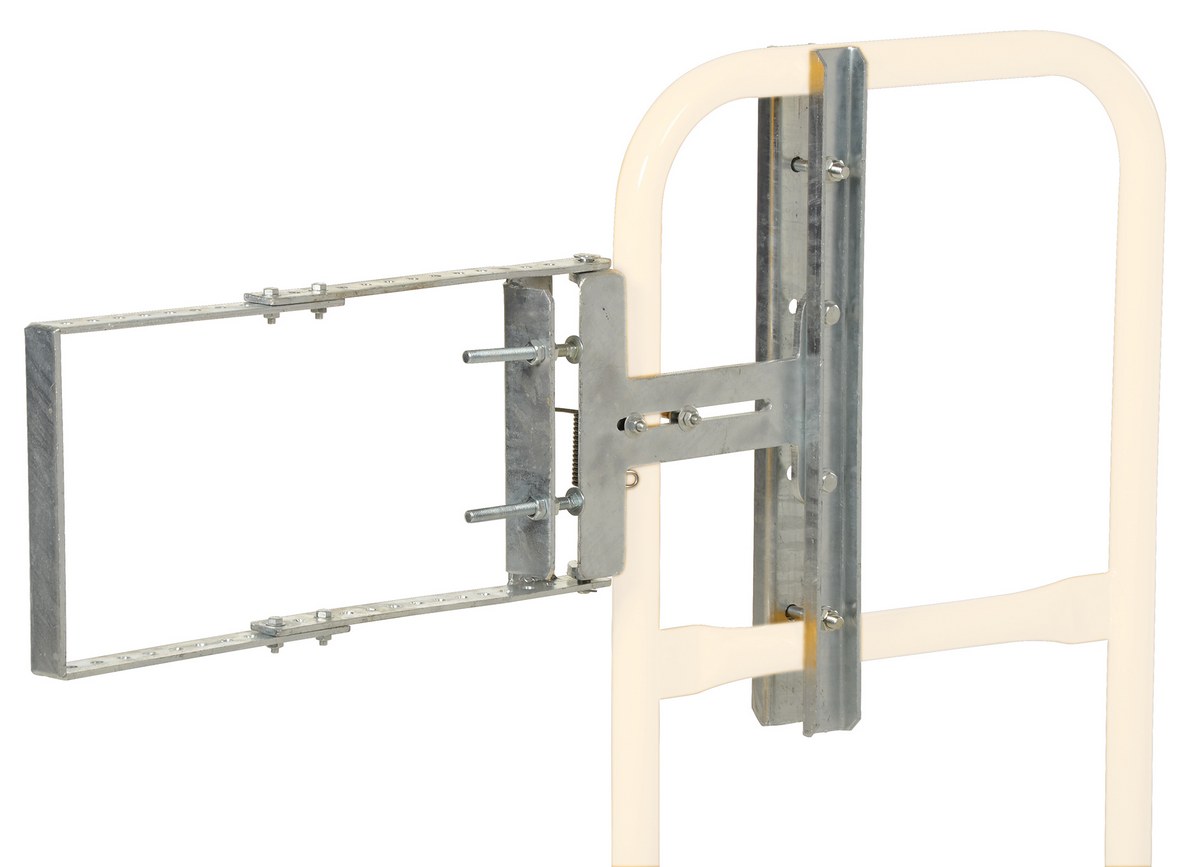

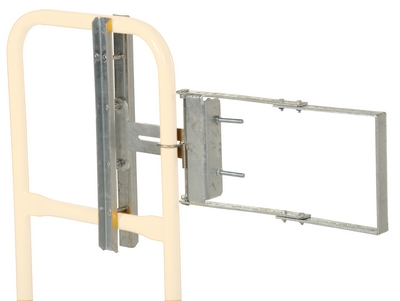

Galvanized Steel Self-Closing Gate 16 In. to 26 In. Opening Gray

Customize your safety railings with a self-closing steel gate. The gate can be mounted from the left or right with the included mounting hardware. Mount to horizontal rails. Galvanized finish. (Railing and base not included.).

  • Spring-loaded safety gate protects openings in railings
  • Perfect for rails spaced 10"-21" apart, from center to center
  • Adjustable gate width is quick and easy to adjust
  • Complies with OSHA 1910.28(b)(3)(iv) requirements

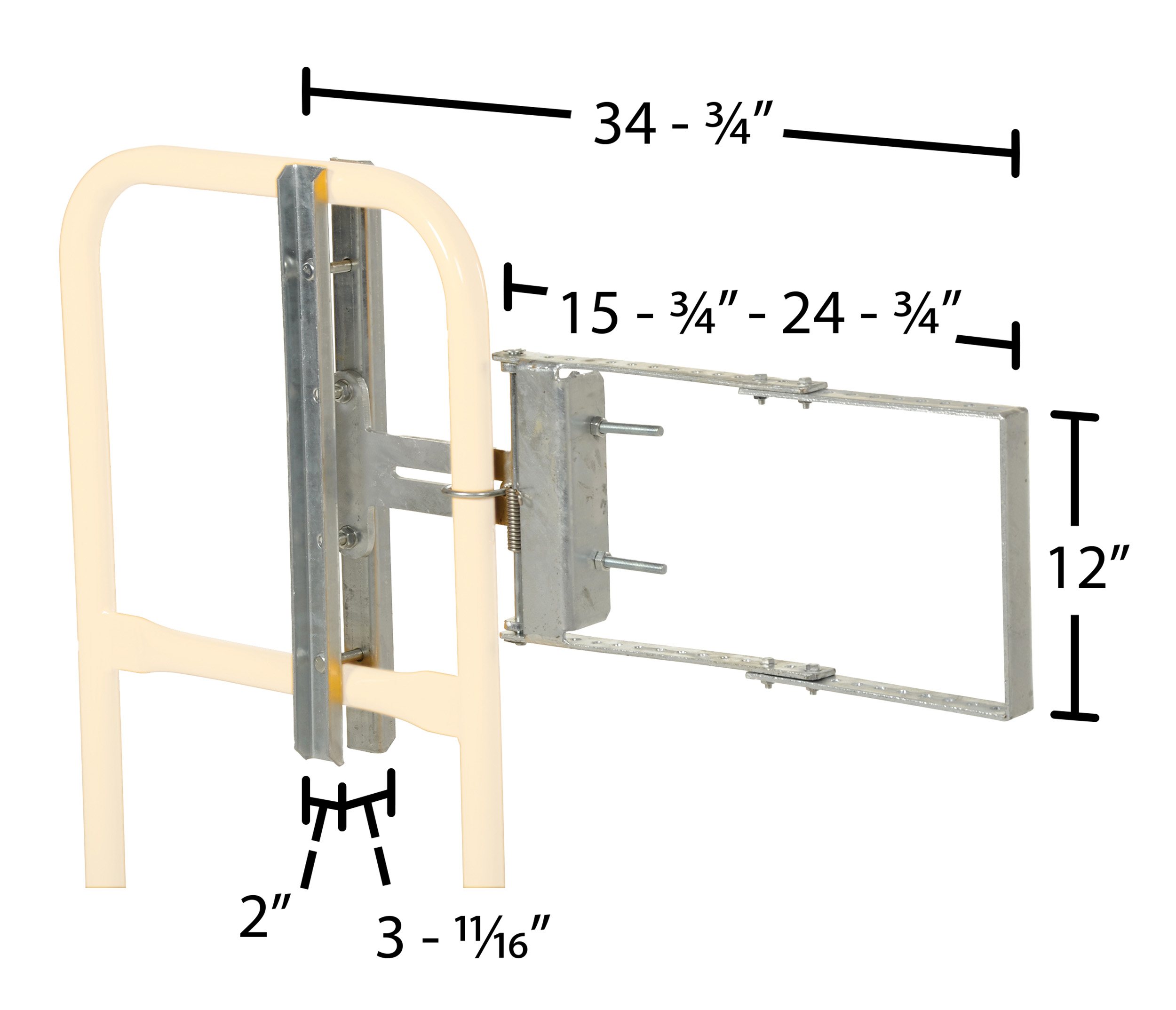

Assembled Wt.(lbs.): 30 Assembled Size: 3.6875"W x 34.75"L x 24"H

Total Ship Wt.(lbs.): 30 (only 1 package) Package 1 Size: 14"W x 28"D x 4"H Color: Gray

Minimum Opening (in.): 16 Maximum Opening Width (in.): 26 Mount to Rail, Maximum Diameter (in.): 2
Mount Rail Spacing Center to Center (in.): 10 to 21 Gate Height (in.): 12 OSHA: 1910.23A

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: SPG-26-G
Available
SPG-26-G

Galvanized Steel Self-Closing Gate 16 In. to 26 In. Opening Gray

Customize your safety railings with a self-closing steel gate. The gate can be mounted from the left or right with the included mounting hardware. Mount to horizontal rails. Galvanized finish. (Railing and base not included.).

  • Spring-loaded safety gate protects openings in railings
  • Perfect for rails spaced 10"-21" apart, from center to center
  • Adjustable gate width is quick and easy to adjust
  • Complies with OSHA 1910.28(b)(3)(iv) requirements
Dimensions: 3.6875"W x 34.75"L x 24"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215062619 GTIN: 00691215062619
Warranty: -- Shipping Weight: 30 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Minimum Opening (in.): 16 Maximum Opening Width (in.): 26 Mount to Rail, Maximum Diameter (in.): 2
Mount Rail Spacing Center to Center (in.): 10 to 21 Gate Height (in.): 12 OSHA: 1910.23A
