RT-NMS-60-AF

Printer Friendly
Available
RT-NMS-60-AF
RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF RT-NMS-60-AF

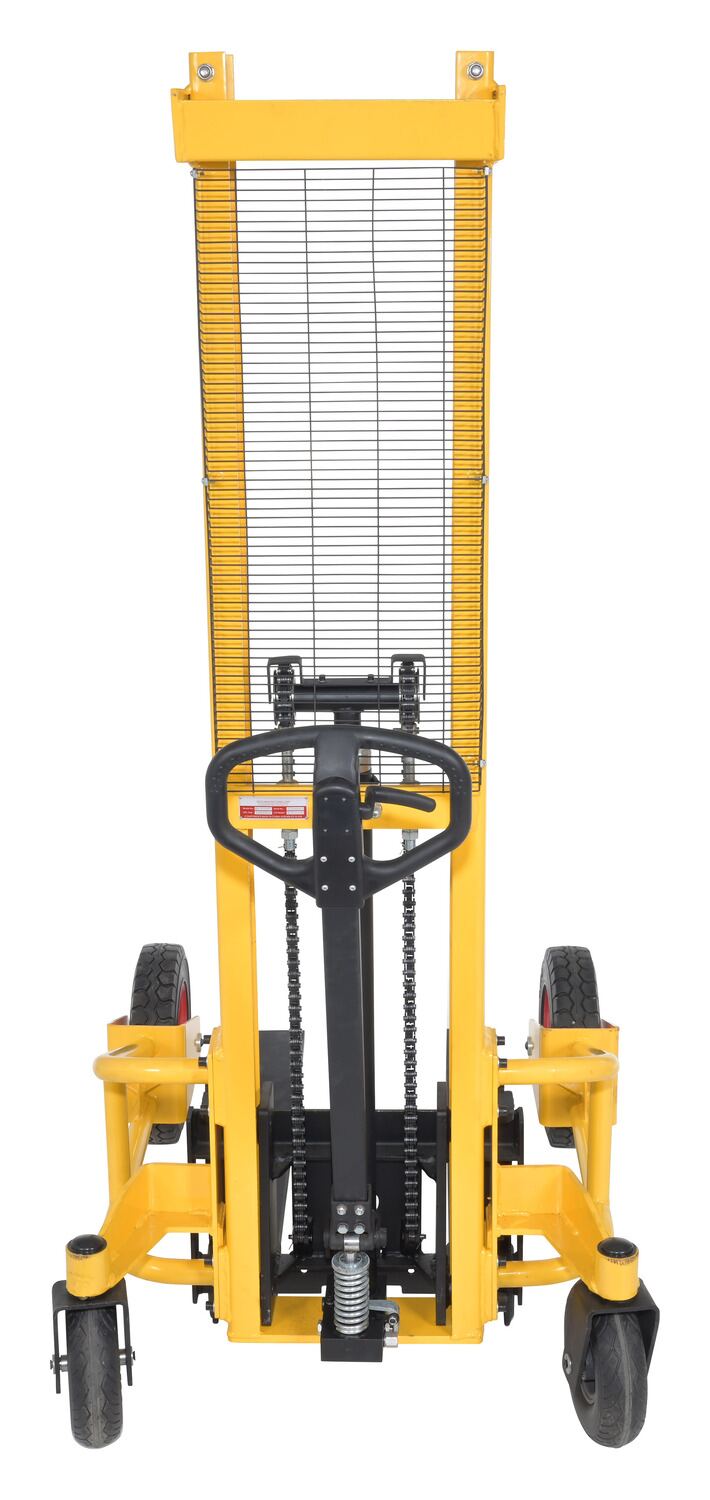

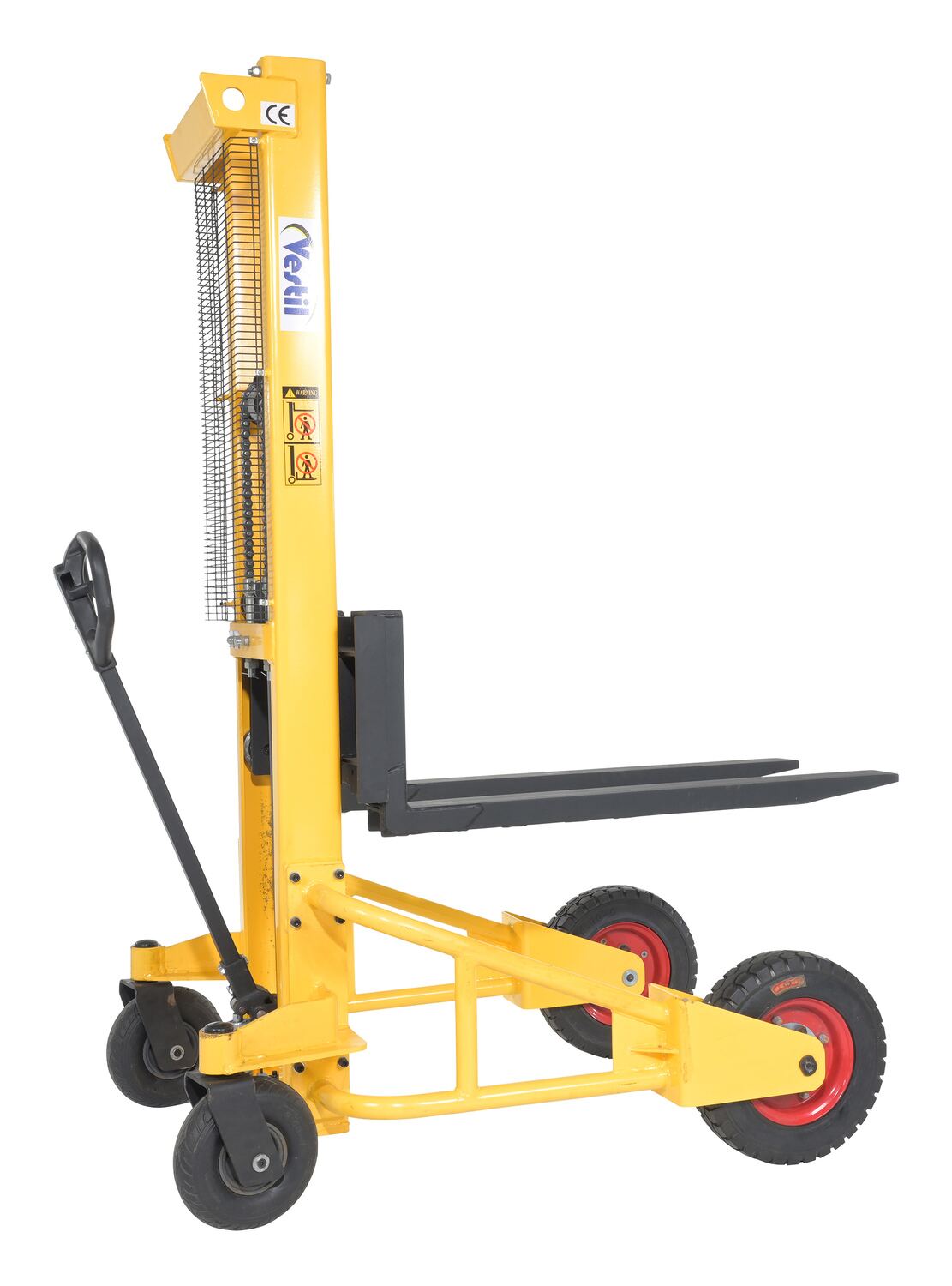

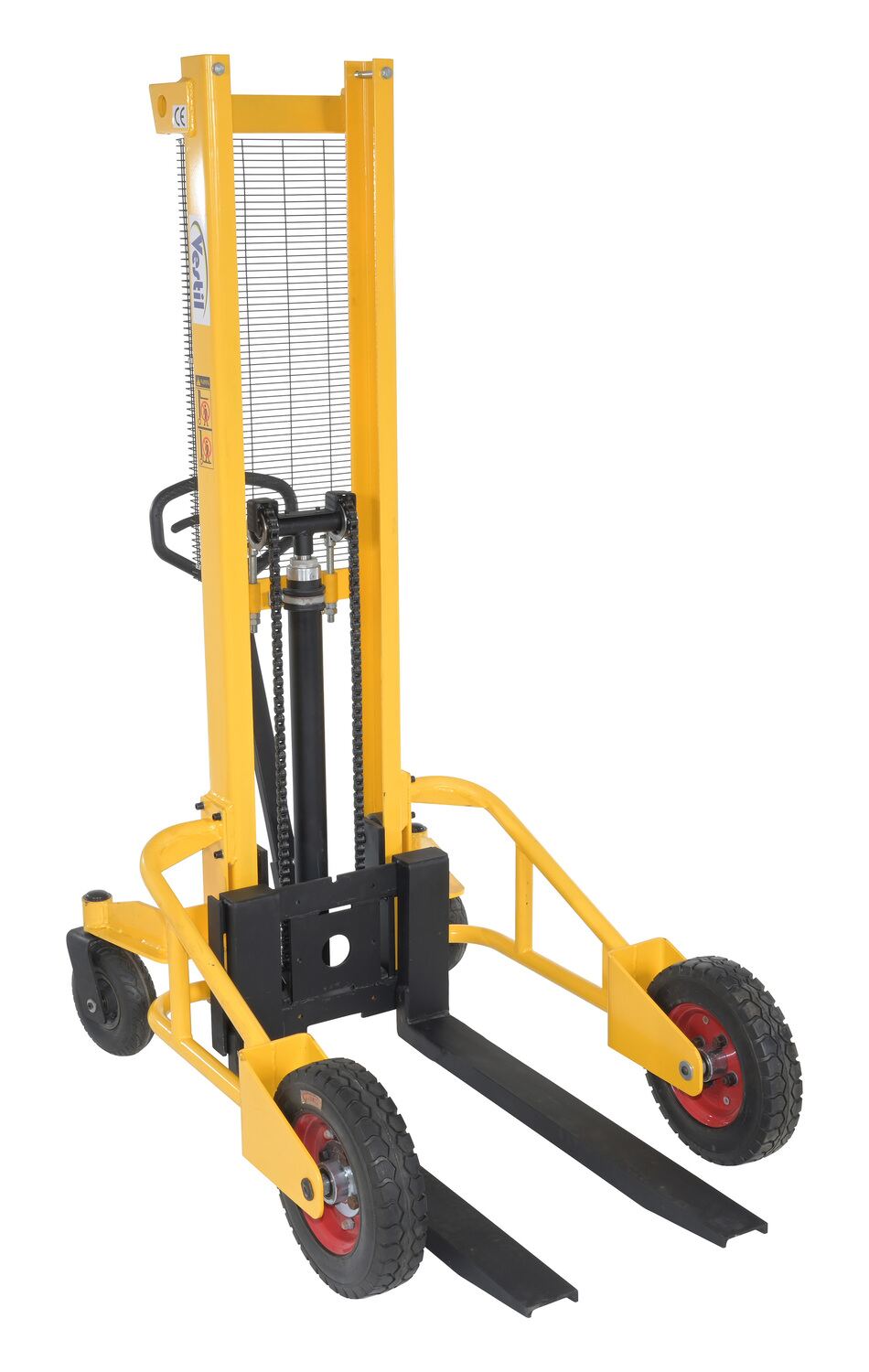

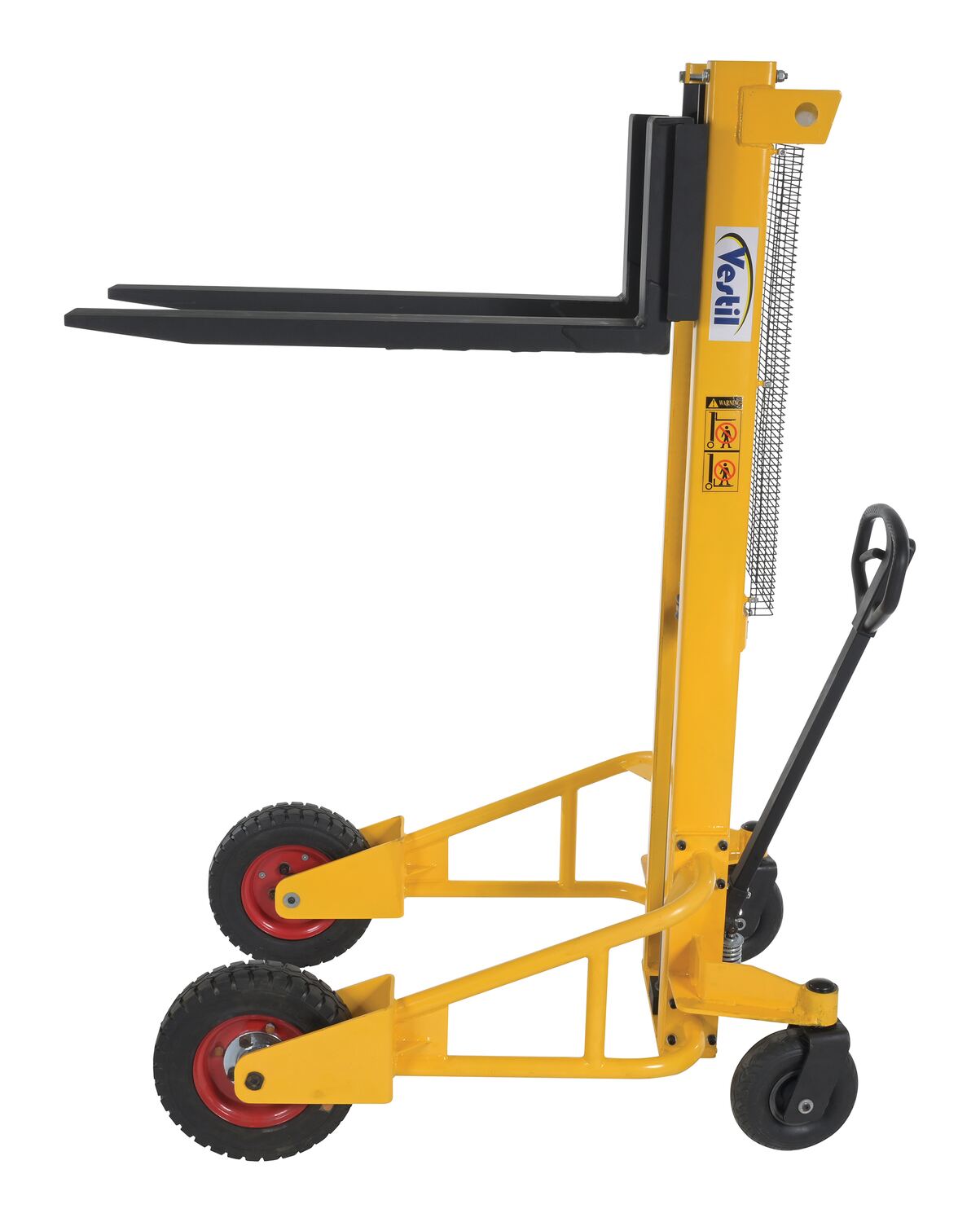

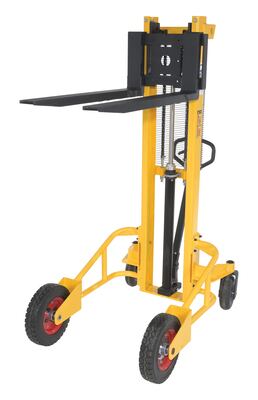

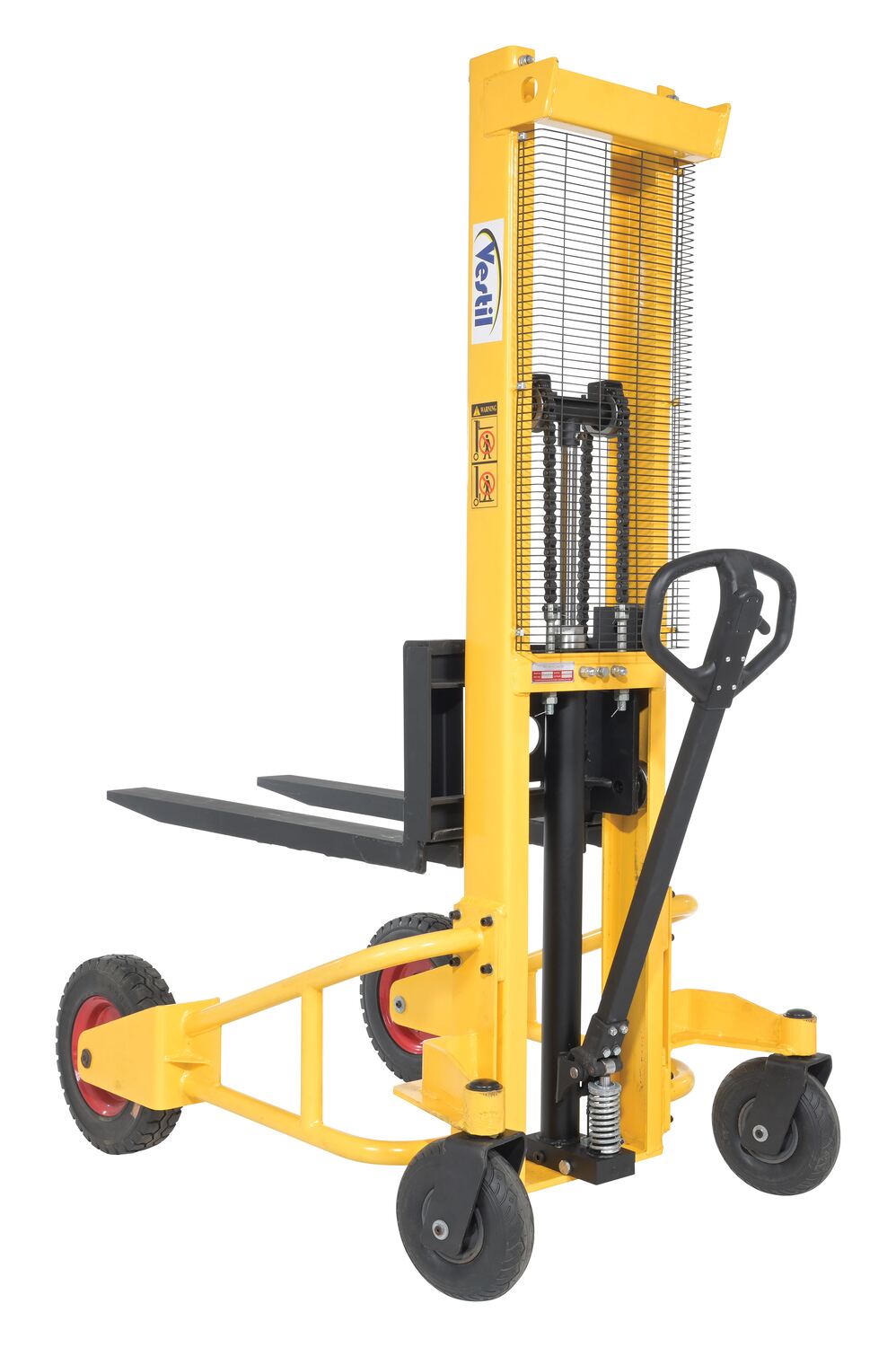

Steel Narrow Manual Rough Terrain Stacker 59 In. Raised Height 1,500 Lb. Capacity Yellow/Black

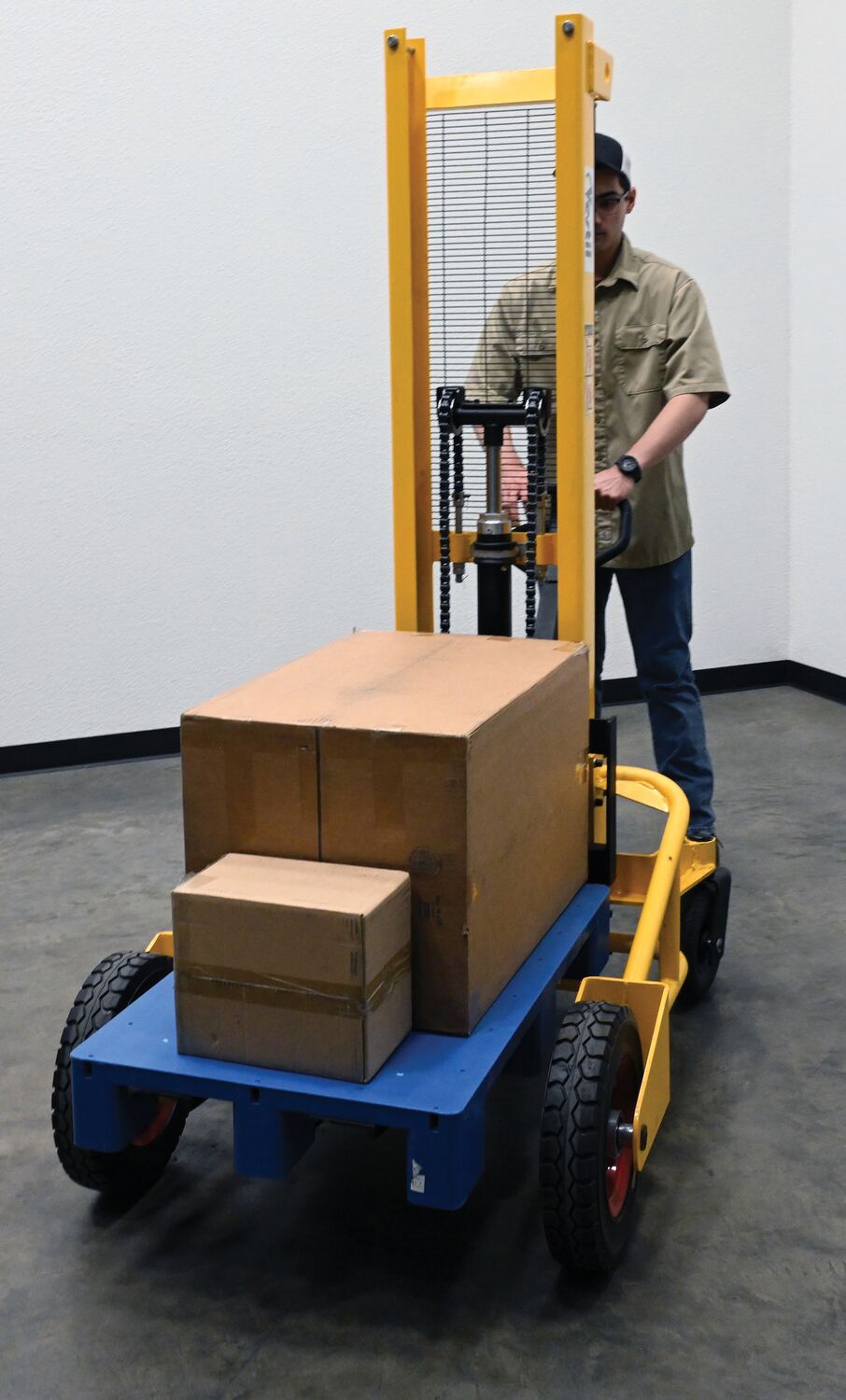

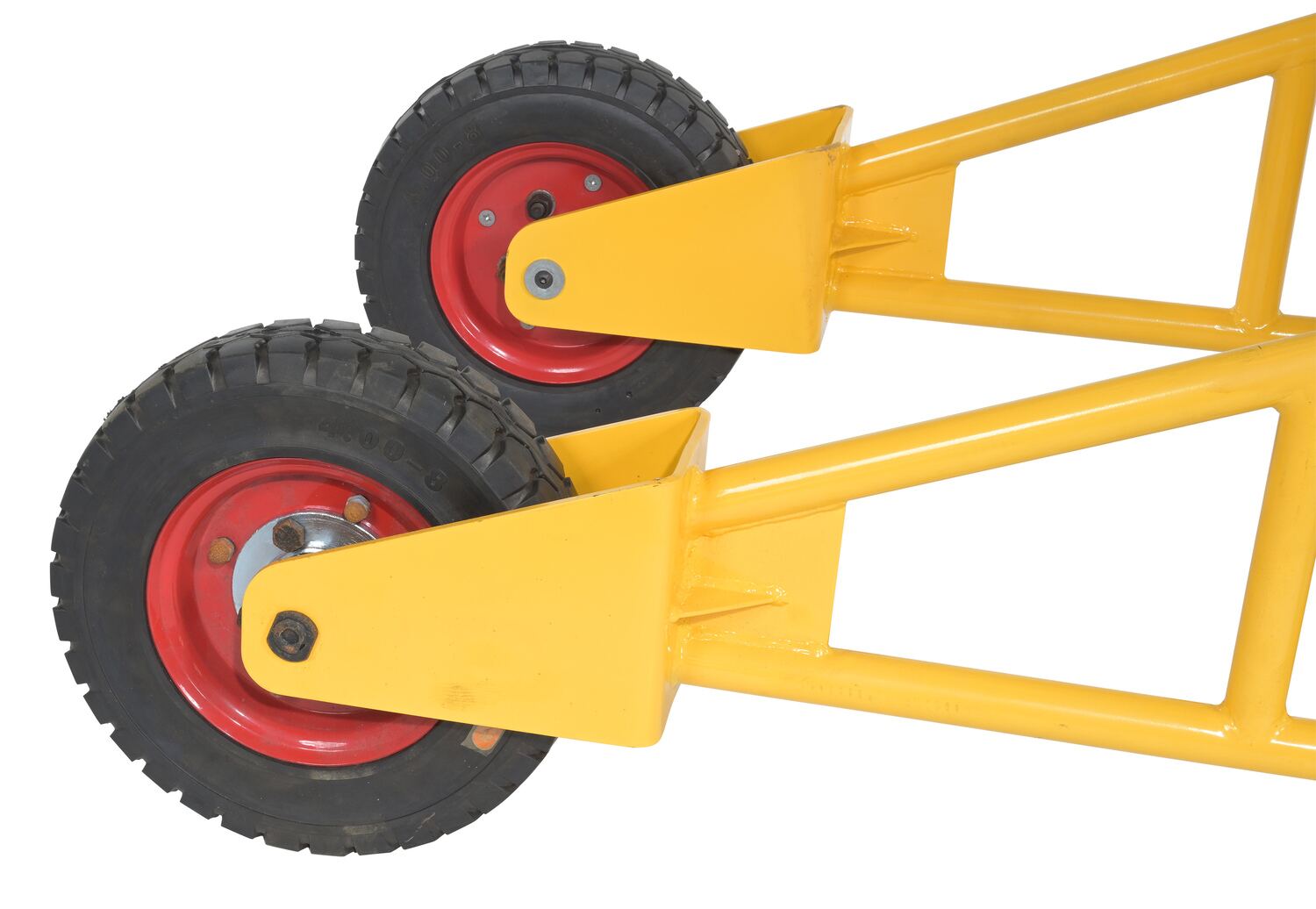

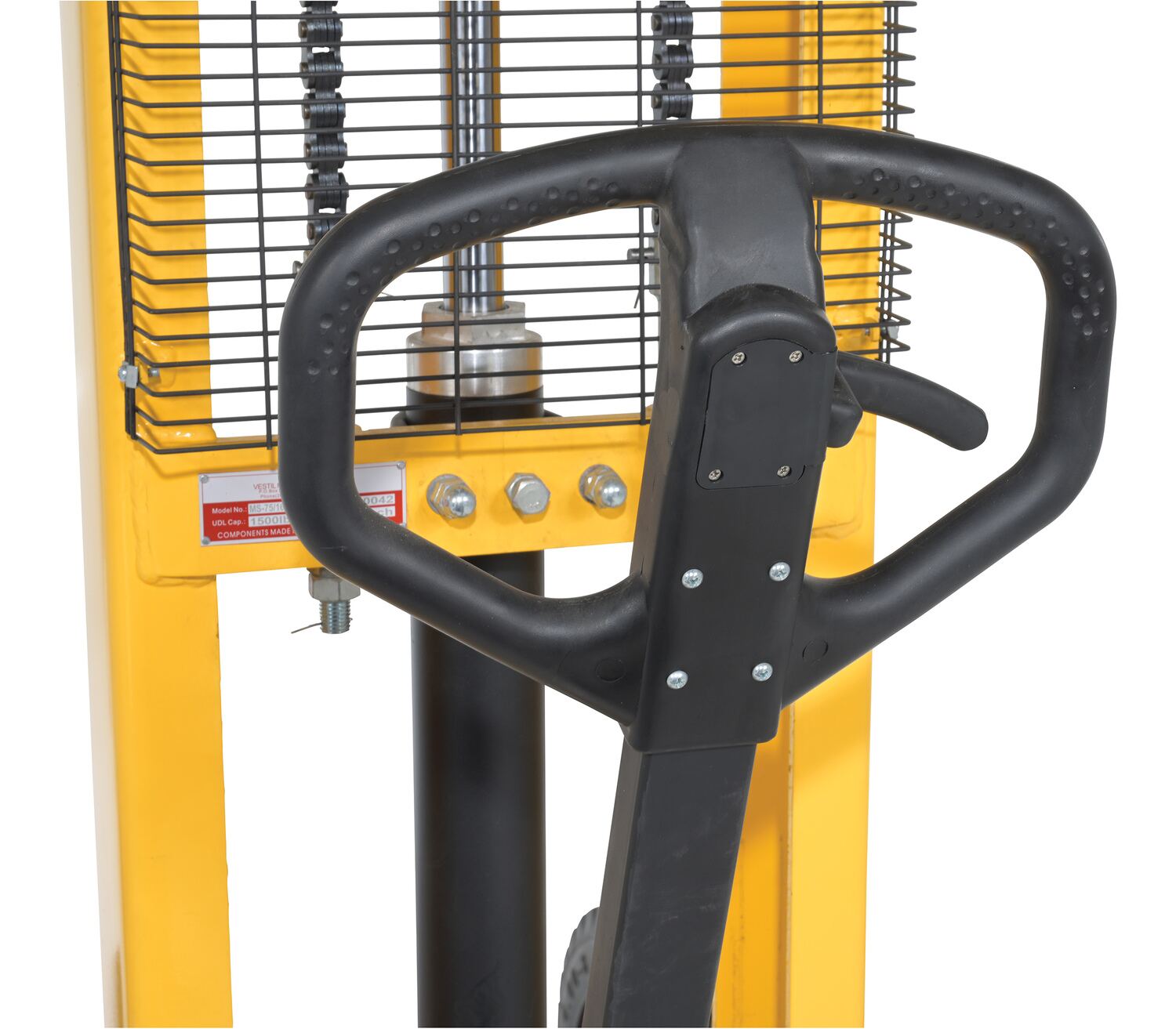

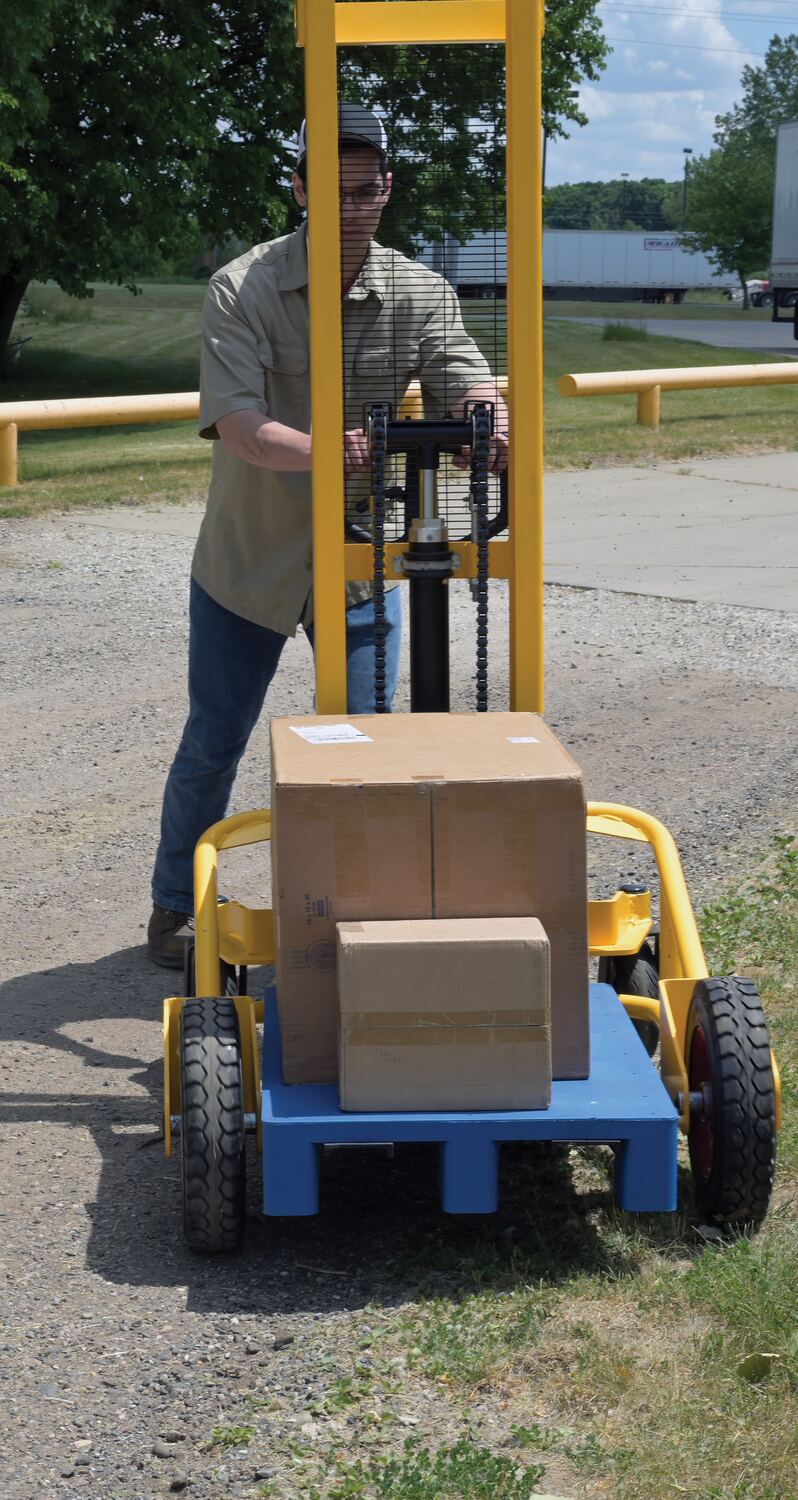

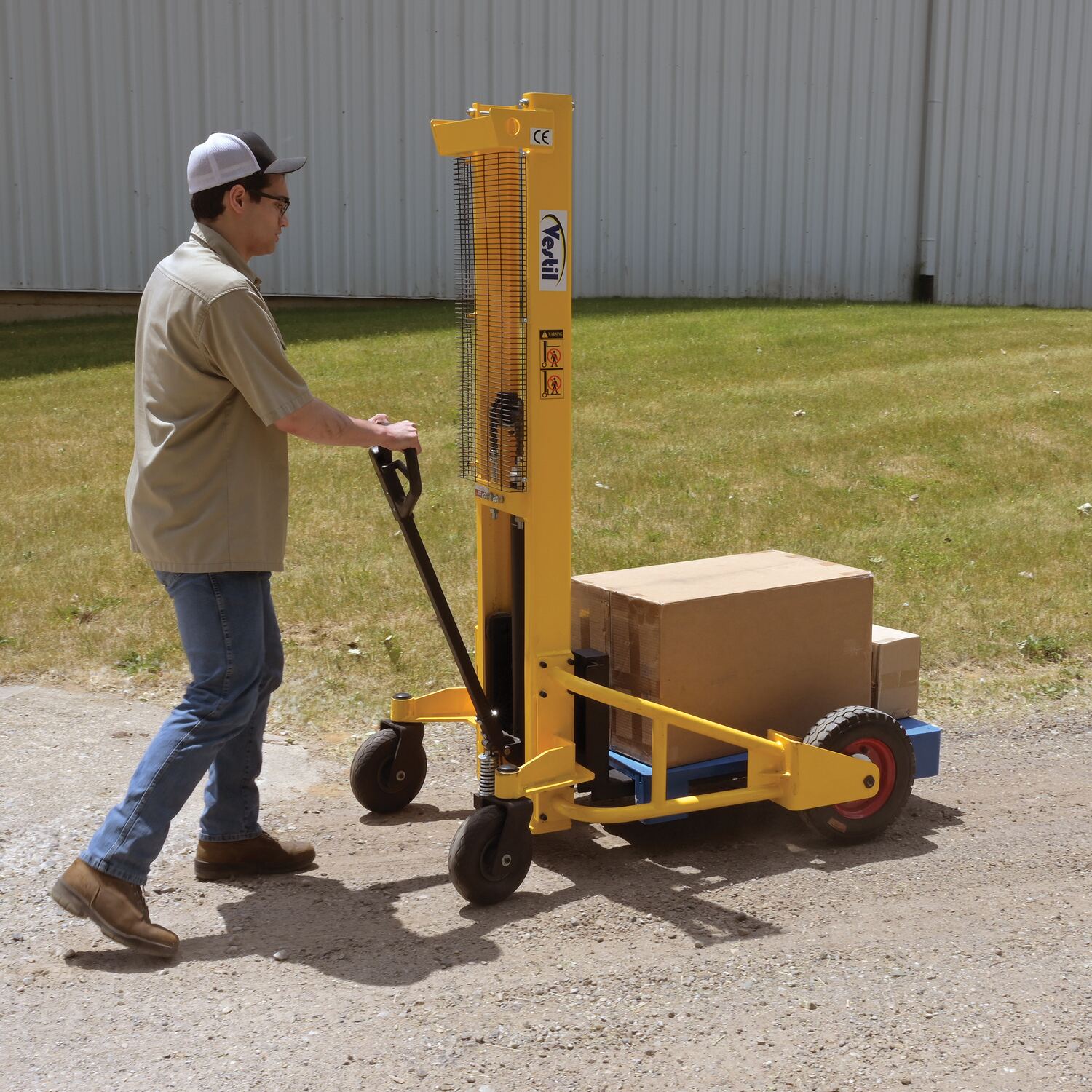

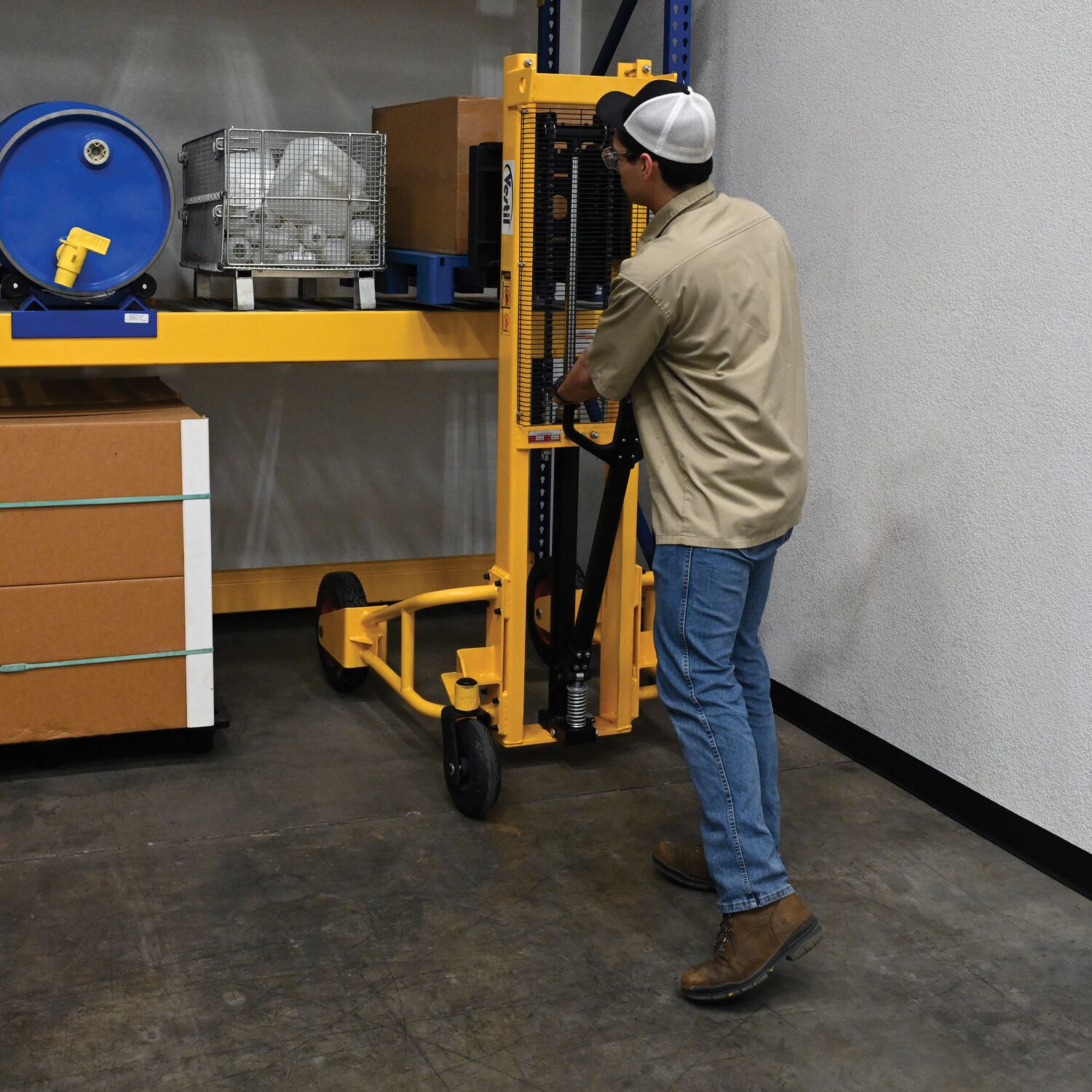

A rough terrain stacker is capable of going where other stackers can't. The narrow design provides precise movement in condensed areas. A handle pump design lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

  • 59" raised height
  • Wide, straddle based design

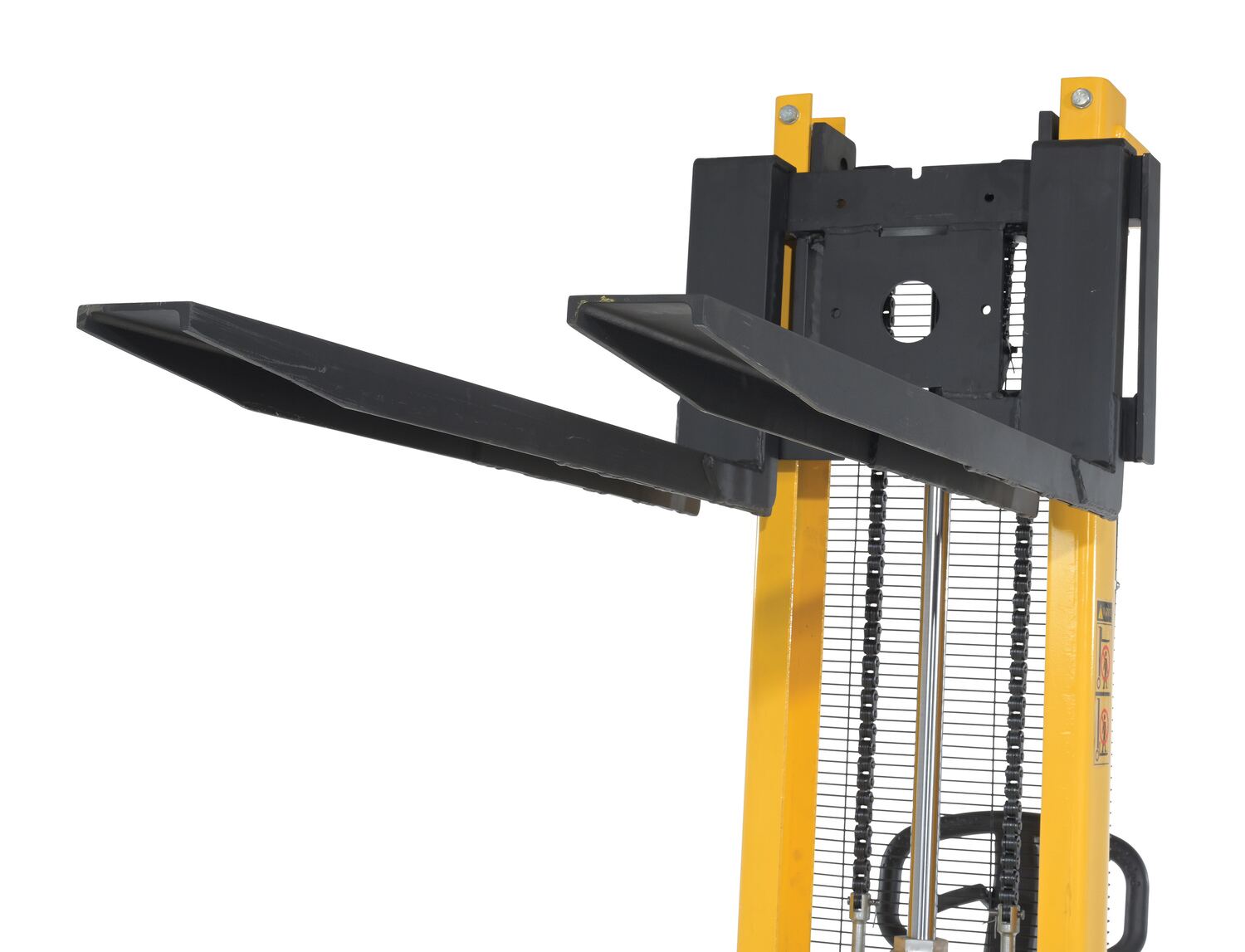

  • Adjustable forks
  • Full height wire-mesh back guard
Assembled Wt.(lbs.): 530 Assembled Size: 38"W x 61.8125"L x 79.3125"H

Total Ship Wt.(lbs.): 565 (only 1 package) Package 1 Size: 40"W x 64"D x 85"H Color: Yellow/Black Non-Returnable

Uniform Capacity (lb.): 1,500 Raised Height (in.): 59 Lowered Height: 3-1/8
Usable Width (in.): 25 Fork (WxL): 4"x40" Fork Center: Adjustable Forks

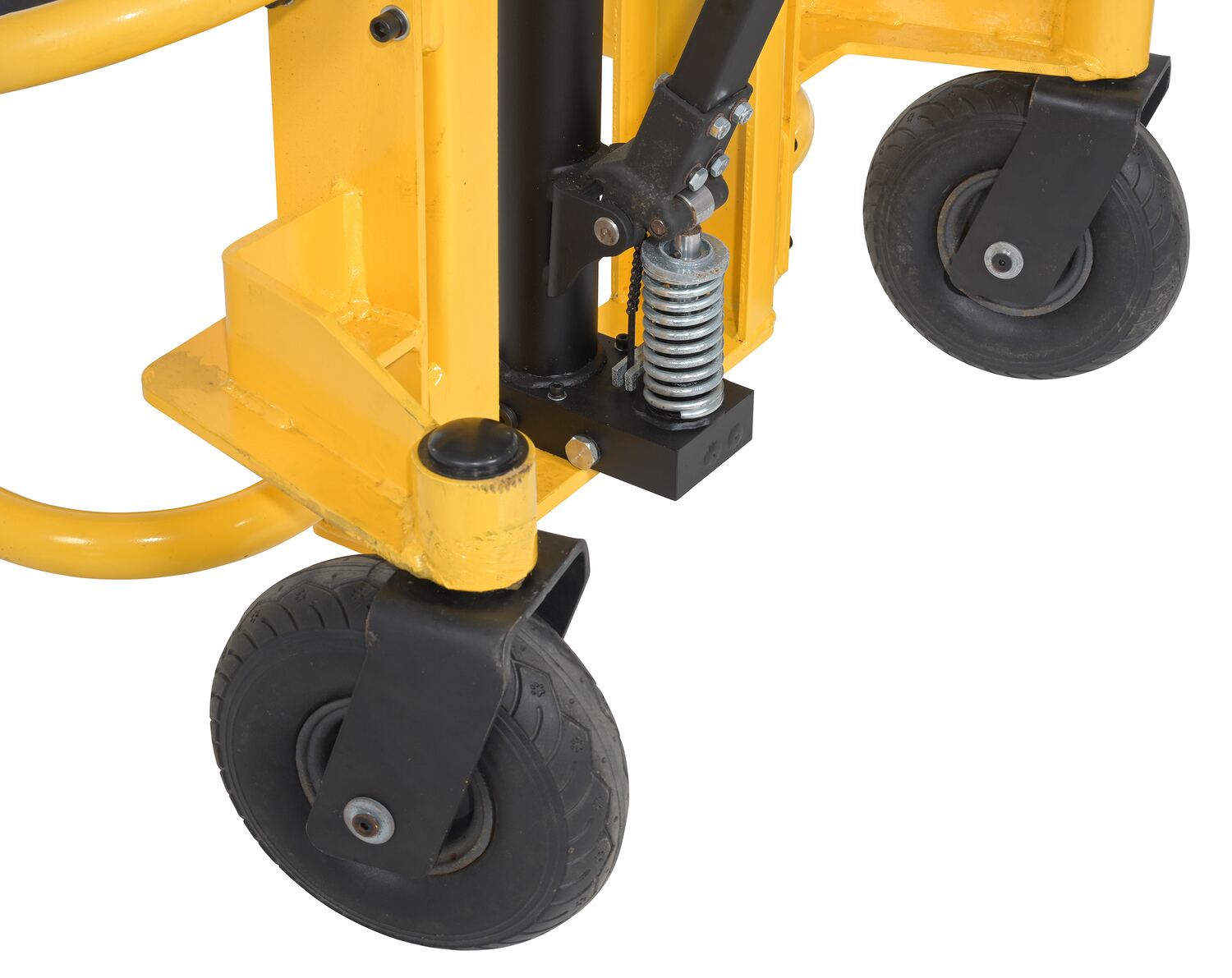

Handle Length (in): 43 Handle Diameter (in.): 1-1/8 Rubber Drive Wheel: (2) 2-3/4"x 9-7/8"
Rubber Front Wheel: (2) 3-1/2"x 15" Power/Operation: Hydraulic Hand Pump Overall Mast Height (in.): 79-5/16
Overall Width (in.): 38 Overall Length (in.): 61-13/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: RT-NMS-60-AF
Available
RT-NMS-60-AF

Steel Narrow Manual Rough Terrain Stacker 59 In. Raised Height 1,500 Lb. Capacity Yellow/Black

A rough terrain stacker is capable of going where other stackers can't. The narrow design provides precise movement in condensed areas. A handle pump design lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

  • 59" raised height
  • Wide, straddle based design
  • Adjustable forks
  • Full height wire-mesh back guard
Dimensions: 38"W x 61.8125"L x 79.3125"H Sell UOM: EA-Each Color: Yellow/Black
Material: Steel UPC: 691215376143 GTIN: 00691215376143
Warranty: -- Shipping Weight: 565 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1,500 Raised Height (in.): 59 Lowered Height: 3-1/8
Usable Width (in.): 25 Fork (WxL): 4"x40" Fork Center: Adjustable Forks
Handle Length (in): 43 Handle Diameter (in.): 1-1/8 Rubber Drive Wheel: (2) 2-3/4"x 9-7/8"
Rubber Front Wheel: (2) 3-1/2"x 15" Power/Operation: Hydraulic Hand Pump Overall Mast Height (in.): 79-5/16
Overall Width (in.): 38 Overall Length (in.): 61-13/16
