RP-90R

Printer Friendly
Available
RP-90R
RP-90R RP-90R RP-90R

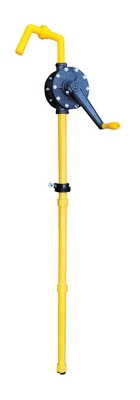

Polyphenylene Sulfide Manual Rotary Drum Pump 10 In. x 8 In. x 12 In. Yellow

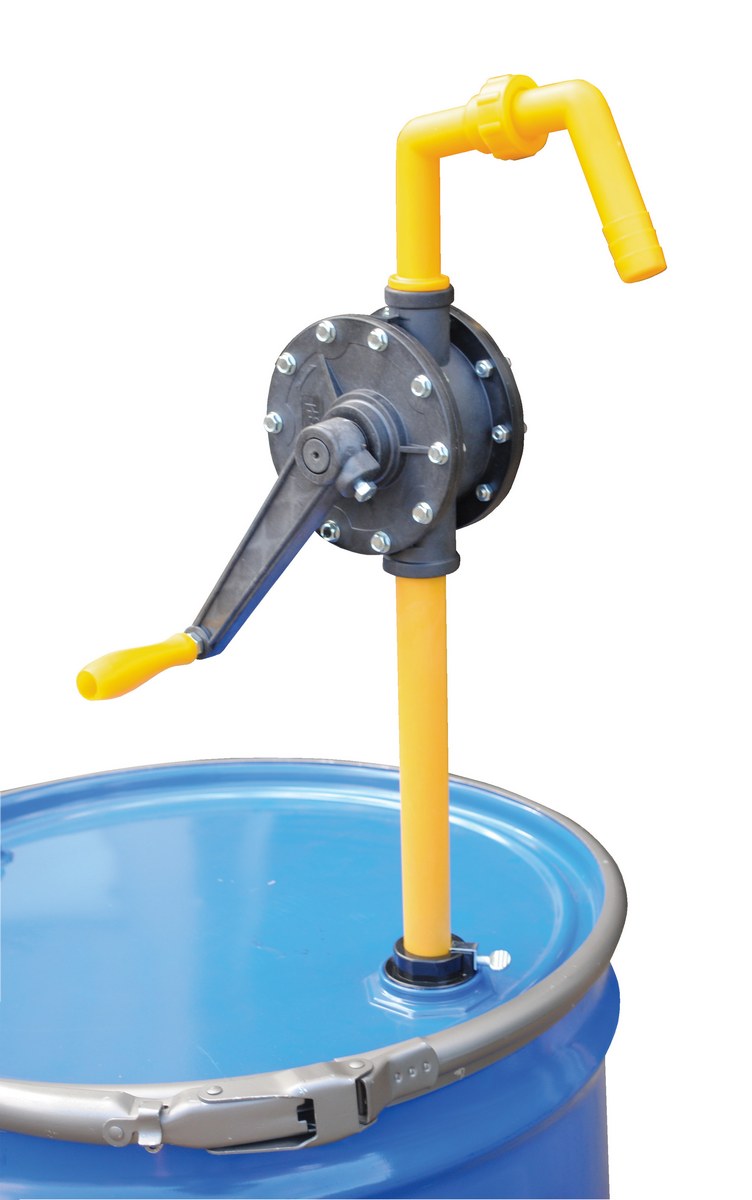

The manual drum pump is designed for dispensing and transferring liquids out of fifty-five (55) gallon drum. It is ideal for transferring soluble, corrosive, volatile and aggressive chemicals (esters, alcohols, alkali, acids, hydrocarbons, petroleum based fluid, transmission fluid and water based chemicals).

  • Manual drum pump design dispenses and transfers liquids out of fifty-five gallon drums
  • Ideal for transferring soluble, corrosive, volatile and aggressive chemicals for ideal operation
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

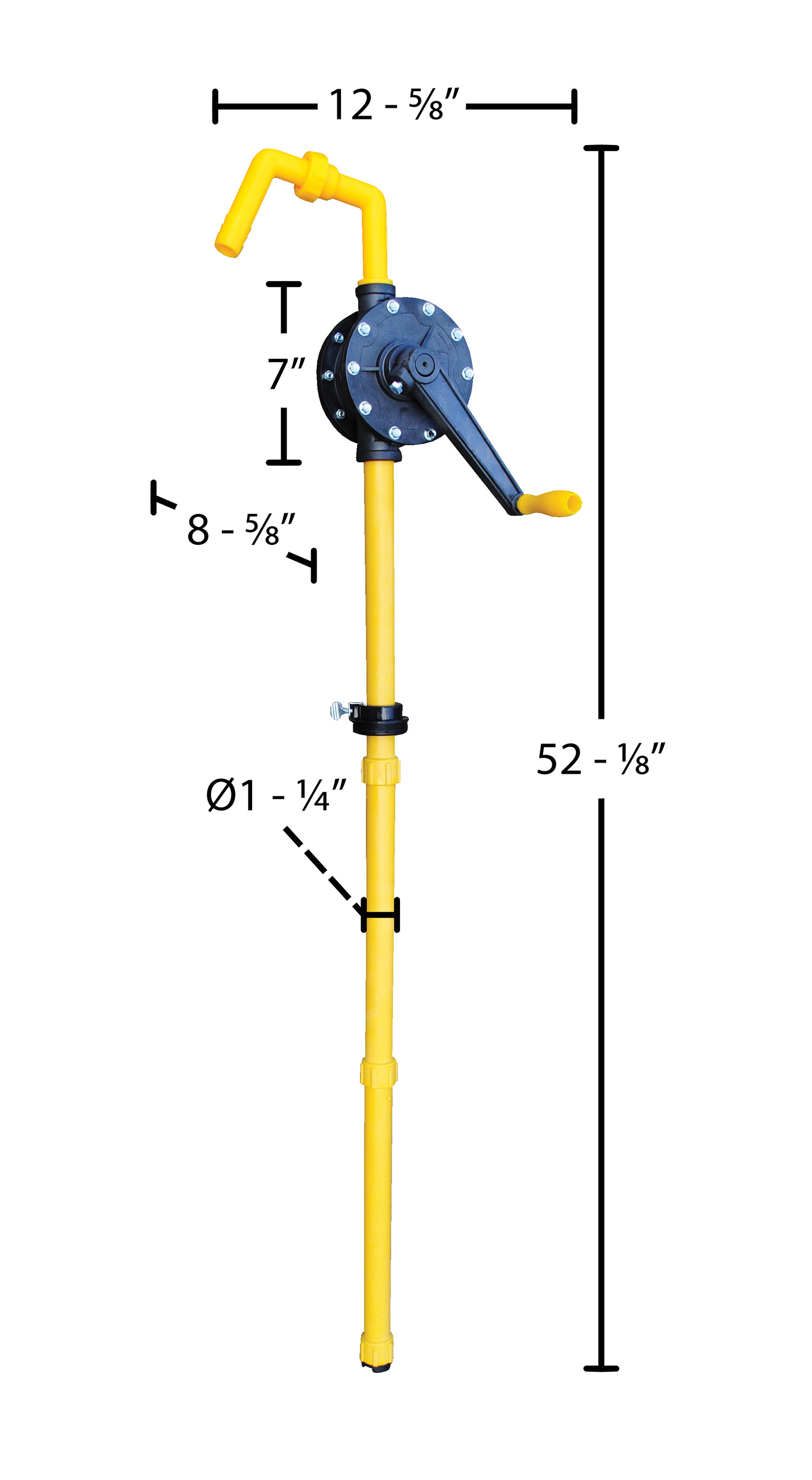

Assembled Wt.(lbs.): 5 Assembled Size: 8.625"W x 12.625"L x 52.125"H

Total Ship Wt.(lbs.): 6 (only 1 package) Package 1 Size: 7"W x 25"D x 7"H Color: Yellow

Pump Type: Rotary - Vane Flow Dispense Per Stroke (ml): 300 Maximum Fluid Temperature Degrees (Fahrenheit / Celsius): 140 Degrees Fahrenheit / 60 Degrees Celsius
MNPT Bung Size (in.): 2 Suction Tube Length Maximum (in.): 42 Inlet Outside Diameter (in.): 1-1/4
Outlet Curved Spot Outside Diameter (in.): 1 Maximum Viscosity (SSU): 2000 Seal Construction: PTFE
Vane Construction: PPS (Polyphenylene sulfide) Suction Tube Construction: Polypropylene Adjustable Outlet Degrees: 0 - 360
Application Liquids: acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner and other chemical liquids Component Materials: PPS, PTFE Nitric Acid Resistance Percentage: 40
Displacement per Stroke (ounces): 10.14 Pump Motor Type: Crank Pump Mounting: Bung
Self-Priming: Yes Outter Dimension of End Connection on Discharge Spout (in.): 3/4 Inner Dimension of End Connection on Discharge Spout (in.): 1

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: RP-90R
Available
RP-90R

Polyphenylene Sulfide Manual Rotary Drum Pump 10 In. x 8 In. x 12 In. Yellow

The manual drum pump is designed for dispensing and transferring liquids out of fifty-five (55) gallon drum. It is ideal for transferring soluble, corrosive, volatile and aggressive chemicals (esters, alcohols, alkali, acids, hydrocarbons, petroleum based fluid, transmission fluid and water based chemicals).

  • Manual drum pump design dispenses and transfers liquids out of fifty-five gallon drums
  • Ideal for transferring soluble, corrosive, volatile and aggressive chemicals for ideal operation
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Dimensions: 8.625"W x 12.625"L x 52.125"H Sell UOM: EA-Each Color: Yellow
Material: PPS (Polyphenylene sulfide) UPC: 691215058674 GTIN: 00691215058674
Warranty: -- Shipping Weight: 6 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Pump Type: Rotary - Vane Flow Dispense Per Stroke (ml): 300 Maximum Fluid Temperature Degrees (Fahrenheit / Celsius): 140 Degrees Fahrenheit / 60 Degrees Celsius
MNPT Bung Size (in.): 2 Suction Tube Length Maximum (in.): 42 Inlet Outside Diameter (in.): 1-1/4
Outlet Curved Spot Outside Diameter (in.): 1 Maximum Viscosity (SSU): 2000 Seal Construction: PTFE
Vane Construction: PPS (Polyphenylene sulfide) Suction Tube Construction: Polypropylene Adjustable Outlet Degrees: 0 - 360
Application Liquids: acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner and other chemical liquids Component Materials: PPS, PTFE Nitric Acid Resistance Percentage: 40
Displacement per Stroke (ounces): 10.14 Pump Motor Type: Crank Pump Mounting: Bung
Self-Priming: Yes Outter Dimension of End Connection on Discharge Spout (in.): 3/4 Inner Dimension of End Connection on Discharge Spout (in.): 1
