Model Details

← All Products- ← Ergonomic Solutions- ← Pallet Truck Accessories -← Pallet Master Fork Extensions- PM-FE-7-48

PM-FE-7-48

Printer Friendly
Available
PM-FE-7-48
PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48 PM-FE-7-48

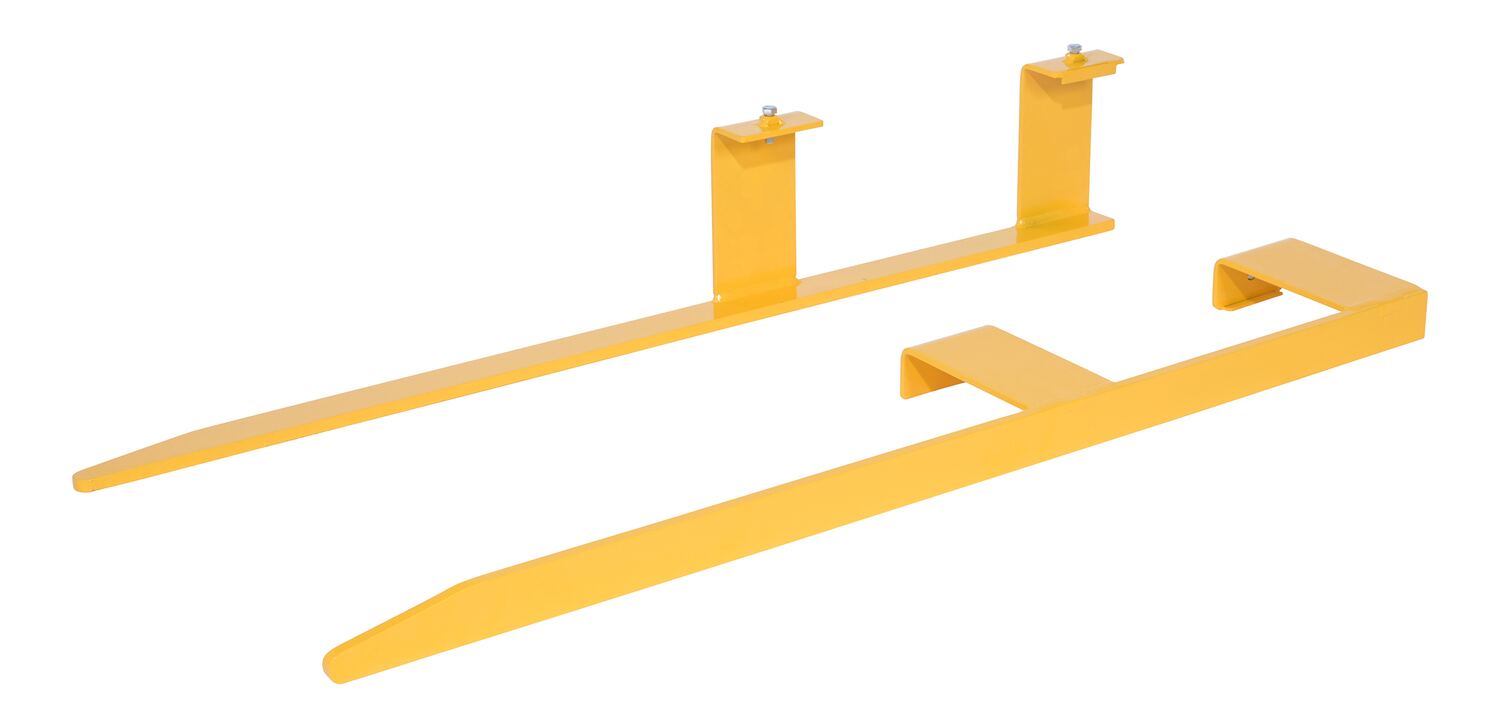

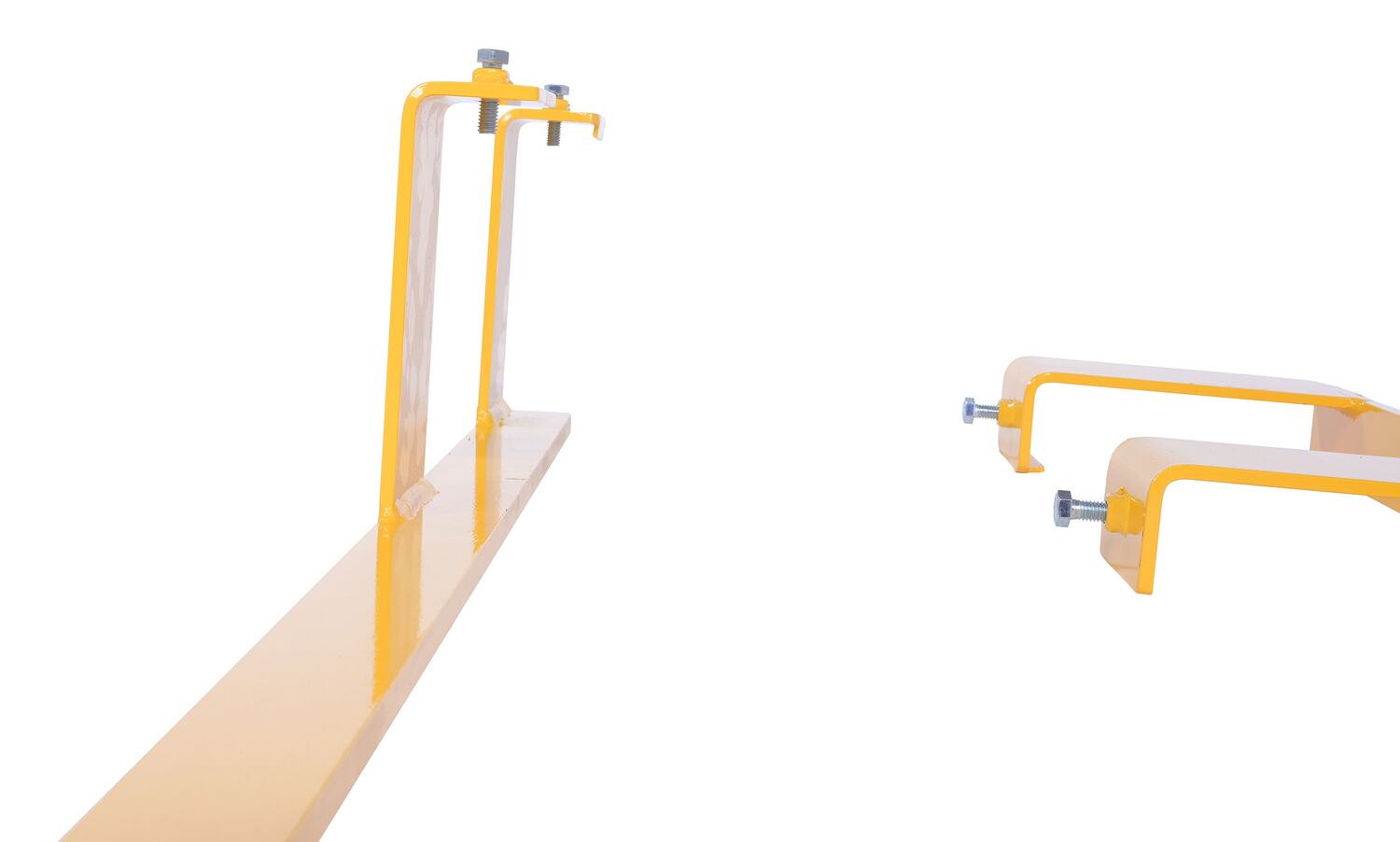

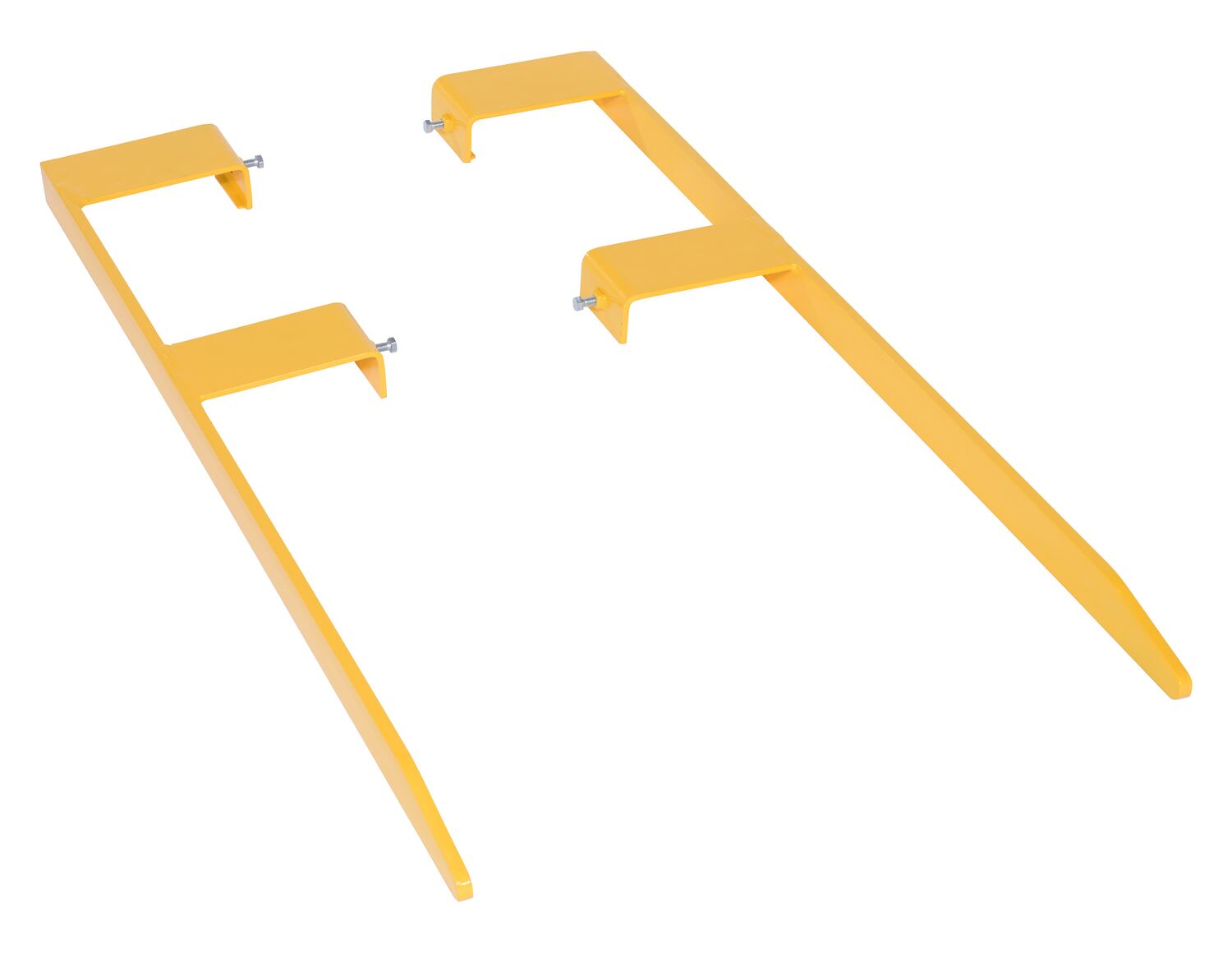

Steel Pallet Master Fork Extensions 7"W x 48"L x 2"H Yellow

A pallet master fork extension provides the ability to lift and maneuver pallets of a variety of sizes. With the help of these extensions, each user is able to lift pallets that are longer than the standard size. The installation process is quick; culminating in the extension being secured directly to the fork itself. Capacity for each extension is determined by the capacity of the pallet master it is attached to. Max uniform capacity is 4,000 lb., not to exceed the capacity of the pallet jack the extensions are used on.

  • 7.25" fork pocket
  • 24" usable length
  • Sold in pairs
  • Hardware is included
Assembled Wt.(lbs.): 19 Assembled Size: 9.2812"W x 48"L x 2.5"H

Total Ship Wt.(lbs.): 40 (only 1 package) Package 1 Size: 10"W x 49"D x 4"H Color: Yellow

Fork Pocket Width (In.): 7.25 Usable Length (In.): 24 Hardware Included?: Yes
Max. Pallet Truck Fork Height (In.): 2 Distance Between Back of Singl Fork Pocket (In.): 16 Overall Length (in.): 48
Overall Width (in.): 9-9/32 Overall Height (in.): 2-1/2 Compatible Fork Size (in.): 7" to 7-1/4"
Fork Material Thickness (in.): 1/2 Bracket Material Thickness (in.): 1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: PM-FE-7-48
Available
PM-FE-7-48

Steel Pallet Master Fork Extensions 7"W x 48"L x 2"H Yellow

A pallet master fork extension provides the ability to lift and maneuver pallets of a variety of sizes. With the help of these extensions, each user is able to lift pallets that are longer than the standard size. The installation process is quick; culminating in the extension being secured directly to the fork itself. Capacity for each extension is determined by the capacity of the pallet master it is attached to. Max uniform capacity is 4,000 lb., not to exceed the capacity of the pallet jack the extensions are used on.

  • 7.25" fork pocket
  • 24" usable length
  • Sold in pairs
  • Hardware is included
Dimensions: 9.2812"W x 48"L x 2.5"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215378192 GTIN: 00691215378192
Warranty: -- Shipping Weight: 40 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Fork Pocket Width (In.): 7.25 Usable Length (In.): 24 Hardware Included?: Yes
Max. Pallet Truck Fork Height (In.): 2 Distance Between Back of Singl Fork Pocket (In.): 16 Overall Length (in.): 48
Overall Width (in.): 9-9/32 Overall Height (in.): 2-1/2 Compatible Fork Size (in.): 7" to 7-1/4"
Fork Material Thickness (in.): 1/2 Bracket Material Thickness (in.): 1/4
