LP-4000T

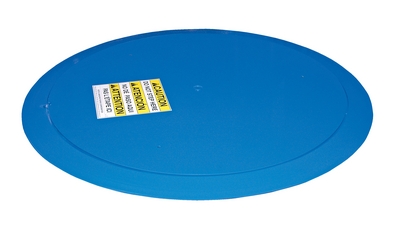

Steel Thin Spin 59-11/16 In Diameter 4000 Lb. Capacity Blue

The thin spin is ideal for shipping and distributing facilities. The unit is designed to help assist in the loading and unloading of pallet applications. The ability of the unit to spin creates an ergonomically friendly atmosphere that allows the person to reduce the amount of bending and twisting.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space
Total Ship Wt.(lbs.): 270 (only 1 package) Size: 59.6875"W x 59.6875"L x 0.875"H Color: Blue

Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 51 Effective Ramping Length (in.): 4-3/8
Slope Degree: 11 Starting Force at Full Capacity (lb.): 35 Maintaining Force at Full Capacity (lb.): 25
Rotation Degree: 360

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LP-4000T
LP-4000T

Steel Thin Spin 59-11/16 In Diameter 4000 Lb. Capacity Blue

The thin spin is ideal for shipping and distributing facilities. The unit is designed to help assist in the loading and unloading of pallet applications. The ability of the unit to spin creates an ergonomically friendly atmosphere that allows the person to reduce the amount of bending and twisting.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space
Dimensions: 59.6875"W x 59.6875"L x 0.875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215027663 GTIN: 00691215027663
Warranty: -- Shipping Weight: 270 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 51 Effective Ramping Length (in.): 4-3/8
Slope Degree: 11 Starting Force at Full Capacity (lb.): 35 Maintaining Force at Full Capacity (lb.): 25
Rotation Degree: 360
