Model Details

← All Products- ← Ergonomic Solutions- ← Machinery Jacks -← Fork Truck Jacks- FORK-J

FORK-J

Printer Friendly
Available
FORK-J
FORK-J FORK-J FORK-J

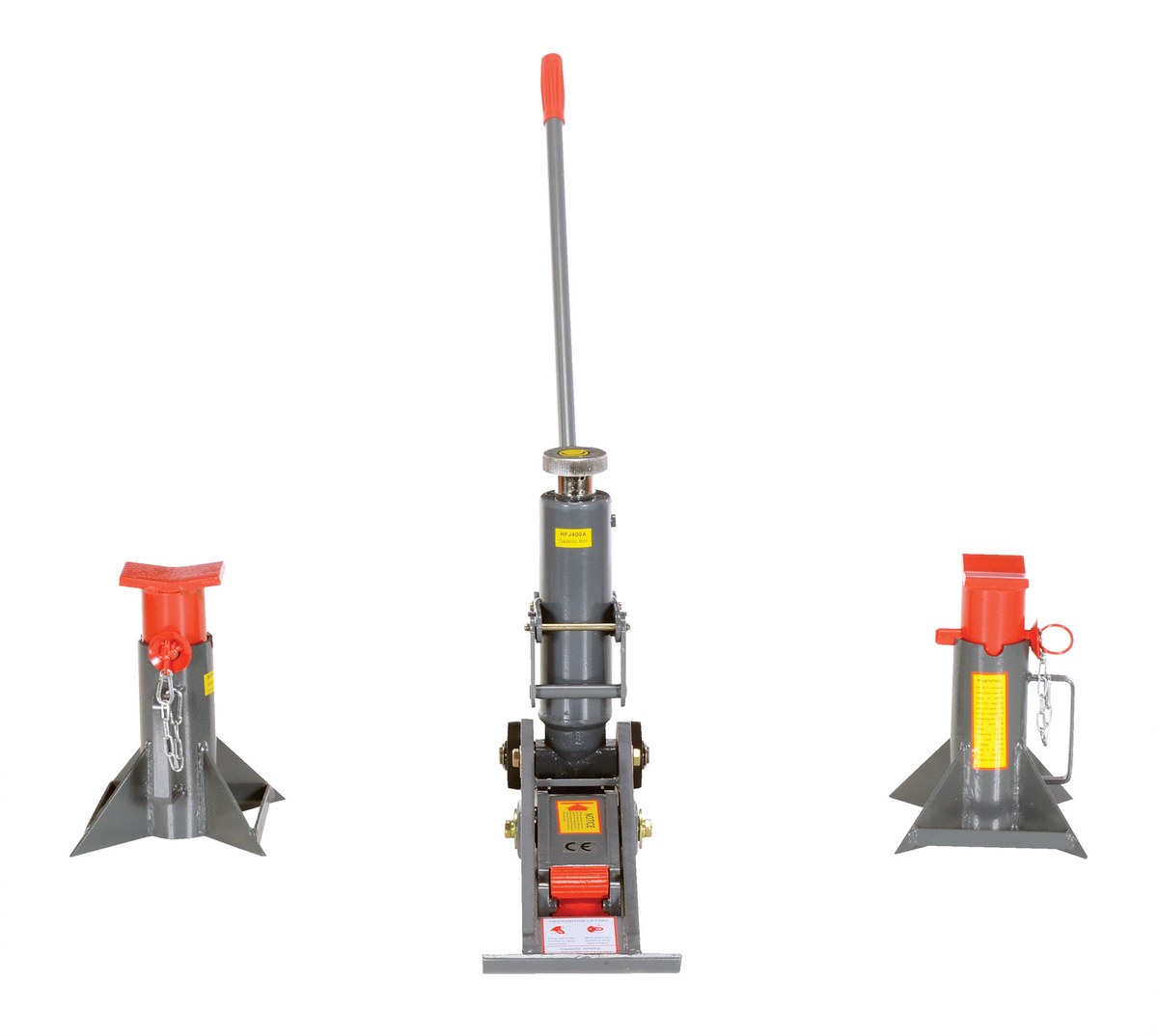

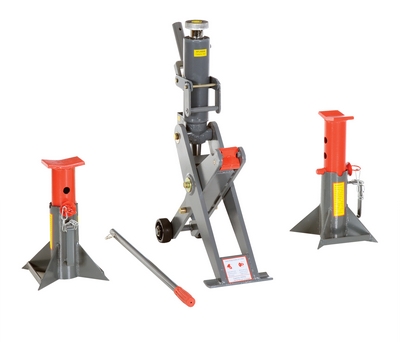

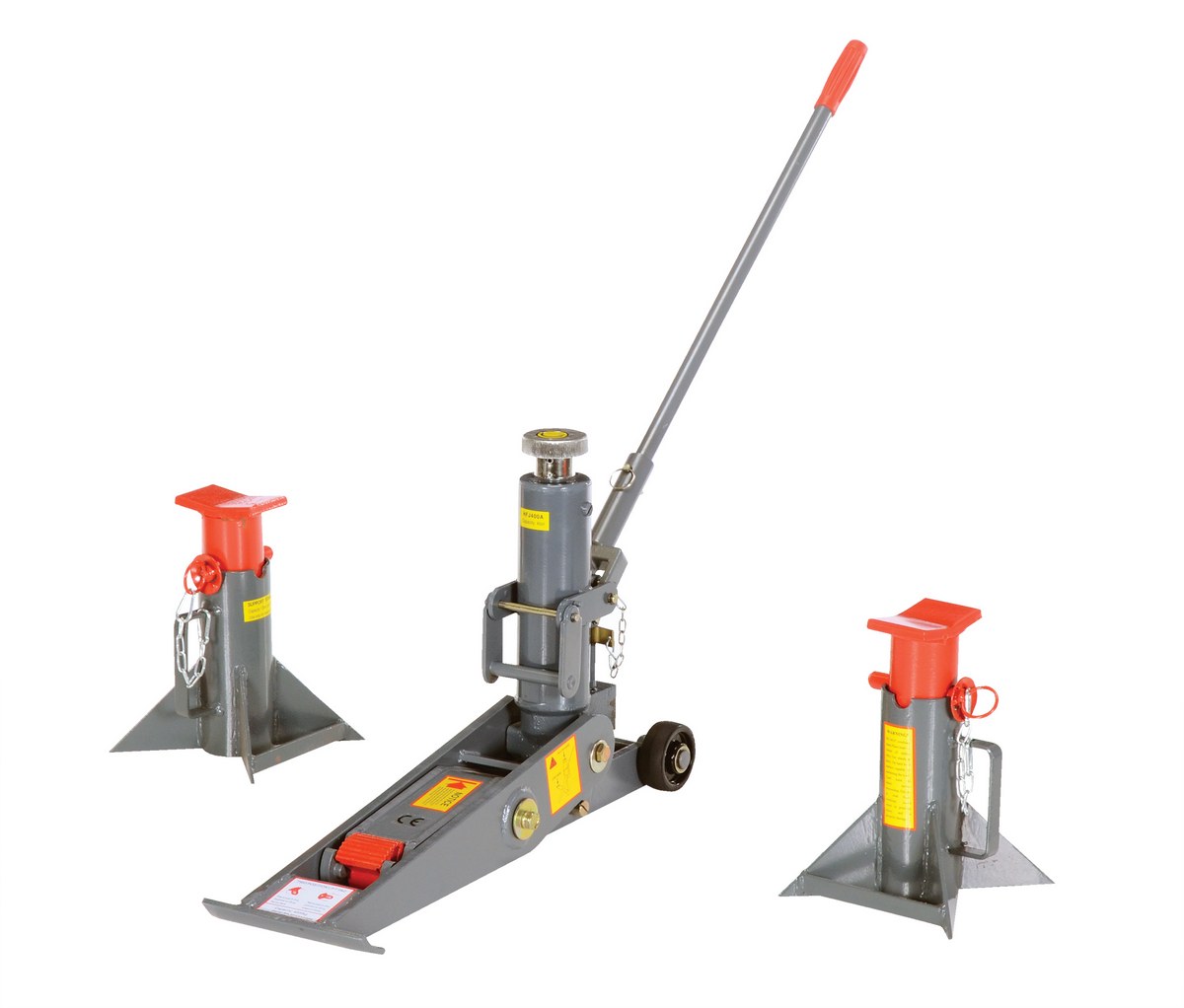

Steel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity Gray

The manual Hydraulic Fork Truck jack is designed to raise fork trucks for maintenance. Features high-quality seals, chrome plated internal components, and rugged steel construction. This jack is manually raised by a hand pump lever and the lift height provides room needed to perform a variety of repairs. The removable handle and the compact size make it easy to maneuver and transport. Includes two (2) jack stands with holding pins for adjustable heights.

  • Jack design is for raising fork trucks for maintenance
  • Features high-quality seals, chrome plated internal components, and rugged steel construction
  • Hand pump lever and lift height provide room for various applications
  • Includes two jack stands with holding pins for adjustable heights

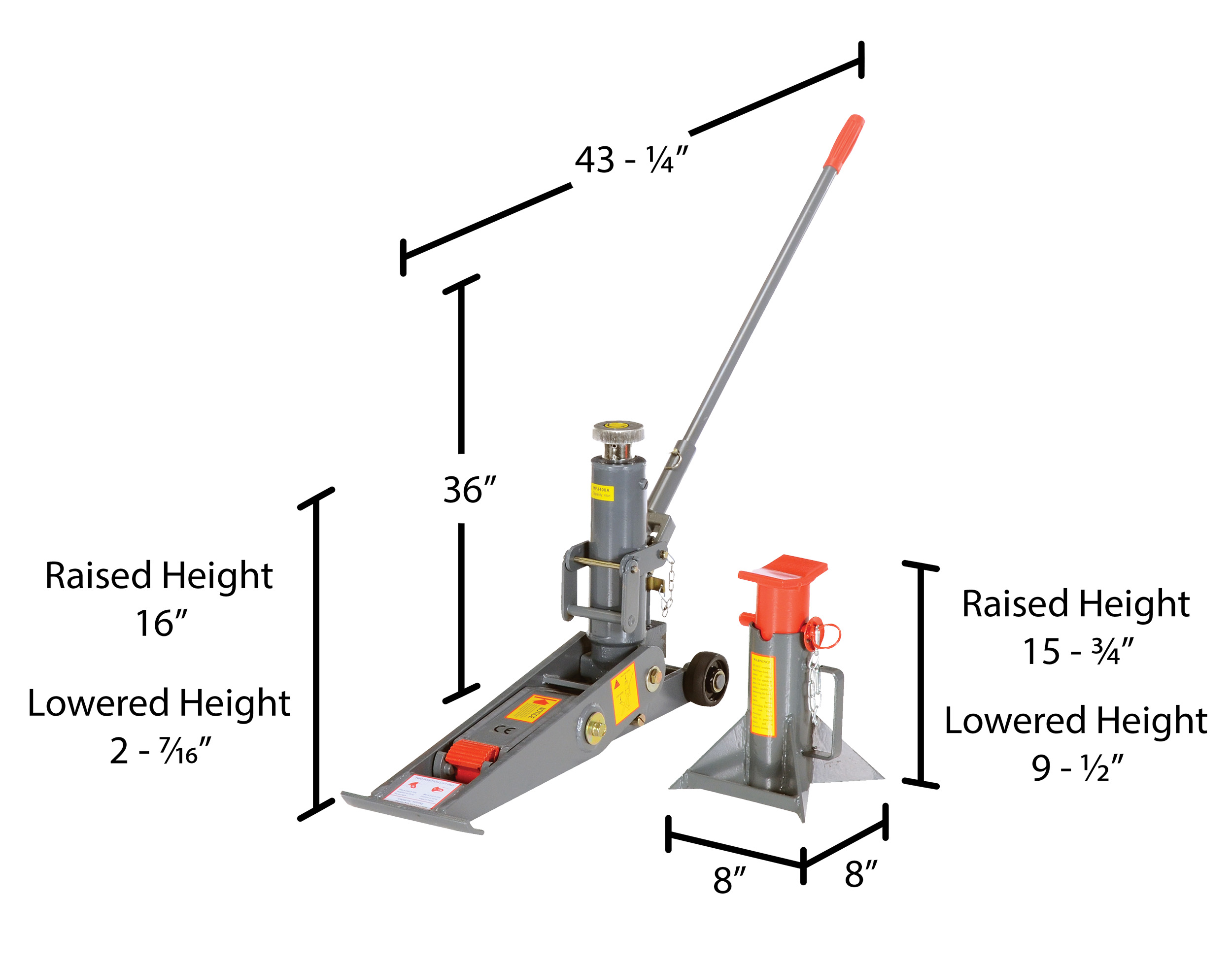

Assembled Wt.(lbs.): 106 Assembled Size: 7.875"W x 43.25"L x 36"H

Total Ship Wt.(lbs.): 124 (only 1 package) Package 1 Size: 31"W x 36"D x 24"H Color: Gray

Uniform Capacity (lb.): 8,000 Lowered Height partial pad (in.): 2-1/4 Raised Height (in.): 16
Jack Stand Pair Capacity (tons): 13 Jack Stand Width (in.): 8 Jack Stand Length (in.): 8
Jack Stand Height (in.): 9-1/2 Jack Stand Raised Height (in.): 15-3/4 Lowered Height full pad (in.): 2-7/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: FORK-J
Available
FORK-J

Steel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity Gray

The manual Hydraulic Fork Truck jack is designed to raise fork trucks for maintenance. Features high-quality seals, chrome plated internal components, and rugged steel construction. This jack is manually raised by a hand pump lever and the lift height provides room needed to perform a variety of repairs. The removable handle and the compact size make it easy to maneuver and transport. Includes two (2) jack stands with holding pins for adjustable heights.

  • Jack design is for raising fork trucks for maintenance
  • Features high-quality seals, chrome plated internal components, and rugged steel construction
  • Hand pump lever and lift height provide room for various applications
  • Includes two jack stands with holding pins for adjustable heights
Dimensions: 7.875"W x 43.25"L x 36"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215020848 GTIN: 00691215020848
Warranty: -- Shipping Weight: 124 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 8,000 Lowered Height partial pad (in.): 2-1/4 Raised Height (in.): 16
Jack Stand Pair Capacity (tons): 13 Jack Stand Width (in.): 8 Jack Stand Length (in.): 8
Jack Stand Height (in.): 9-1/2 Jack Stand Raised Height (in.): 15-3/4 Lowered Height full pad (in.): 2-7/16
