DJG-100MW

Printer Friendly
Available
DJG-100MW
DJG-100MW DJG-100MW DJG-100MW DJG-100MW

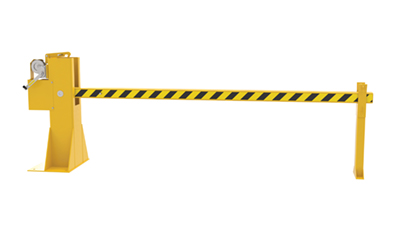

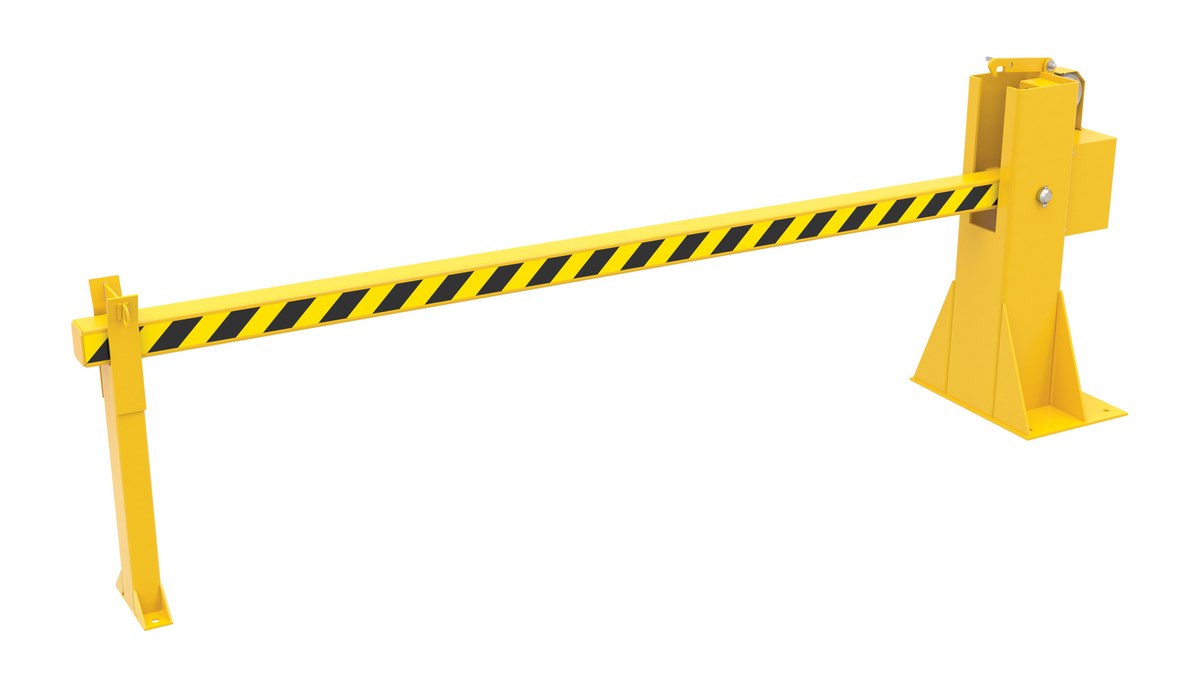

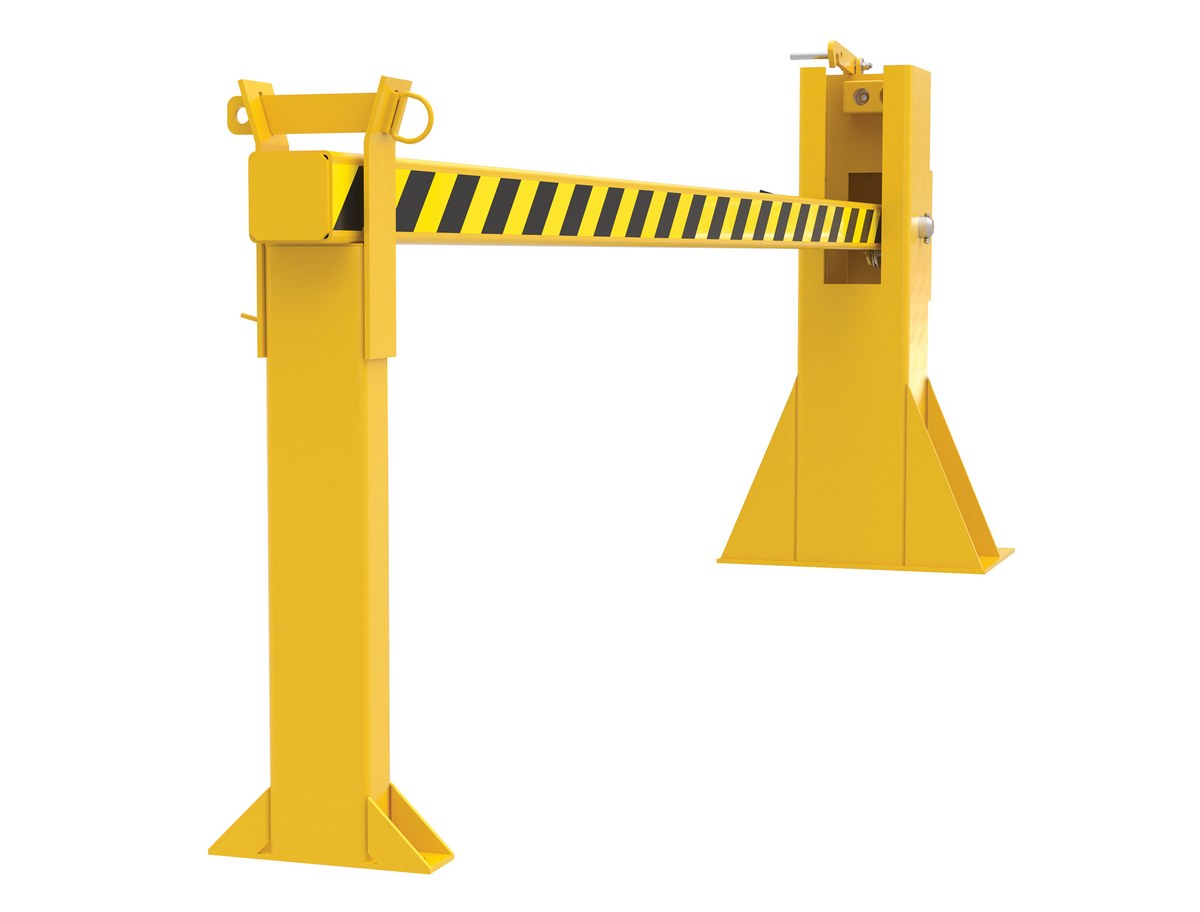

Steel Dock Barricade Manual Hand Crank 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. Installation is simple, anchor the unit to the floor. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included.

  • Unique design protects open doorways at loading docks

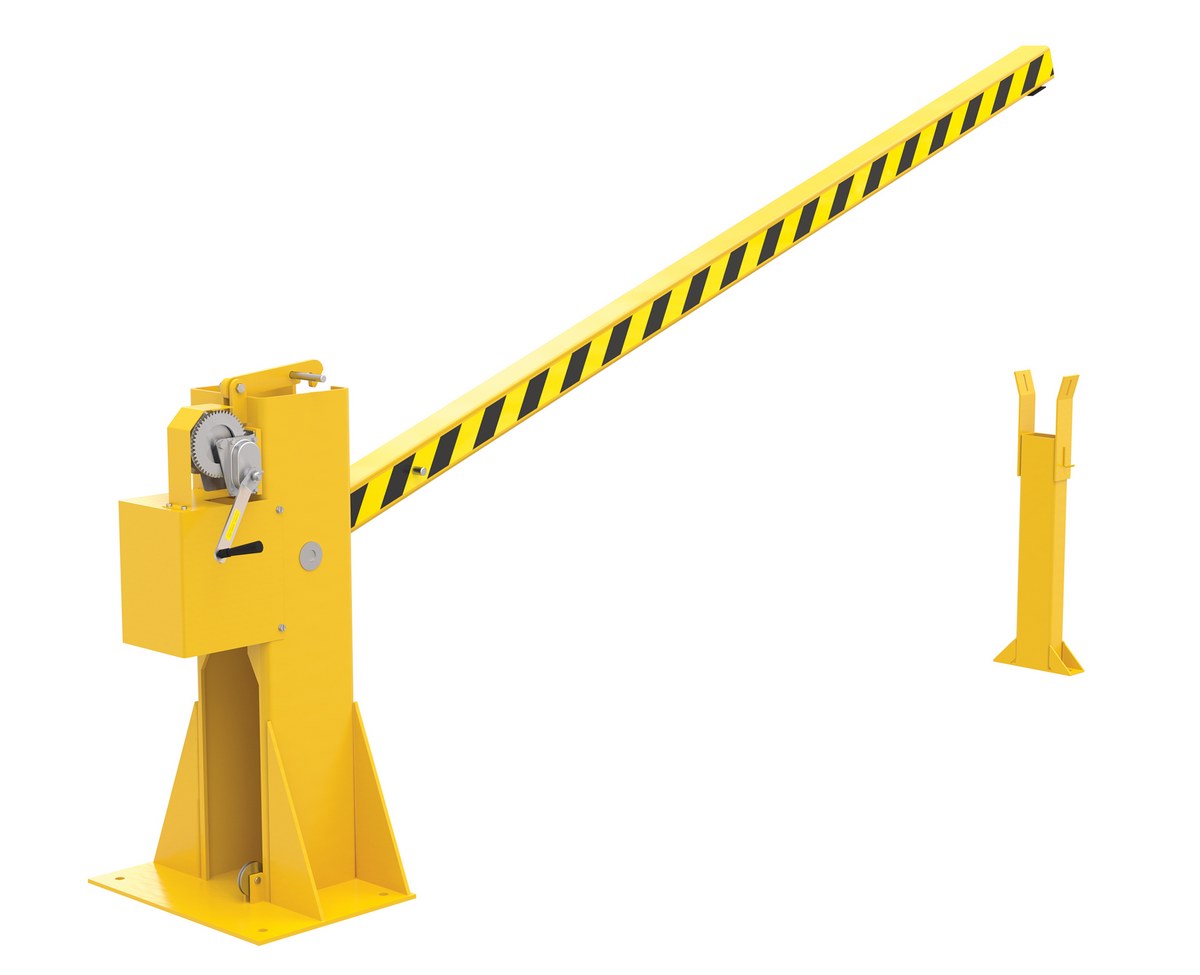

  • Manual hand crank easily raises and lowers arm
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Assembled Wt.(lbs.): 394 Assembled Size: 24"W x 133.25"L x 45.625"H

Total Ship Wt.(lbs.): 539 (only 1 package) Package 1 Size: 24"W x 135"D x 30"H Color: Yellow

Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height Raised (in.): 149
Arm Height Lowered (in.): 32 Operation: Manual Hand Crank Base Plate Width (in.): 17-1/4
Base Plate Length (in.): 24 Overall Length (in.): 133-1/4 Arm Length (in.): 108-7/8
Overall Height (in.): 45-5/8 Padlock Included?: No

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: DJG-100MW
Available
DJG-100MW

Steel Dock Barricade Manual Hand Crank 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. Installation is simple, anchor the unit to the floor. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included.

  • Unique design protects open doorways at loading docks
  • Manual hand crank easily raises and lowers arm
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Dimensions: 24"W x 133.25"L x 45.625"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 539 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height Raised (in.): 149
Arm Height Lowered (in.): 32 Operation: Manual Hand Crank Base Plate Width (in.): 17-1/4
Base Plate Length (in.): 24 Overall Length (in.): 133-1/4 Arm Length (in.): 108-7/8
Overall Height (in.): 45-5/8 Padlock Included?: No
