Economical Drum Transporters

model: DCR-880-M

DCR-880-M_A.jpg DCR-880-M_B.jpg DCR-880-M_C.jpg DCR-880-M_D.jpg DCR-880-M_E.jpg DCR-880-M_F.jpg DCR-880-M_2.jpg DCR-880-M_3.jpg More Images +
Economical Drum Transporters
SERIES: DCR-880

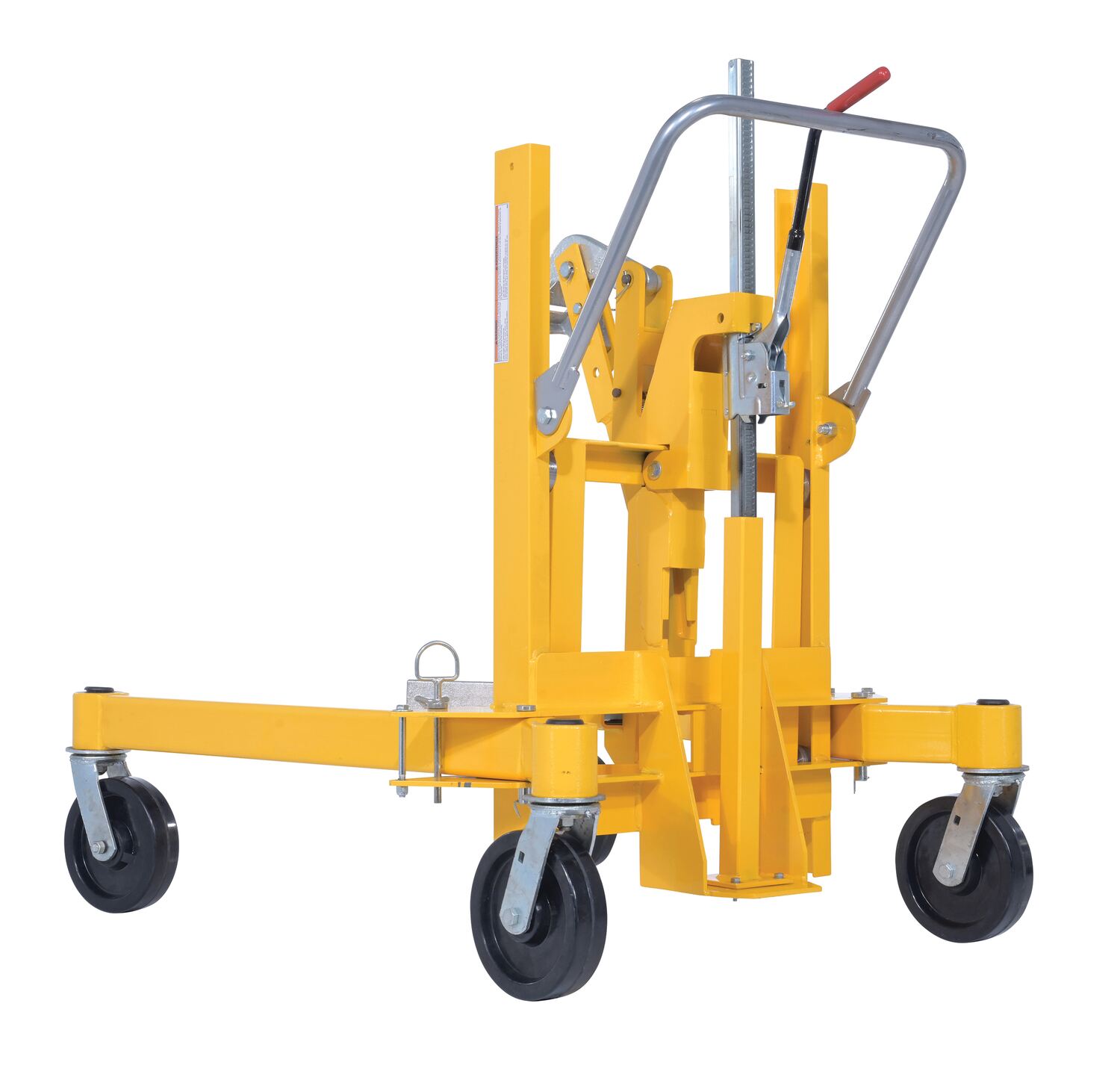

DCR-880-M Beak* Simple Design

* Completely Mechanical Operation

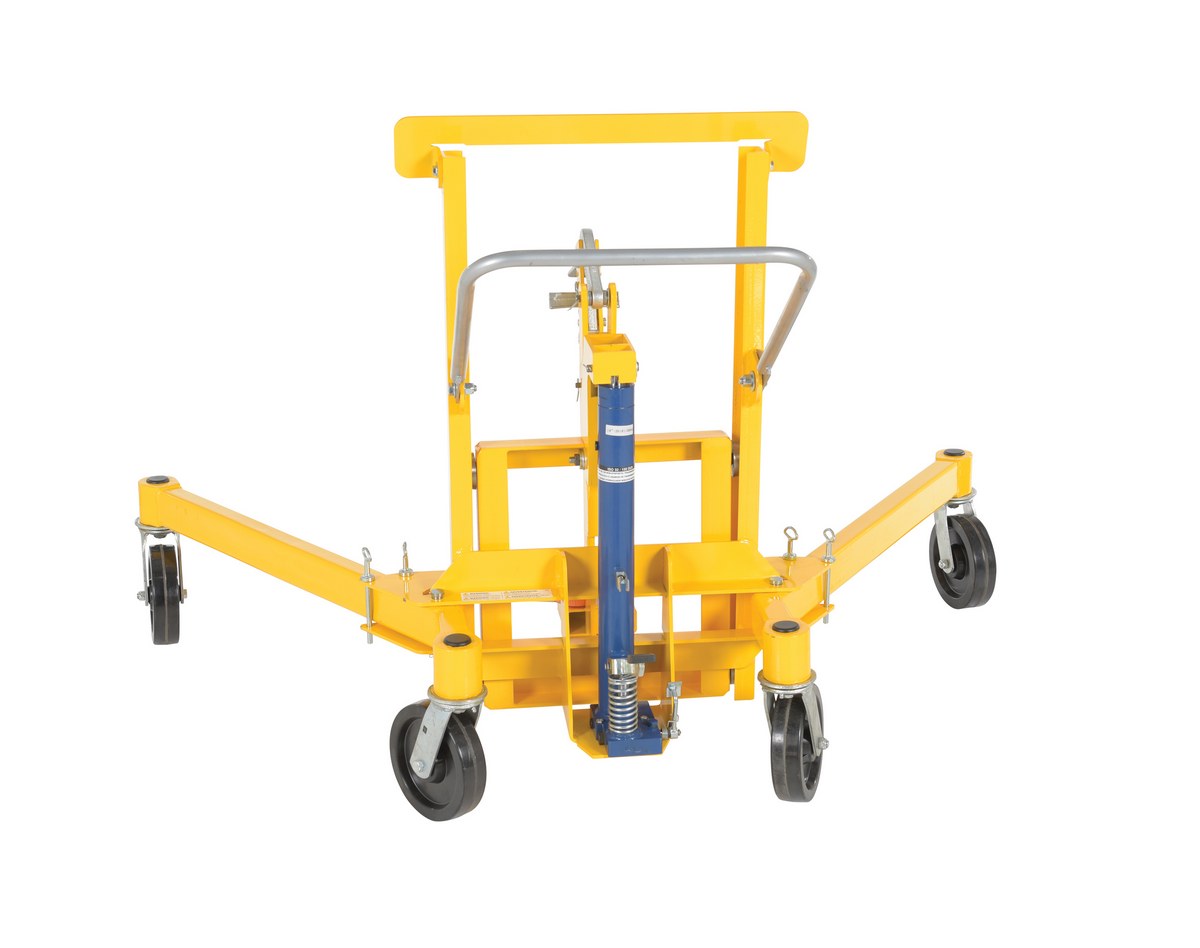

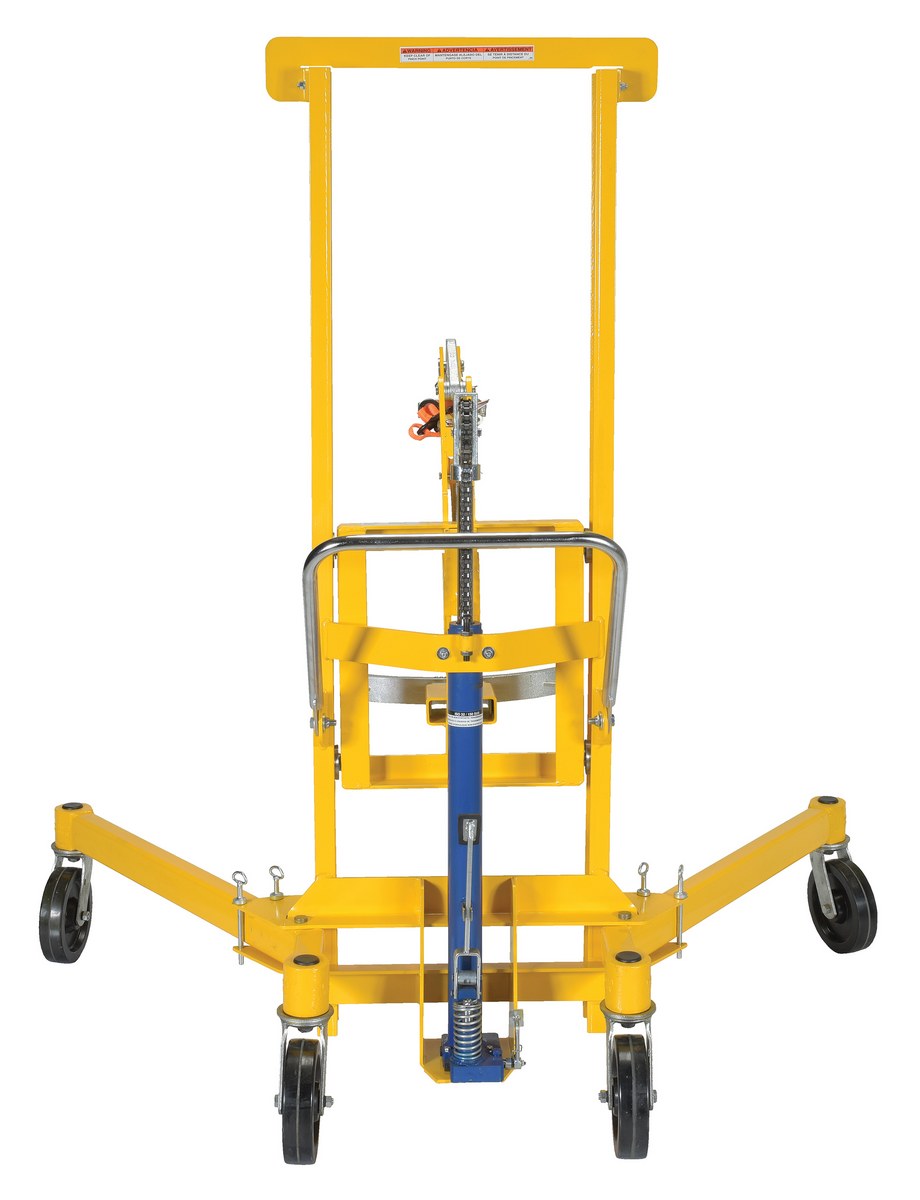

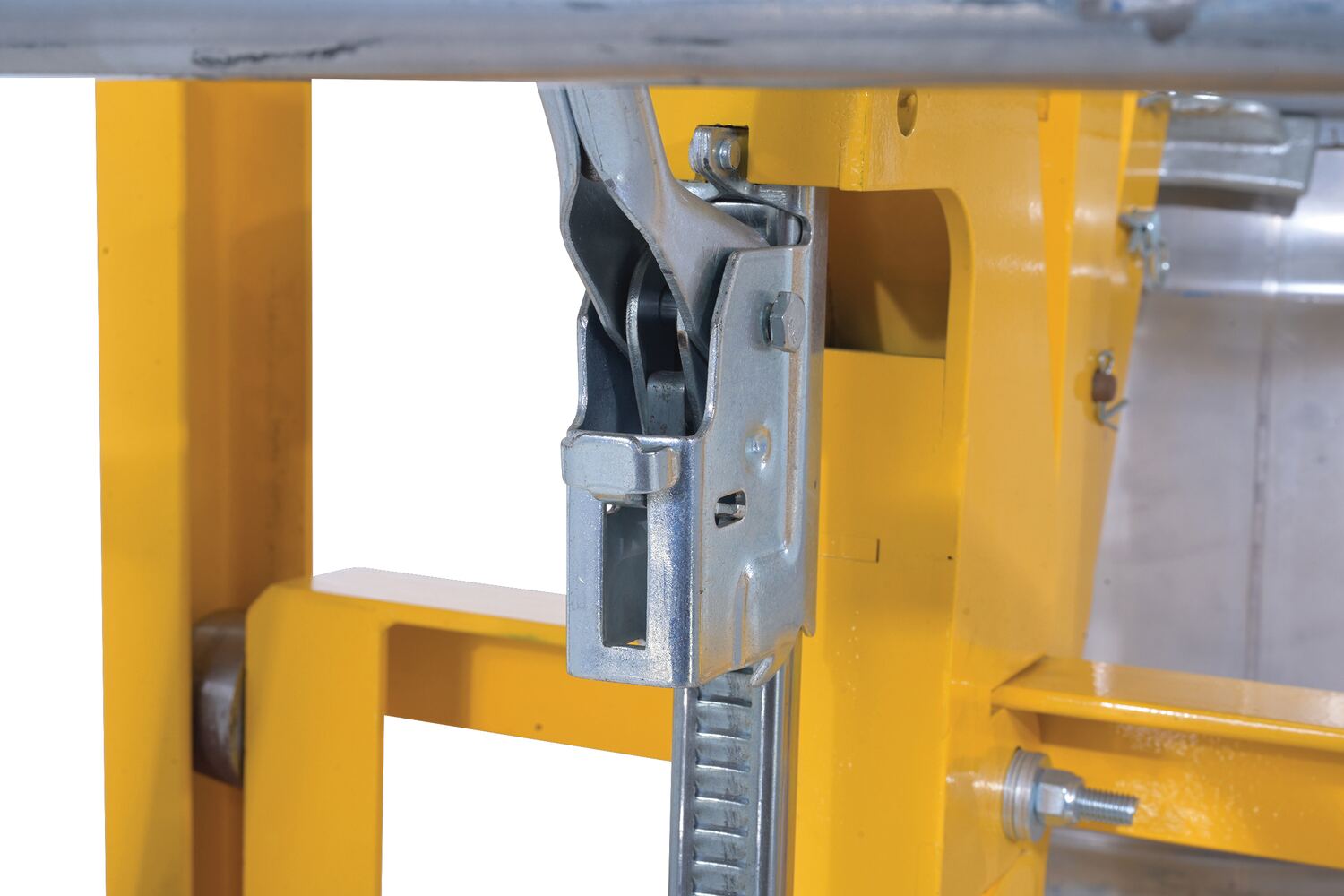

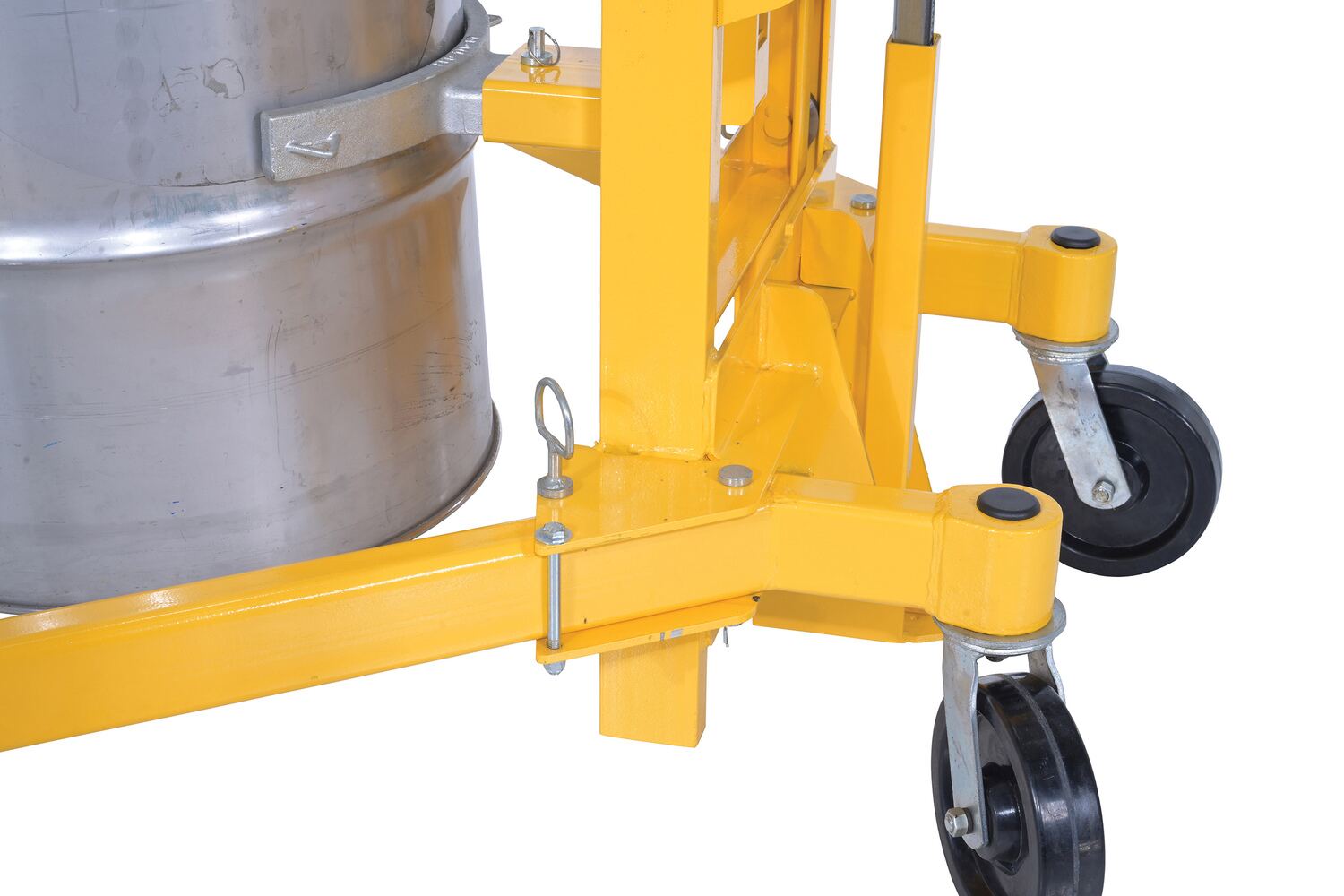

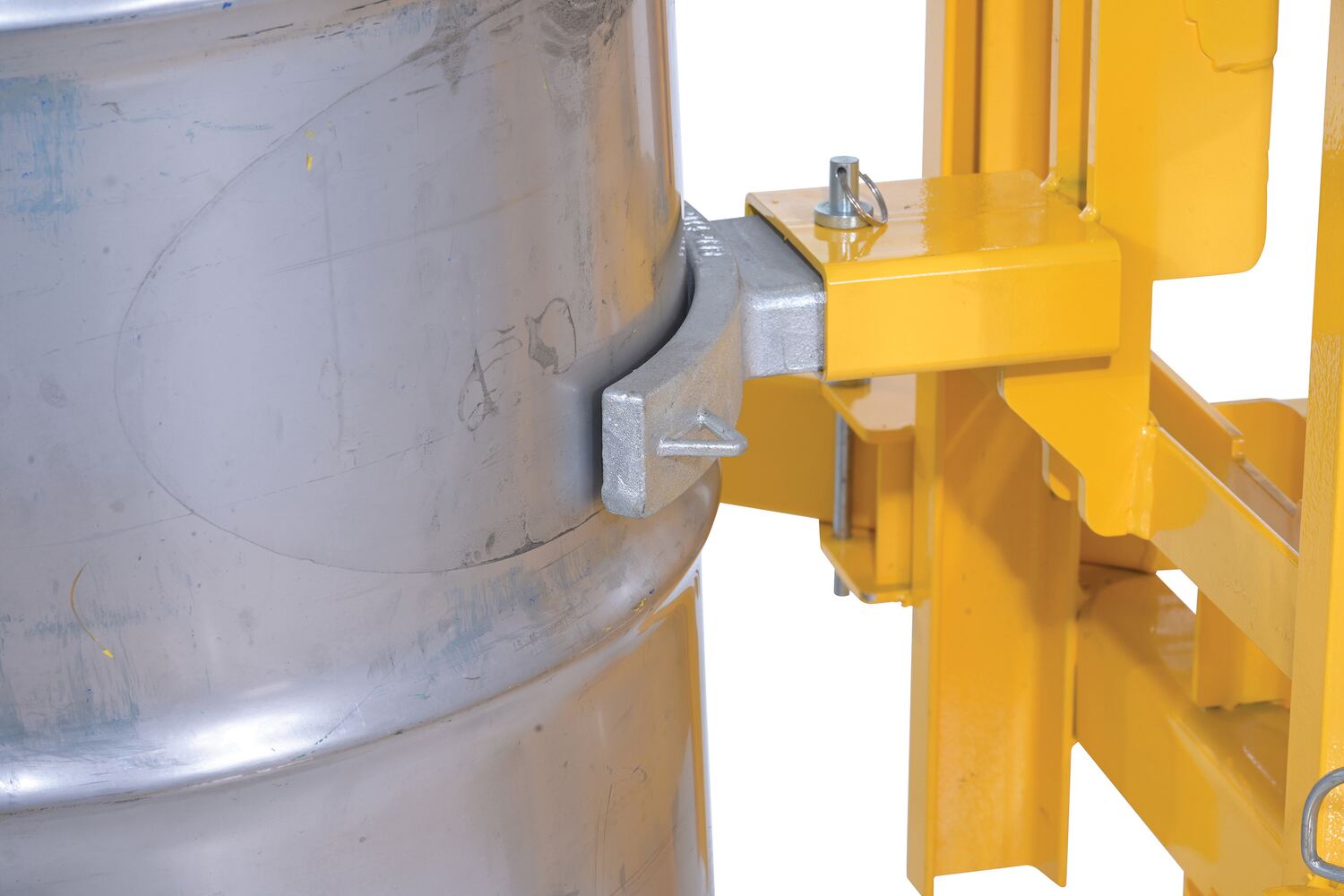

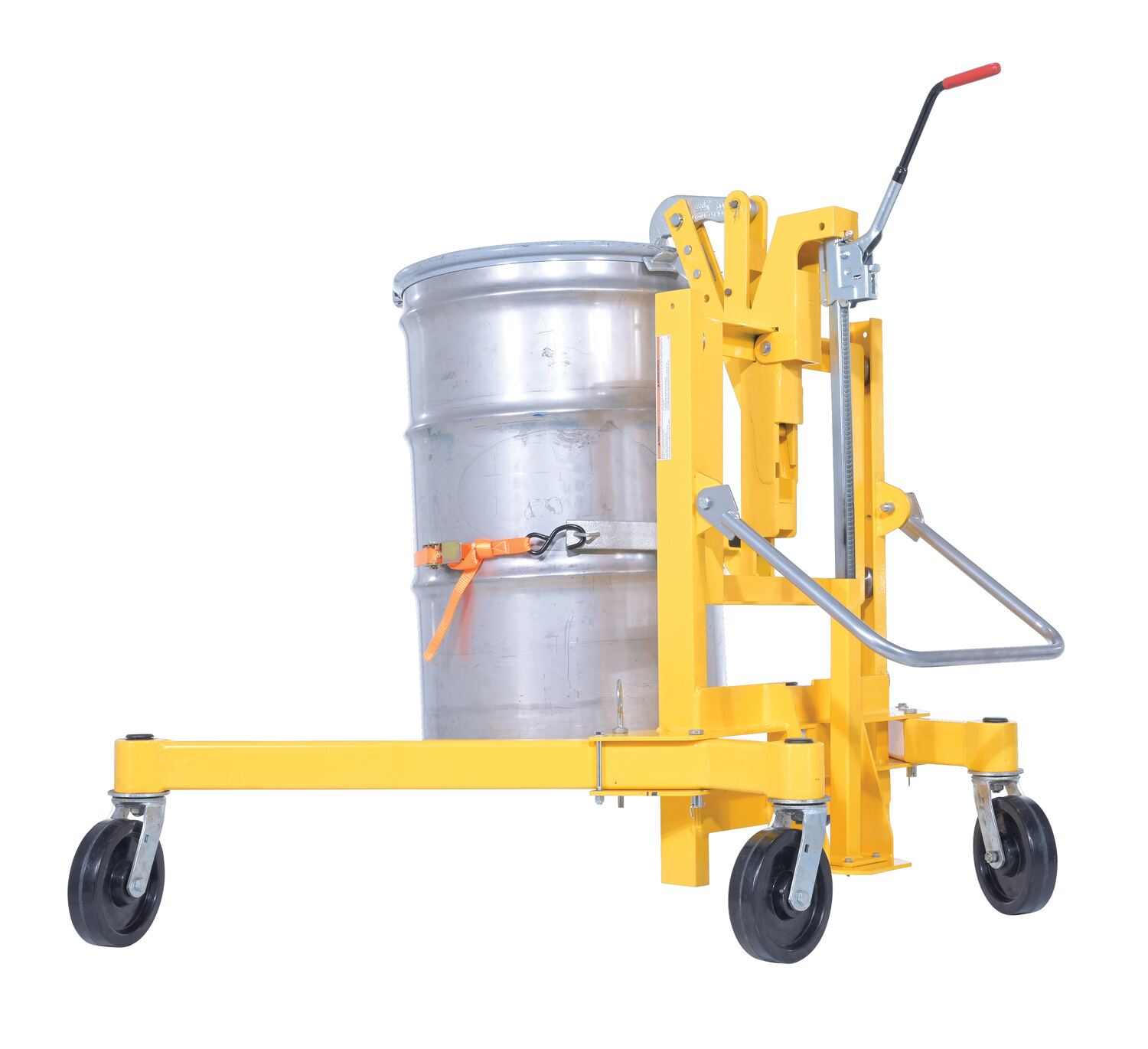

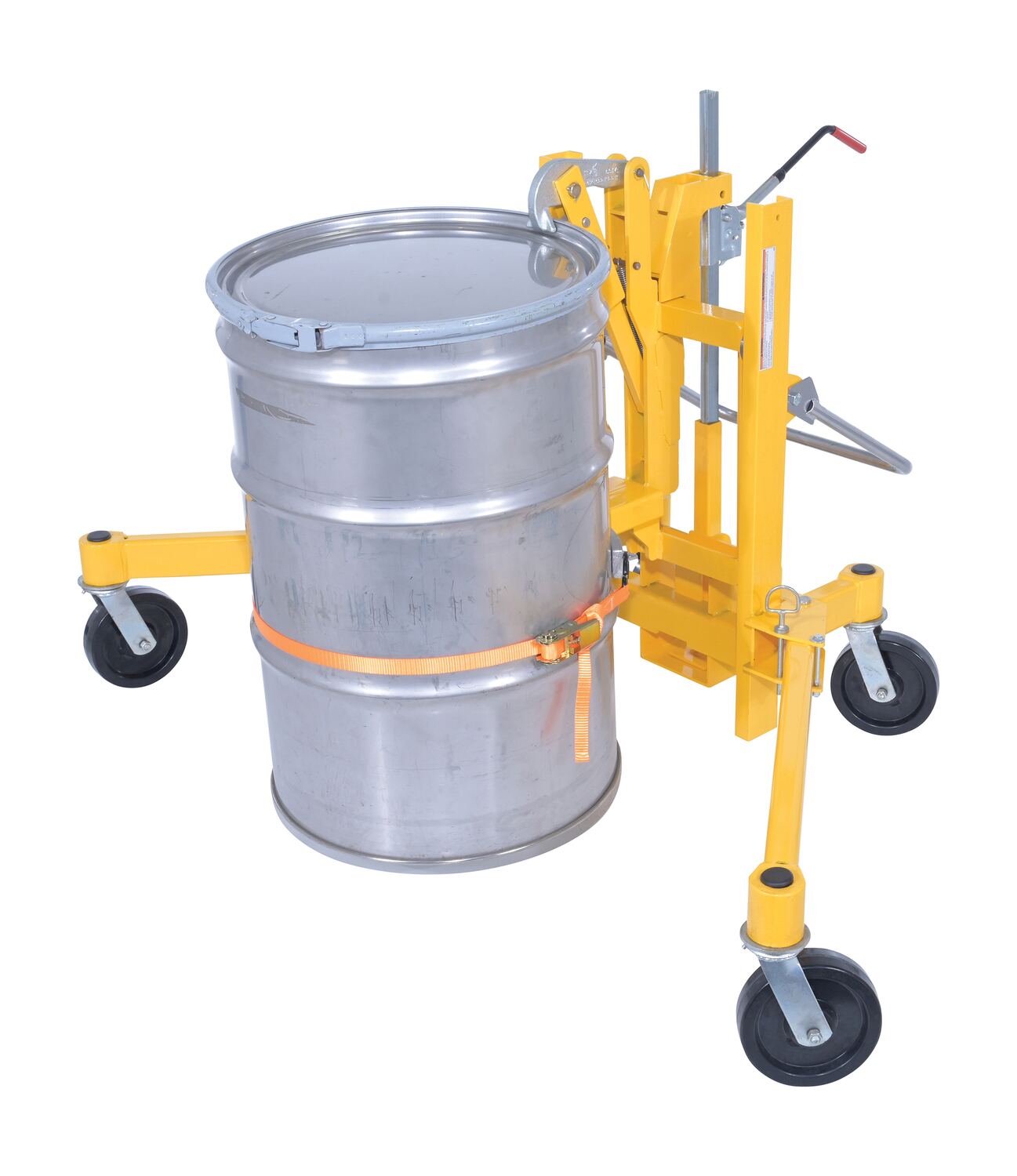

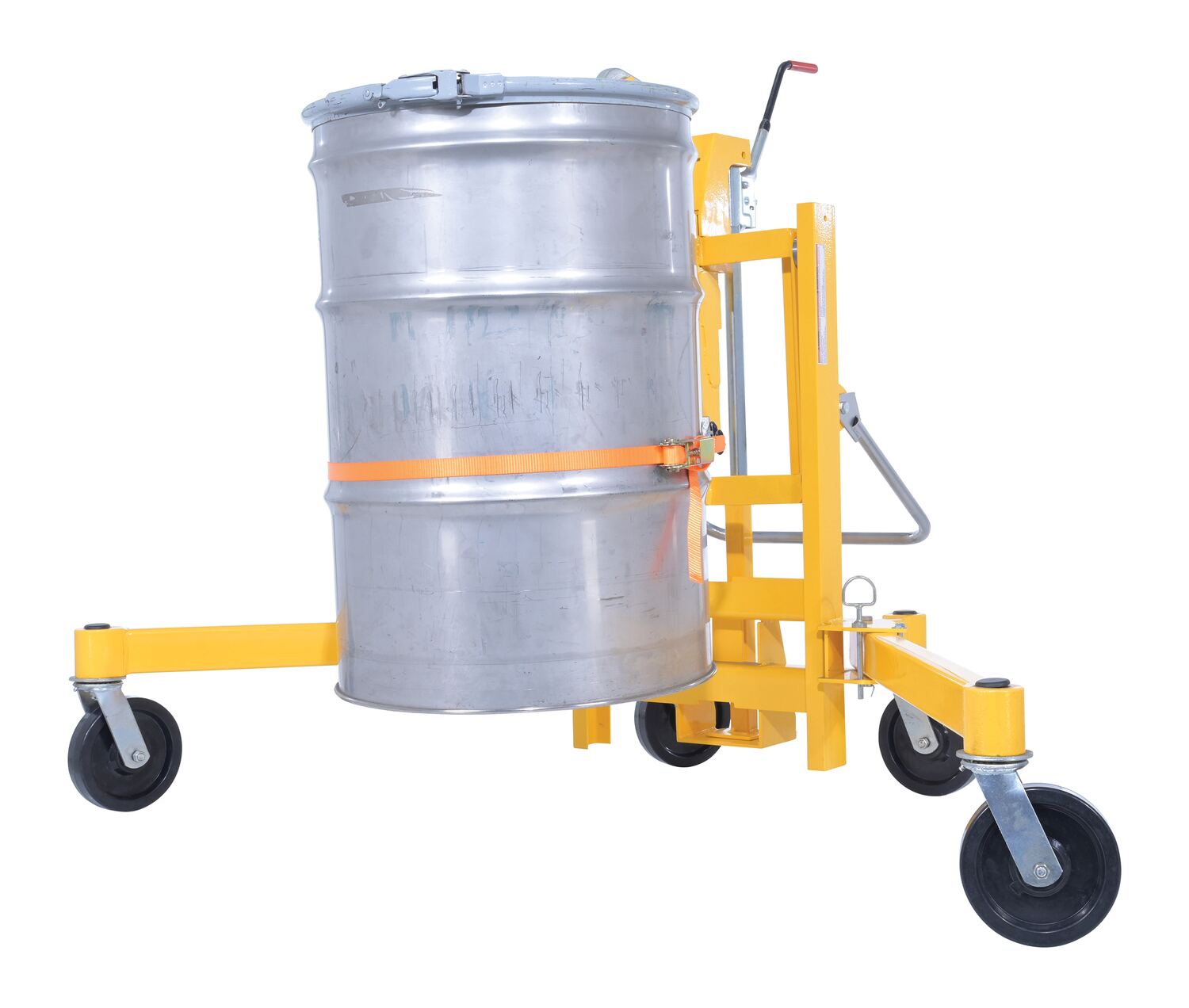

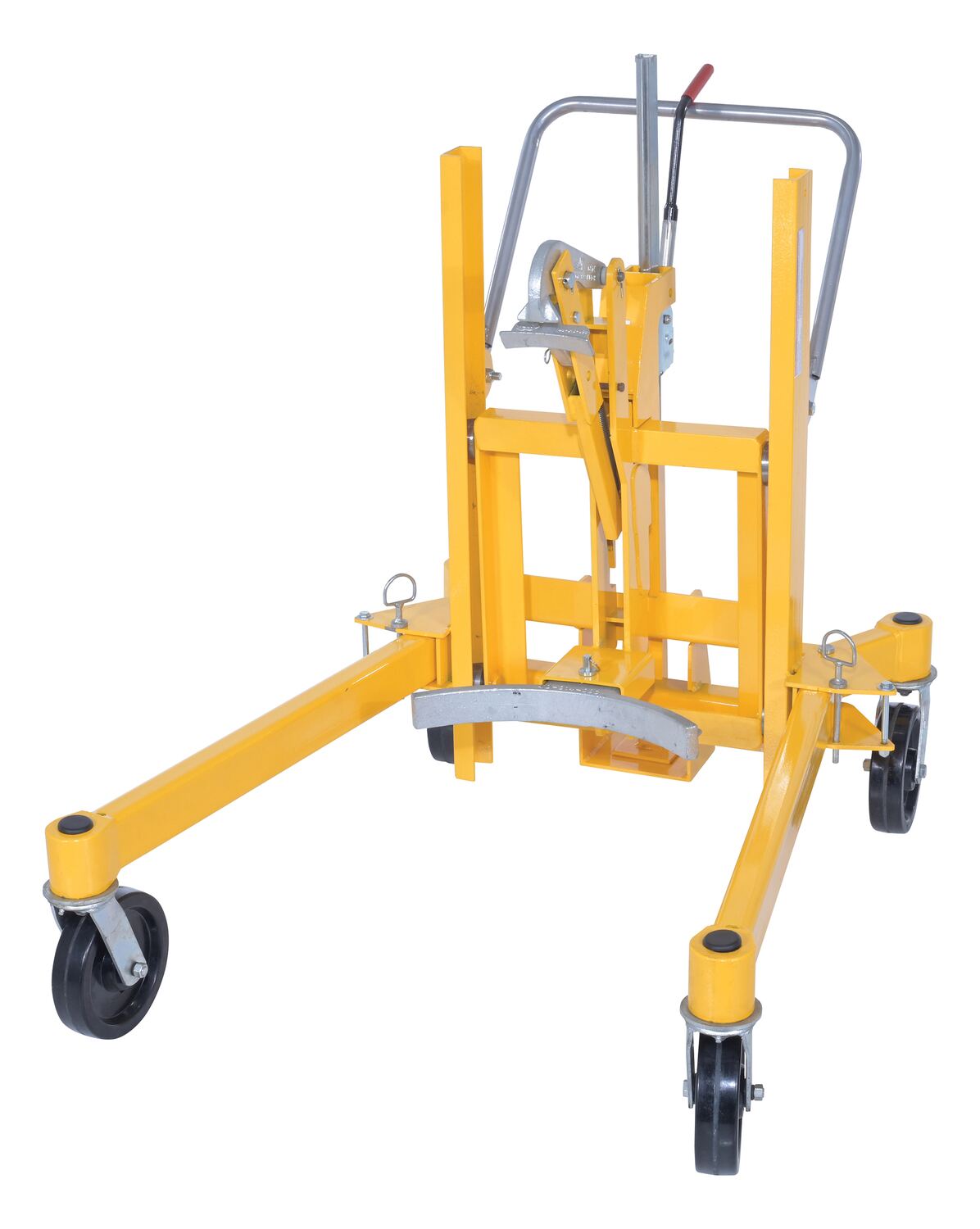

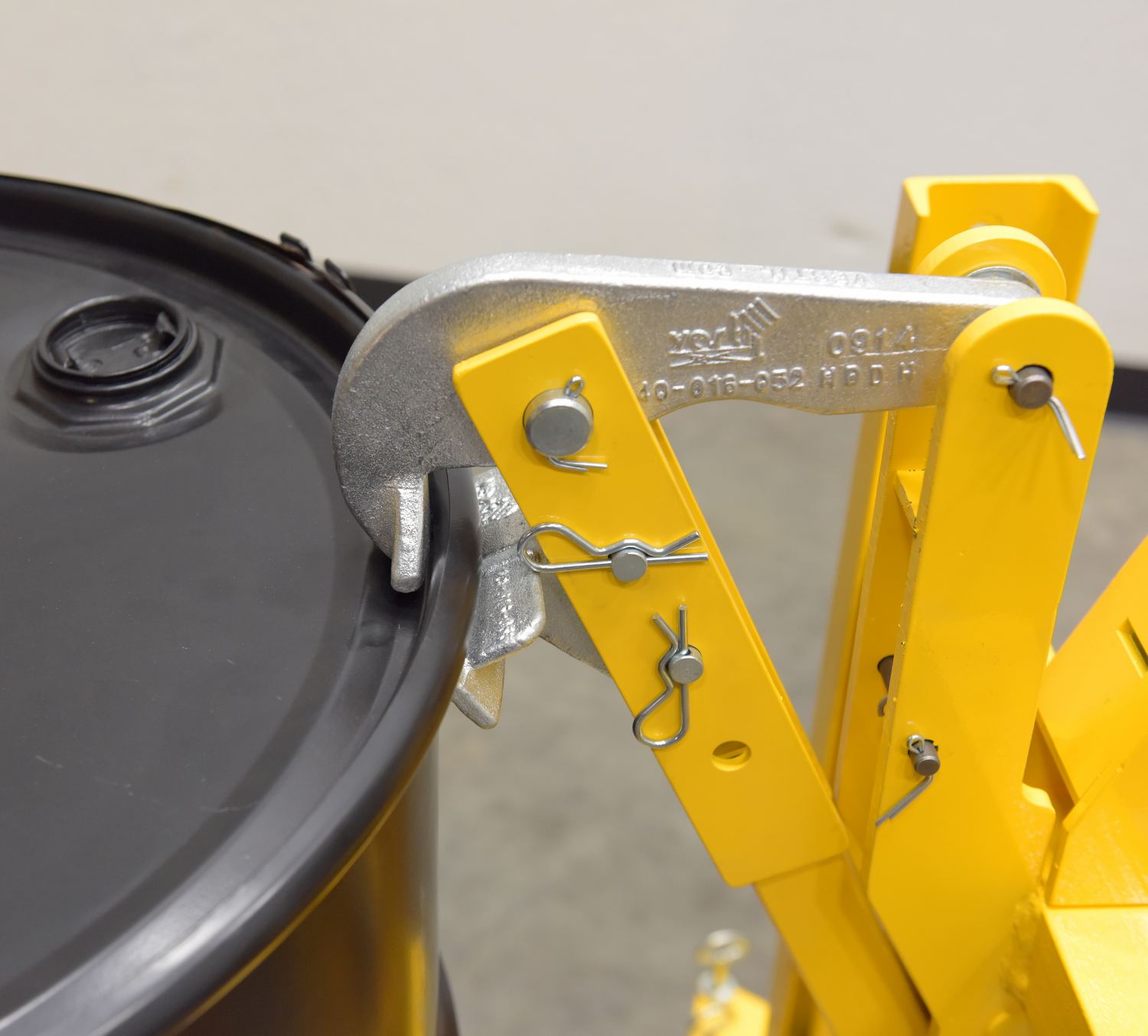

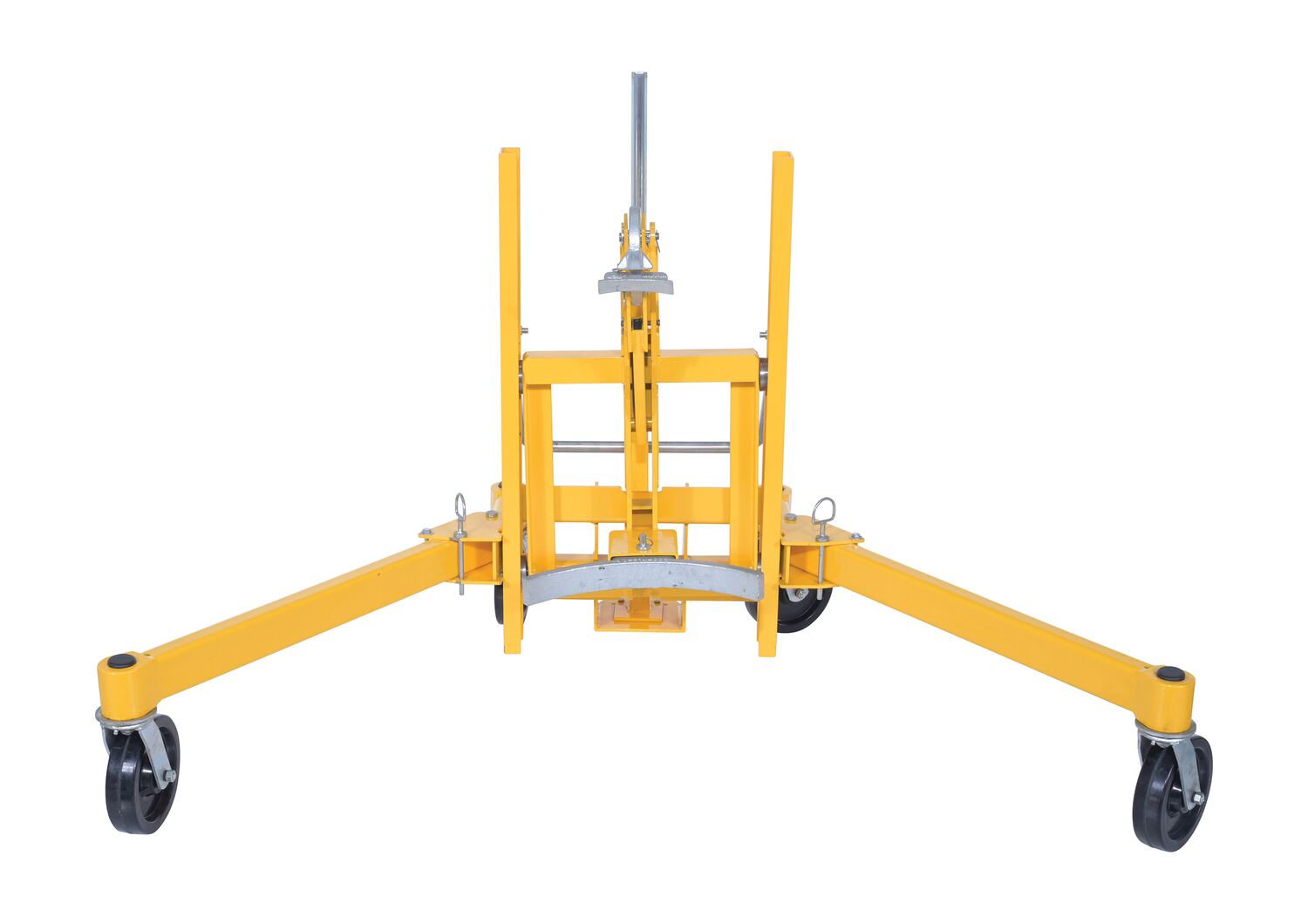

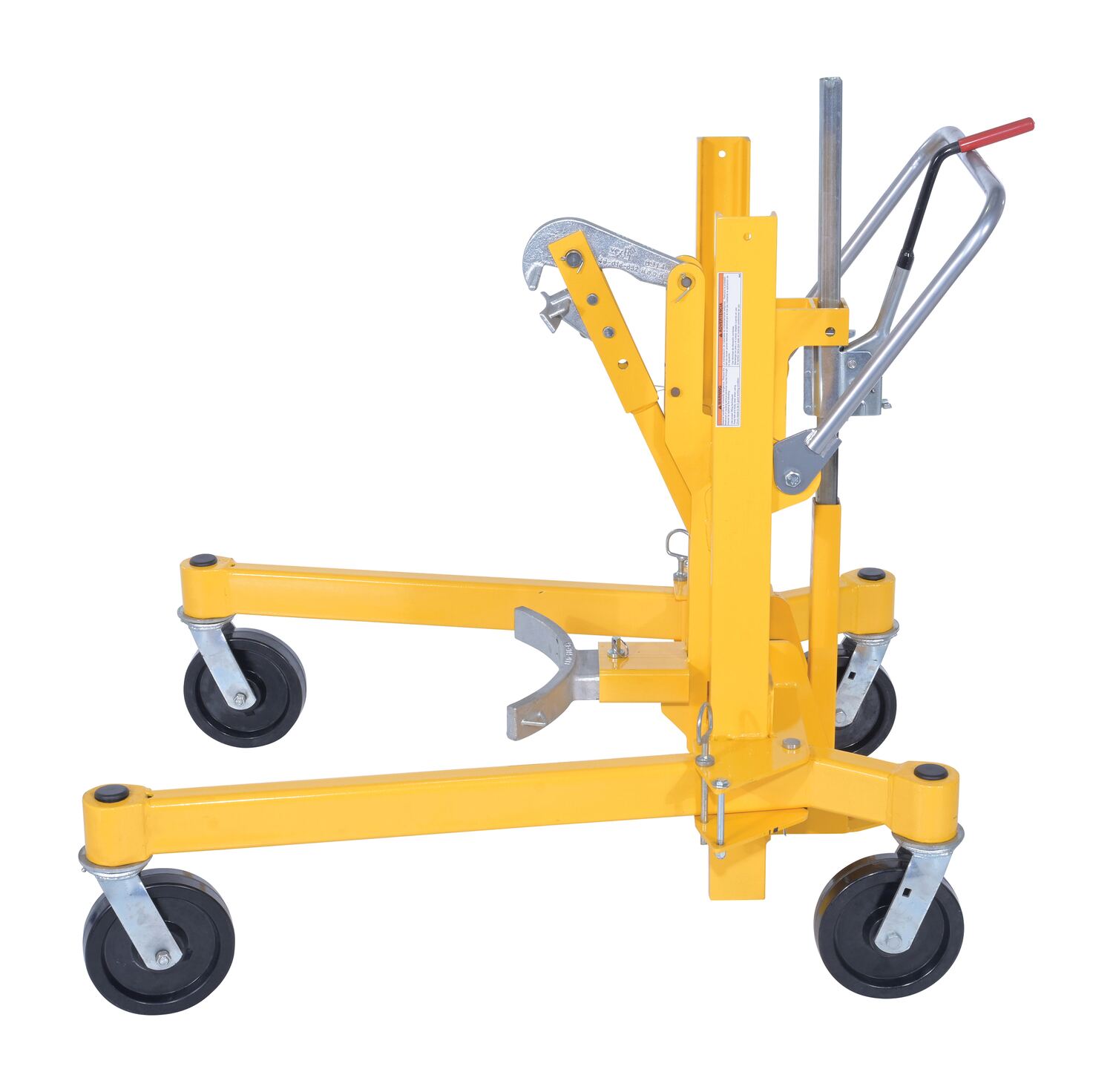

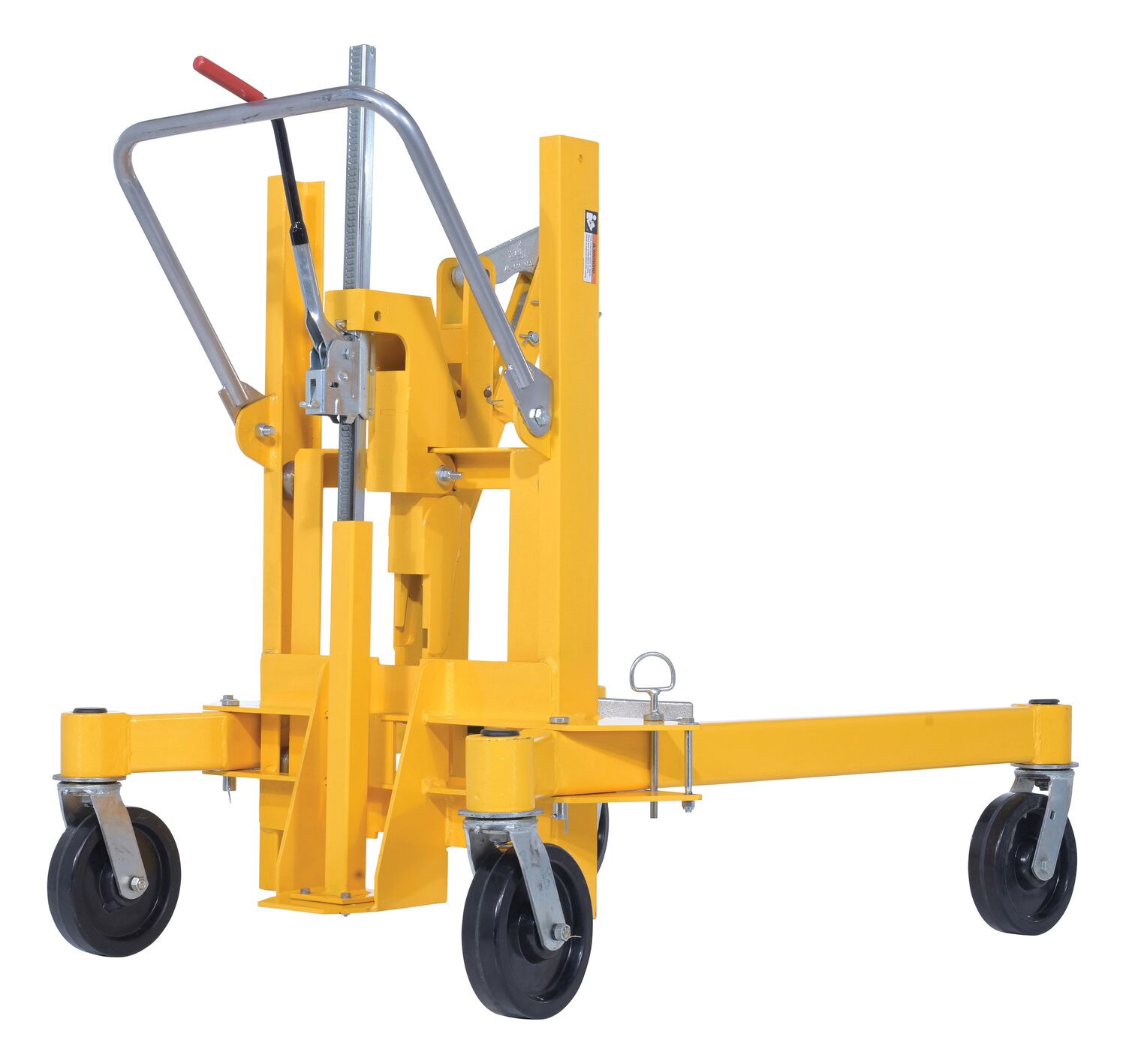

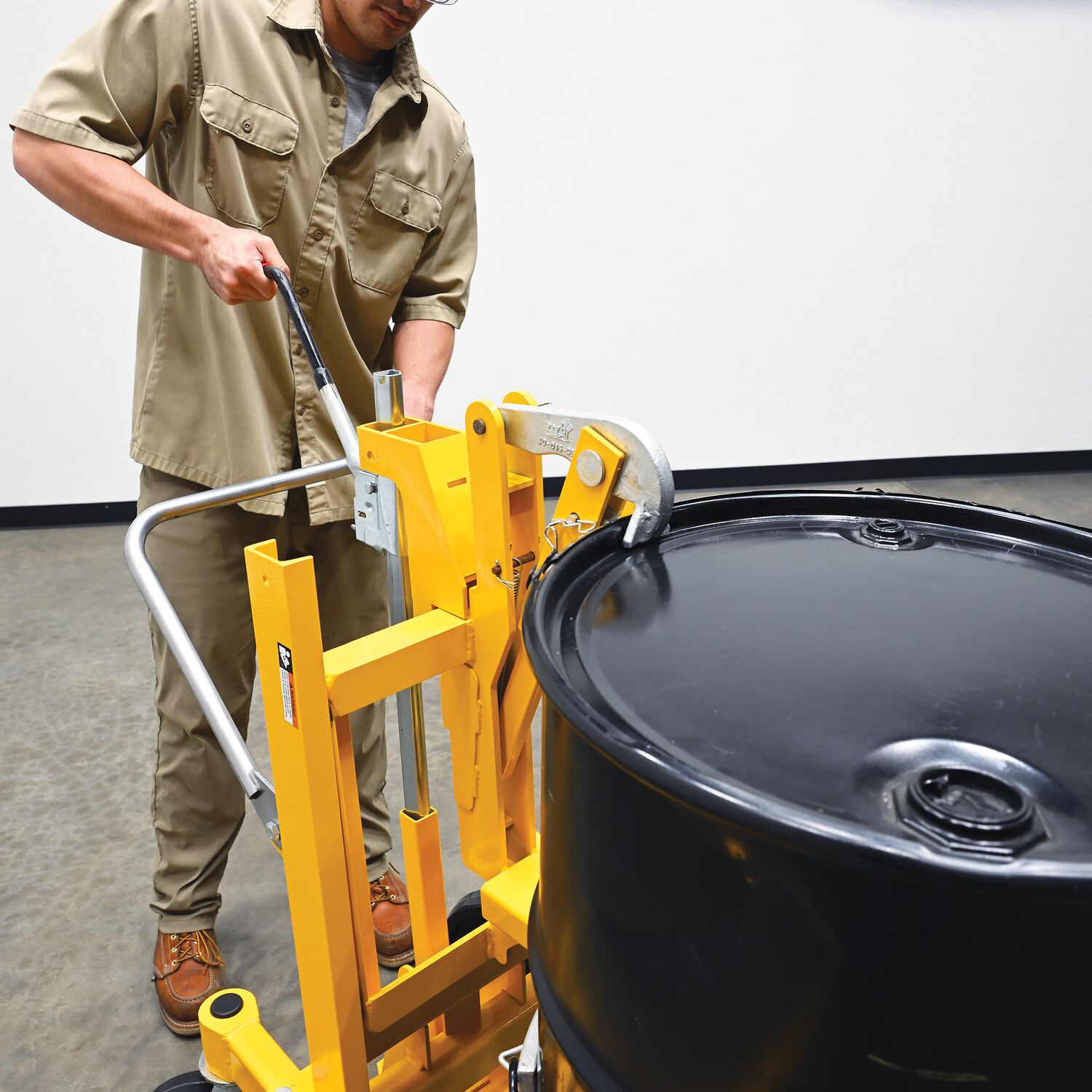

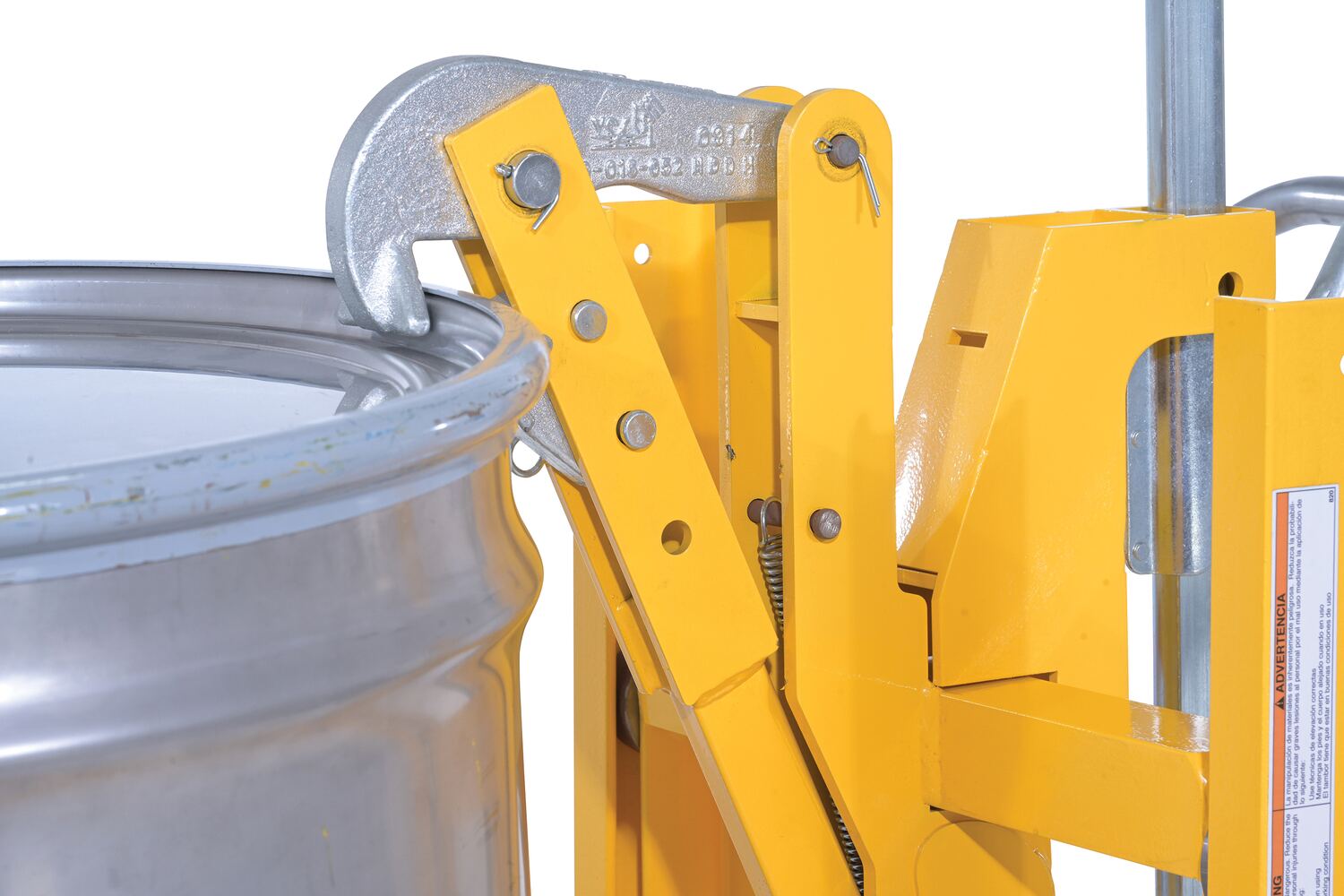

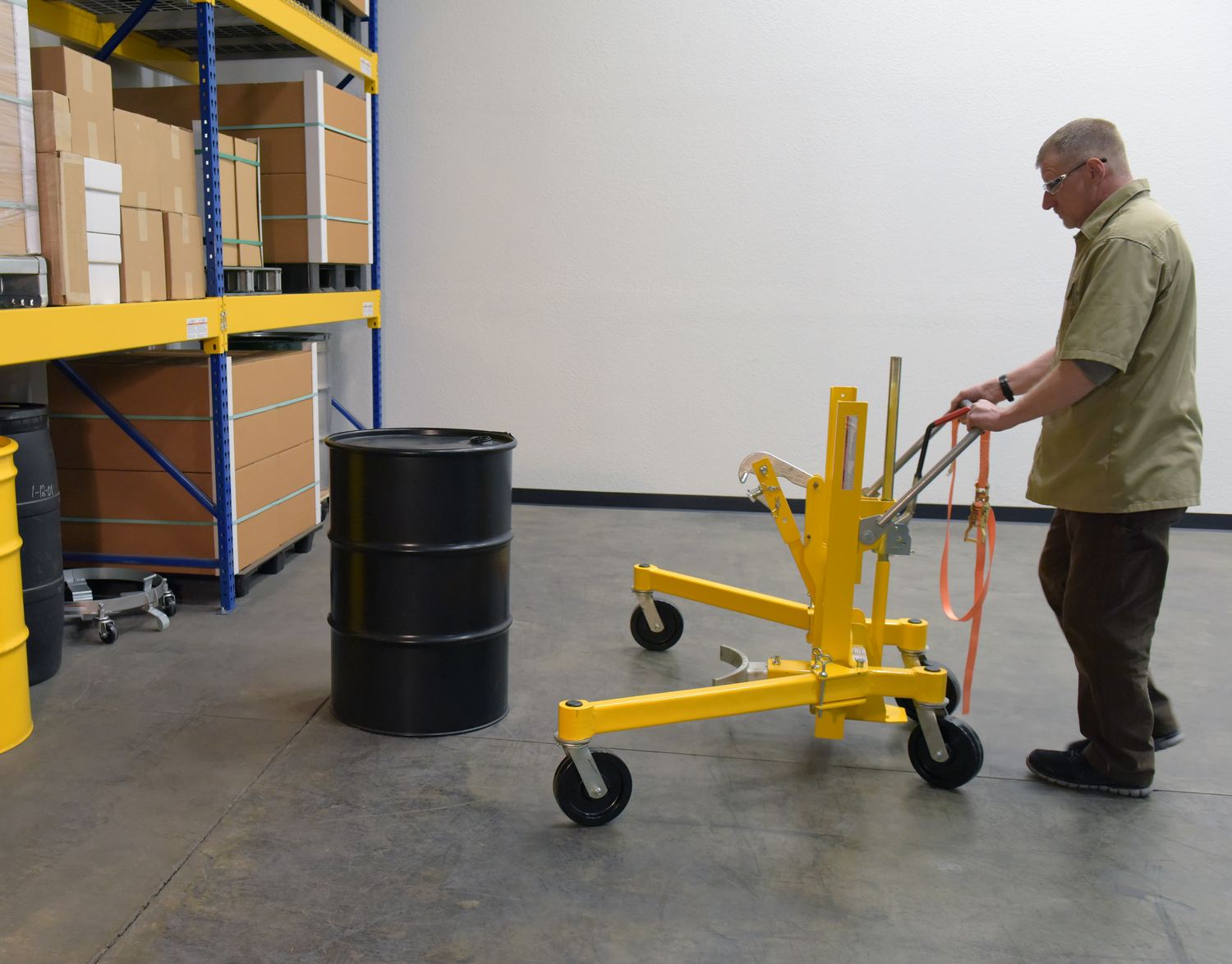

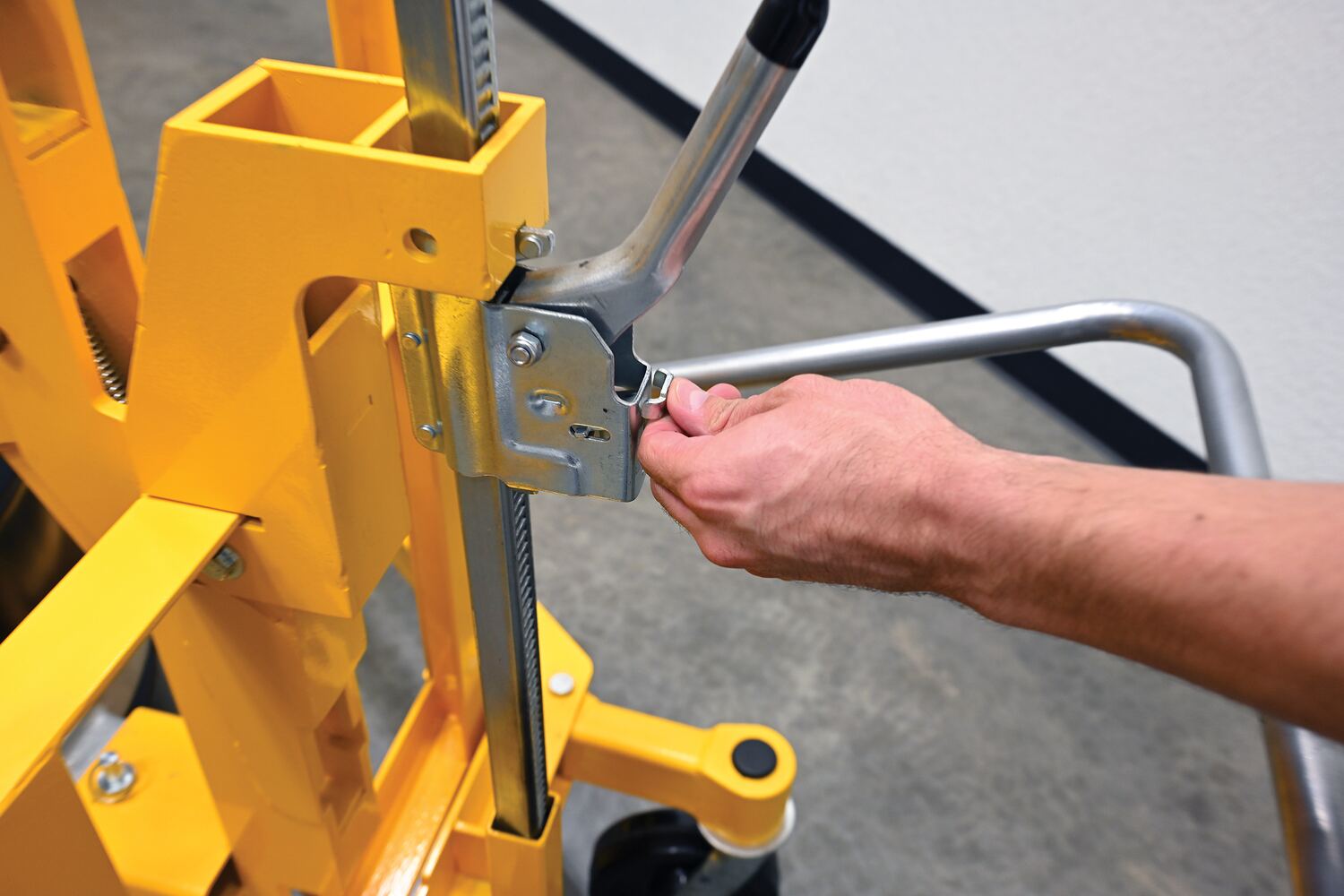

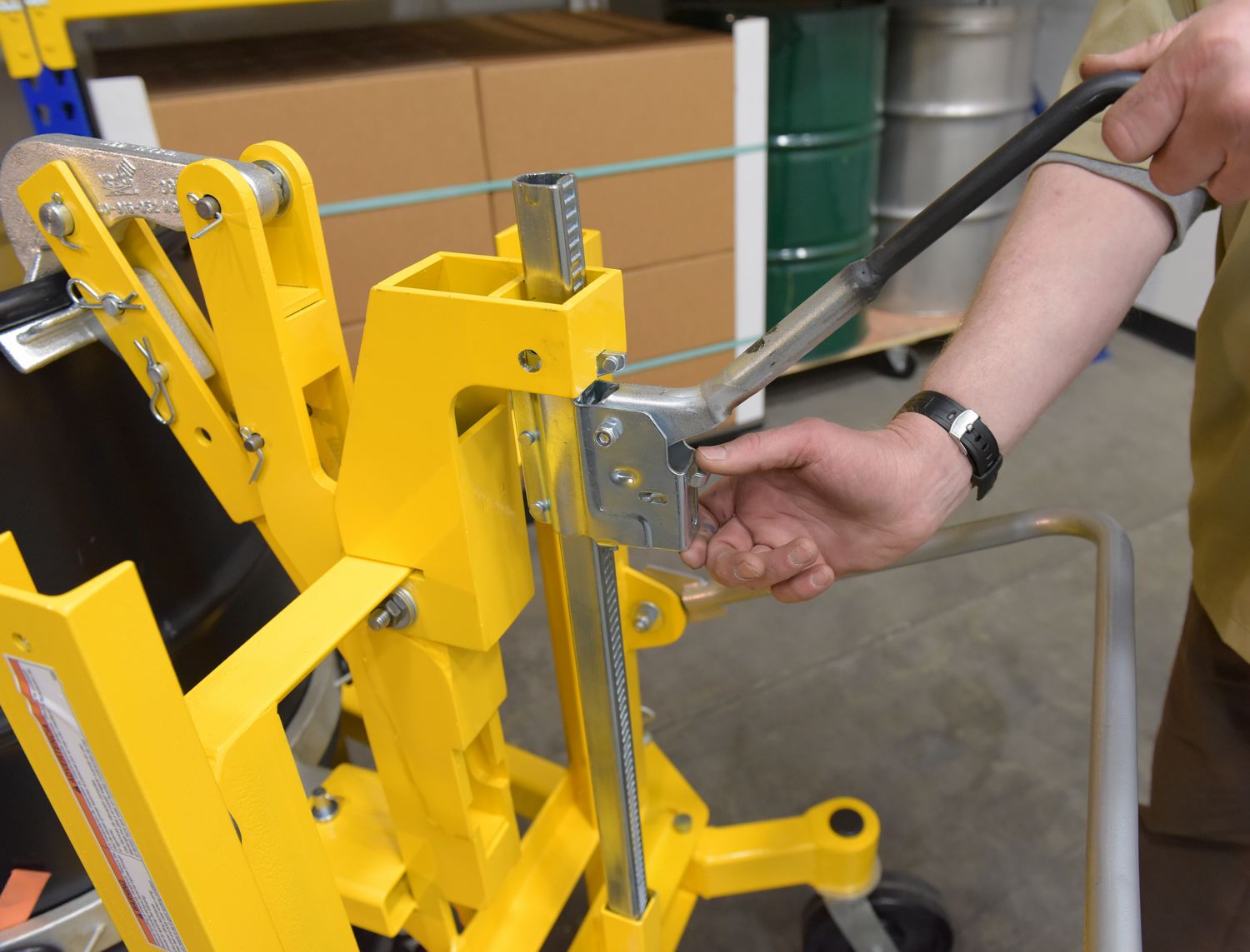

Unique portable unit designed to lift and transport steel, plastic, and fiber drums with a top lip. Steel jaw securely grips the top lip of the drum. Available with either a manual mechanical ratchet, foot pump hydraulic, or DC powered lift mechanism. Straddle legs rotate for access to drums on pallets. Units roll on four (4) 8" x 2" phenolic swivel casters. The push handle folds down for easy access to ratchet and foot pump. All welded steel construction. Baked-in powder coated toughness with a safety yellow finish. Optional scale weighs drums to an accuracy of +/-0.5 pounds. Optional scale includes (6) AA cell batteries and an AC adaptor.

Drum Transporter with Scale:

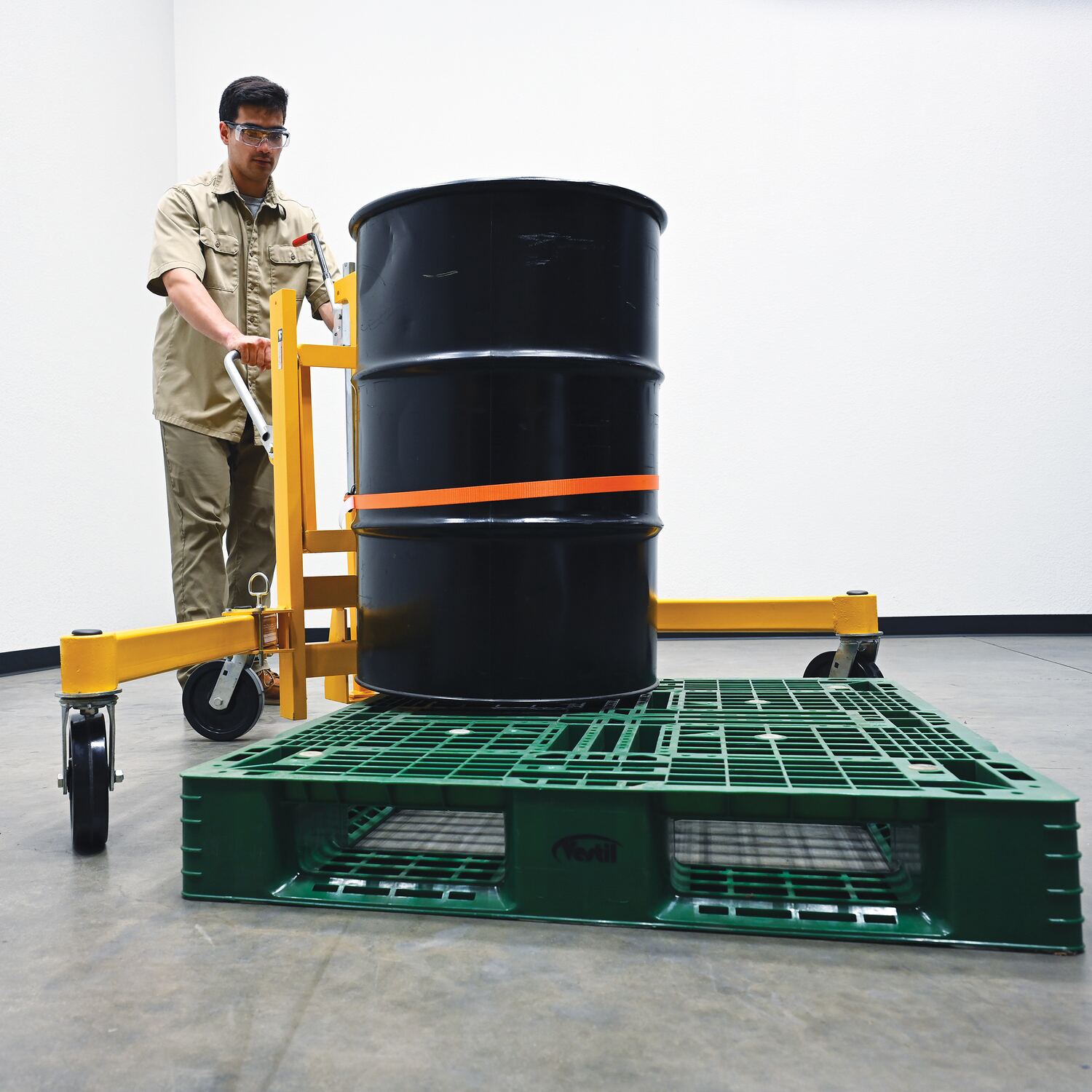

The portable Economical Drum Transporter is designed to lift and transport drums with a top lip. Drums are secured in place by utilizing the top jaw grip, as well as, the central support and strap. With a foot pump lift design, the user can position the drum to the best suitable height. The legs of the transporter have a straddle design feature that can be alternated to for a safer reach of drums, while on pallets. Scale weighs drums to an accuracy of +/-0.5 pounds and includes (6) AA cell batteries.

Economical Drum Transporters

model: DCR-880-M

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

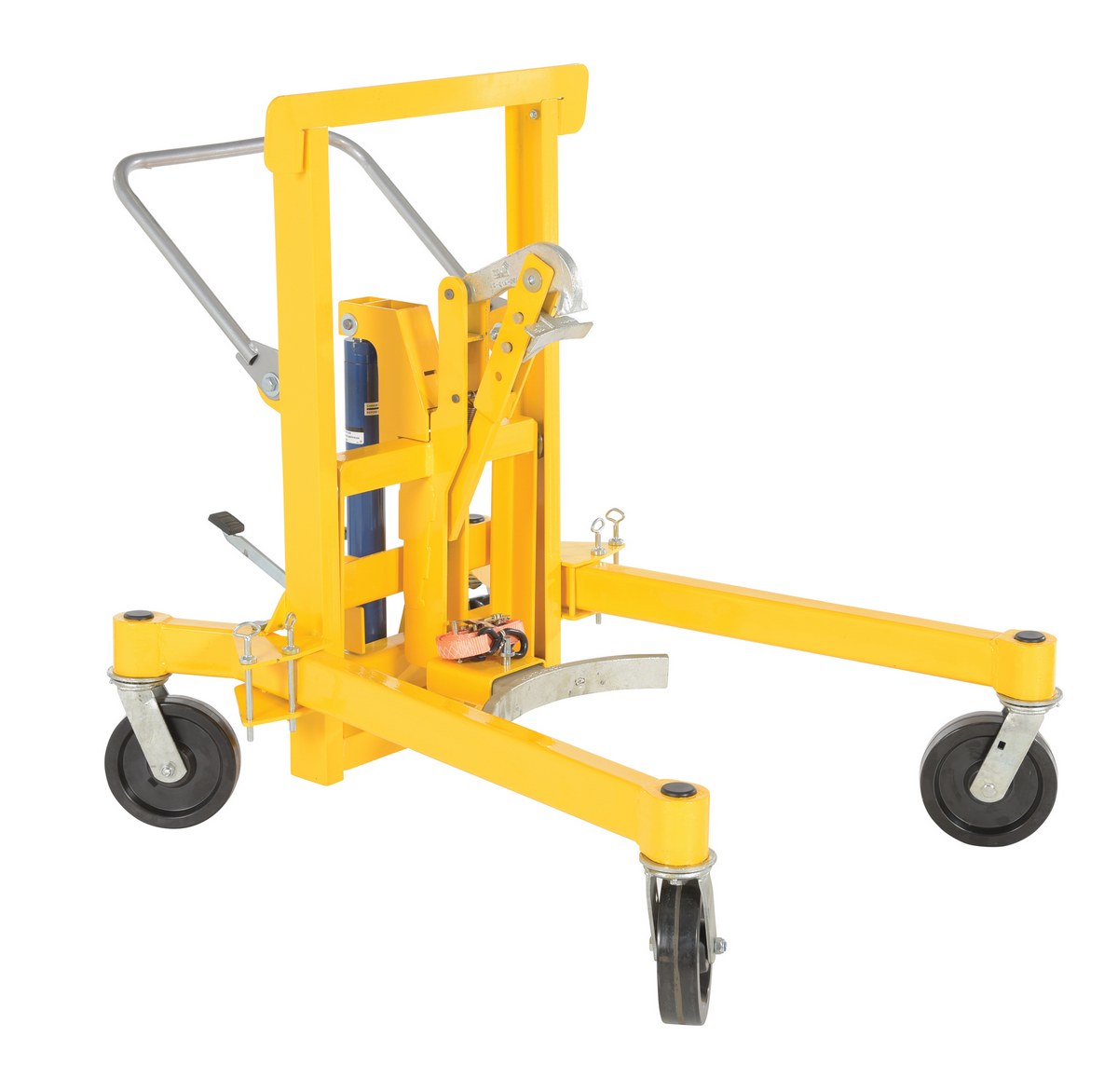

DCR-880-H DCR-880-H90 Days Limited WarrantySteel Economical Foot Pump Drum Transporter 55 Gallon 1500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2		310

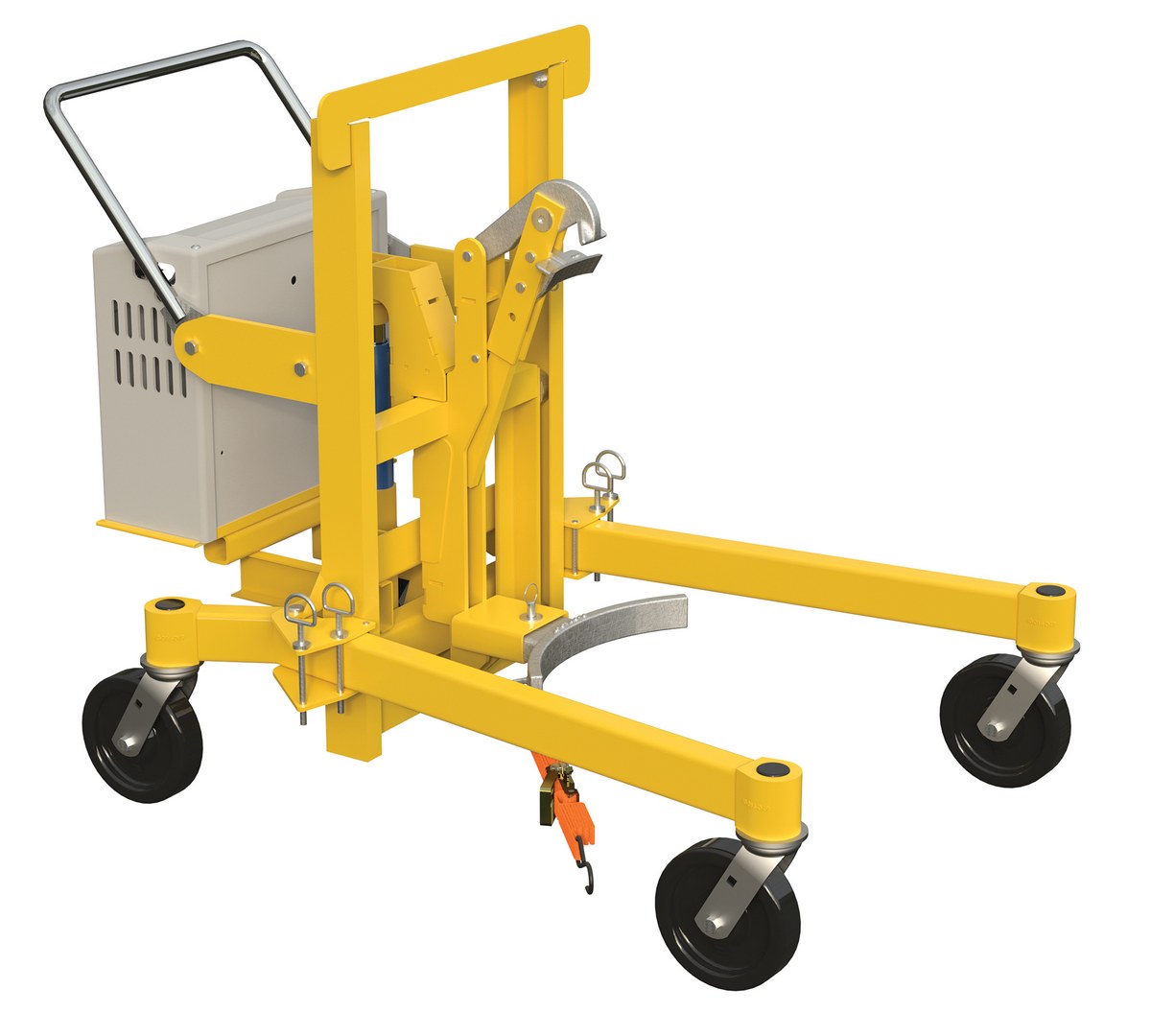

DCR-880-H-DC DCR-880-H-DC90 Days Limited WarrantySteel Economical DC Drum Transporter 55 Gallon 1500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2		438

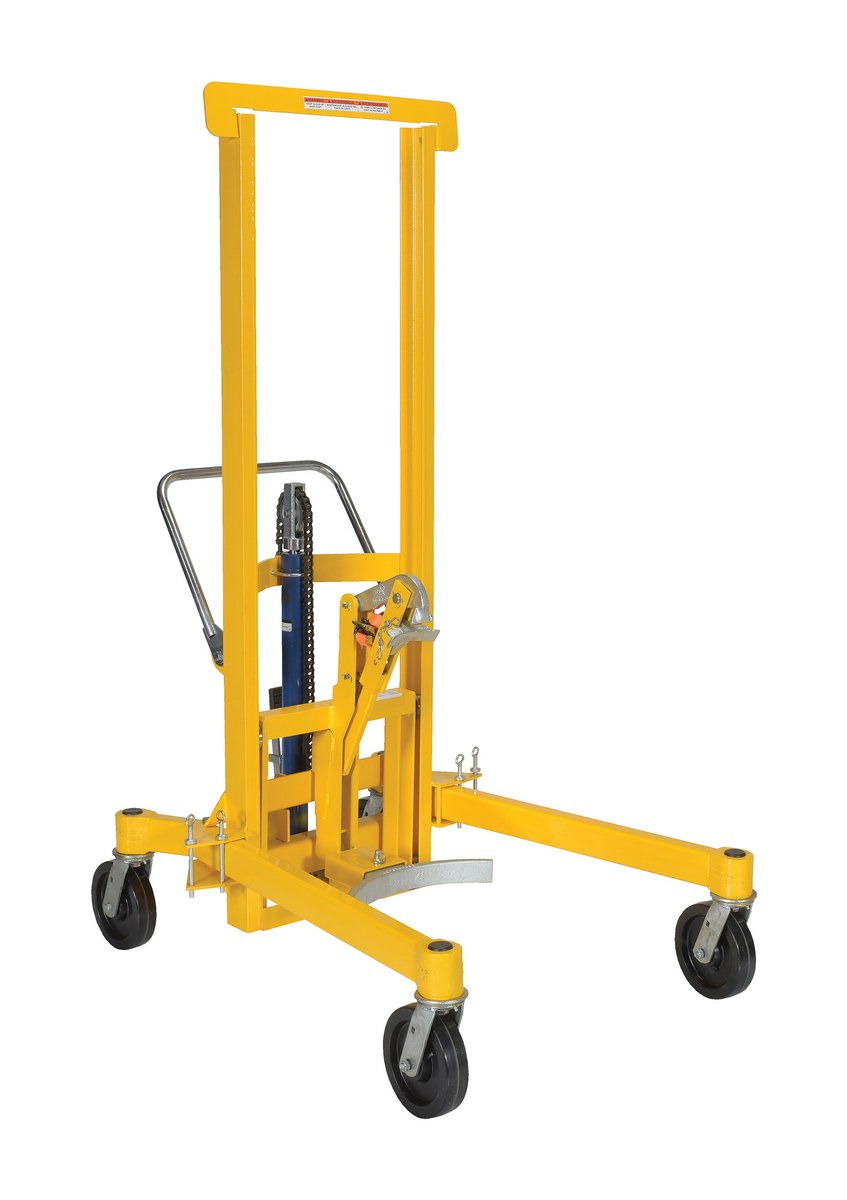

DCR-880-H-HP DCR-880-H-HP90 Days Limited WarrantySteel Economical Foot Pump Drum Transporter 55 Gallon 800 Lb. Capacity YellowUniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2		345

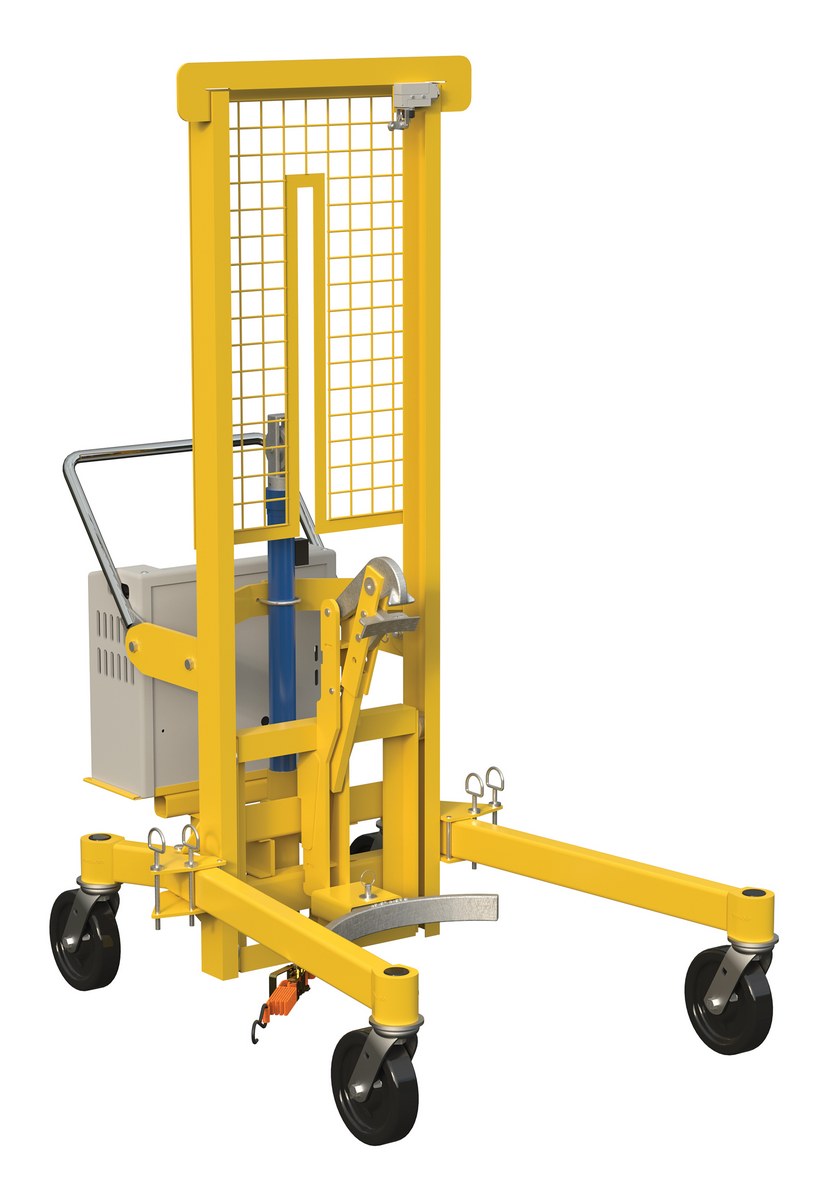

DCR-880-H-HP-DC DCR-880-H-HP-DC90 Days Limited WarrantySteel Economical DC Drum Transporter 55 Gallon 800 Lb. Capacity YellowUniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2		445

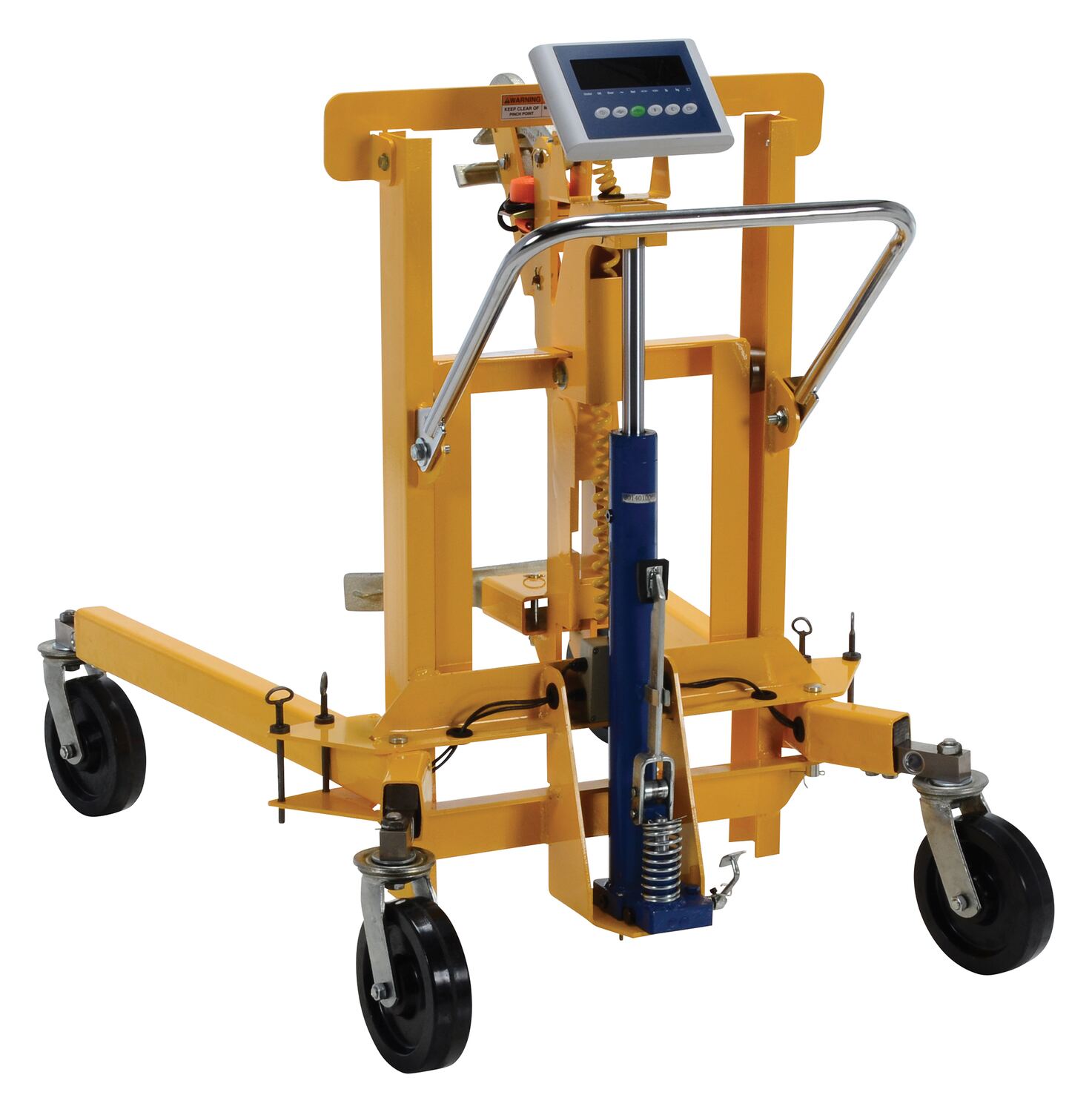

DCR-880-H-SCL NEW DCR-880-H-SCL90 Days Limited WarrantySteel Economical Foot Pump Drum Transporter With Scale 55 Gallon 1500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2		368

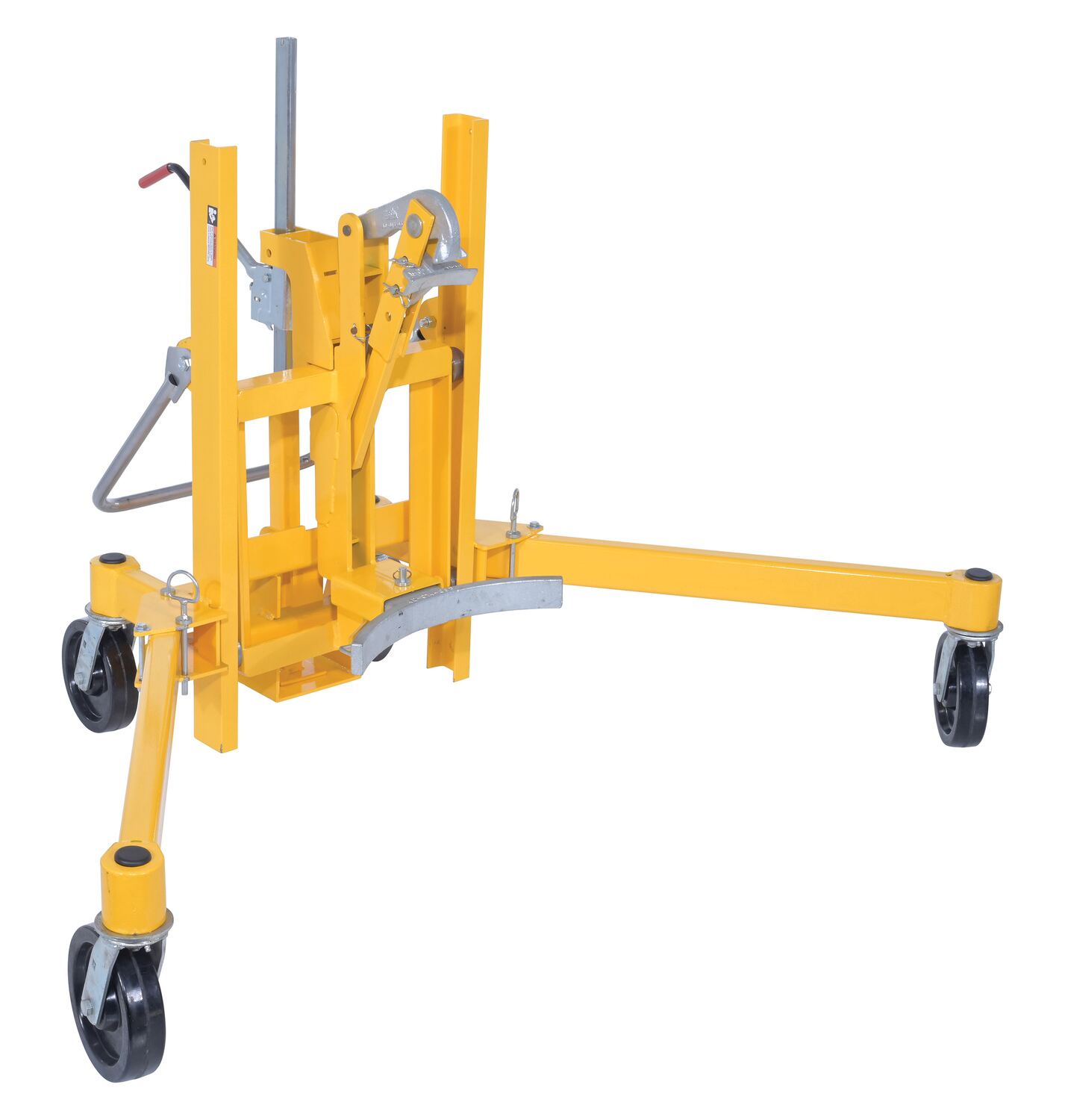

DCR-880-M DCR-880-M90 Days Limited WarrantySteel Economical Ratchet Drum Transporter 55 Gallon 800 Lb. Capacity YellowUniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2		275

* Outriggers must be in closed position on DCR-880 models for best scale reading.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

DCR-880-H
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2
Uniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2

DCR-880-H-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2
Uniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2

DCR-880-H-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2
Uniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2

DCR-880-H-HP-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2
Uniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2

DCR-880-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2
Uniform Capacity (lb.): 880
Caster Quantity/Diameter/Width (in.): (4) 8x2

DCR-880-H-SCL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2
Uniform Capacity (lb.): 1,500
Caster Quantity/Diameter/Width (in.): (4) 8x2
For More Details of the Option Click the Red Model Button

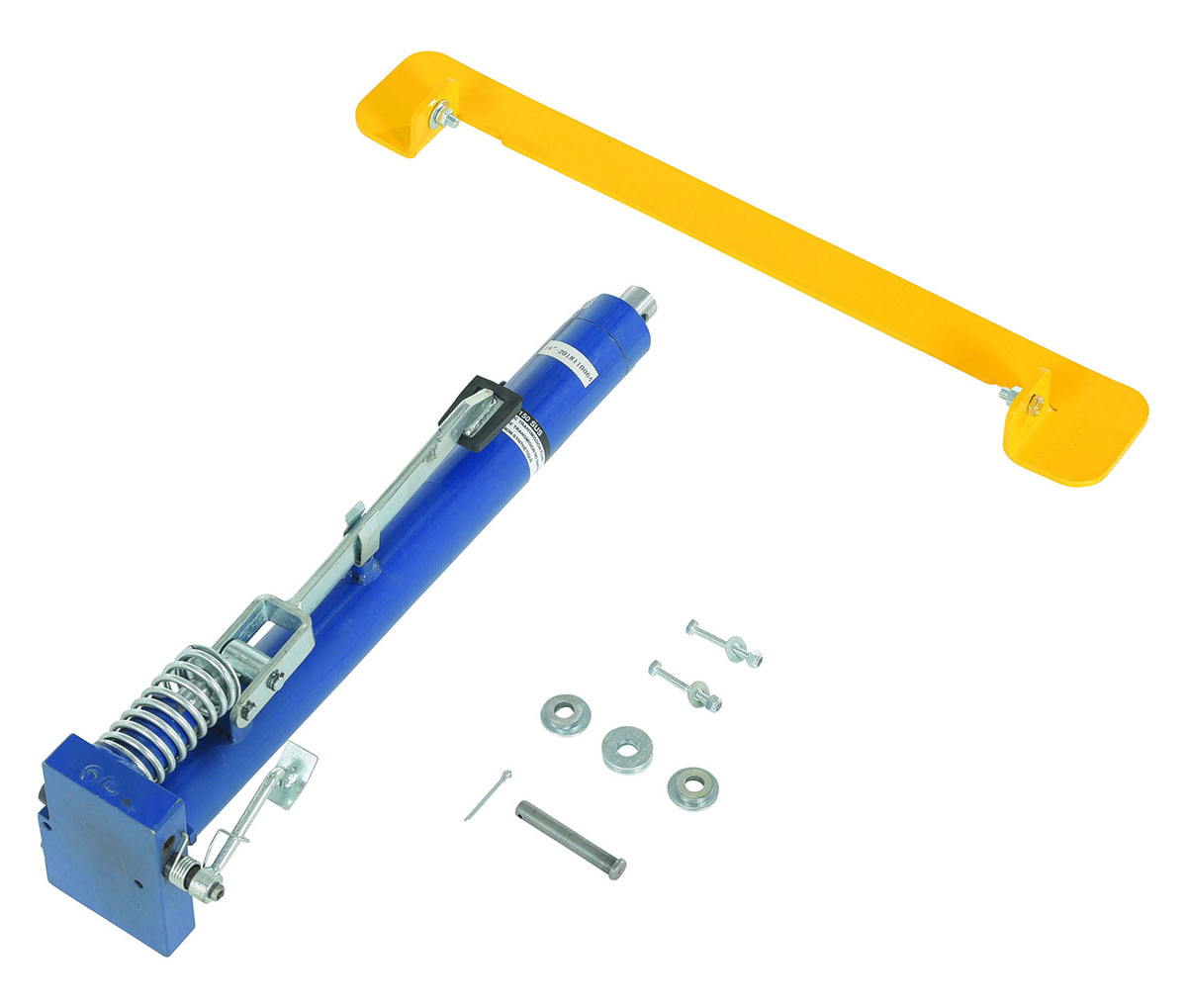

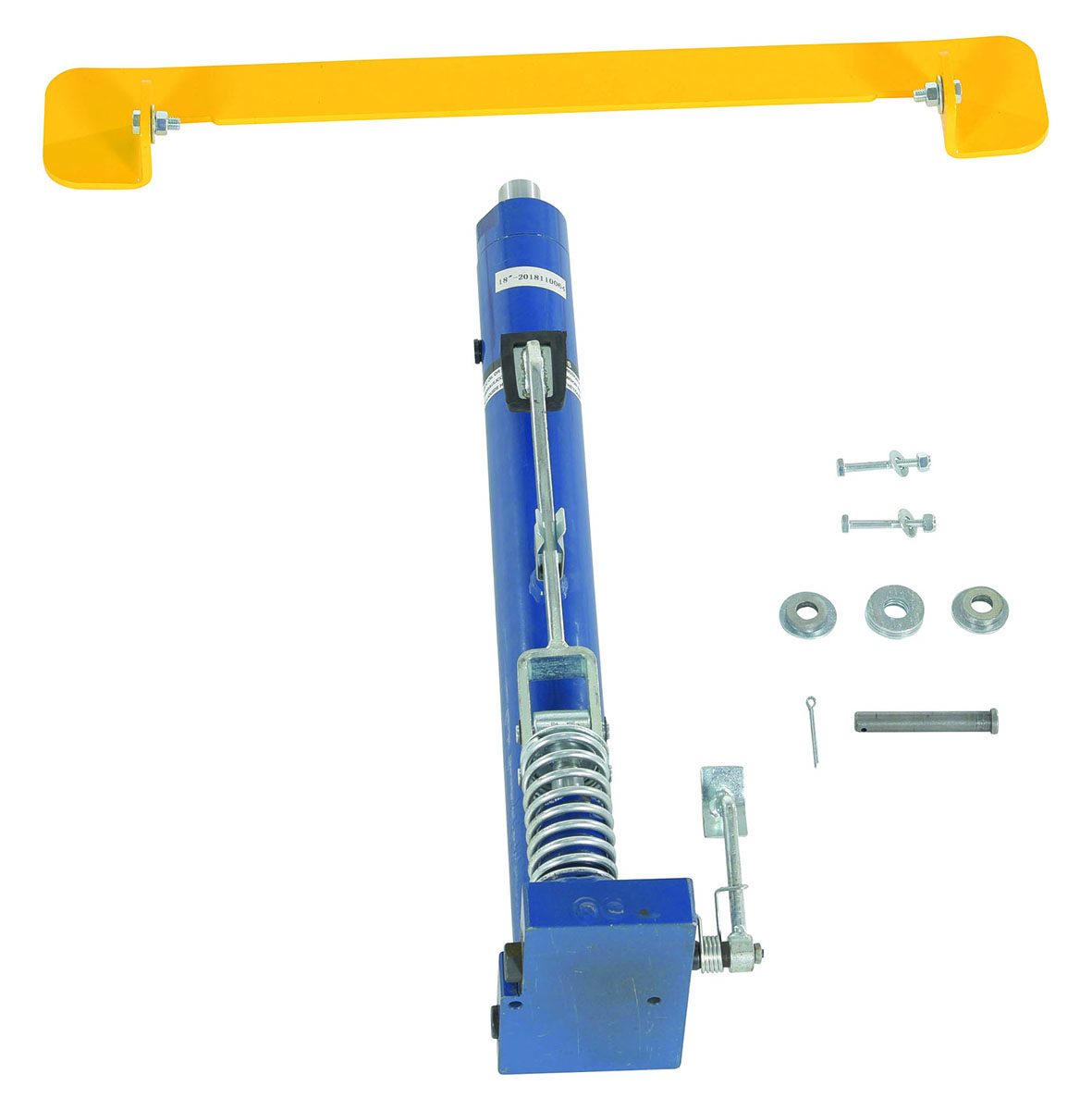

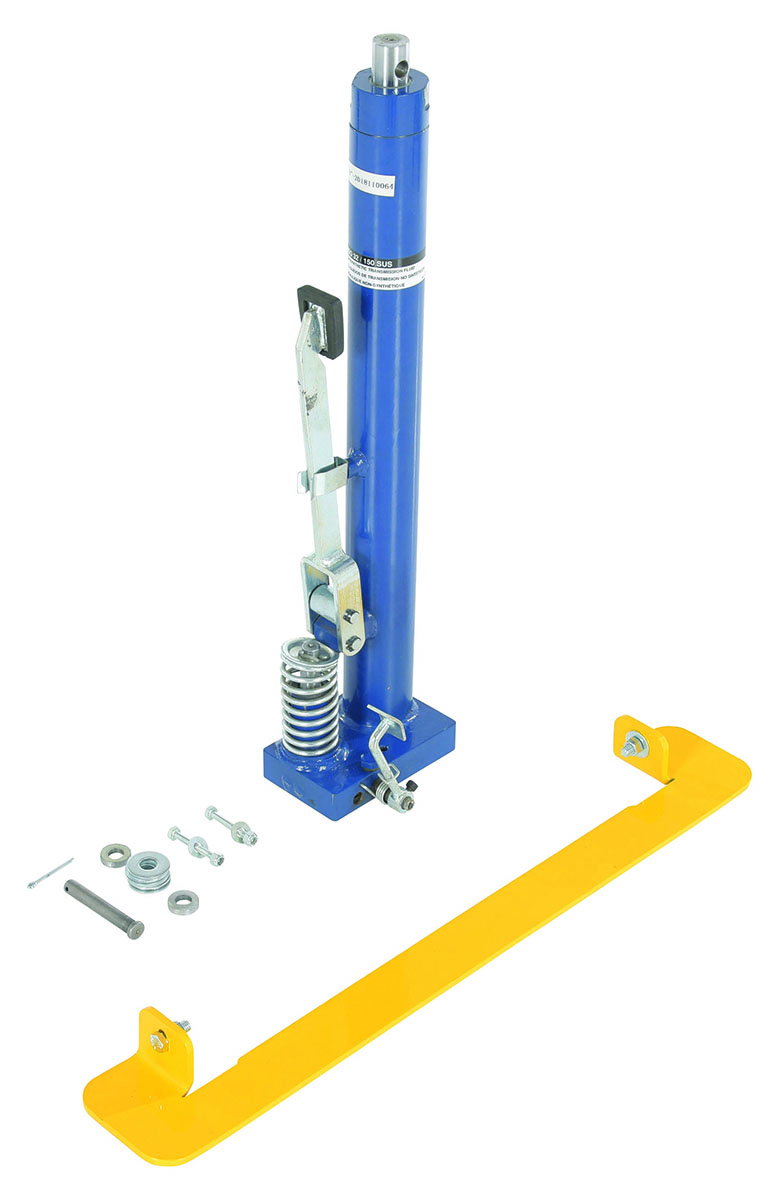

DCR-880-M2H DCR-880-M2H90 Days Limited WarrantySteel Hydraulic Conversion Kit For Converting Manual Drum Transporter Models Blue / YellowBrand / Model Compatibility: For Use With DCR-880-M
Additional Contents: Manual to Hydraulic Conversion Kit		36
Model Image PDFs Description Capacity (lbs.) Wt (lbs.)
LDS-R3 icon_approvaldrawings.jpgWarranty PDF Optional Lifting Drum Saddle - roller style 1,000 24
LDS-B1 icon_approvaldrawings.jpgWarranty PDF Optional Lifting Drum Saddle - Belt style 2,000 21
DCR-880-M2H - Convert Manual To Hydraulic Kit (for DCR-880-M) - 34
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Economical Drum Transporters PDF's will open in a new window when clicked.

Manuals


DCR-880
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


DCR-880-H

DCR-880-H-DC

DCR-880-H-HP

DCR-880-H-HP-DC

DCR-880-M

Testing Certificates


DCR-880-H

DCR-880-H-DC

DCR-880-H-HP

DCR-880-H-HP-DC

DCR-880-H-SCL

DCR-880-M

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: DCR-880-H-DC
Hydraulic Oil SDS Sheet for: DCR-880-H-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: DCR-880-H-HP-DC
Hydraulic Oil SDS Sheet for: DCR-880-H-HP-DC
Hydraulic Oil SDS Sheet for: DCR-880-H-SCL

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: when the drum is in the cradle, does it extends farther than the legs when they are completely open?

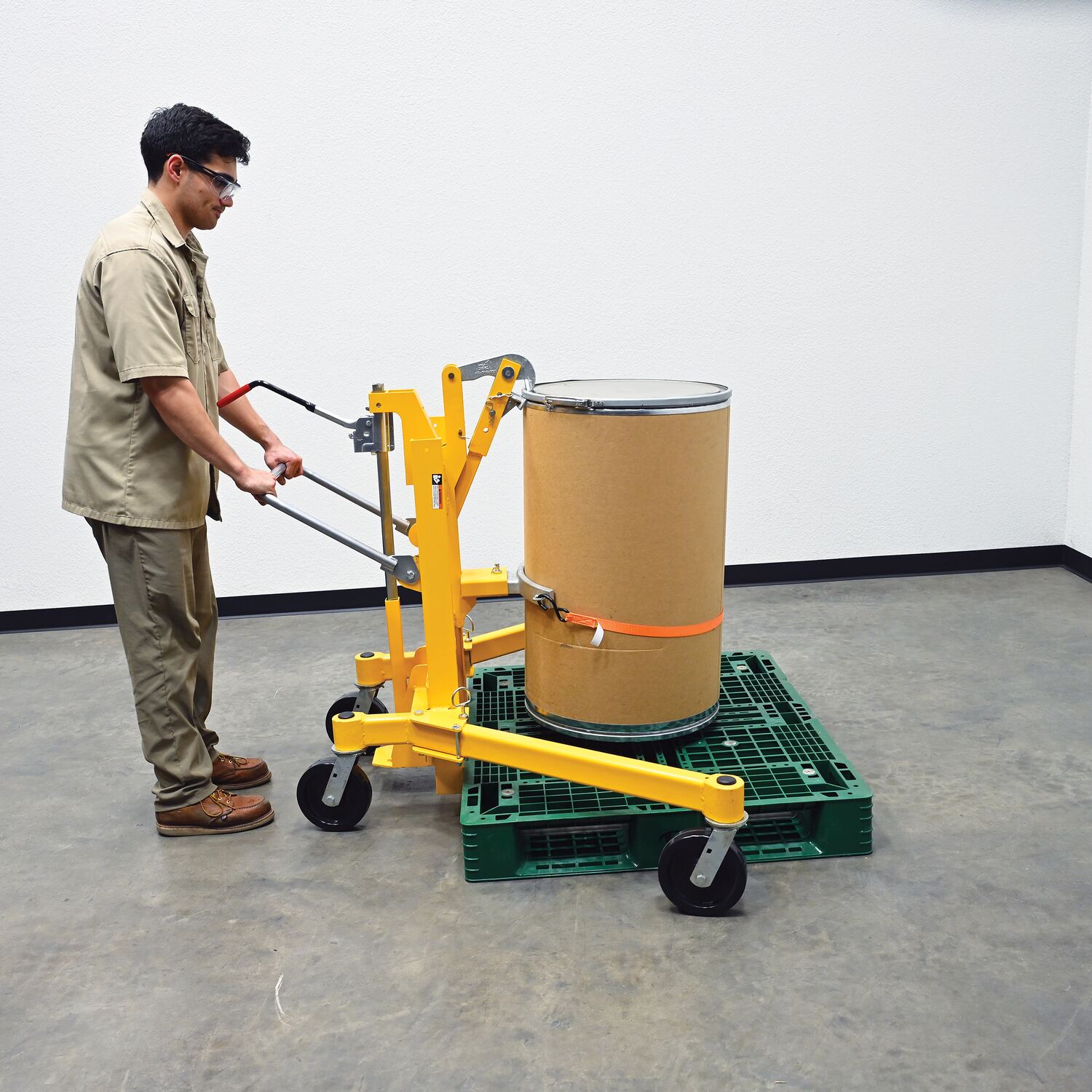

A: A standard 55 gallon steel drum (22-1/2" diameter) would overhang the front casters of the DCR-880-H unit slightly ( roughly 4-1/2") when the legs are in the outermost position. It is not recommended to transport the drum with the legs in this position. We would recommend to pick the drum from the pallet with the legs in that position, then move the unit and drum away from the pallet enough to clear the legs, then lower the drum to the ground, adjust the legs back to the inner most position , raise the drum slightly and secure it to the lower saddle using the supplied ratchet strap, before transporting the drum.
