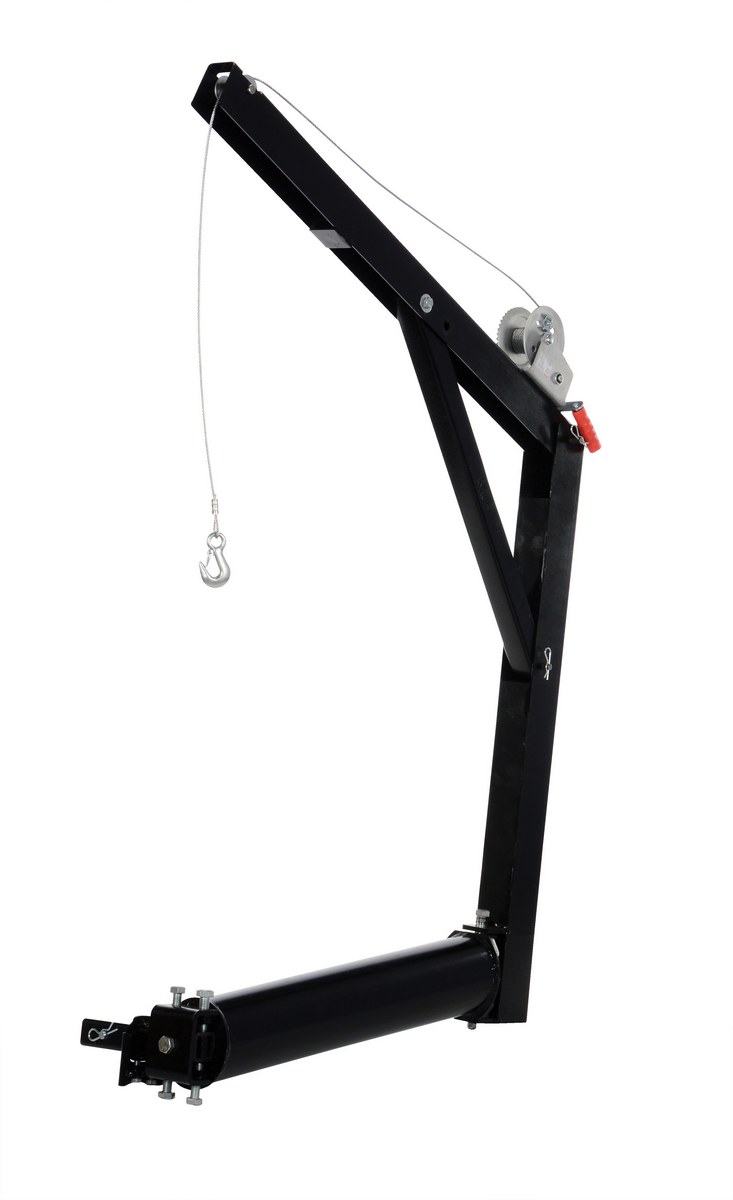

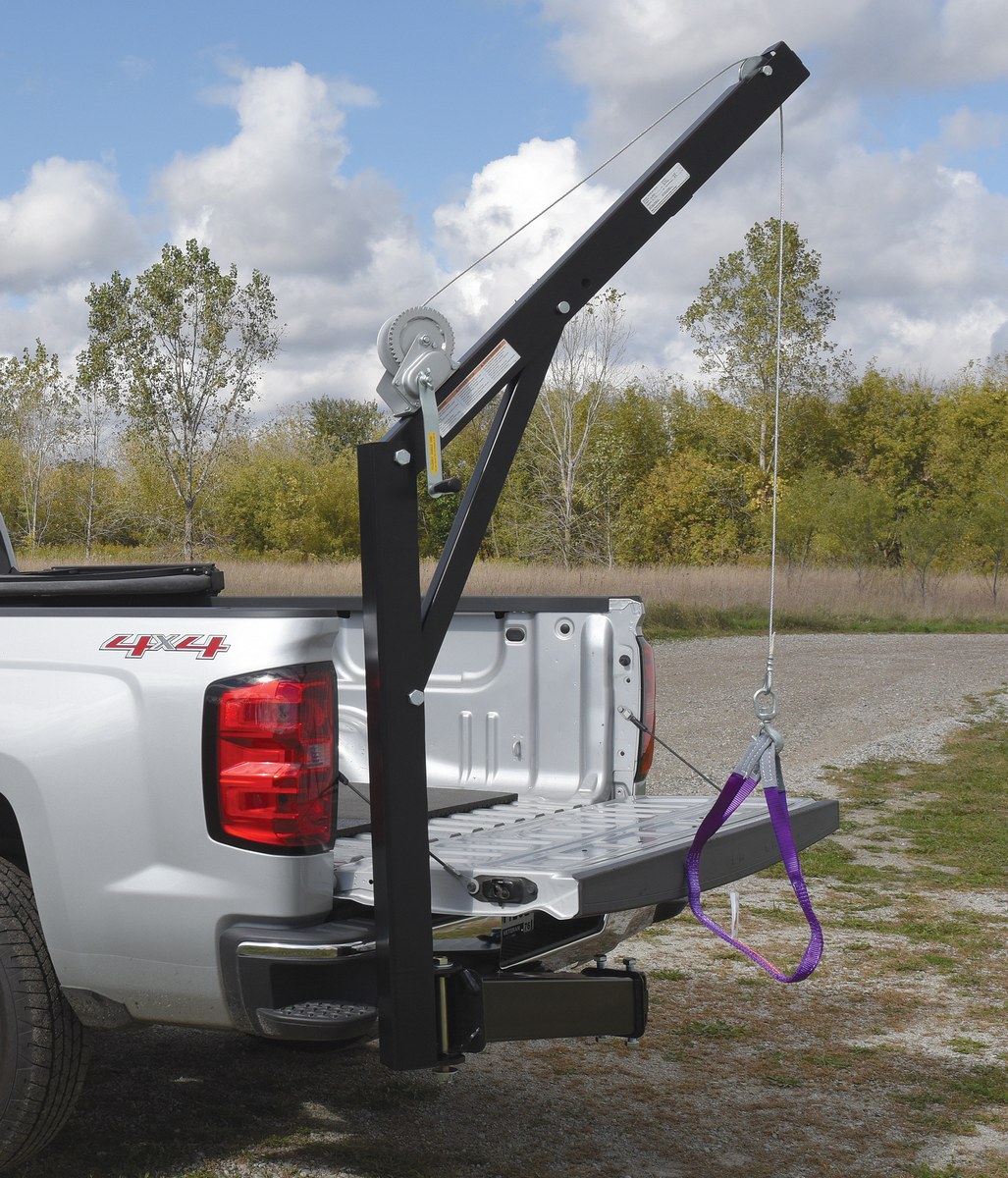

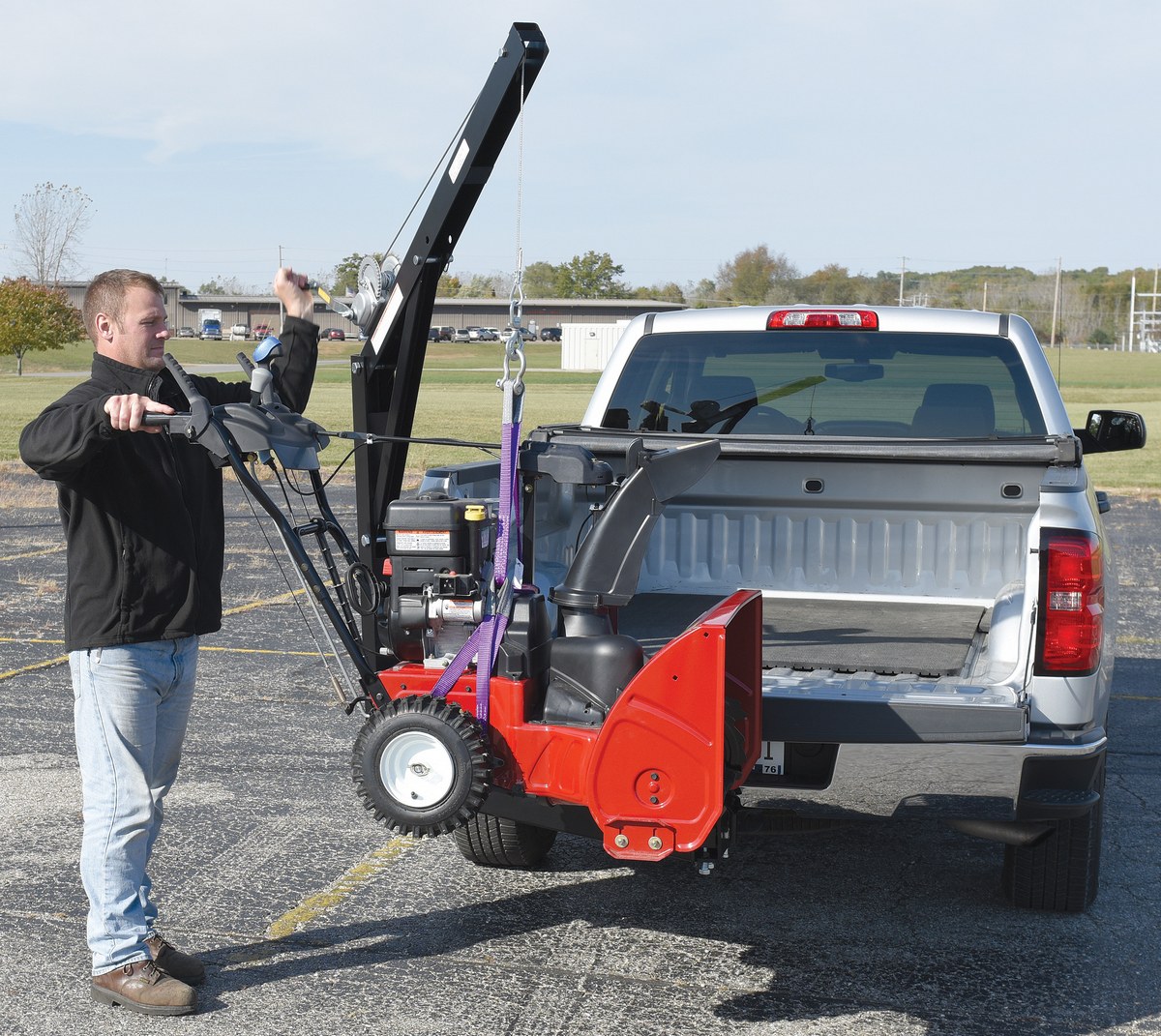

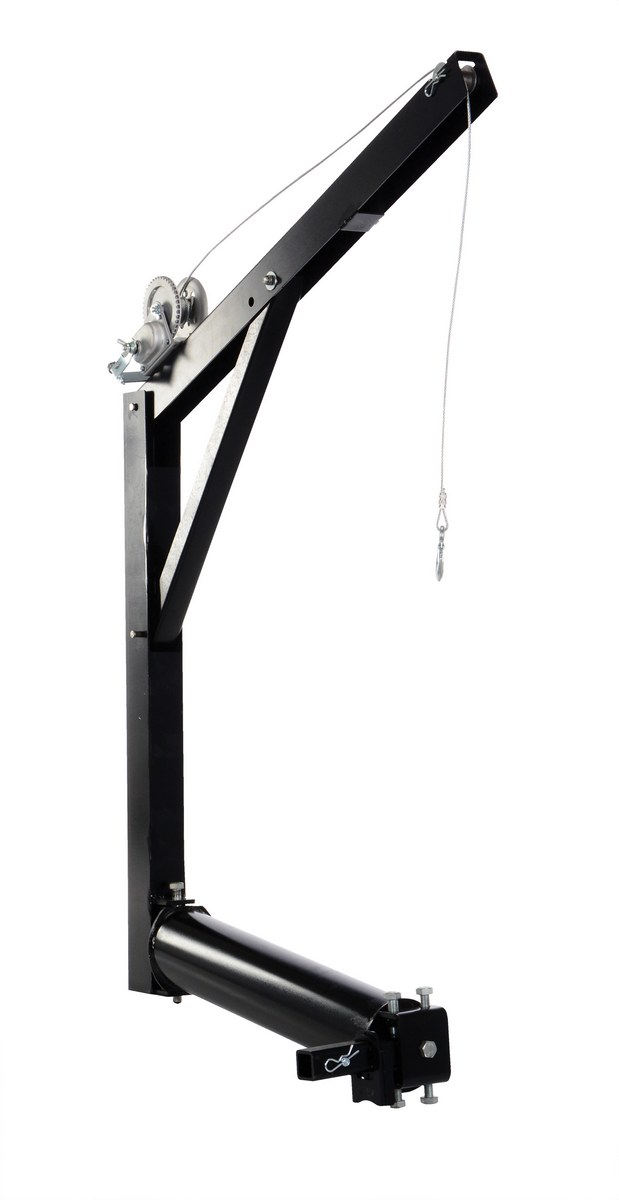

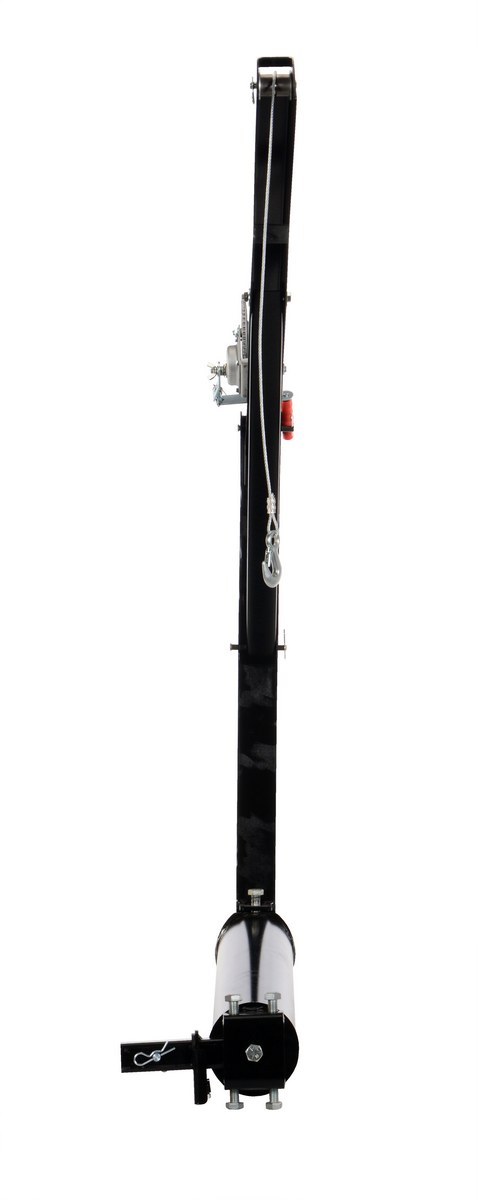

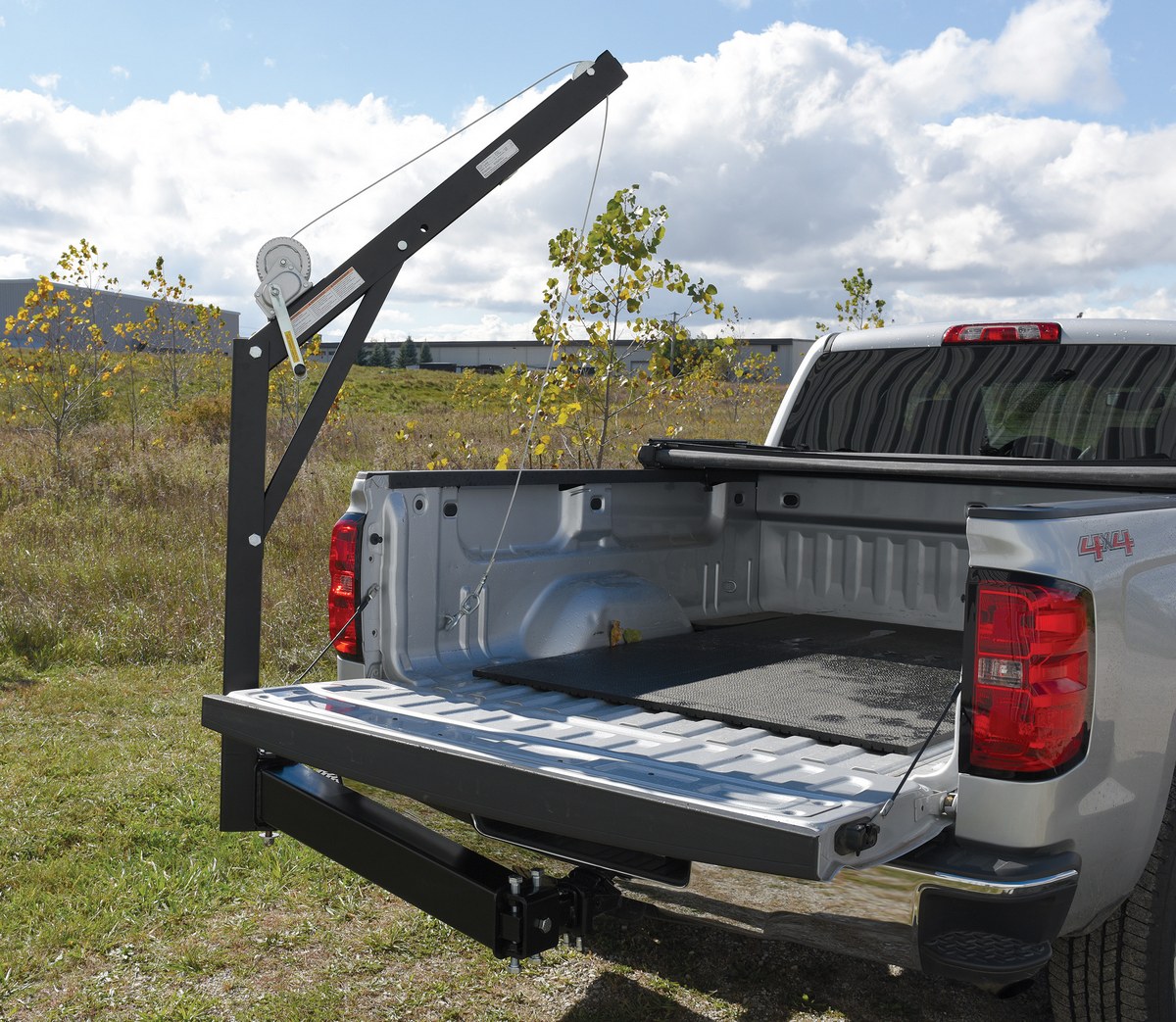

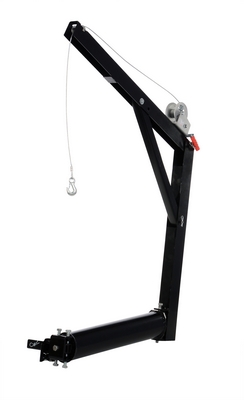

Hitch-Mounted Truck Jib Crane easily mounts in standard Class III or higher 2" receivers. Installation and use requires no modifications to receiver or truck. Unit may be adjusted/leveled for best use in all conditions. Maximum uniform lifting capacity is 600 pounds. Manual hand brake winch with 15 feet of 3/16" diameter cable and lifting hook included. Offset upright design does not restrict tailgate use while installed. Crane may be installed on either side of truck as required. Rugged, welded steel construction with powder-coat black finish.
Hitch-Mounted Truck Jib Crane PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Hitch-Mounted Truck Jib Crane
Table Search, not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| WTJ-HITCH |  | 90 Days Limited Warranty | Steel Hitch Mounted Truck Jib Crane 47-1/2 In. Reach 600 Lb. Capacity Black | Uniform Capacity (lb.): 600 Mounts to Receiver: Class III or Higher 2" Receiver | 168 | ||
| WTJ-HITCH-ML-2 | NEW |  | 90 Days Limited Warranty | Steel Hitch Mounted Truck Jib Crane With Magnet 200 Lb. Capacity Black | Uniform Capacity (lb.): 200 Mounts to Receiver: Class III or Higher 2" Receiver | 168 | |
| WTJ-HITCH-ML-6 | NEW |  | 90 Days Limited Warranty | Steel Hitch Mounted Truck Jib Crane With Magnet 600 Lb. Capacity Black | Uniform Capacity (lb.): 600 Mounts to Receiver: Class III or Higher 2" Receiver | 168 |
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Mounts to Receiver: Class III or Higher 2" Receiver
Uniform Capacity (lb.): 600
Mounts to Receiver: Class III or Higher 2" Receiver
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 200
Mounts to Receiver: Class III or Higher 2" Receiver
Uniform Capacity (lb.): 200
Mounts to Receiver: Class III or Higher 2" Receiver
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Mounts to Receiver: Class III or Higher 2" Receiver
Uniform Capacity (lb.): 600
Mounts to Receiver: Class III or Higher 2" Receiver
Q: Can this remain on the truck when the truck is moving? Are the components strong enough to withstand normal movement from traveling on a road?
A: Per the owners manual you should NOT drive the vehicle while the crane is attached.
|
||||||||||||||||||||||
Hitch-Mounted Truck Jib Crane |
||||||||||||||||||||||
 |
||||||||||||||||||||||

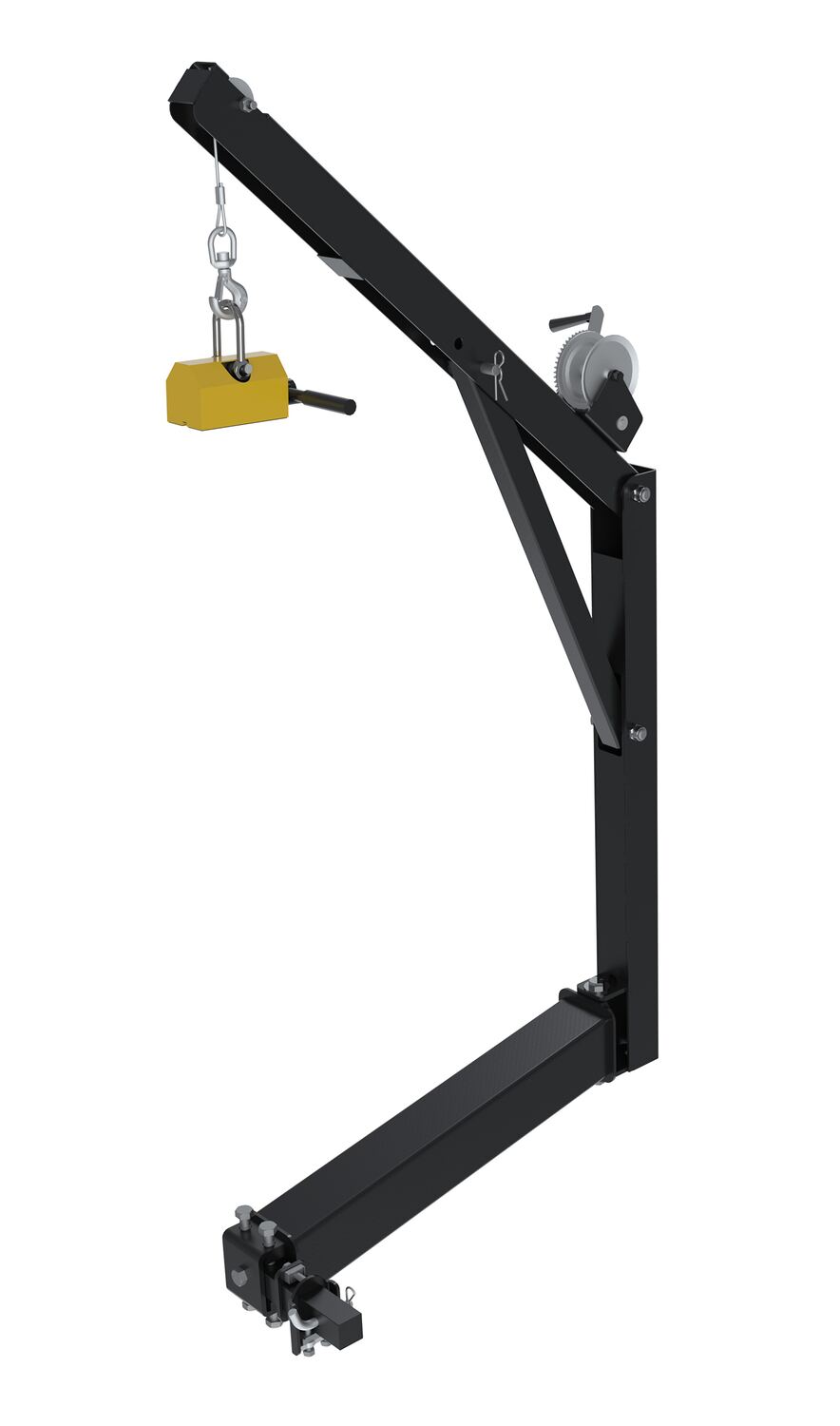

Hitch Mounted Truck Jib Crane with Magnet
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
