Lift & Tilt Scissor Tables

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery
FEATURED Lift & Tilt Scissor Tables

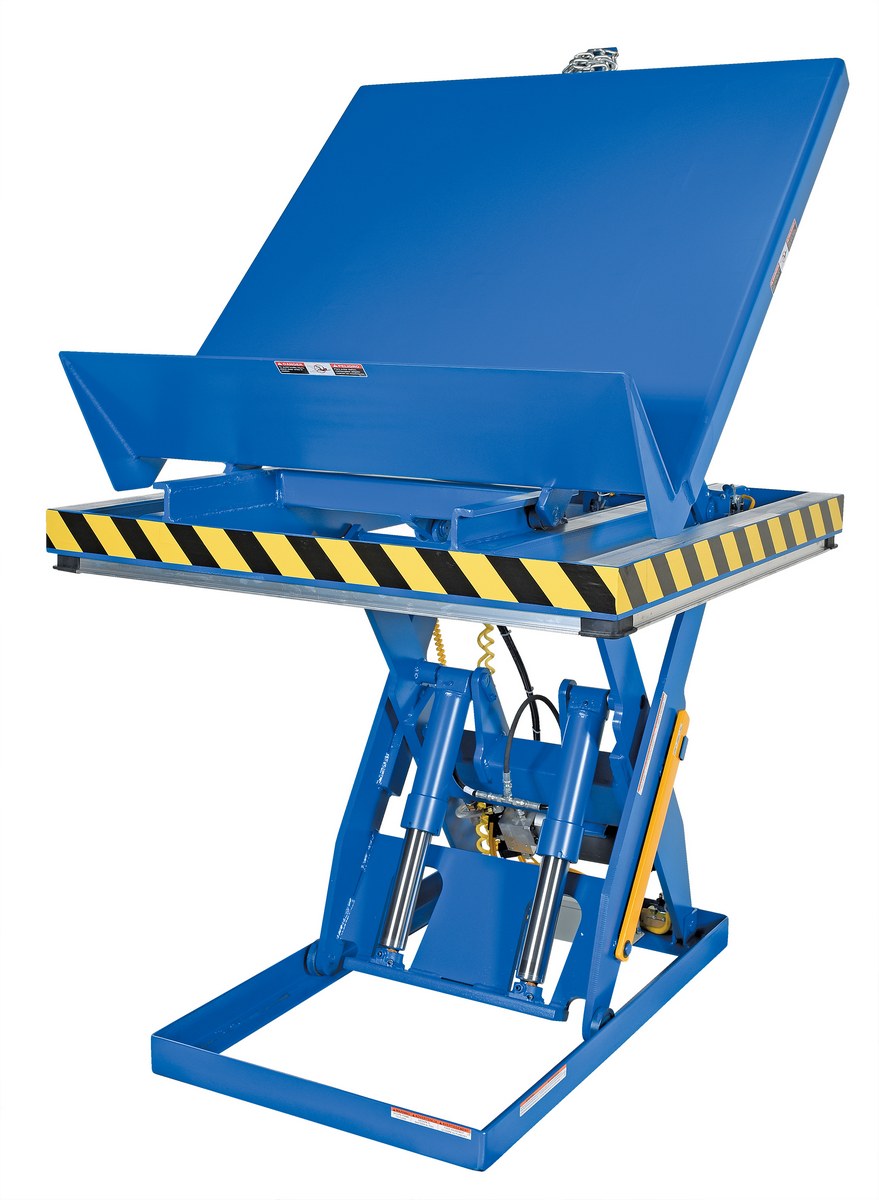

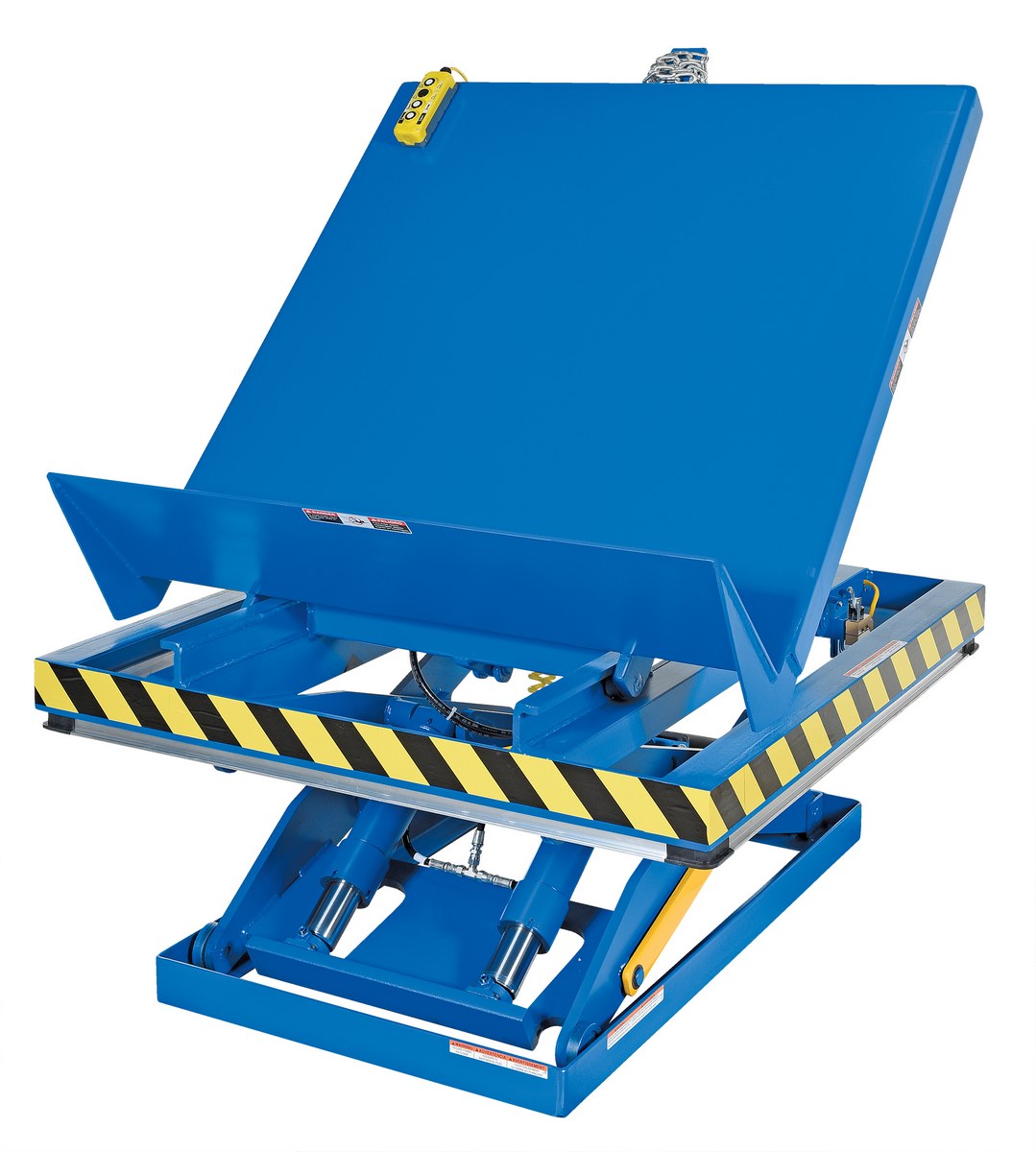

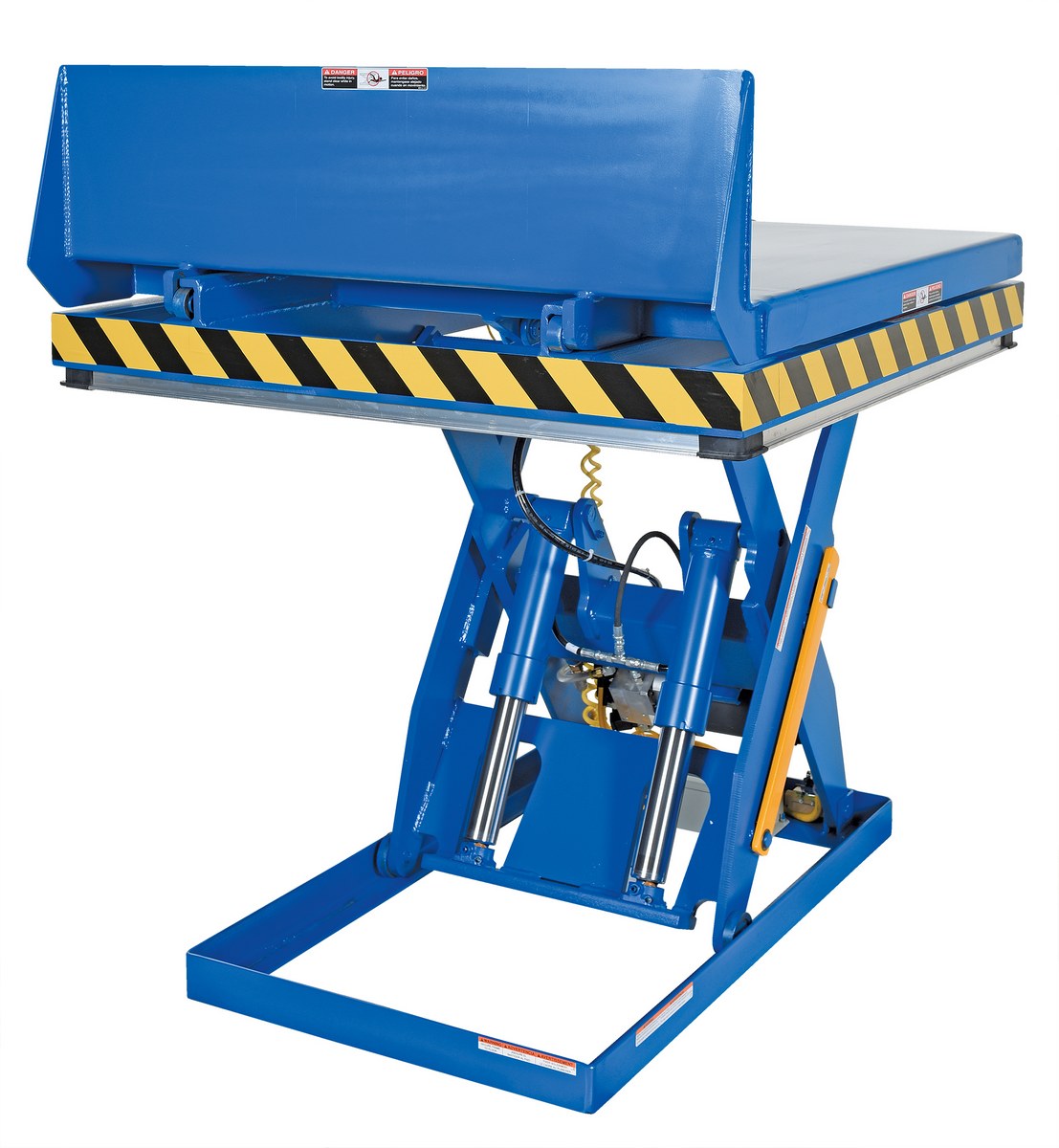

model: EHLTT-4848-4-47

EHLTT-4848-4-47_1.jpg EHLTT-4848-4-47_A.jpg EHLTT-4848-4-47_B.jpg EHLTT-4848-4-47_C.jpg EHLTT-4848-4-47_D.jpg EHLTT-4848-4-47_E.jpg EHLTT-4848-4-47_F.jpg EHLTT-4848-4-47_G.jpg EHLTT-4848-4-47_H.jpg EHLTT-4848-4-47_I.jpg EHLTT-4848-4-47_J.jpg EHLTT-4848-4-47_X.gif More Images +
Lift & Tilt Scissor Tables
SERIES: EHLTT   14Products 8Options
Best Seller Line-X Finish Ergonomic Options Custom Fabrication

Electric Hydraulic Lift and Tilt Scissor Tables for Ergonomic Material Positioning

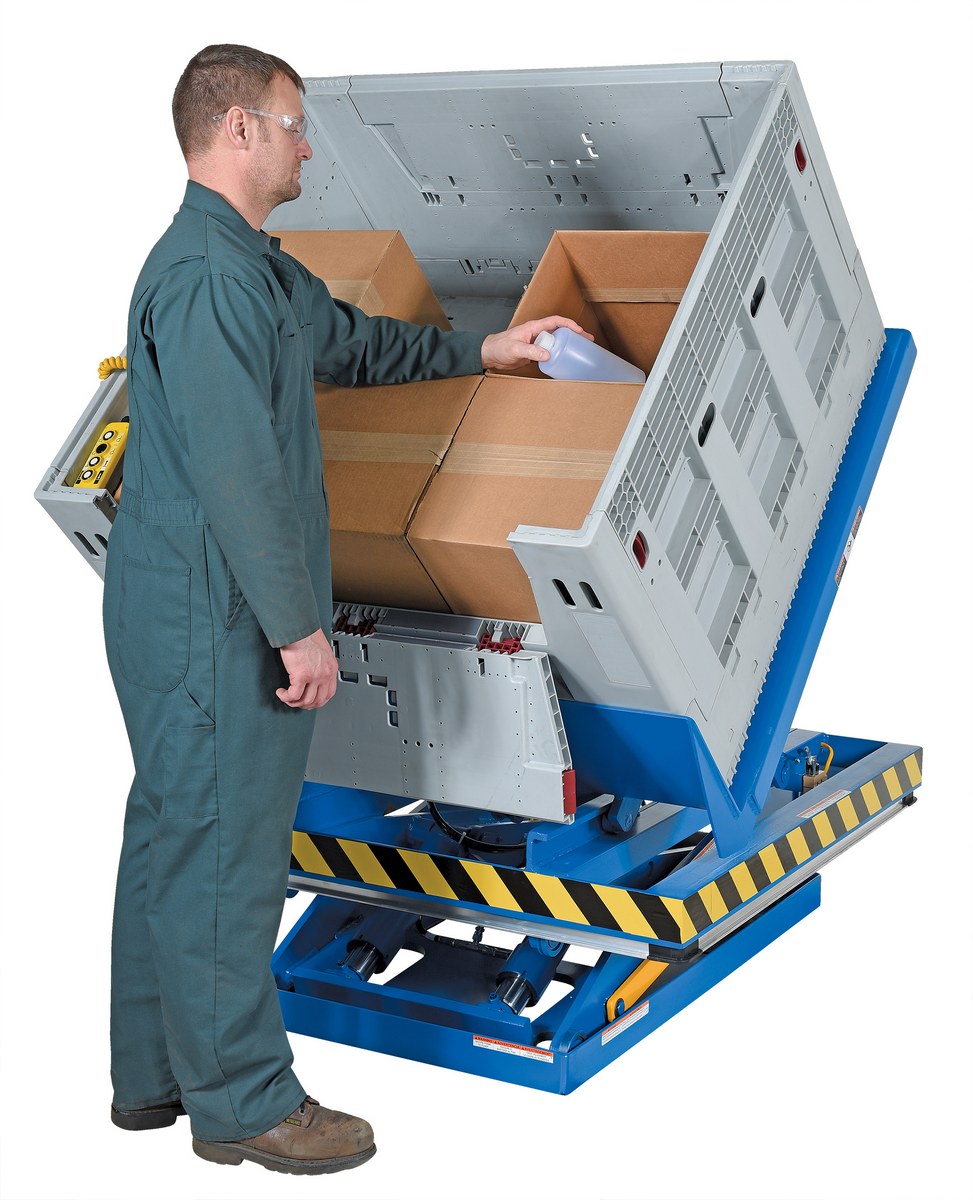

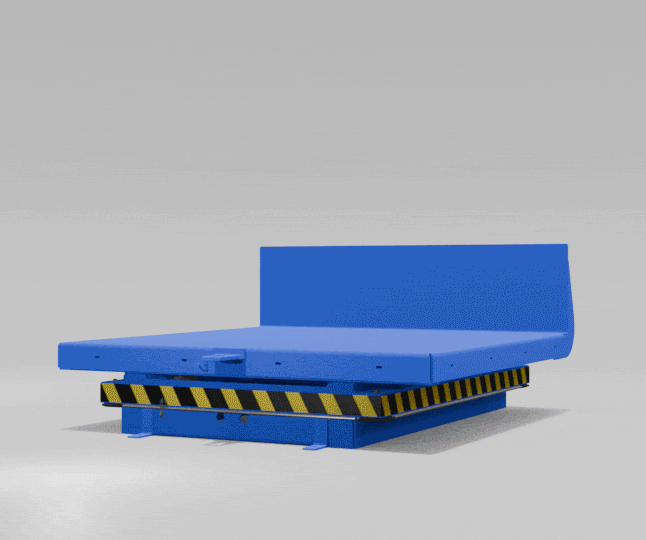

EHLTT-4848-4-47_X.gifElectric hydraulic lift and tilt scissor tables combine vertical lifting and controlled tilting functions to improve ergonomic material handling in manufacturing plants, assembly lines, warehouses, and packaging operations. Designed to reduce bending, reaching, and repetitive lifting, these industrial tilt tables position materials at safer and more efficient working angles for loading, unloading, assembly, and pallet handling tasks.

Key Features & Benefits

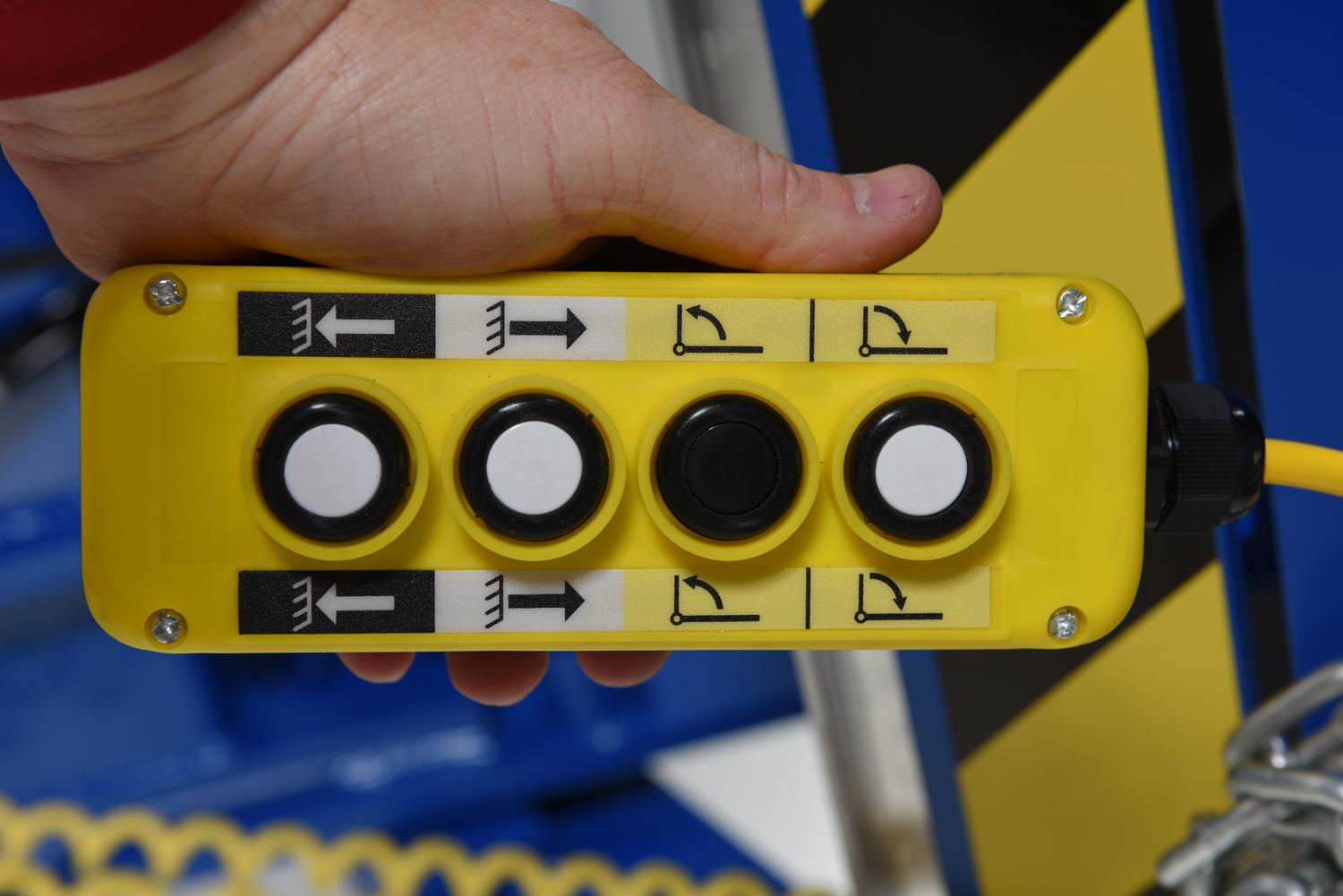

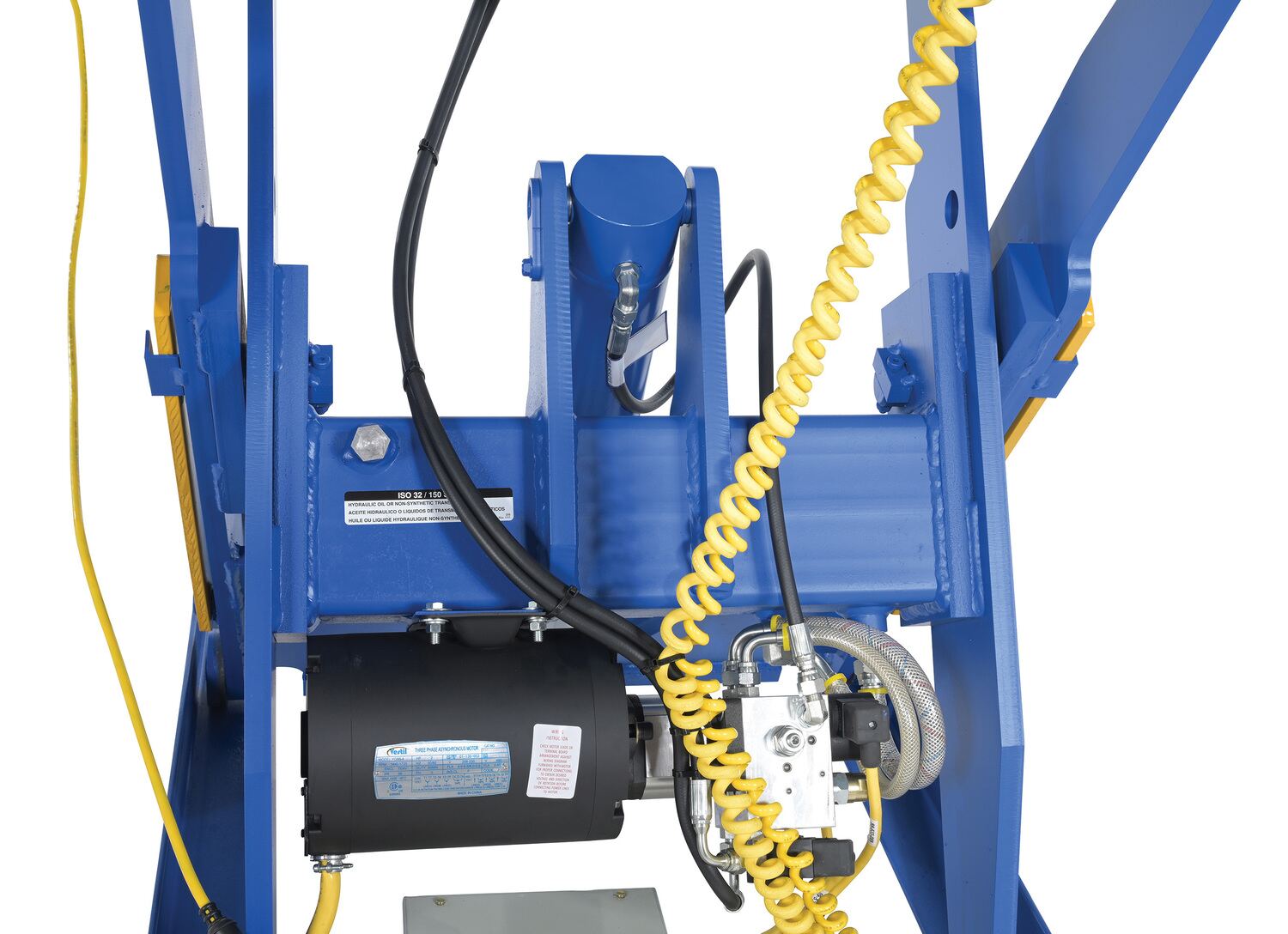

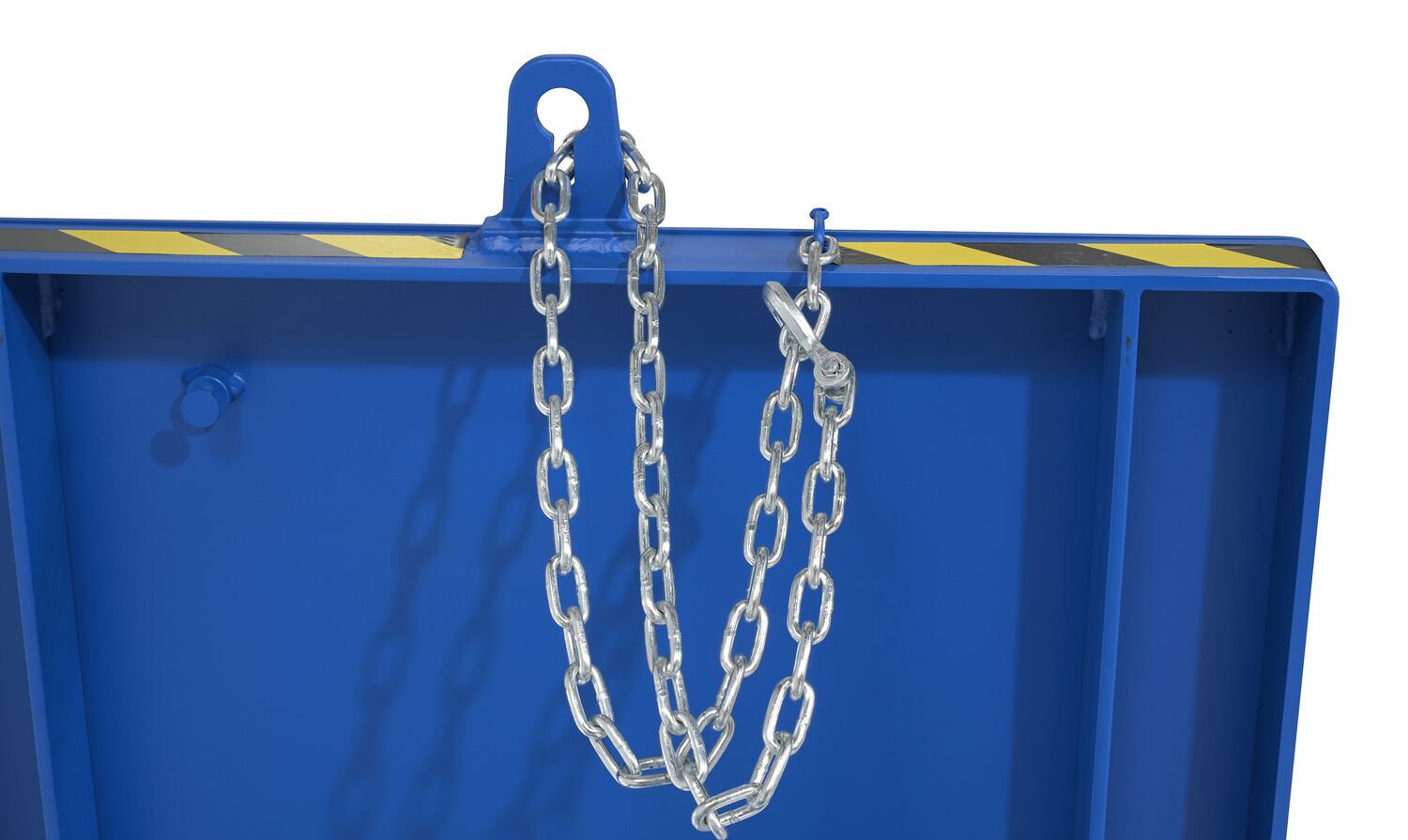

Built with heavy-duty steel construction and industrial-grade hydraulic components, these lift and tilt tables provide dependable performance for demanding applications. Available in 45-degree and 90-degree tilt configurations, the tables feature integrated restraining chains and raised retaining lips to help secure loads during operation. Safety features include perimeter toe guards, velocity fuses, upper travel limit switches, maintenance props, and weather-resistant hand controls for improved operator protection and long-term reliability. The unique tilt link design keeps the load closer to the center of the platform to maximize stability and minimize required floor space.

Applications & Configurations

Available in multiple platform sizes, capacities, and end or side tilt styles, these ergonomic lift tables support a wide range of industrial positioning applications. Optional powered controls, scales, programmable height settings, remote controls, carousels, and accordion safety skirts allow customization for specialized workflow and production requirements.  Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.


shown with optional Accordian Skirt

Lift & Tilt Scissor Tables

model: EHLTT-4848-4-47

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
EHLTT-3648-1-47
EHLTT-3648-2-47
EHLTT-3648-3-47
EHLTT-3648-4-47
EHLTT-4848-1-47
EHLTT-4848-2-47
EHLTT-4848-3-47
EHLTT-4848-4-47
EHLTT-4848-5-47
EHLTT-H-3648-2-47
EHLTT-H-4848-2-47
EHLTT-ROTARY-WMPB
EHLTTS-3654-2-48
EHLTTS-3654-4-48
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
EHLTT-ROTARY-WMPB EHLTT-ROTARY-WMPB Factory Installed Air/Oil Power With Pneumatic Push Button F… 1 Year Limited Warranty 36

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

EHLTT

Survey Sheets

EHLTT

Engineering Drawings

EHLTT-3648-1-47

EHLTT-3648-2-47

EHLTT-3648-3-47

EHLTT-3648-4-47

EHLTT-4848-1-47

EHLTT-4848-2-47

EHLTT-4848-3-47

EHLTT-4848-4-47

EHLTT-4848-5-47

EHLTT-H-3648-2-47

EHLTT-H-4848-2-47

EHLTTS-3654-2-48

EHLTTS-3654-4-48

Testing Certificates

EHLTT-3648-1-47

EHLTT-3648-2-47

EHLTT-3648-3-47

EHLTT-3648-4-47

EHLTT-4848-1-47

EHLTT-4848-2-47

EHLTT-4848-3-47

EHLTT-4848-4-47

EHLTT-4848-5-47

EHLTT-H-3648-2-47

EHLTT-H-4848-2-47

EHLTT-ROTARY-WMPB

EHLTTS-3654-2-48

EHLTTS-3654-4-48

SDS Sheets


Hydraulic Oil
EHLTT-3648-1-47 SDS


Hydraulic Oil
EHLTT-3648-2-47 SDS


Hydraulic Oil
EHLTT-3648-3-47 SDS


Hydraulic Oil
EHLTT-3648-4-47 SDS


Hydraulic Oil
EHLTT-4848-1-47 SDS


Hydraulic Oil
EHLTT-4848-2-47 SDS


Hydraulic Oil
EHLTT-4848-3-47 SDS


Hydraulic Oil
EHLTT-4848-4-47 SDS


Hydraulic Oil
EHLTT-4848-5-47 SDS


Hydraulic Oil
EHLTT-H-3648-2-47 SDS


Hydraulic Oil
EHLTT-H-4848-2-47 SDS


Hydraulic Oil
EHLTTS-3654-2-48 SDS


Hydraulic Oil
EHLTTS-3654-4-48 SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Lift & Tilt Tables





Lift & Tilt Scissor Tables




Electric Hydraulic Lift and Tilt Scissor Tables for Ergonomic Material Positioning

EHLTT-4848-4-47_X.gifElectric hydraulic lift and tilt scissor tables combine vertical lifting and controlled tilting functions to improve ergonomic material handling in manufacturing plants, assembly lines, warehouses, and packaging operations. Designed to reduce bending, reaching, and repetitive lifting, these industrial tilt tables position materials at safer and more efficient working angles for loading, unloading, assembly, and pallet handling tasks.

Key Features & Benefits

Built with heavy-duty steel construction and industrial-grade hydraulic components, these lift and tilt tables provide dependable performance for demanding applications. Available in 45-degree and 90-degree tilt configurations, the tables feature integrated restraining chains and raised retaining lips to help secure loads during operation. Safety features include perimeter toe guards, velocity fuses, upper travel limit switches, maintenance props, and weather-resistant hand controls for improved operator protection and long-term reliability. The unique tilt link design keeps the load closer to the center of the platform to maximize stability and minimize required floor space.

Applications & Configurations

Available in multiple platform sizes, capacities, and end or side tilt styles, these ergonomic lift tables support a wide range of industrial positioning applications. Optional powered controls, scales, programmable height settings, remote controls, carousels, and accordion safety skirts allow customization for specialized workflow and production requirements.  Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.


shown with optional Accordian Skirt


Model # Description Attributes Net Wt.
(lbs)

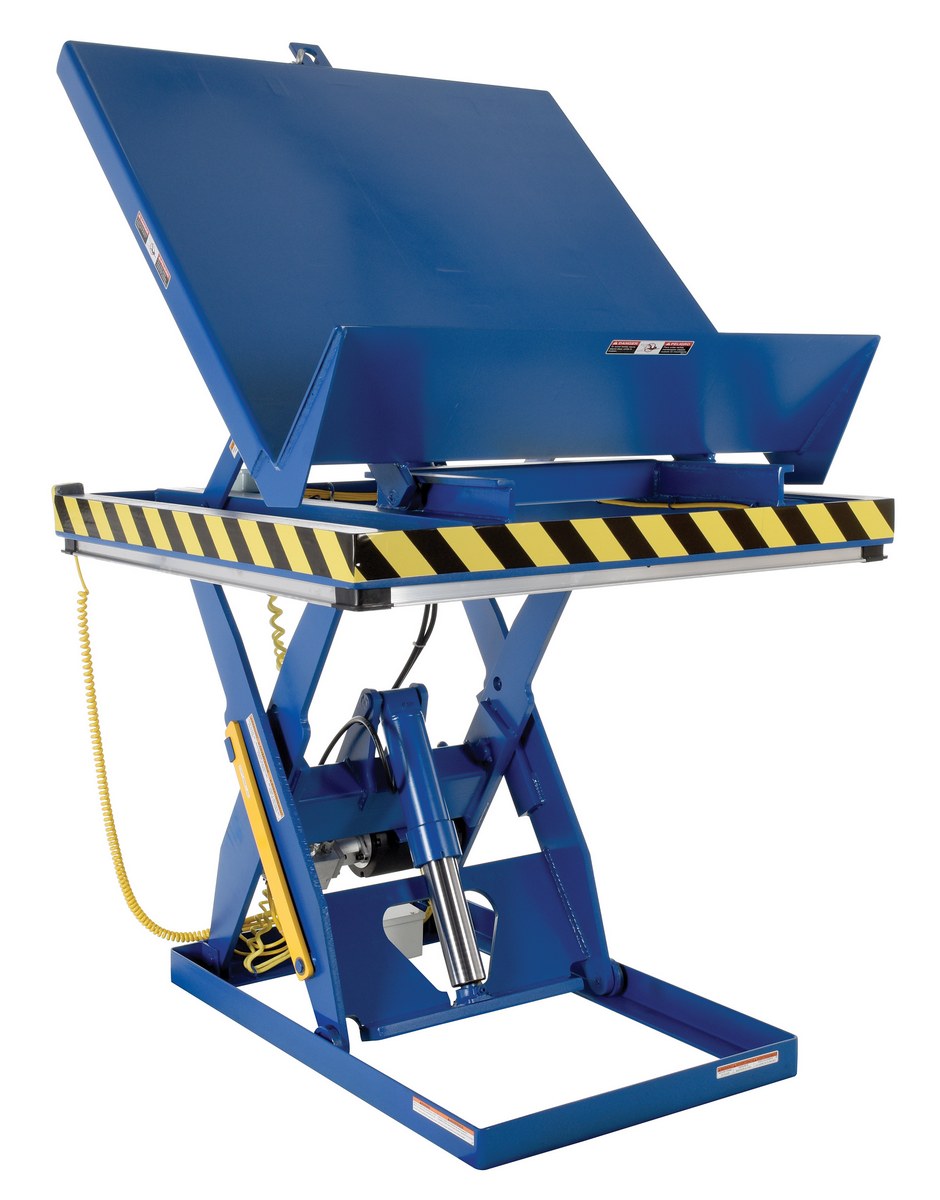

EHLTT-3648-1-47 EHLTT-3648-1-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Lowered Height (in.): 11		1148

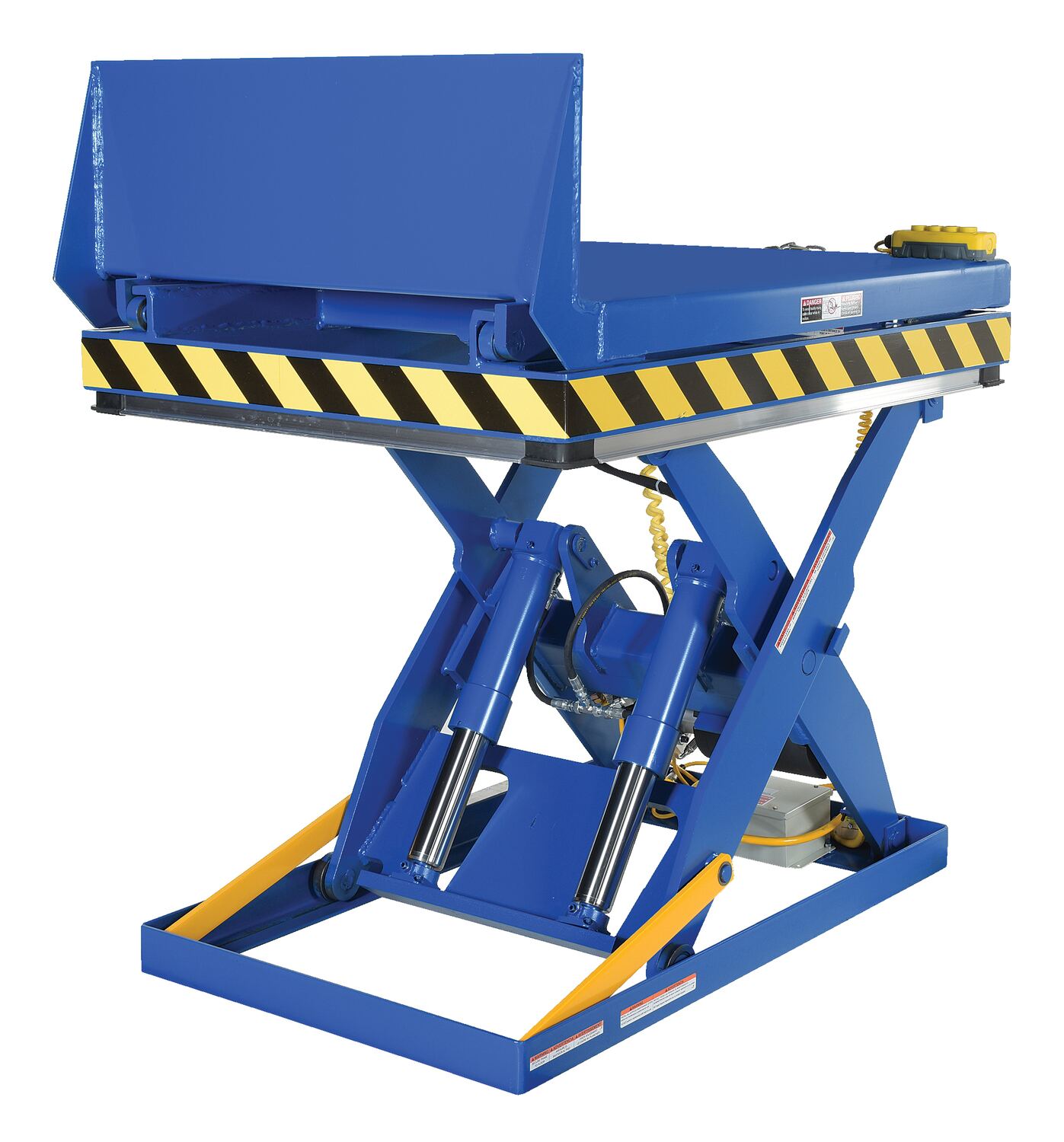

EHLTT-3648-2-47 EHLTT-3648-2-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Lowered Height (in.): 11		1204
EHLTT-3648-3-47 EHLTT-3648-3-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Platform Lowered Height (in.): 11		1299

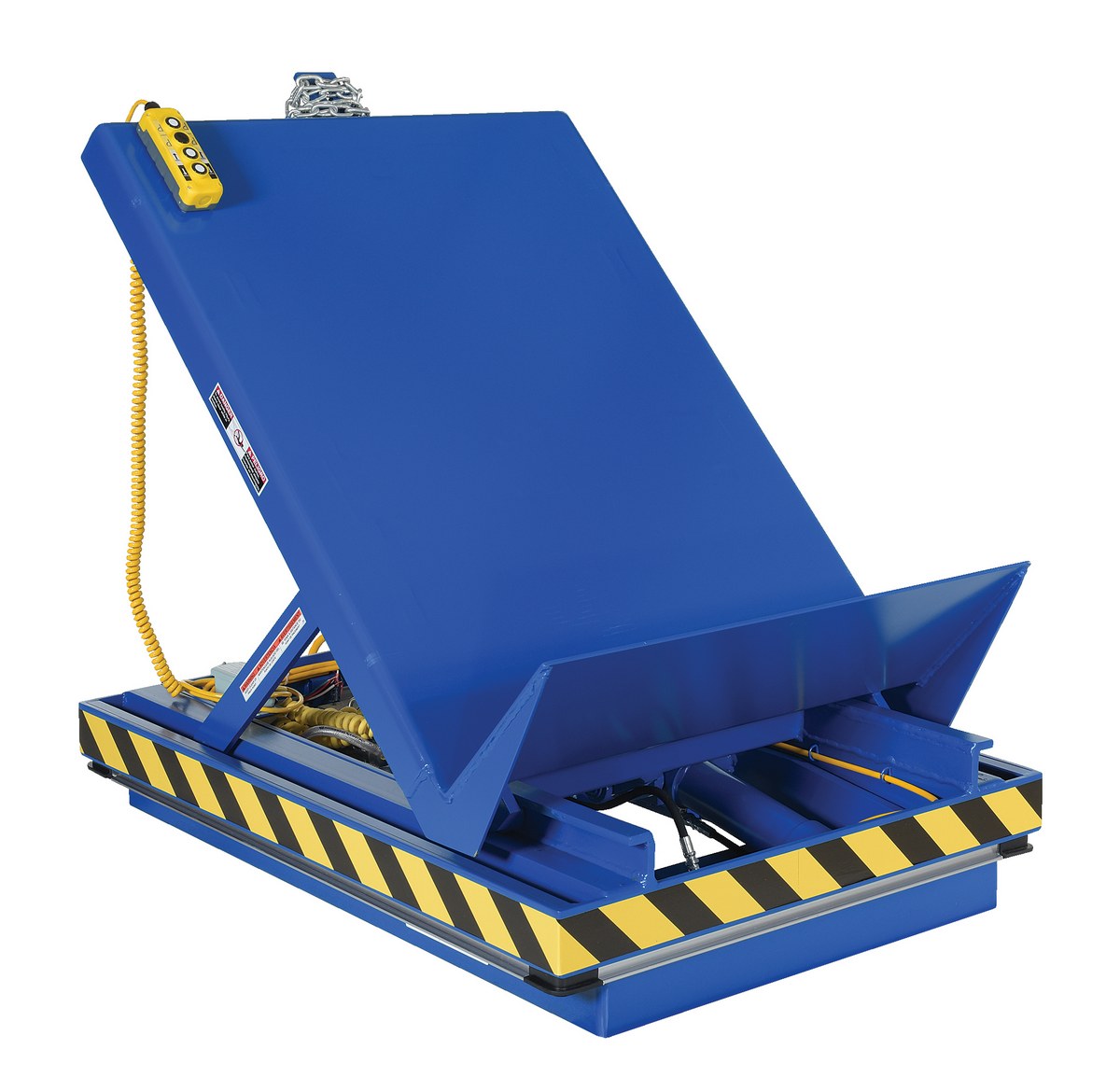

EHLTT-3648-4-47 EHLTT-3648-4-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Lowered Height (in.): 11		1206

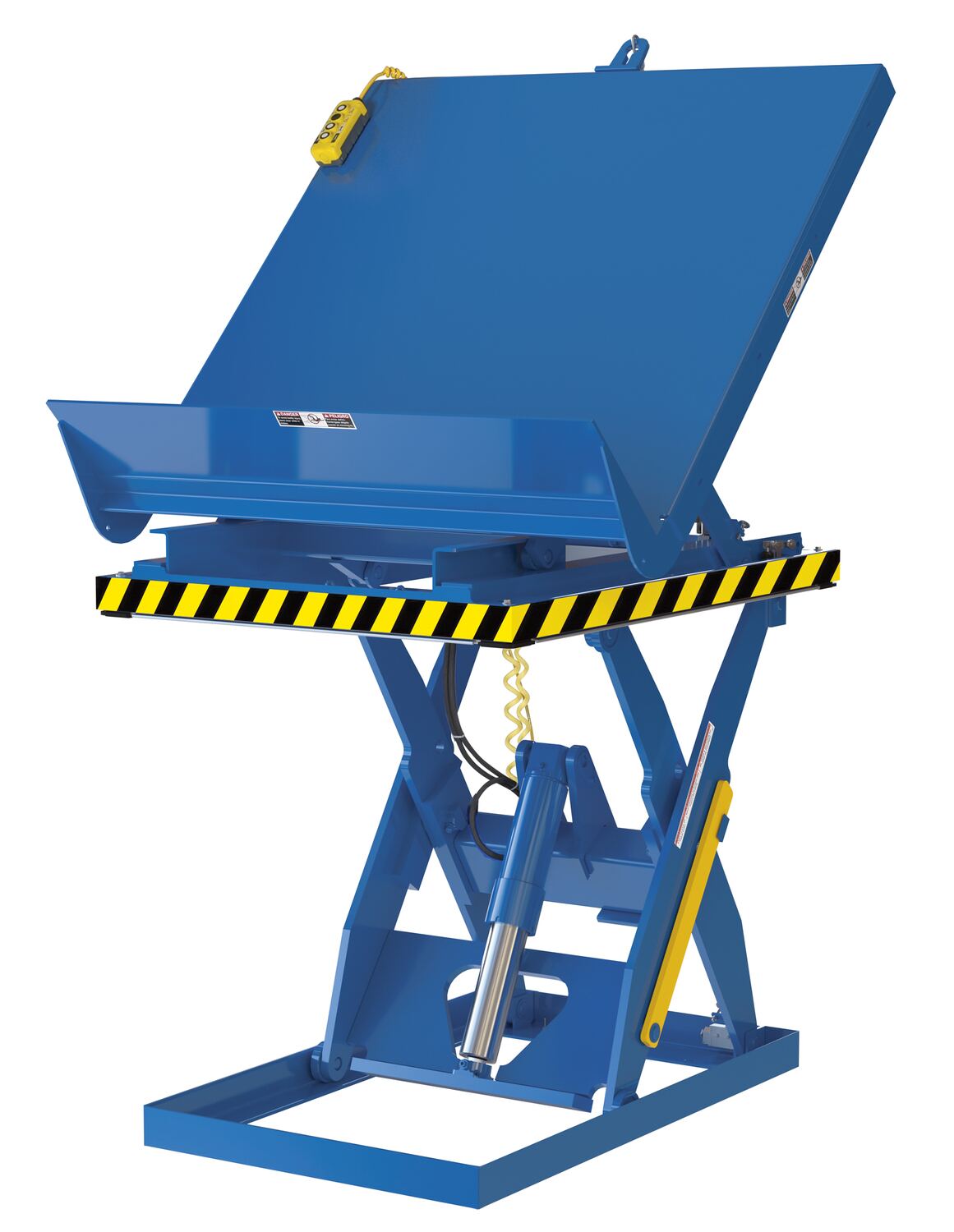

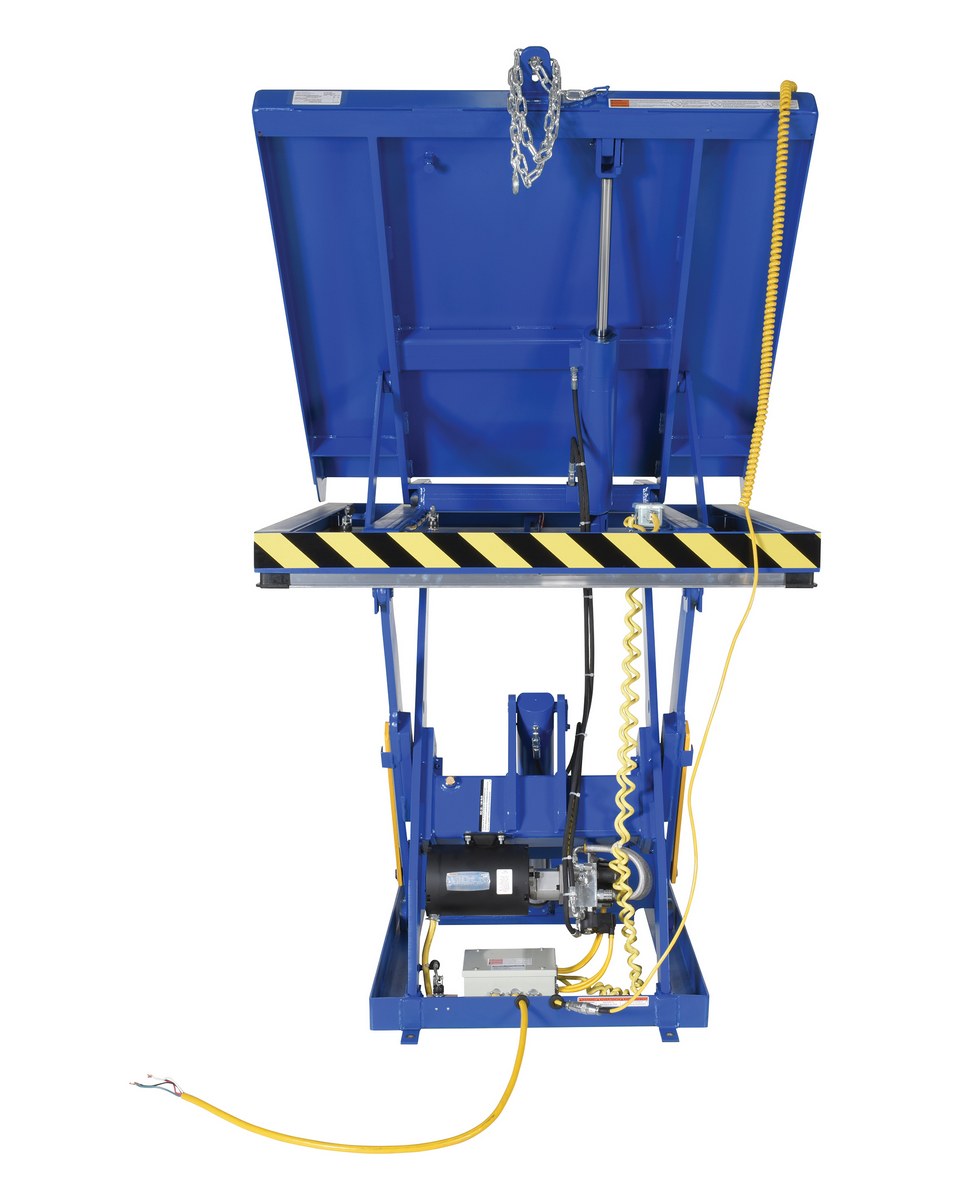

EHLTT-4848-1-47 EHLTT-4848-1-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Lowered Height (in.): 11		1228

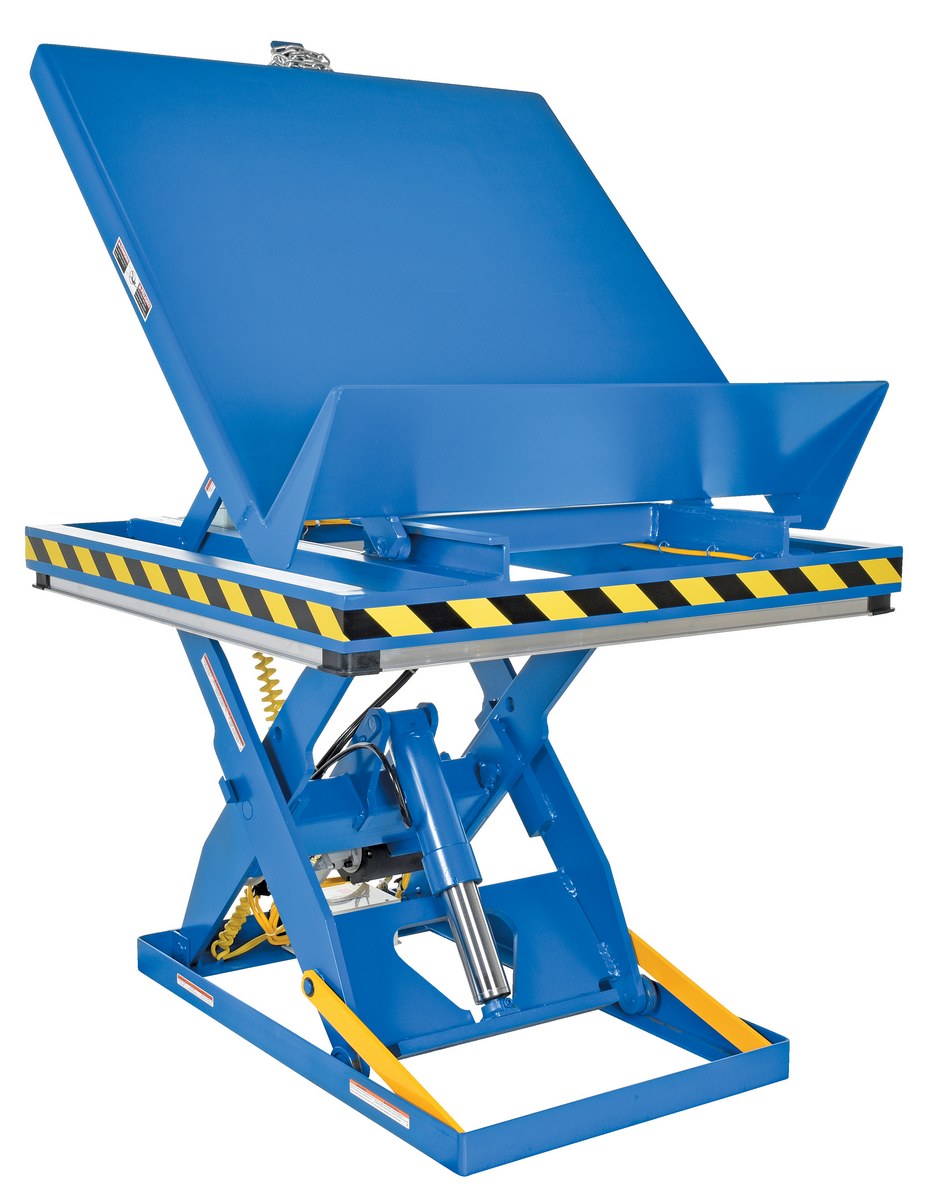

EHLTT-4848-2-47 EHLTT-4848-2-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Lowered Height (in.): 11		1235

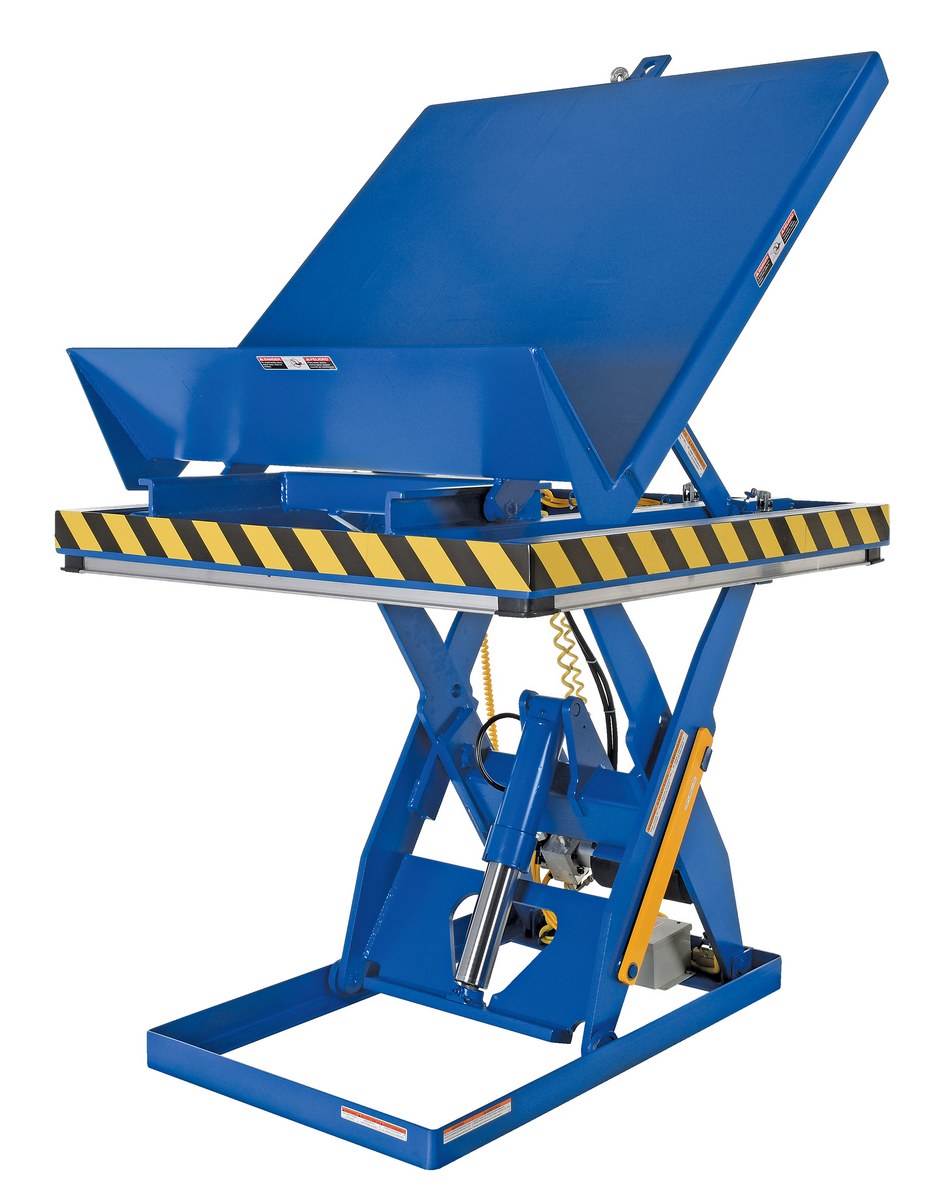

EHLTT-4848-3-47 EHLTT-4848-3-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Platform Lowered Height (in.): 11		1251

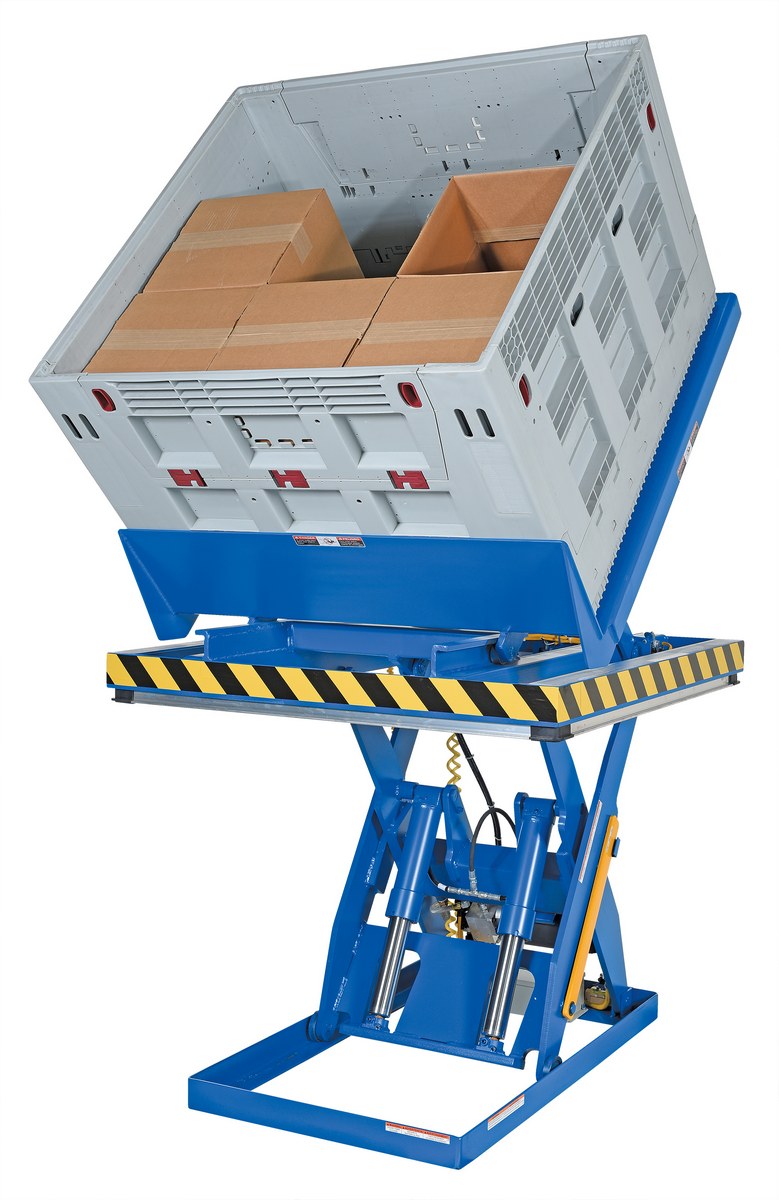

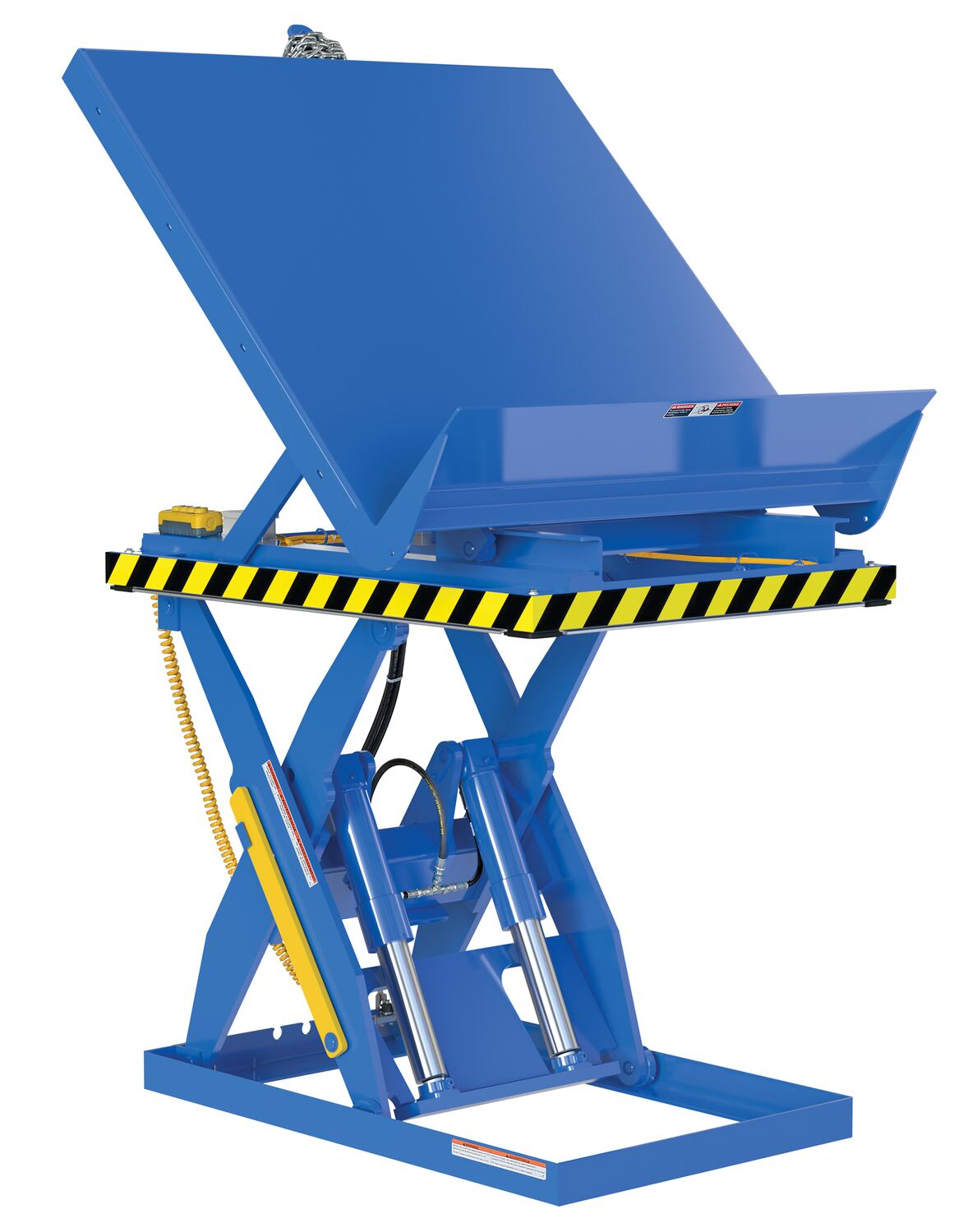

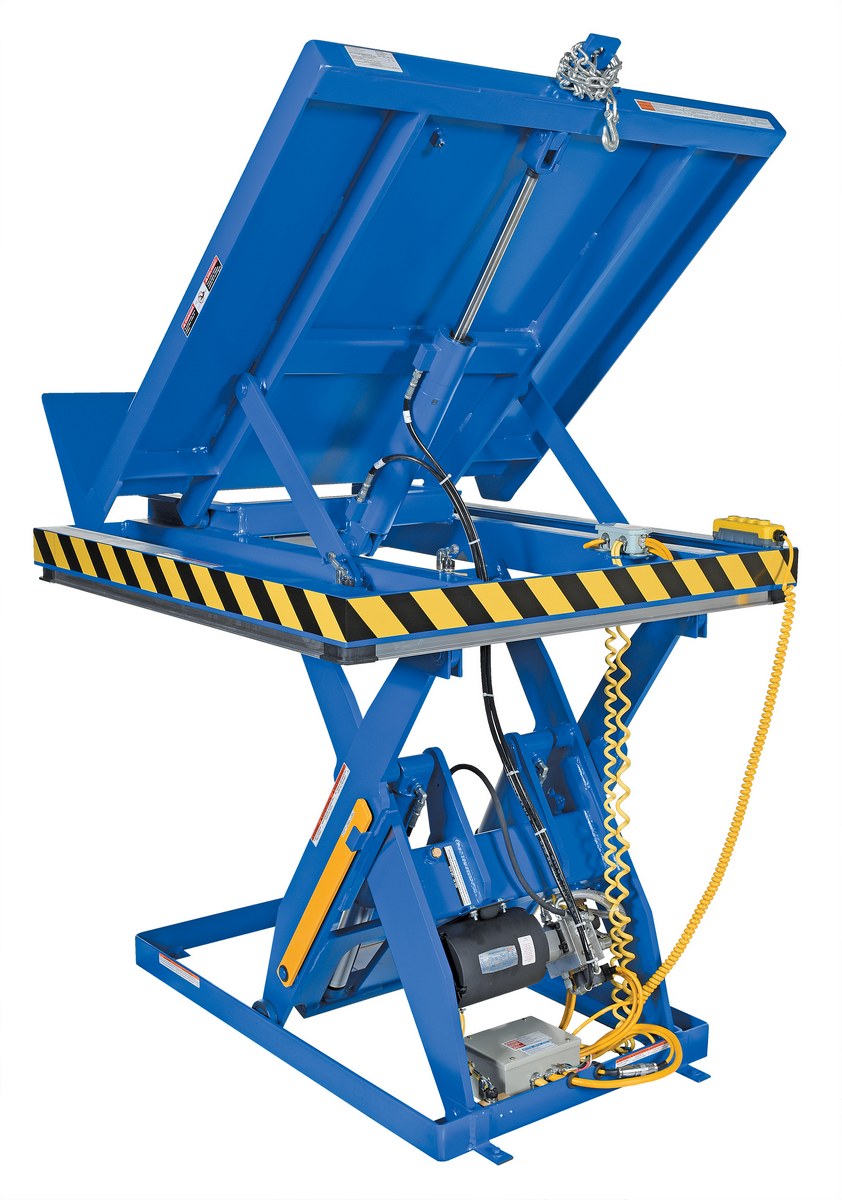

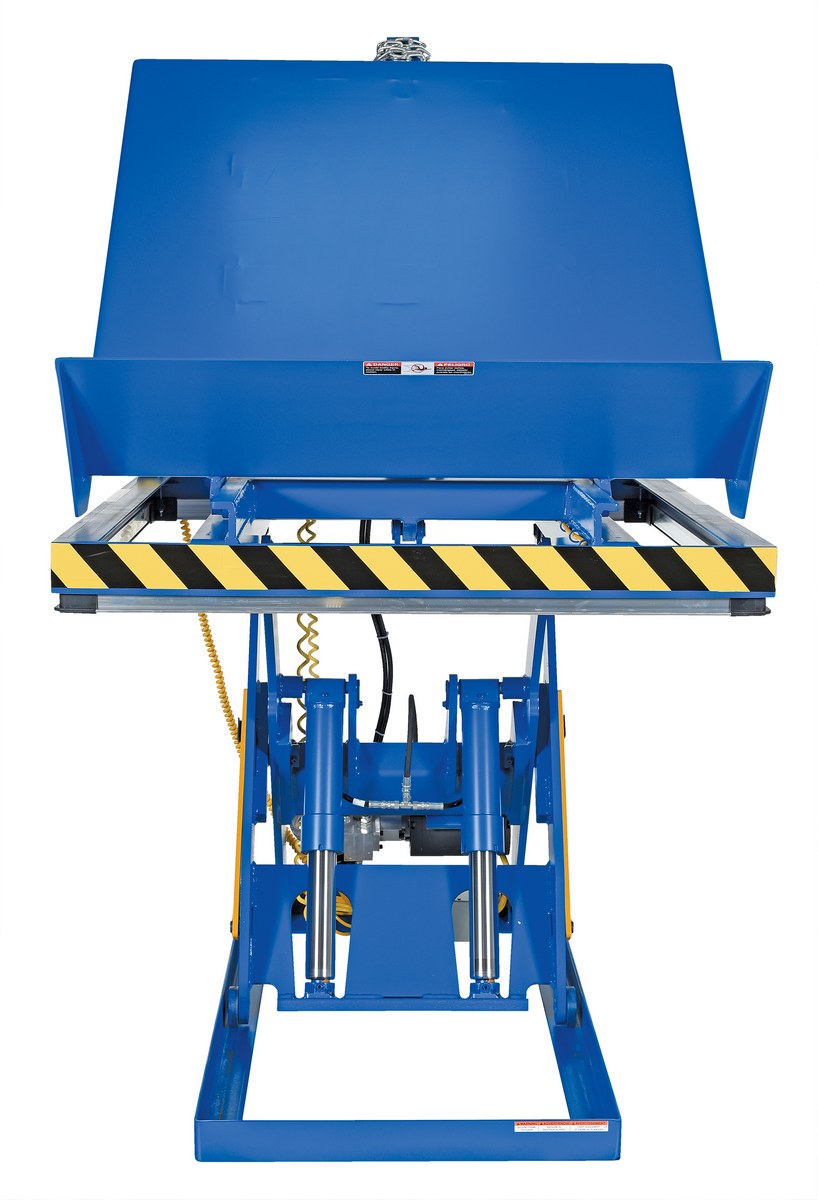

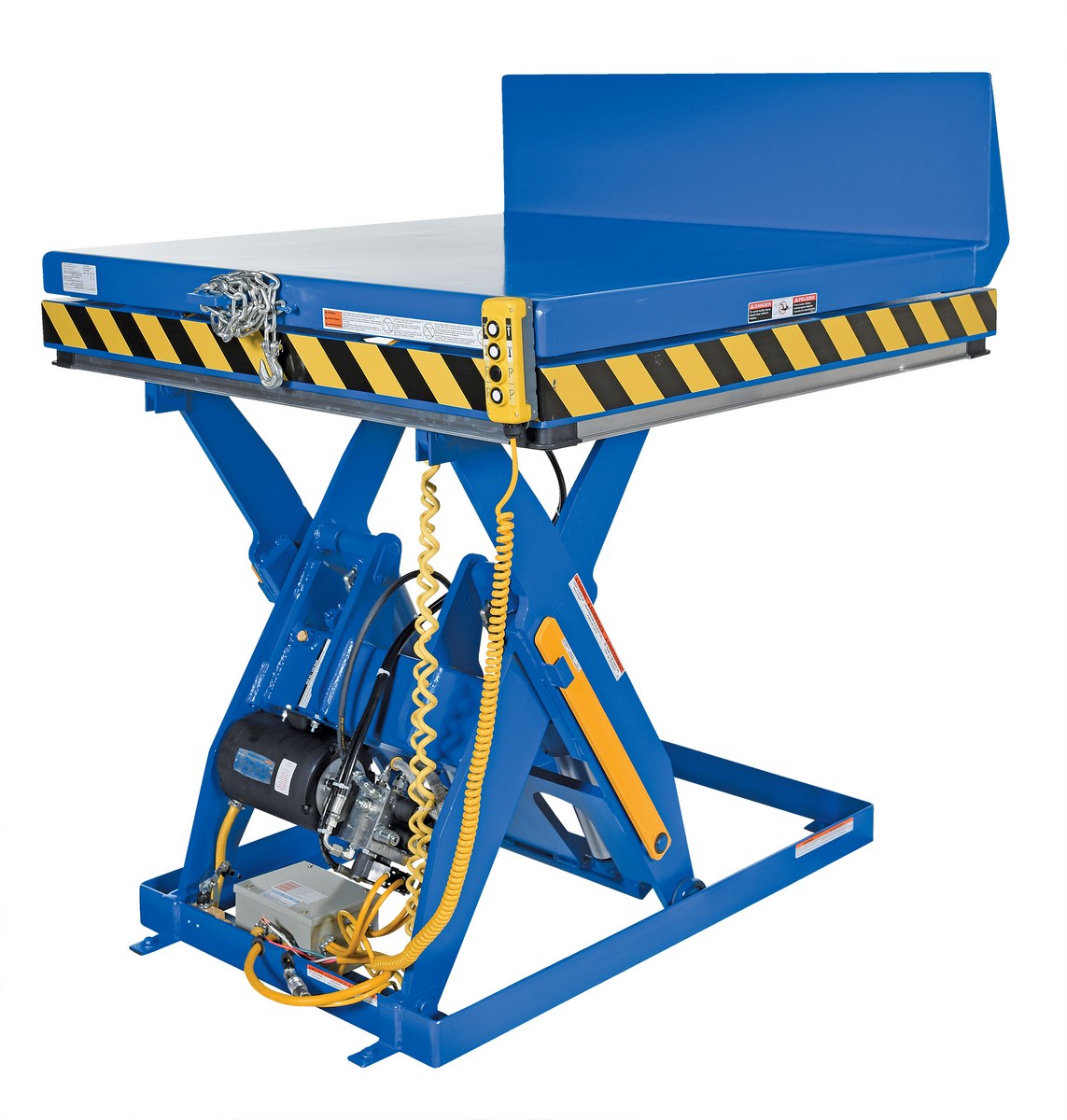

EHLTT-4848-4-47 EHLTT-4848-4-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Lowered Height (in.): 11		1292
EHLTT-4848-5-47 EHLTT-4848-5-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Lowered Height (in.): 13		1571

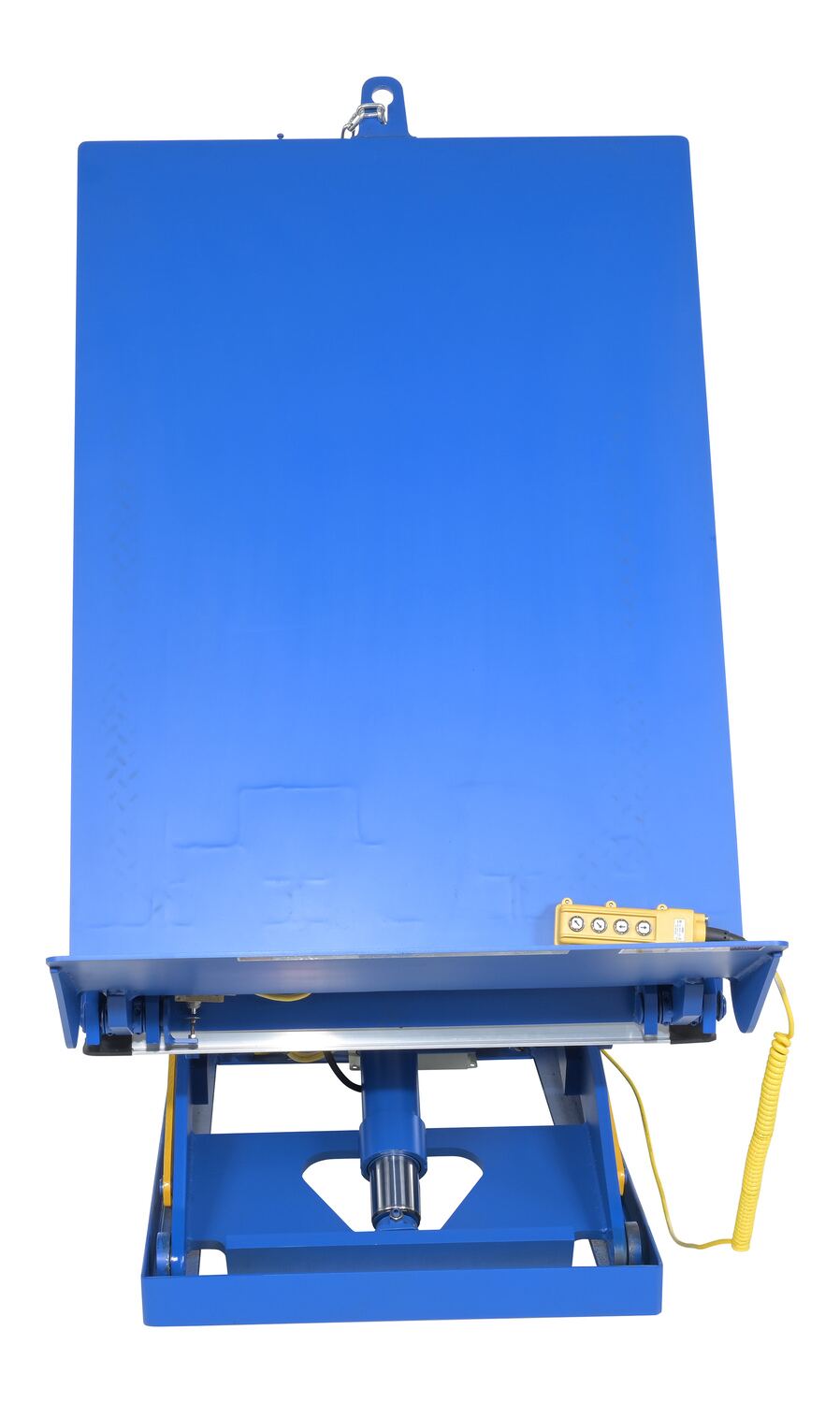

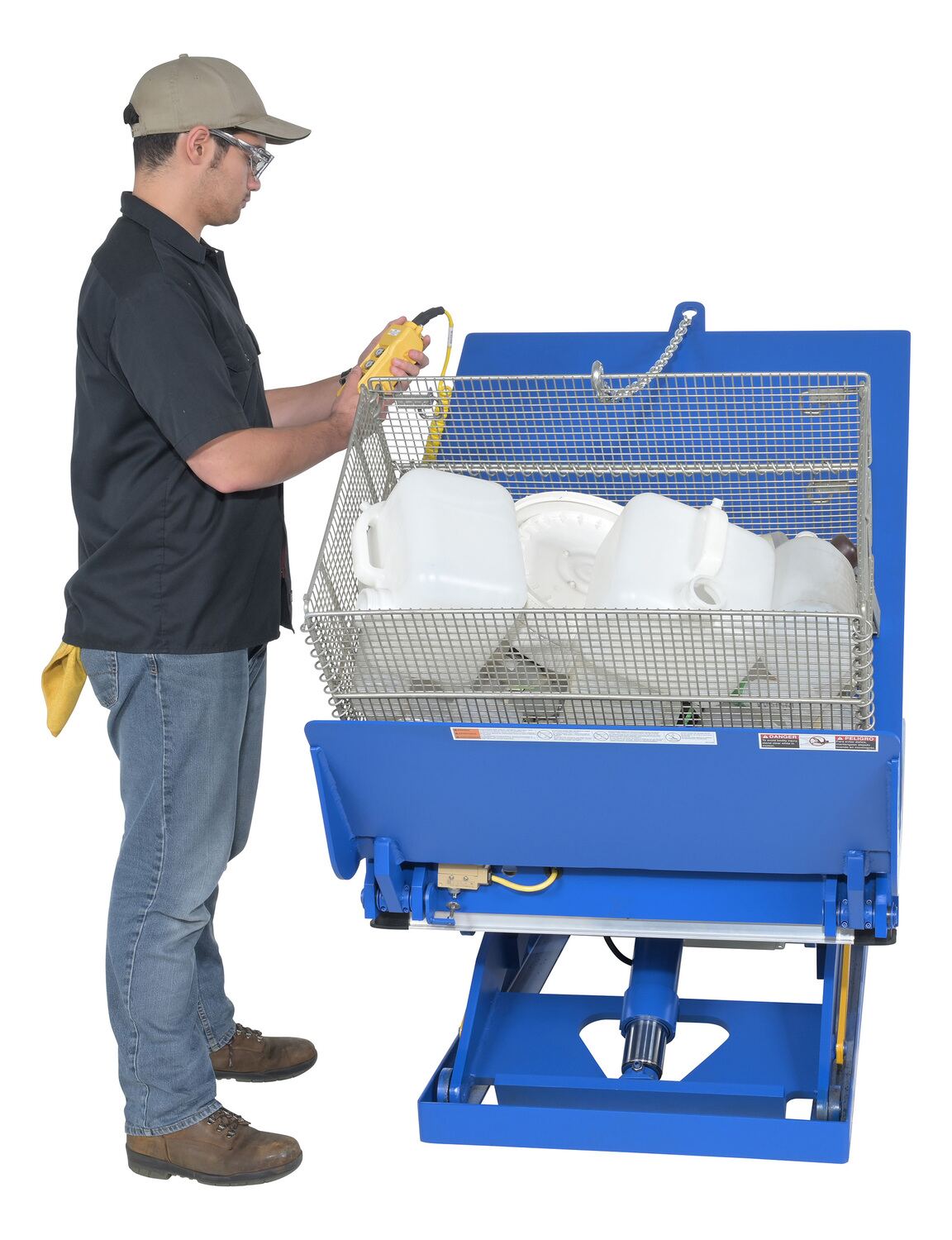

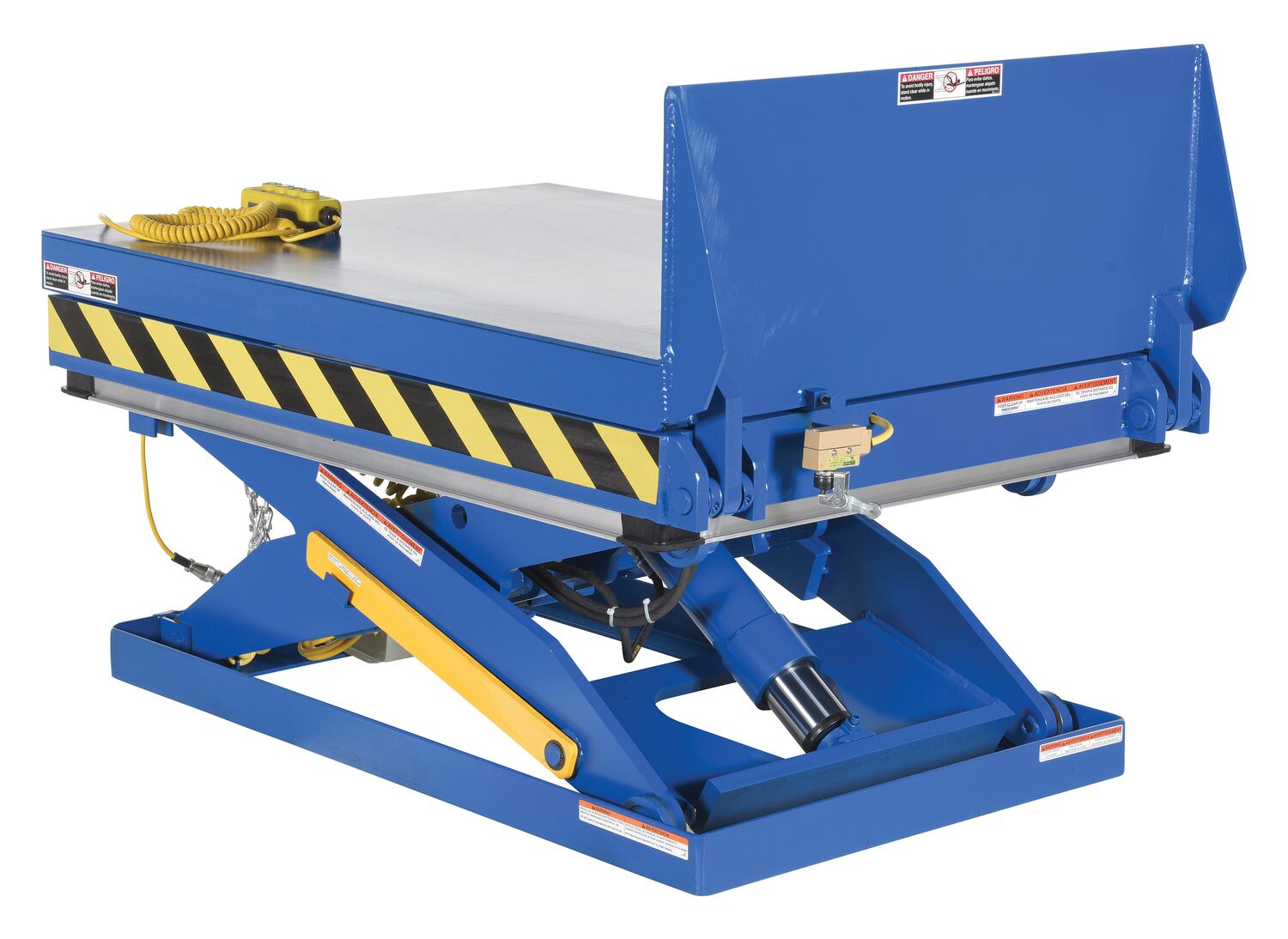

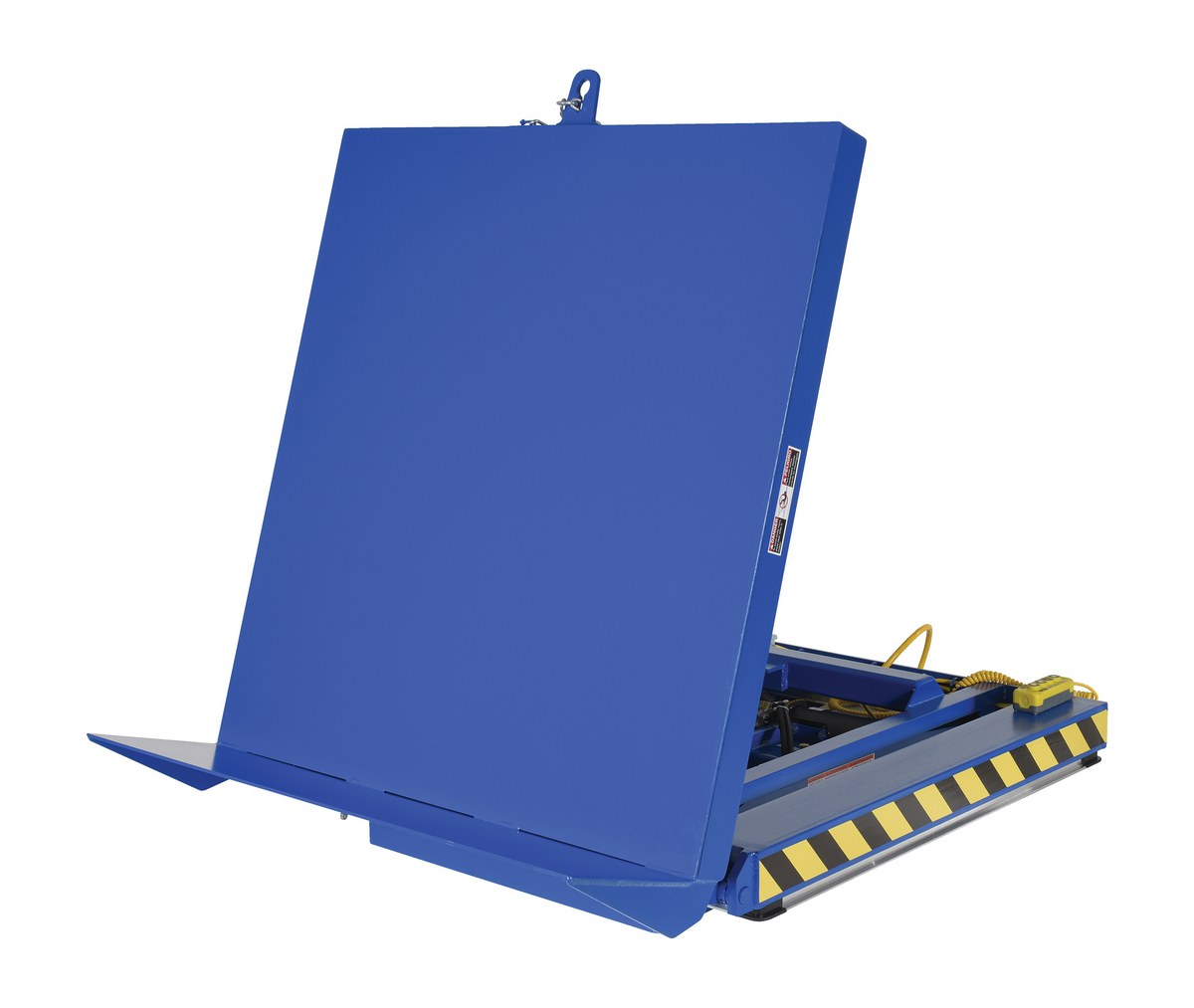

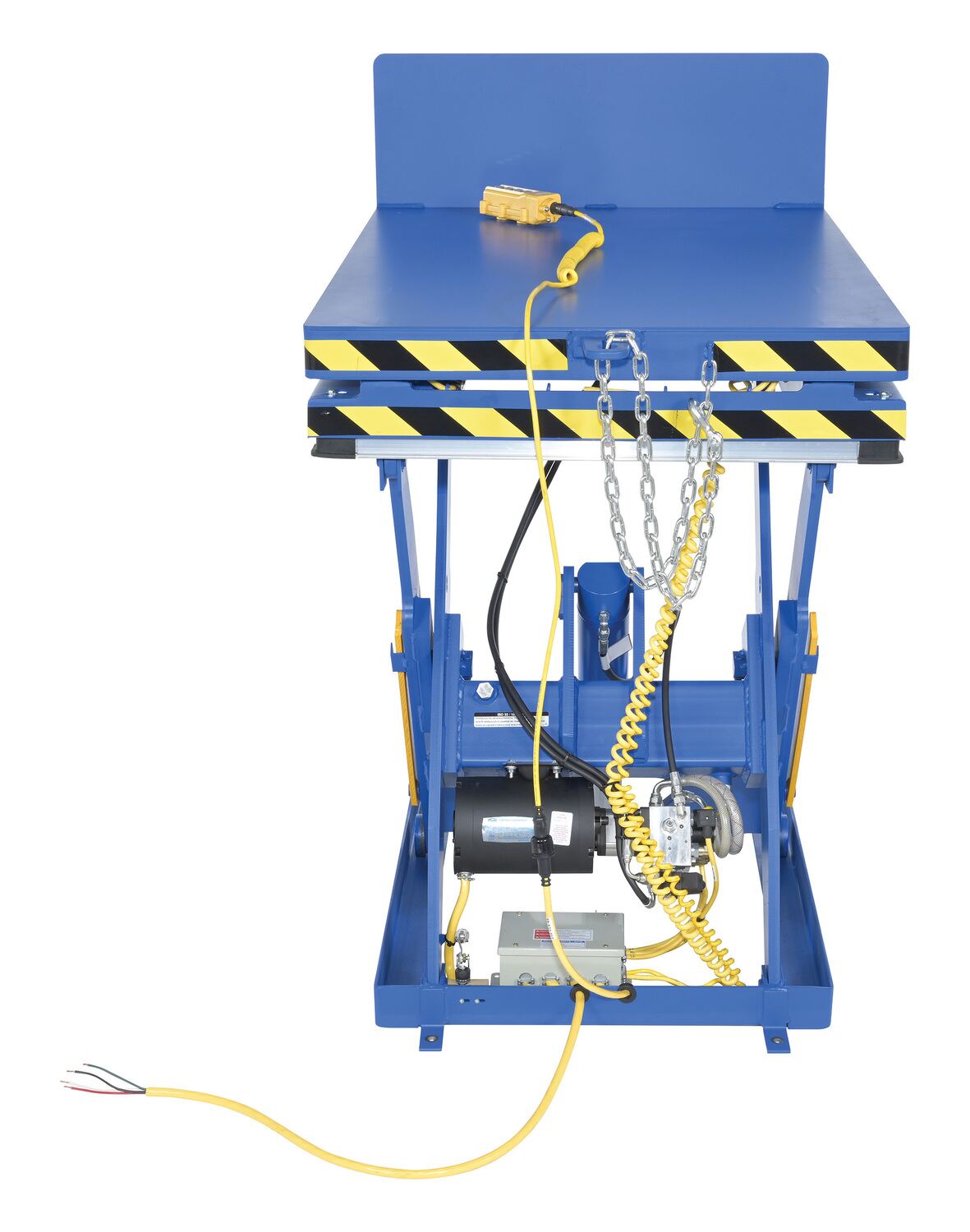

EHLTT-H-3648-2-47 EHLTT-H-3648-2-47Steel Lift and Hinge Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Lowered Height (in.): 11-1/4		1179
EHLTT-H-4848-2-47 EHLTT-H-4848-2-47Steel Lift and Hinge Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Lowered Height (in.): 11-1/4		1268

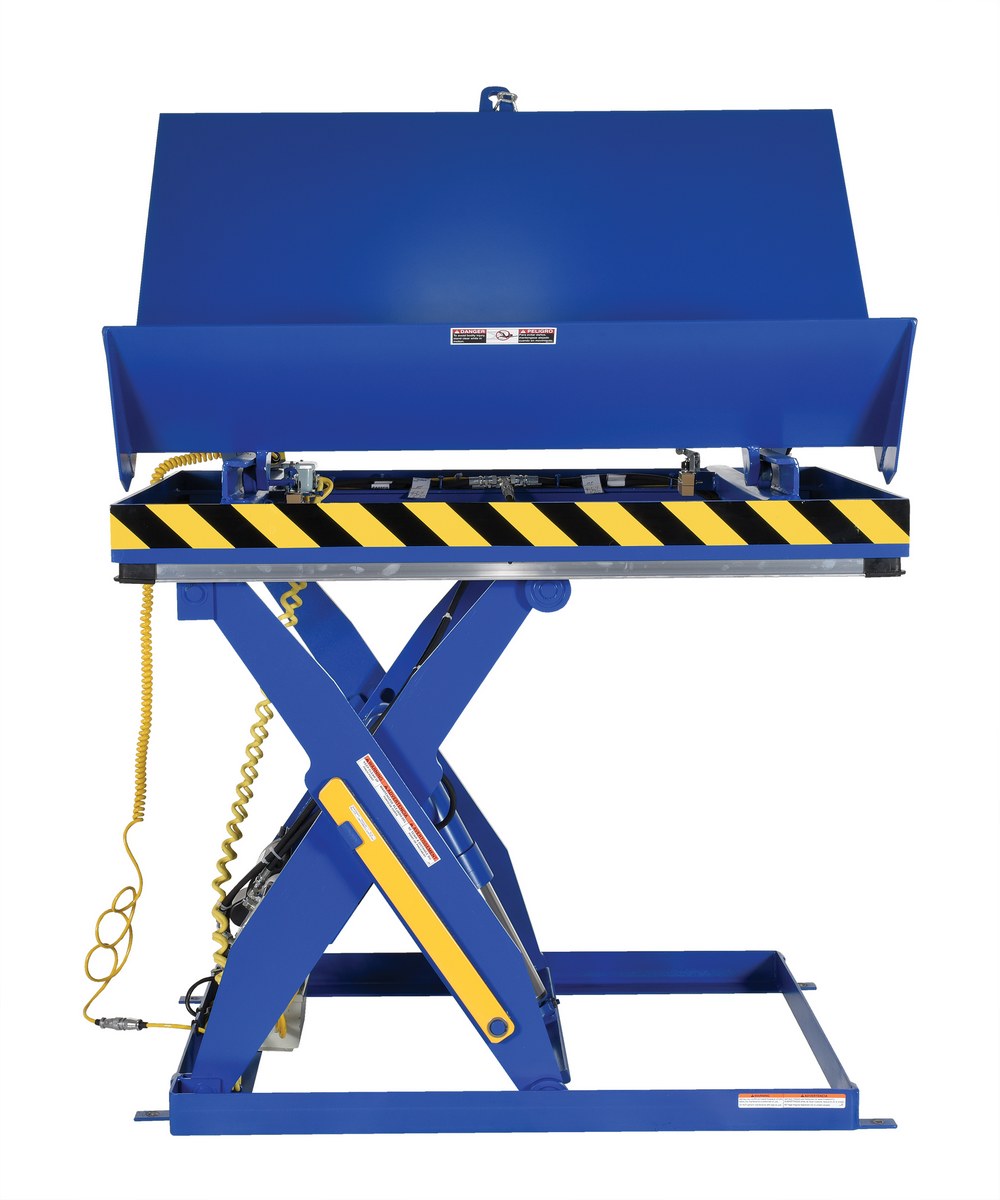

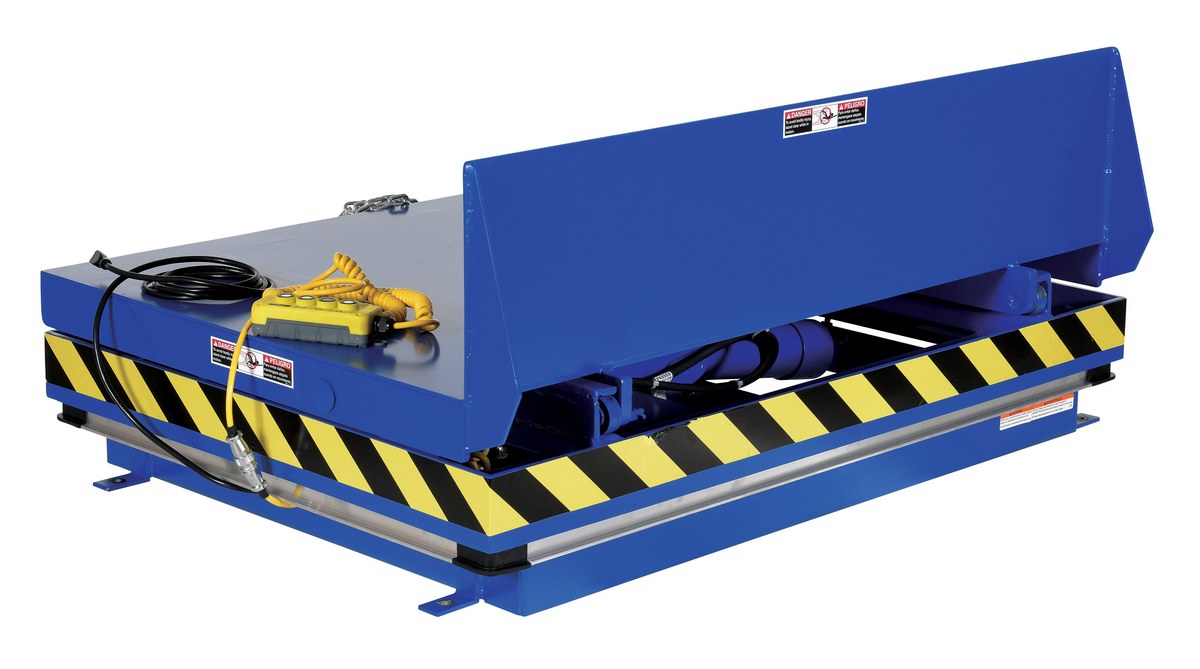

EHLTTS-3654-2-48 EHLTTS-3654-2-48Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Lowered Height (in.): 12		1238

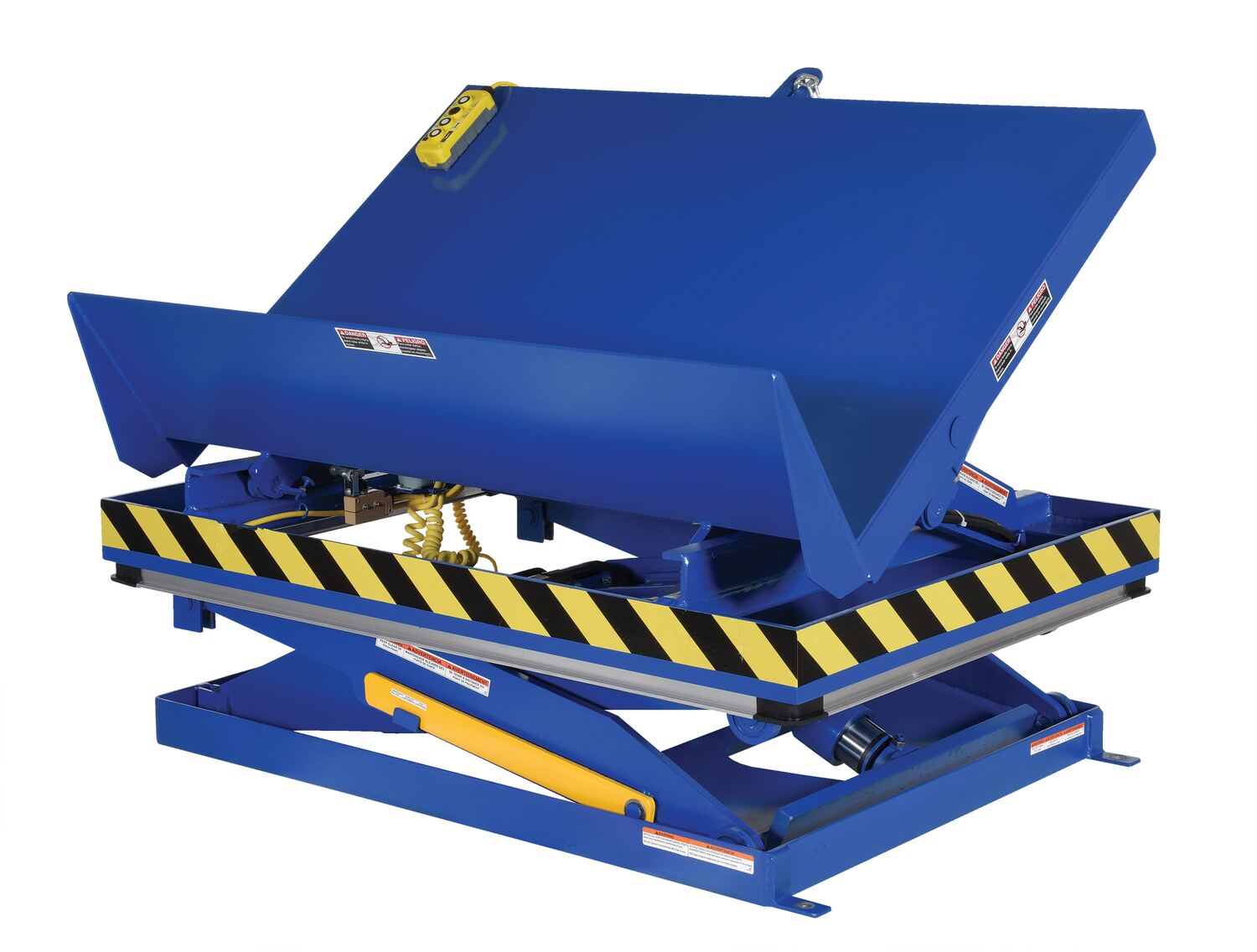

EHLTTS-3654-4-48 EHLTTS-3654-4-48Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Lowered Height (in.): 12		1500

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
