Model Details

HDC-905-HC/460V

Printer Friendly

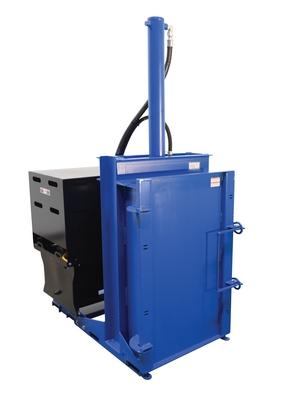

HDC-905-HC/460V

Steel High Cycle Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 Lbs. Crushing Force Blue

The Hydraulic drum crusher/compactor crushes steel drums and resets automatically to crush another drum. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to fifty-five (55) gallons. Compacting feature will only work with fifty-five (55) gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a door interlock system that will prevent the motor from running unless the door is closed. Built-in fork pockets aid in transporting. Do not attempt to crush smooth-walled drums with this machine. Drum must be ribbed to crush properly. Drip pan is included to reduce unnecessary oil spills. Replacement and additional drip pans are available.

  • 38,000 lbs. of crushing force flattens 55-gallon drums to 6" in 25 seconds
  • Powered illuminated on/off switch increases user awareness and safety
  • Mushroom-head emergency stop button will instantly shut-down unit
  • Manufactured to comply with OSHA and JIC standards & specifications
Total Ship Wt.(lbs.): 1992 (only 1 package) Size: 36.9375"W x 59.875"L x 90.9375"H Color: Blue Non-Returnable

Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 Crushing Force (lb.): 38000
Motor (hp): 7.5 Voltage: 460 Phase: 3
Hertz: 60 Crushing/Compacting Drums per week (qty.): 1000 Compacting Platen Diameter (in.): 21
Usable Chamber Length (in.): 25 Usable Chamber Width (in.): 25 Usable Chamber Height (in.): 35-3/4
Crushing Plate Weight (lbs.): 75 Oil Reservoir (Gallons): 25 Max. Crushing Force (lbs.): 38000
Max. Compacting Force (lbs.): 18000 Drip Pan Width (in.): 31-1/2 Drip Pan Length (in.): 4-1/2
Drip Pan Height (in.): 1-5/8 Drip Pan Capacity (gallon): 1

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDC-905-HC/460V
HDC-905-HC/460V

Steel High Cycle Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 Lbs. Crushing Force Blue

The Hydraulic drum crusher/compactor crushes steel drums and resets automatically to crush another drum. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to fifty-five (55) gallons. Compacting feature will only work with fifty-five (55) gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a door interlock system that will prevent the motor from running unless the door is closed. Built-in fork pockets aid in transporting. Do not attempt to crush smooth-walled drums with this machine. Drum must be ribbed to crush properly. Drip pan is included to reduce unnecessary oil spills. Replacement and additional drip pans are available.

  • 38,000 lbs. of crushing force flattens 55-gallon drums to 6" in 25 seconds
  • Powered illuminated on/off switch increases user awareness and safety
  • Mushroom-head emergency stop button will instantly shut-down unit
  • Manufactured to comply with OSHA and JIC standards & specifications
Dimensions: 36.9375"W x 59.875"L x 90.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215133555 GTIN: 00691215133555
Warranty: -- Shipping Weight: 1992 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Approximate Crushed Height (in.): 6 Full Cycle Time (Crush and Retract) (seconds): 25 Crushing Force (lb.): 38000
Motor (hp): 7.5 Voltage: 460 Phase: 3
Hertz: 60 Crushing/Compacting Drums per week (qty.): 1000 Compacting Platen Diameter (in.): 21
Usable Chamber Length (in.): 25 Usable Chamber Width (in.): 25 Usable Chamber Height (in.): 35-3/4
Crushing Plate Weight (lbs.): 75 Oil Reservoir (Gallons): 25 Max. Crushing Force (lbs.): 38000
Max. Compacting Force (lbs.): 18000 Drip Pan Width (in.): 31-1/2 Drip Pan Length (in.): 4-1/2
Drip Pan Height (in.): 1-5/8 Drip Pan Capacity (gallon): 1
