Specialty Molded Dock Bumpers| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

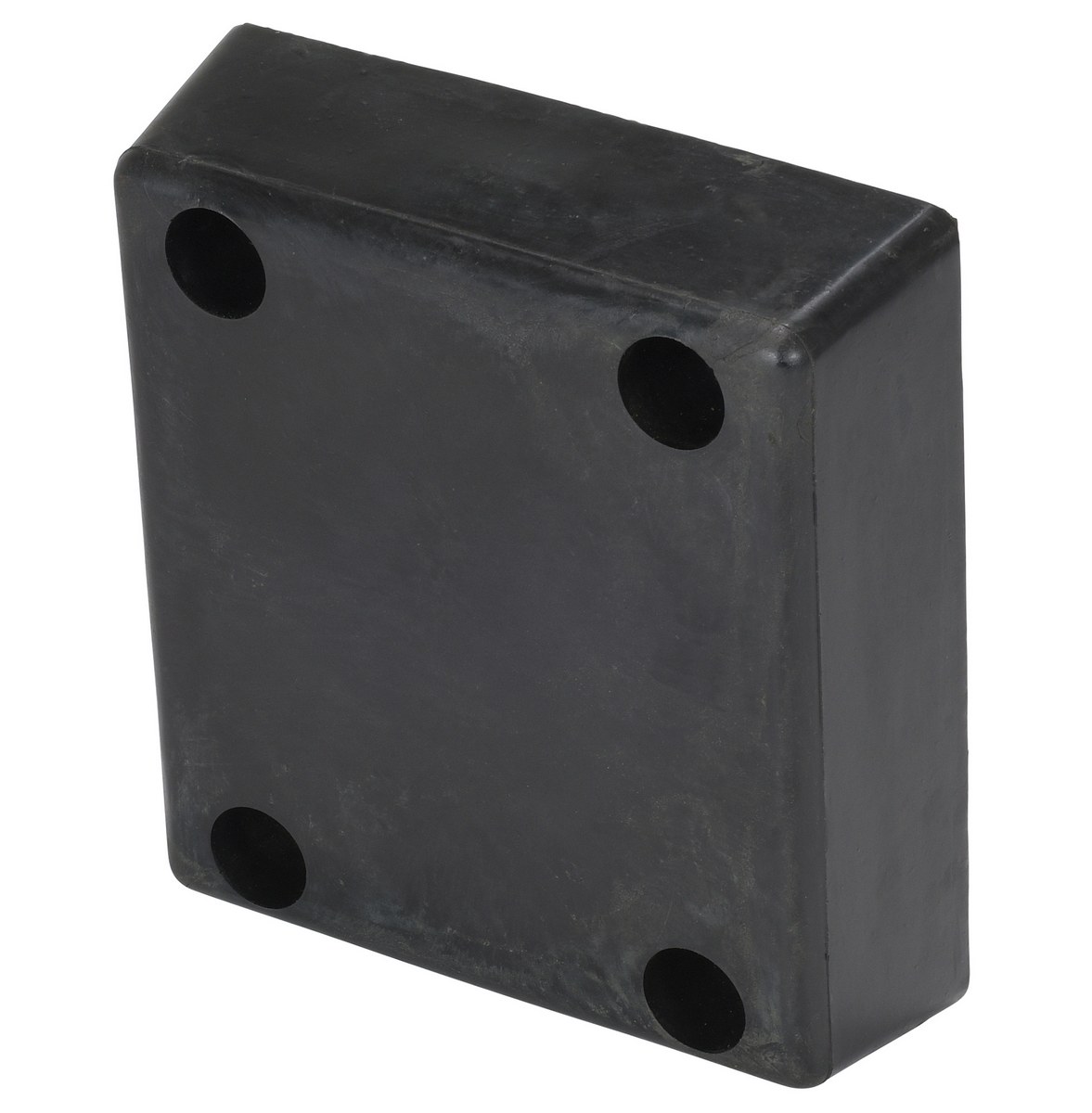

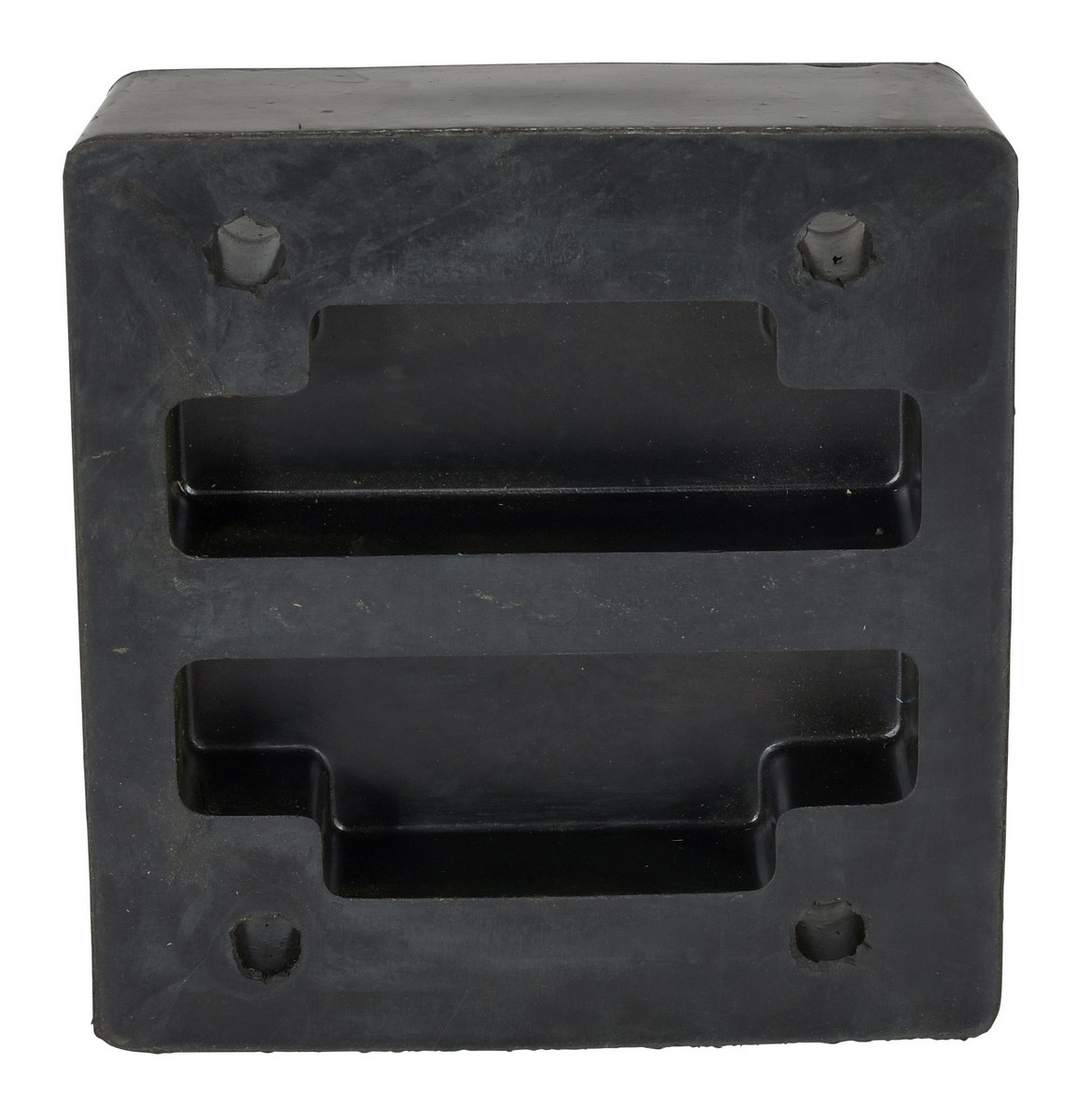

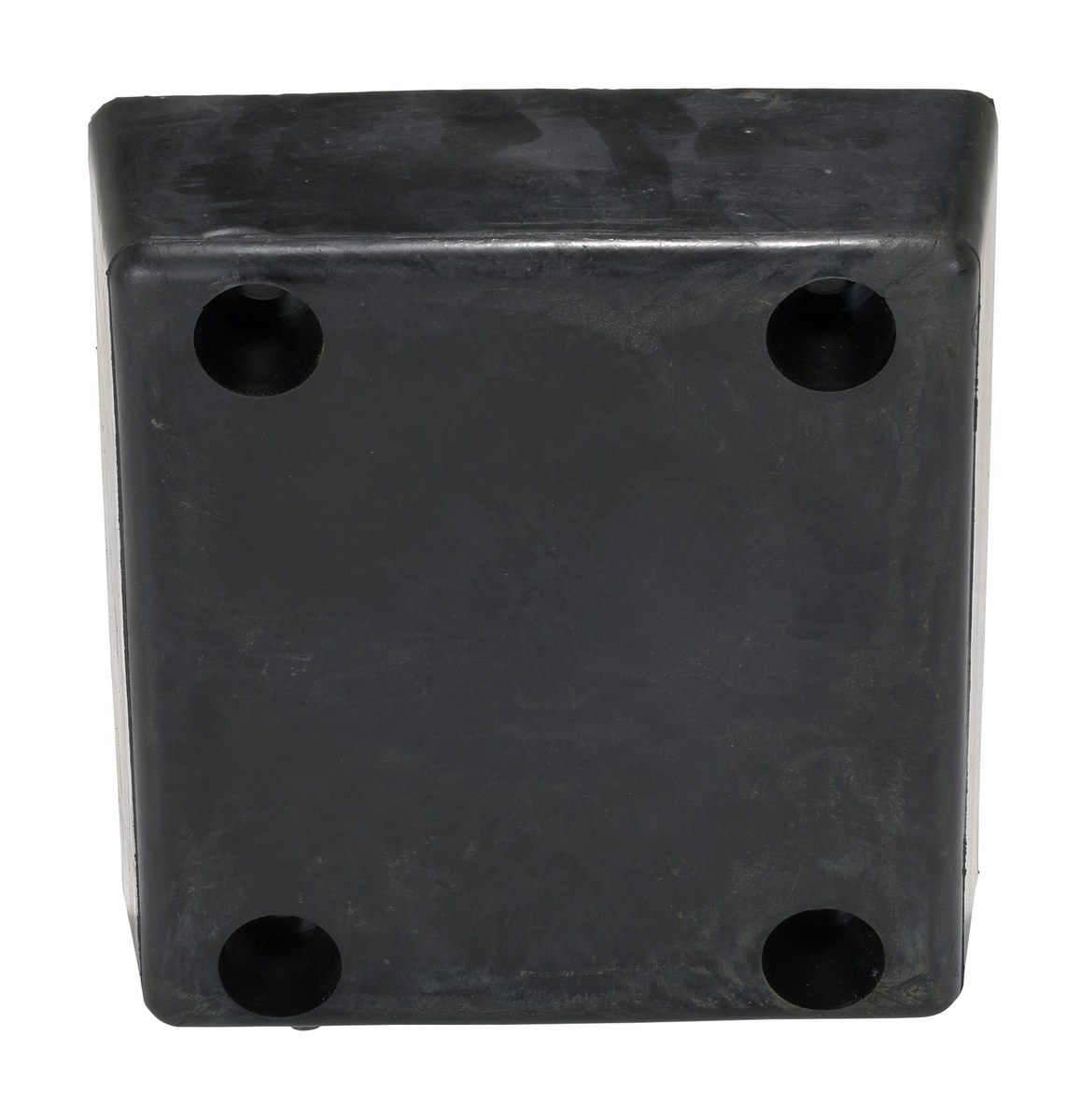

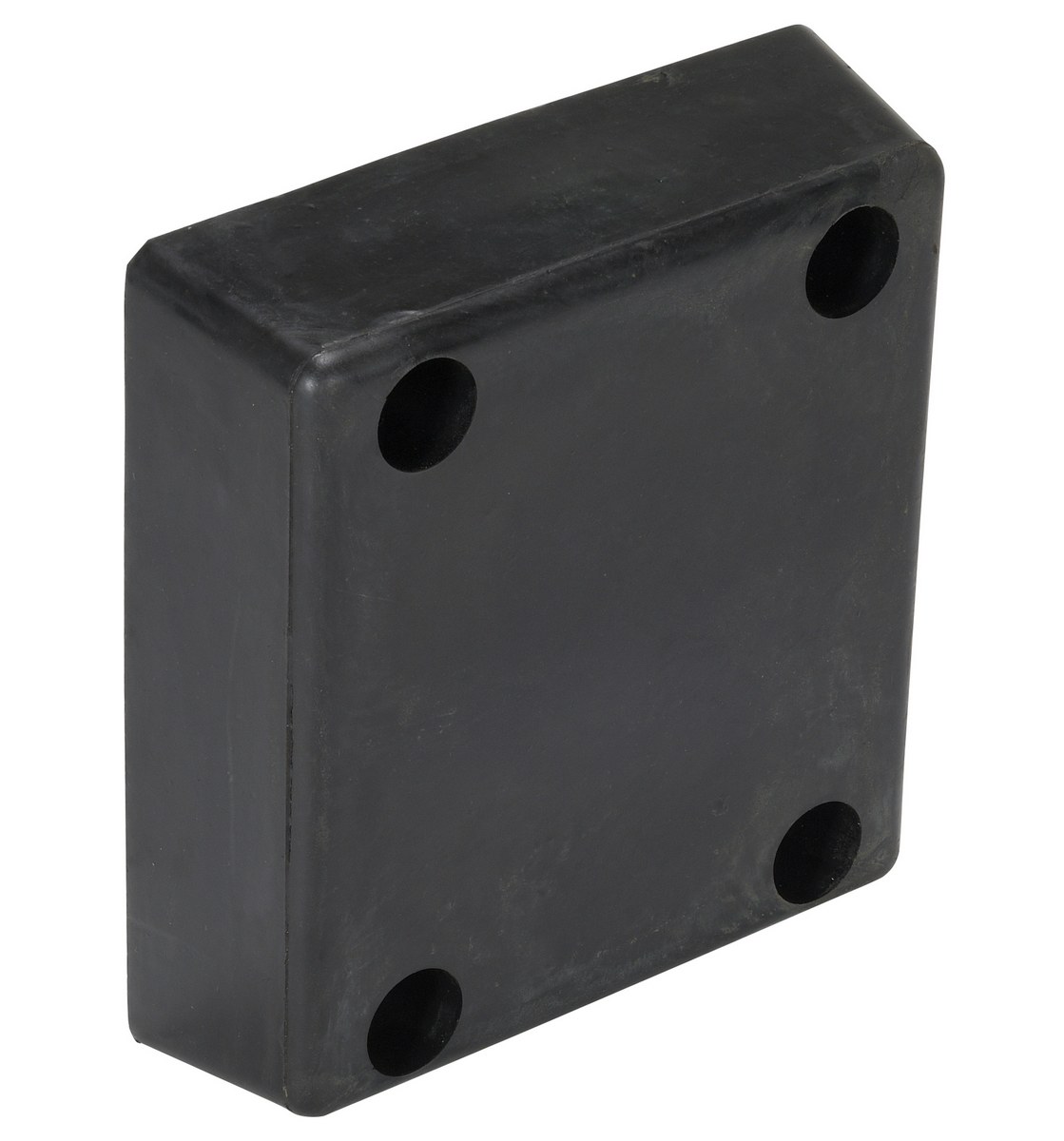

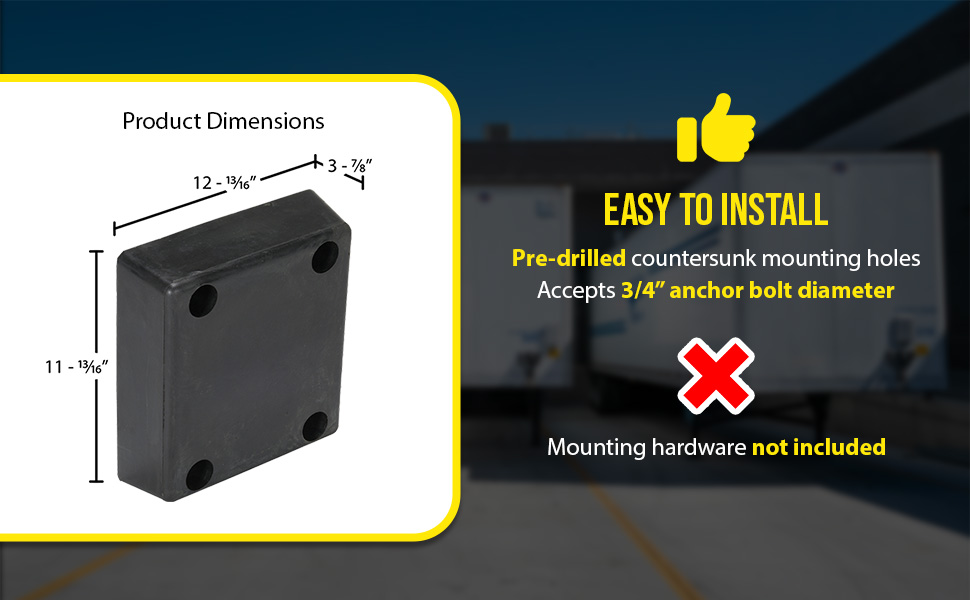

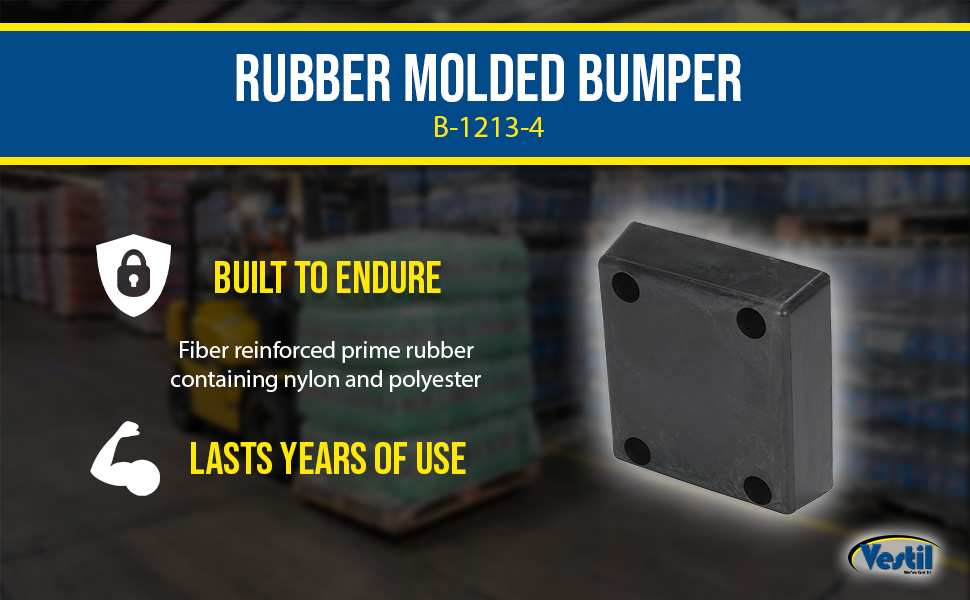

| B-1213-4 | POPULAR |  | 30 Days Limited Warranty | Rubber Molded Bumper 12-13/16 In. x 11-13/16 In. x 3-7/8 In. Black | Projection (in.): 4 Accepts Anchor Bolt Diameter (in.): 3/4 | 24 | |

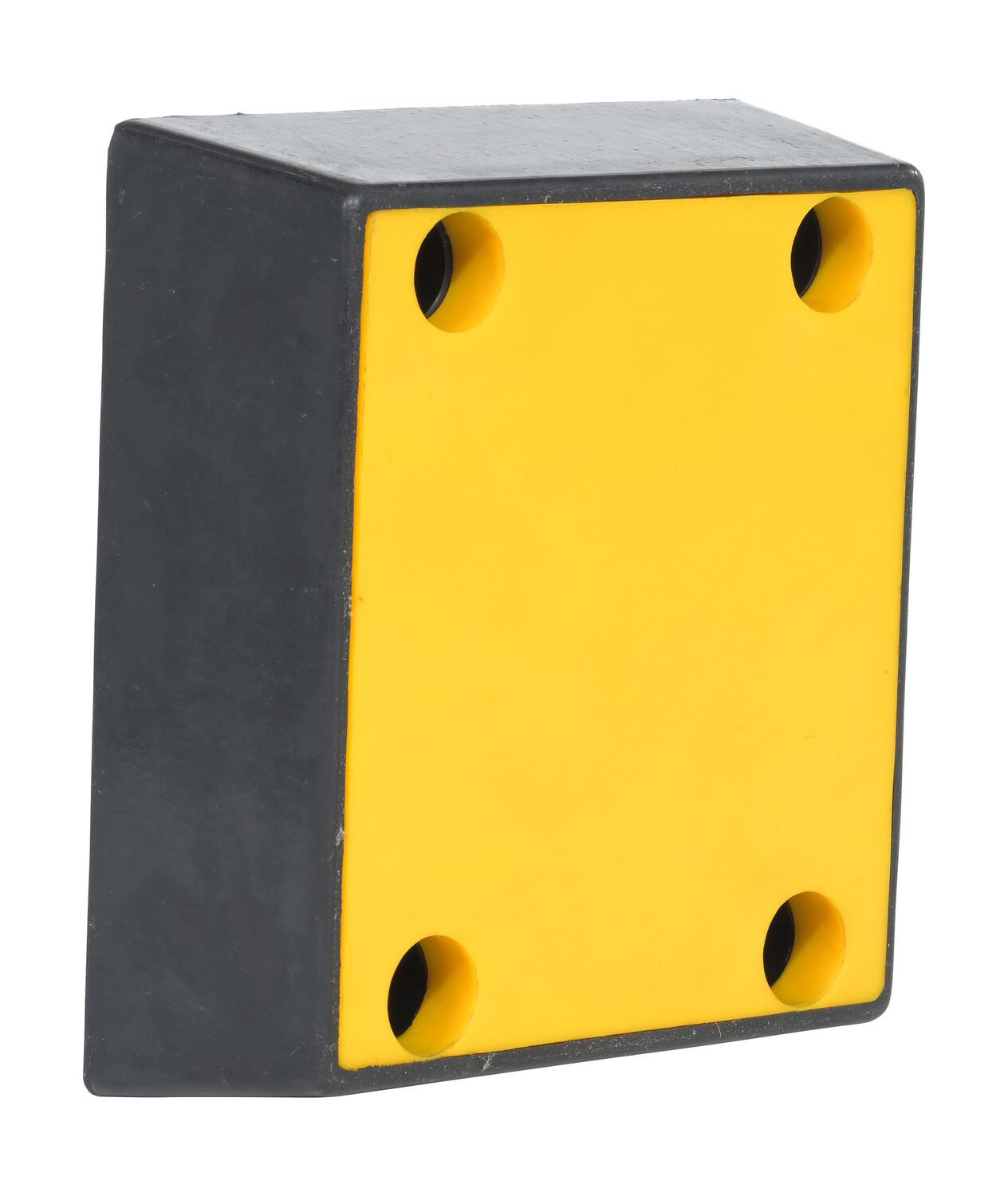

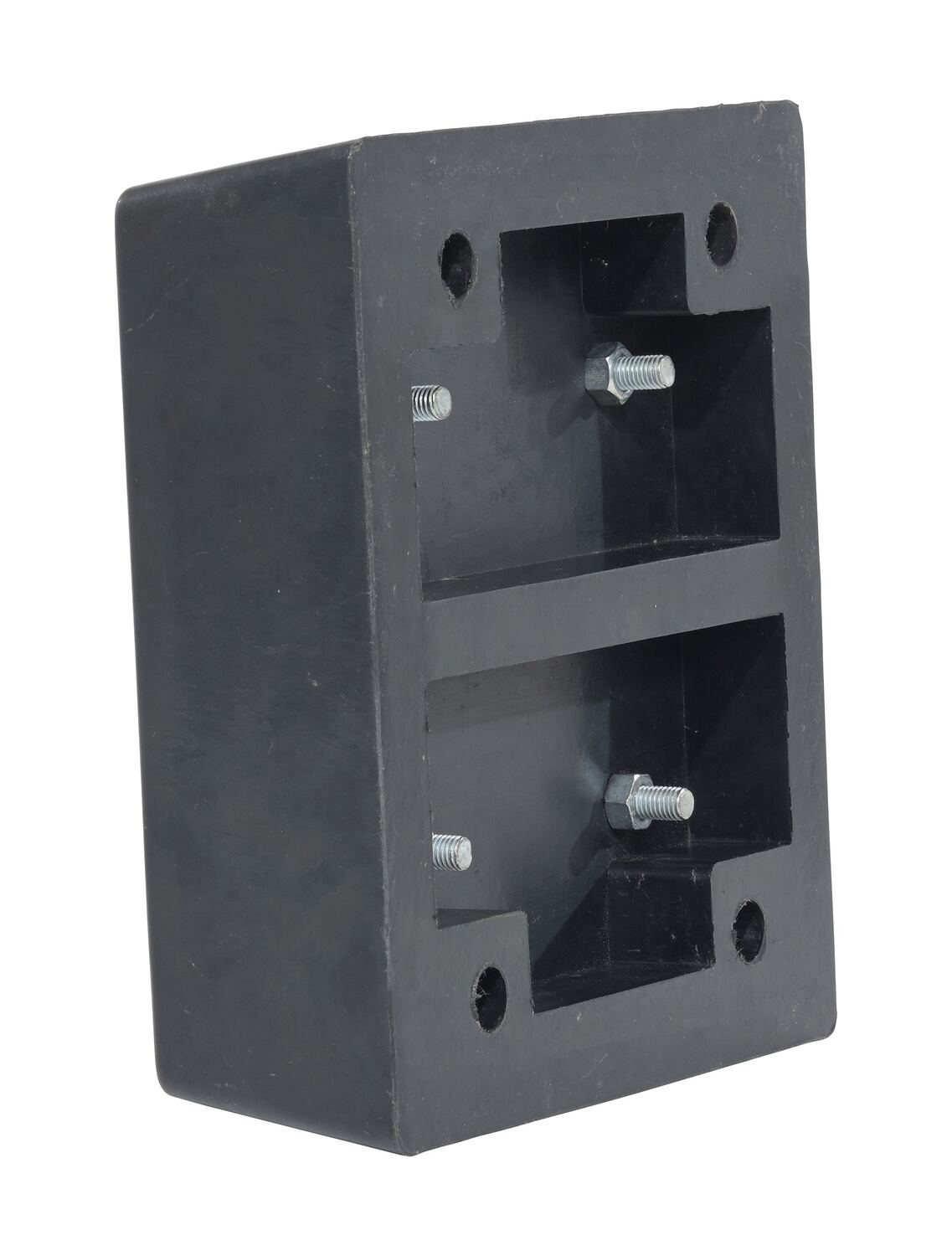

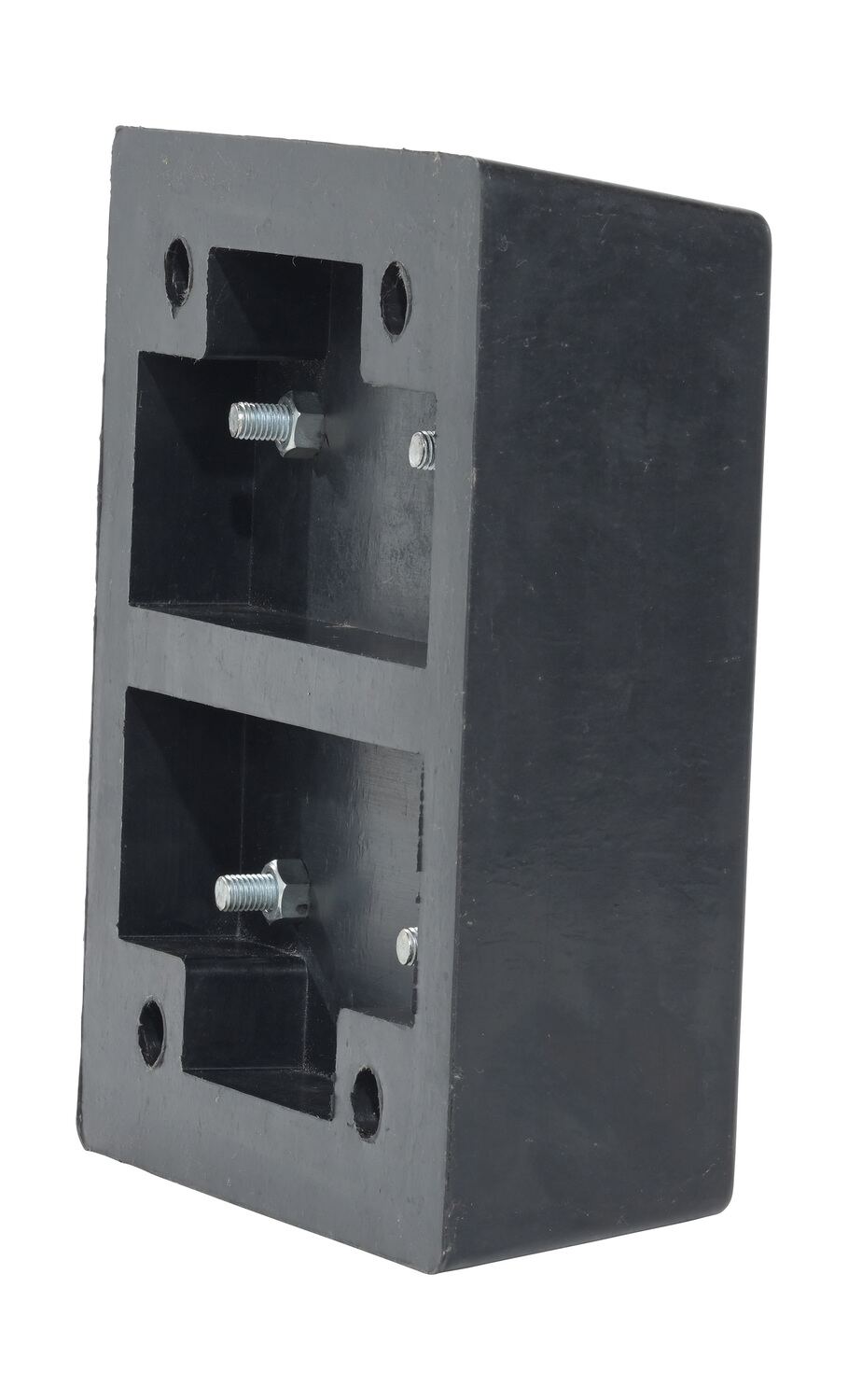

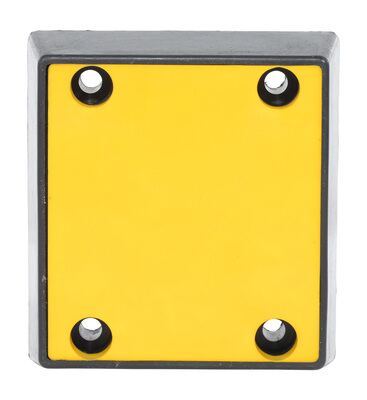

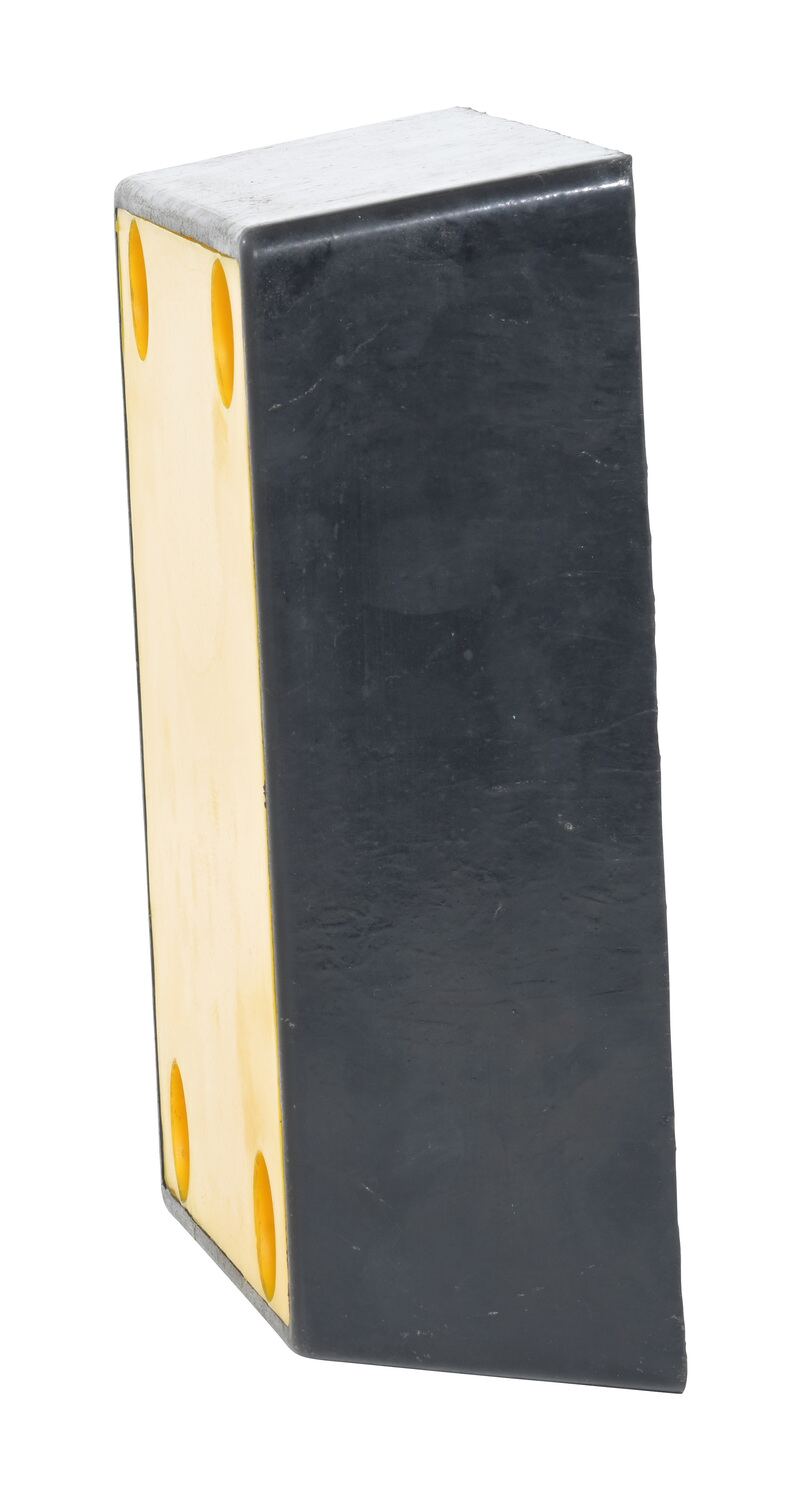

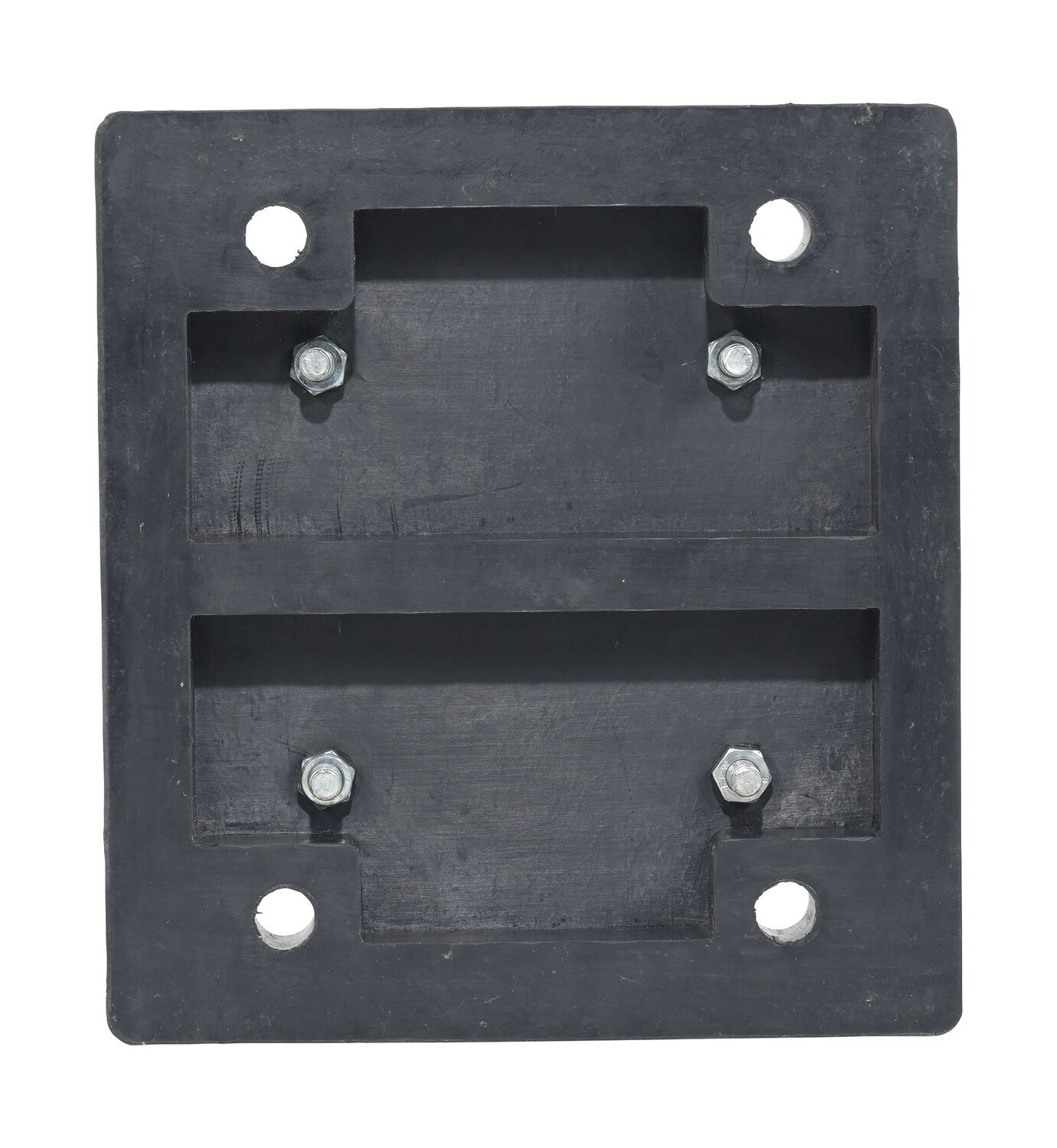

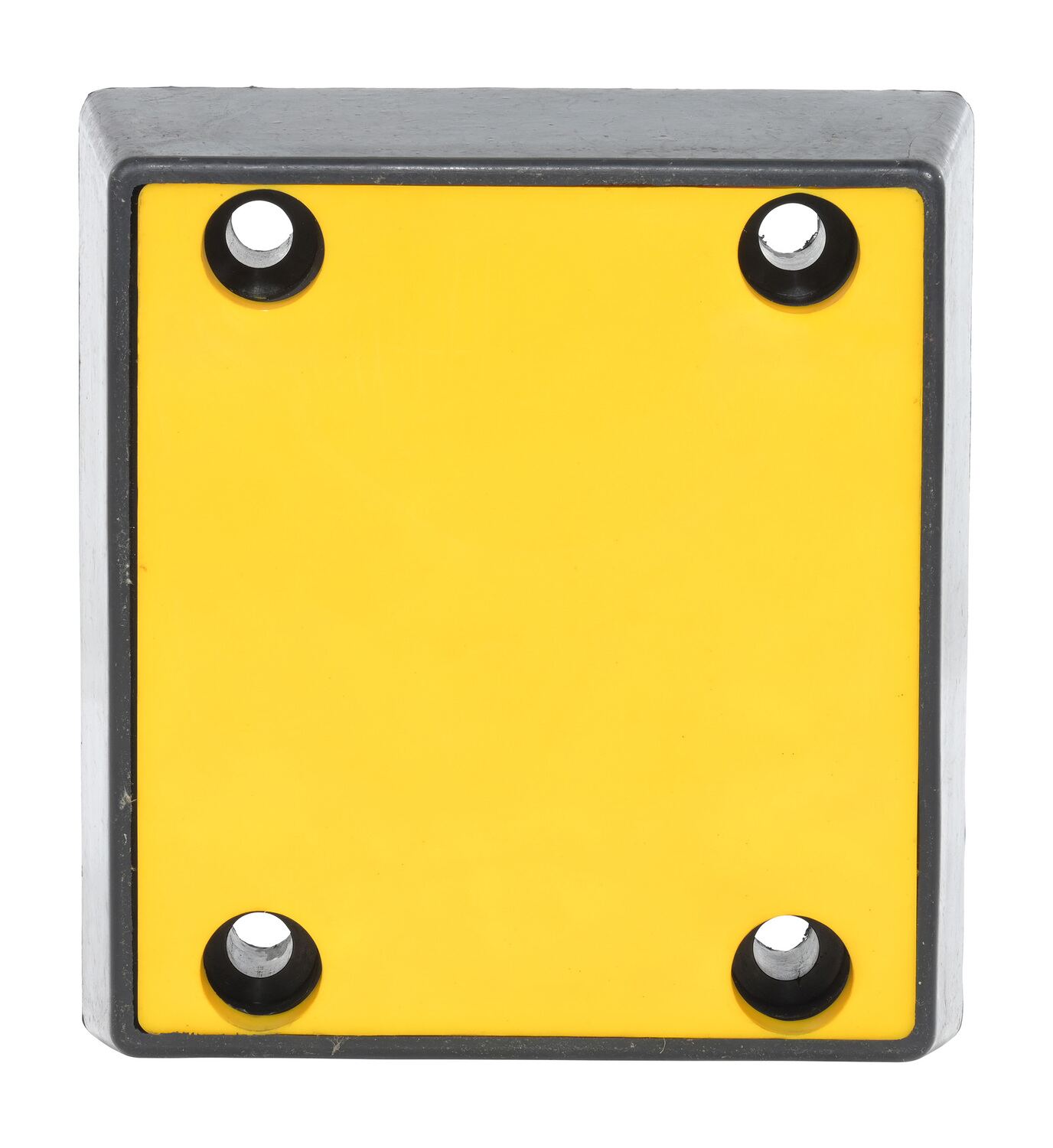

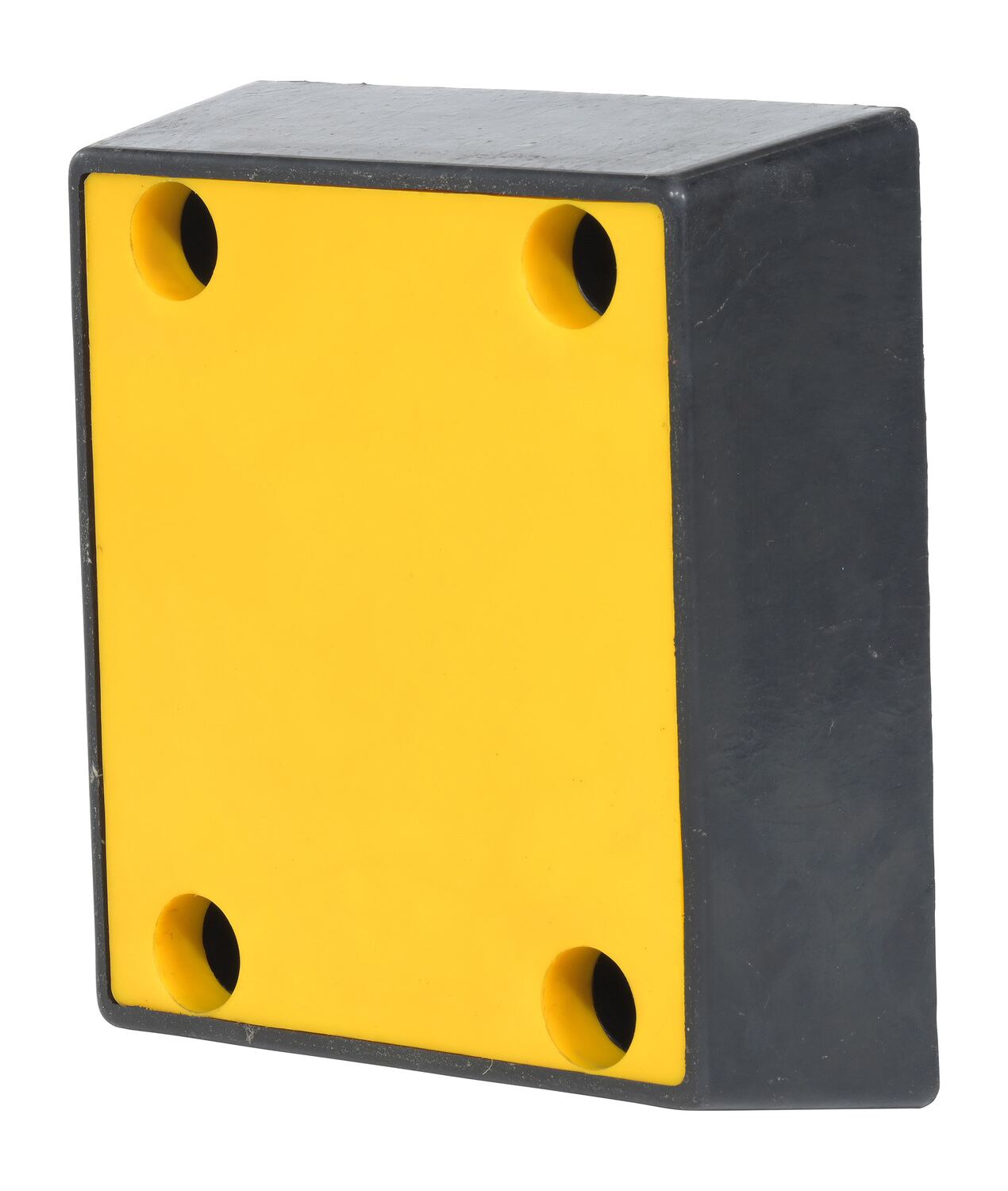

| B-1213-4PF |  | 30 Days Limited Warranty | Plastic Face Molded Rubber Bumper 11-13/16 In. x 12-13/16 In. x 3-7/8 In. Black | Projection (in.): 4 Accepts Anchor Bolt Diameter (in.): 3/4 | 29 | ||

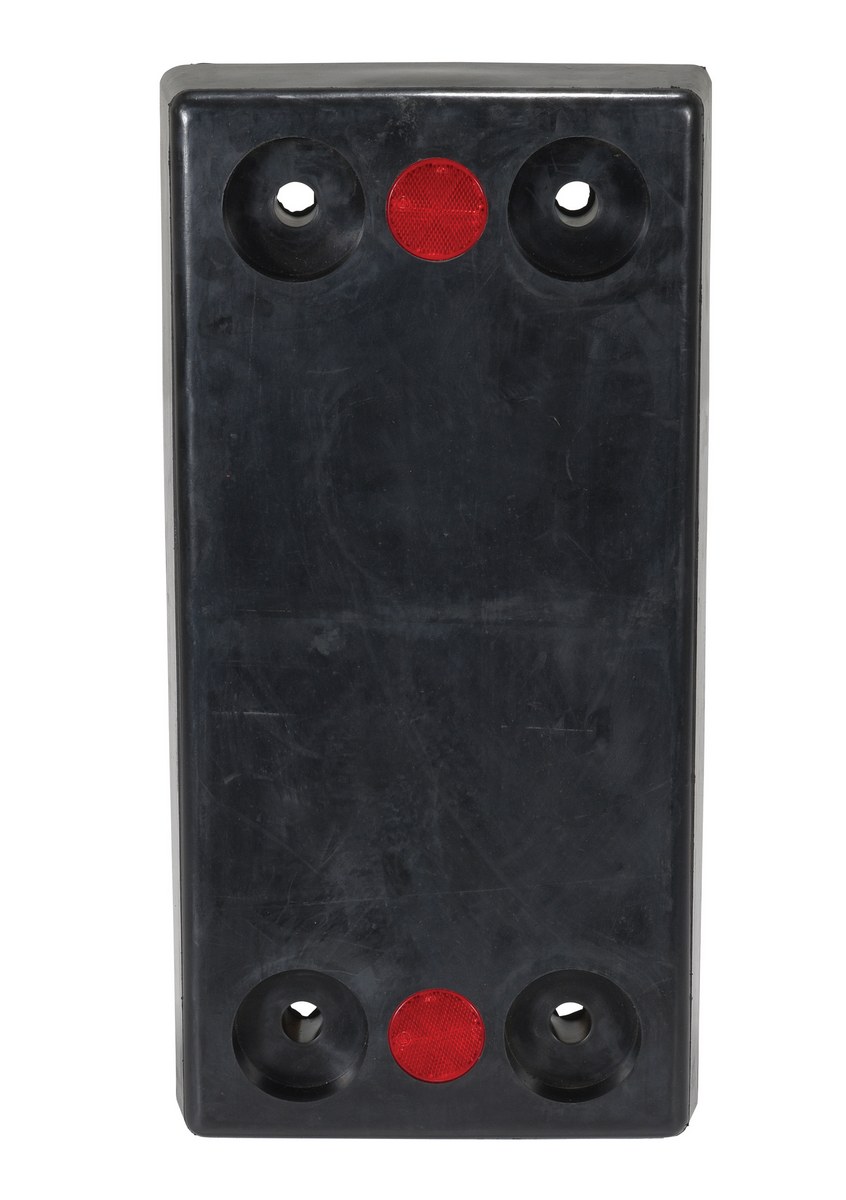

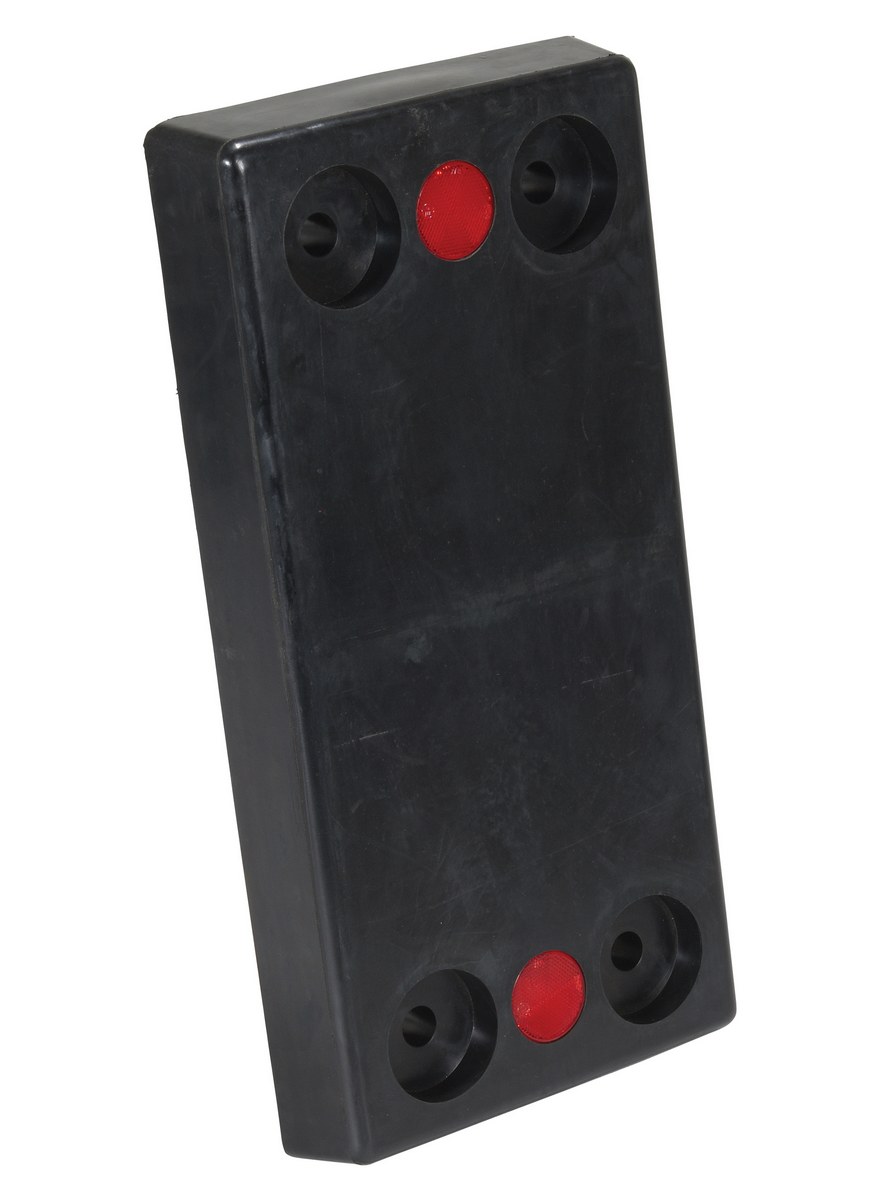

| B-1224-3 |  | 30 Days Limited Warranty | Rubber Rectangle Molded Bumper 24 In. x 12 In. x 3 In. Black | Projection (in.): 3 Accepts Anchor Bolt Diameter (in.): 3/4 | 34 | ||

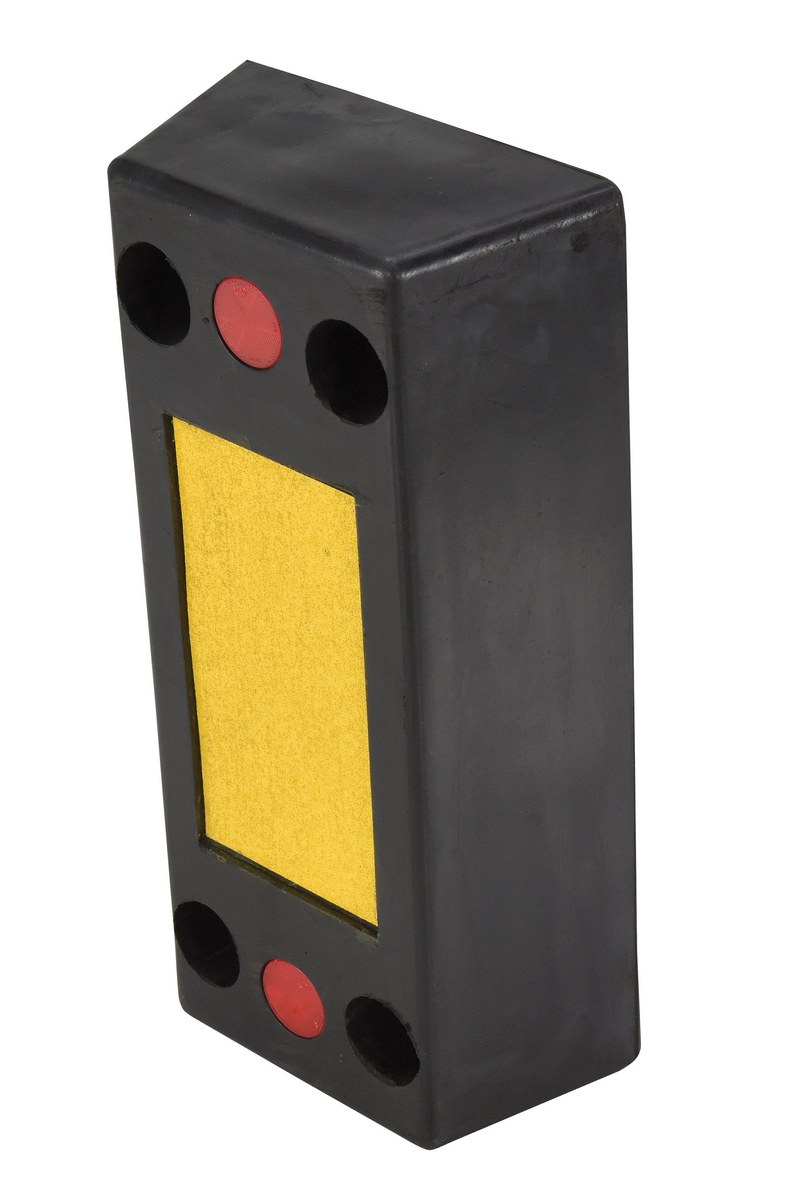

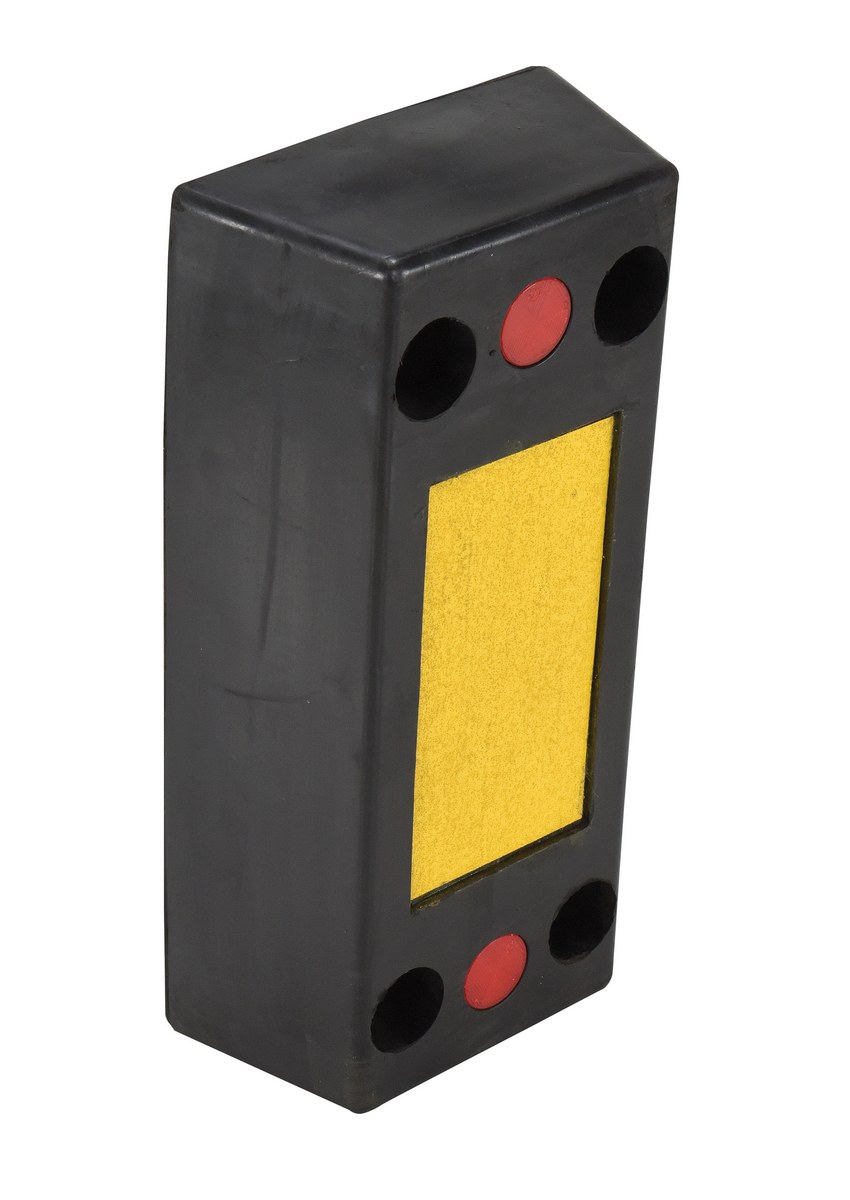

| B-1224-6 |  | 30 Days Limited Warranty | Rubber Rectangle Molded Bumper 24 In. x 12 In. x 6 In. Black | Projection (in.): 6 Accepts Anchor Bolt Diameter (in.): 3/4 | 57 | ||

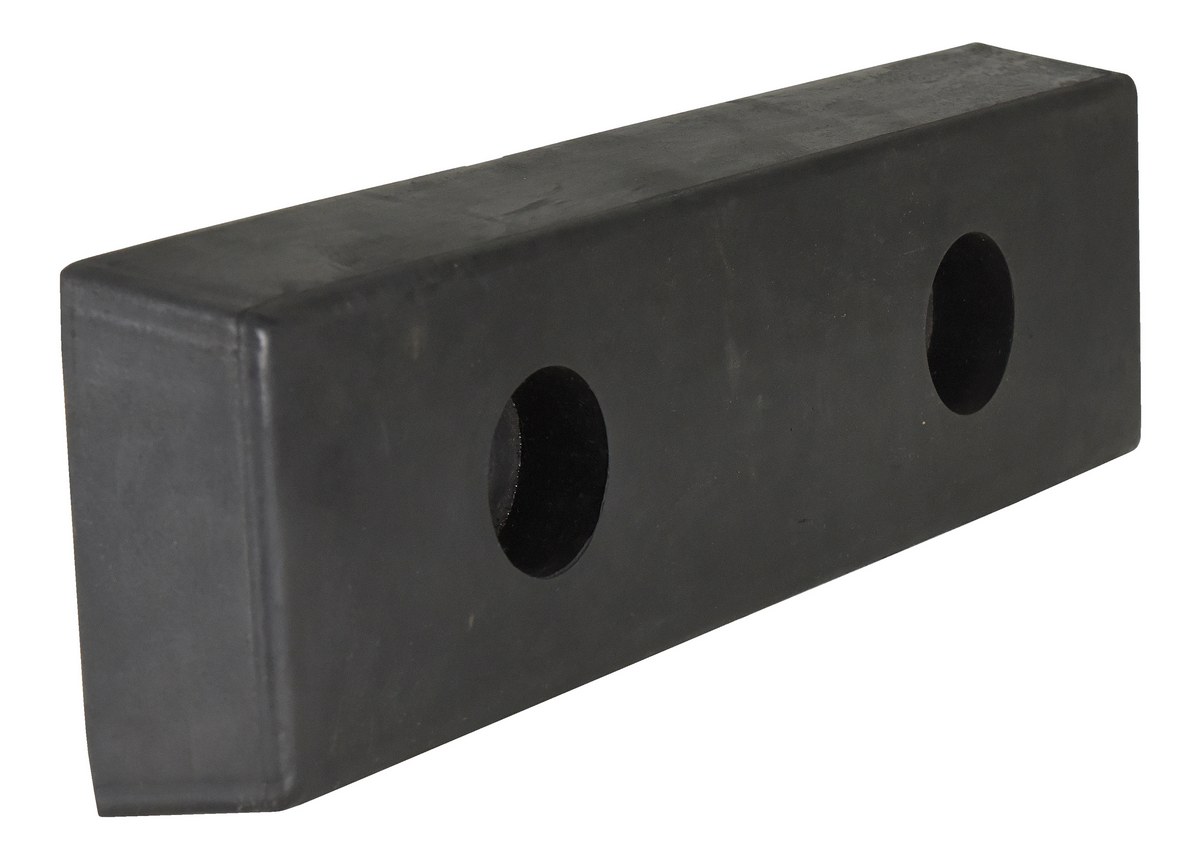

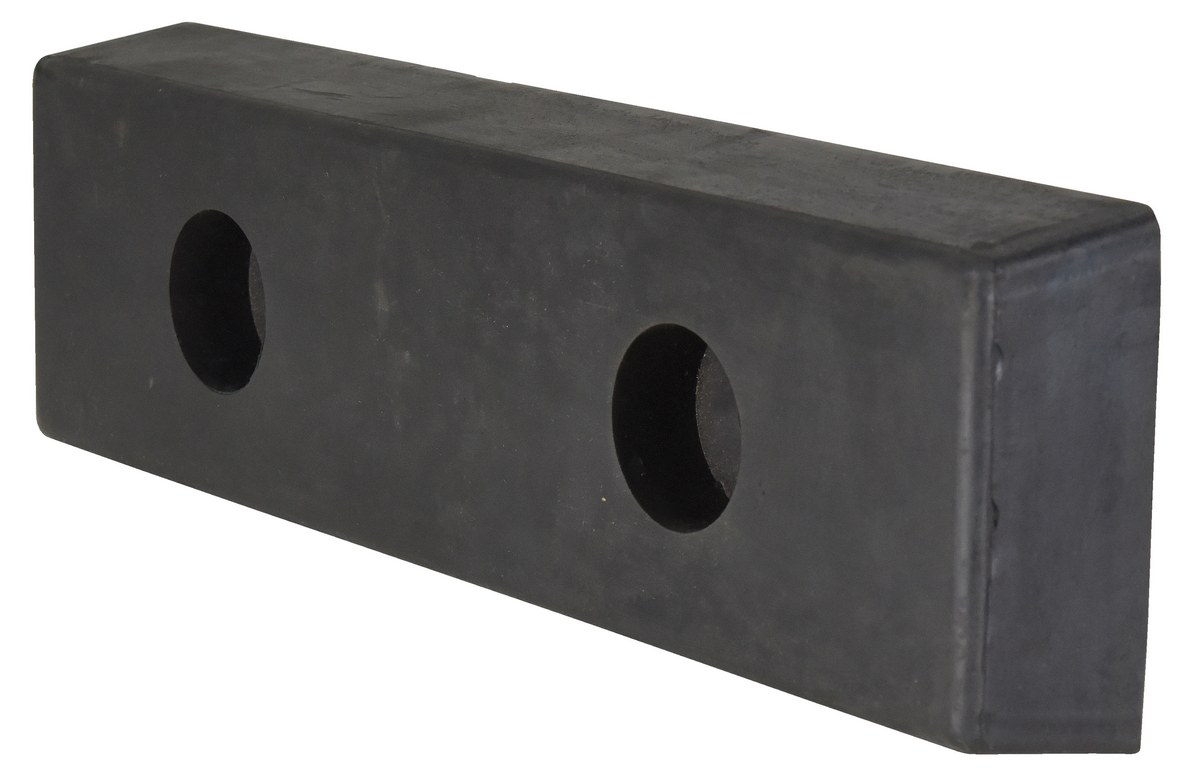

| B-516 |  | 30 Days Limited Warranty | Rubber Rectangle Molded Bumper 16-1/8 In. x 4-29/32 In. x 2-1/8 In. Black | Projection (in.): 2 Anchor Bolt Diameter (in.): 5/8 | 8 | ||

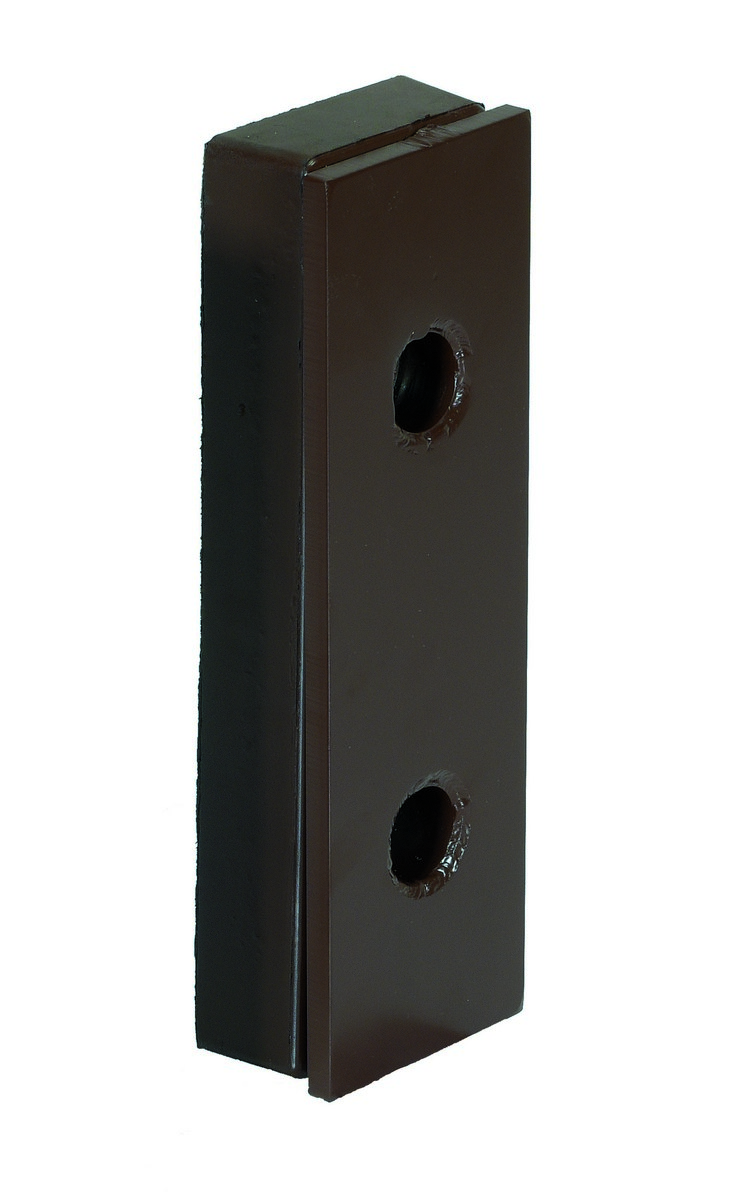

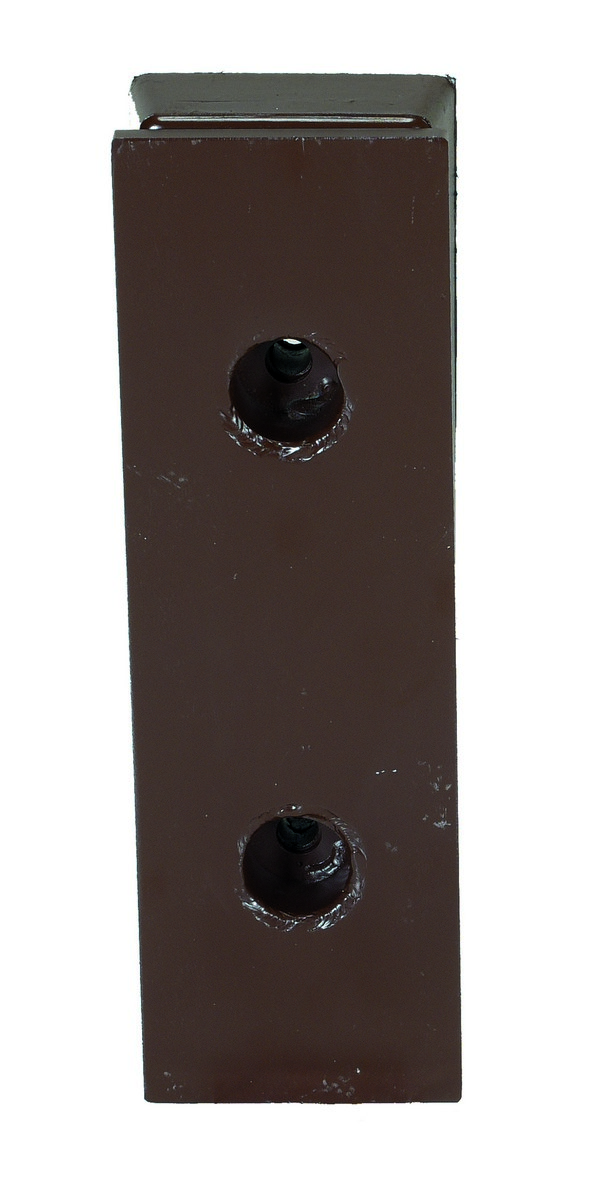

| B-516-SF |  | 30 Days Limited Warranty | Steel Face Molded Rubber Bumper 2-5/8 In. x 5 In. x 16-1/8 In. Black | Projection (in.): 2-1/2 Anchor Bolt Diameter (in.): 3/4 | 21 | ||

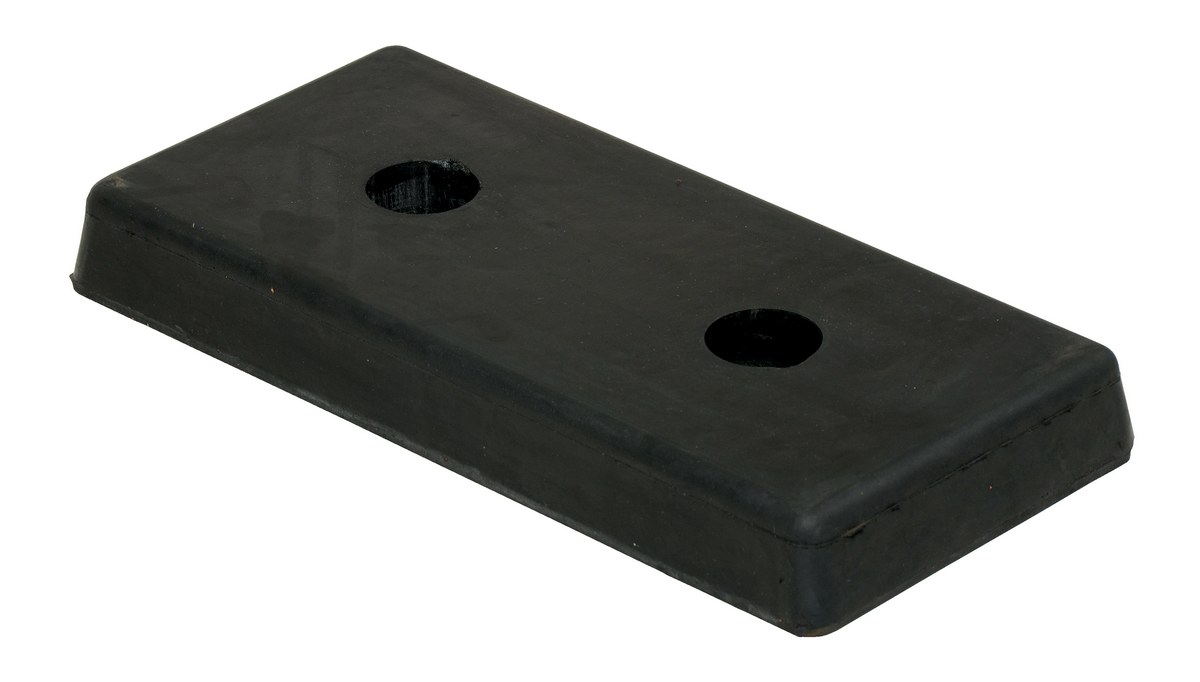

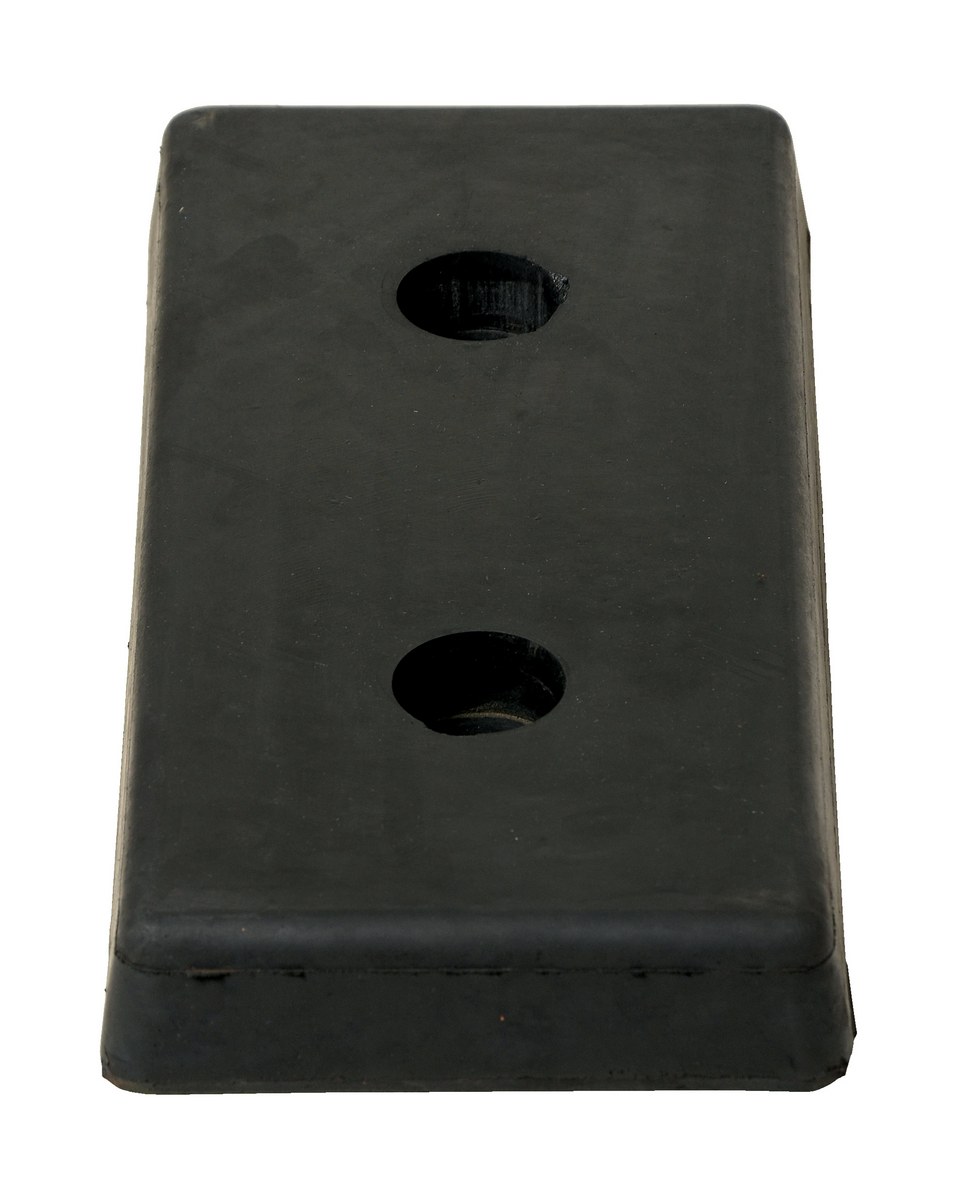

| B-818 |  | 30 Days Limited Warranty | Rubber Rectangle Molded Bumper 17-1/2 In. x 8 In. x 2 In. Black | Projection (in.): 2 Anchor Bolt Diameter (in.): 5/8 | 16 | ||

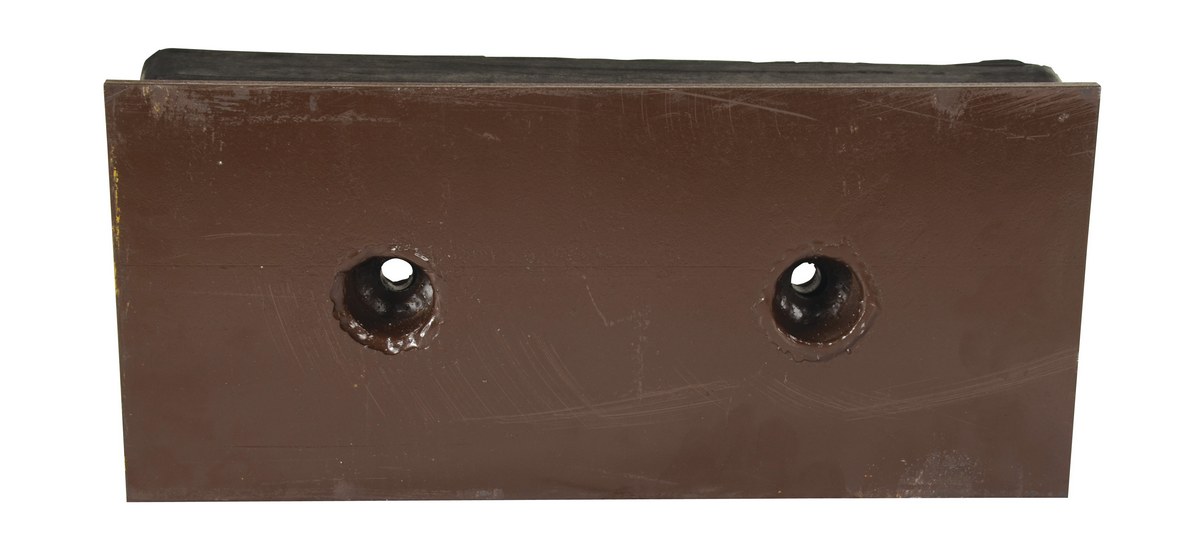

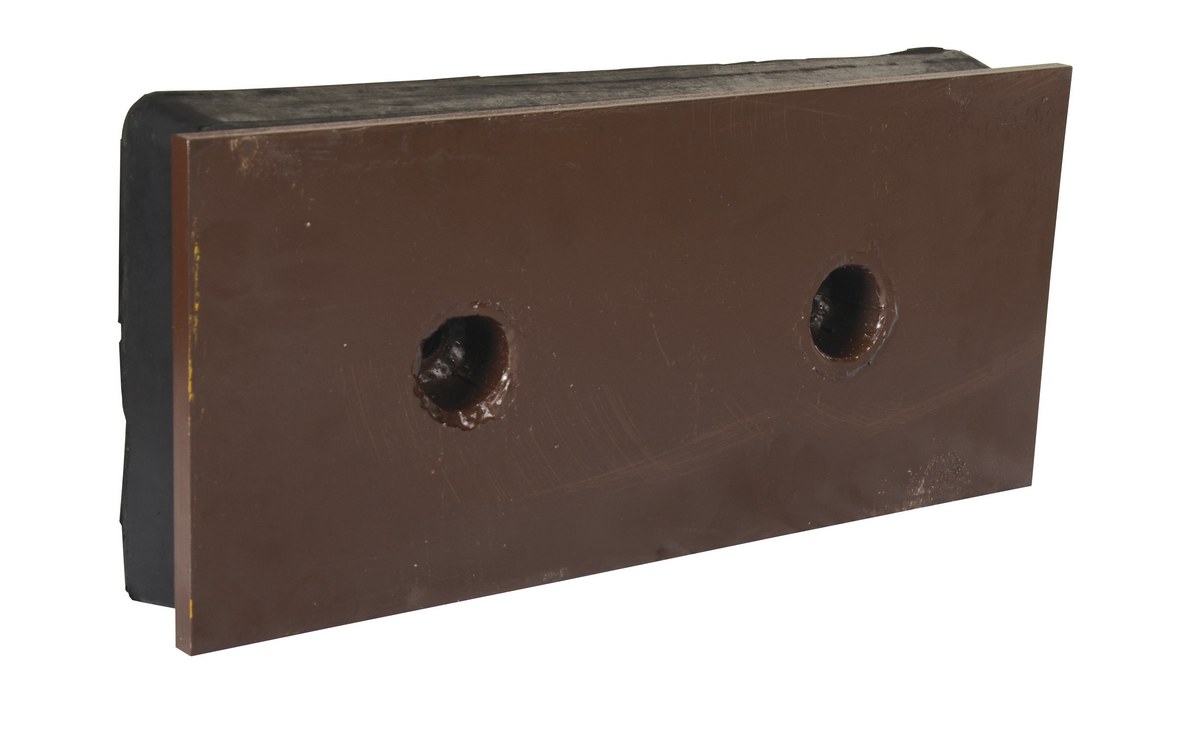

| B-818-SF |  | 30 Days Limited Warranty | Steel Face Molded Rubber Bumper 18 In. x 8 In. x 2-1/2 In. Black | Projection (in.): 2-1/2 Anchor Bolt Diameter (in.): 3/4 | 35 | ||

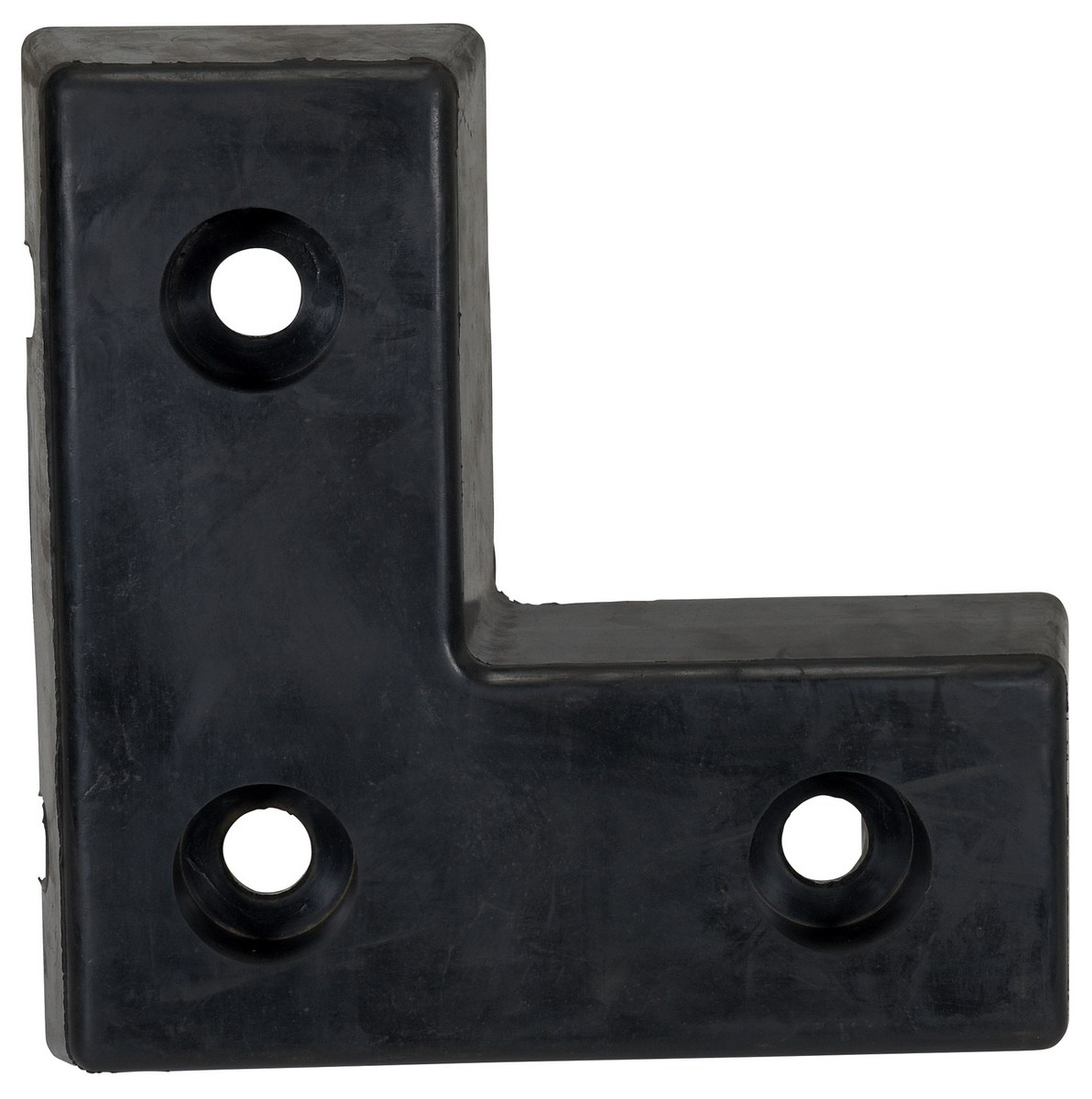

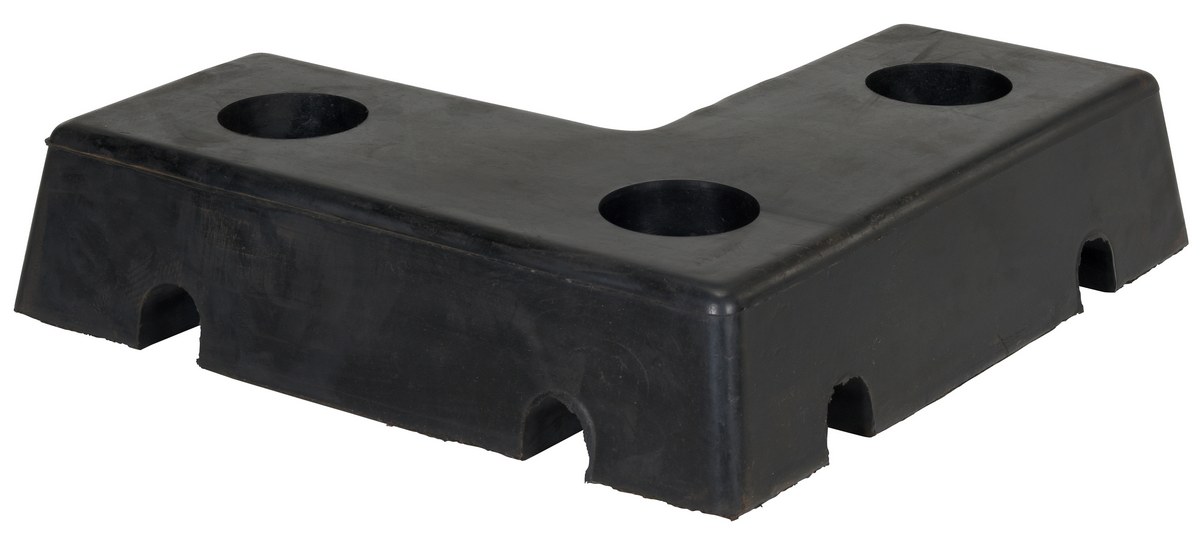

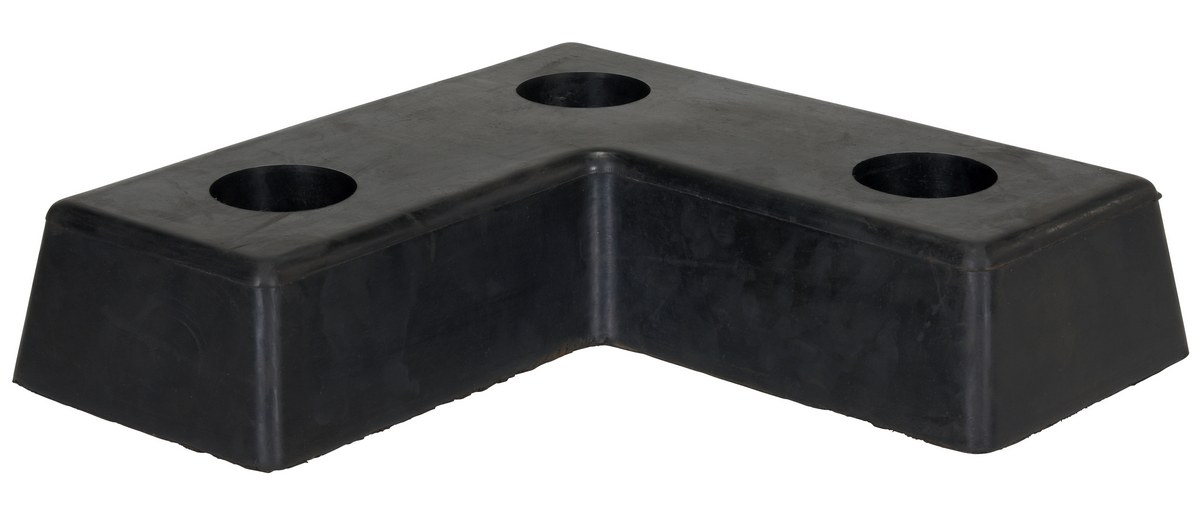

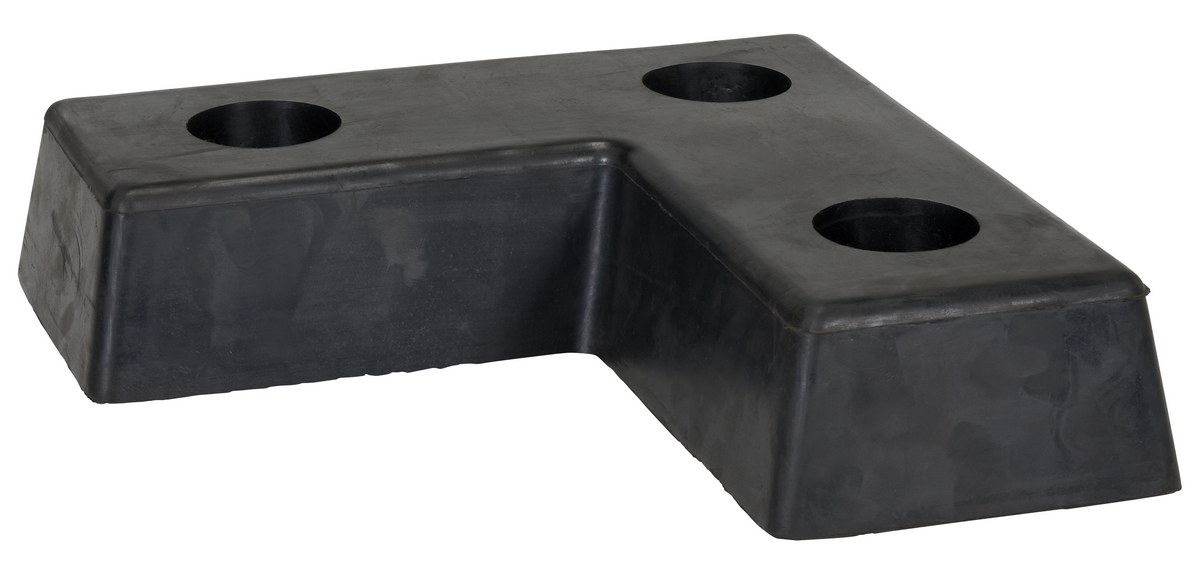

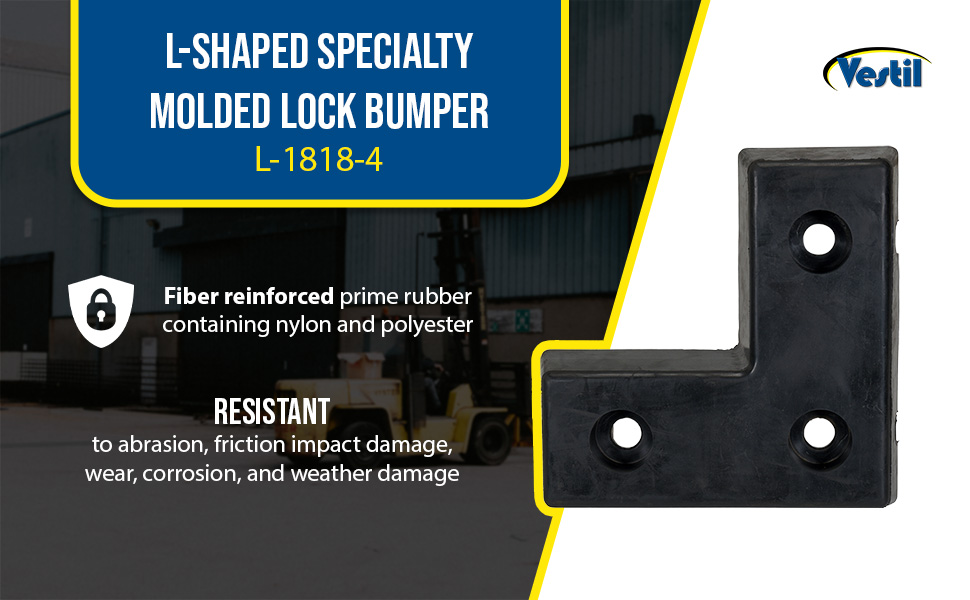

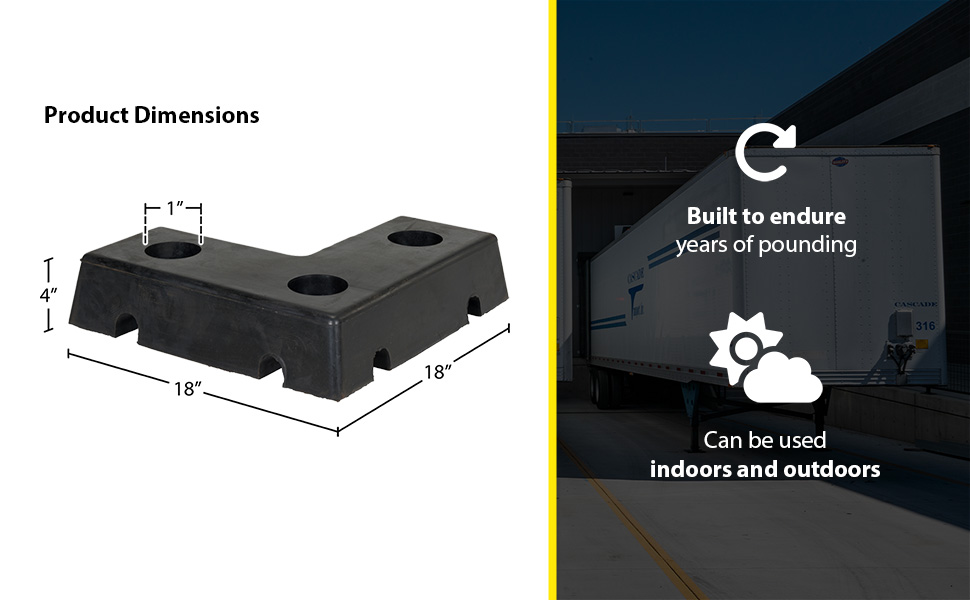

| L-1818-4 |  | 30 Days Limited Warranty | L Shaped Molded Rubber Bumper 4 In. x 18 In. x 18 In. Black | Projection (in.): 4 Accepts Anchor Bolt Diameter (in.): 1 | 36 | ||

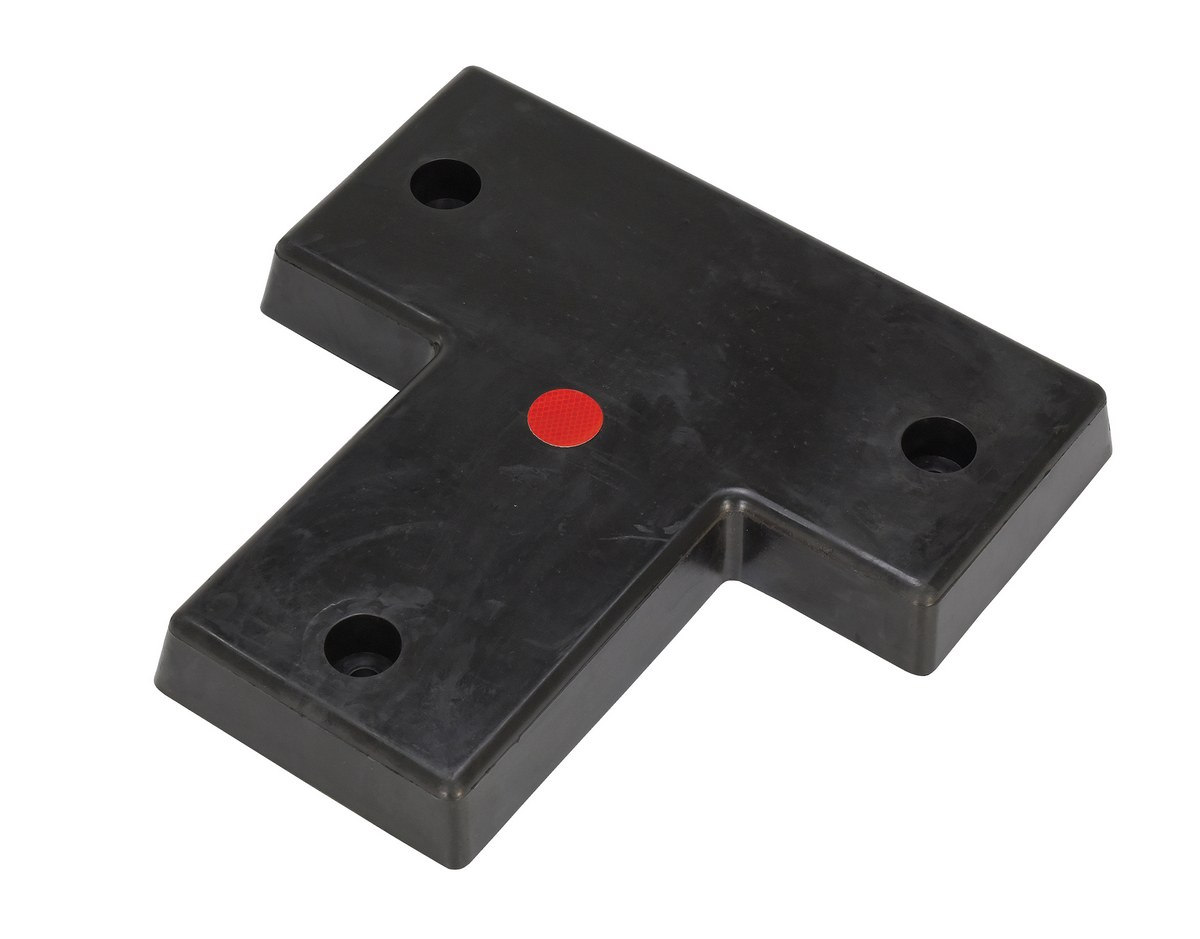

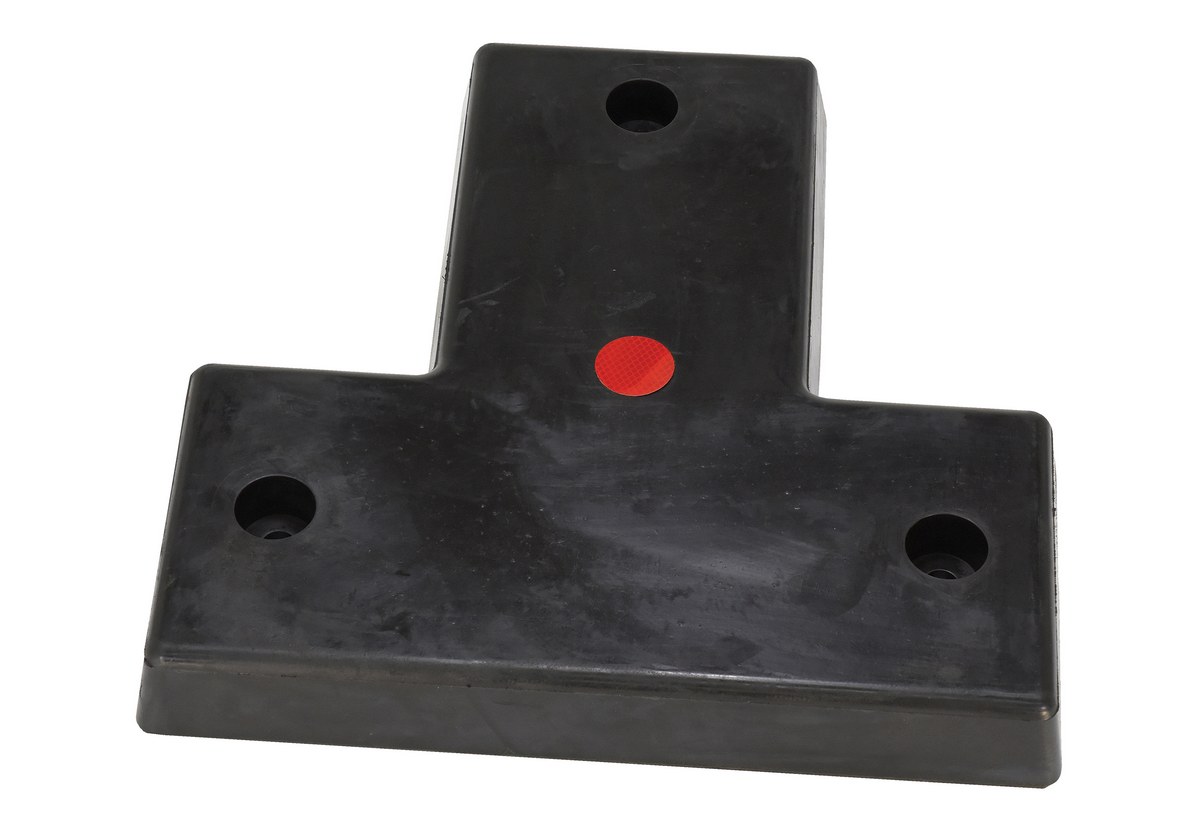

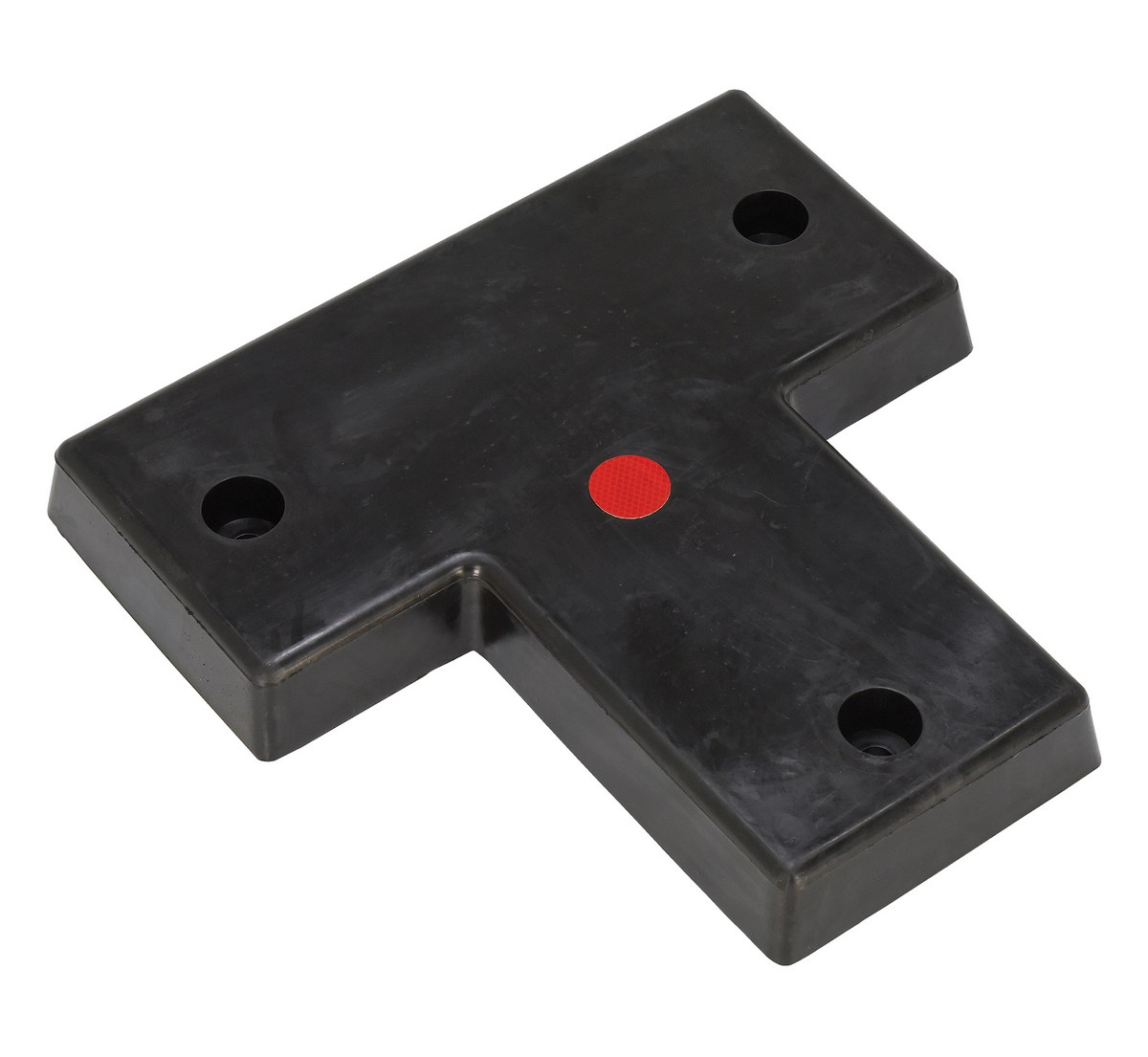

| T-22 |  | 30 Days Limited Warranty | Rubber Specialty T-Shaped Molded Bumper 3 In. x 22 In. x 22 In. Black | Projection (in.): 3 Anchor Bolt Diameter (in.): 3/4 | 44 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
| Anchor Bolts Hardware for Concrete Installation | |||||
| Model | Image | Quantity & Size | Wt. (lbs) |
||
| AS-346 |  |
(1) 3/4" x 6" | 1 | ||
| AS-346-4PK | |
(4) 3/4"x 6" | 4 | ||
| AS-584 |  |
(1) 5/8" x 4" | 1 | ||
| AS-584-4PK |  |
(4) 5/8" x 4" | 4 | ||
A: 8"
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specialty Molded Dock Bumpers |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manufactured from fiber reinforced prime rubber containing nylon and polyester. These molded bumpers are built to endure years of abusive pounding. All units have pre-drilled countersunk mounting holes for easy installation. Plastic face bumper, model B-1213-4PF, features two piece construction fully assembled and ready for installation. Installation hardware sold separately.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
