Drum Deheaders
Table Search, not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

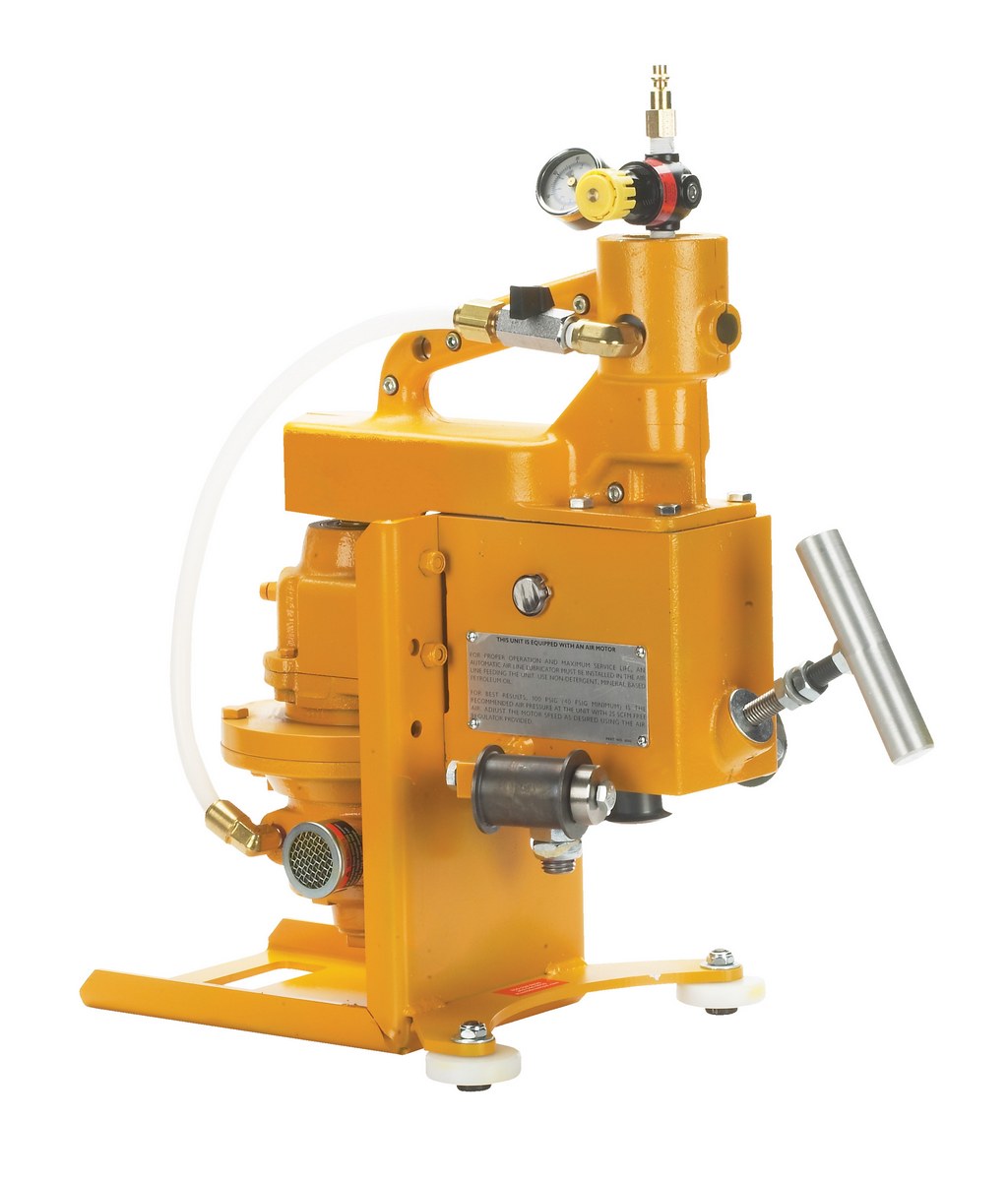

| DD-EX-A |  | 1 Year Limited Warranty | Steel Air Powered Drum Deheader 1-2 Pass 17 In. x 11 In. x 25 In. Yellow | Operation: Air Motor (HP): 1/2 | 80 | ||

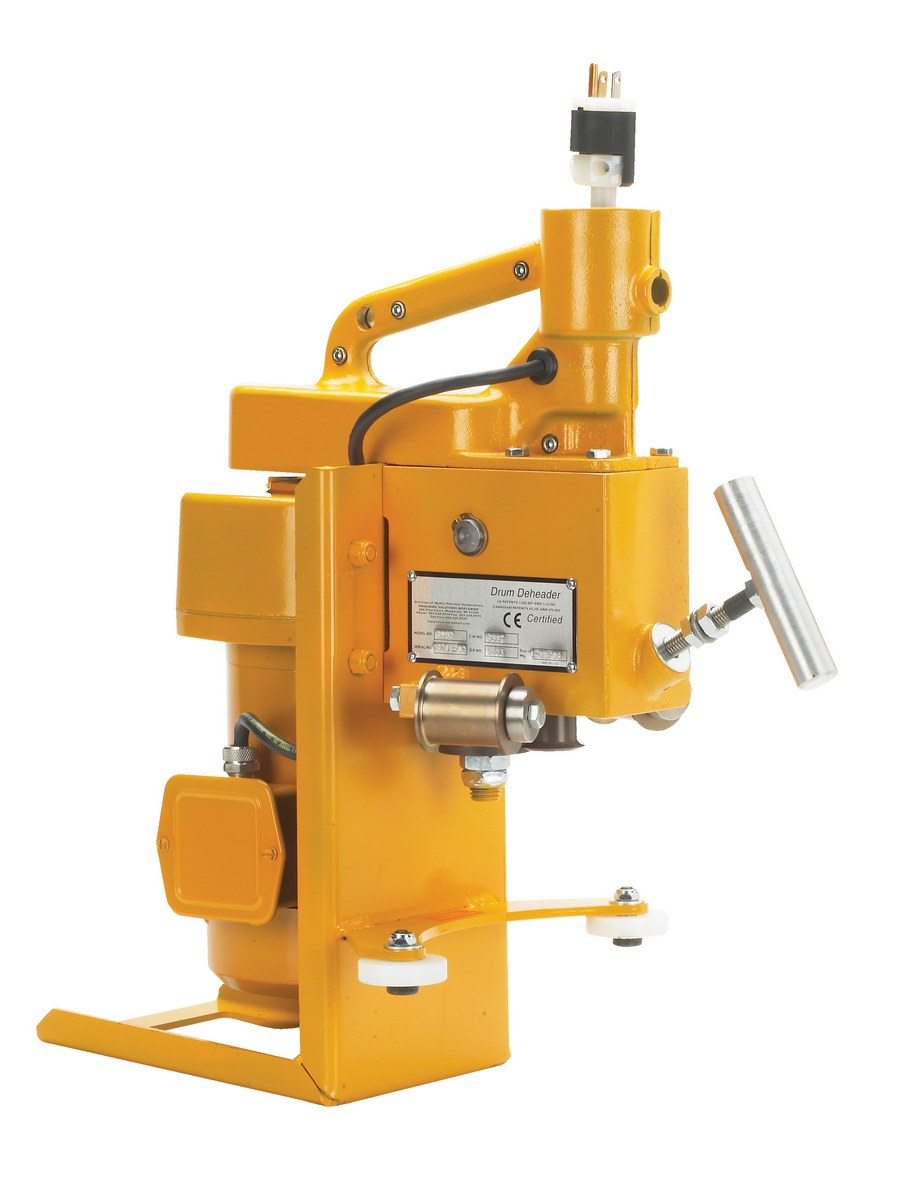

| DD-EX-E |  | 1 Year Limited Warranty | Steel High Duty Electric Drum Deheader 1-2 Pass 17 In. x 11 In. x 25 In. Yellow | Operation: Electric Motor (HP): 1/3 | 80 | ||

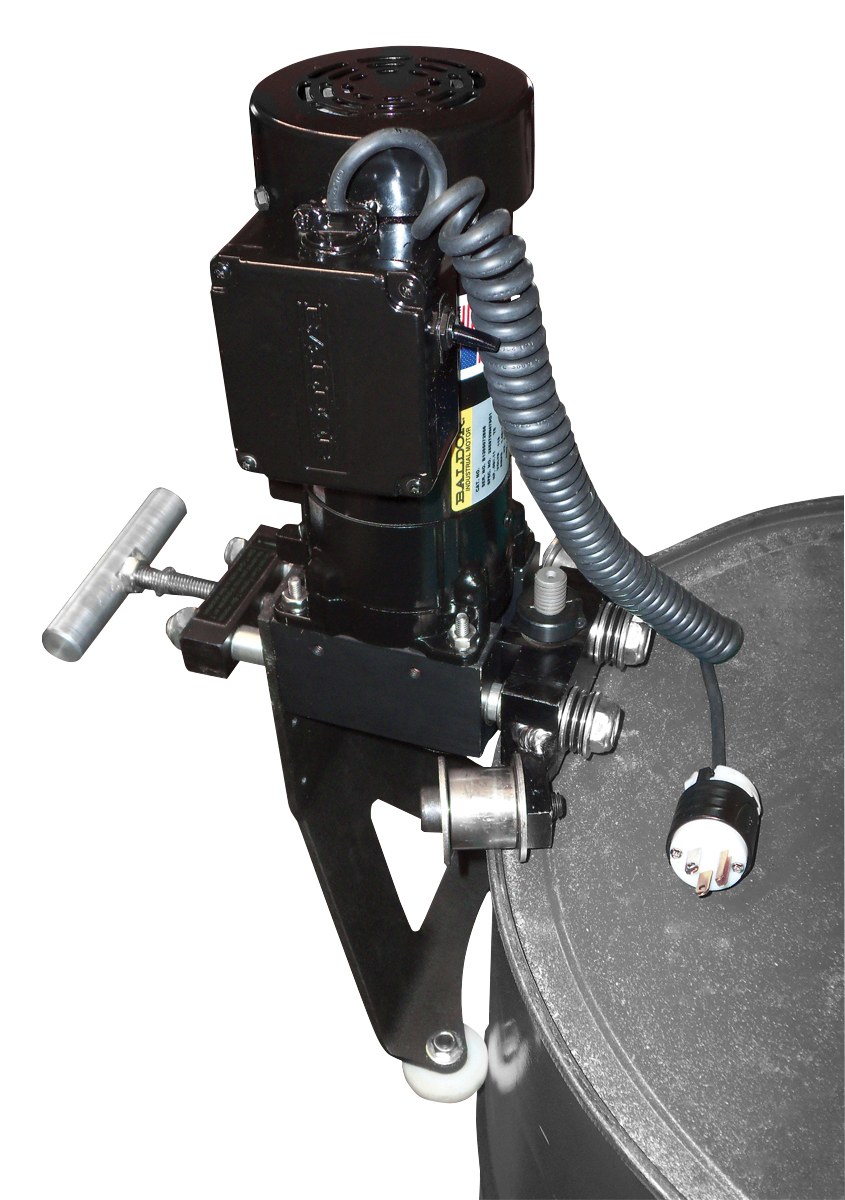

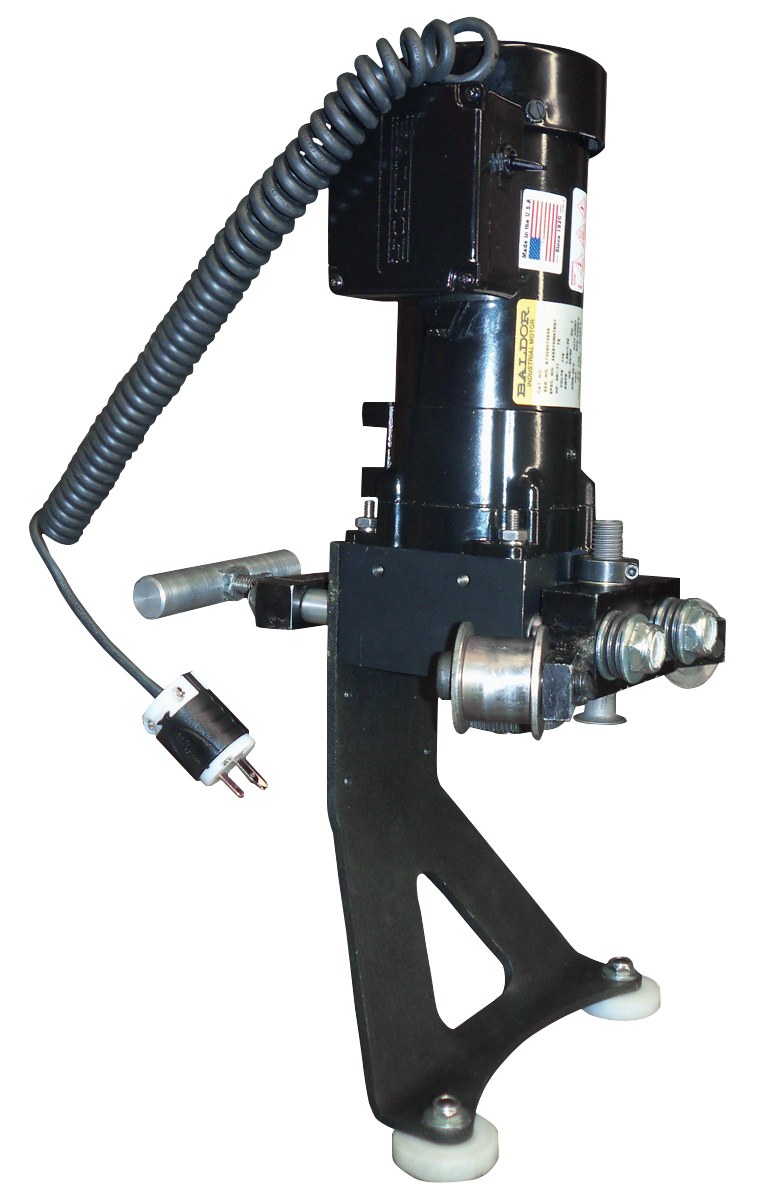

| DD-EZ-E |  | 1 Year Limited Warranty | Steel Electric Drum Deheader 3-5 Pass 12 In. x 10 In. x 24 In. Black | Operation: Self-propelled, Electric Motor (HP): 0.09 | 34 | ||

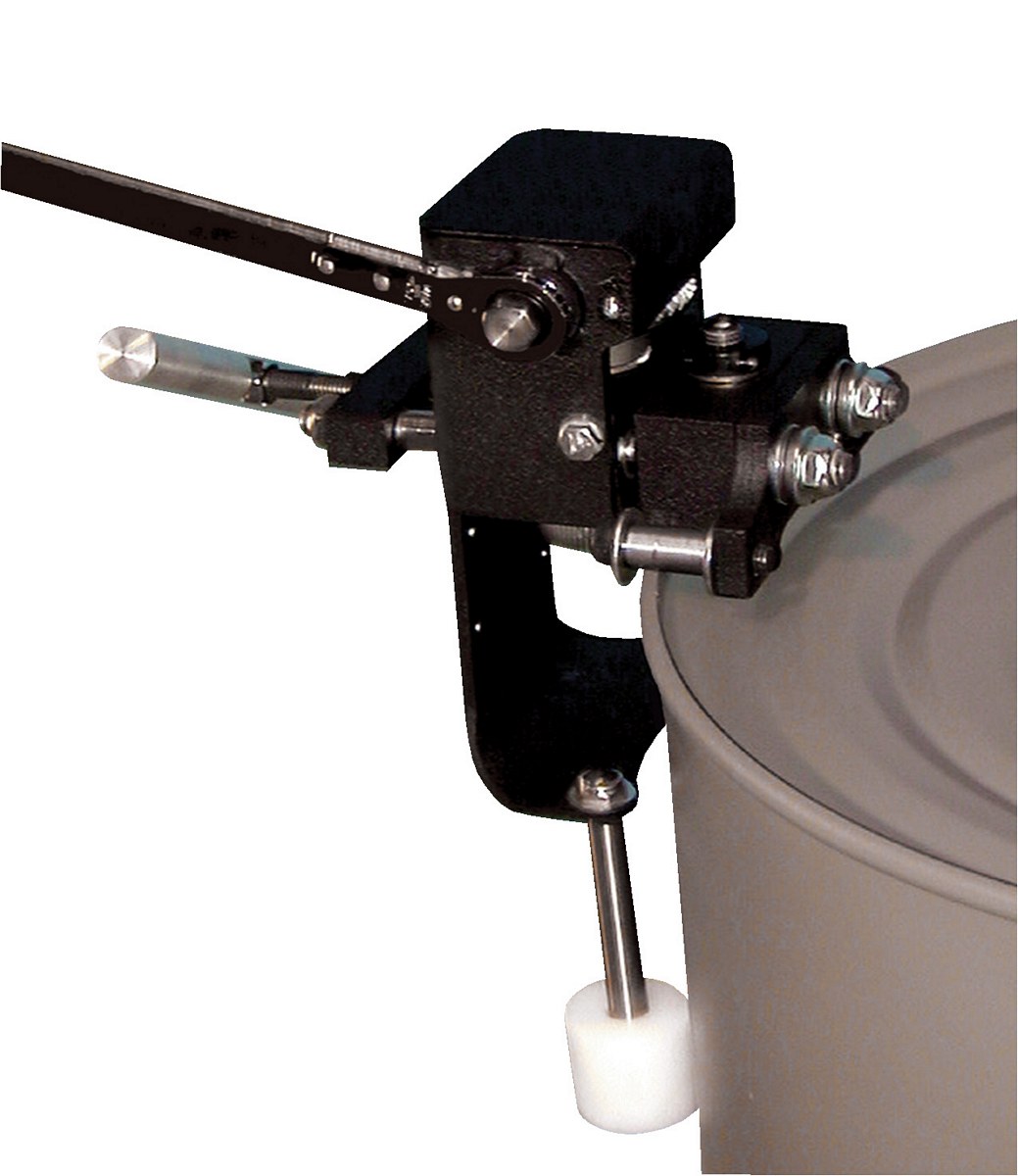

| DD-EZ-M |  | 1 Year Limited Warranty | Steel Burr-Free Manual Drum Deheader 3-5 Pass 12 In. x 7 In. x 18 In. Black | Passes to cut lid (qty.): 3 to 5 Operation: Manual Ratchet Style | 34 | ||

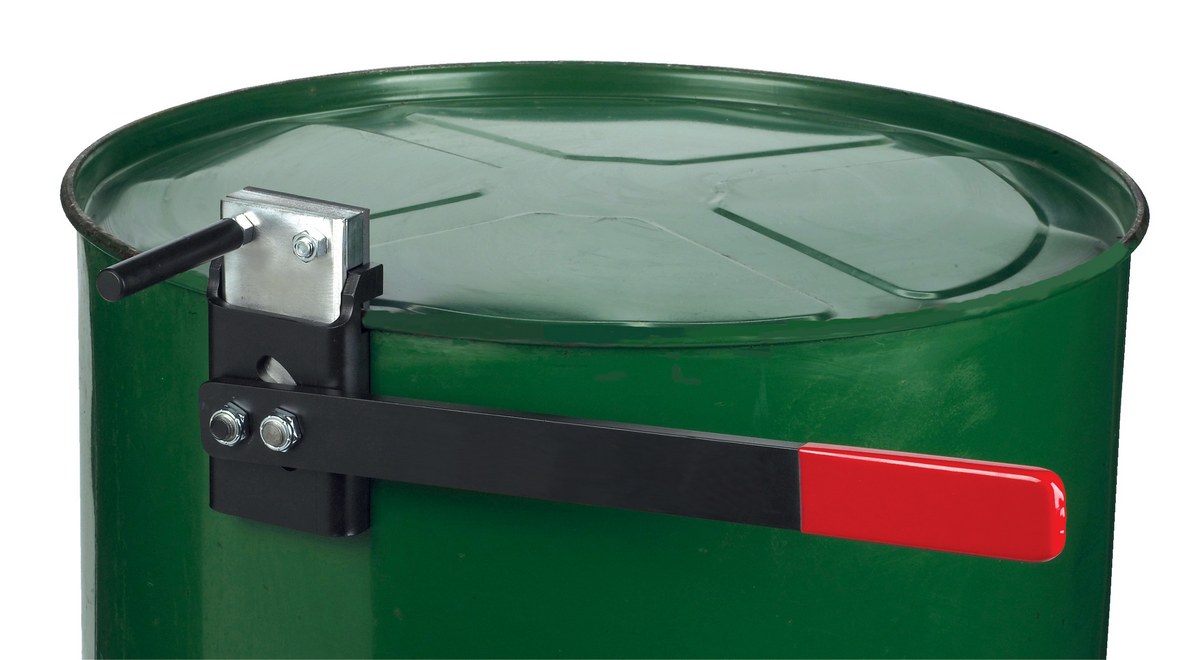

| DD-M |  | 1 Year Limited Warranty | Steel Manual Drum Deheader 1 Pass 12 In. x 4 In. x 12 In. Black | Opens Drums (gal.): 30 and 55 Passes to cut lid (qty.): 1 | 7 |
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Operation: Air
Motor (HP): 1/2
Operation: Air
Motor (HP): 1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Operation: Electric
Motor (HP): 1/3
Operation: Electric
Motor (HP): 1/3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Operation: Self-propelled, Electric
Motor (HP): 0.09
Operation: Self-propelled, Electric
Motor (HP): 0.09
Unit:
Size: W x L x H
Weight:
Limited Warranty
Passes to cut lid (qty.): 3 to 5
Operation: Manual Ratchet Style
Passes to cut lid (qty.): 3 to 5
Operation: Manual Ratchet Style
Unit:
Size: W x L x H
Weight:
Limited Warranty
Opens Drums (gal.): 30 and 55
Passes to cut lid (qty.): 1
Opens Drums (gal.): 30 and 55
Passes to cut lid (qty.): 1
Drum Deheaders PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
No Approval Drawings For This Product
Testing Certificates
No Testing Certificates For This Product
SDS Sheets
Hydraulic Oil SDS Sheet for: DD-EX-A
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: Does the DD-EX-E leave the chime attached to the drum?
A: Yes it does leave the chime on. It cuts inside the drum.
|
||||||||||||||||||||||||||||||||
Drum Deheaders |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
Manual Drum Deheader, model DD-M is for use with occasional drum deheading. Ribbed grip for comfort. Inside Chime out. Burr-Free Manual Drum Deheader, model DD-EZ-M is a ratchet style manual drum deheader. For use with moderate drum volumes and leaves a burr-free edge. Inside Chime out. Electric Drum Deheader, model DD-EZ-E is a compact, portable, self-propelled, electric unit. It is also quiet, easy to use and designed for moderate drum deheading and leaves a burr-free edge. 1/3 HP, 110V, 60 Hz. Inside Chime out. High Duty Drum Deheader, model DD-EX-E (electric) and model DD-EX-A (air powered) are designed for moderate to high drum deheading. Deheads a drum in less than 1 minute, leaves a burr-free edge, and is long lasting. 1/3 HP, 110V, 60 Hz. 60-100 psi, 25 cfm. FLR is required; not included. Inside Chime out. |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
