Adjustable Step Stands with Handrail

- - - -
Print Friendly

Related Items
Model Chart
PDF's
Image Gallery
Adjustable Step Stands with Handrail

model: ASP-24-HR

ASP-24-HR_A.jpg ASP-24-HR_C.jpg ASP-24-HR_F.jpg ASP-24-HR_J.jpg ASP-24-HR_G.jpg ASP-24-HR_H.jpg ASP-24-HR_I.jpg ASP-24-HR_K.jpg More Images +
Adjustable Step Stands with Handrail
SERIES: ASP-HR

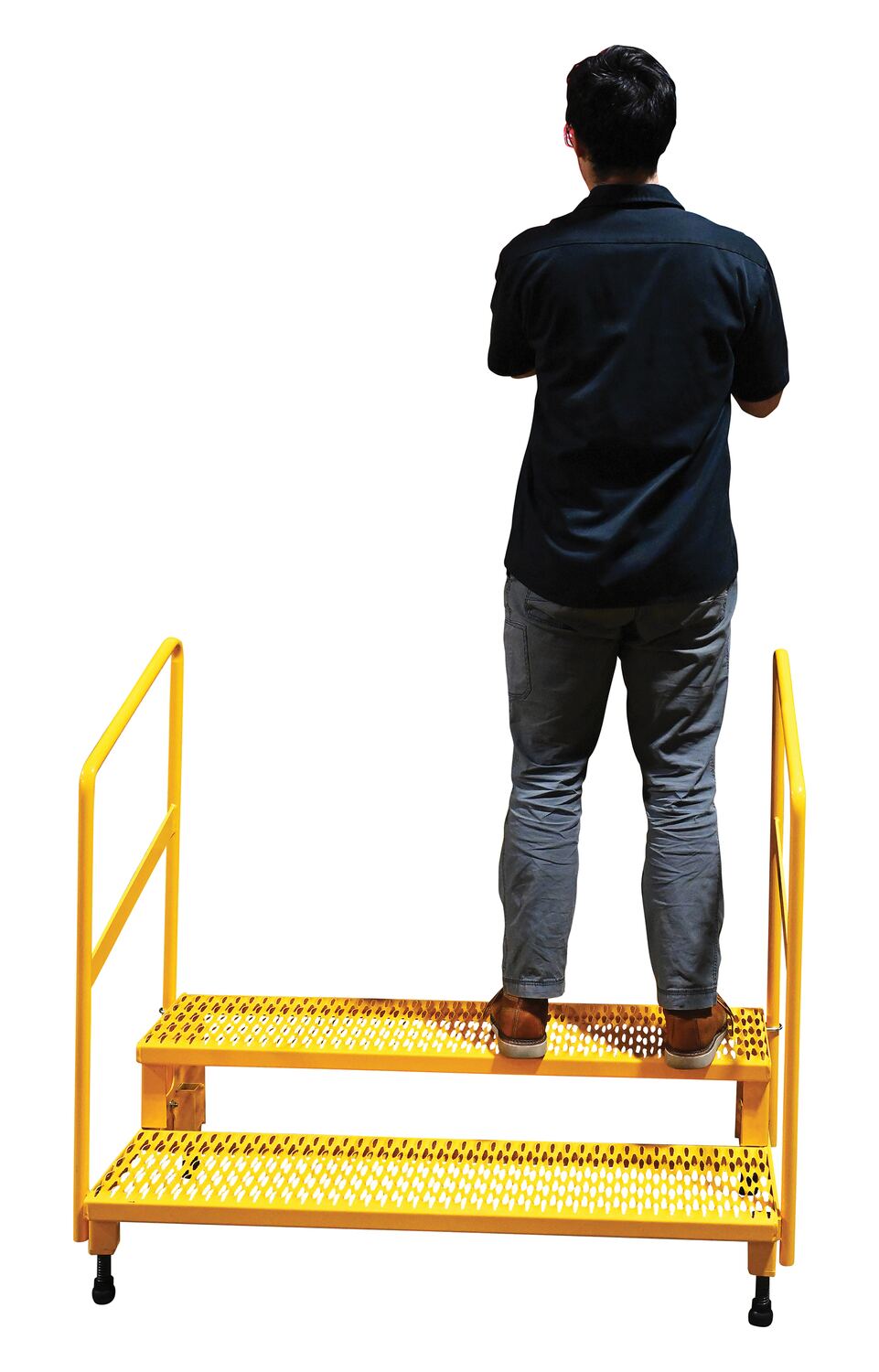

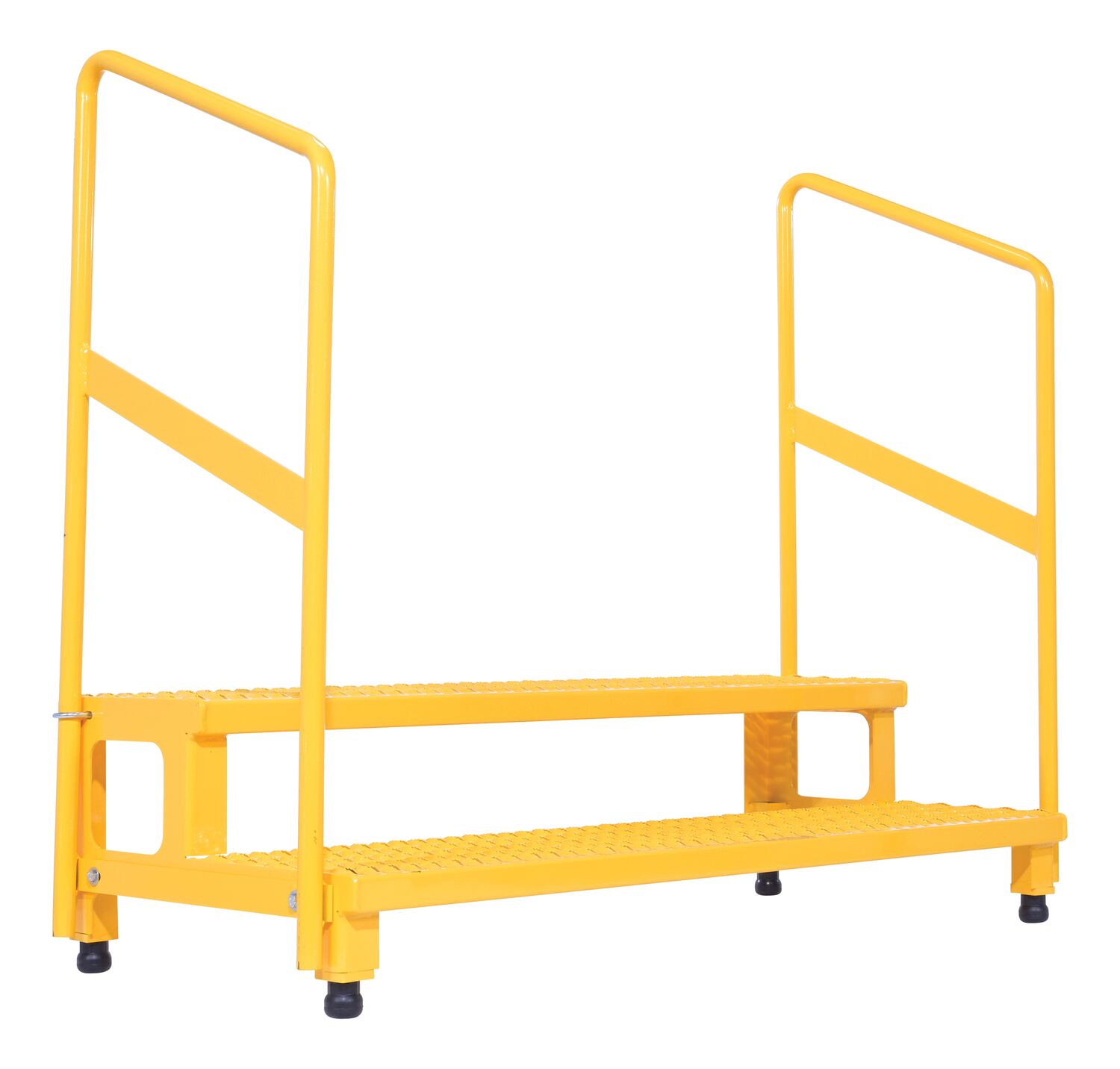

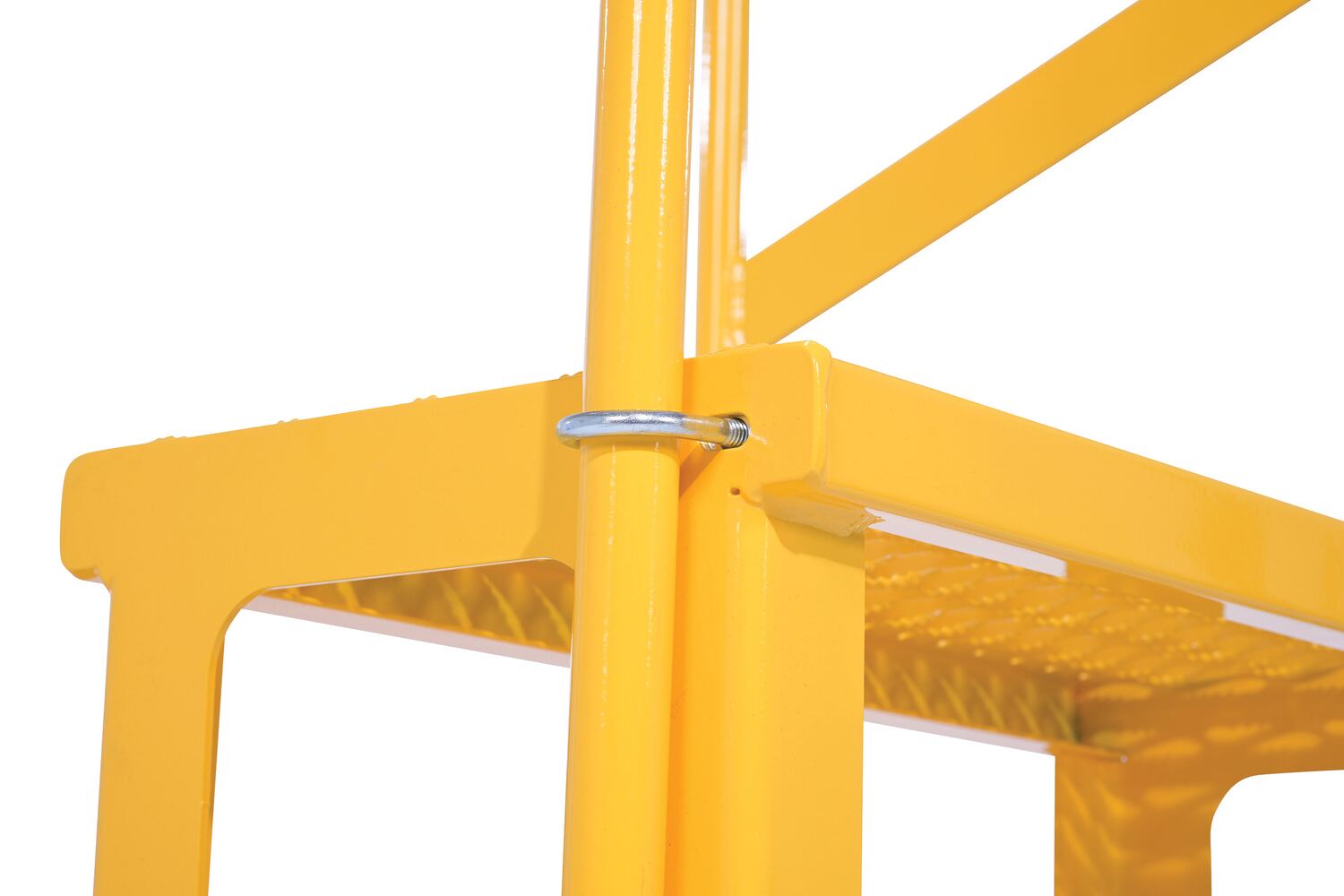

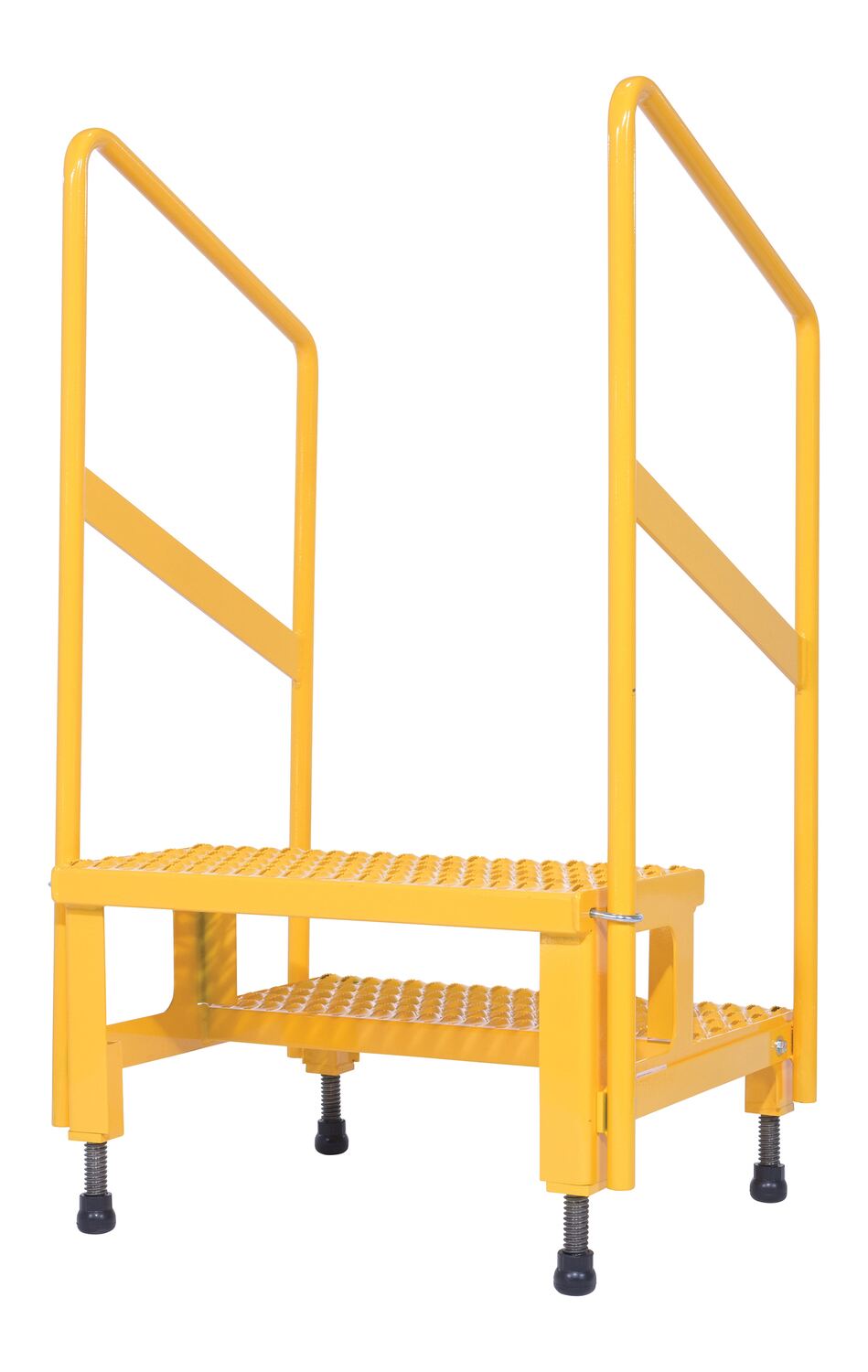

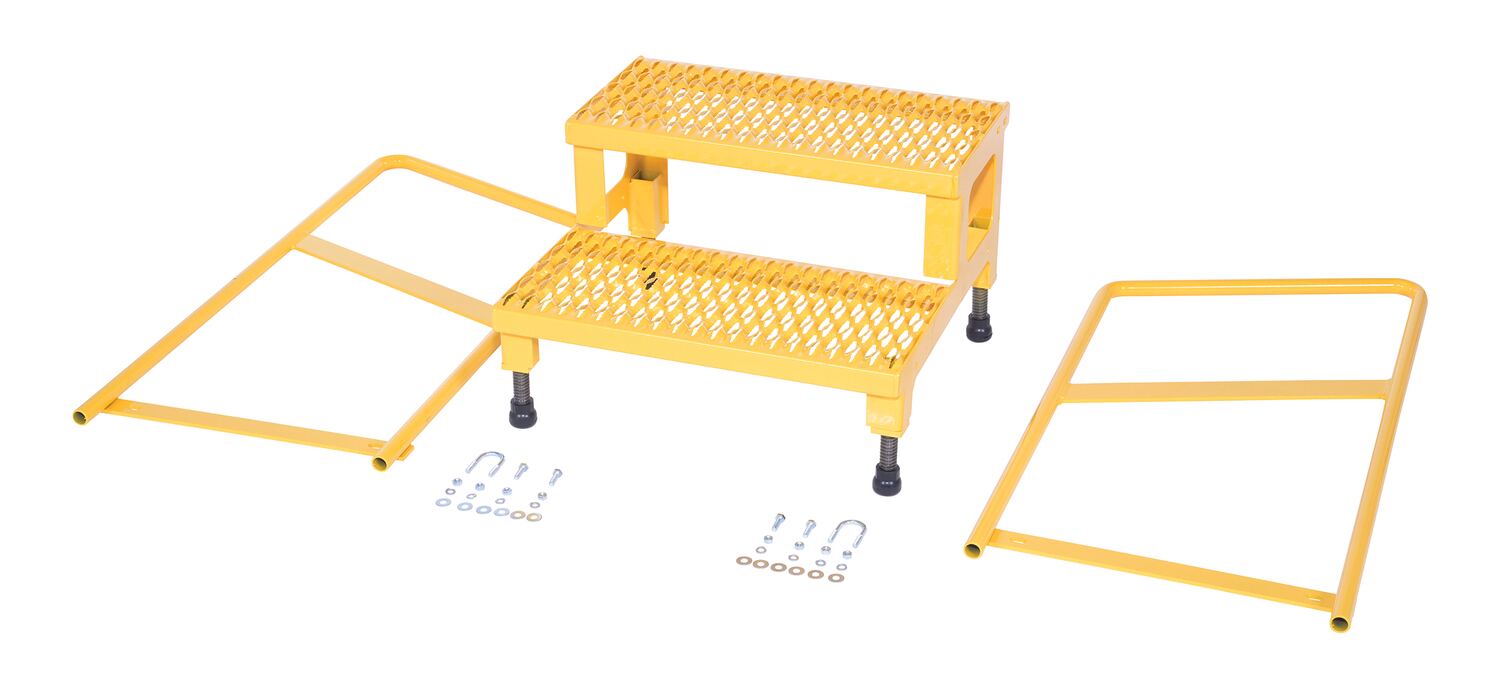

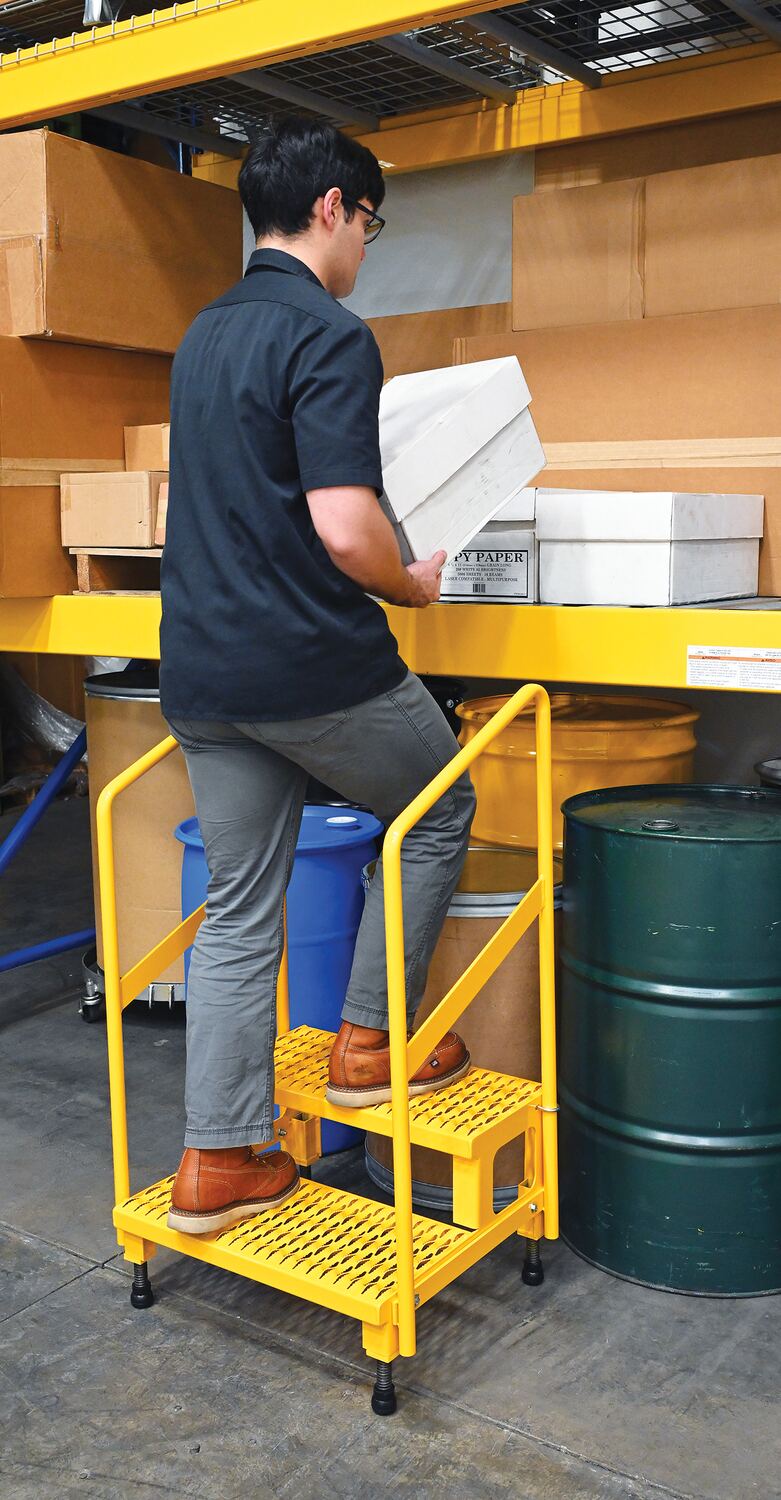

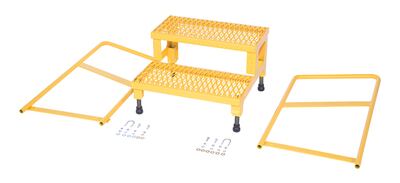

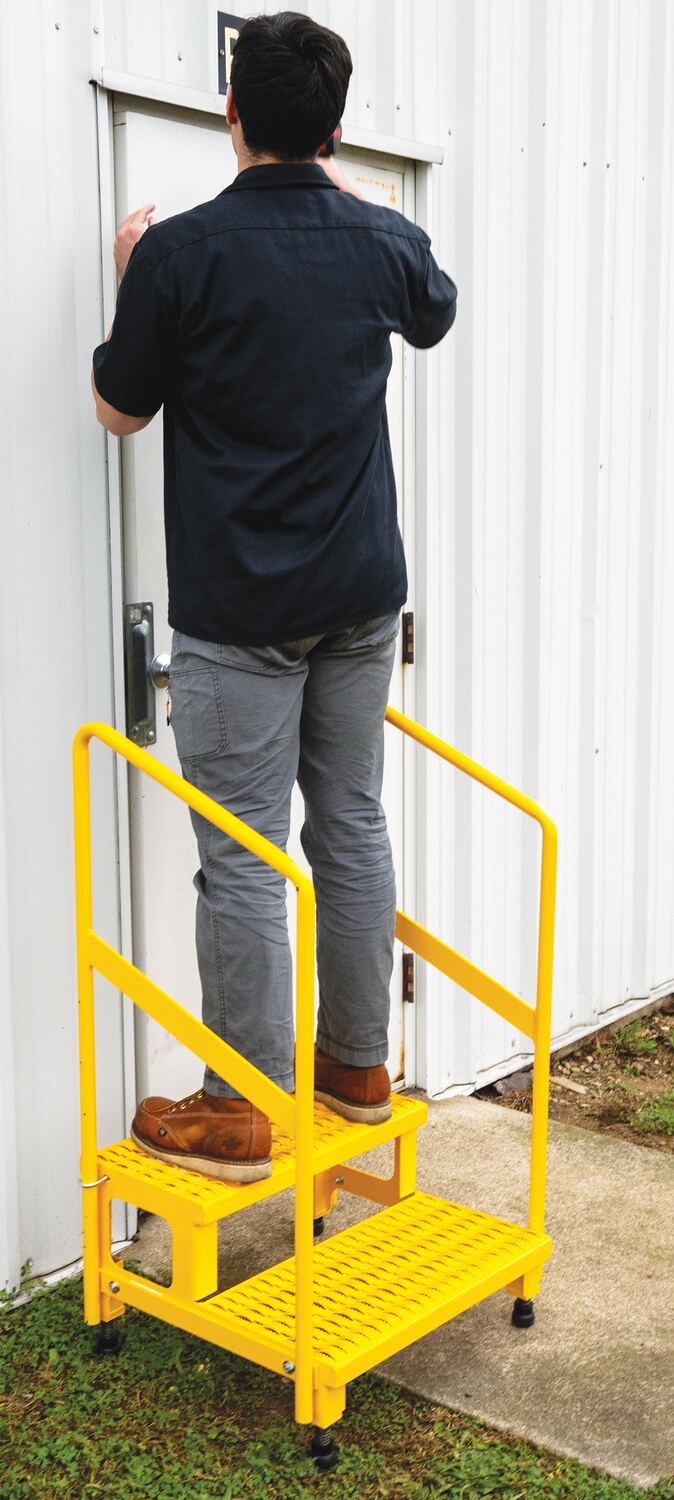

ASP-36-HR_L.jpgThe Adjustable Step-Mate Stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface provides extra traction to reduce the potential for slipping. Individual step depth is 11-3/4". Models feature two bolt-on handrails for added stability during use. Handrail measure 20-1/4"D x 40-7/8"H when installed. The legs adjust individually, by screwing them into or out of the leg base, so the unit can be leveled on uneven floors. Each leg fitted with rubber tip for better grip. Uniform capacity is 500 pounds.The unit has a welded construction with yellow baked in powder coated finish for superior toughness.

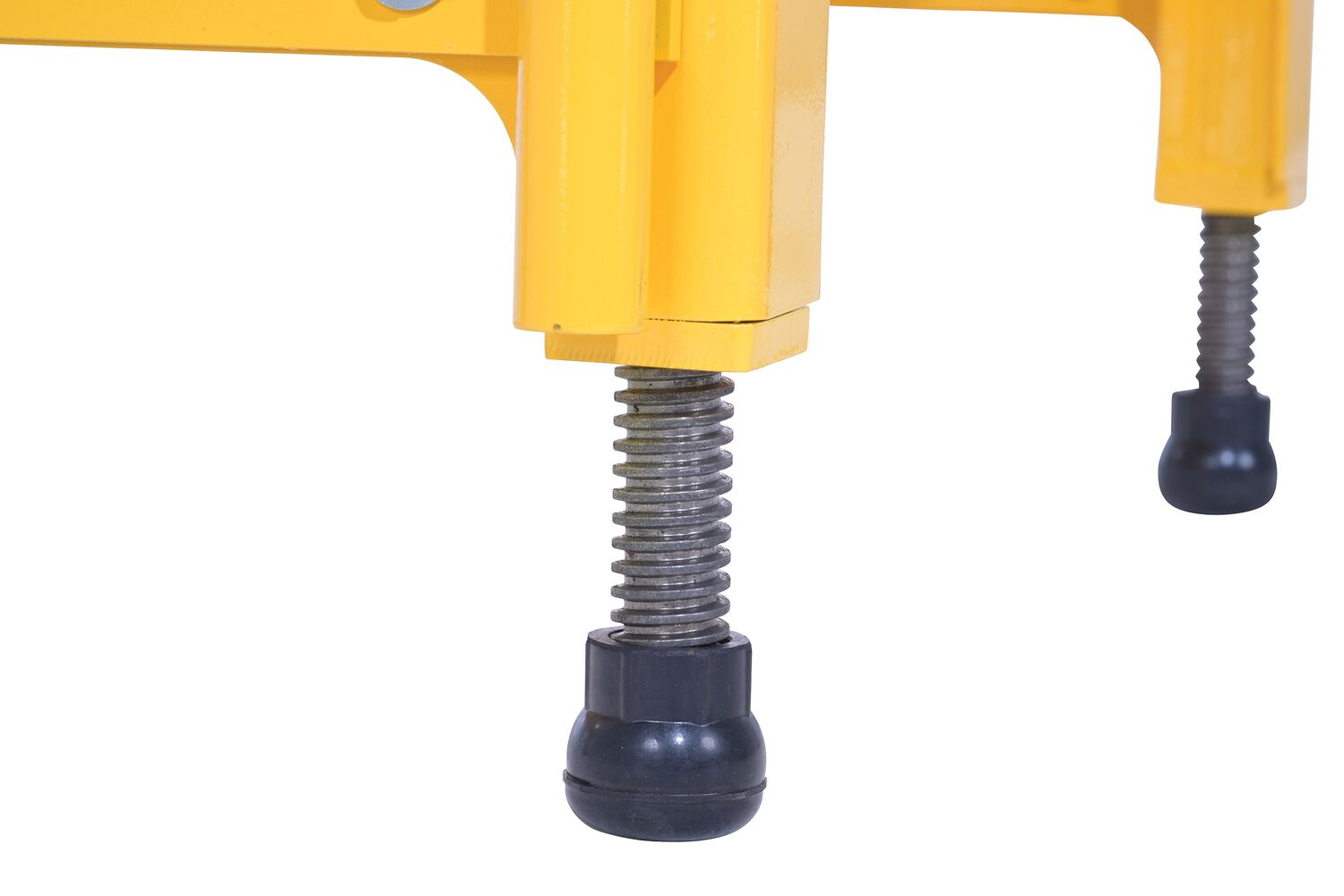

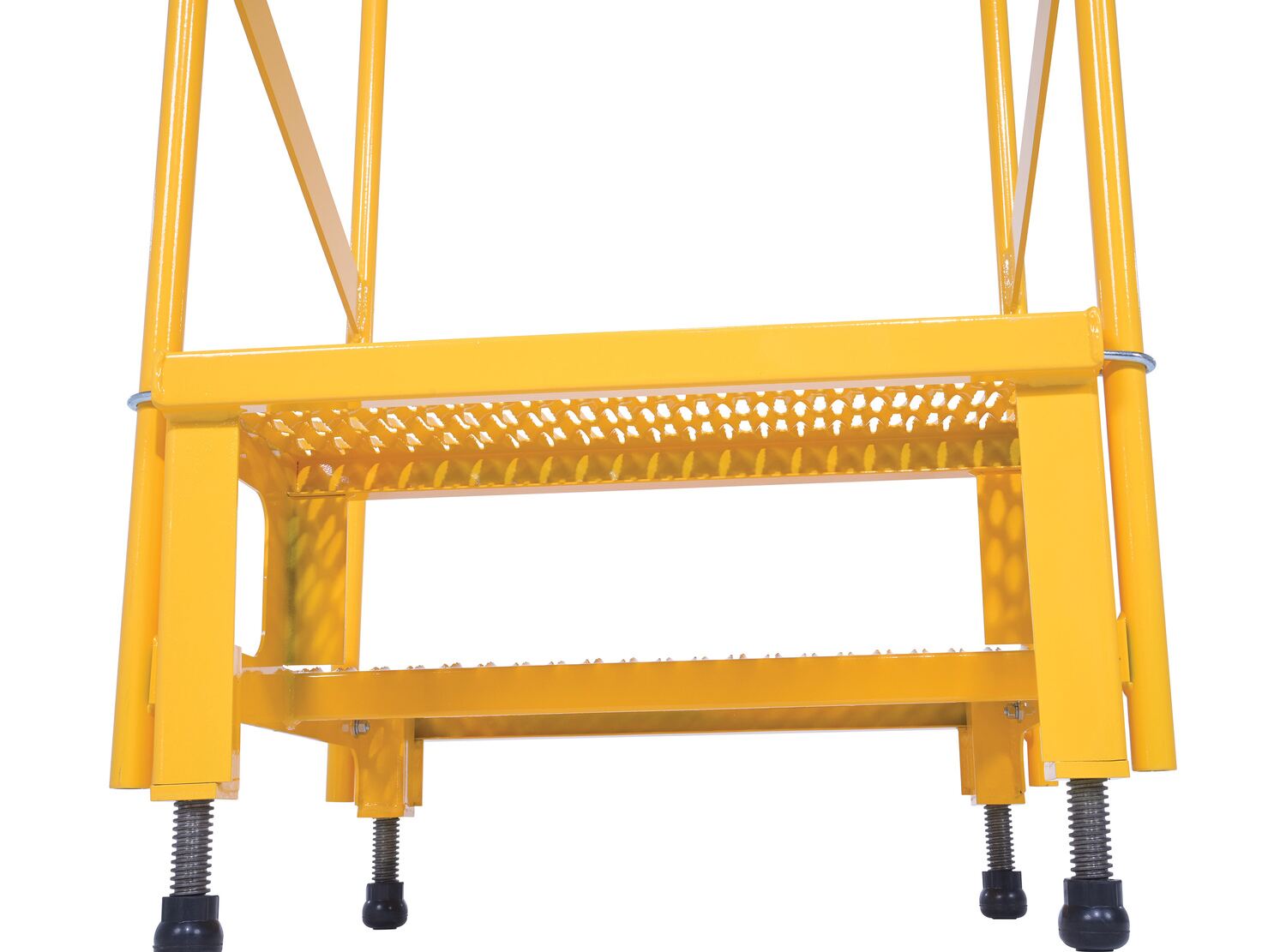

  • Independently adjustable height legs may be set to level unit on uneven floors

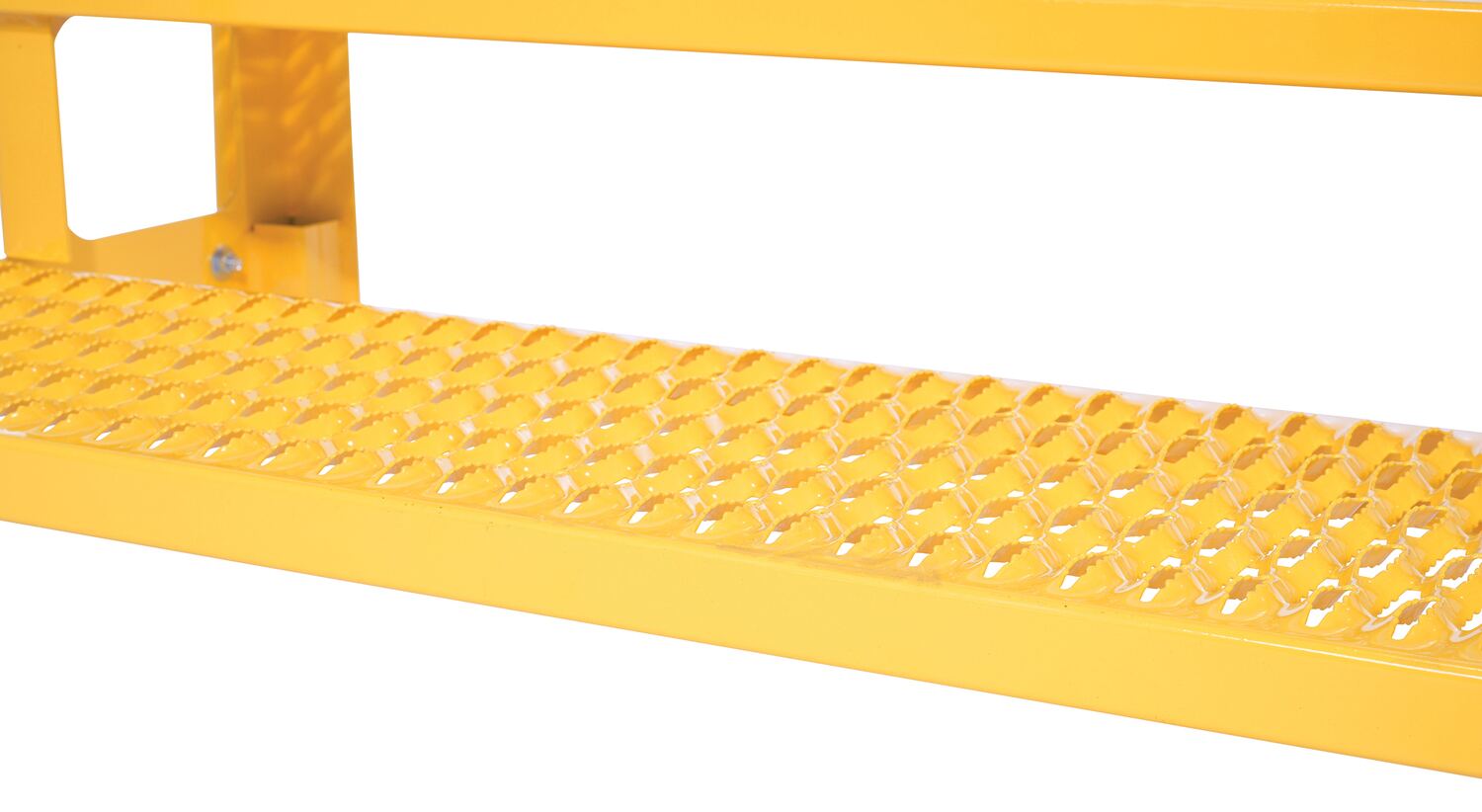

  • Serrated step surface provides excellent traction even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature handrails for added stability during use

See Our Standard Adjustable Step-Mate Stands
Adjustable Step Stands with Handrail

model: ASP-24-HR

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ASP-24-3-HR NEW ASP-24-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 24 inches Wide 3-Step with Handrails 500 Lbs. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Number of Steps: 3		128

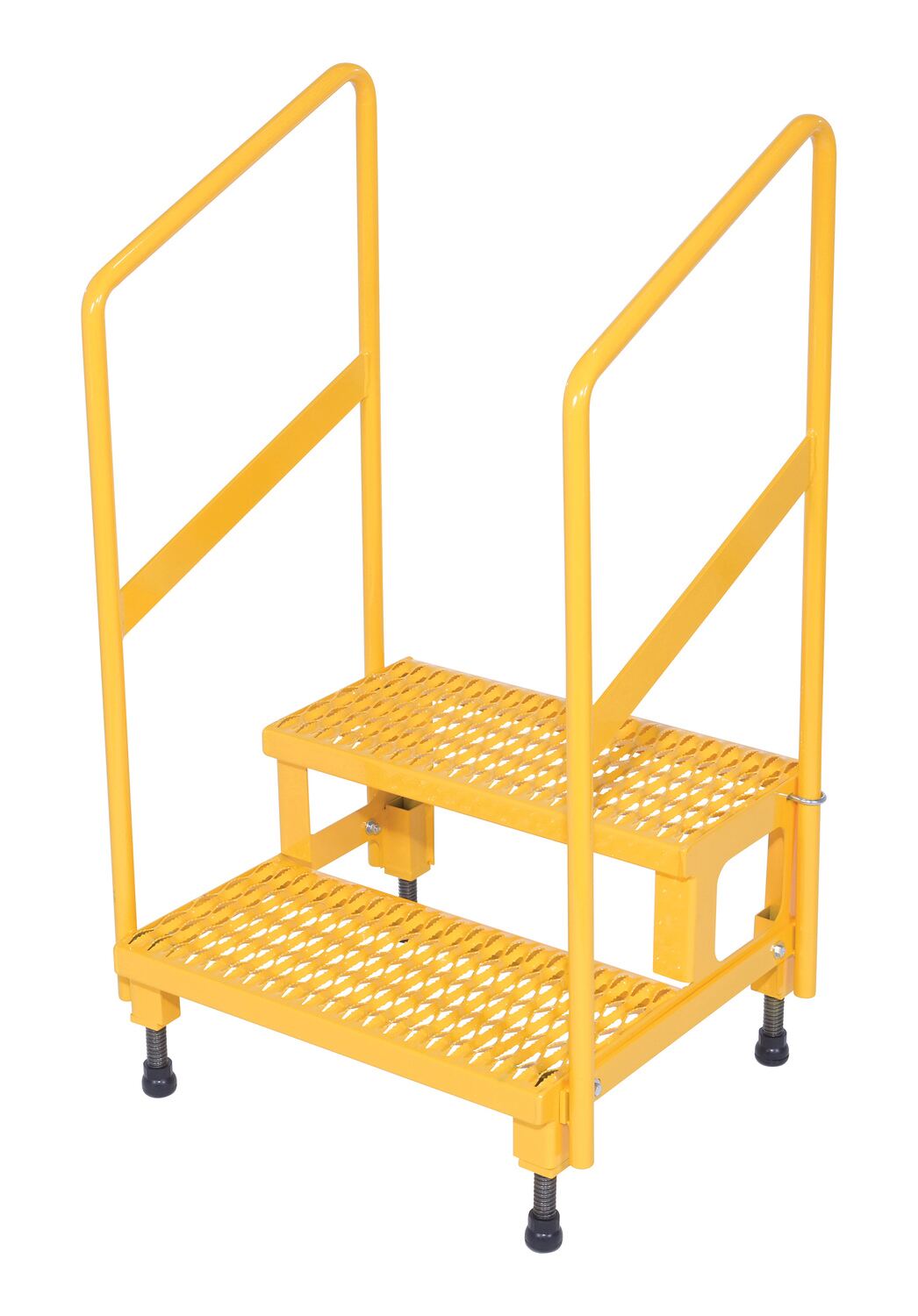

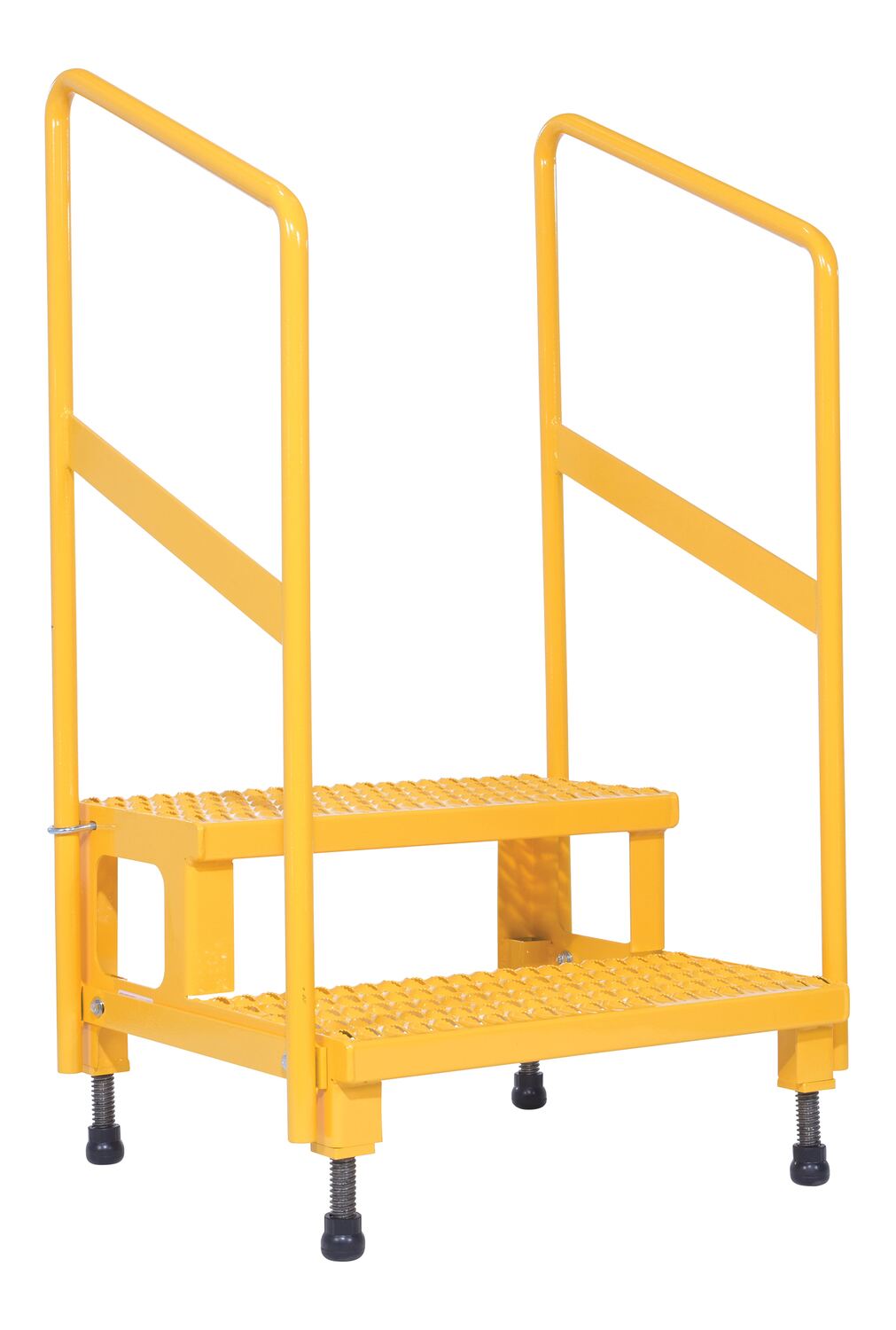

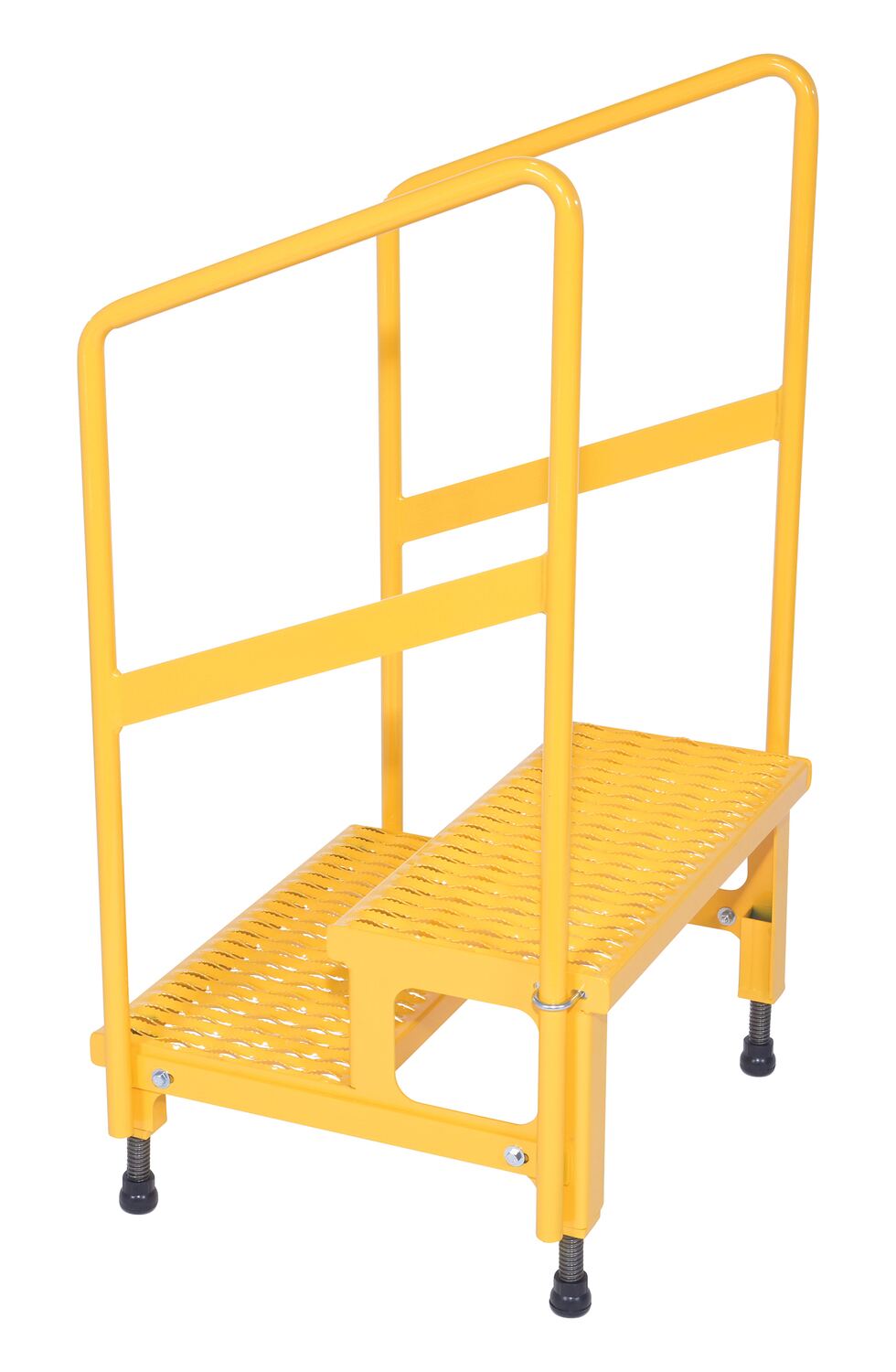

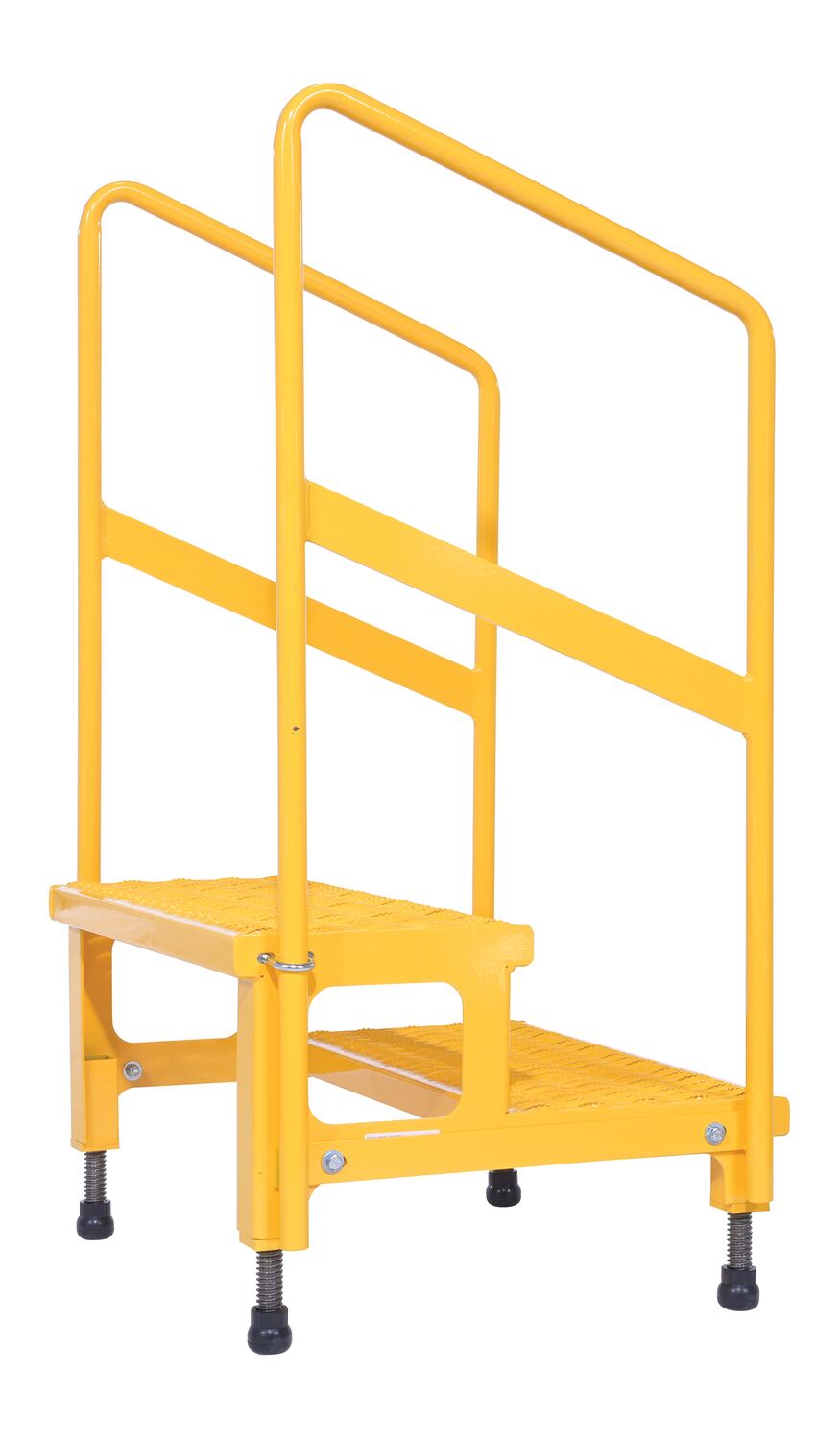

ASP-24-HR ASP-24-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 25-15/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		98
ASP-36-3-HR NEW ASP-36-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 36 inches Wide 3-Step with Handrails 500 Lb. Capacity YellowHandle Construction: Steel Tubing Sch 40
Handle Height (in.): 52		148

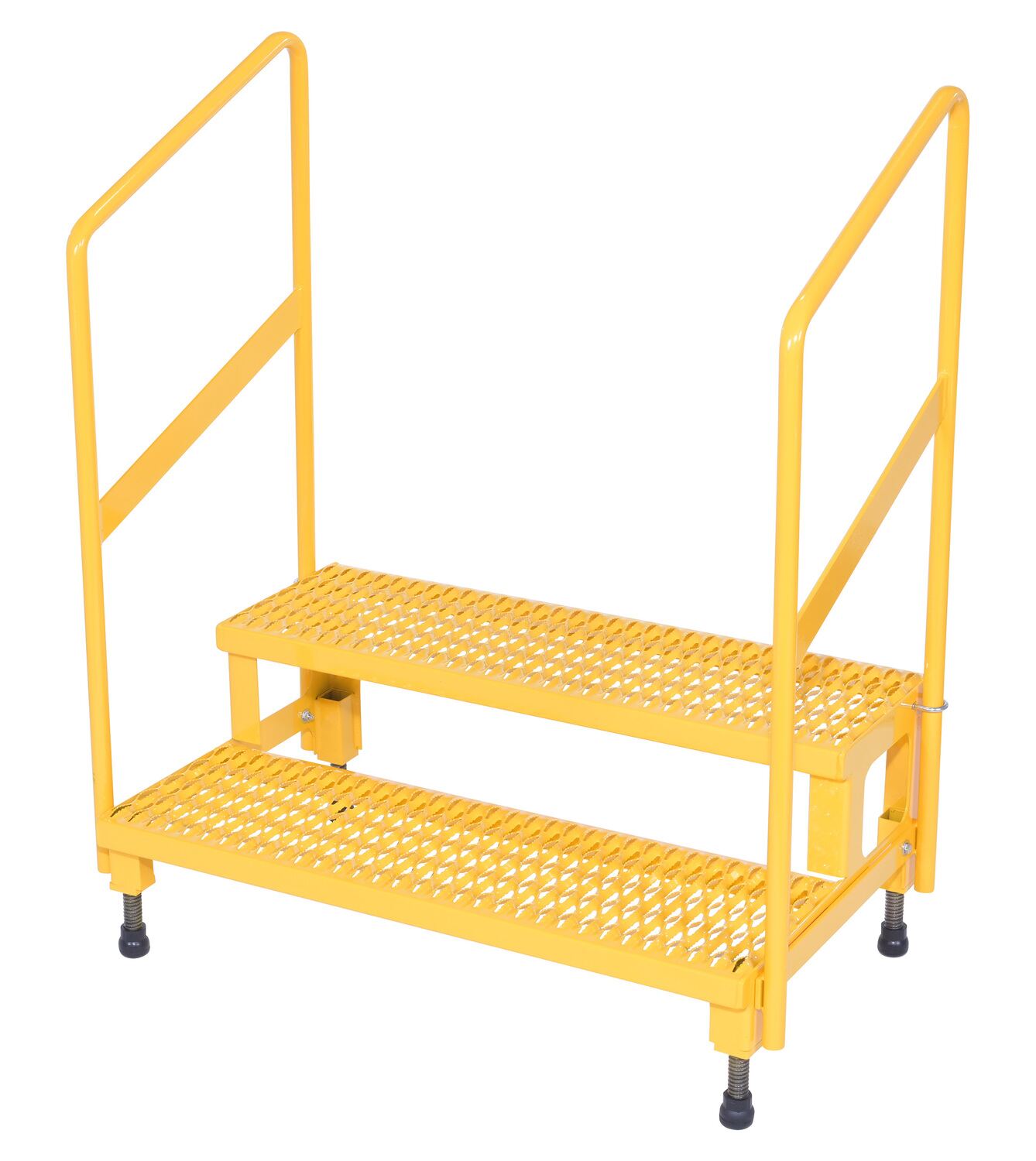

ASP-36-HR ASP-36-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 38-3/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		110

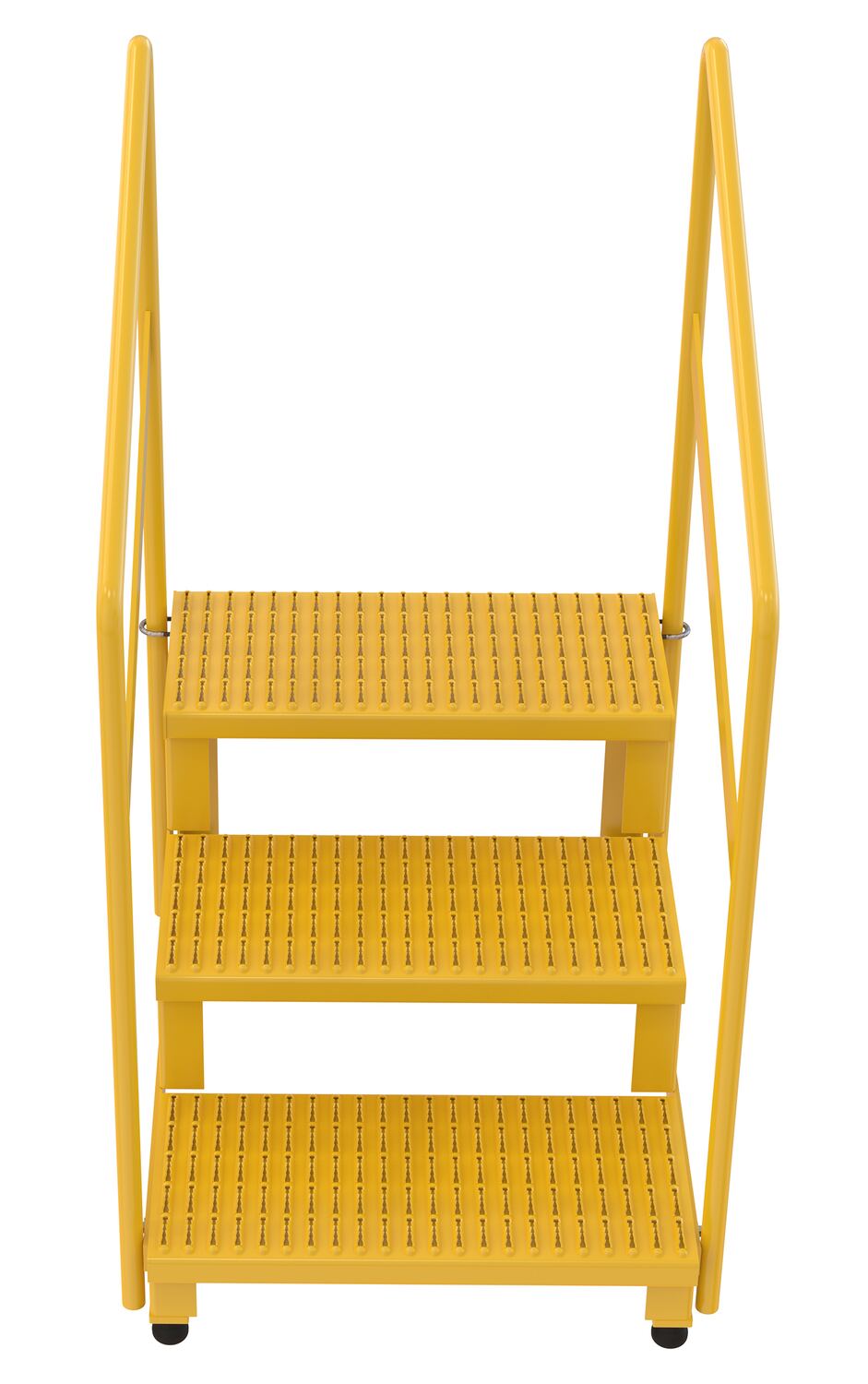

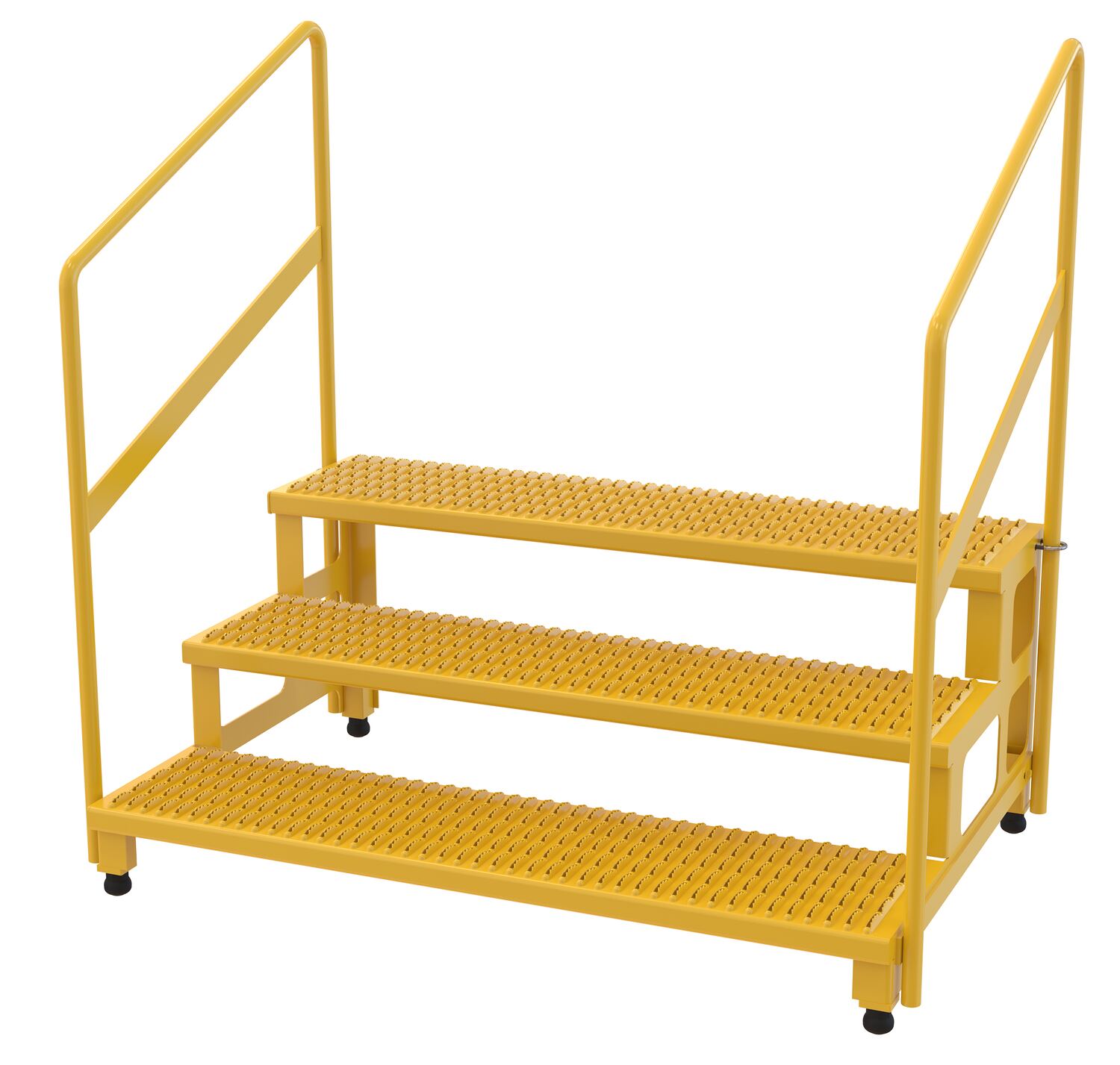

ASP-48-3-HR NEW ASP-48-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52		169

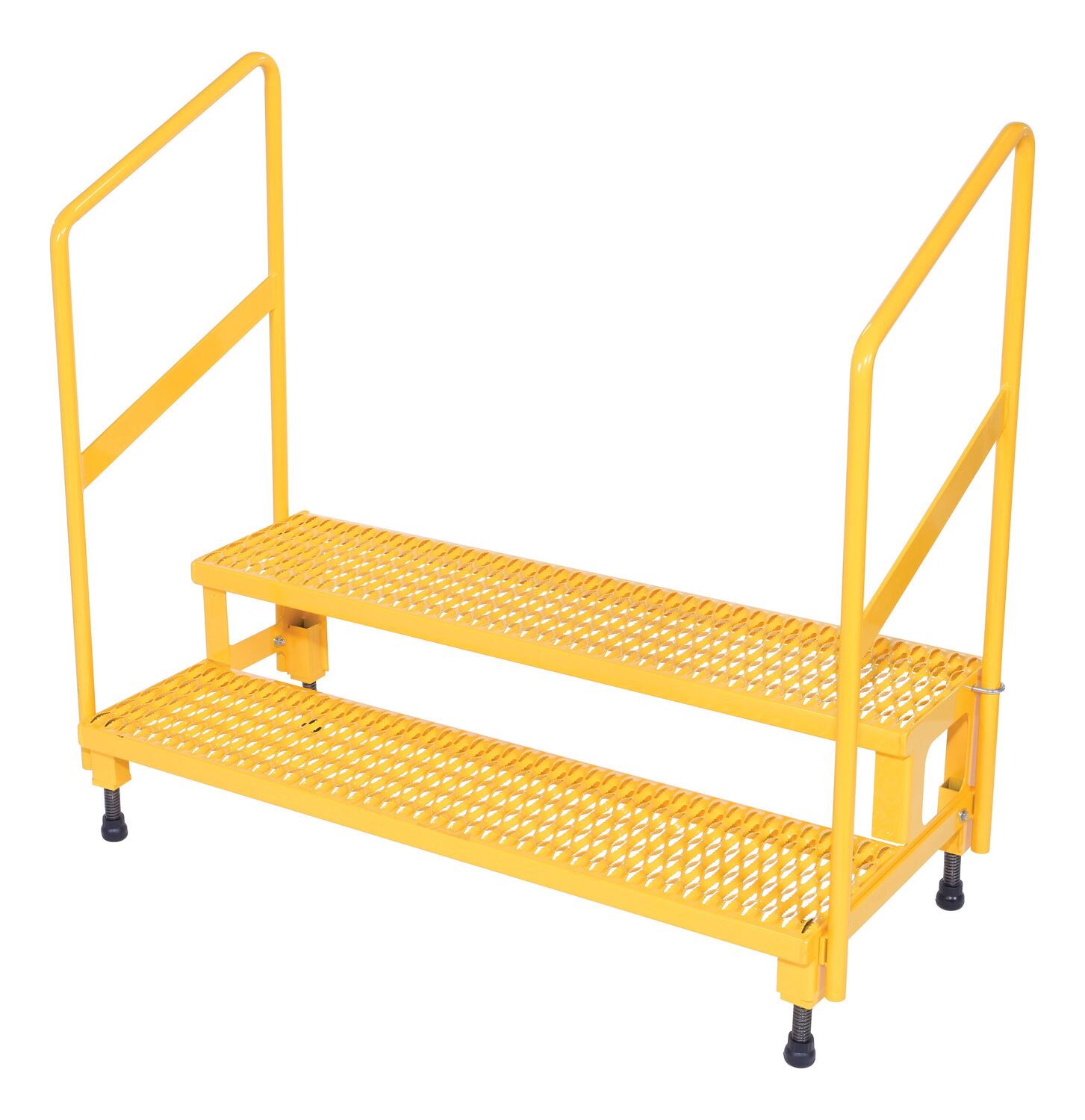

ASP-48-HR ASP-48-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 50-1/2 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		122

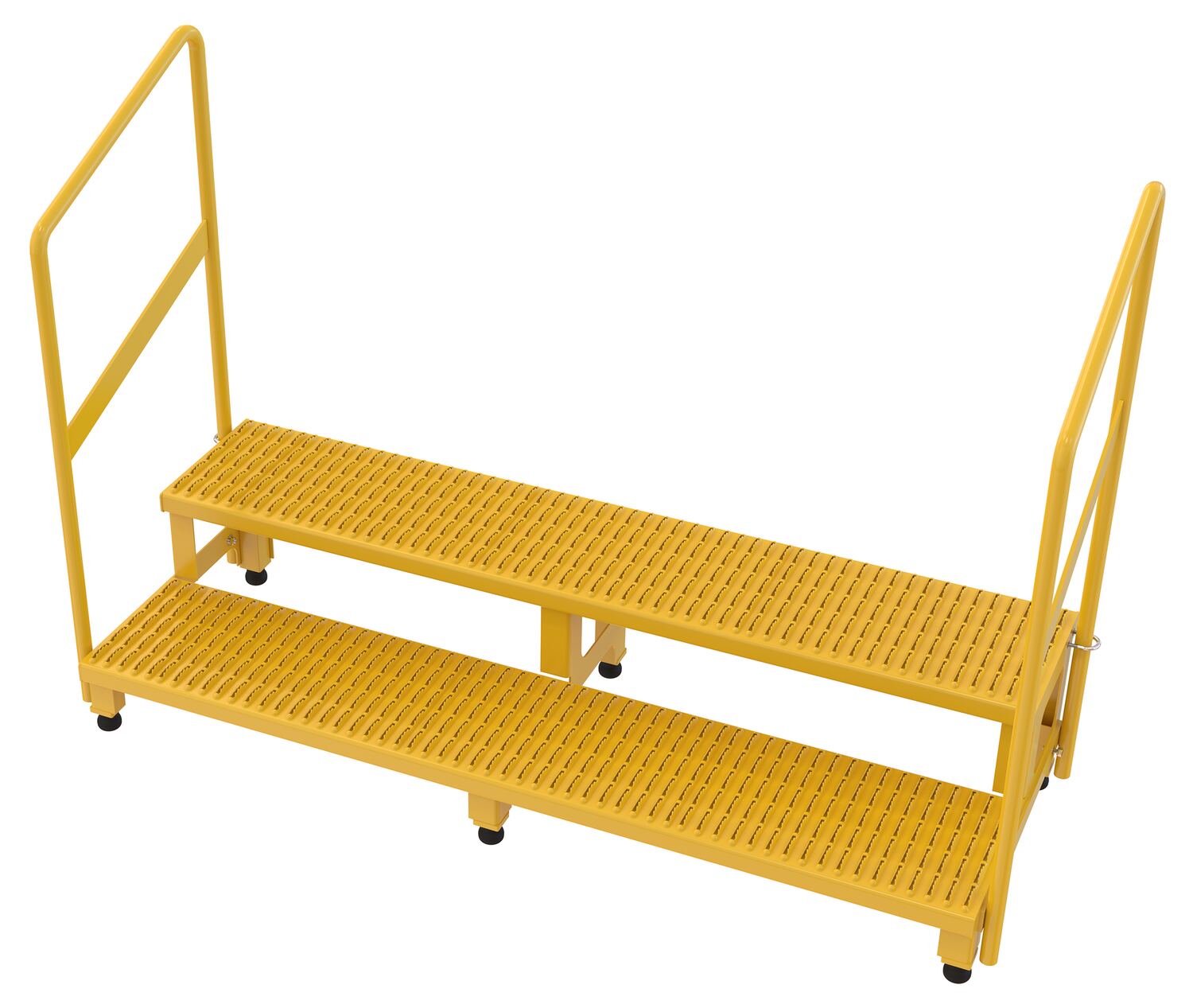

ASP-60-HR NEW ASP-60-HR90 Days Limited WarrantySteel Adjustable Step Stand 60 Inches Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		157

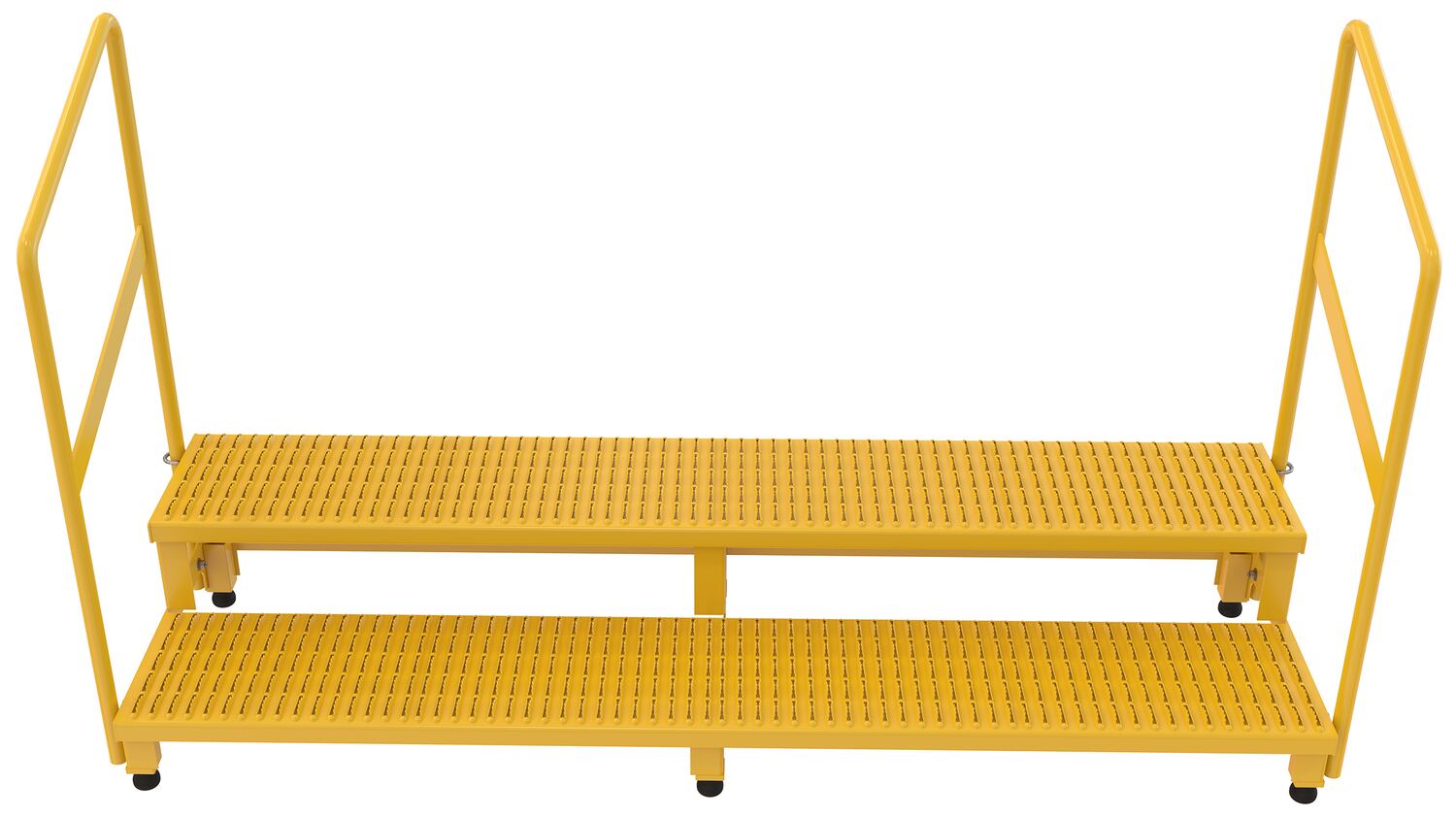

ASP-72-HR NEW ASP-72-HR90 Days Limited WarrantySteel Adjustable Step Stand 72 inch Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		172

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ASP-24-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-36-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-48-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-48-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52
Handrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52

ASP-36-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handle Construction: Steel Tubing Sch 40
Handle Height (in.): 52
Handle Construction: Steel Tubing Sch 40
Handle Height (in.): 52

ASP-24-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Number of Steps: 3
Handrail Construction: Steel Tubing Sch 40
Number of Steps: 3

ASP-72-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4

ASP-60-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Adjustable Step Stands with Handrail PDF's will open in a new window when clicked.

Manuals


ASP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ASP-24-HR

ASP-36-HR

ASP-48-HR

ASP-48-3-HR

ASP-36-3-HR

ASP-24-3-HR

ASP-72-HR

ASP-60-HR

Testing Certificates


ASP-24-3-HR

ASP-24-HR

ASP-36-3-HR

ASP-36-HR

ASP-48-3-HR

ASP-48-HR

ASP-60-HR

ASP-72-HR

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Step Stands Mailing Brochure

Adjustable Step Stands w/ Handrails Mailing Brochure
