Vestil Manufacturing Corporation is an industry leader in the manufacturing and distributing of industrial material handling equipment. We feature over 1,000 different product lines, many of which are in stock and ready for immediate shipment.
Coil Rams/Lifters| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

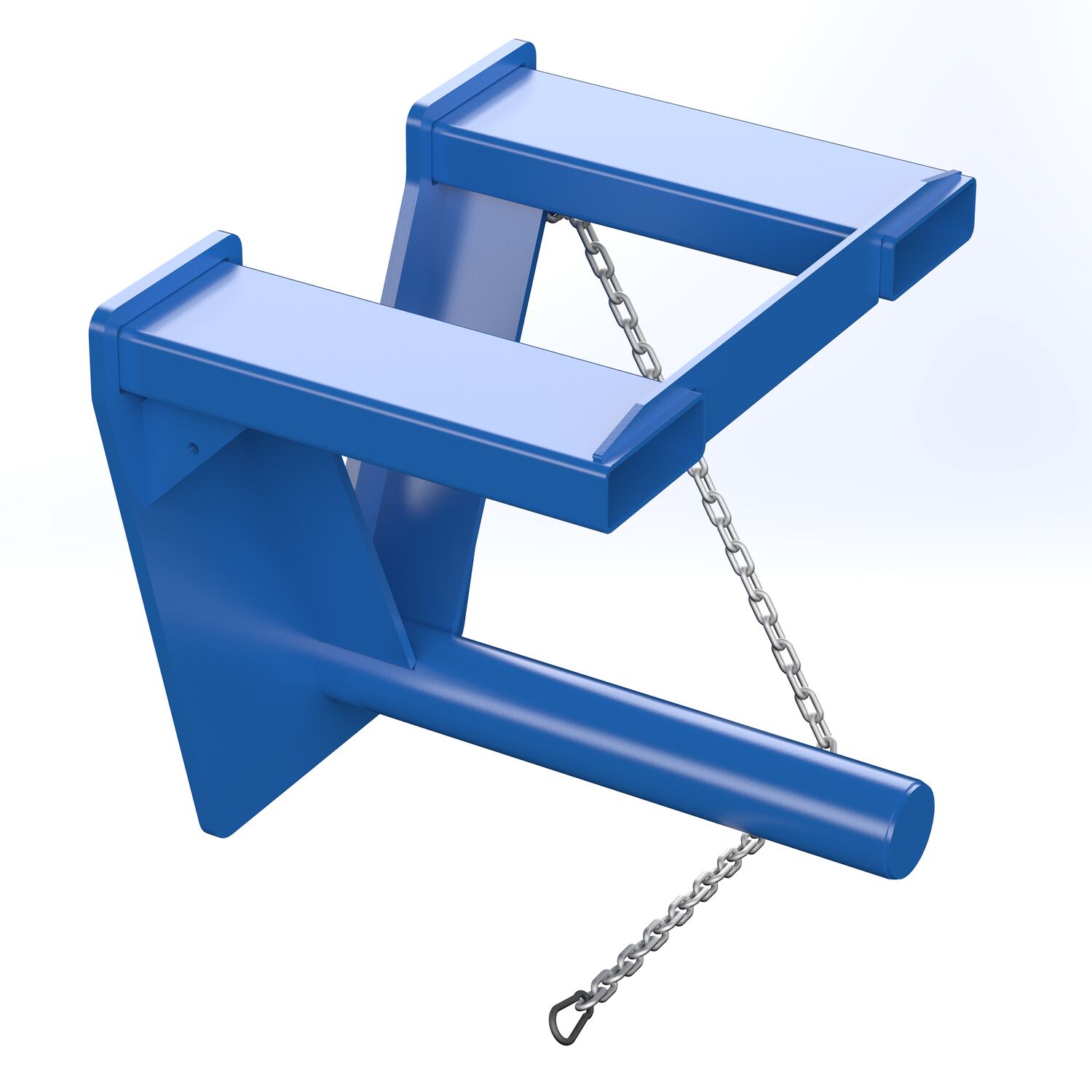

| CCF-24-4 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 24 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 24 | 285 | ||

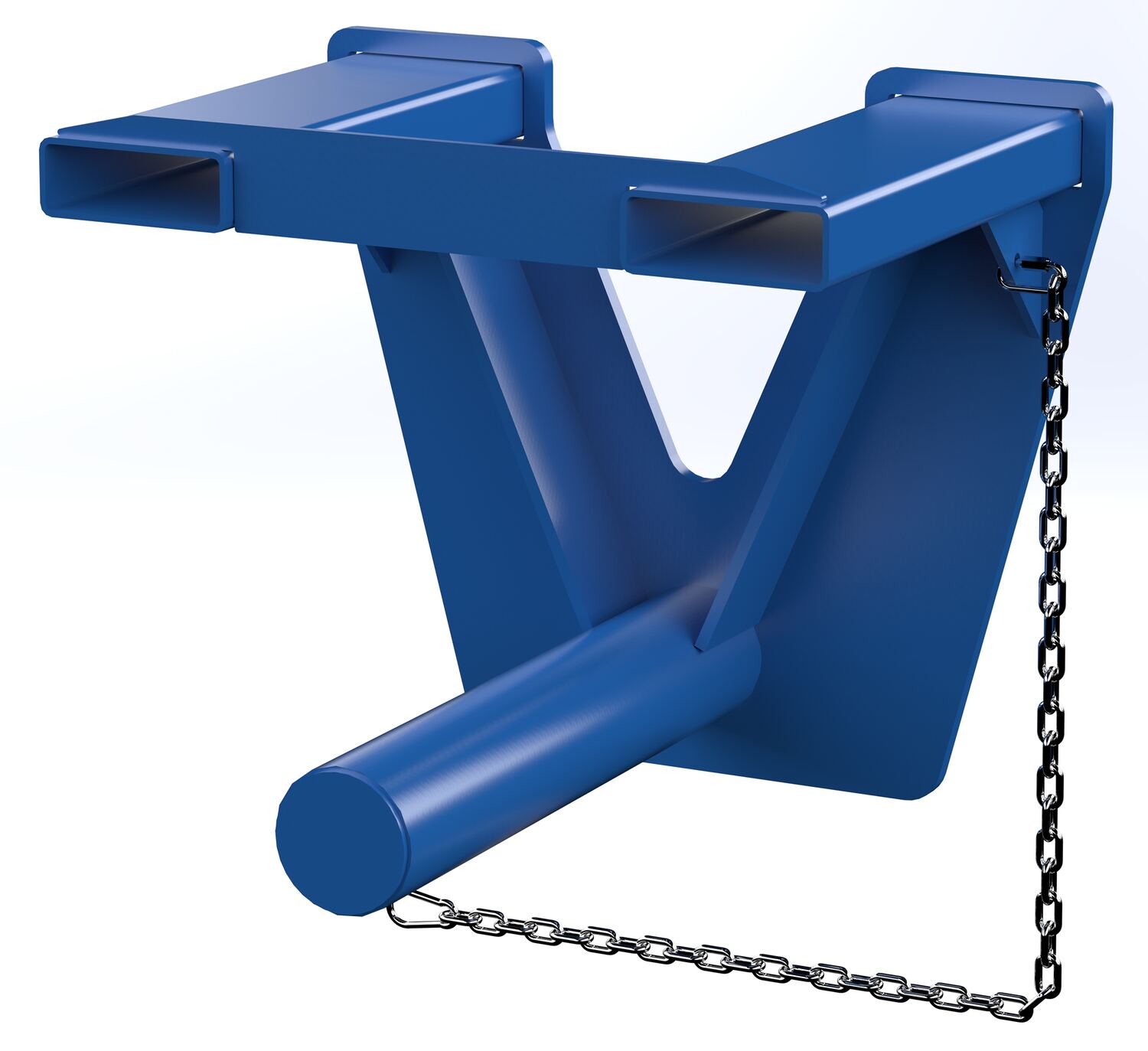

| CCF-24-5 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 24 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 24 | 295 | ||
| CCF-36-4 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 36 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 36 | 295 | ||

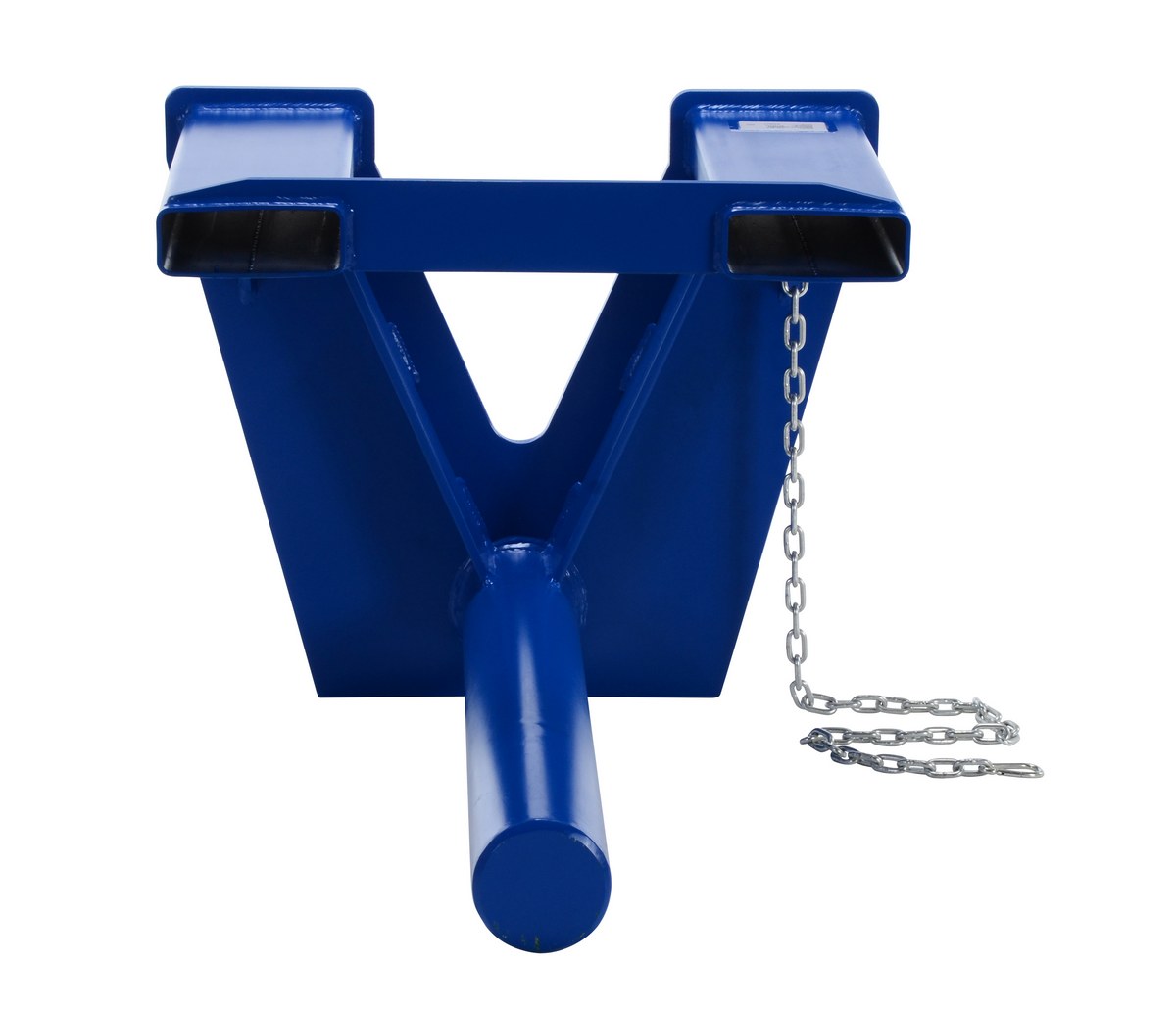

| CCF-36-5 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 36 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 36 | 305 | ||
| CCF-48-4 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 48 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 48 | 305 | ||

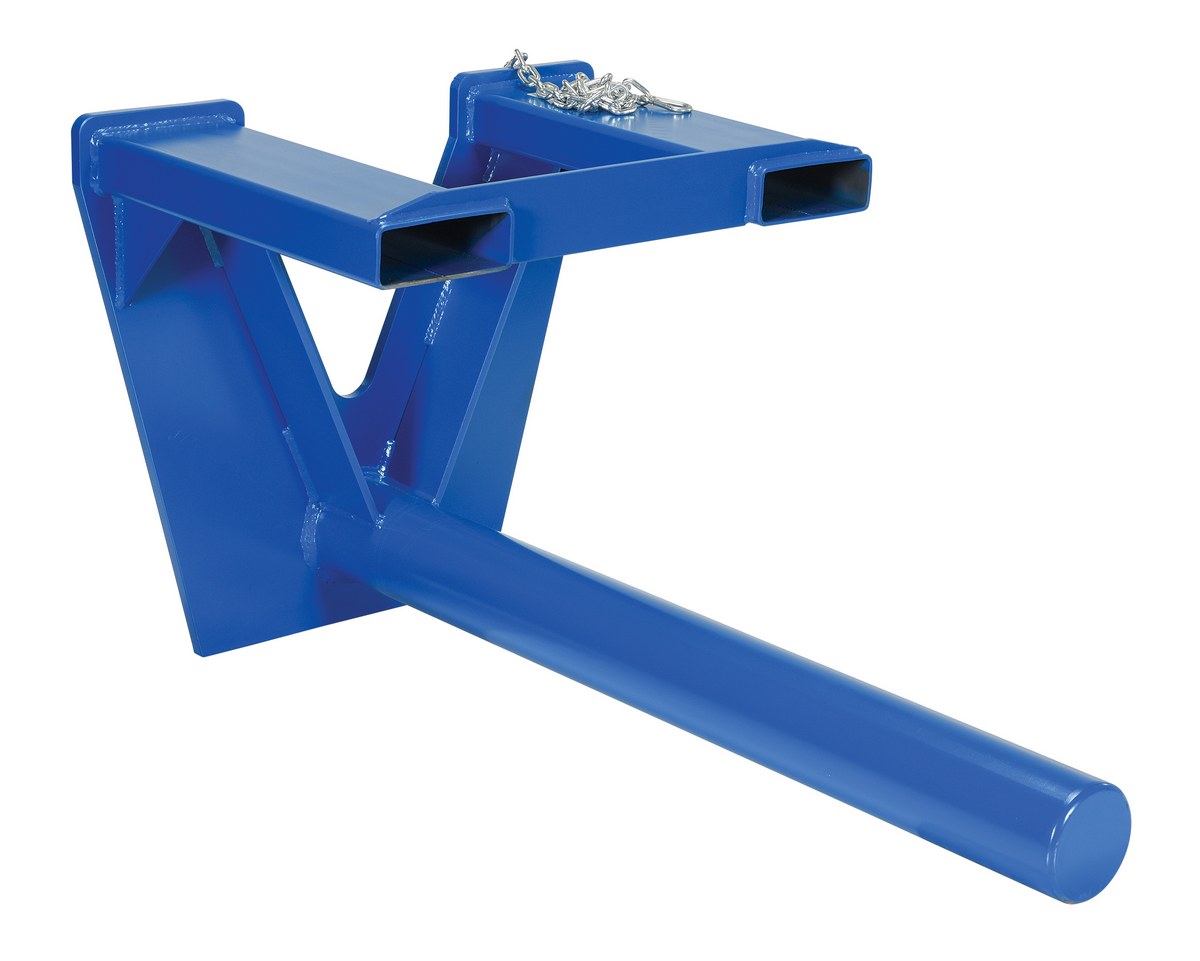

| CCF-48-5 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 48 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 48 | 340 | ||

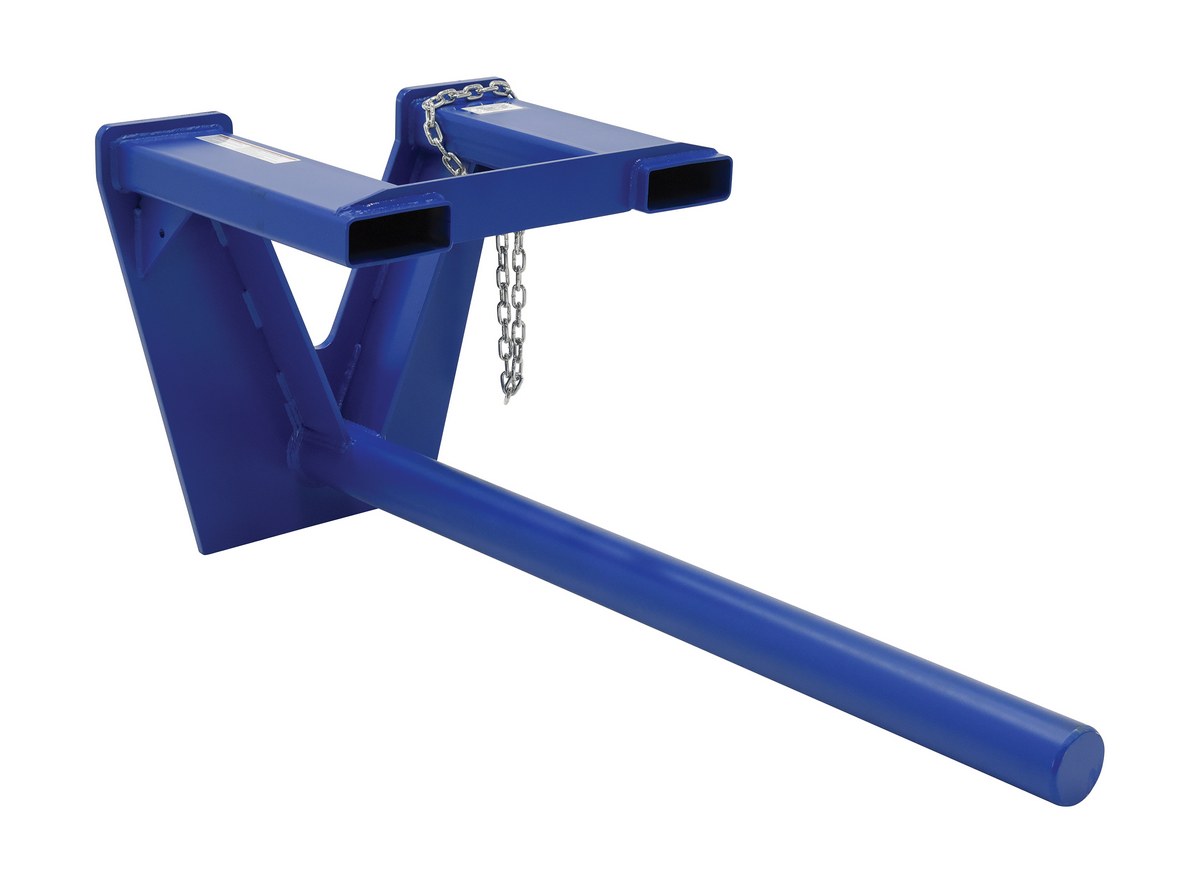

| CCF-60-4 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 60 | 325 | ||
| CCF-60-5 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 60 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 60 | 351 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
|
|||||||||||||||||||||||||||||||||||||||||||||||
Coil Rams/Lifters |
|||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||

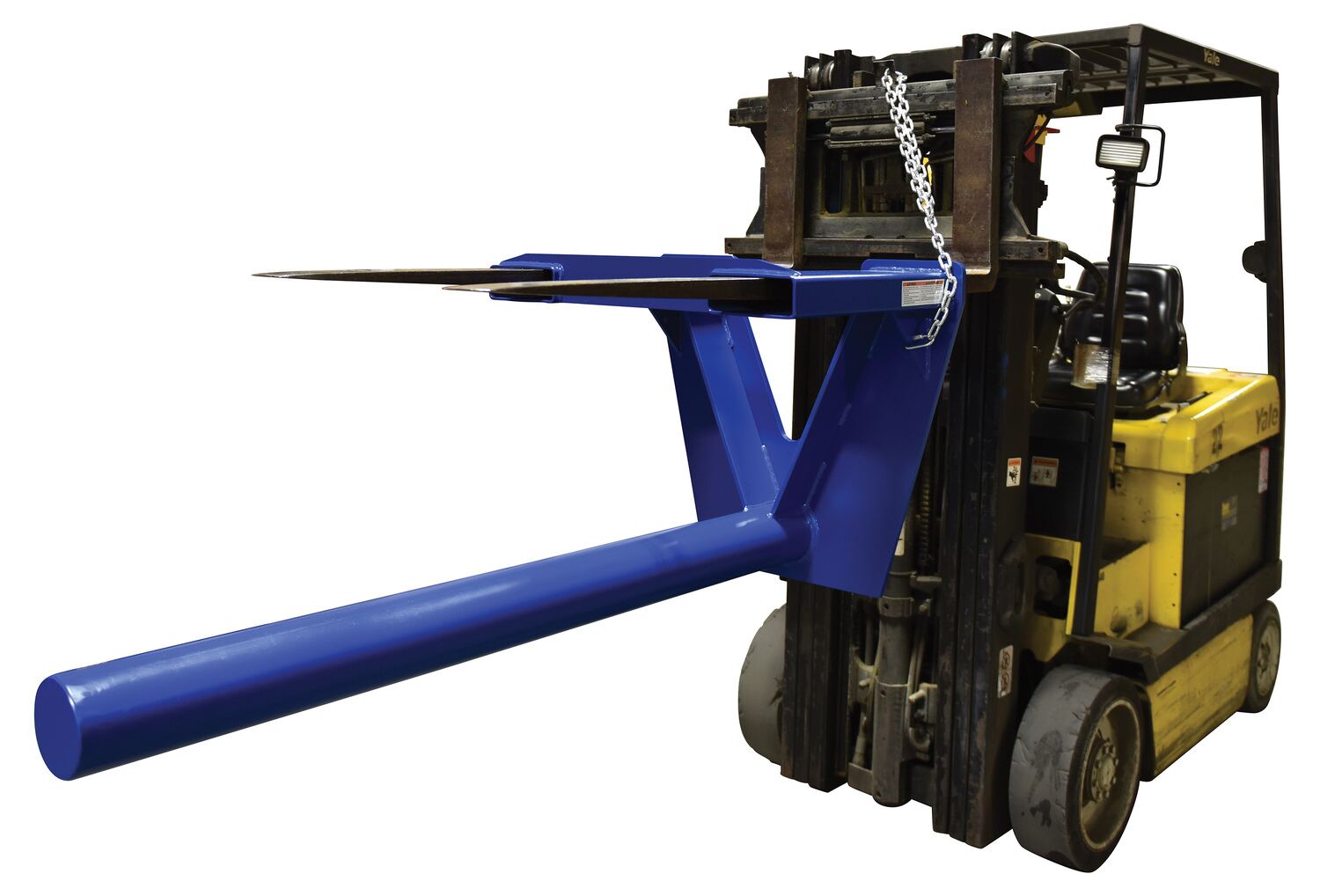

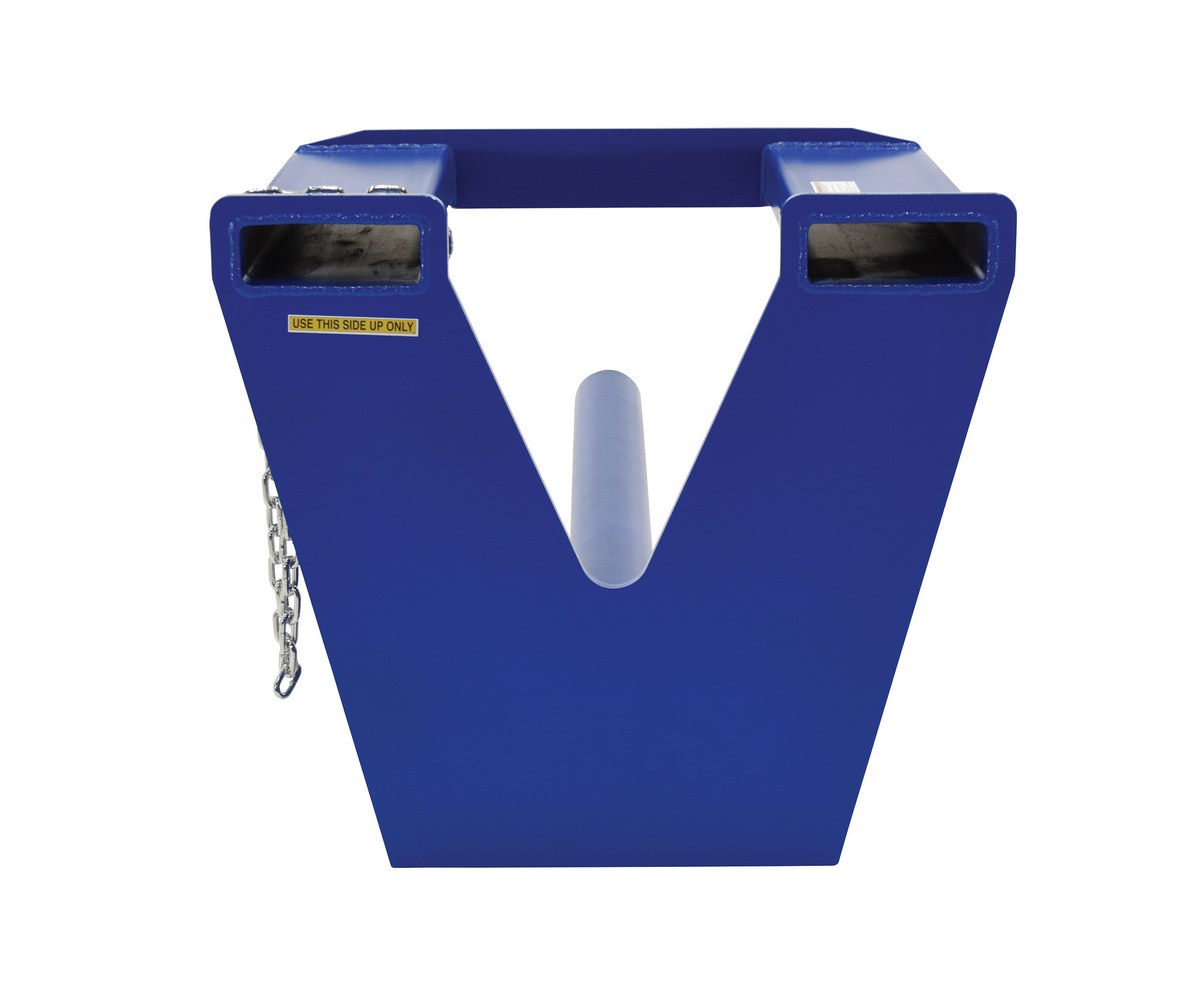

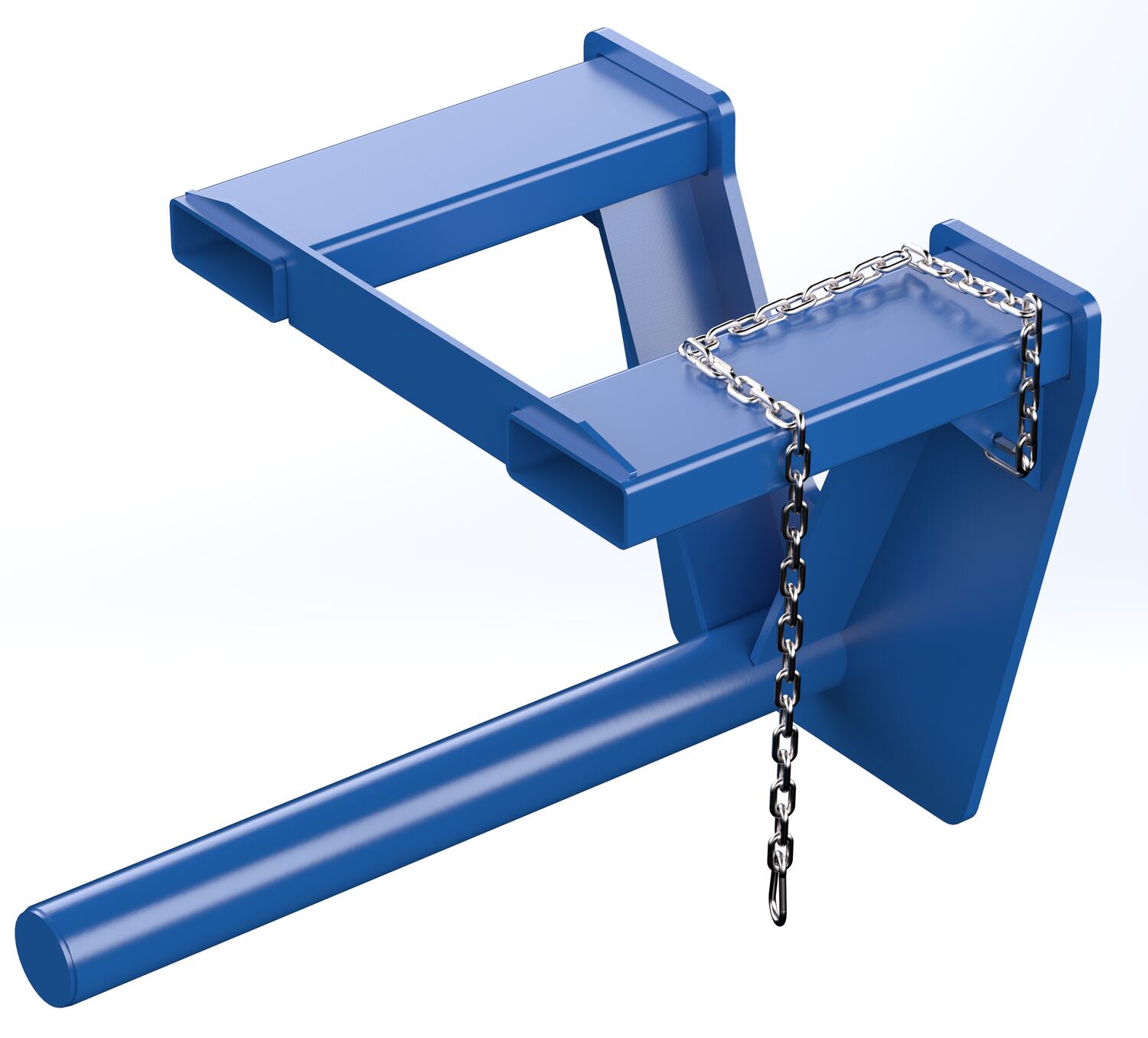

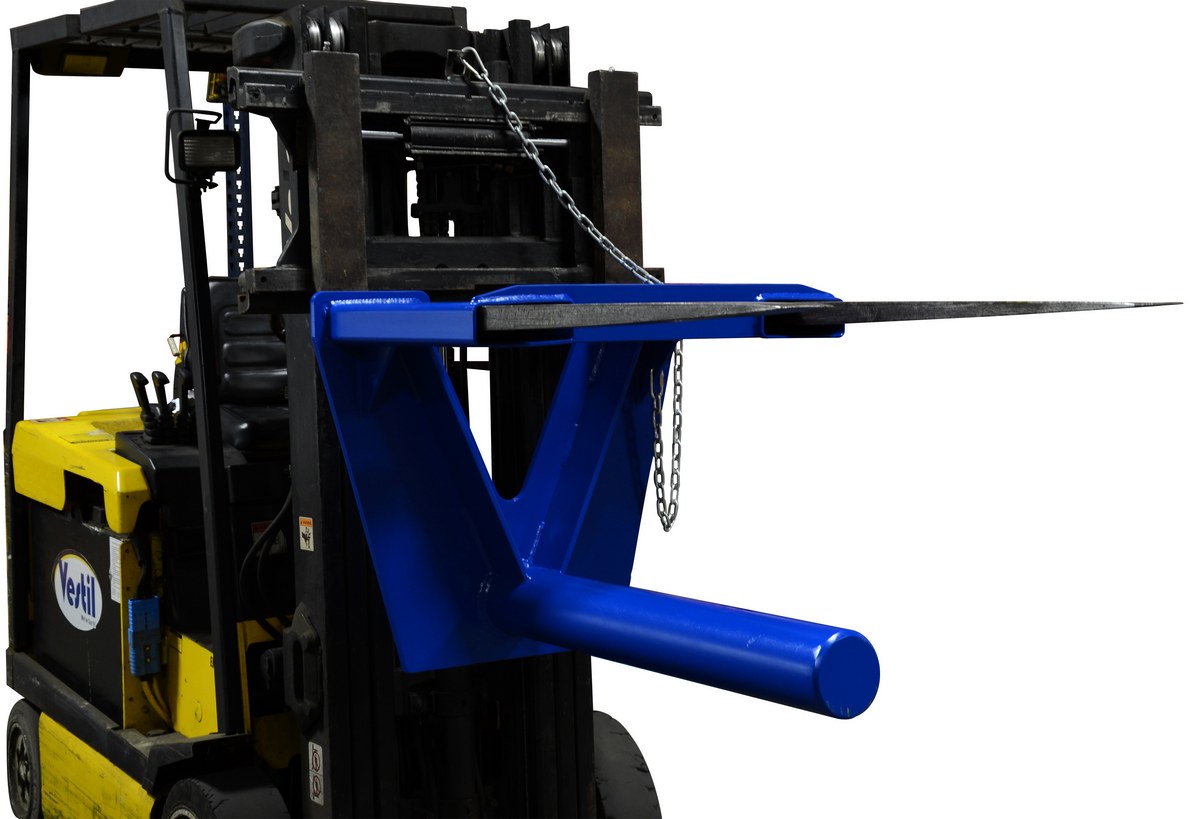

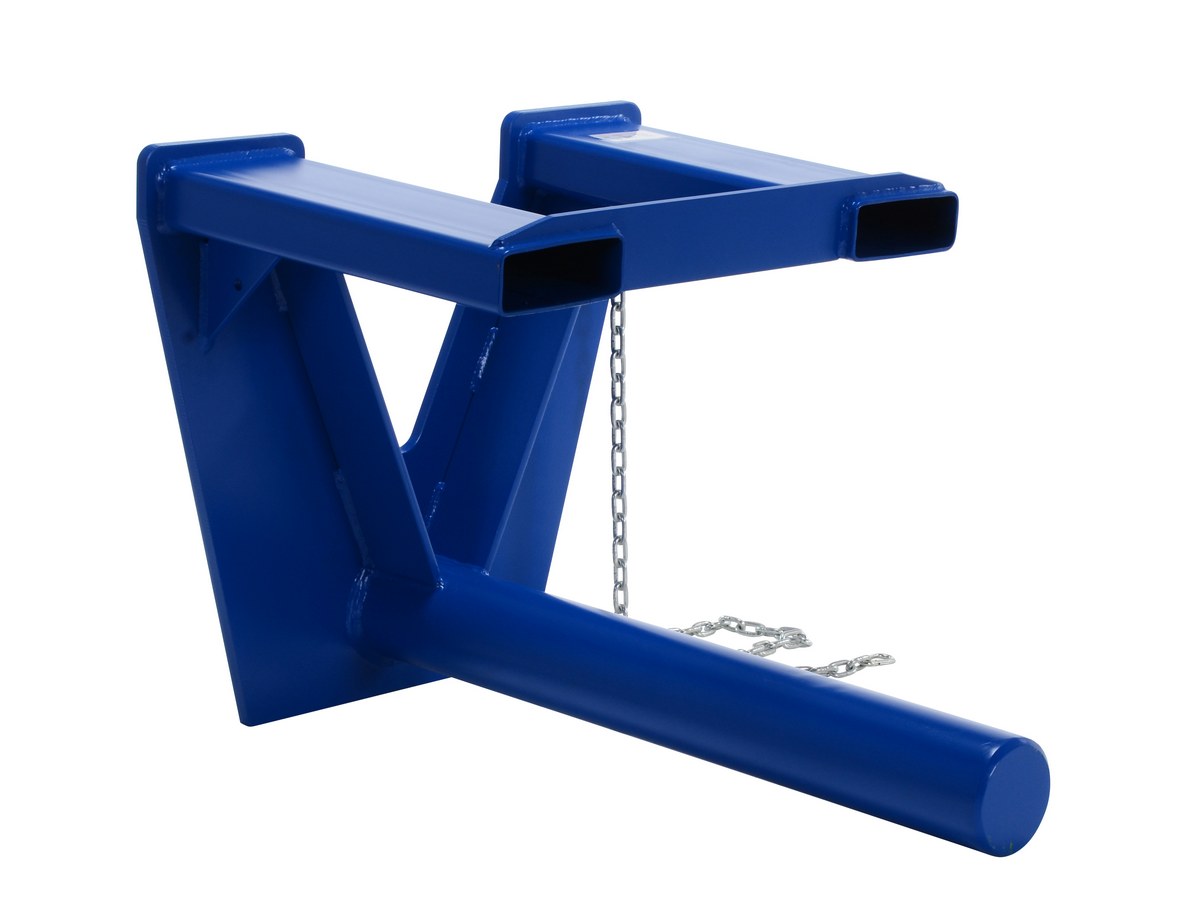

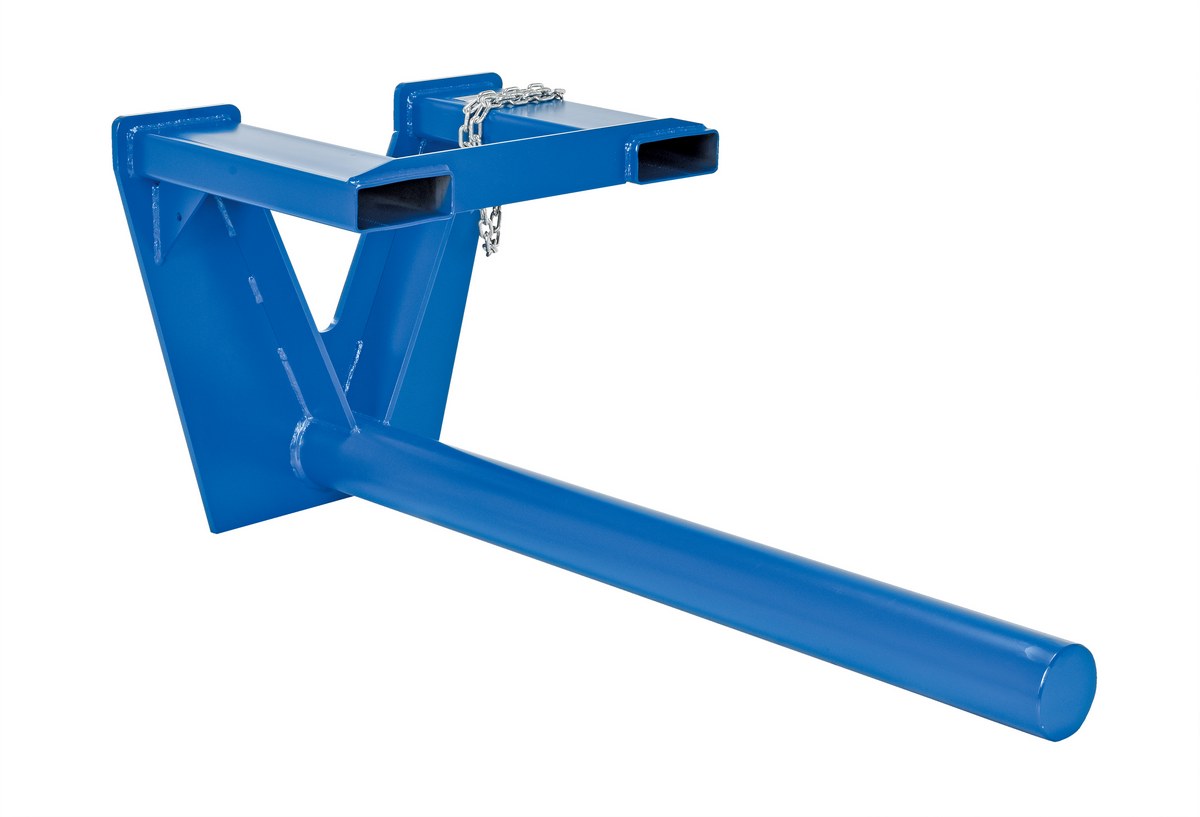

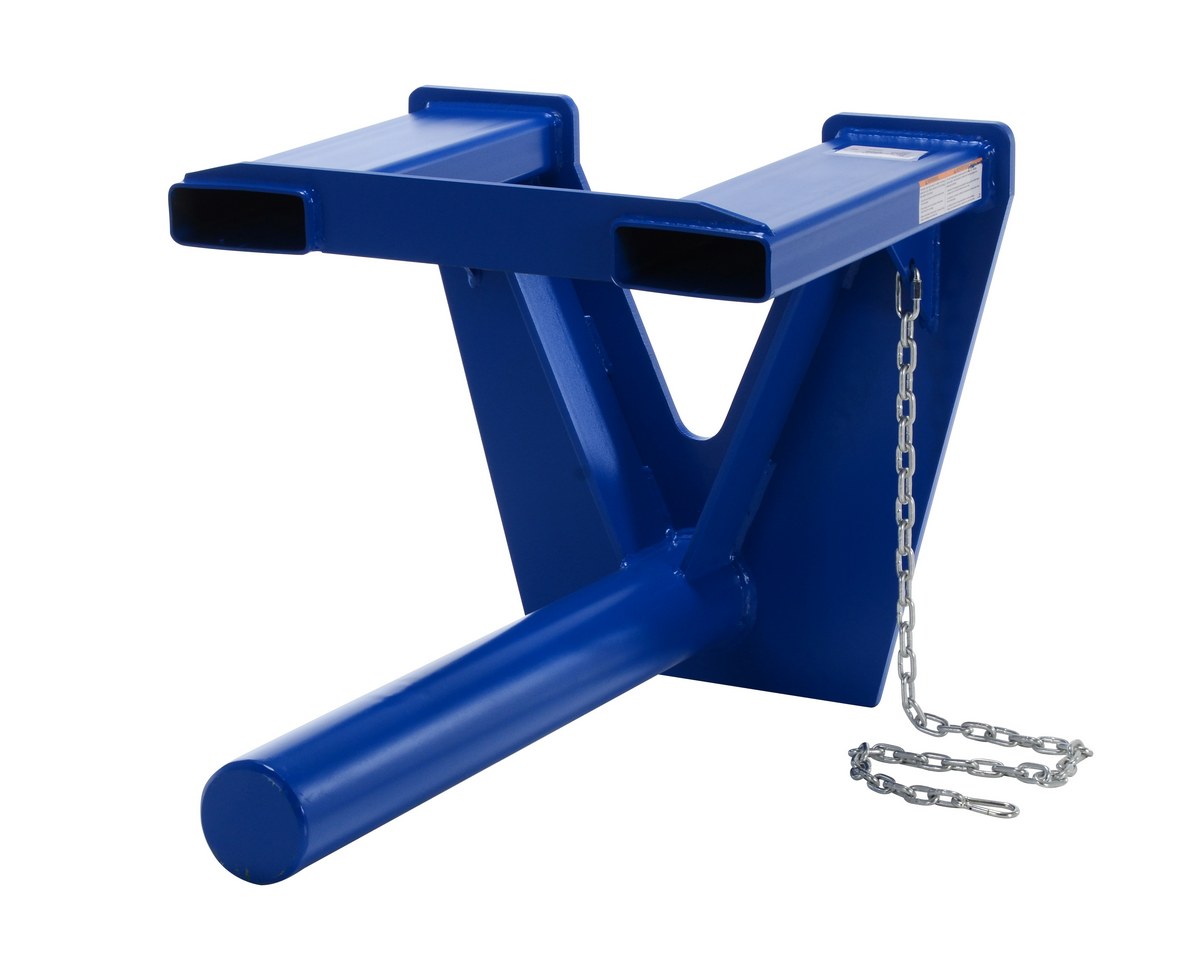

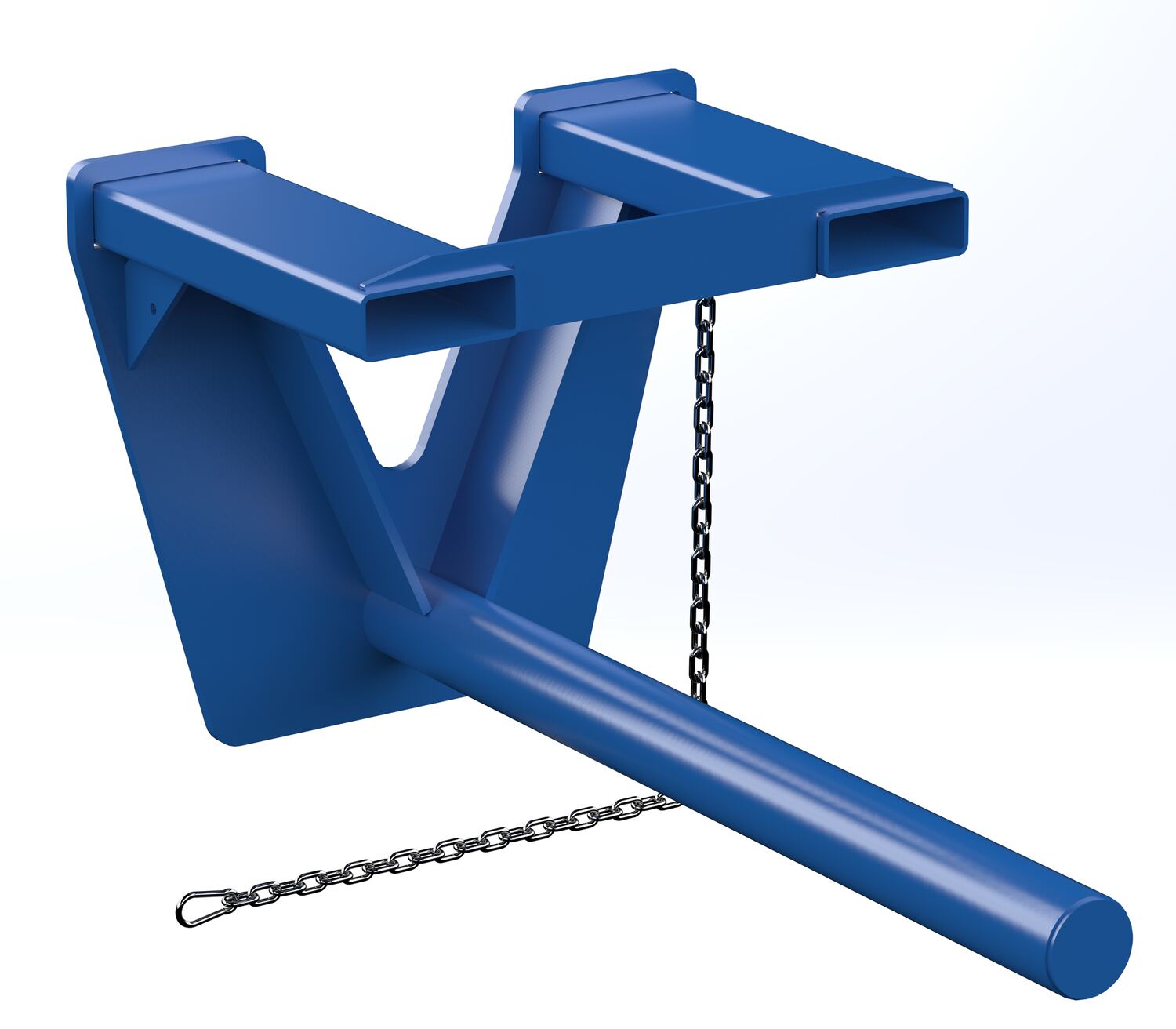

The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.
Fork Mounted (CCF) |
|||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
