Lift & Tilt Carts with Sequence Select| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| CART-1000-LT |  | 1 Year Limited Warranty | Steel Lift and Tilt Carts with Sequence Select 22 In. x 33-1/2 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Platform Width (in.): 22 | 340 | ||
| CART-1000-LT-PSS |  | 1 Year Limited Warranty | Partially Stainless Steel Lift and Tilt Carts with Sequence Select 22 In. x 33-1/2 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Platform Width (in.): 22 | 323 | ||
| CART-400-LT |  | 1 Year Limited Warranty | Steel Lift and Tilt Carts with Sequence Select 19-1/2 In. x 30 In. 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Platform Width (in.): 19-1/2 | 245 | ||
| CART-600-LT |  | 1 Year Limited Warranty | Steel Lift and Tilt Cart with Sequence Select 24 In. x 36 In. 600 Lb. Capacity Blue | Uniform Capacity (lb.): 600 Platform Width (in.): 24 | 355 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The caster mounting plate for the CART-400-LT is 4 3/8" x 4 3/8".
A: Yes.
|
|||||||||||||||||||||||||||
Lift & Tilt Carts with Seq... |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||

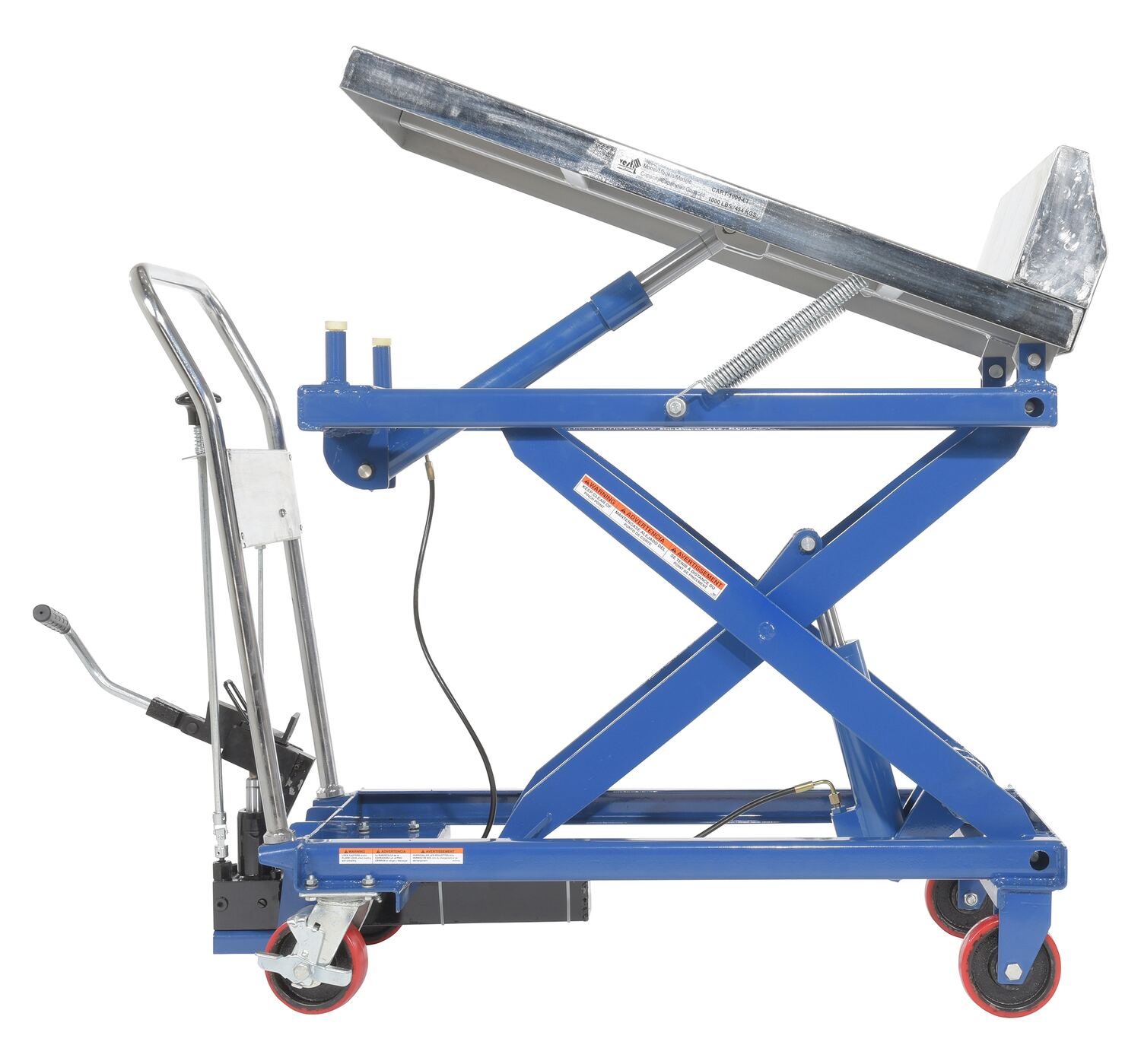

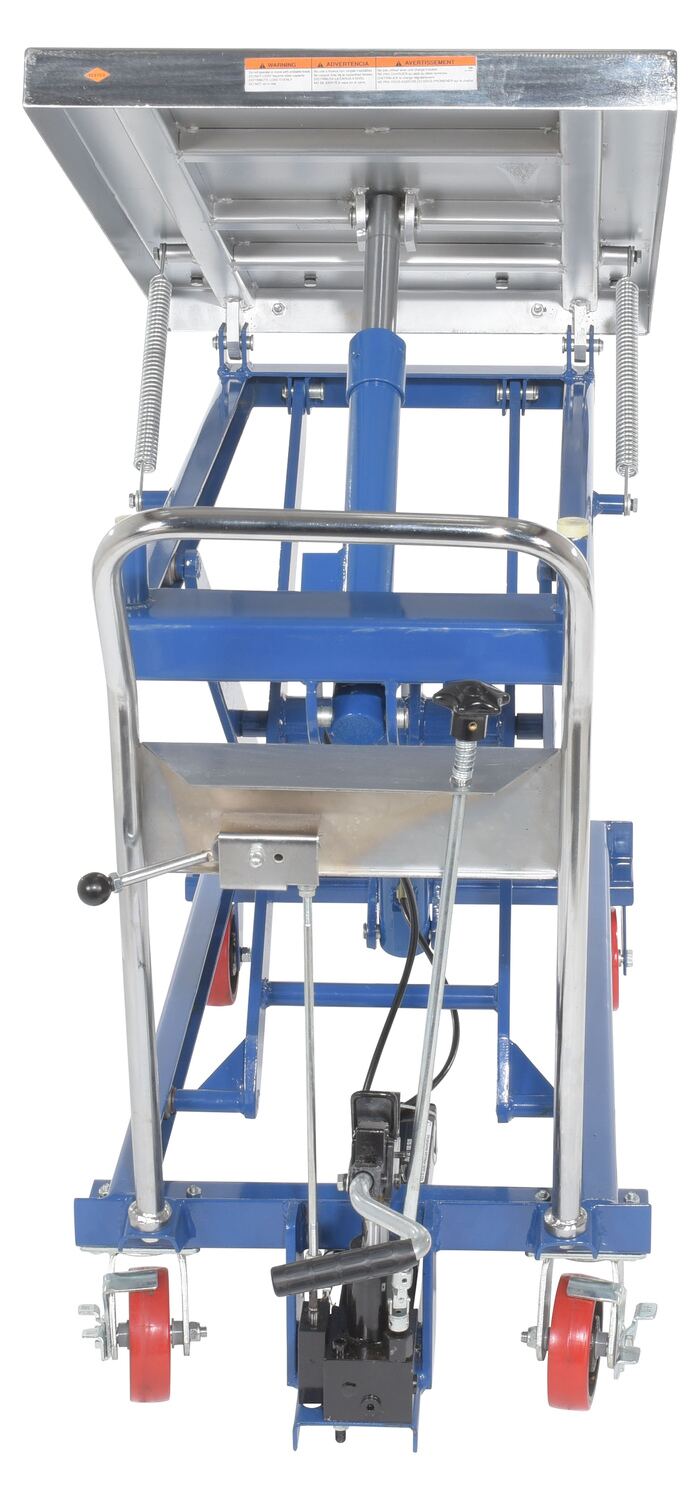

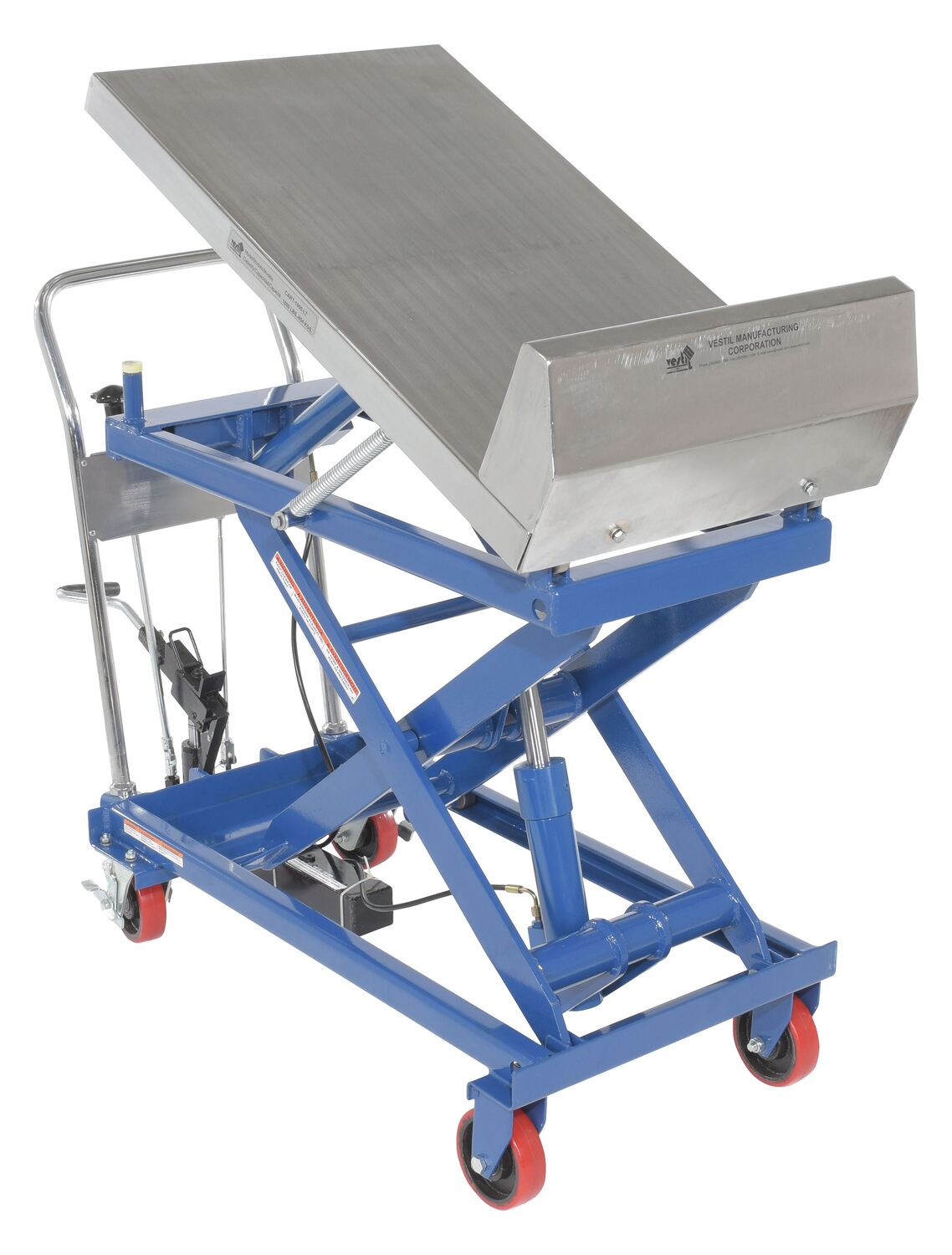

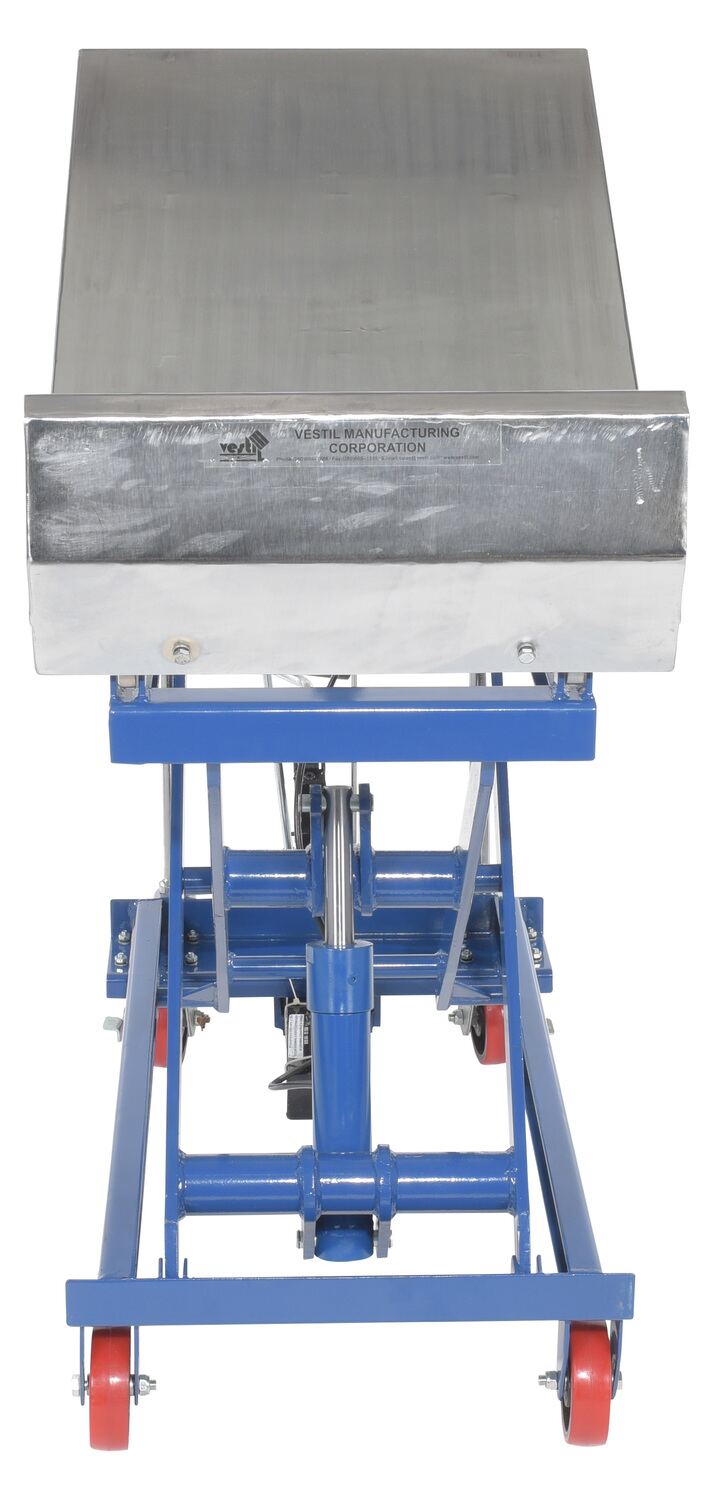

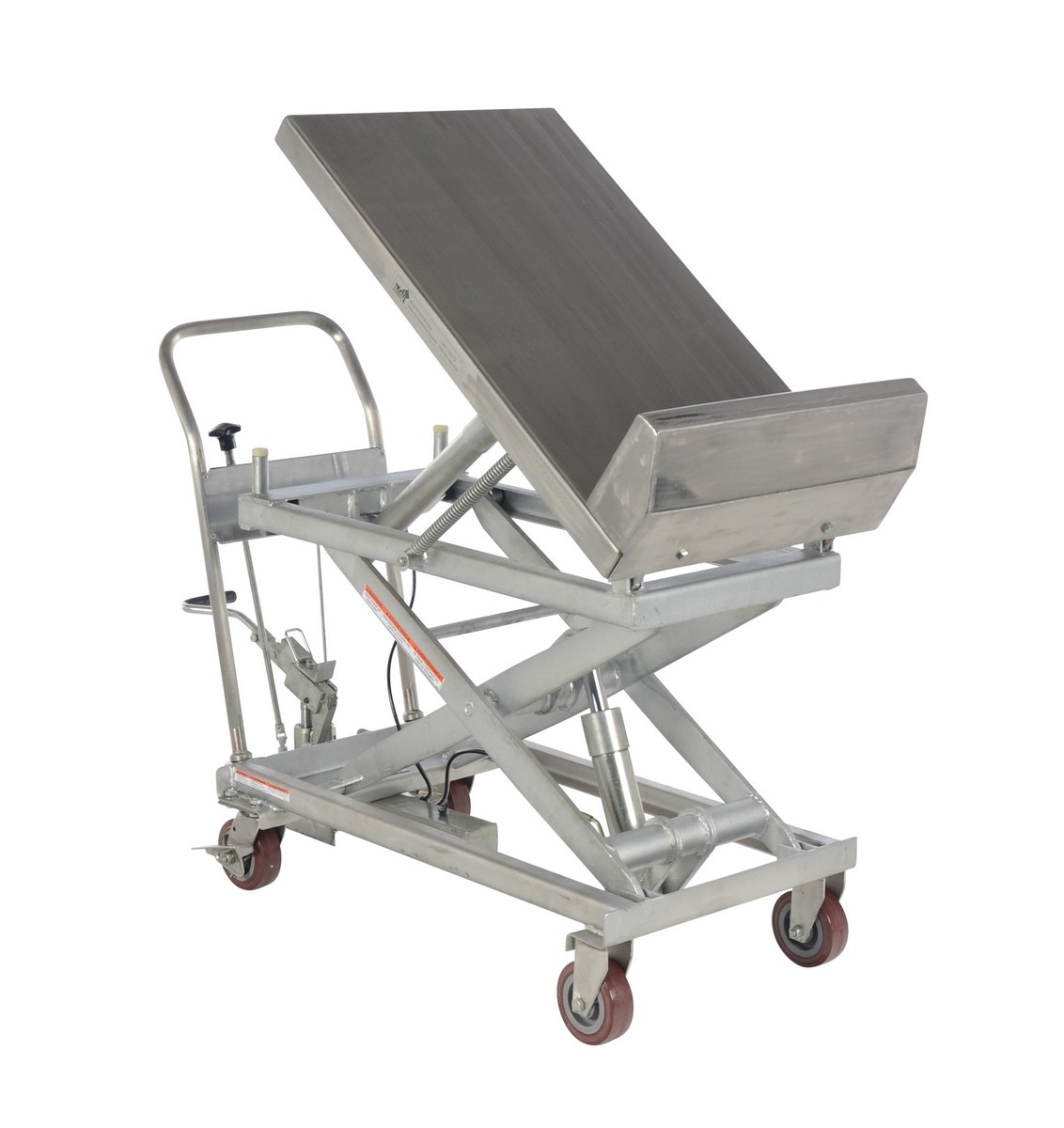

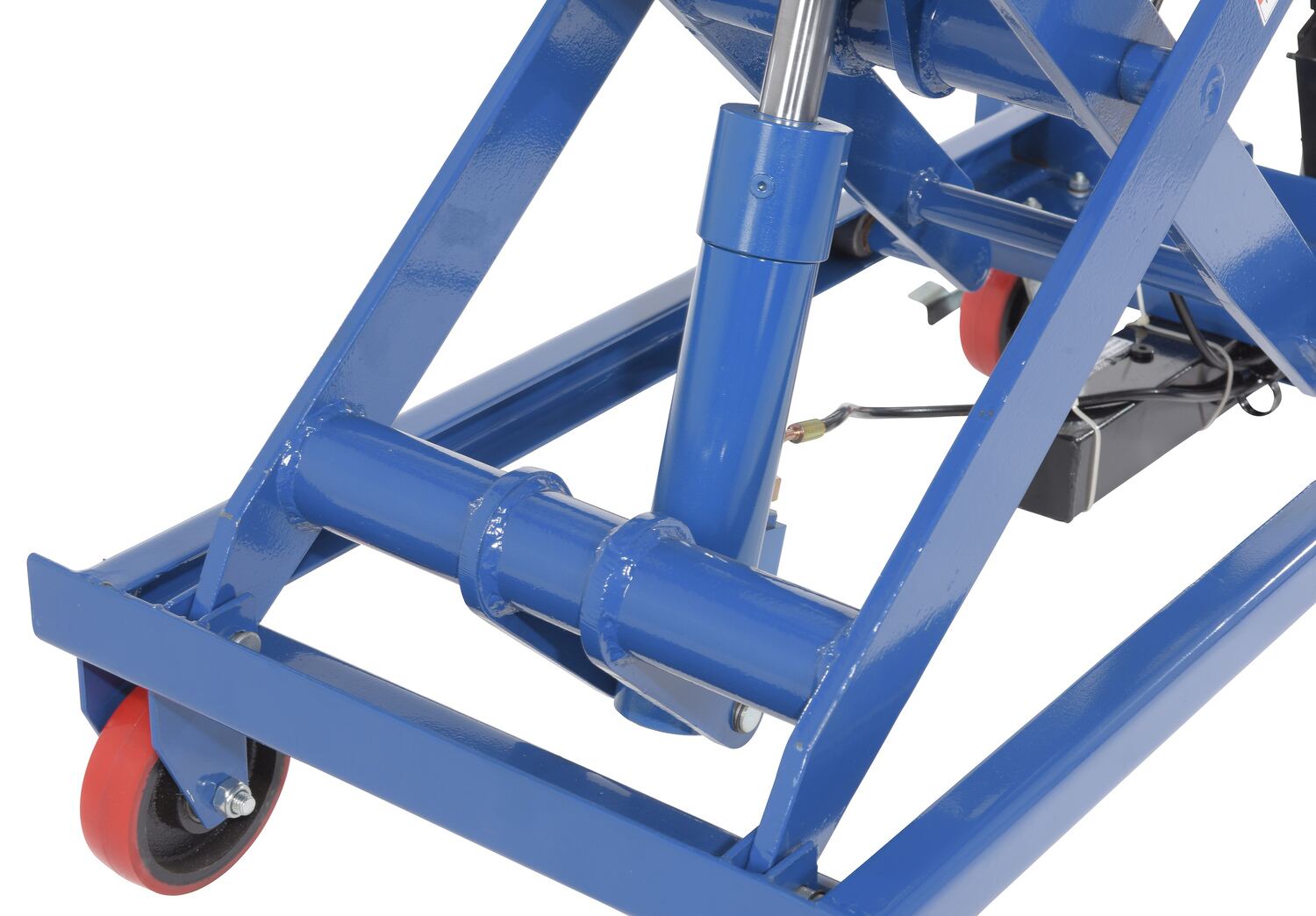

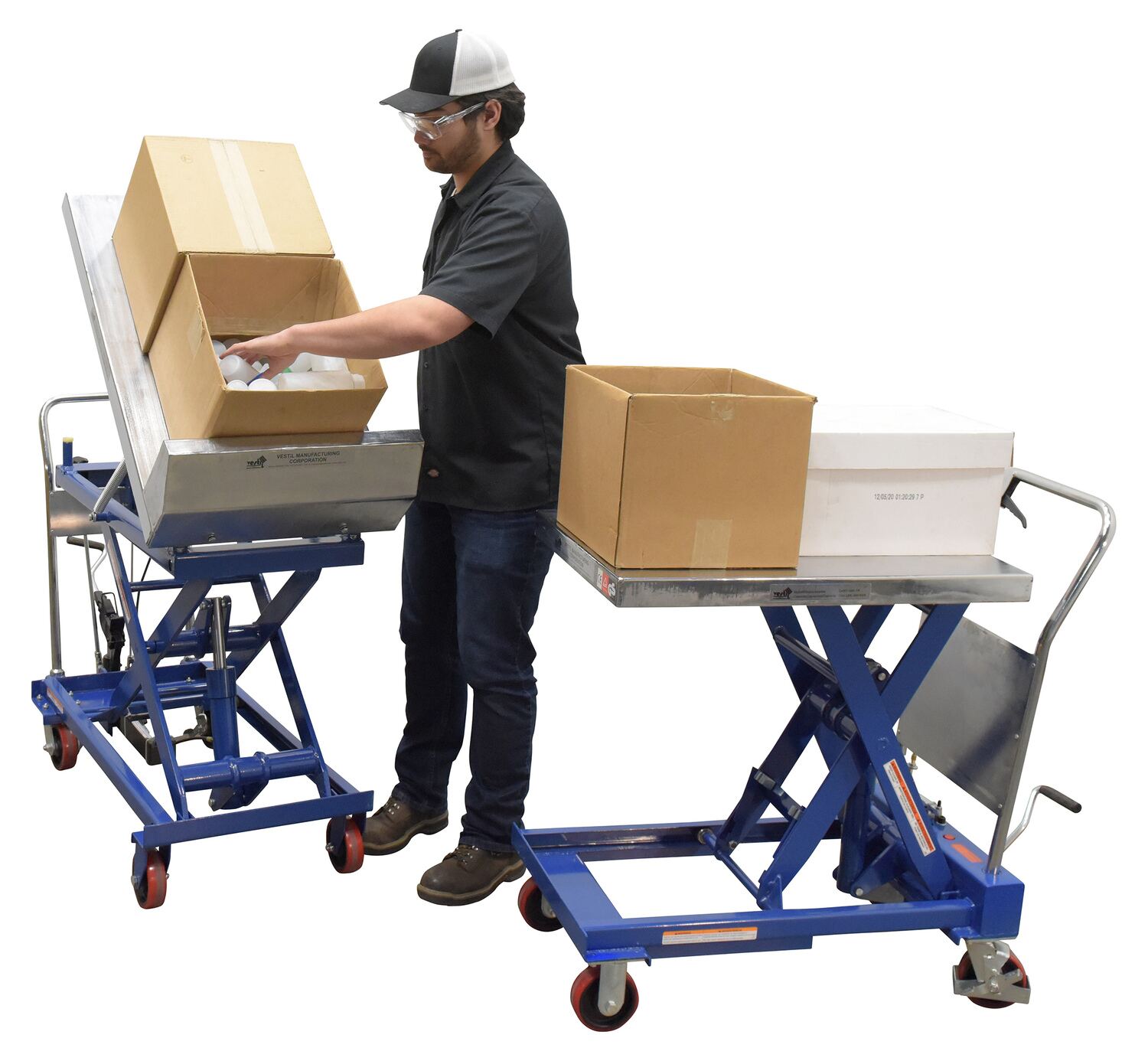

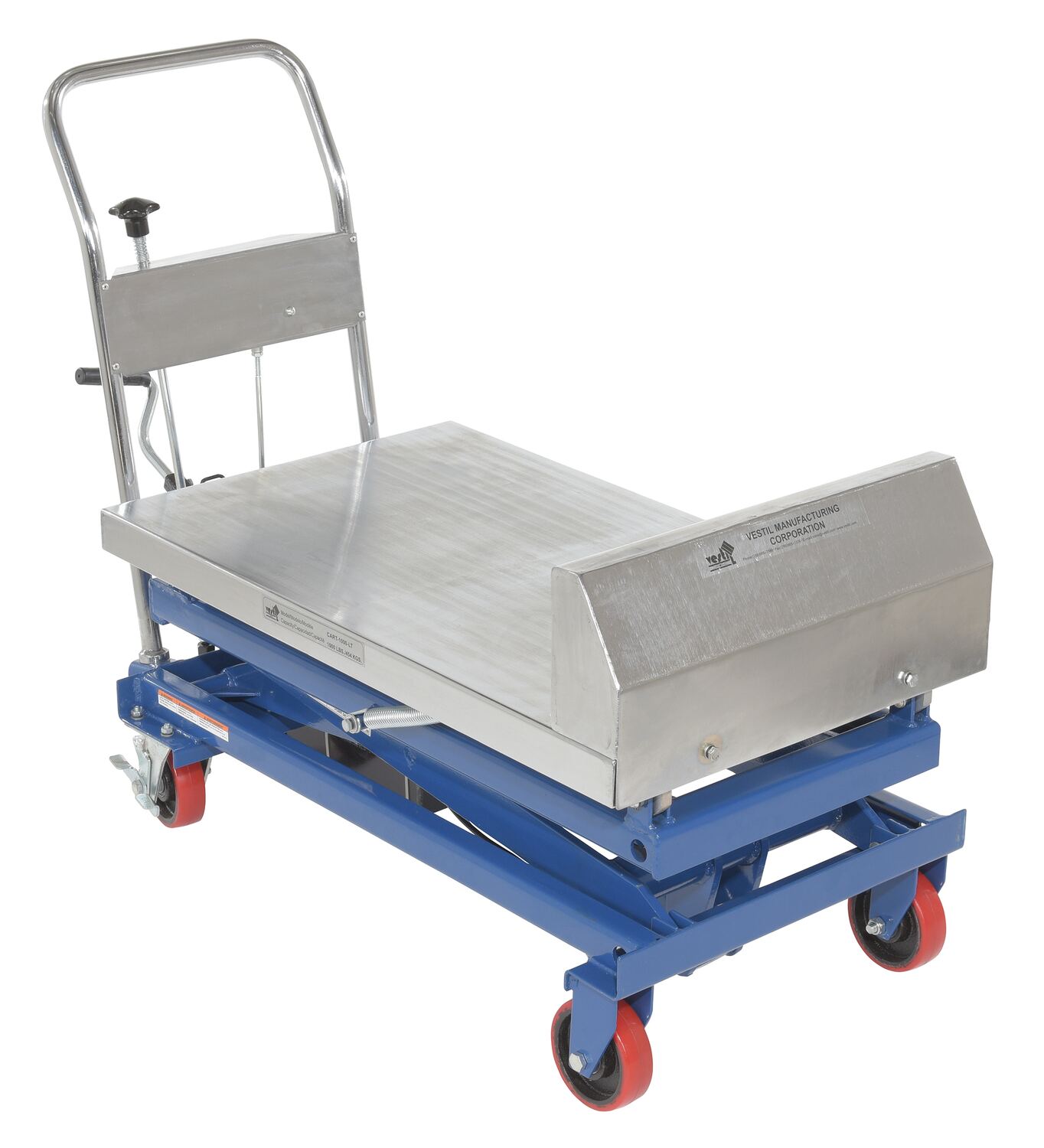

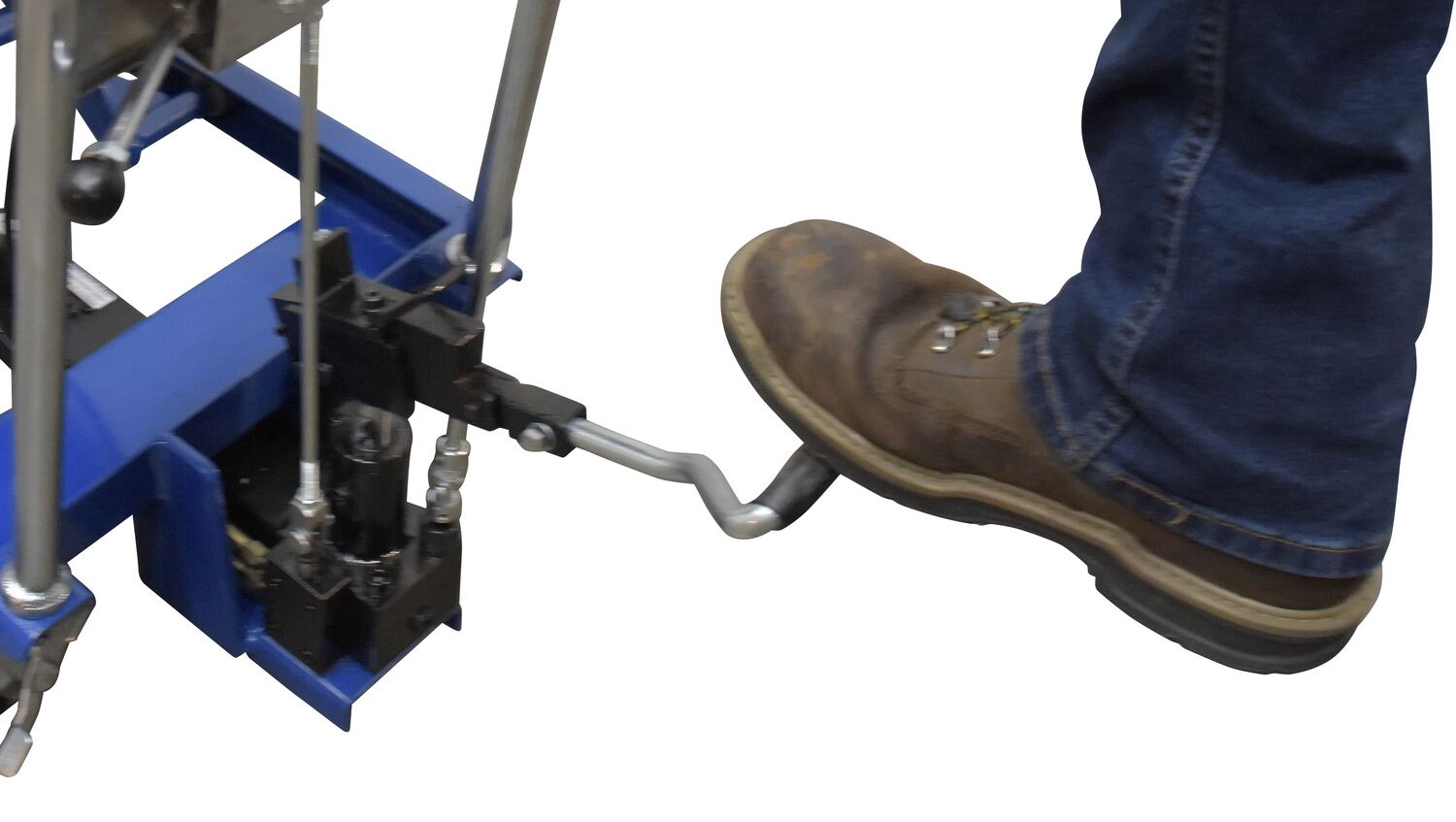

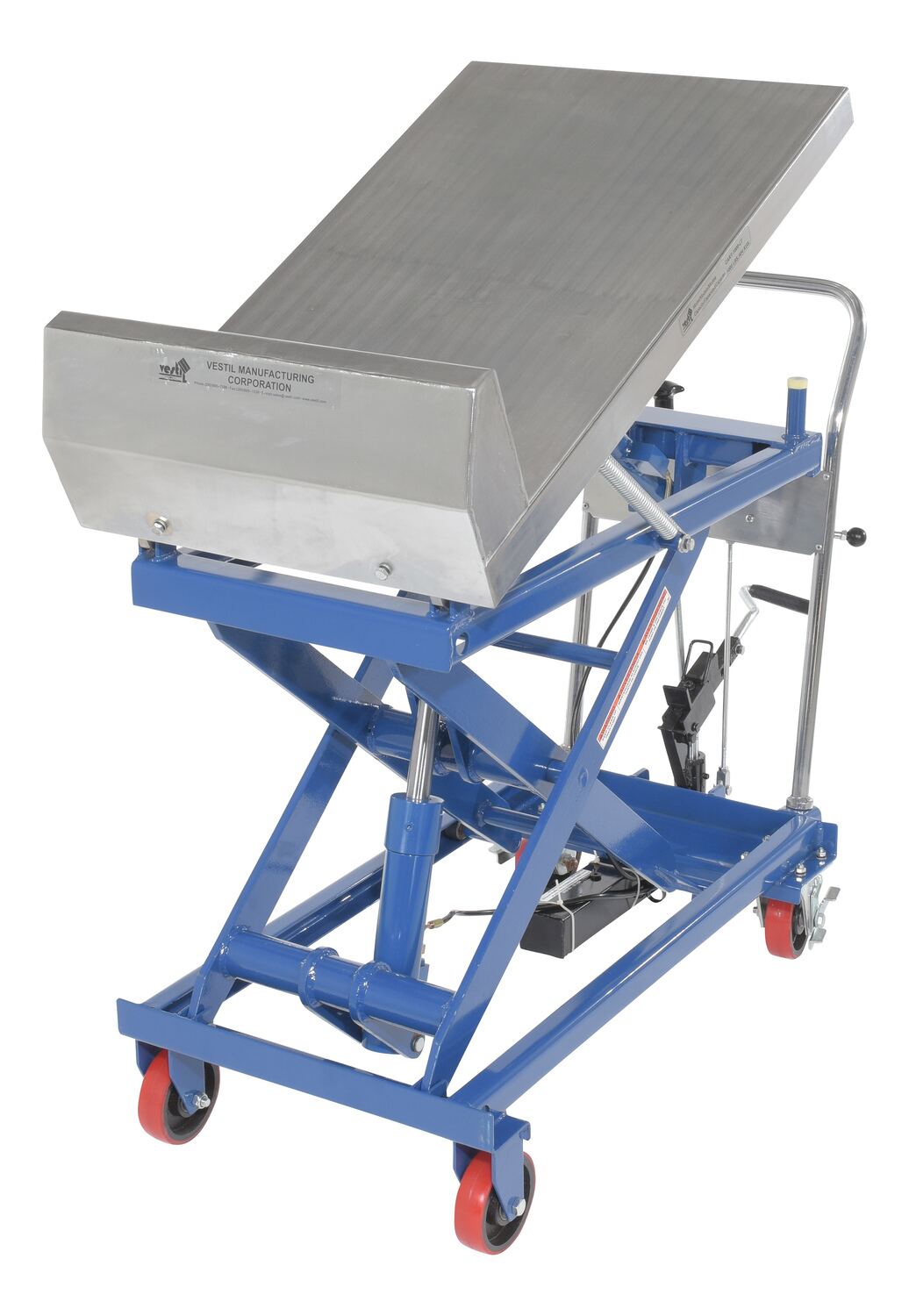

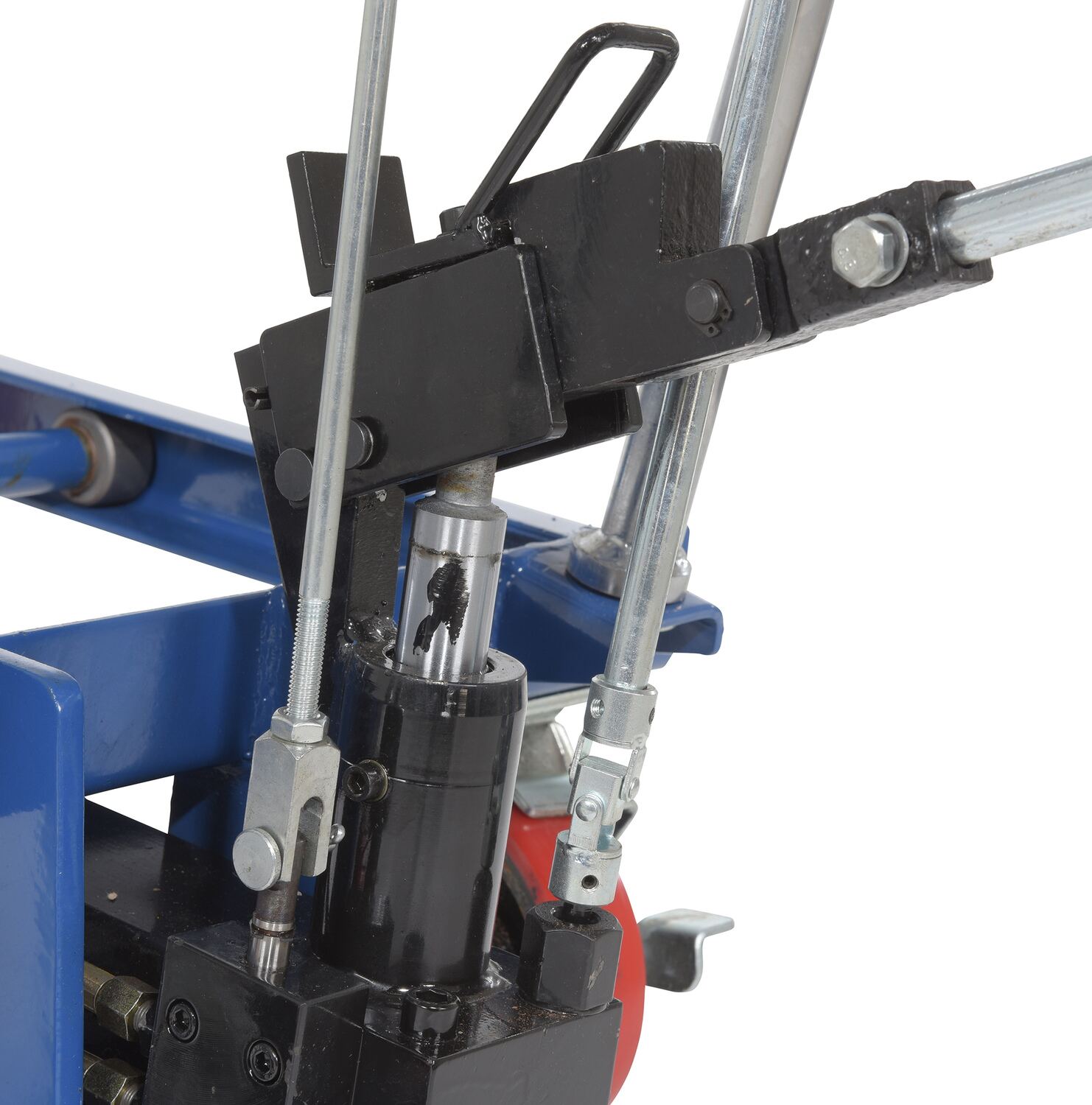

Models CART-1000-LT and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 6-1/2" high retaining lip on model CART-500-LT and 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters.

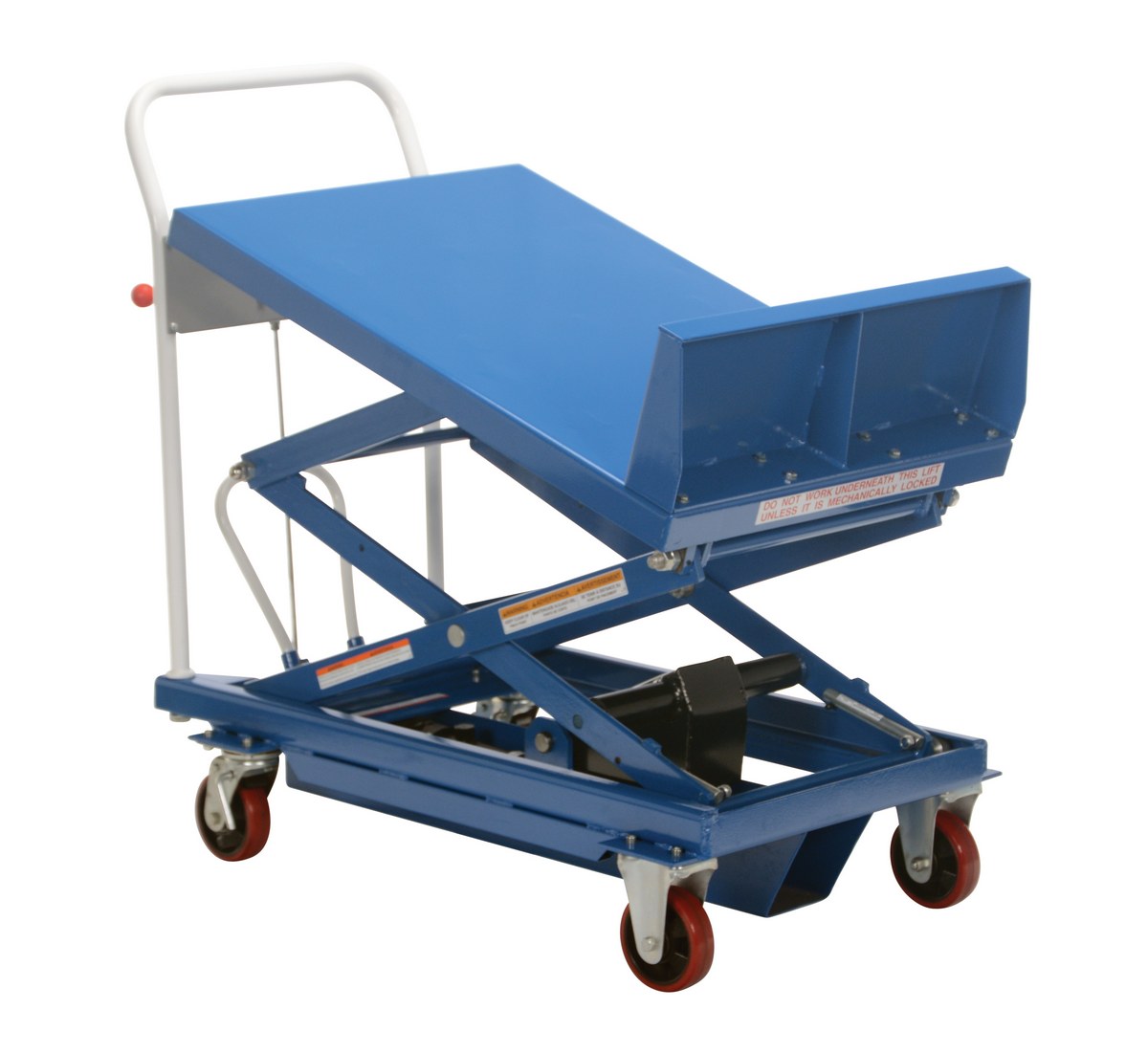

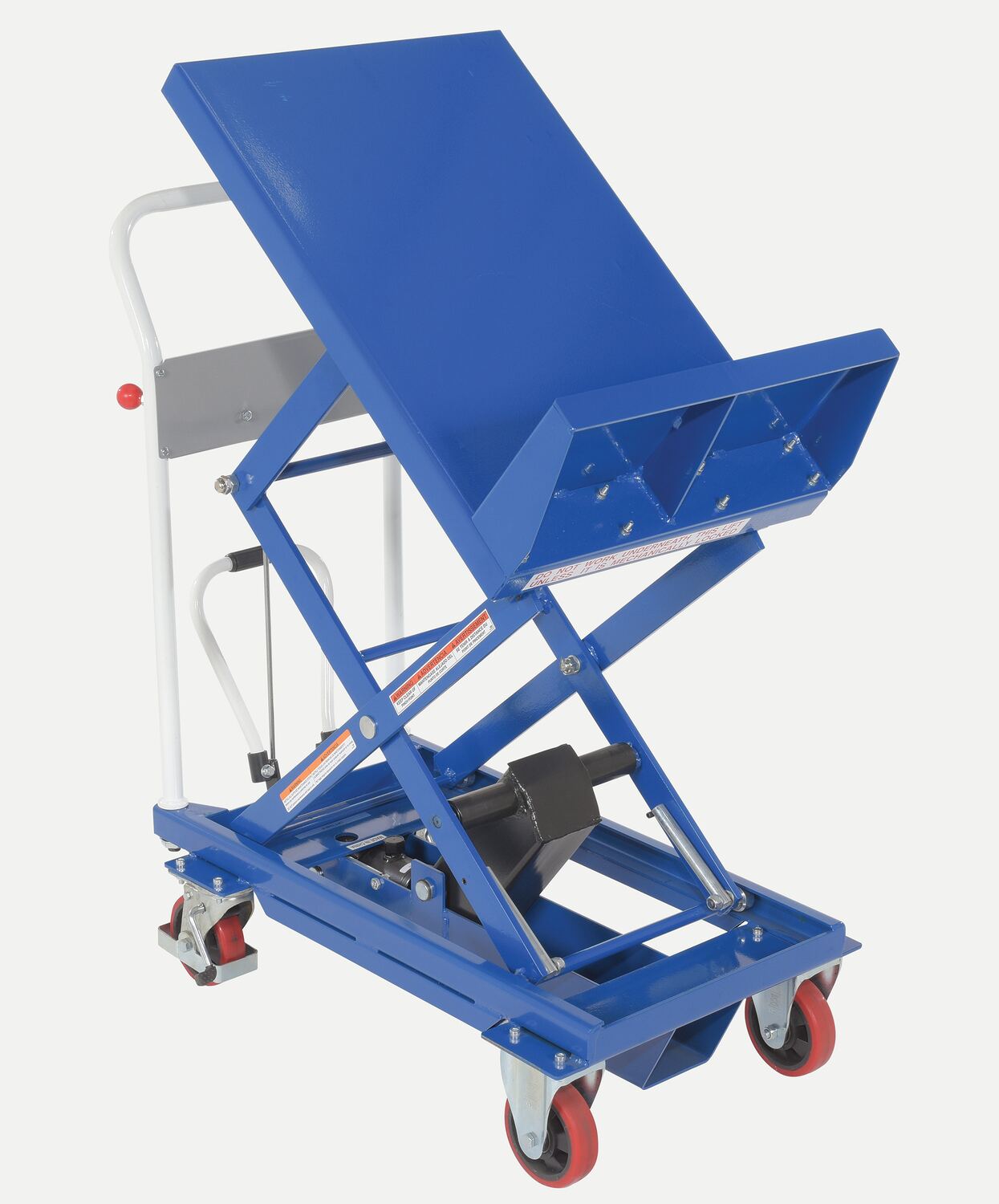

Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.
|
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
