Adjustable Pallet Stands

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery
FEATURED Adjustable Pallet Stands

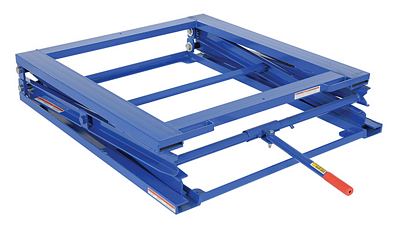

model: PS-4045

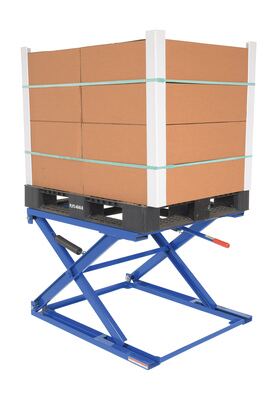

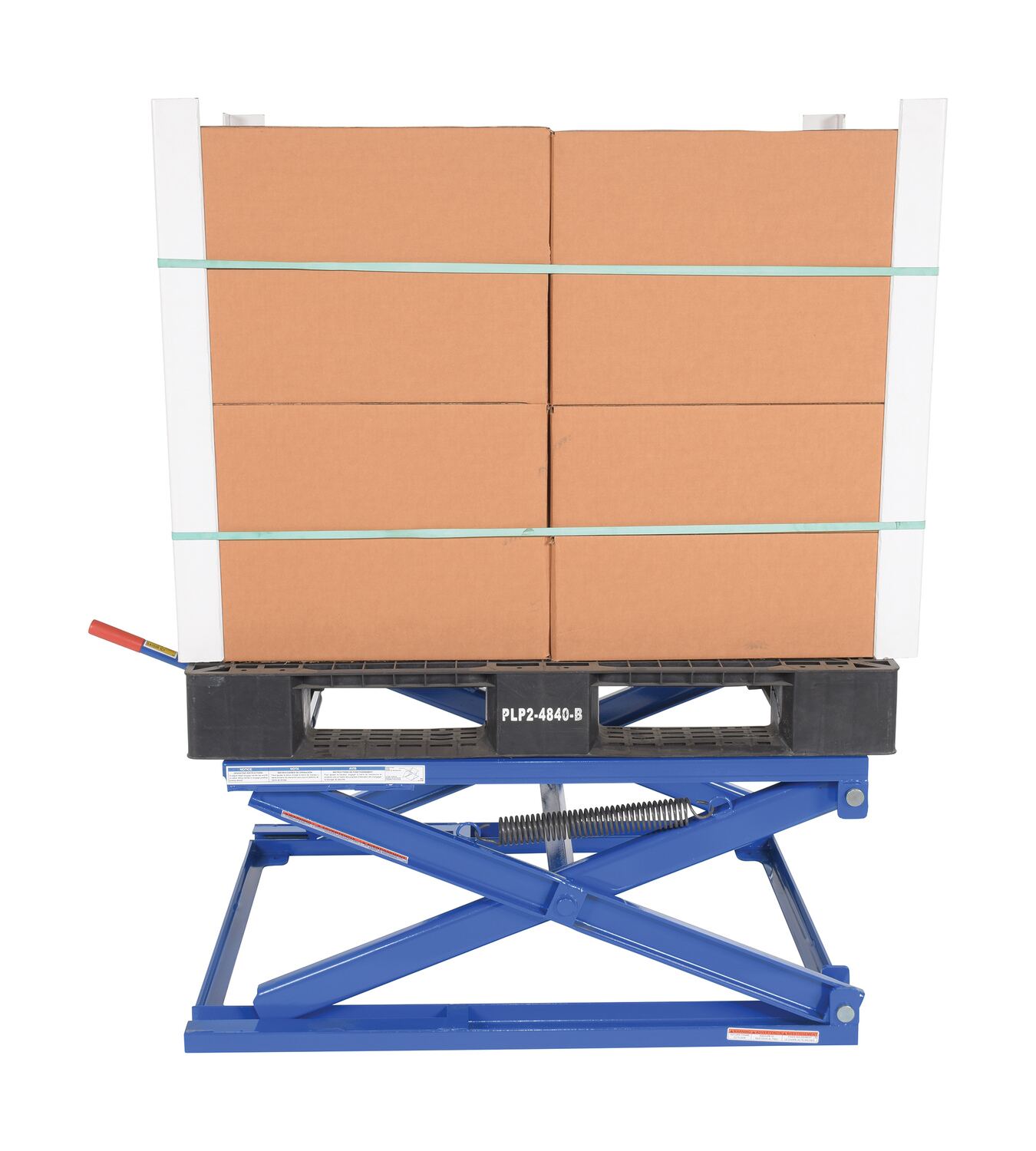

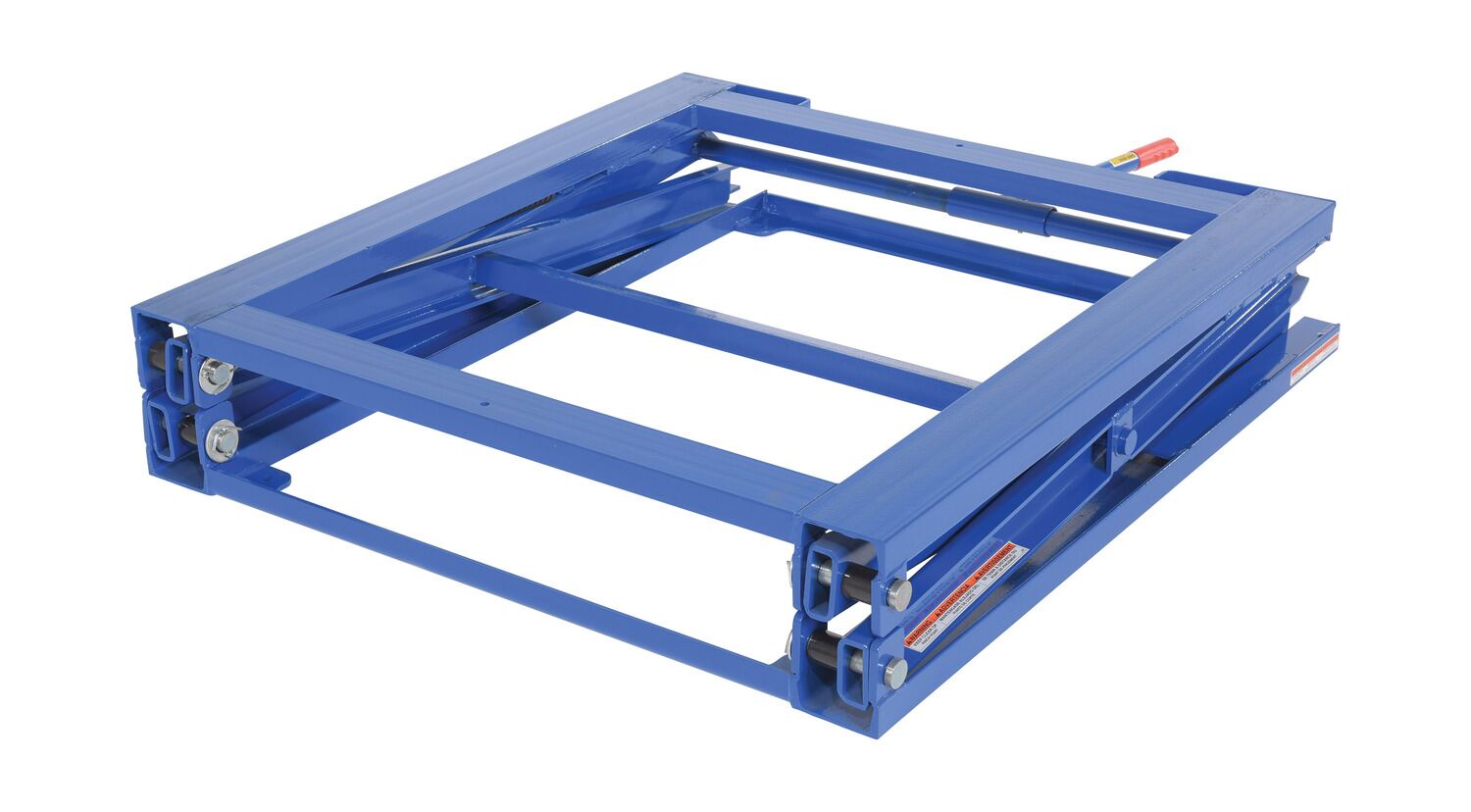

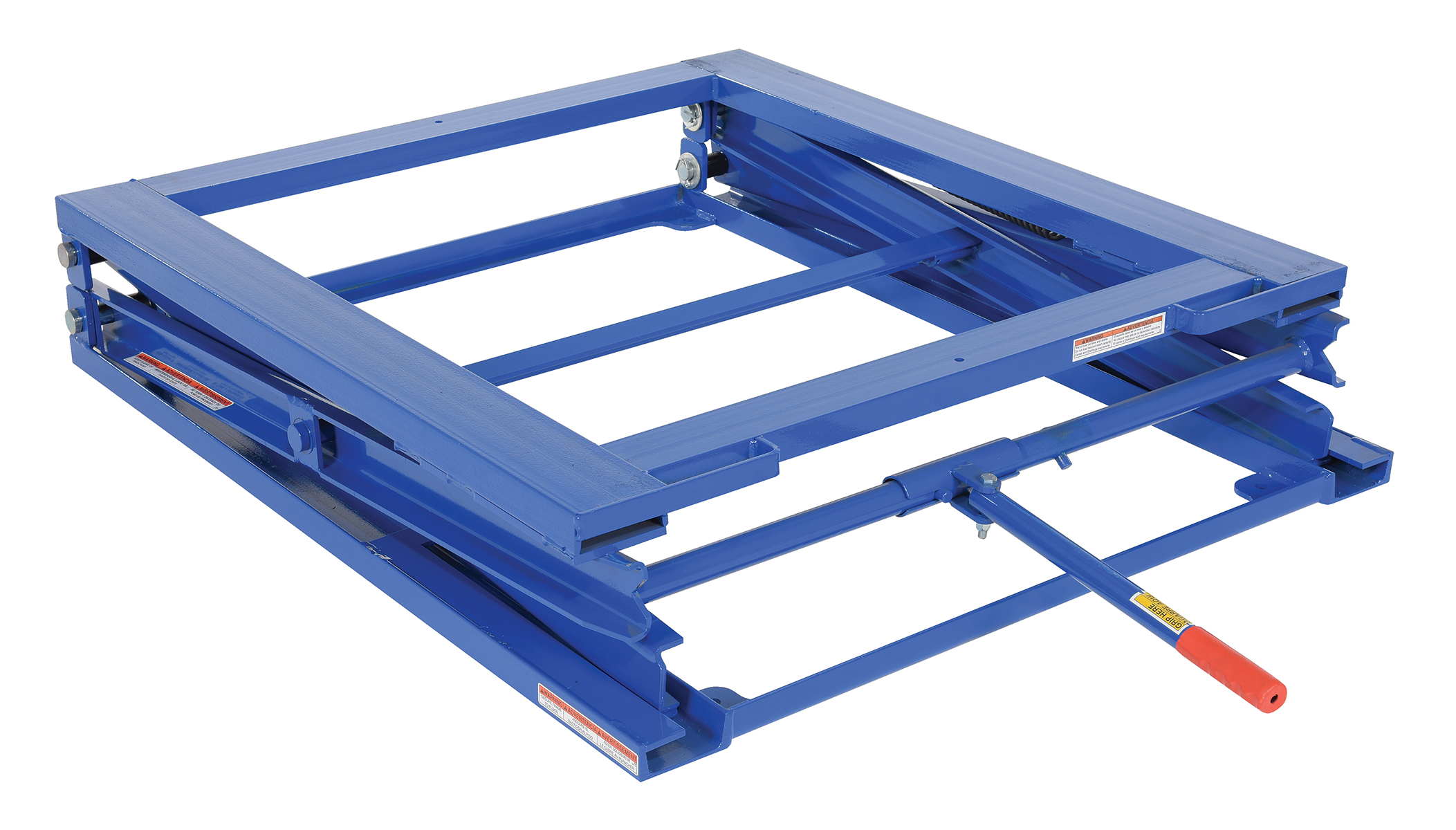

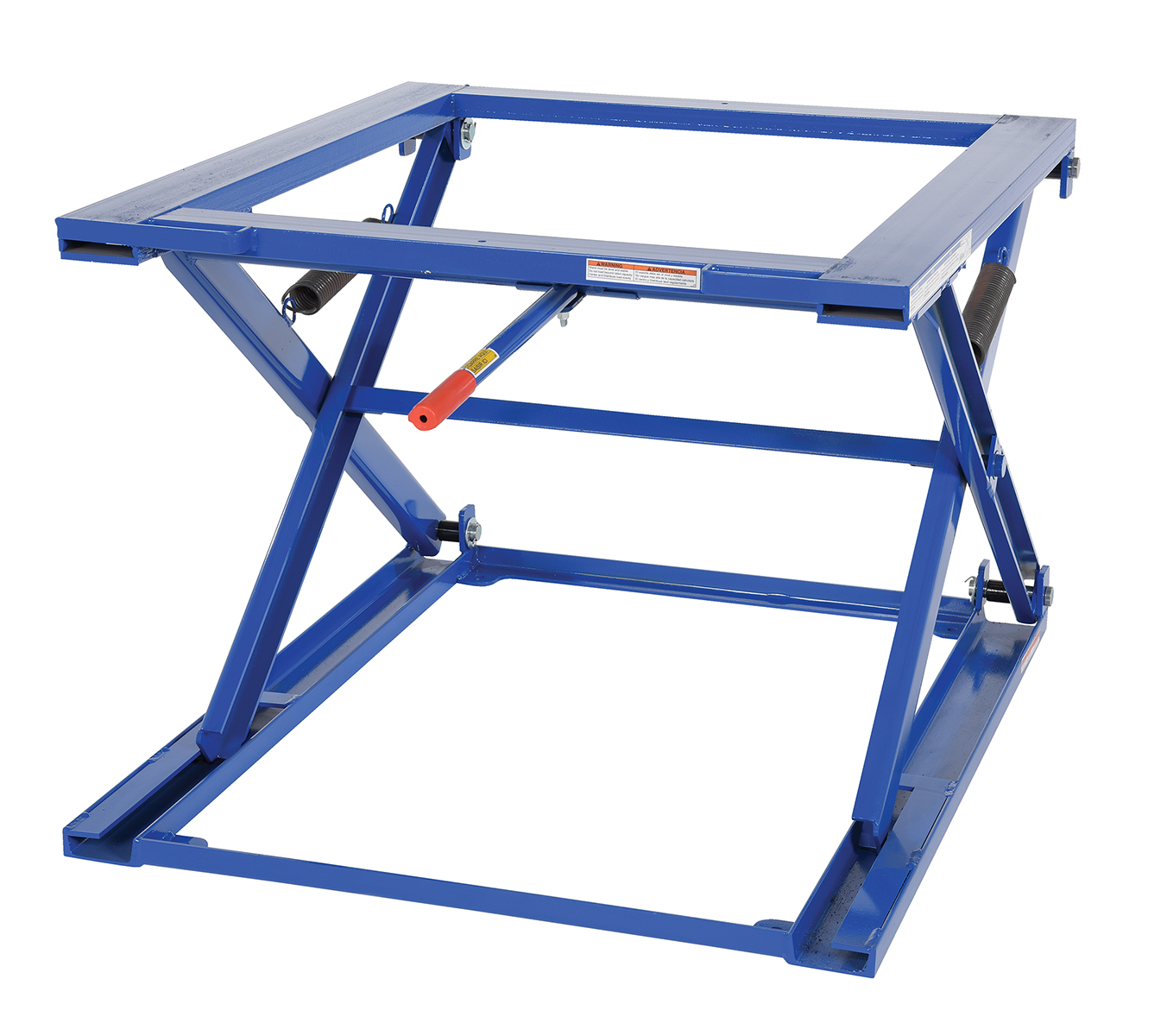

PS-4045_A.jpg PS-4045_B.jpg PS-4045_C.jpg PS-4045_D.jpg PS-4045_E.jpg PS-4045_F.jpg PS-4045_G.jpg More Images +
Adjustable Pallet Stands
SERIES: PS   5Products 1Options
Best Seller Powder Coat Quick Ship Custom Colors Custom Fabrication

Adjustable Height Pallet Stands for Ergonomic Material Handling Workstations

Adjustable height pallet stands provide an ergonomic solution for positioning palletized materials at comfortable working heights in warehouses, assembly lines, packaging stations, and manufacturing facilities. Designed to reduce bending, lifting strain, and repetitive motion fatigue, these industrial pallet positioners improve operator comfort and workflow efficiency during loading, unloading, and assembly tasks.

Key Features & Benefits

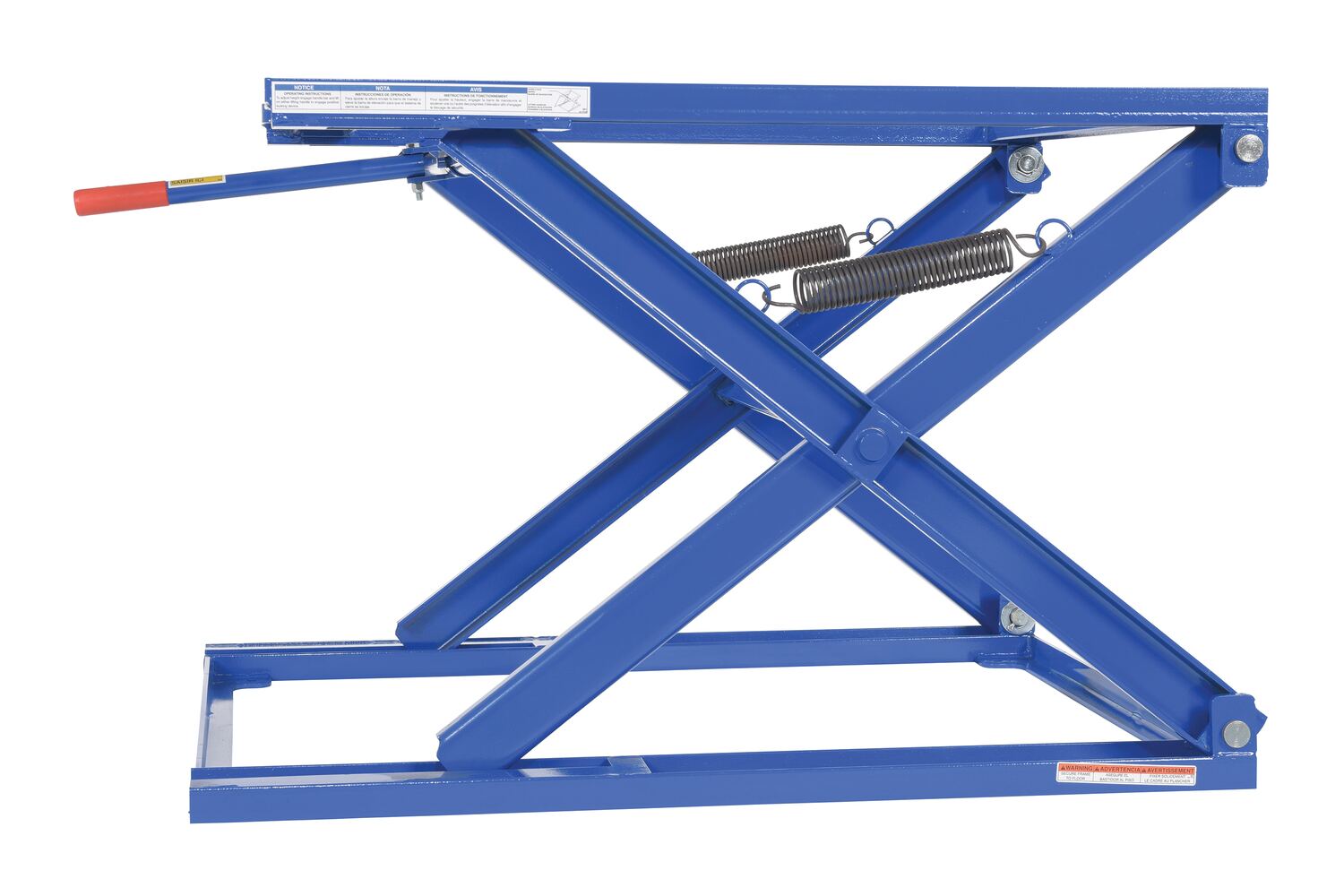

Constructed from rugged welded steel with a durable powder-coated finish, these pallet stands are engineered for dependable long-term use in demanding industrial environments. A built-in spring-assisted manual adjustment system allows operators to easily position the platform at multiple working heights for improved ergonomics and productivity. Select models feature integrated rotating carousel tops that provide 360-degree access to pallet contents, reducing unnecessary reaching and walking during order picking or assembly operations.

Applications & Configurations

Available in stationary, rotating carousel, and mobile caster-equipped configurations, these adjustable pallet stands support a wide range of material handling applications. Optional heavy-duty caster kits improve portability between workstations, while rotating platforms increase efficiency in packaging, sorting, and production environments. High-capacity designs accommodate heavy pallet loads while maintaining stable and secure positioning throughout daily operations.


How To Operate The Unit:

The Handle Bar has three settings. The Middle, or neutral position, for storage. The Left setting for moving the stand from storage position into the first position, and the Right setting is for moving the stand from first position to the second or third position.

  1. Slide Handle Bar from the Middle position either Left or Right, depending on the position needed, and lift up on lift handles.
  2. Once unit is at desired height put the Handle Bar back into the Middle or neutral position.
  3. Align/set pallet evenly onto stand.
  4. The pallet MUST BE REMOVED before adjusting stand to another work height.
Adjustable Pallet Stands

model: PS-4045

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
PS-4045
PS-4045-CK
PS-4045/CA
PS-4045/CA-CK
PS-RF-CK
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

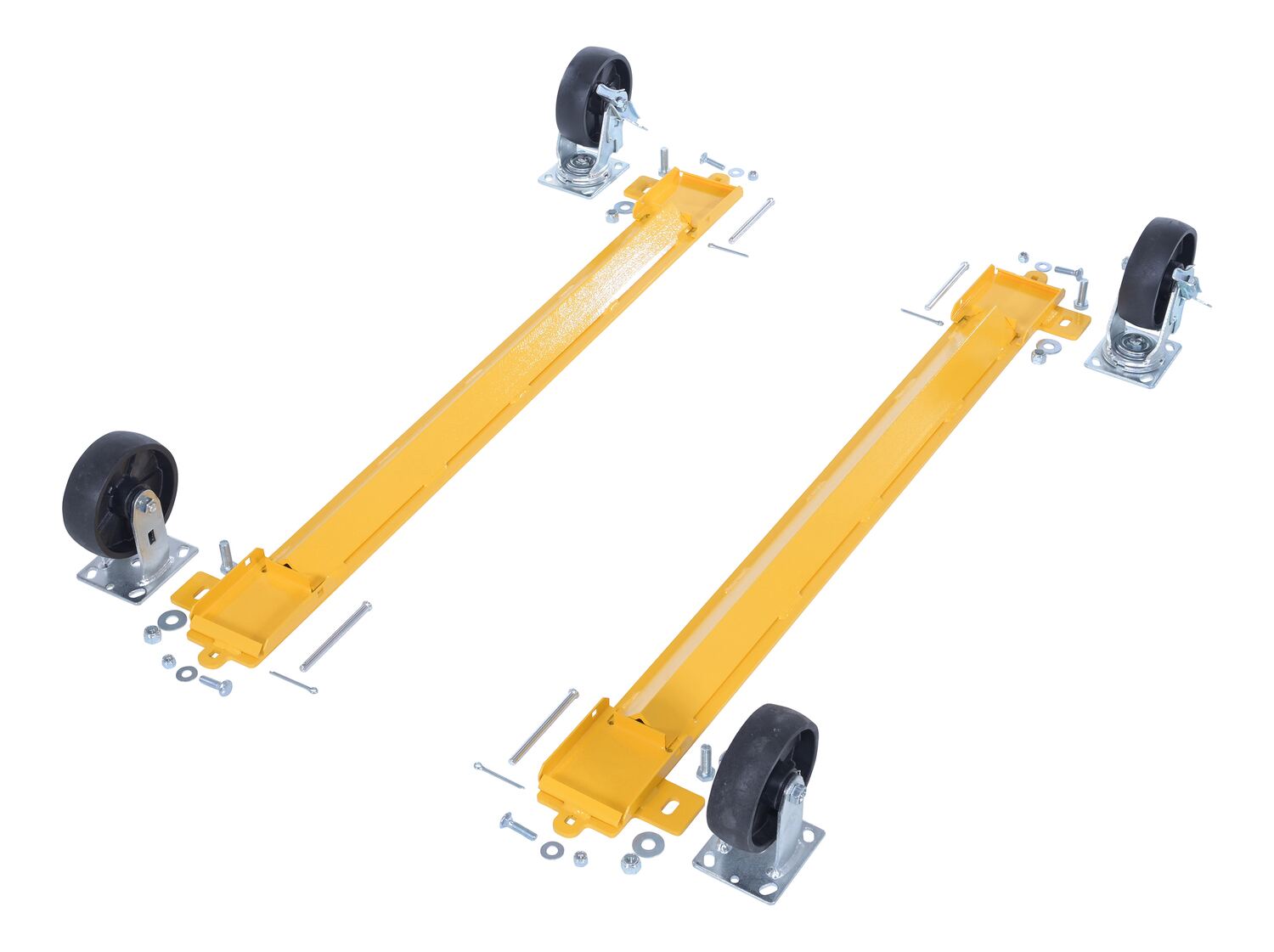

PS-RF-CK PS-RF-CK Glass Filled Nylon Caster Kit 6 In x 2 In For Adjustable Pal… 90 Days Limited Warranty 60

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

PS-4045

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

PS-4045

PS-4045-CK

PS-4045/CA

PS-4045/CA-CK

PS-RF-CK

Testing Certificates

PS-4045

PS-4045-CK

PS-4045/CA

PS-4045/CA-CK

PS-RF-CK

SDS Sheets


Hydraulic Oil
PS-4045 SDS


Hydraulic Oil
PS-4045/CA SDS


Hydraulic Oil
PS-4045/CA-CK SDS


Hydraulic Oil
PS-4045-CK SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Applications



Packaging Areas

Postal Services

Warehouses

Related or Similar Products:

More From Elevating Lift Carts





Adjustable Pallet Stands




Adjustable Height Pallet Stands for Ergonomic Material Handling Workstations

Adjustable height pallet stands provide an ergonomic solution for positioning palletized materials at comfortable working heights in warehouses, assembly lines, packaging stations, and manufacturing facilities. Designed to reduce bending, lifting strain, and repetitive motion fatigue, these industrial pallet positioners improve operator comfort and workflow efficiency during loading, unloading, and assembly tasks.

Key Features & Benefits

Constructed from rugged welded steel with a durable powder-coated finish, these pallet stands are engineered for dependable long-term use in demanding industrial environments. A built-in spring-assisted manual adjustment system allows operators to easily position the platform at multiple working heights for improved ergonomics and productivity. Select models feature integrated rotating carousel tops that provide 360-degree access to pallet contents, reducing unnecessary reaching and walking during order picking or assembly operations.

Applications & Configurations

Available in stationary, rotating carousel, and mobile caster-equipped configurations, these adjustable pallet stands support a wide range of material handling applications. Optional heavy-duty caster kits improve portability between workstations, while rotating platforms increase efficiency in packaging, sorting, and production environments. High-capacity designs accommodate heavy pallet loads while maintaining stable and secure positioning throughout daily operations.


How To Operate The Unit:

The Handle Bar has three settings. The Middle, or neutral position, for storage. The Left setting for moving the stand from storage position into the first position, and the Right setting is for moving the stand from first position to the second or third position.

  1. Slide Handle Bar from the Middle position either Left or Right, depending on the position needed, and lift up on lift handles.
  2. Once unit is at desired height put the Handle Bar back into the Middle or neutral position.
  3. Align/set pallet evenly onto stand.
  4. The pallet MUST BE REMOVED before adjusting stand to another work height.

Model # Description Attributes Net Wt.
(lbs)
PS-4045 PS-4045Steel Adjustable Pallet Stand 45-3/4 In. x 40-1/2 In. x 9 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Lowered Height (in.): 9		253

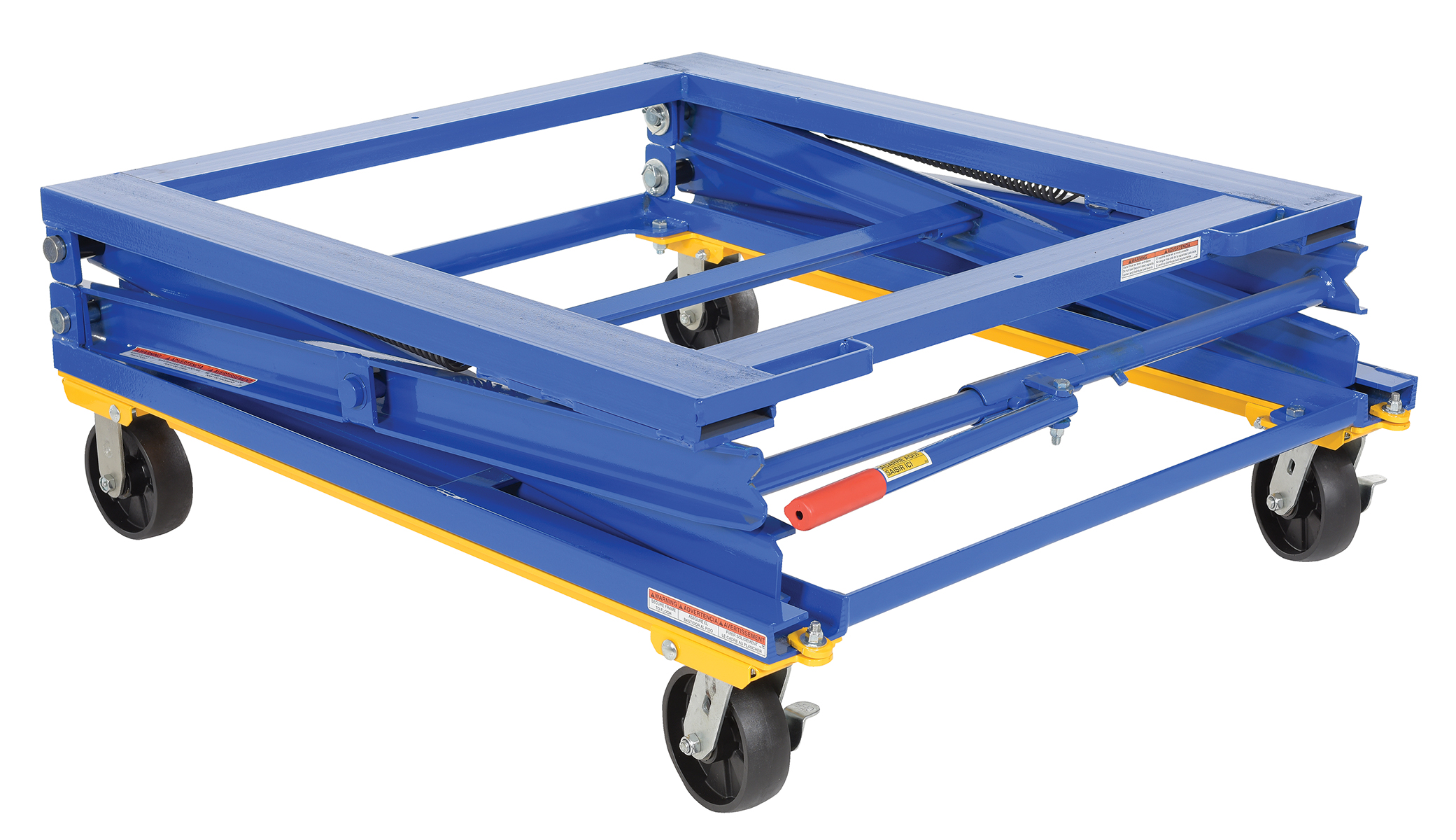

PS-4045-CK PS-4045-CKSteel Adjustable Pallet Stand with Casters 48-13/16 In. x 40-1/2 In. x 16-13/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 16-13/16		320

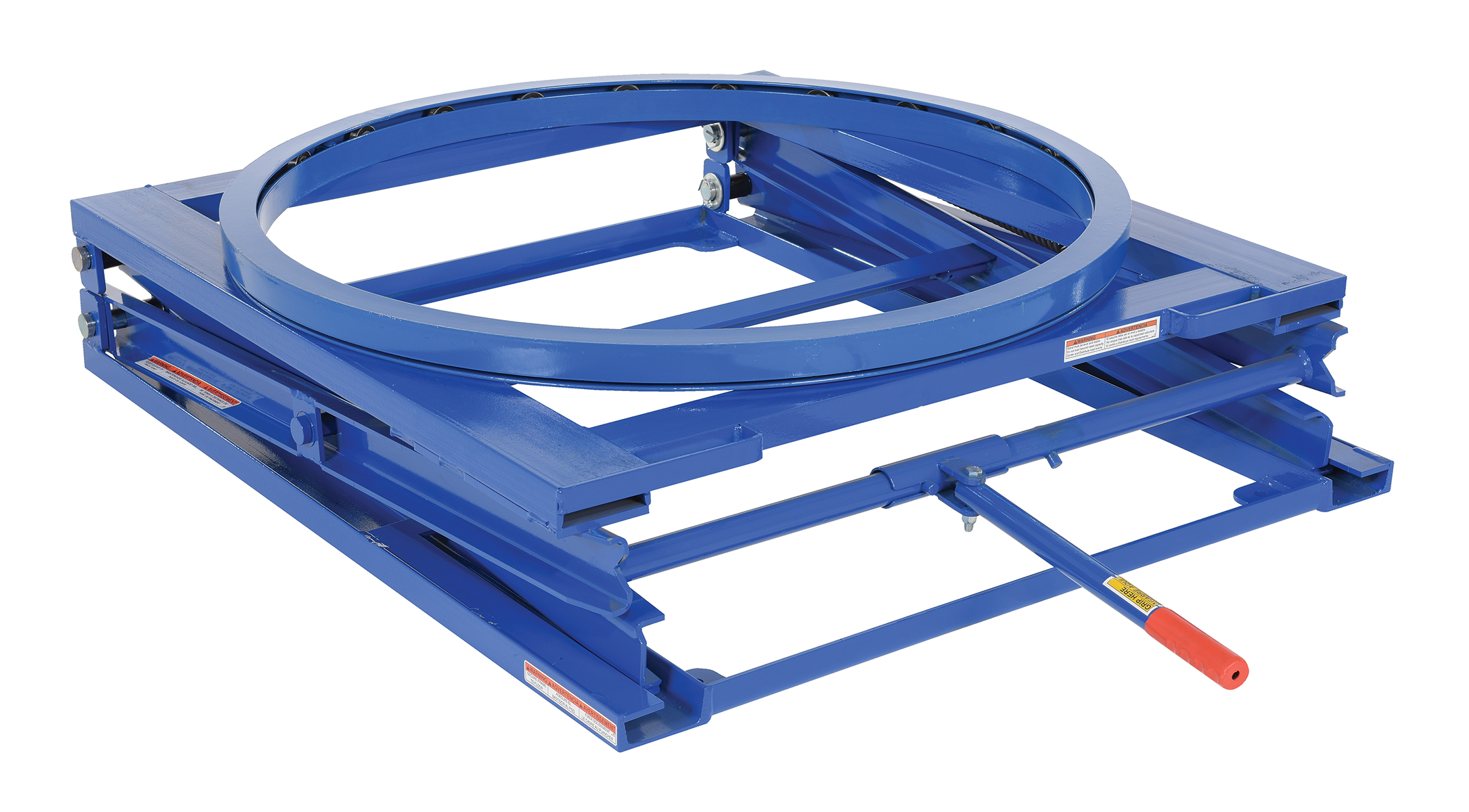

PS-4045/CA PS-4045/CASteel Adjustable Pallet Carousel Stand 45-3/4 In. x 40-1/2 In. x 11 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Lowered Height (in.): 11		312

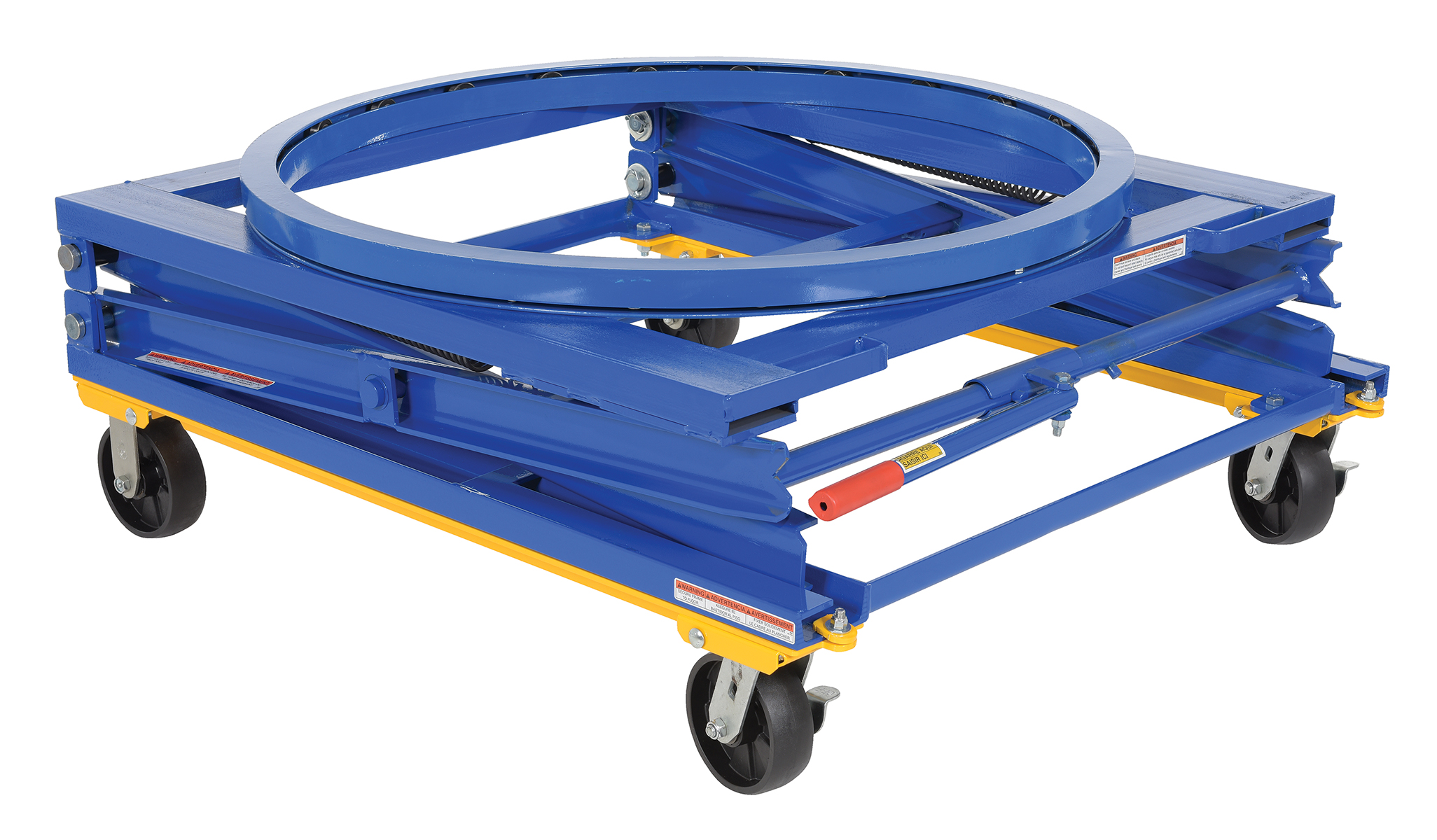

PS-4045/CA-CK PS-4045/CA-CKSteel Adjustable Pallet Carousel Stand with Casters 48-13/16 In. x 40-1/2 In. x 18-13/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 18-13/16		333
