Portable Hand Winch Lifter| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| HWL-330 |  | 90 Days Limited Warranty | Steel Portable Hand Winch Lifter 330 Lb. Capacity Yellow / Black | Uniform Capacity (lb.): 330 Fork Length (in.): 19-1/2 | 213 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The maximum operating lift height is 43.5"
A: The maximum width between lifting arms without the platform is 15¾”
A: Yes, it comes assembled.
|
||||||||||||
Portable Hand Winch Lifter |
||||||||||||
 |
||||||||||||

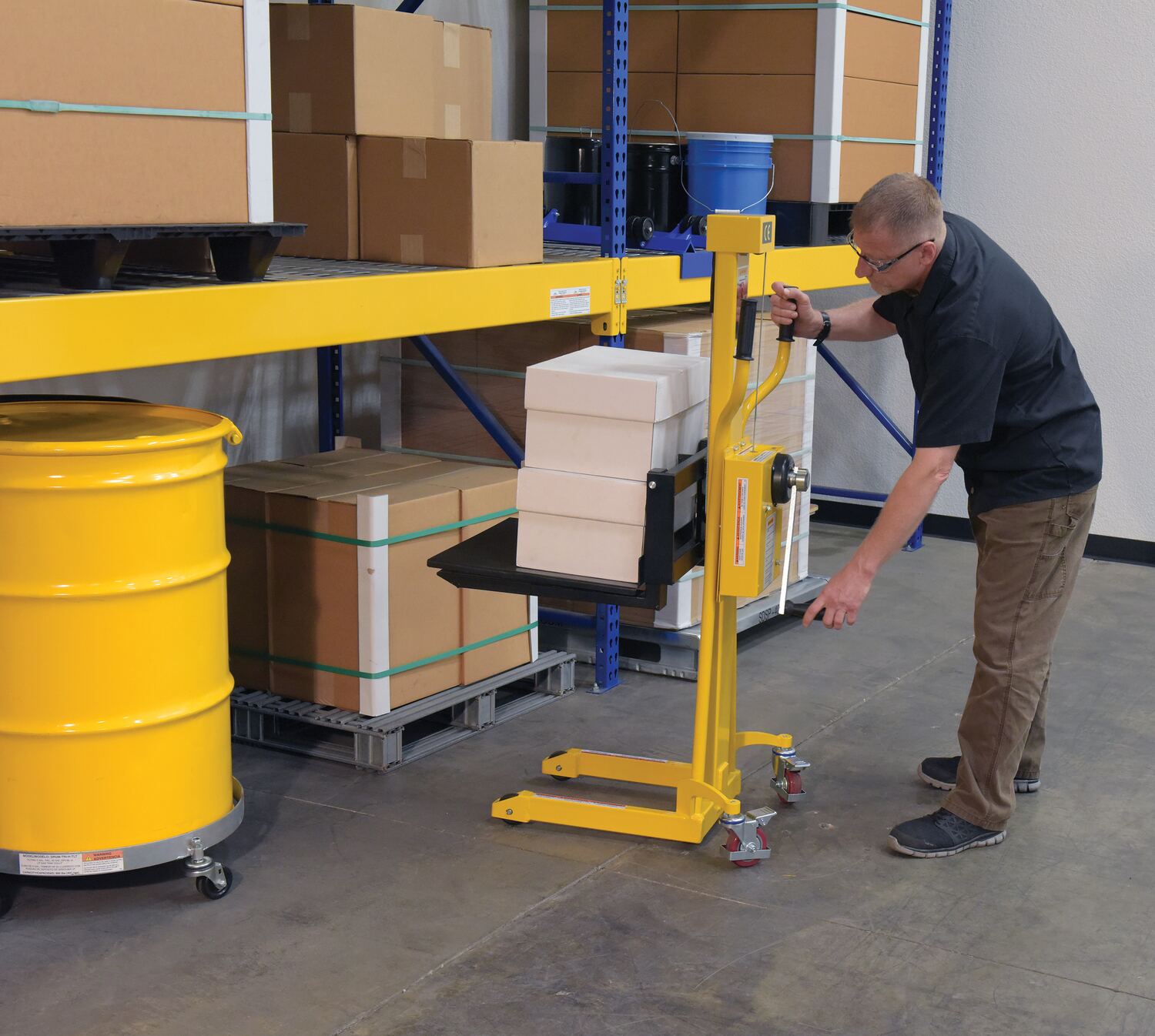

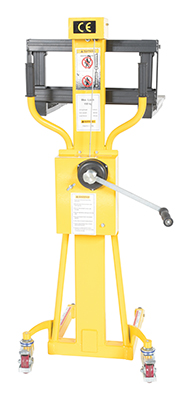

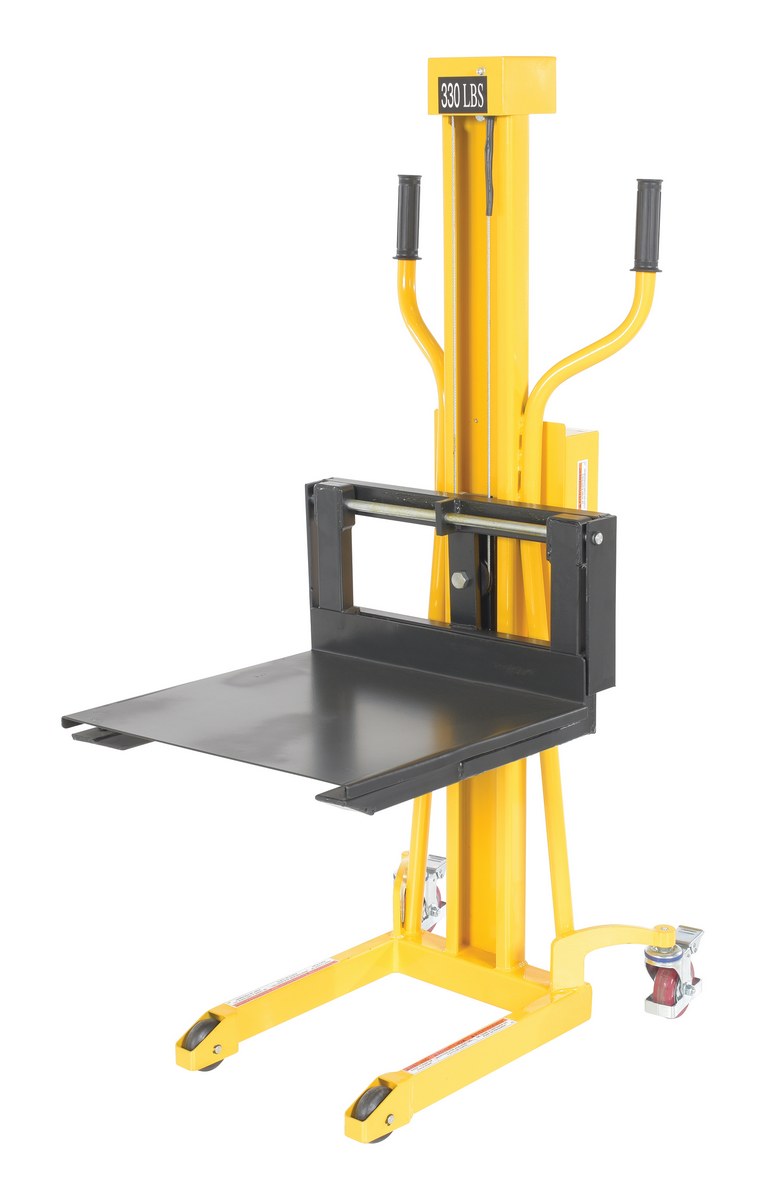

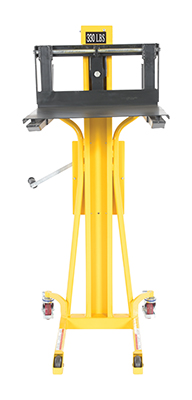

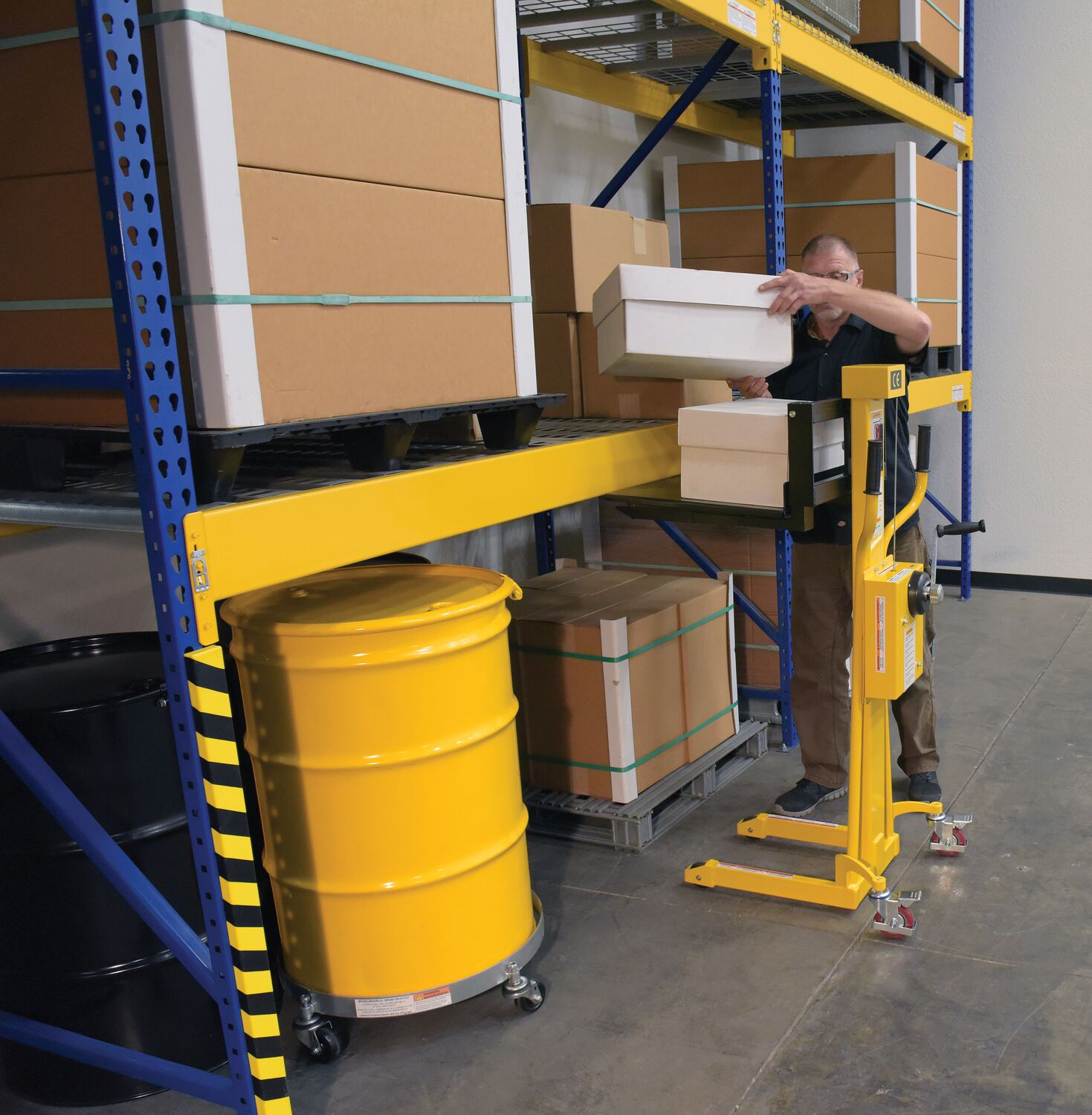

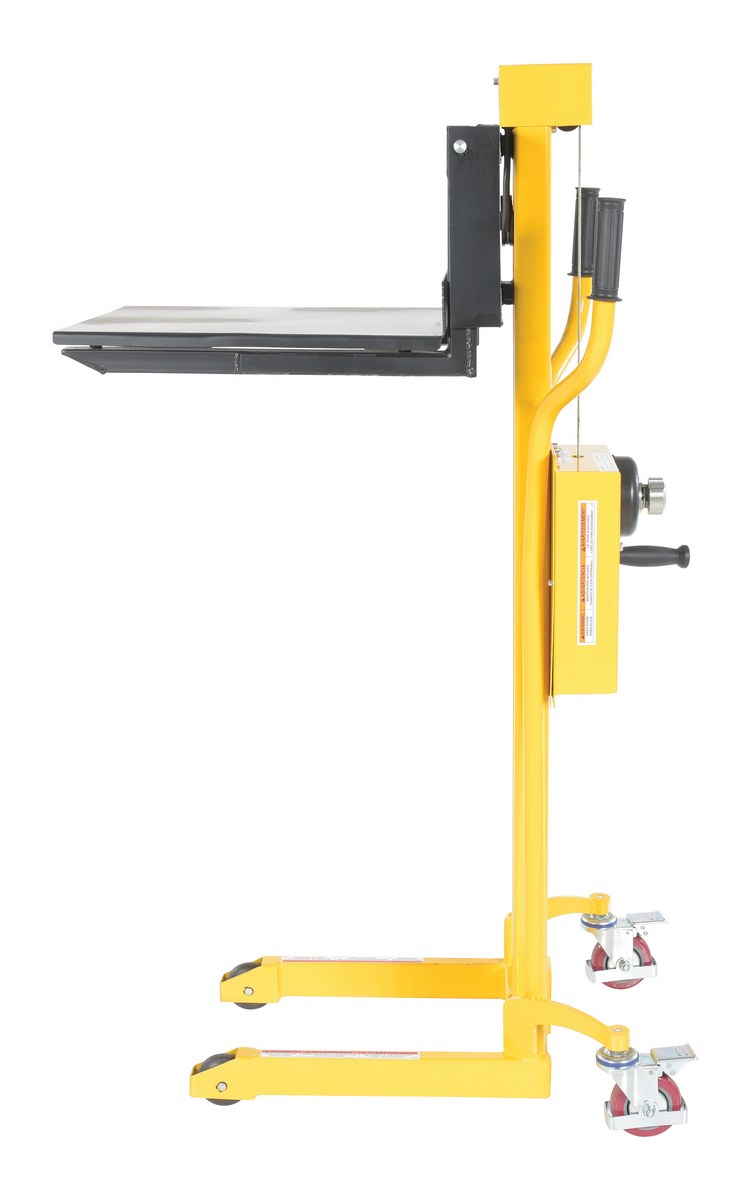

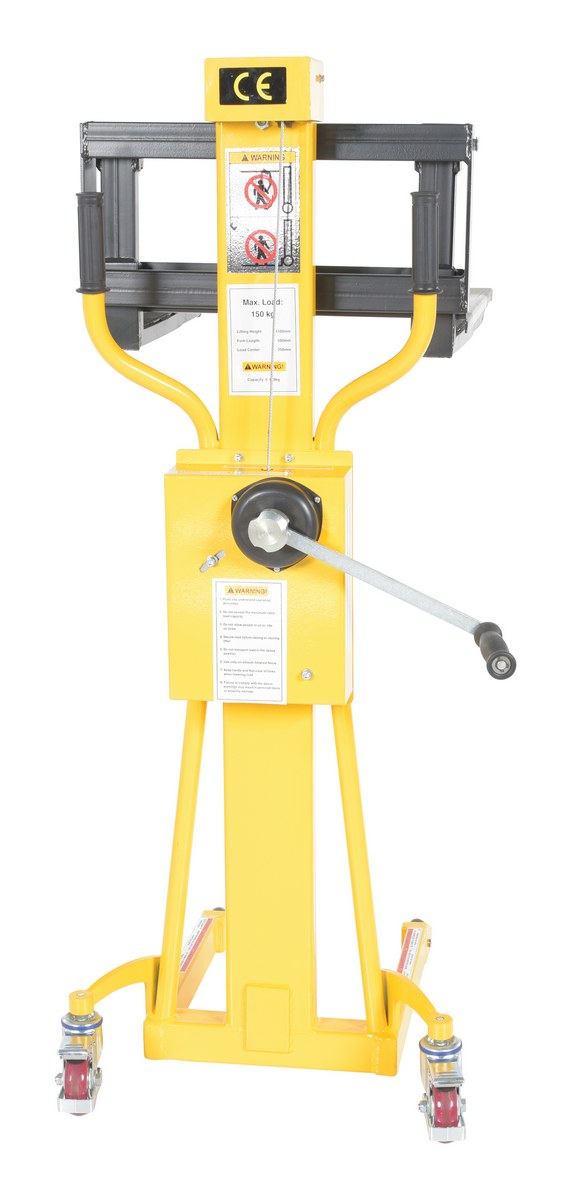

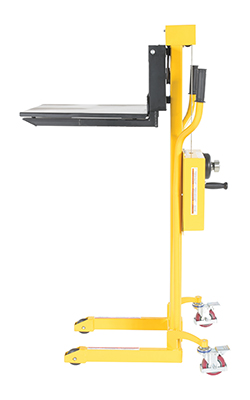

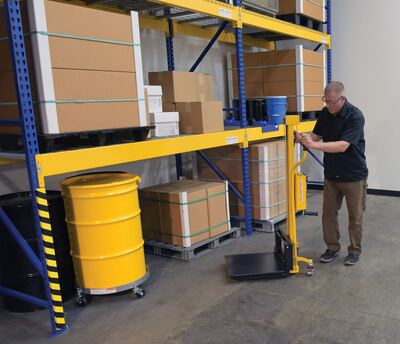

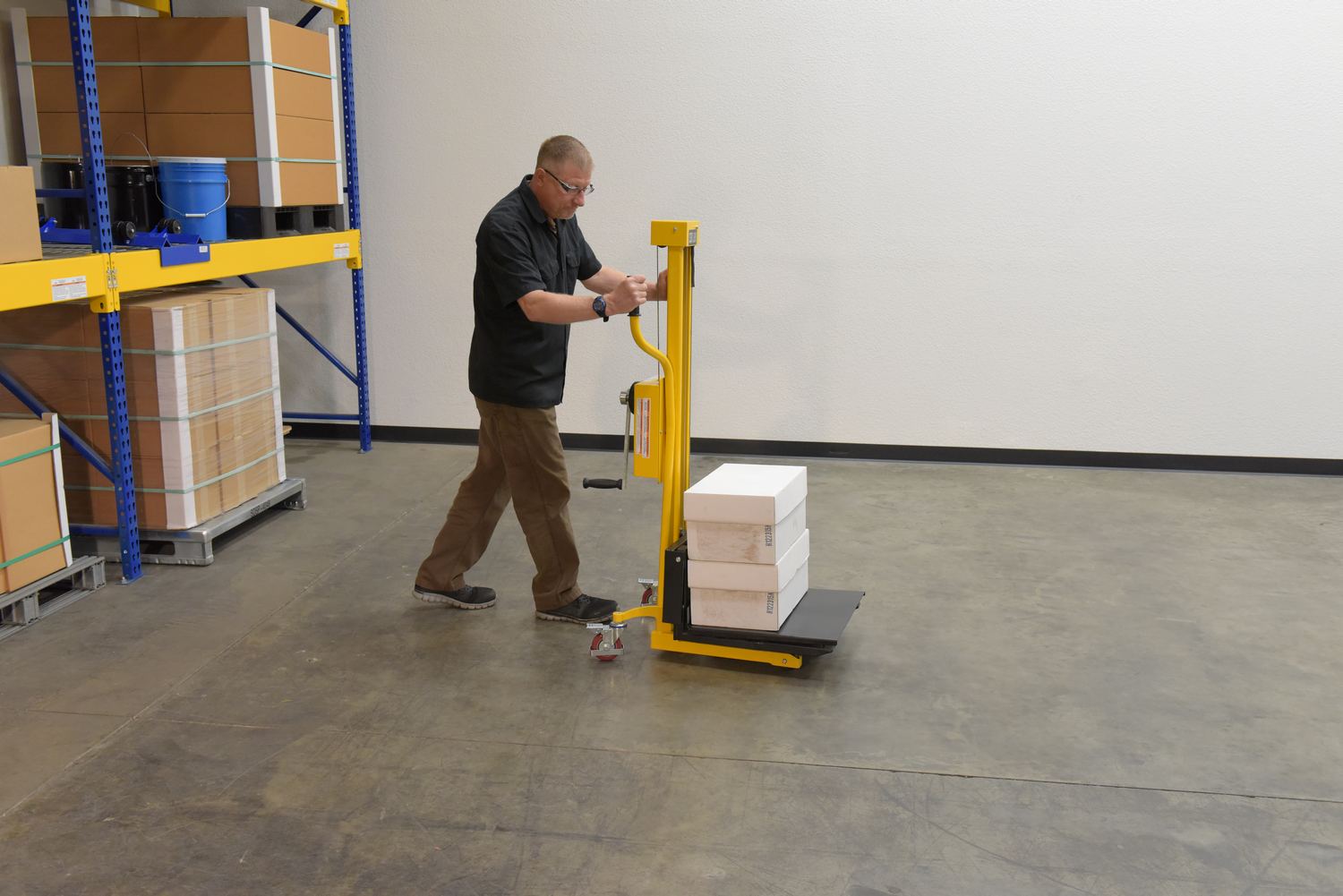

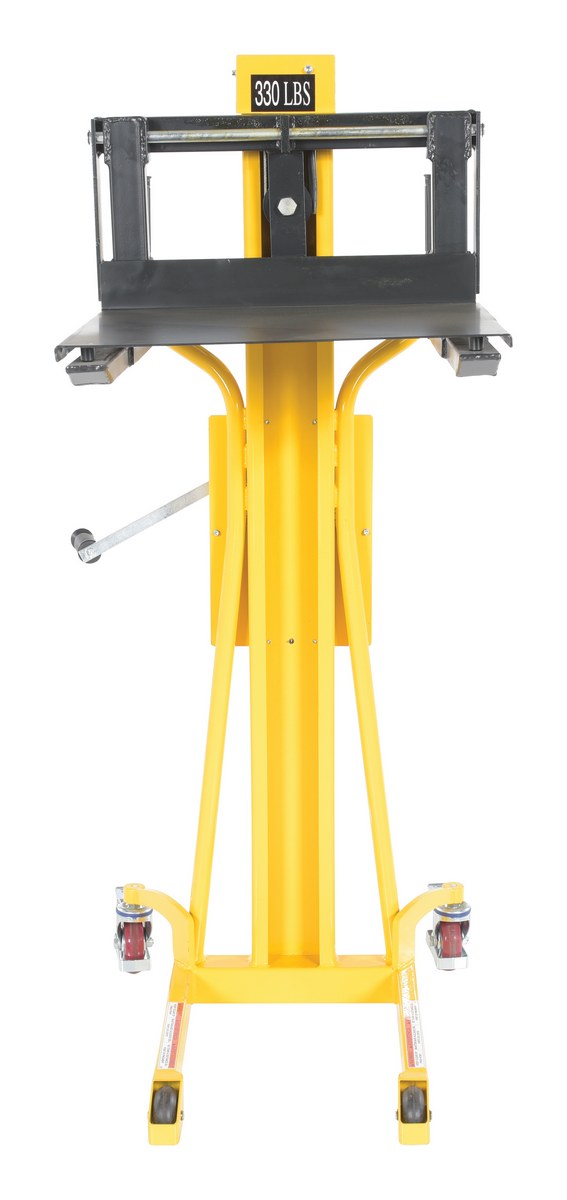

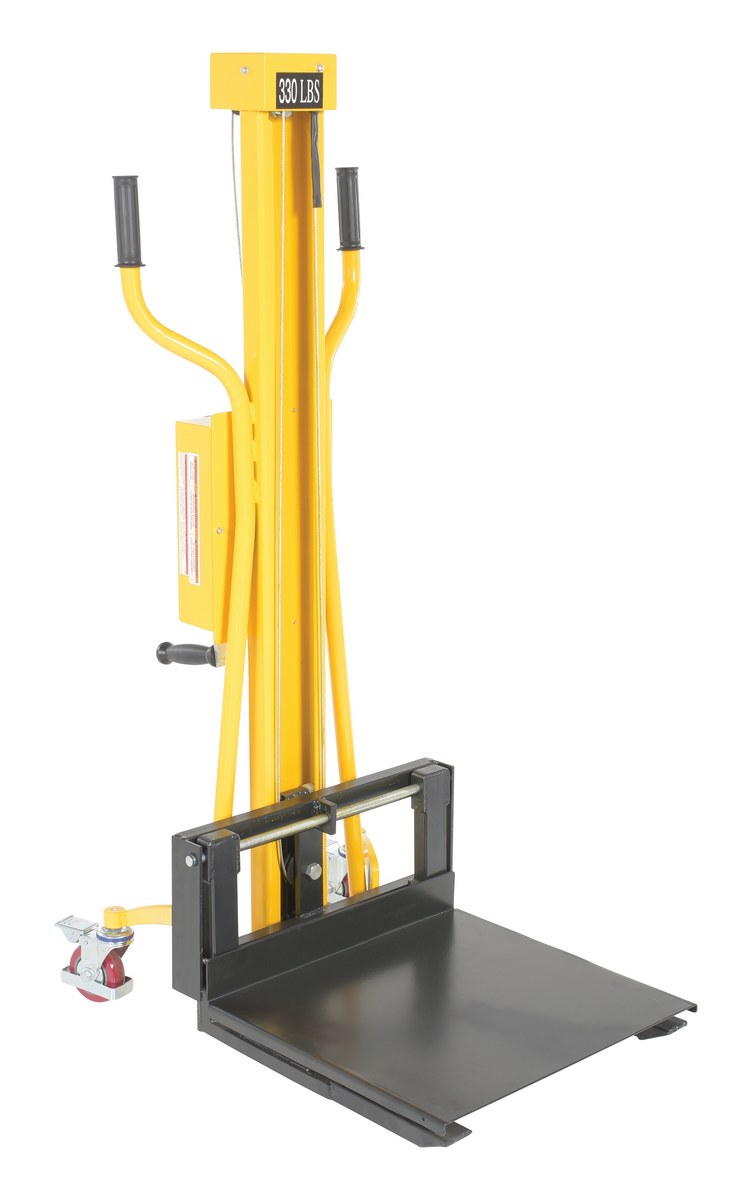

This lift is easy to maneuver with 4" x 1" wheels, two rigid, two locking swivel. Features a removable platform with adjustable forks underneath for increased versatility. Platform size is 21" wide by 19-1/2" long. The handle length on the hand crank may be adjusted to increase or decrease lifting/lowering speeds. Lifts 2-1/2" per rotation.
|
||||||||||||
 |
||||||||||||
|
||||||||||||
