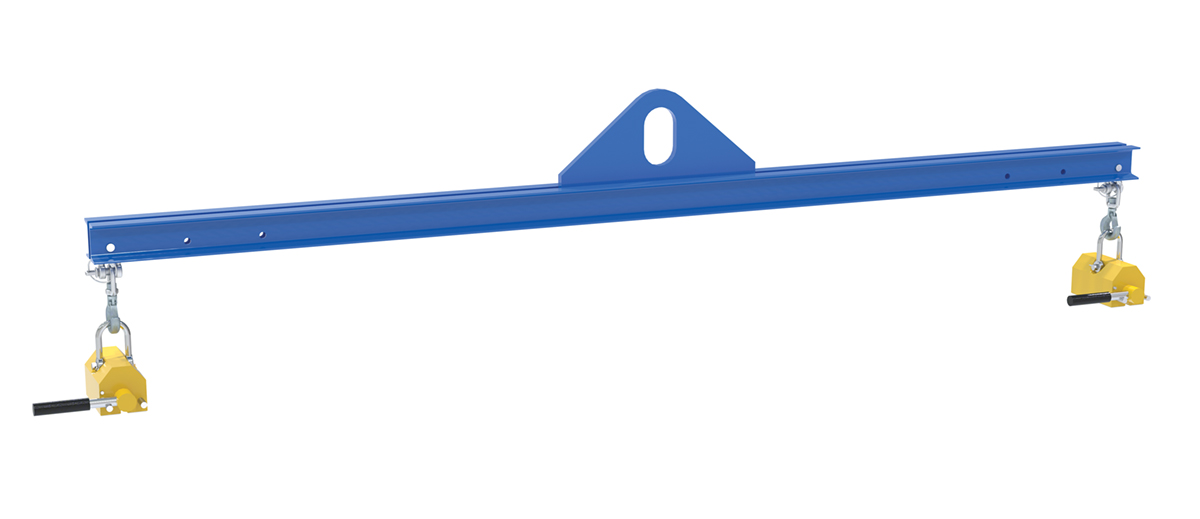

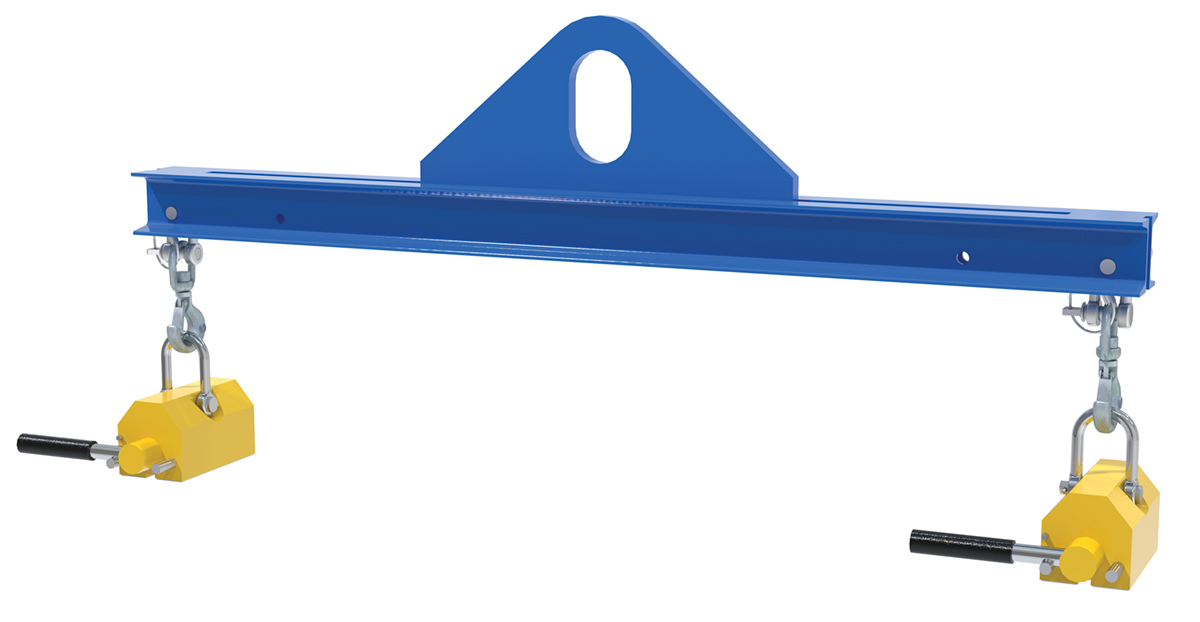

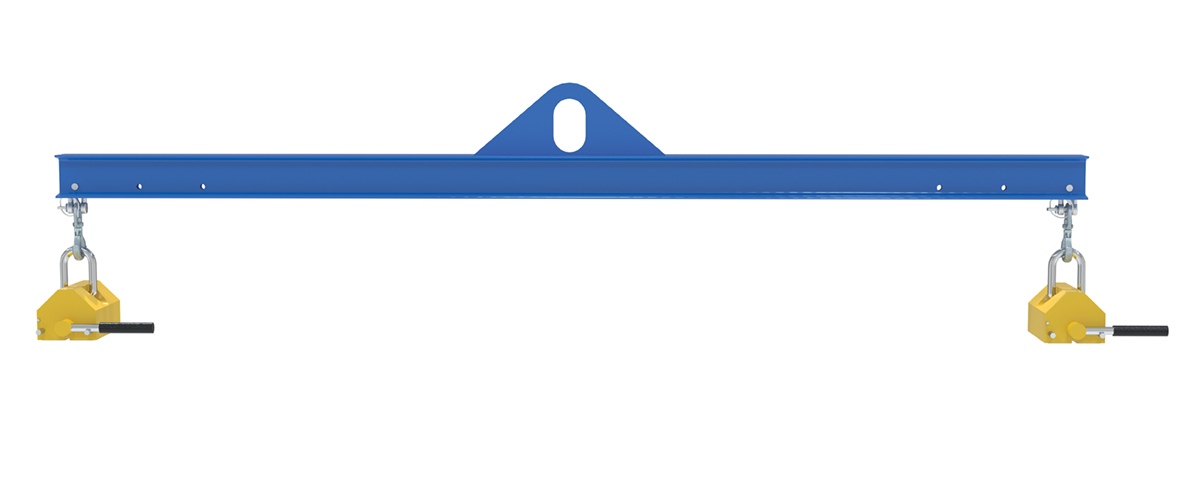

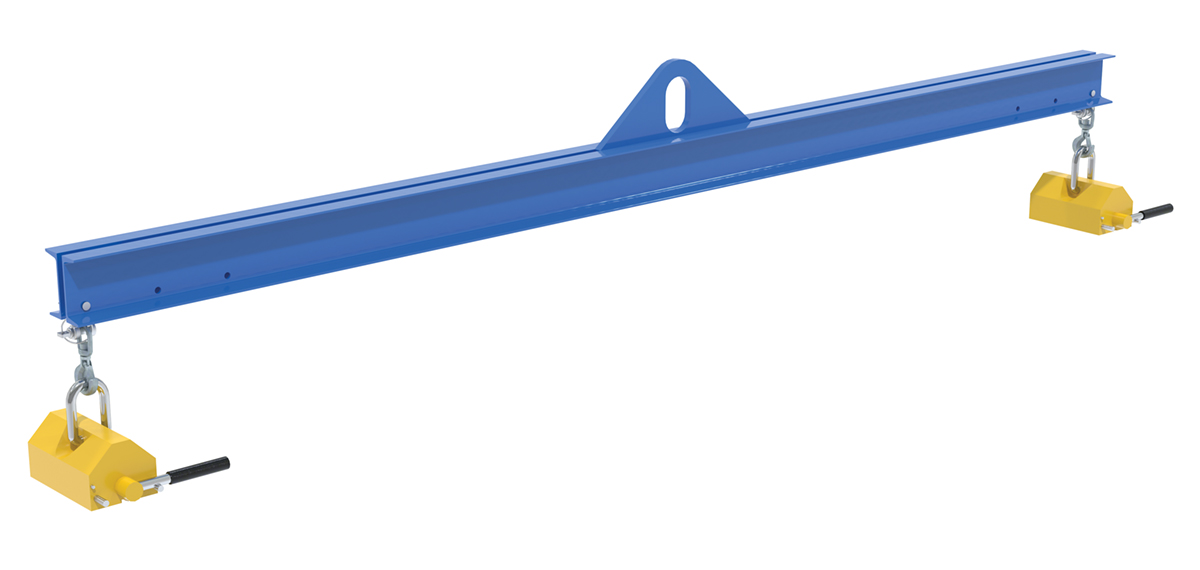

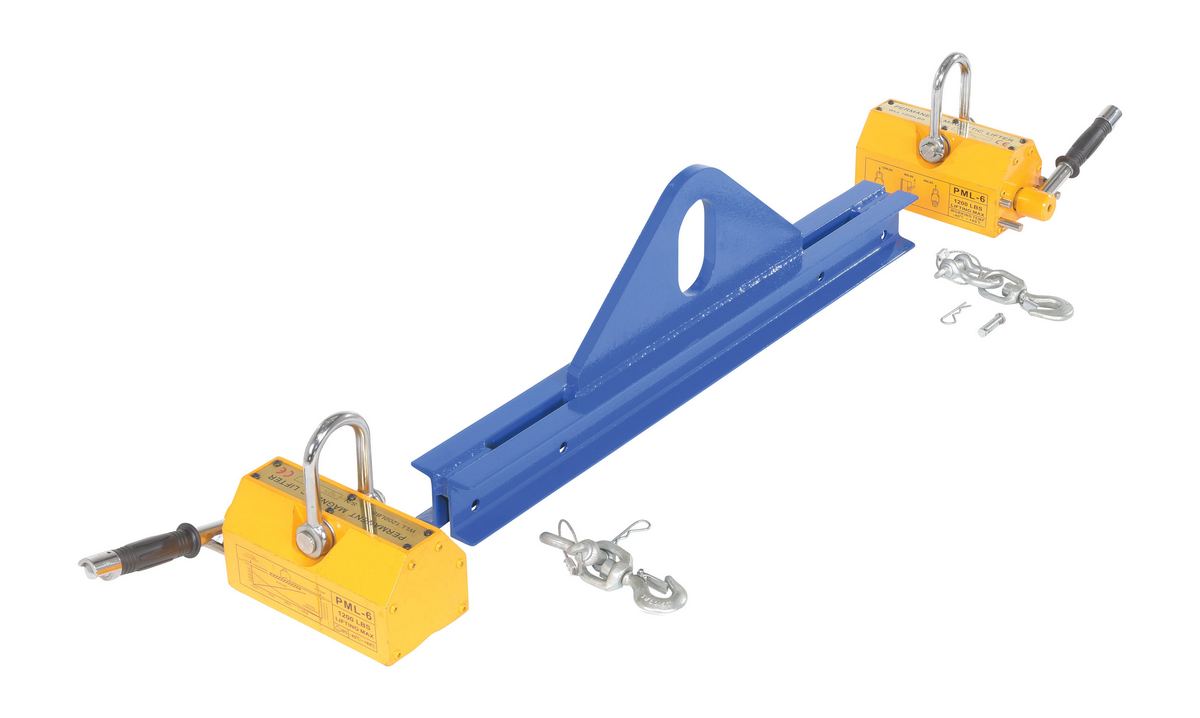

Magnetic Spreader Beams

model: SBM-20-3-ML

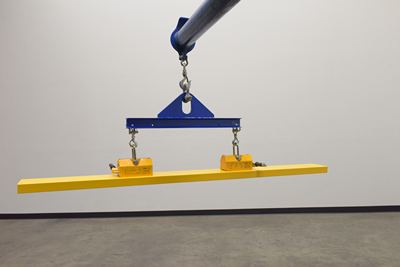

SBM-20-3-ML_A.jpg SBM-20-3-ML_B.jpg SBM-20-3-ML_C.jpg SBM-20-3-ML_D.jpg SBM-20-3-ML_E.jpg SBM-20-3-ML_F.jpg SBM-20-3-ML_G.jpg SBM-20-3-ML_H.jpg More Images +
Magnetic Spreader Beams
SERIES: SBM-ML

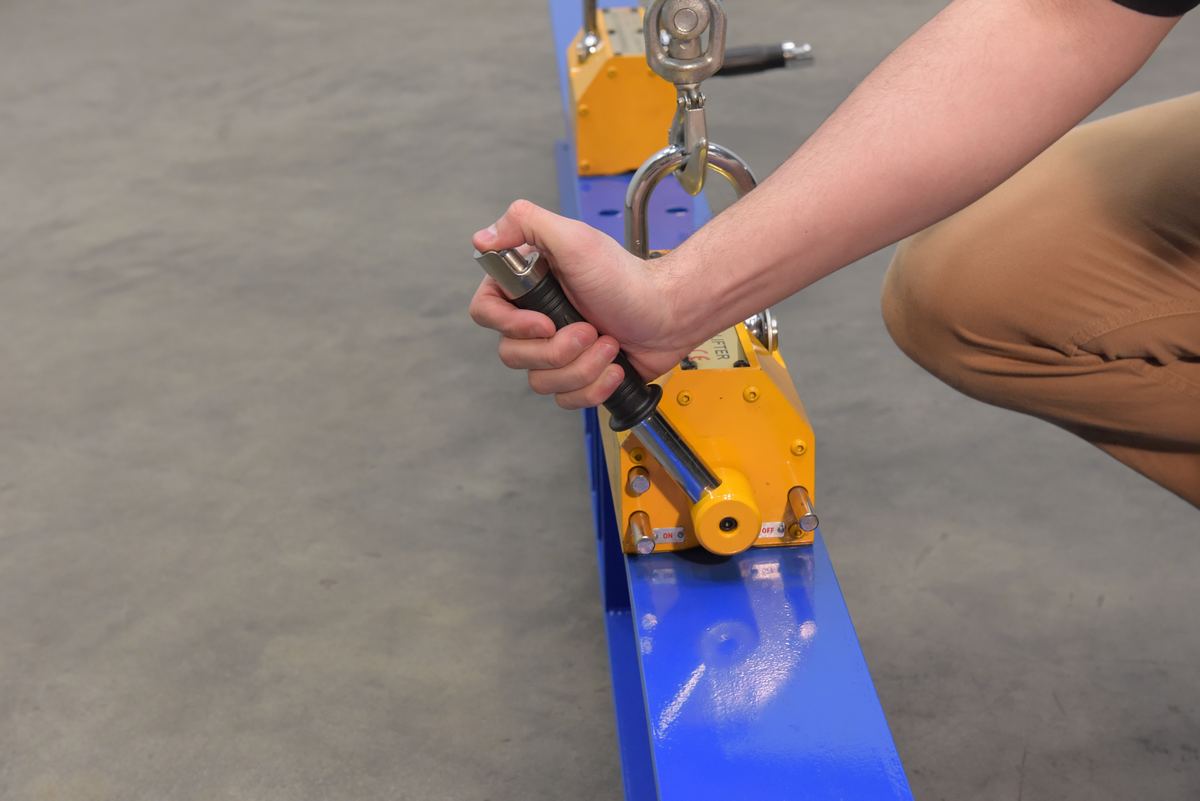

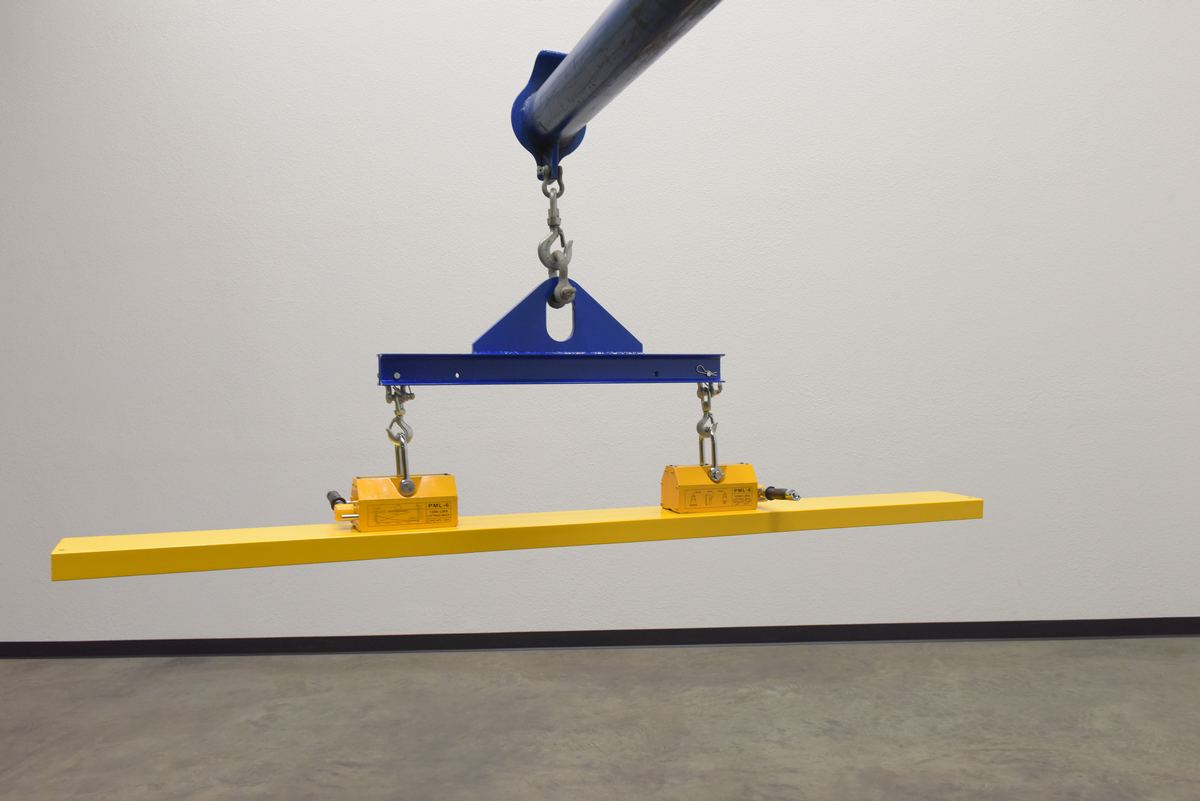

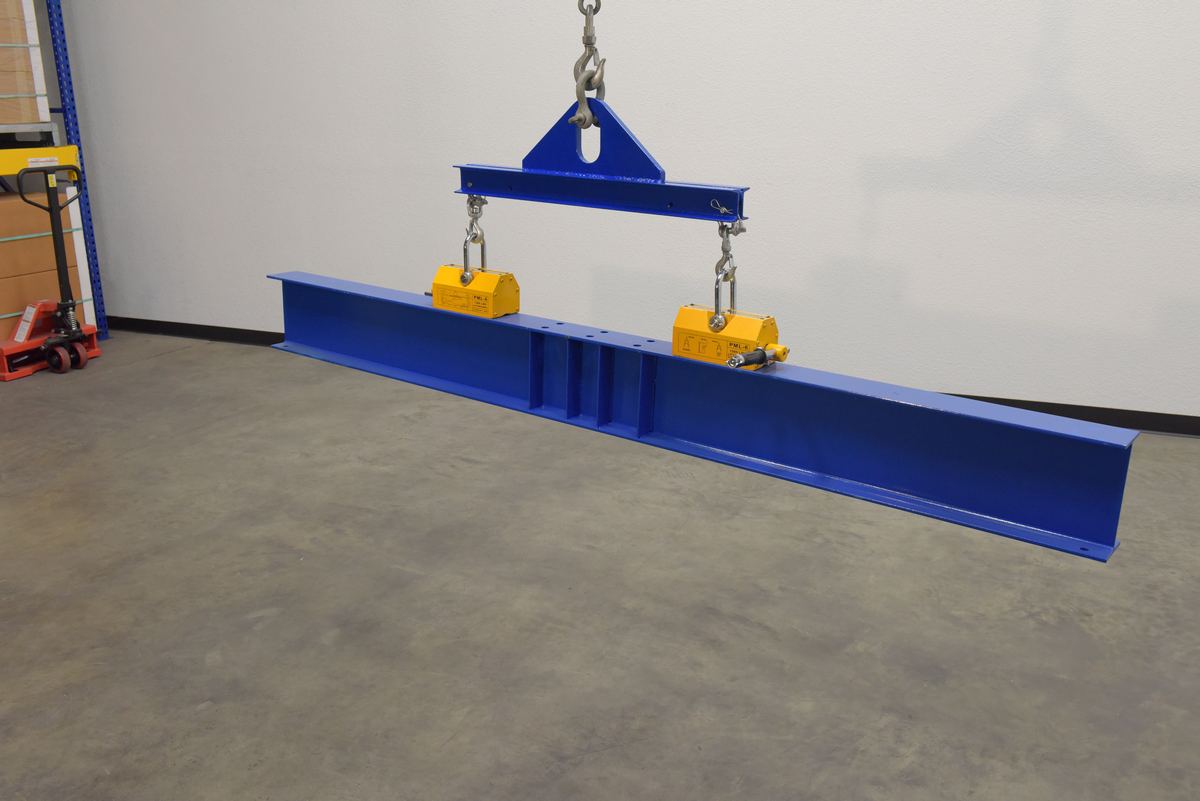

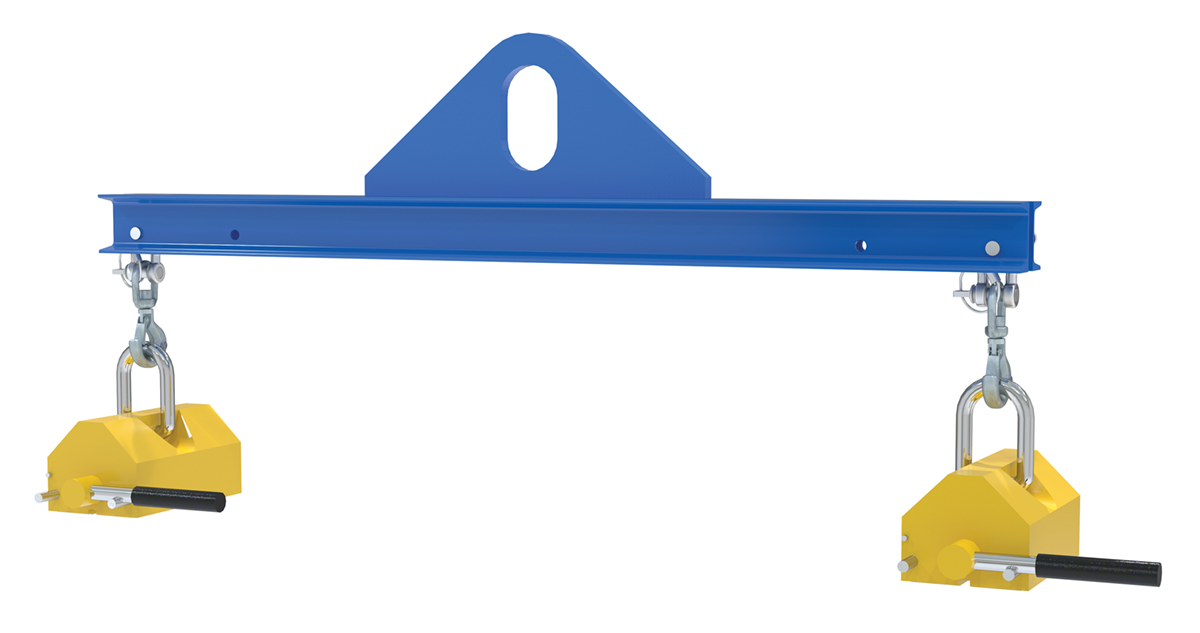

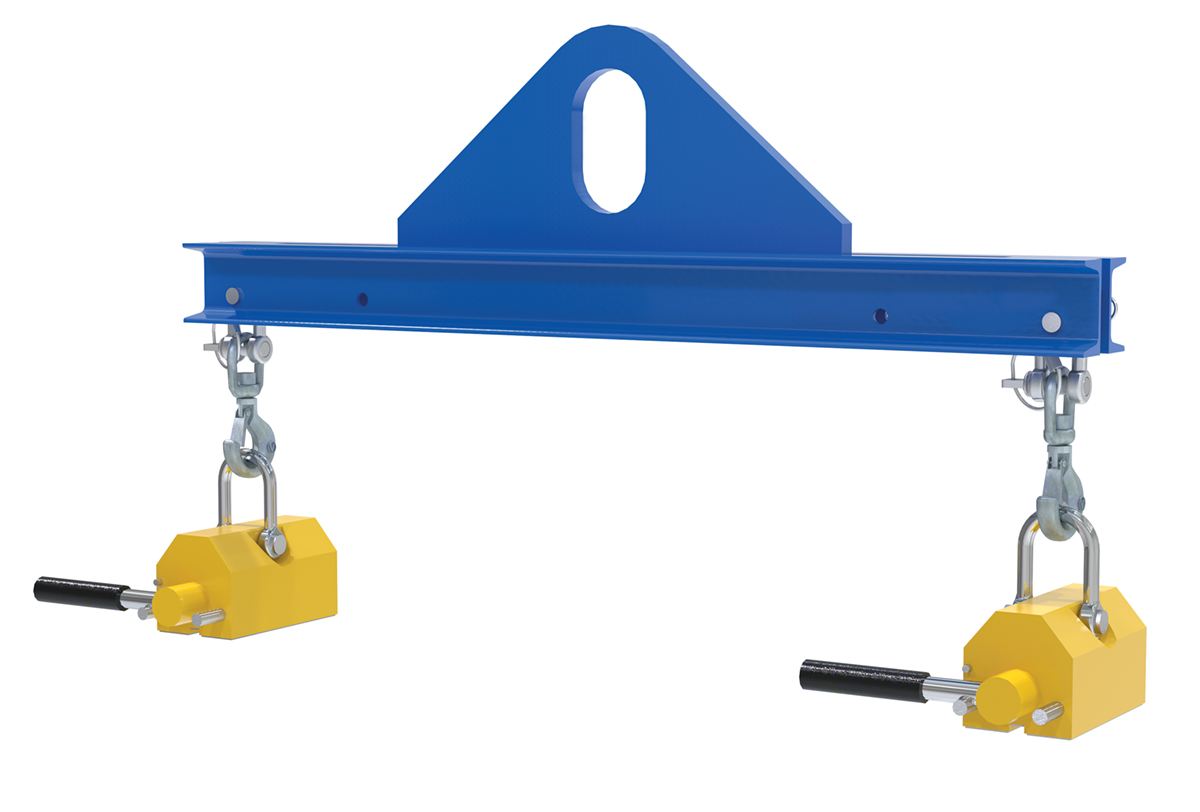

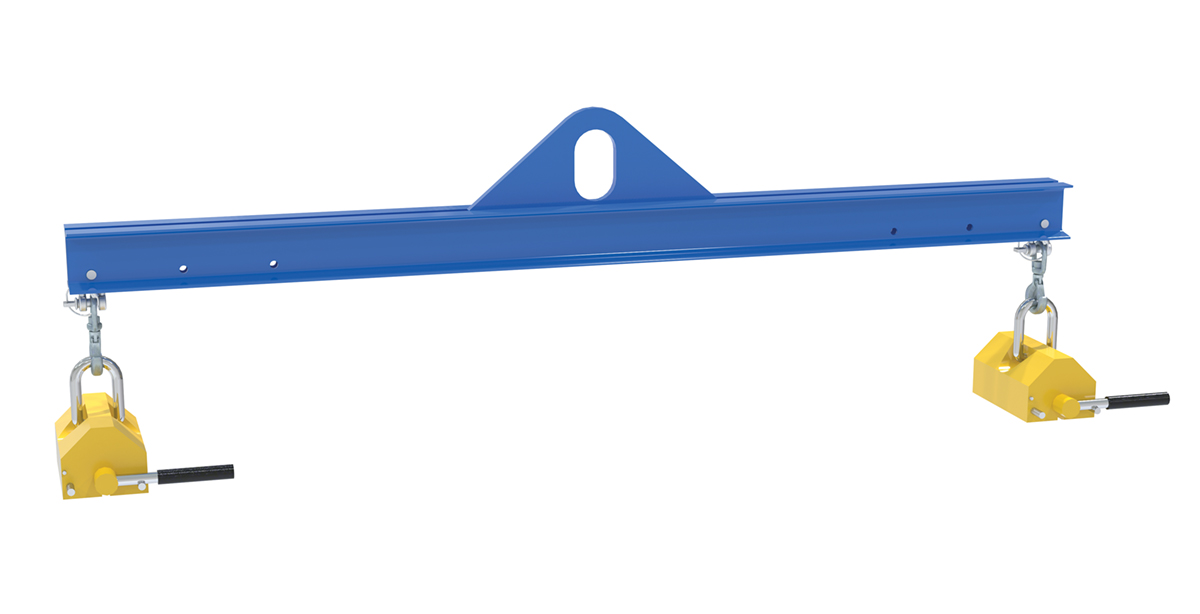

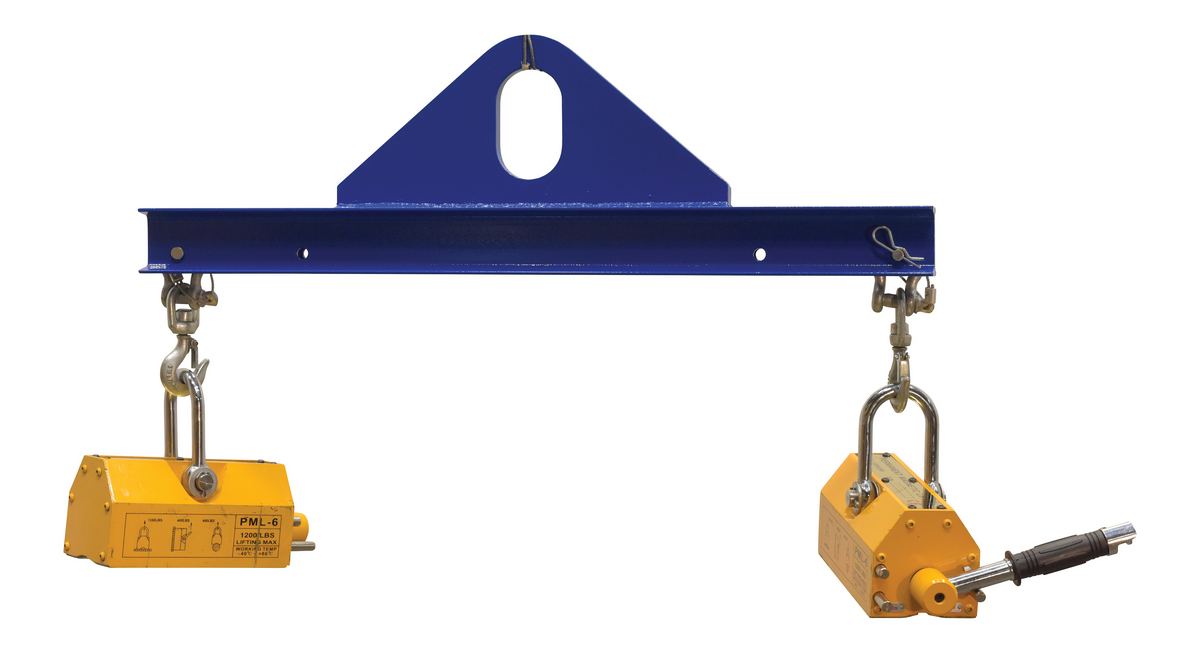

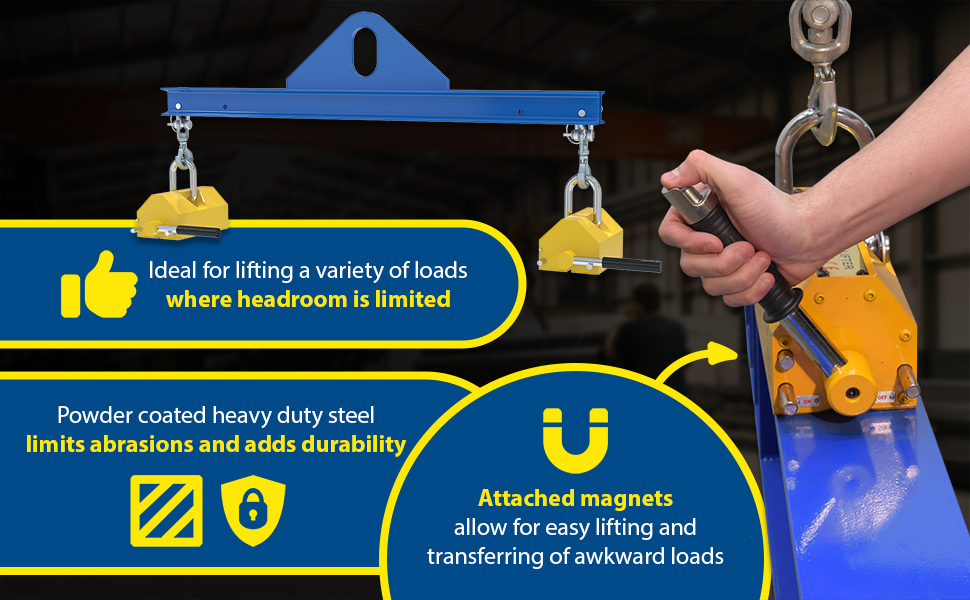

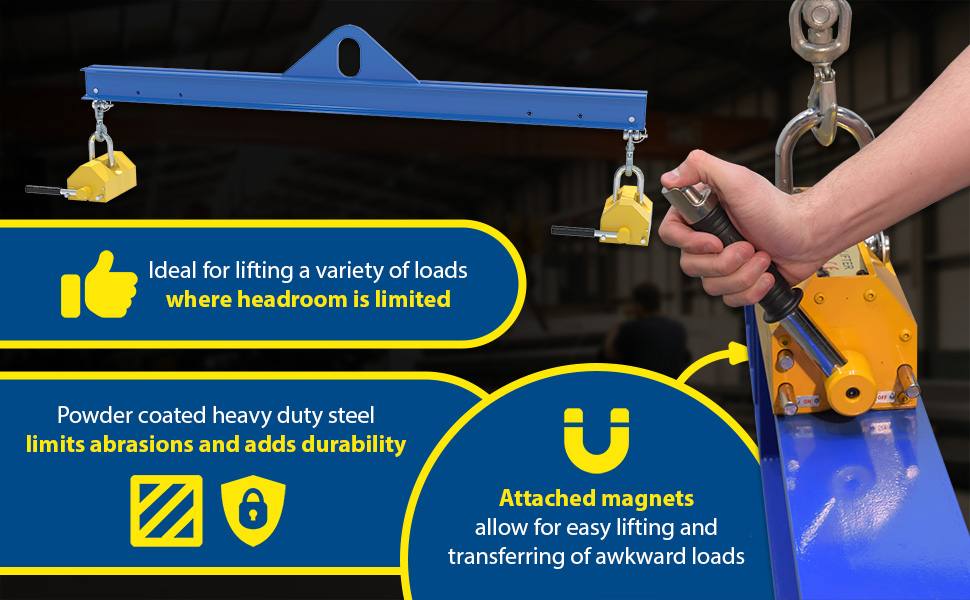

This versatile magnetic Spreader Beam is ideal for lifting a variety of loads where headroom is limited. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.

  • Designed to lift and move awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance

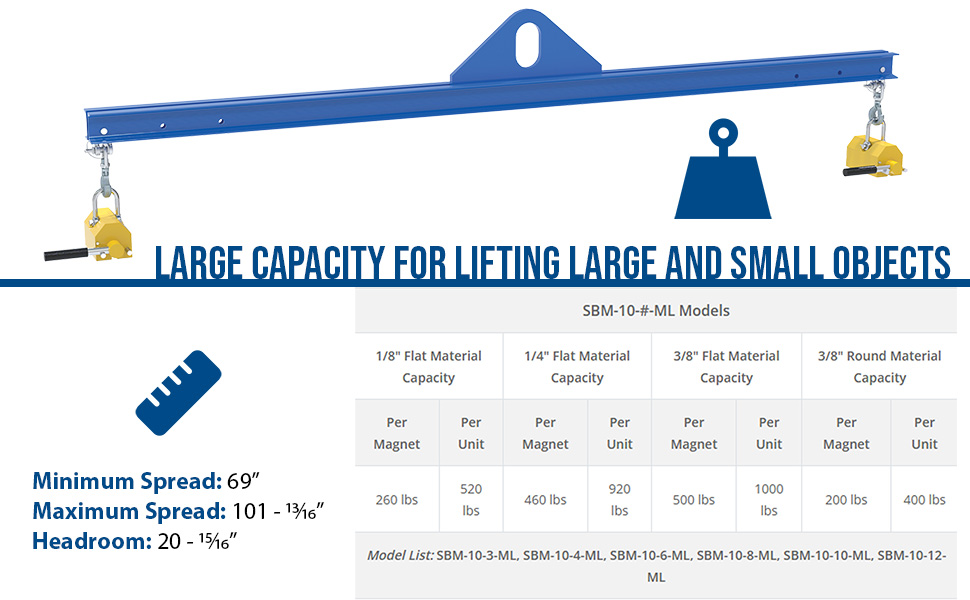

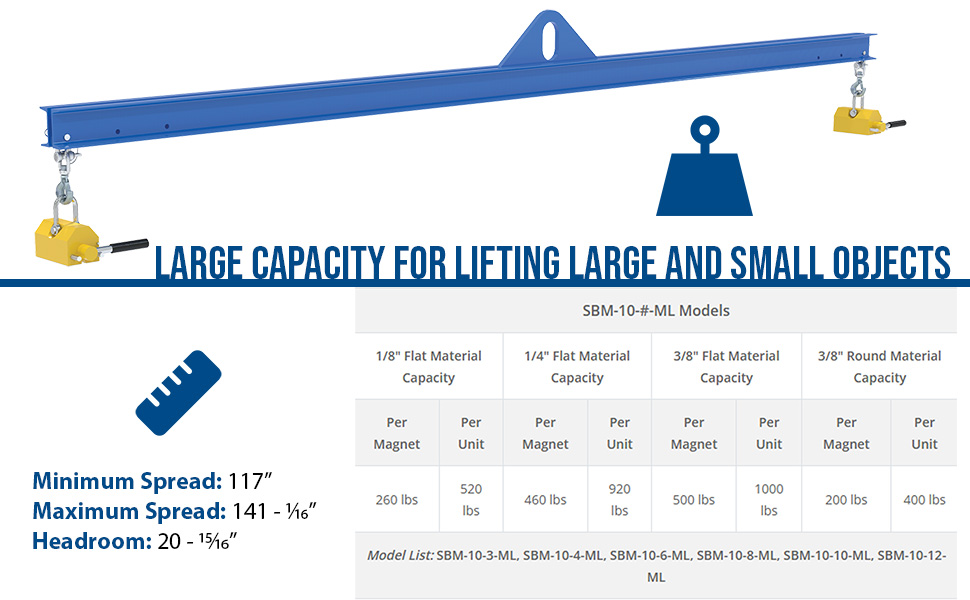

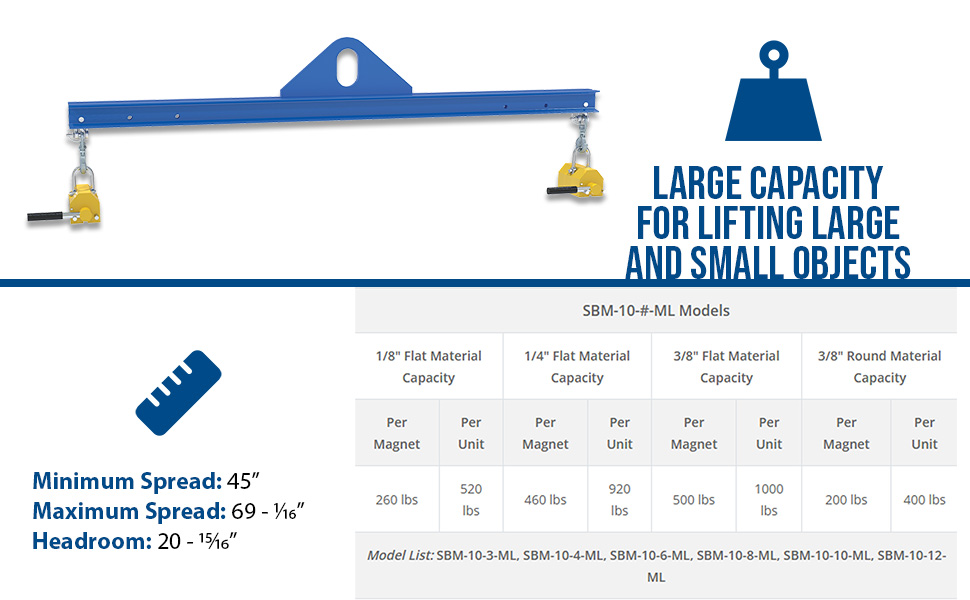

SBM-10-#-ML Models
1/8" Flat Material Capacity 1/4" Flat Material Capacity 3/8" Flat Material Capacity 3/8" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
260 lbs 520 lbs 460 lbs 920 lbs 500 lbs 1000 lbs 200 lbs 400 lbs
Model List: SBM-10-3-ML, SBM-10-4-ML, SBM-10-6-ML, SBM-10-8-ML, SBM-10-10-ML, SBM-10-12-ML

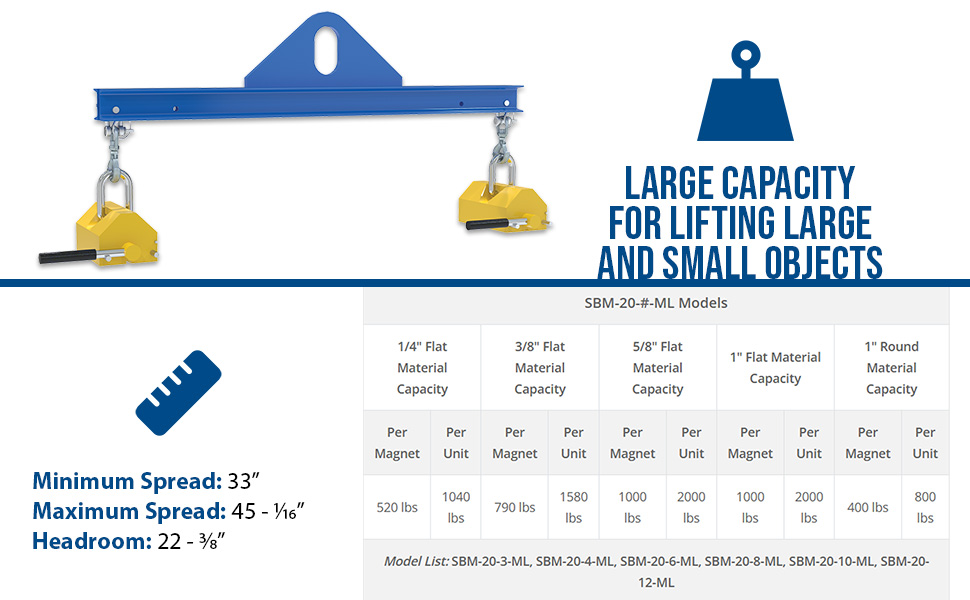

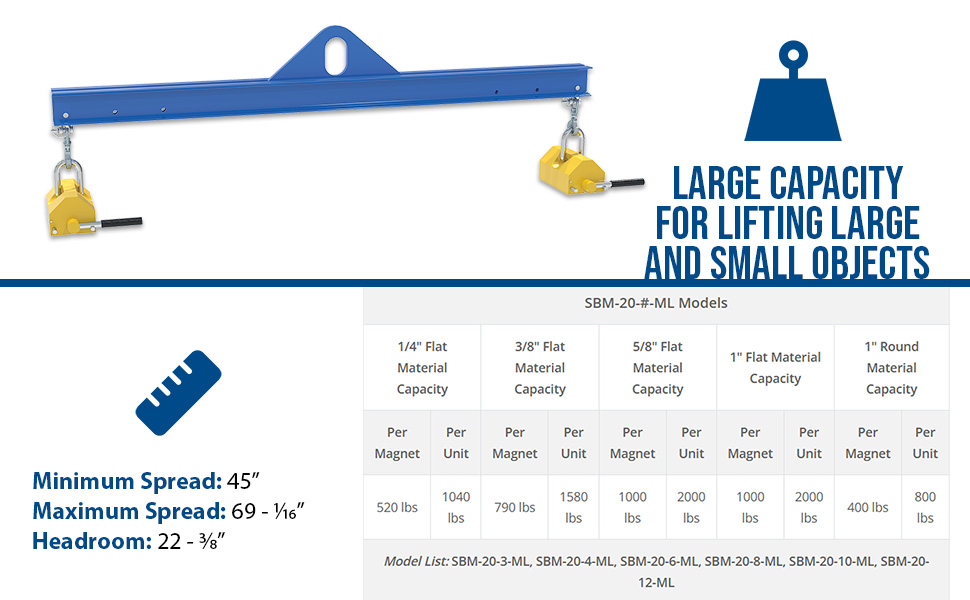

SBM-20-#-ML Models
1/4" Flat Material Capacity 3/8" Flat Material Capacity 5/8" Flat Material Capacity 1" Flat Material Capacity 1" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
520 lbs 1040 lbs 790 lbs 1580 lbs 1000 lbs 2000 lbs 1000 lbs 2000 lbs 400 lbs 800 lbs
Model List: SBM-20-3-ML, SBM-20-4-ML, SBM-20-6-ML, SBM-20-8-ML, SBM-20-10-ML, SBM-20-12-ML
Magnetic Spreader Beams

model: SBM-20-3-ML

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

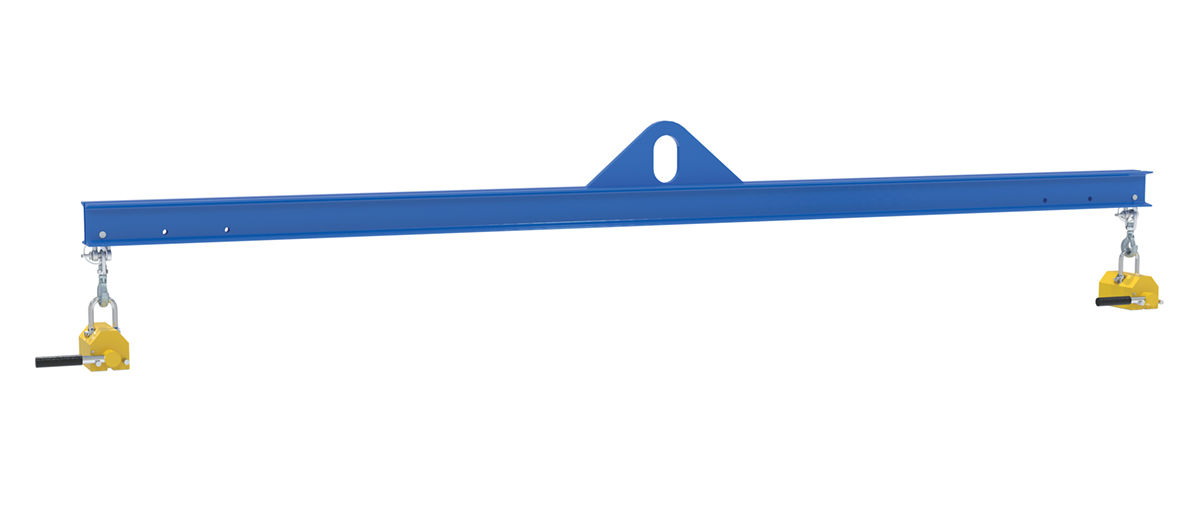

SBM-10-10-ML SBM-10-10-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 120 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		245

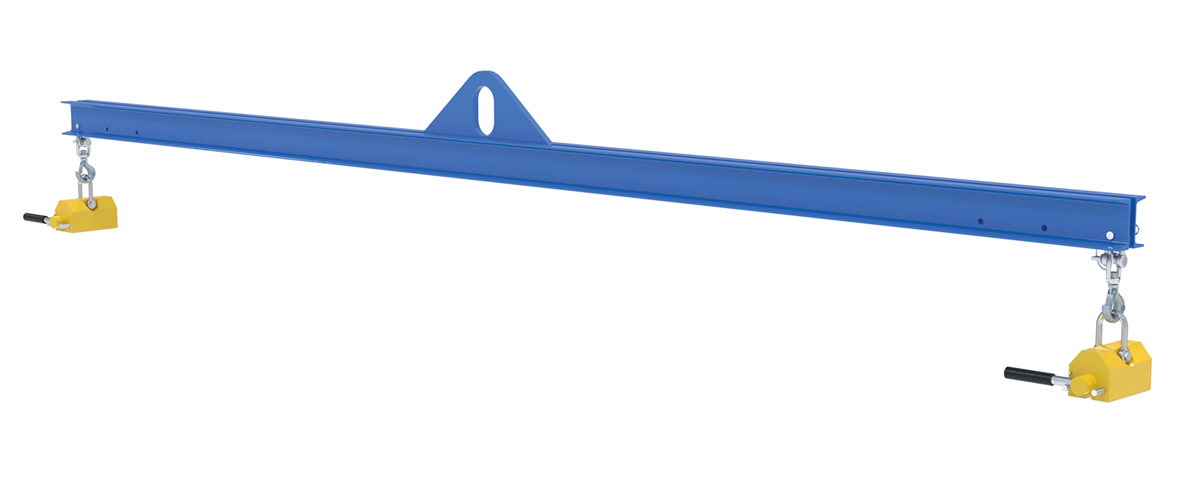

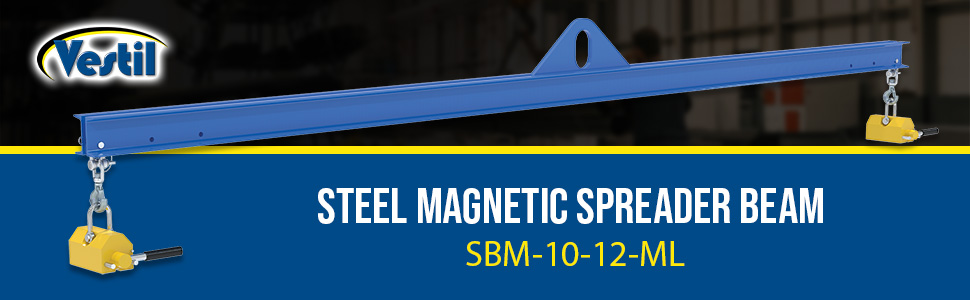

SBM-10-12-ML SBM-10-12-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 144 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		266
SBM-10-3-ML SBM-10-3-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 36 In. Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		2163
SBM-10-4-ML SBM-10-4-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 48 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		2183

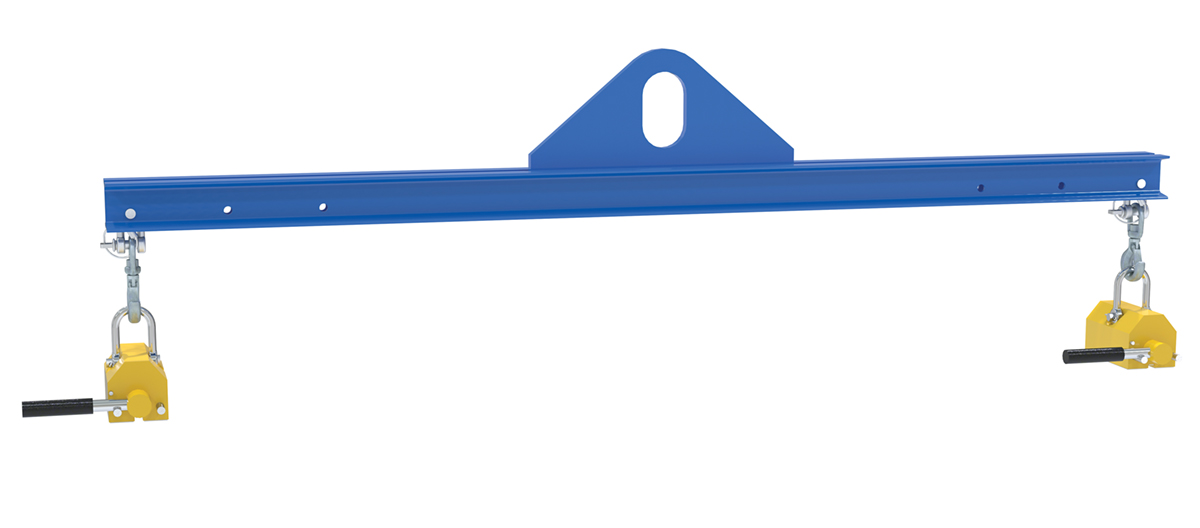

SBM-10-6-ML SBM-10-6-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 72 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		189
SBM-10-8-ML SBM-10-8-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 96 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		201
SBM-20-10-ML SBM-20-10-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 120 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"		342

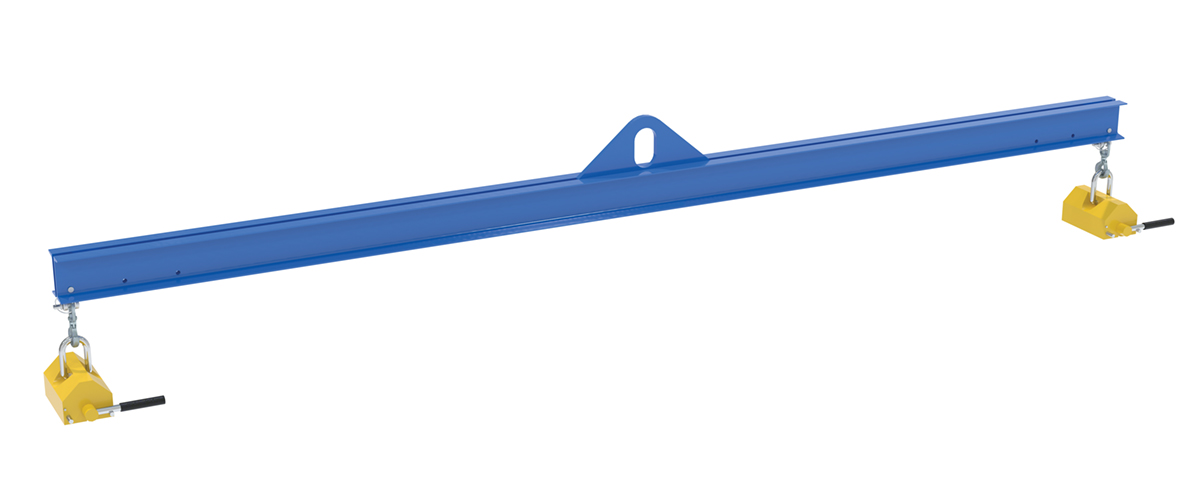

SBM-20-12-ML SBM-20-12-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 144 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"		369
SBM-20-3-ML SBM-20-3-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 36 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-11/32"		188

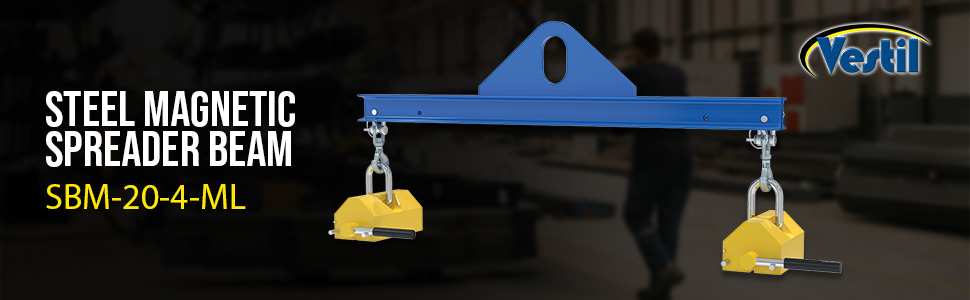

SBM-20-4-ML SBM-20-4-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 48 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		208
SBM-20-6-ML SBM-20-6-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 72 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		269
SBM-20-8-ML SBM-20-8-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 96 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		320

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SBM-10-3-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-4-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-6-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-8-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-10-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-12-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-20-3-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-11/32"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-11/32"

SBM-20-4-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"

SBM-20-6-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"

SBM-20-8-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"

SBM-20-10-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"

SBM-20-12-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"
Magnetic Spreader Beams PDF's will open in a new window when clicked.

Manuals


SBM-ML
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SBM-10-3-ML

SBM-10-4-ML

SBM-10-6-ML

SBM-10-8-ML

SBM-10-10-ML

SBM-10-12-ML

SBM-20-3-ML

SBM-20-4-ML

SBM-20-6-ML

SBM-20-8-ML

SBM-20-10-ML

SBM-20-12-ML

Testing Certificates


SBM-10-10-ML

SBM-10-12-ML

SBM-10-3-ML

SBM-10-4-ML

SBM-10-6-ML

SBM-10-8-ML

SBM-20-10-ML

SBM-20-12-ML

SBM-20-3-ML

SBM-20-4-ML

SBM-20-6-ML

SBM-20-8-ML

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
