Structural Cantilever Racking| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| DAC-1012 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 12 In. Usable Arms 10 Ft. High 26500 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 26500 Component: Double-Sided Upright | 316 | ||
| DAC-1024 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 24 In. Usable Arms 10 Ft. High 16600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 16600 Component: Double-Sided Upright | 350 | ||
| DAC-1036 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 36 In. Usable Arms 10 Ft. High 12250 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 12250 Component: Double-Sided Upright | 365 | ||
| DAC-1212 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 12 In. Usable Arms 12 Ft. High 26600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 26600 Component: Double-Sided Upright | 357 | ||
| DAC-1224 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 24 In. Usable Arms 12 Ft. High 16500 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 16500 Component: Double-Sided Upright | 386 | ||

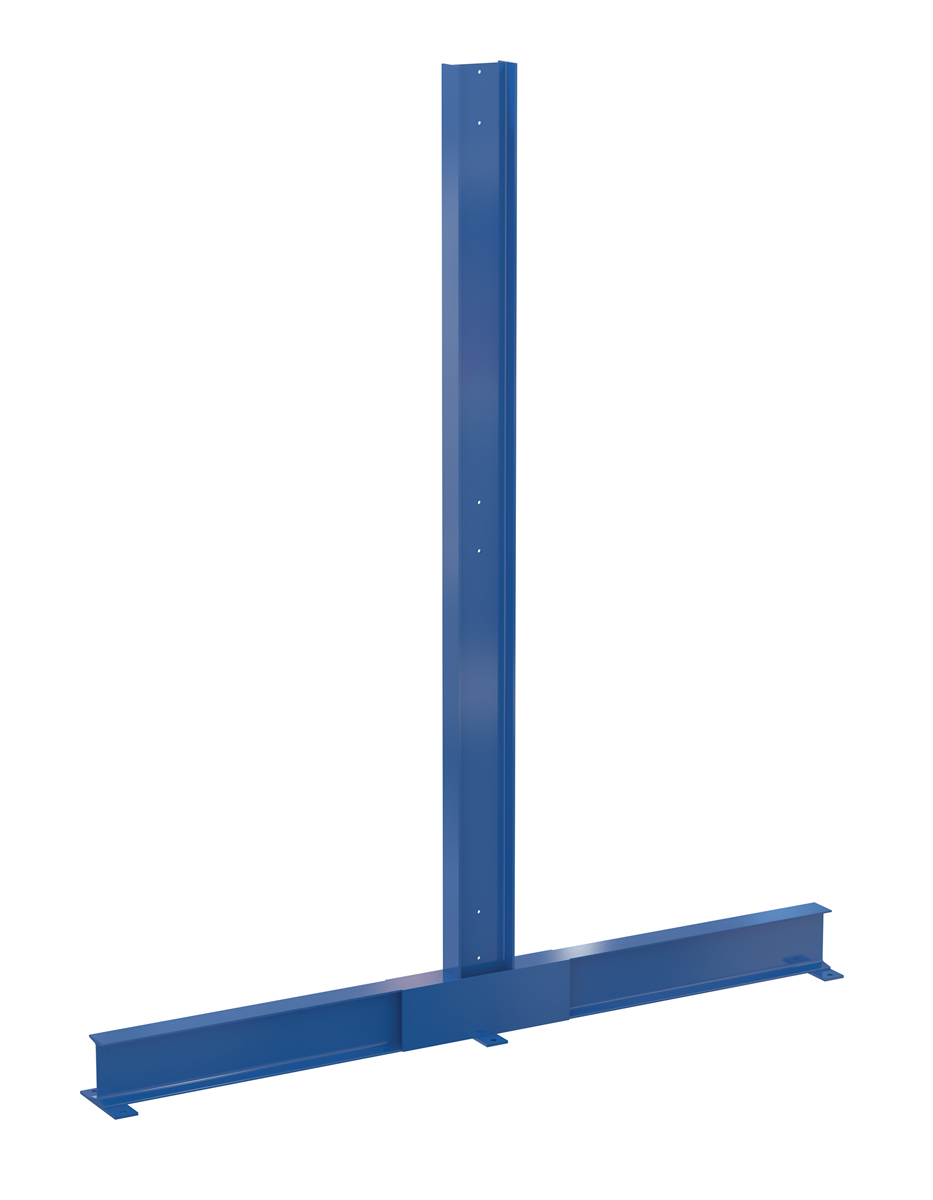

| DAC-1236 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 36 In. Usable Arms 12 Ft. High 12250 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 12250 Component: Double-Sided Upright | 405 | ||
| DAC-812 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 12 In. Usable Arms 8 Ft. High 18000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 18000 Component: Double-Sided Upright | 242 | ||
| DAC-824 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 24 In. Usable Arms 8 Ft. High 12000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 12000 Component: Double-Sided Upright | 271 | ||
| DAC-836 |  | 90 Days Limited Warranty | Steel Double-Sided Cantilever Upright 36 In. Usable Arms 8 Ft. High 9200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 9200 Component: Double-Sided Upright | 290 | ||

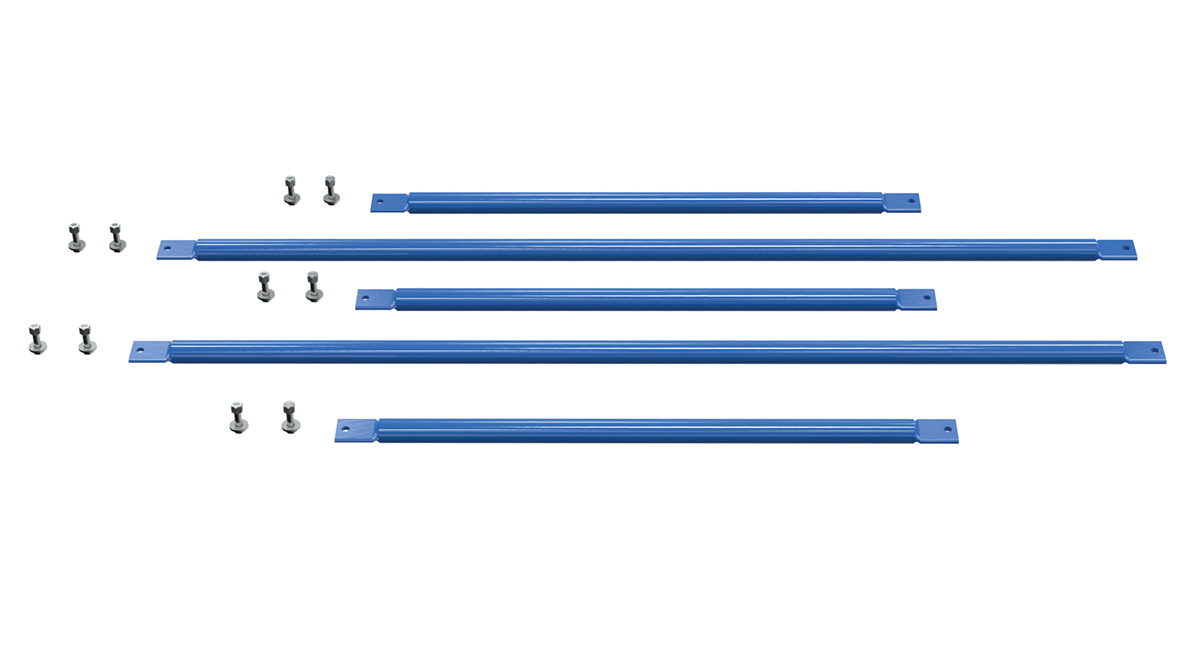

| HBS-10123 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 36 In. x 144 In. Blue | Component: Brace Set Column Height (in.): 120 & 144 | 84 | ||

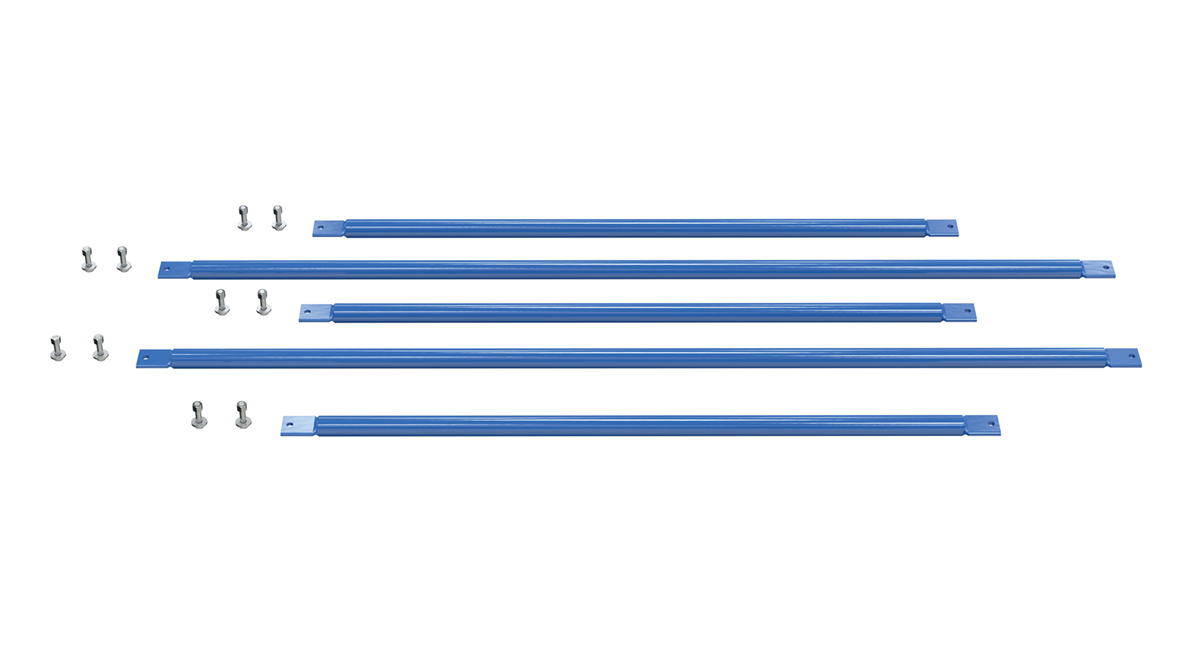

| HBS-10124 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 48 In. x 144 In. Blue | Component: Brace Set Column Height (in.): 120 & 144 | 92 | ||

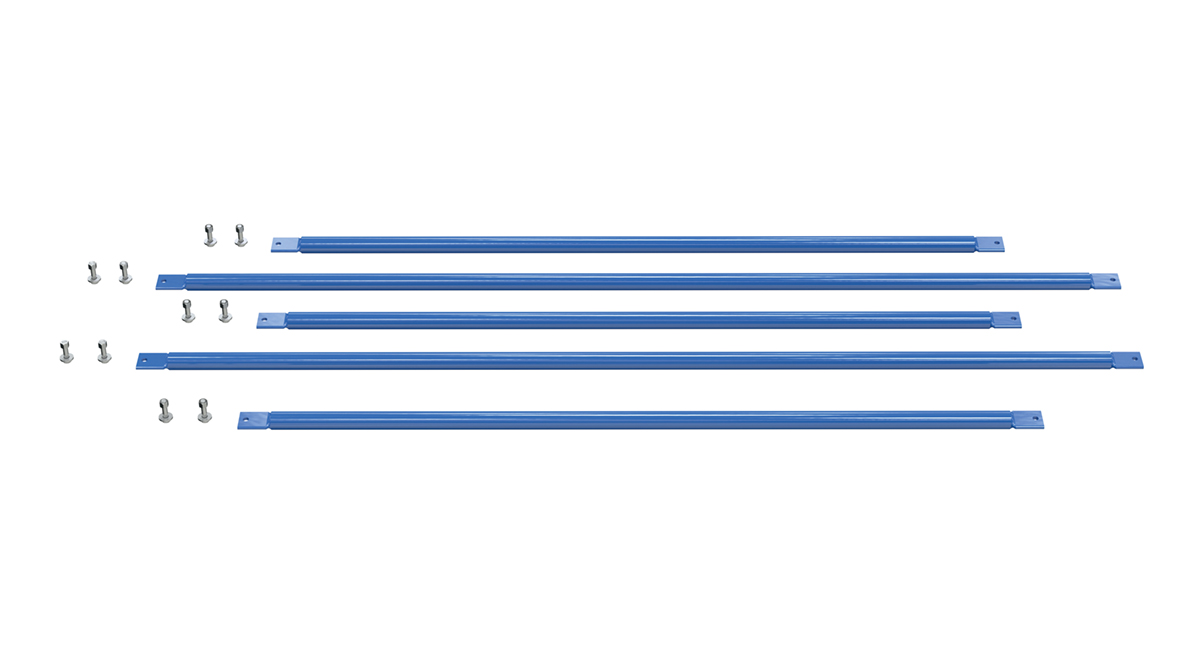

| HBS-10125 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 60 In. x 144 In. Blue | Component: Brace Set Column Height (in.): 120 & 144 | 102 | ||

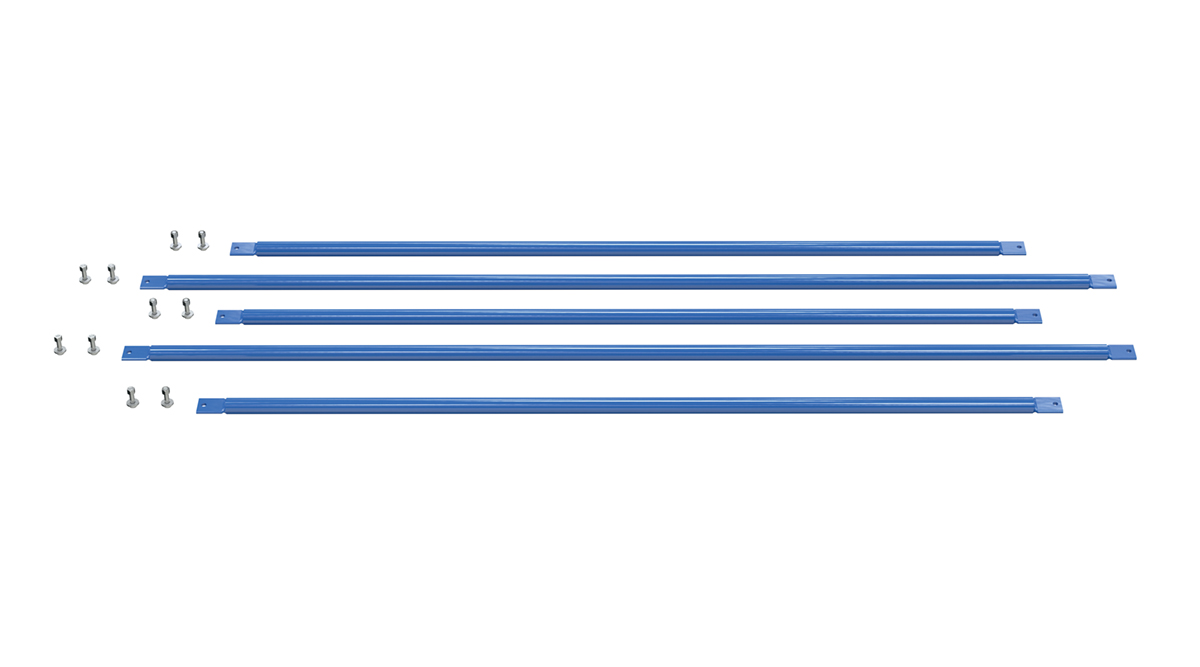

| HBS-10126 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 72 In. x 144 In. Blue | Component: Brace Set Column Height (in.): 120 & 144 | 111 | ||
| HBS-83 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 36 In. x 96 In. Blue | Component: Brace Set Column Height (in.): 96 | 21 | ||

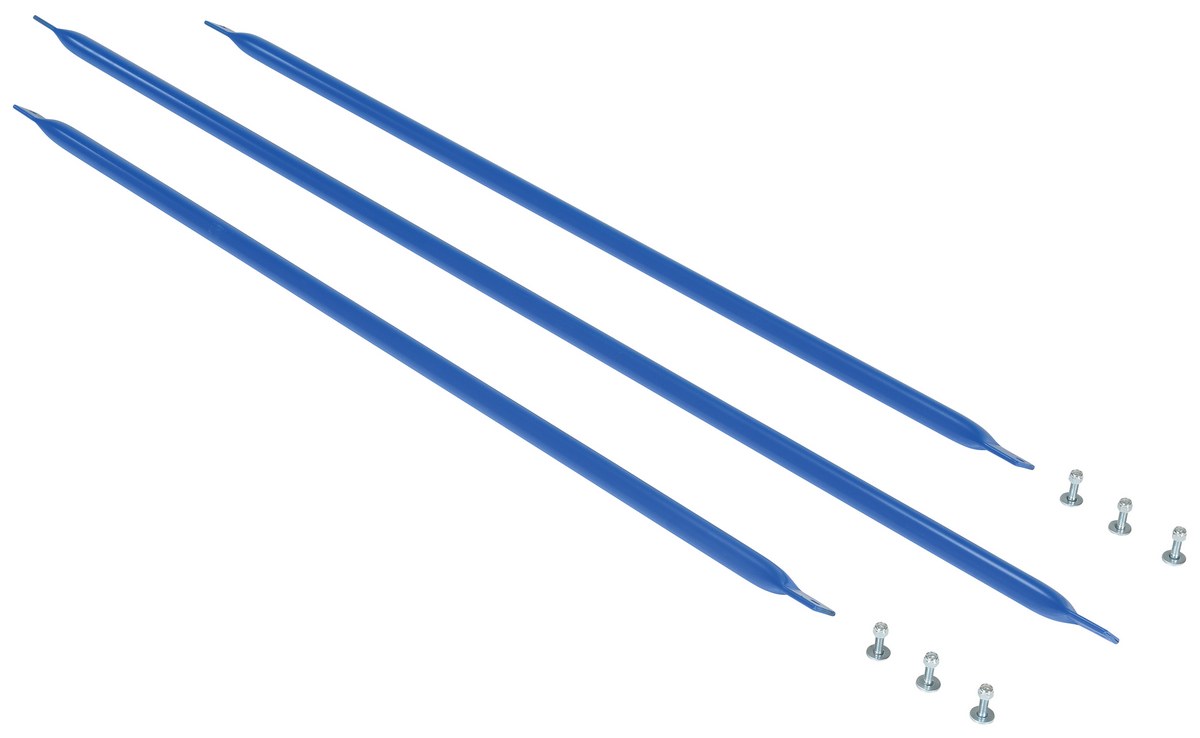

| HBS-84 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 48 In. x 96 In. Blue | Component: Brace Set Column Height (in.): 96 | 30 | ||
| HBS-85 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 60 In. x 96 In. Blue | Component: Brace Set Column Height (in.): 96 | 36 | ||
| HBS-86 |  | 1 Year Limited Warranty | Steel Structural Cantilever Brace Set 72 In. x 96 In. Blue | Component: Brace Set Column Height (in.): 96 | 41 | ||

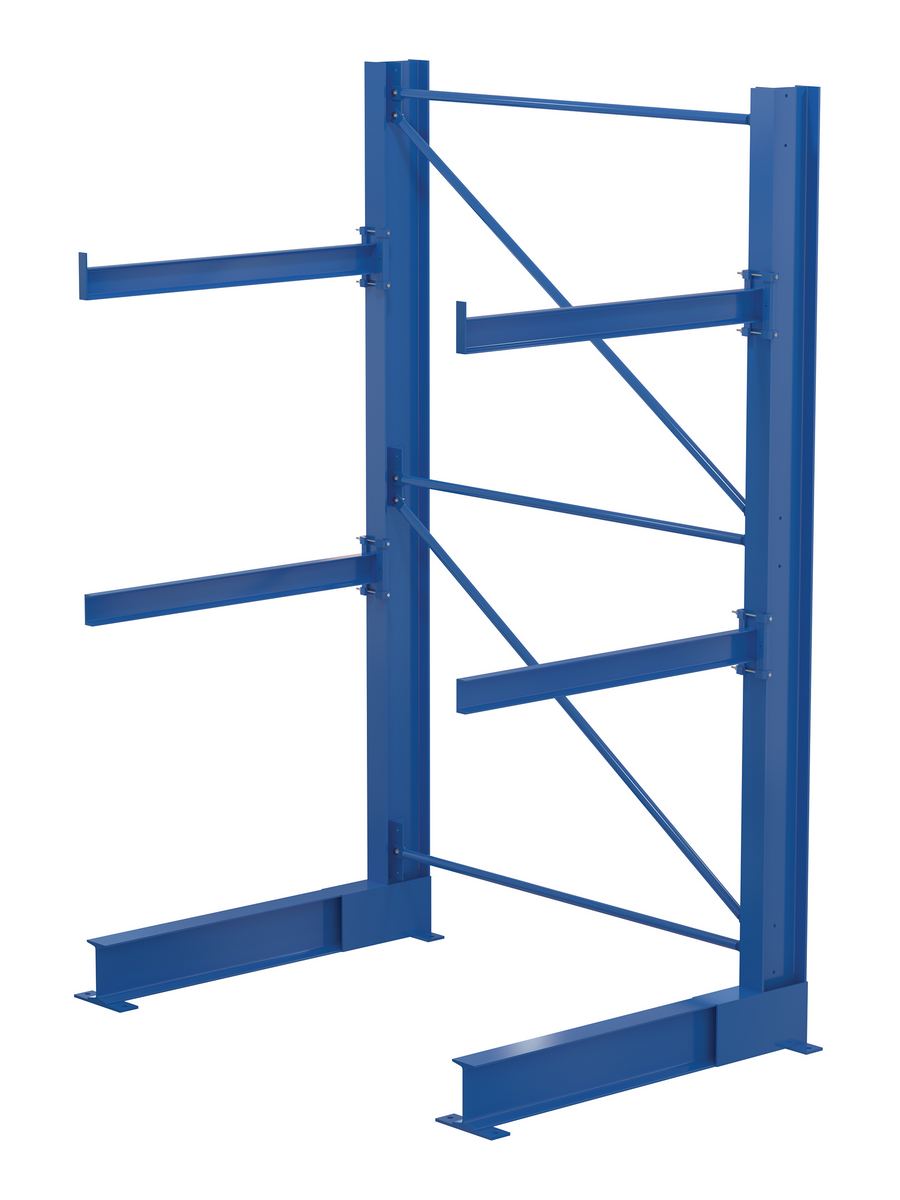

| SAC-1012 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 20 In. x 10 In. x 120 In. 13,250 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 13,250 Arm(s) to Use Length (in.): 12 | 285 | ||
| SAC-1024 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 32 In. x 20 In. x 120 In. 8,300 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 8,300 Arm(s) to Use Length (in.): 24 | 294 | ||
| SAC-1036 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 44 In. x 10 In. x 120 In. 6,125 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 6,125 Arm(s) to Use Length (in.): 36 | 317 | ||
| SAC-1048 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 56 In. x 10 In. x 120 In. 4,750 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 4,750 Arm(s) to Use Length (in.): 48 | 329 | ||
| SAC-1212 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 20 In. x 10 In. x 144 In. 13,300 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 13,300 Arm(s) to Use Length (in.): 12 | 325 | ||
| SAC-1224 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 32 In. x 10 In. x 144 In. 8,250 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 8,250 Arm(s) to Use Length (in.): 24 | 335 | ||
| SAC-1236 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 44 In. x 10 In. x 144 In. 6,125 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 6,125 Arm(s) to Use Length (in.): 36 | 358 | ||
| SAC-1248 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 56 In. x 10 In. x 144 In. 4,750 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 4,750 Arm(s) to Use Length (in.): 48 | 369 | ||
| SAC-812 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 20 In. x 10 In. x 96 In. 9,000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 9,000 Arm(s) to Use Length (in.): 12 | 220 | ||
| SAC-824 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 32 In. x 10 In. x 96 In. 6,000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 6,000 Arm(s) to Use Length (in.): 24 | 229 | ||
| SAC-836 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 44 In. x 10 In. x 96 In. 4,600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 4,600 Arm(s) to Use Length (in.): 36 | 243 | ||

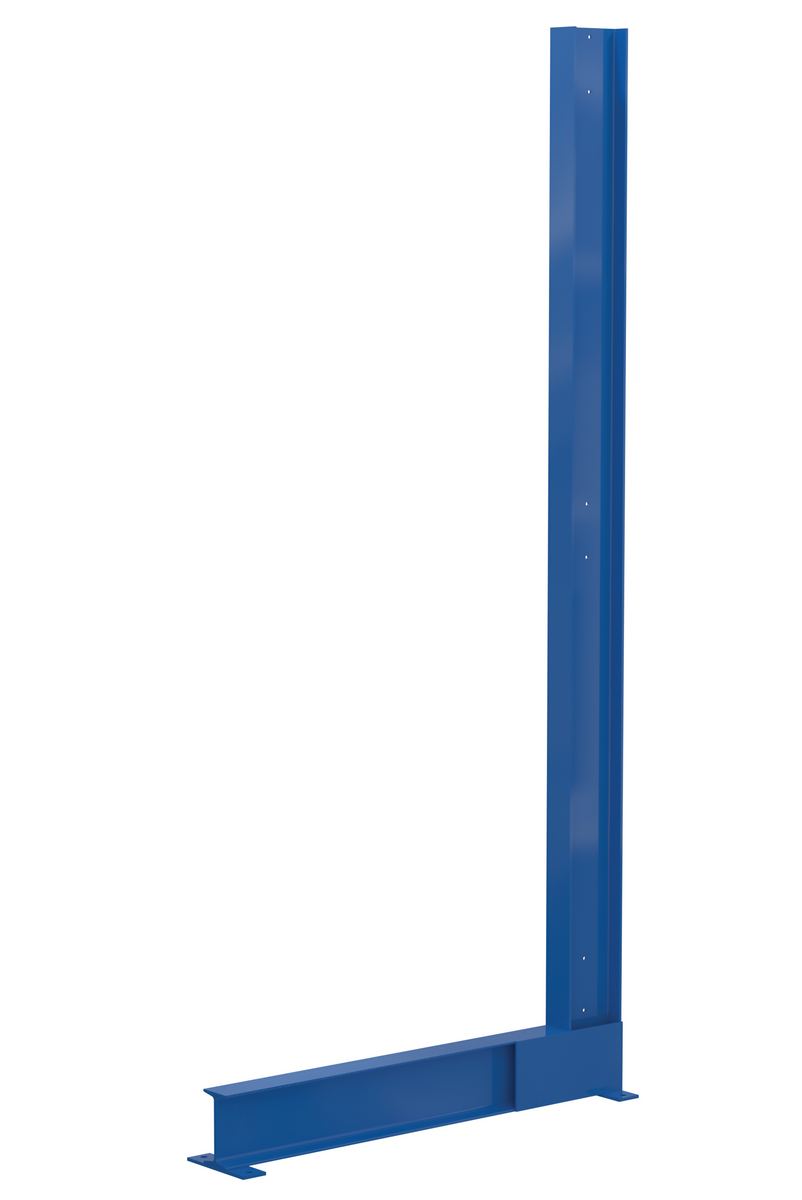

| SAC-848 |  | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright 56 In. x 10 In. x 96 In. 3,800 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 3,800 Arm(s) to Use Length (in.): 48 | 265 | ||
| SSAL-12 |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm with 2 In. Lip 12 In. Length 3,000 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 3,000 Usable Length (in.): 11-5/16 | 11 | ||

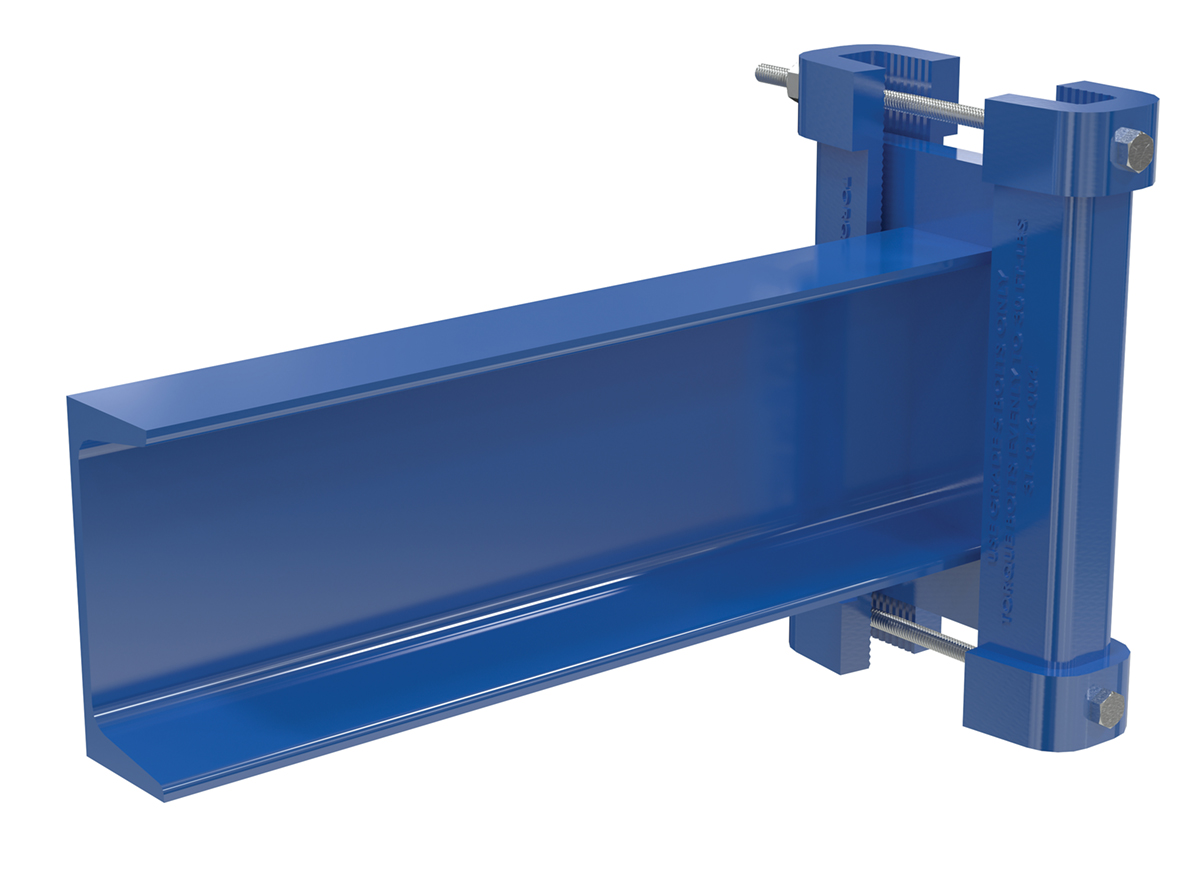

| SSAL-12-NL |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm No Lip 12 In. Length 3,000 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 3,000 Usable Length (in.): 11-5/16 | 11 | ||

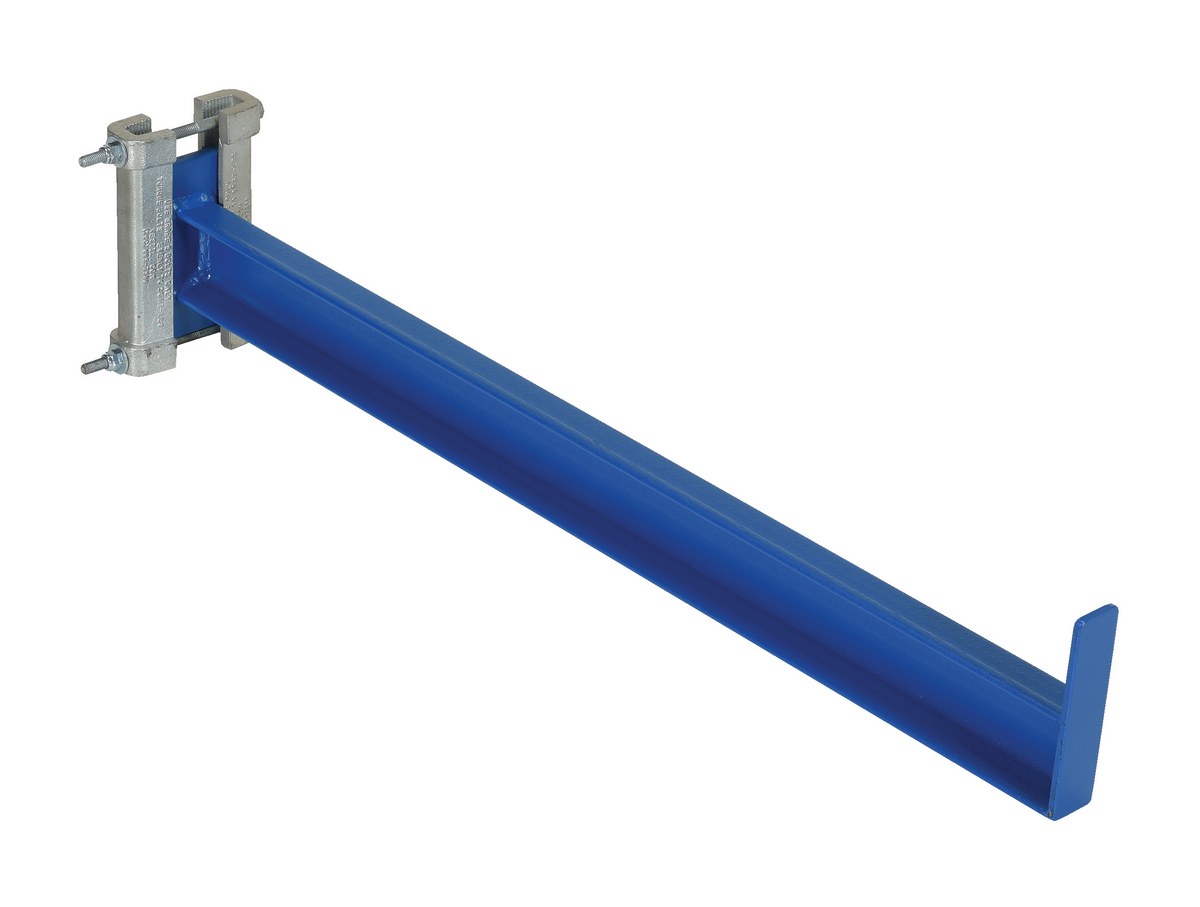

| SSAL-24 |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm with 2 In. Lip 24 In. Length 2,000 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 2,000 Usable Length (in.): 23-5/16 | 15 | ||

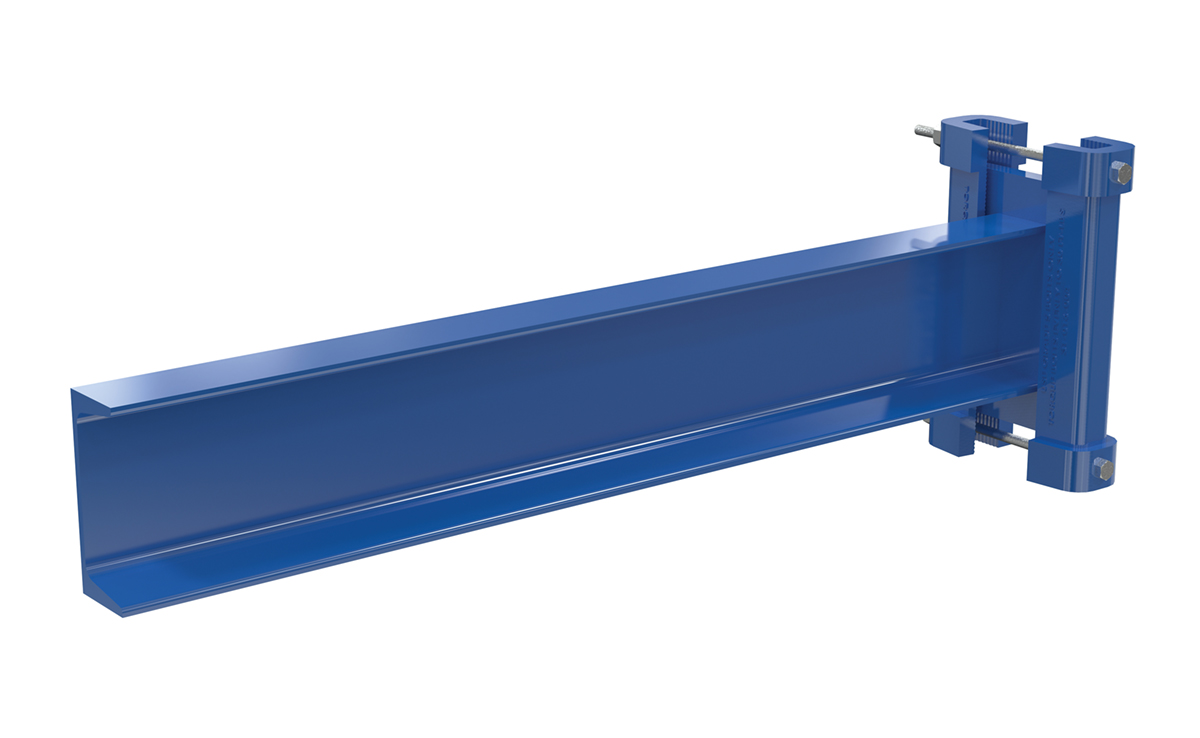

| SSAL-24-NL |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm No Lip 24 In. Length 2,000 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 2,000 Usable Length (in.): 23-5/16 | 15 | ||
| SSAL-36 |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm with 2 In. Lip 36 In. Length 1,200 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 1,200 Usable Length (in.): 35-5/16 | 20 | ||

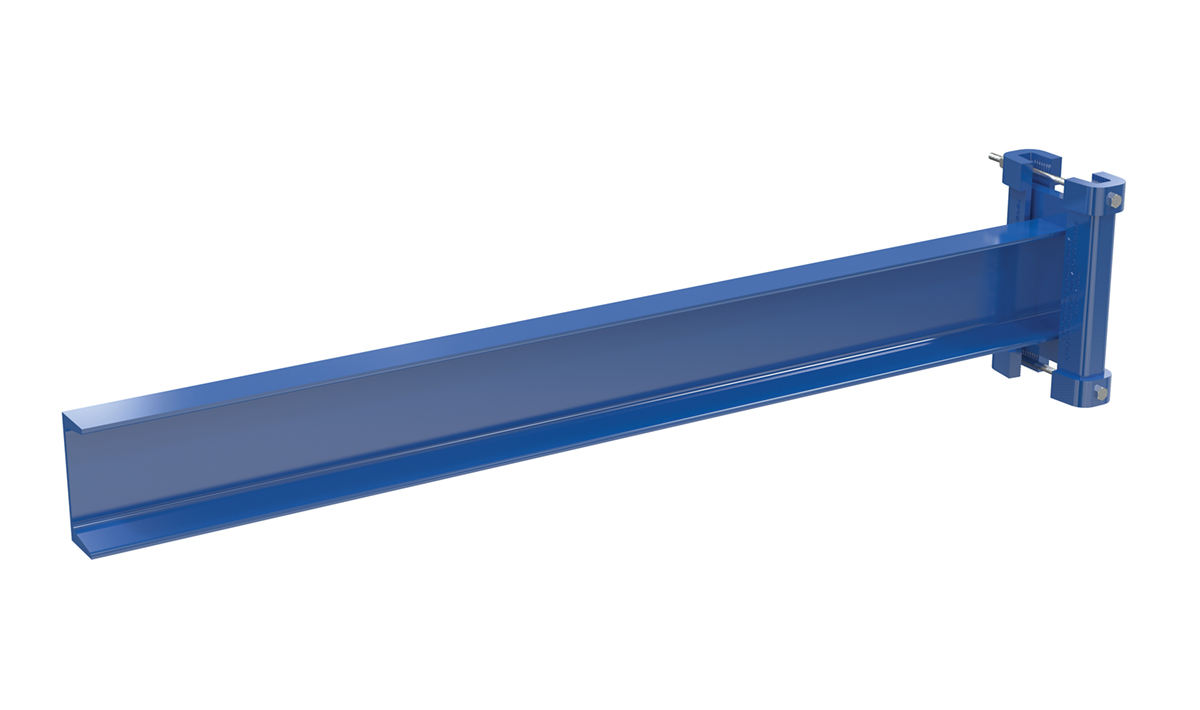

| SSAL-36-NL |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm No Lip 36 In. Length 1,200 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 1,200 Usable Length (in.): 35-5/16 | 20 | ||

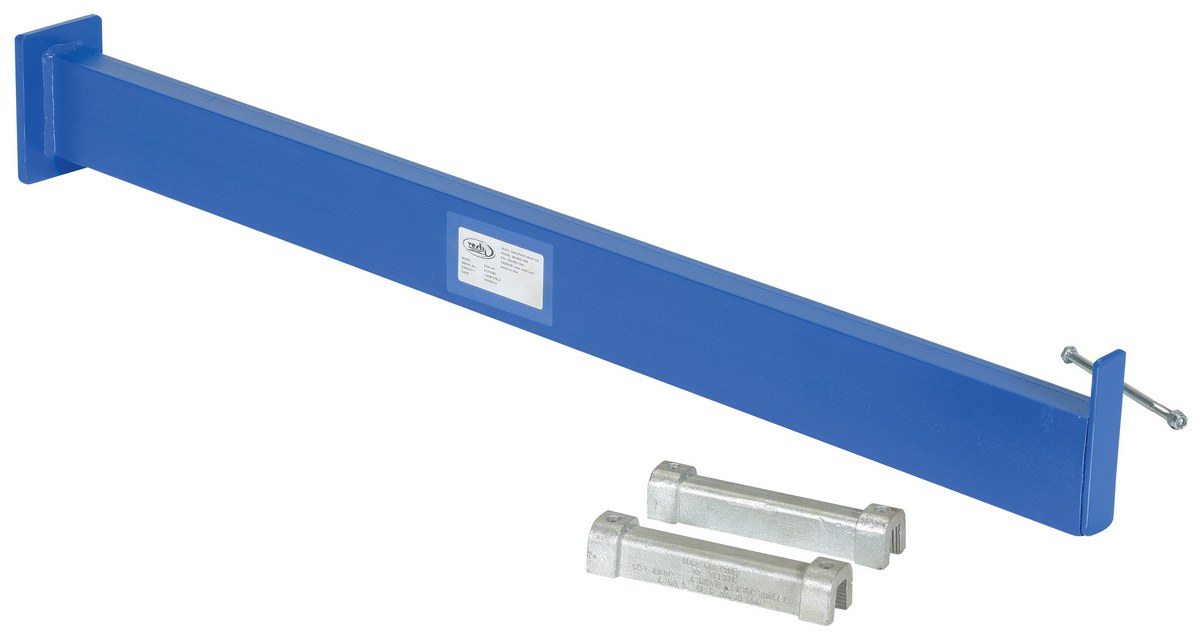

| SSAL-48 |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm with 2 In. Lip 48 In. Length 1,000 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 1,000 Usable Length (in.): 47-5/16 | 24 | ||

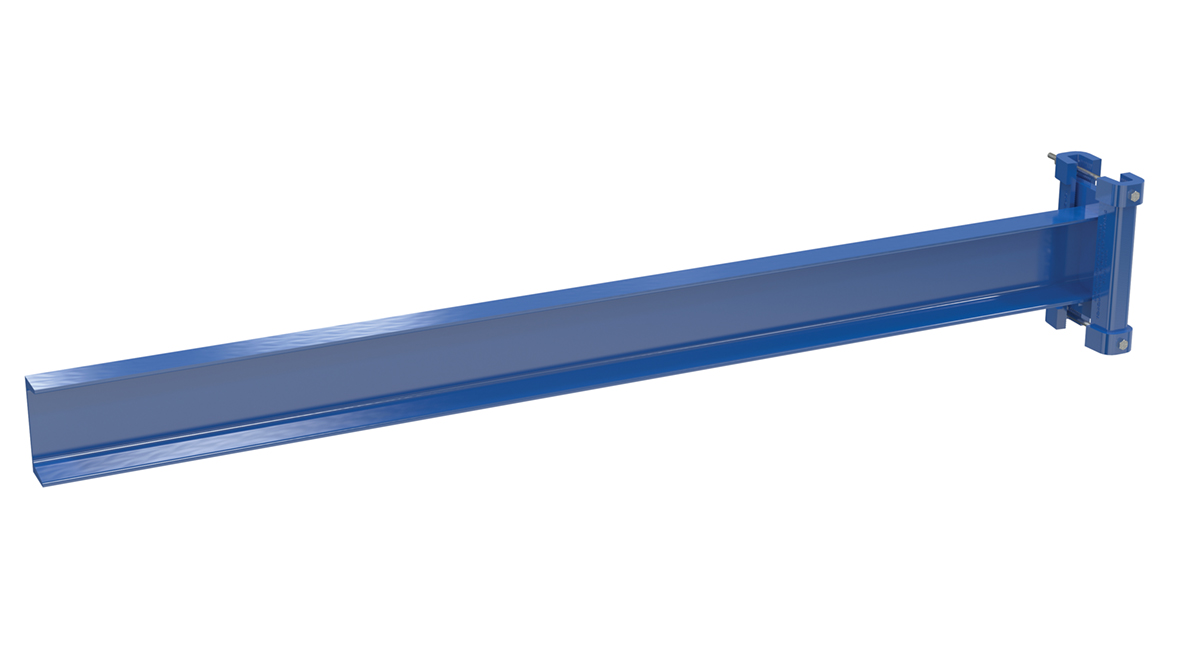

| SSAL-48-NL |  | 1 Year Limited Warranty | Steel Cantilever Straight Arm No Lip 48 In. Length 1,000 Lb. Capacity Blue | Uniform Capacity Per Arm (lb.): 1,000 Usable Length (in.): 47-5/16 | 24 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structural Cantilever Racking |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

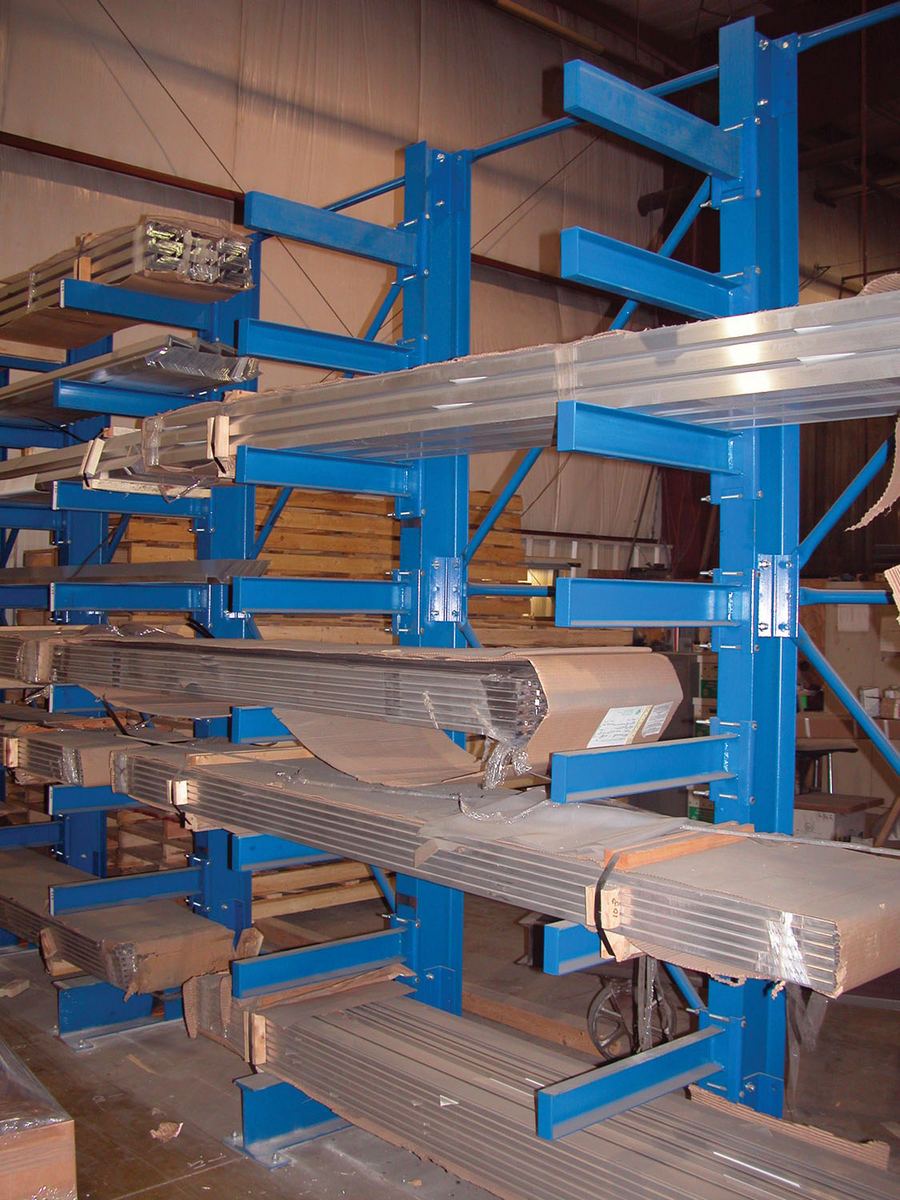

Cantilever Rack Systems offer flexibility to custom-fit individual applications. The unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements. Arms attach to upright with a "C" clamps that are infinitely adjustable. Capacity listed is per upright. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
